 | GEnx-1B SERVICE BULLETIN - 72-0023 R00 | Revised: 09/08/2011 |
| SB 72-0023 R00 ENGINE - Propulsor Module Assembly (72-00-00) - Introduction of New Self-Locking Nut for HPC Flange Joints | Issued: 09/08/2011 | |
| GEnx-1B SERVICE BULLETIN - 72-0023 R00 | Revised: 09/08/2011 |
| SB 72-0023 R00 ENGINE - Propulsor Module Assembly (72-00-00) - Introduction of New Self-Locking Nut for HPC Flange Joints | Issued: 09/08/2011 | |
| 1. | PLANNING INFORMATION |
| A. | Effectivity |
|
| This Service Bulletin is applicable to these GEnx-1B engines: |
| • |
|
| This Service Bulletin has been introduced in production to these GEnx-1B engines: |
| • |
|
| These serial numbers are the best available data. |
| The old self-locking nut P/N AS3486-12 is affected by this Service Bulletin. |
| B. | Description |
| This Service Bulletin introduces a new self-locking nut P/N J1411P06. |
| C. | Compliance |
| Category 5 |
| GE recommends that you do this Service Bulletin when the old self-locking nut is removed from the high pressure compressor (HPC). |
| The self-locking nuts do not need to be removed at the same time. The self-locking nuts should be replaced only when each HPC flange joint is disassembled. |
| NOTE: |
|
| This Service Bulletin is offered to improve the reliability or performance of your GE product, or to help prevent the occurrence of the event or condition described in this Service Bulletin. If the operator elects not to participate in the bulletin, that decision will be taken into consideration by GE in evaluating future product performance issues that may arise in the operators fleet. |
| D. | Concurrent Requirements |
| None. |
| E. | Reason |
| (1) | Objective: |
| To introduce a new part. |
| (2) | Condition: |
| The old self-locking nut has a lower strength margin and could deform with the torque applied to the HPC flange joints. |
| (3) | Cause: |
| The old self-locking nut is made from a lower strength material. |
| (4) | Improvement: |
| The new self-locking nut is made from a higher strength material. |
| (5) | Substantiation: |
| Substantiation is by analysis and comparative analysis. |
| F. | Approval |
| This Service Bulletin contains no modification information that revises the approved configuration and therefore does not require FAA approval. |
| G. | Manpower |
| No additional man-hours are required to comply with this Service Bulletin. |
| H. | Weight and Balance |
| Weight and balance are not changed. |
| I. | References (Use the latest version of these documents) |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112862, GEnx-1B Cleaning, Inspection, and Repair Manual (CIR) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| NOTE: |
|
| J. | Publications Affected |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112862, GEnx-1B Cleaning, Inspection, and Repair Manual (CIR) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| K. | Interchangeability |
| One-way interchangeable. |
| L. | Software Accomplishment Summary |
| Not applicable. |
| 2. | MATERIAL INFORMATION |
| A. | Material - Price and Availability |
| (1) | Parts necessary to do this Service Bulletin: |
|
| NOTE: |
|
| (2) | Other Spare Parts: |
| None. |
| (3) | Consumables: |
| None. |
| B. | Industry Support Information |
| None. |
| C. | Configuration Chart |
|
| Operation Codes RE=Replace RM=Remains |
| Change Code 1=One-way interchangeable. |
| Support Code E=Old parts will be supplied, and can be used at other engine locations. |
| D. | Parts Disposition |
| Discard old parts. |
| E. | Tooling - Price and Availability |
| None. |
| 3. | ACCOMPLISHMENT INSTRUCTIONS |
| A. | General |

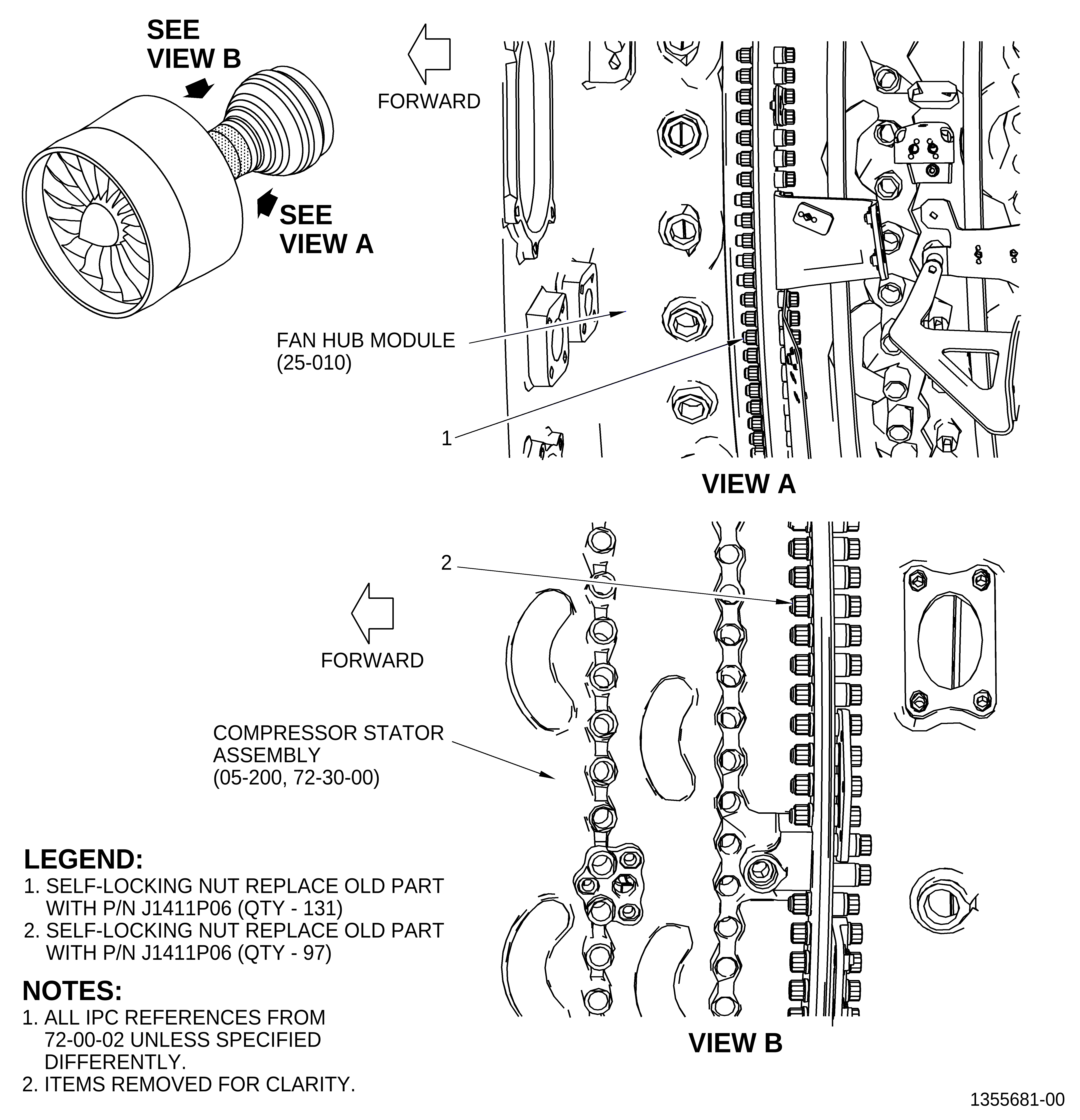

| (1) | Removal and installation instructions of self-locking nuts (1 and 2, Figure 1) have not changed. |
| (a) | For self-locking nuts (1) of the HPC forward flange, refer to GEnx-1B EM, 72-00-02, DISASSEMBLY 006 and ASSEMBLY 001. |
| (b) | For self-locking nuts (2) of the HPC forward case aft flange, refer to GEnx-1B EM, 72-30-00 DISASSEMBLY 002 and ASSEMBLY 001. |
