1.PLANNING INFORMATION
A.Effectivity
* * * FOR GEnx-1B64, -1B70
This Service Bulletin is applicable to these GEnx-1B engines:
•
GEnx-1B engines, serial numbers 956-110, 956-114 through 956-123, 956-126, 956-127, and 956-142 through 956-146.
These serial numbers are the best available data.
This Service Bulletin was accomplished at Boeing prior to aircraft delivery.
The EBU FD Kit GR P/N 738L103G01 is affected by this Service Bulletin.
B.Description
This service bulletin removes hardware not required in service for the fire extinguishing system. Removing this hardware and installing the cap and spacer changes the EBU FD Kit GR P/N 738L103G01 to P/N 738L103G02 configuration. Serial numbers not listed have a P/N 738L103G03 configuration kit installed and are not affected.
C.Compliance
Category 9
Information only.
NOTE:
This Service Bulletin can be accomplished on wing.
D.Concurrent Requirements
None.
E.Reason
(1)Objective:
To introduce a new part and remove parts from service.
(2)Condition:
Fire extinguishing testing on the engine and nacelle proved the tubes P/N ER5497G01 and P/N ER5348G01 are not needed.
(3)Cause:
It is necessary to change the configuration to meet the results of nacelle fire extinguishing testing.
(4)Improvement:
Reduced complexity of system.
(5)Substantiation:
Substantiation is by test.
F.Approval
This Service Bulletin contains no modification information that revises the approved configuration and therefore does not require FAA approval.
G.Manpower
No additional man-hours are required to comply with this Service Bulletin.
H.Weight and Balance
The complete compliance with this Service Bulletin decreases weight by 2.1 lb (0.95 kg).
I.References (Use the latest version of this document)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
NOTE:
The reference documents listed below are for the engine manufacturer's internal use only:

CID: 573209, 573284

BPP: 08-26-11-01
J.Publications Affected
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
K.Interchangeability
The parts are changed as a set and require bracket updates to change.
L.Software Accomplishment Summary
Not applicable.
2.MATERIAL INFORMATION
A.Material - Price and Availability
(1)Parts necessary to do this Service Bulletin:

Part Number
Qty/ Eng
Part Name
Unit ($) Price
Pkg Qty
Lead Time Days

2327M97P02
(1)
Spacer, Bolt
33.75
(1)
Quote

J1315G108
(1)
Cap, Tube
222.00
(5)
7
NOTE:
Prices are provided for planning purposes and are subject to change.
(2)Other Spare Parts:
None.
(3)Consumables:
None.
B.Industry Support Information
None.
C.Configuration Chart

New Part Number
Qty/ Eng
Part Name
Old Part Number/ IPC Location
Qty/ Eng
Op Code
Chg/ Sprt Code

2305M10G03
(X)
GEnx Engine Assembly
2305M10G03
(X)
RM
-/-

.2376M20G05/G06/G07
(X)
Propulsor Module Assembly
.2376M20G05/G06/G07
(X)
RM
-/-

--
(-)
Bracket, Fire Suppression Support
(SIN 99018)
..ER4972G01
60-100, 72-00-02
(1)
DE
5/A

--
(-)
Bracket, Fire Suppression Support
(SIN 99019)
..ER3779G01
60-080, 72-00-02
(1)
DE
5/A

--
(-)
Bracket, Fire Suppression Support
(SIN 9901C)
..ER4979G01
60-090, 72-00-02
(1)
DE
5/A

--
(-)
Tube, Fire Suppression
(SIN 99301)
..ER5300G01
60-010, 72-00-02
(1)
DE
5/A

--
(-)
Tube, Fire Suppression
(SIN 99303)
..ER5497G0160-020, 72-00-02
(1)
DE
5/A

--
(-)
Bracket, Tube Support
(SIN 9931C)
..ER4973G01
25-400, 72-00-02
(1)
DE
5/A

--
(-)
Tube, Fire Suppression
(SIN 99304)
..ER5348G01
60-030, 72-00-02
(1)
DE
5/A

--
(-)
Bolt, Machine
(SIN 99324)
..MS9556-12
60-060, 72-00-02
(4)
DE
5/E

..MS9556-08
60-050A, 72-00-02
(3)
Bolt, Machine
(SIN 99325)
..MS9556-08
60-050, 72-00-02
(4)
QTC
5/E

--
(-)
Bolt, Machine
(SIN 99326)
..AS3237-12
60-070, 72-00-02
(2)
DE
5/E

--
(-)
Clamp, Cushioned Loop
(SIN 99387)
..J1432P08
60-040, 72-00-02
(6)
DE
5/E

..2327M97P02
25-300A, 72-00-02
(80)
Spacer, Bolt
(SIN 07070)
..2327M97P02
25-300, 72-00-02
(77)
QTC
5/-

.738L103G02
05-001A, 71-00-00
(1)
EBU FD Kit GR
(SIN 0010J)
.738L103G01
05-001, 71-00-00
(1)
RE
5/E

..J1315G108
05-410, 71-00-00
(1)
Cap, Tube
(SIN 99064)
--
(-)
AD
5/-
Operation Codes
AD=Add
DE=Delete
RE=Replace
RM=Remains
QTC=Quantity Change
Change Code 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability.
Support Codes A=Old parts will no longer be supplied. E=Old parts will be supplied, and can be used at other engine locations.
D.Parts Disposition
None.
E.Tooling - Price and Availability
None.
3.ACCOMPLISHMENT INSTRUCTIONS
A.No change.
Introduction of New Hardware for Fire Extinguishing Nozzle

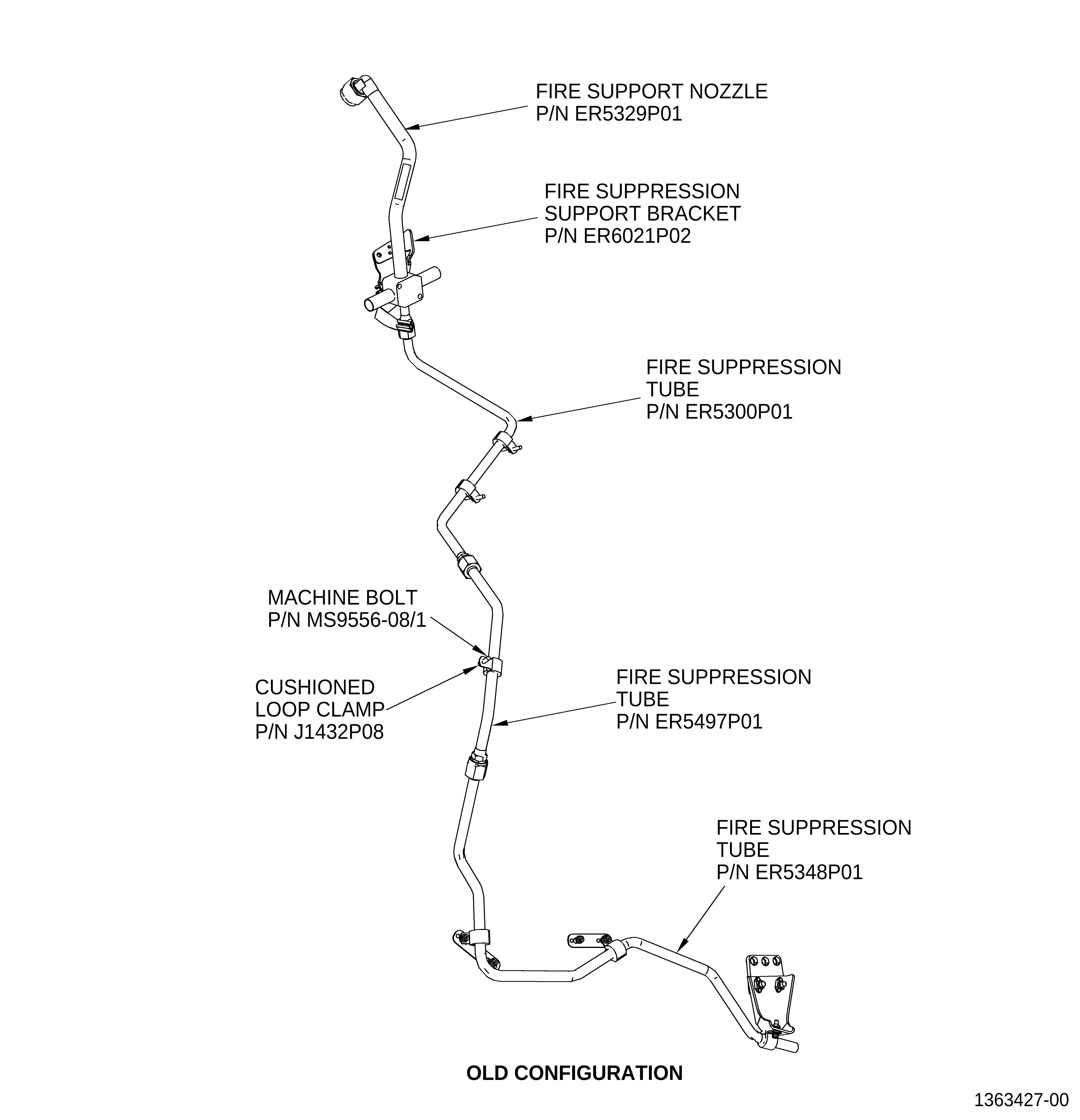

Figure 1   (Sheet 1)
Introduction of New Hardware for Fire Extinguishing Nozzle

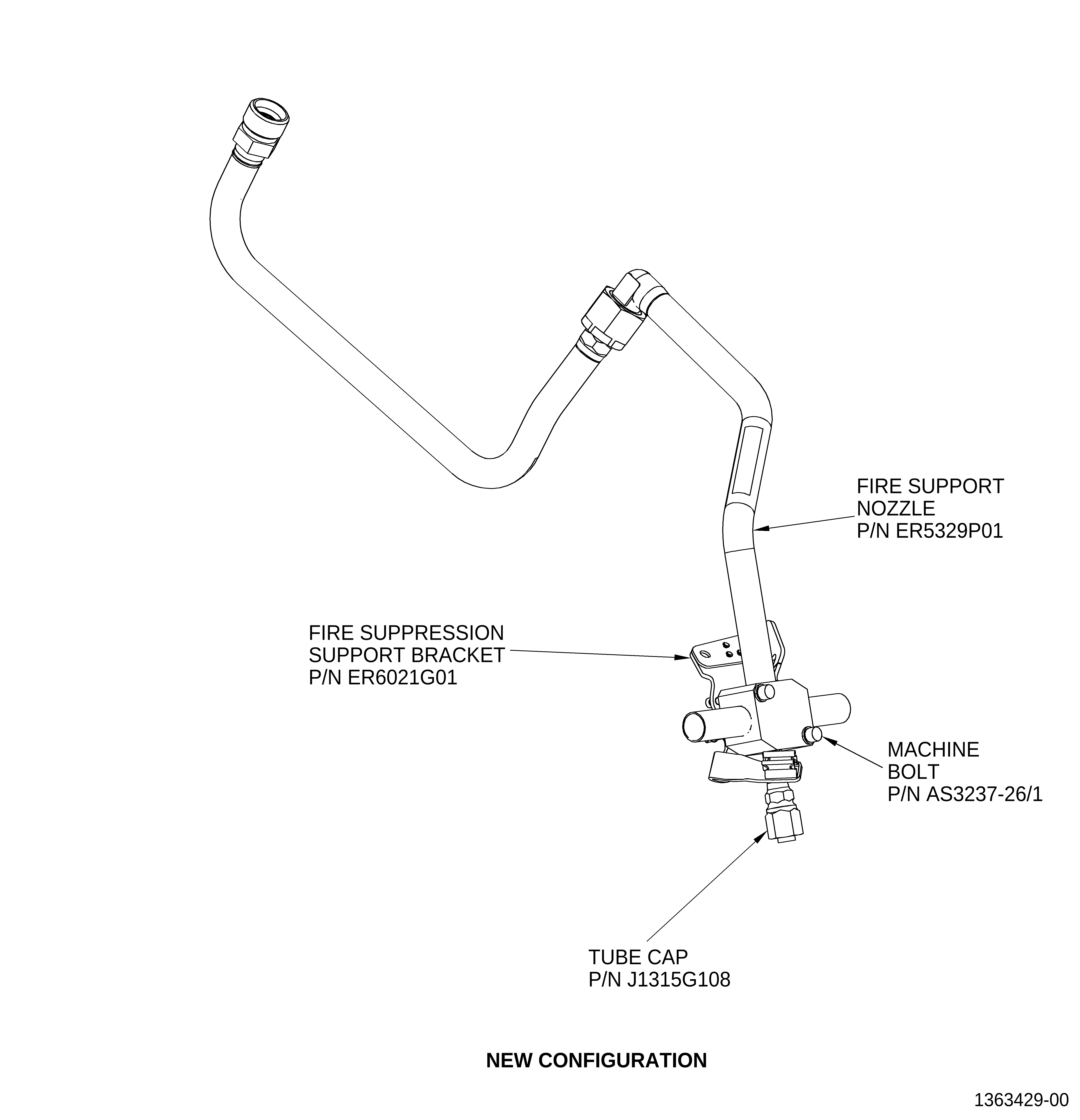

Figure 1   (Sheet 2)
