1.PLANNING INFORMATION
A.Effectivity
* * * FOR GEnx-1B54, -1B58, -1B64, -1B67, -1B70
This Service Bulletin has been introduced in production to these GEnx-1B engines:
•
GEnx-1B engines, serial numbers 956-256 and up.
The old eductor nozzle P/N 2301M76G01 is affected by this Service Bulletin.
B.Description
This Service Bulletin introduces a redesigned eductor nozzle P/N 2301M76G03 with an additional feature on the flange.
C.Compliance
Category 7
GE recommends that you do this Service Bulletin at customer's convenience/option.
NOTE:
This Service Bulletin can be accomplished in shop.
D.Concurrent Requirements
None.
E.Reason
(1)Objective:
To introduce a new part.
(2)Condition:
The current eductor nozzle uses a bolt pattern offset to get an error proof assembly. But because of component tolerances, the bolt pattern offset can be inadequate and the component can potentially be installed backward. This could affect the B-sump seal at engine ground idle speeds.
(3)Cause:
Component tolerances are inadequate to make sure that the component cannot be installed backward.
(4)Improvement:
The new eductor nozzle has a feature on the side of the nozzle flange which prevents incorrect installation.
(5)Substantiation:
Substantiation is by comparative analysis.
F.Approval
This Service Bulletin has been reviewed by the FAA and the repair(s) and modification(s) herein comply with the applicable Federal Aviation Regulations and are FAA APPROVED for installation in the model(s) listed in this Service Bulletin.
G.Manpower
No additional man-hours are required to comply with this Service Bulletin.
H.Weight and Balance
Weight and balance are not changed.
I.References (Use the latest version of these documents)
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
NOTE:
The reference document listed below is for the engine manufacturer's internal use only:

CID: 573462
J.Publications Affected
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
K.Interchangeability
Two-way interchangeable.
L.Software Accomplishment Summary
Not applicable.
2.MATERIAL INFORMATION
A.Material - Price and Availability
(1)Parts necessary to do this Service Bulletin:

Part Number
Qty/ Eng
Part Name
Unit ($) Price
Pkg Qty
Lead Time Days

2301M76G03
(1)
Nozzle, Eductor
Quote
(-)
Quote
NOTE:
Prices are provided for planning purposes and are subject to change.
(2)Other Spare Parts:
None.
(3)Consumables:
None.
B.Industry Support Information
None.
C.Configuration Chart

New Part Number
Qty/ Eng
Part Name
Old Part Number/ IPC Location
Qty/ Eng
Op Code
Chg/ Sprt Code

2376M20G02-G08
(X)
Propulsor Module Assembly
2376M20G02-G08
(X)
RM
-/-

.2301M76G03
45-130A, 72-00-02
(1)
Nozzle, Eductor
(SIN 015K3)
.2301M76G01
45-130, 72-00-02
(1)
RE
2/B
Operation Codes
RE=Replace
RM=Remains
Change Code 2=Two-way interchangeable.
Support Code B=Old parts will be supplied until all old parts are sold.
D.Parts Disposition
Use serviceable old parts for engines that have not changed.
E.Tooling - Price and Availability
None.
3.ACCOMPLISHMENT INSTRUCTIONS
A.General
(1)Removal and installation instructions for the eductor nozzle (1, Figure 1) have not changed. Refer to the GEnx-1B EM, 72-00-04, REMOVAL 001 and INSTALLATION 001.

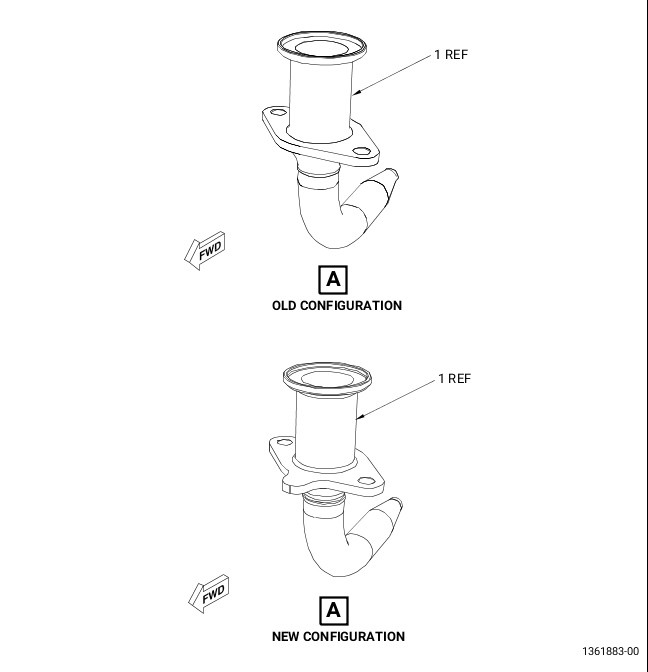

Introduction of New Eductor Nozzle
Figure 1   (Sheet 1)

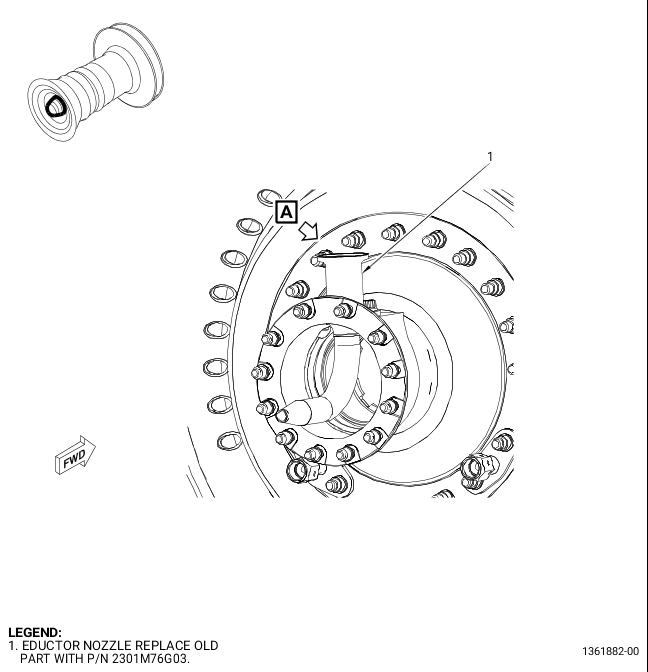

Introduction of New Eductor Nozzle
Figure 1   (Sheet 2)
