| 1. | PLANNING INFORMATION |
| A. | Effectivity |
|
| This Service Bulletin has been introduced in production to these GEnx-1B engines: |
| • |
|
| These serial numbers are the best available data. |
| The stage 1 nozzles P/N 2300M24G11, P/N 2300M24G12, and the HPT nozzle support P/N 2303M22G03 are affected by this Bulletin. |
| B. | Description |
| This Service Bulletin provides an improved configuration of the stage 1 nozzles P/N 2482M59G01, P/N 2482M59G02, and the HPT nozzle support P/N 2303M22G04. |
| C. | Compliance |
| Category 7 |
| GE recommends that you do this Service Bulletin at customer's option. |
| NOTE: |
|
| D. | Concurrent Requirements |
| None. |
| E. | Reason |
| (1) | Objective: |
| To introduce new parts and improve reliability. |
| (2) | Condition: |
| The new stage 1 nozzles P/N 2482M59G01, P/N 2482M59G02, and the HPT nozzle support P/N 2303M22G04 have a different mount interface, making the retention of the stage 1 nozzles P/N 2482M59G01 and P/N 2482M59G02 better. |
| At the nozzle segment inner band a two pins mount feature is replaced with a single pin design. The second retention pin is replaced with a ship lap anti-rotation feature. |
| Also, the spline seals that are located between the stage 1 nozzle segments are replaced with a thicker spline seal. |
| When these design features are incorporated, the durability of the stage 1 nozzles will be better under operating conditions for the GEnx-1B. |
| (3) | Cause: |
| During the GEnx-1B 75.000 pounds of thrust certification test, distress was noted on the stage 1 nozzles P/N 2300M24G11 and P/N 2300M24G12 and interface with the HPT nozzle support P/N 2303M22G03 which require the introduction of improvements in durability. |
| (4) | Improvement: |
| The new stage 1 nozzles P/N 2482M59G01 and P/N 2482M59G02 inner bands, spline seals, and braze joints have been modified to make part durability better. The new forward inner nozzle support has been modified to mate with the nozzle mounting changes. |
| (5) | Substantiation: |
| Substantiation is by analysis and comparative analysis. |
| F. | Approval |
| This Service Bulletin has been reviewed by the FAA and the repair(s) and modification(s) herein comply with the applicable Federal Aviation Regulations and are FAA APPROVED for installation in the model(s) listed in this Service Bulletin. |
| G. | Manpower |
| No additional man-hours are required to comply with this Service Bulletin. |
| H. | Weight and Balance |
| The complete compliance with this Service Bulletin increases weight by 0.10 lb (0.05 kg). |
| I. | References (Use the latest version of these documents) |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112862, GEnx-1B Cleaning, Inspection, and Repair Manual (CIR) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| NOTE: |
|
| J. | Publications Affected |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112862, GEnx-1B Cleaning, Inspection, and Repair Manual (CIR) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| K. | Interchangeability |
| The new stage 1 nozzles P/N 2482M59G01 and P/N 2482M59G02, HPT nozzle support P/N 2303M22G04, and spline seals must be introduced as a complete set. All parts are one-way interchangeable. |
| A mixture of parts from current stage 1 nozzles P/N 2305M55G02 and new stage 1 nozzles P/N 2305M55G04 in the same CDN assembly is not permitted. |
| L. | Software Accomplishment Summary |
| Not applicable. |
| 2. | MATERIAL INFORMATION |
| A. | Material - Price and Availability |
| (1) | Parts necessary to do this Service Bulletin: |
|
| NOTE: |
|
| (2) | Other Spare Parts: |
|
| NOTE: |
|
| (3) | Consumables: |
| None. |
| B. | Industry Support Information |
| None. |
| C. | Configuration Chart |
|
| Operation Codes RE=Replace RM=Remains RW=Rework |
| Change Code 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability. |
| Support Code B=Old parts will be supplied until all old parts are sold. |
| D. | Parts Disposition |
| Use serviceable old parts for engines that have not changed. |
| E. | Tooling - Price and Availability |
| None. |
| 3. | ACCOMPLISHMENT INSTRUCTIONS |
| A. | Disassembly |

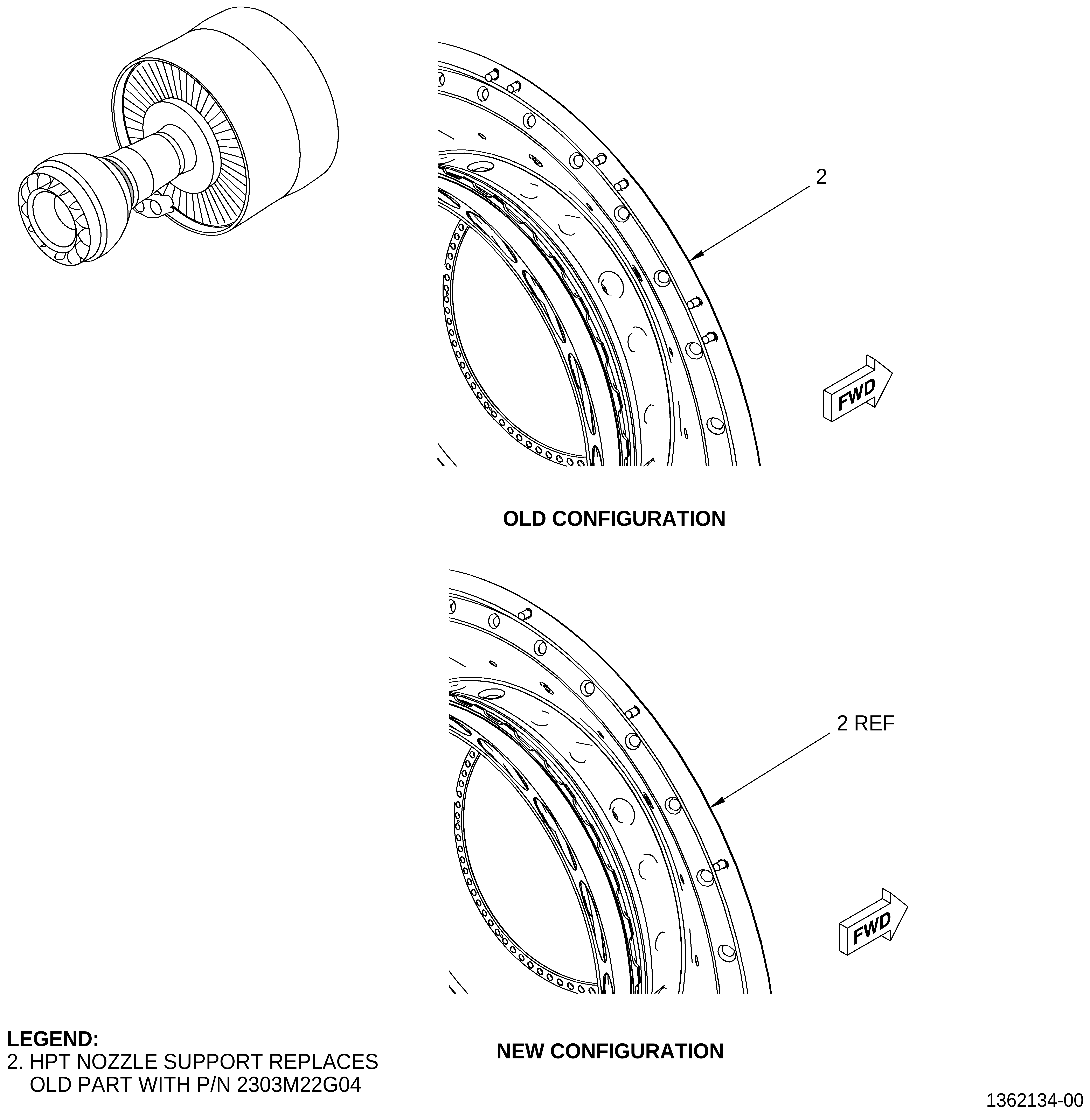

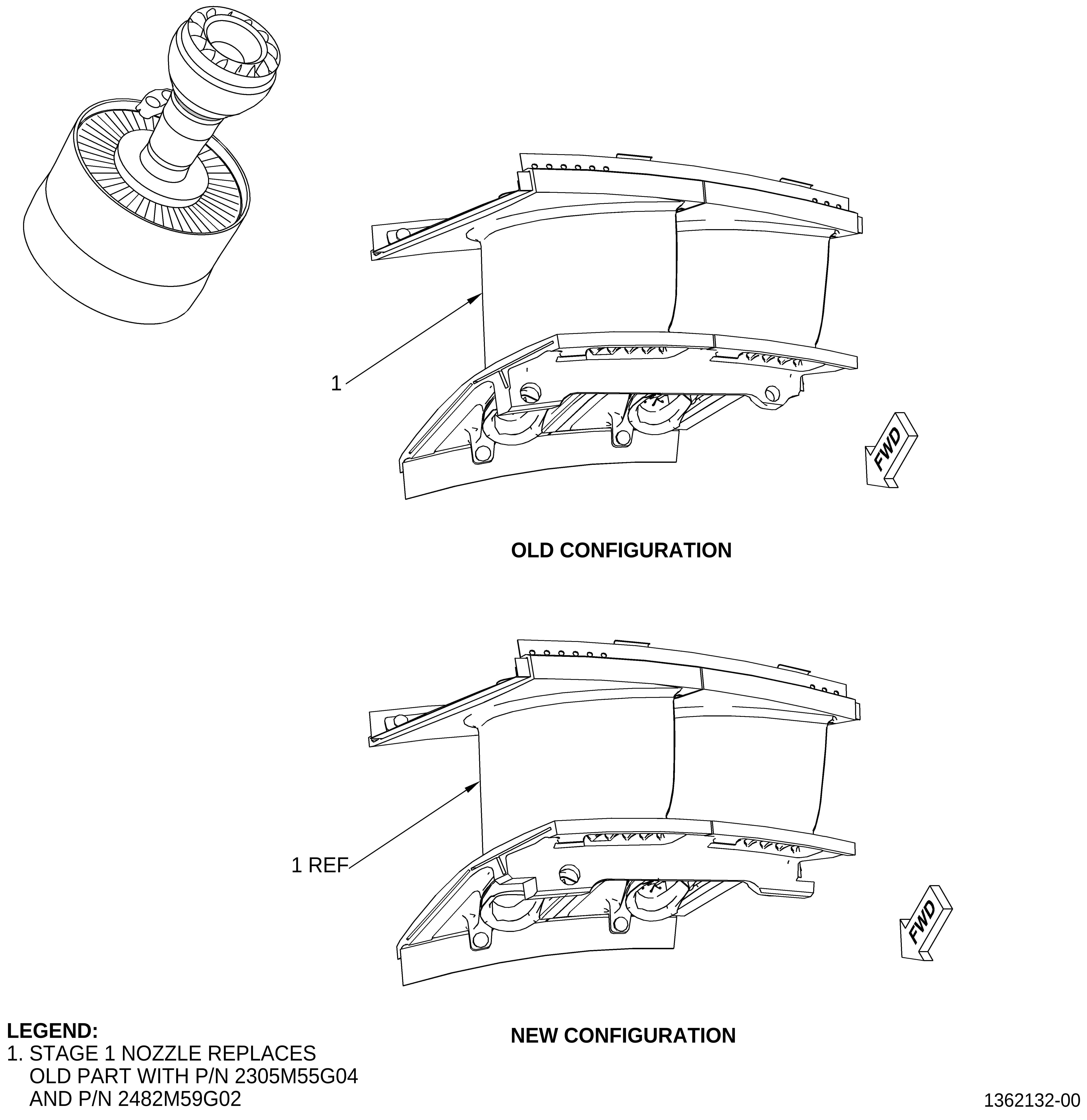

| (1) | Disassembly instructions for the HPT stage 1 nozzle (1, Figure 1) and the HPT nozzle support (2) have not changed. Refer to GEnx-1B EM, 72-51-00, DISASSEMBLY 001. |
| B. | Assembly |
| (1) | Assembly instructions for the HPT stage 1 nozzle (1, Figure 1) and the HPT nozzle support (2) have not changed, except the following. Refer to GEnx-1B EM, 72-51-00, ASSEMBLY. |

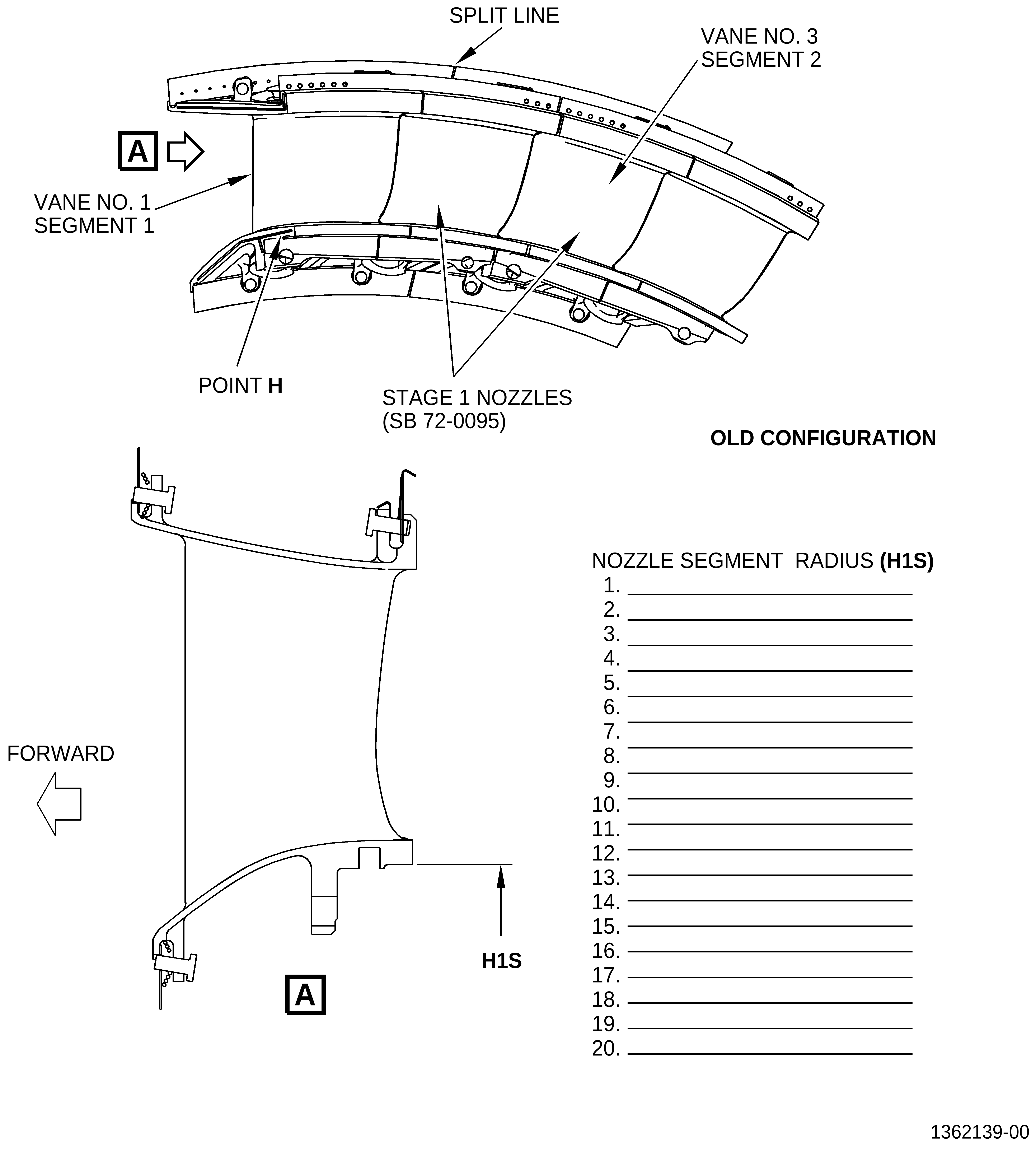

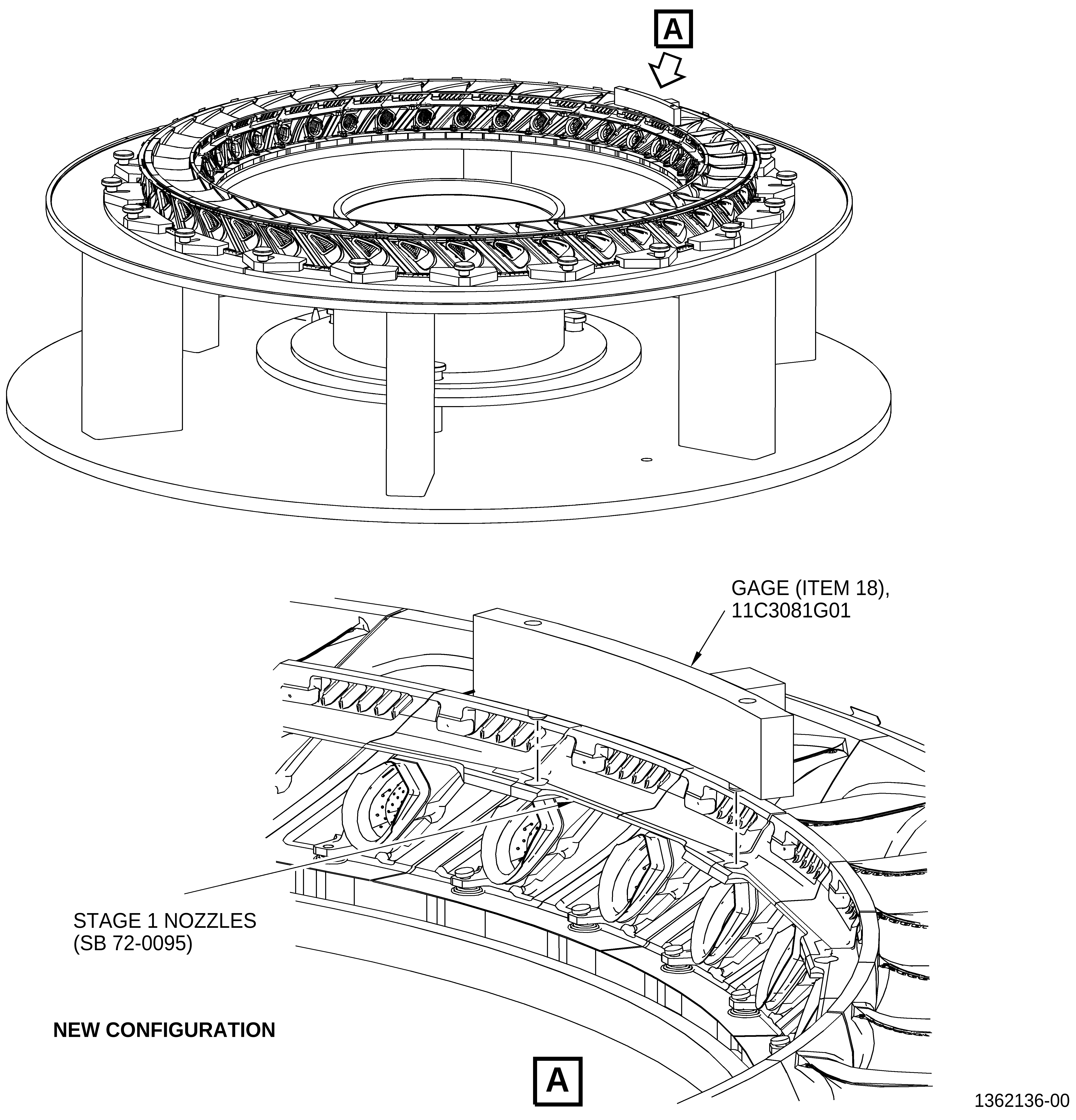

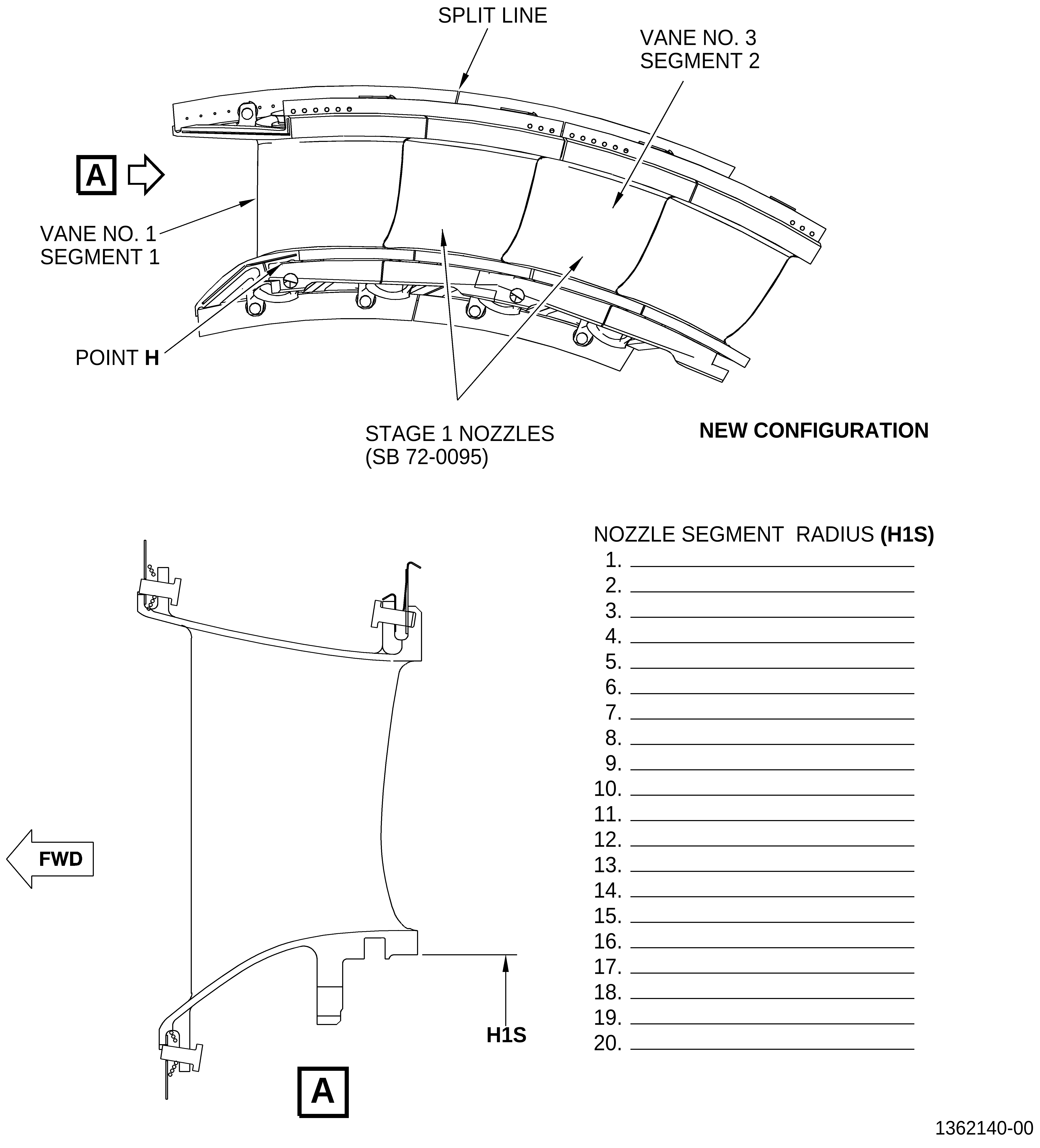

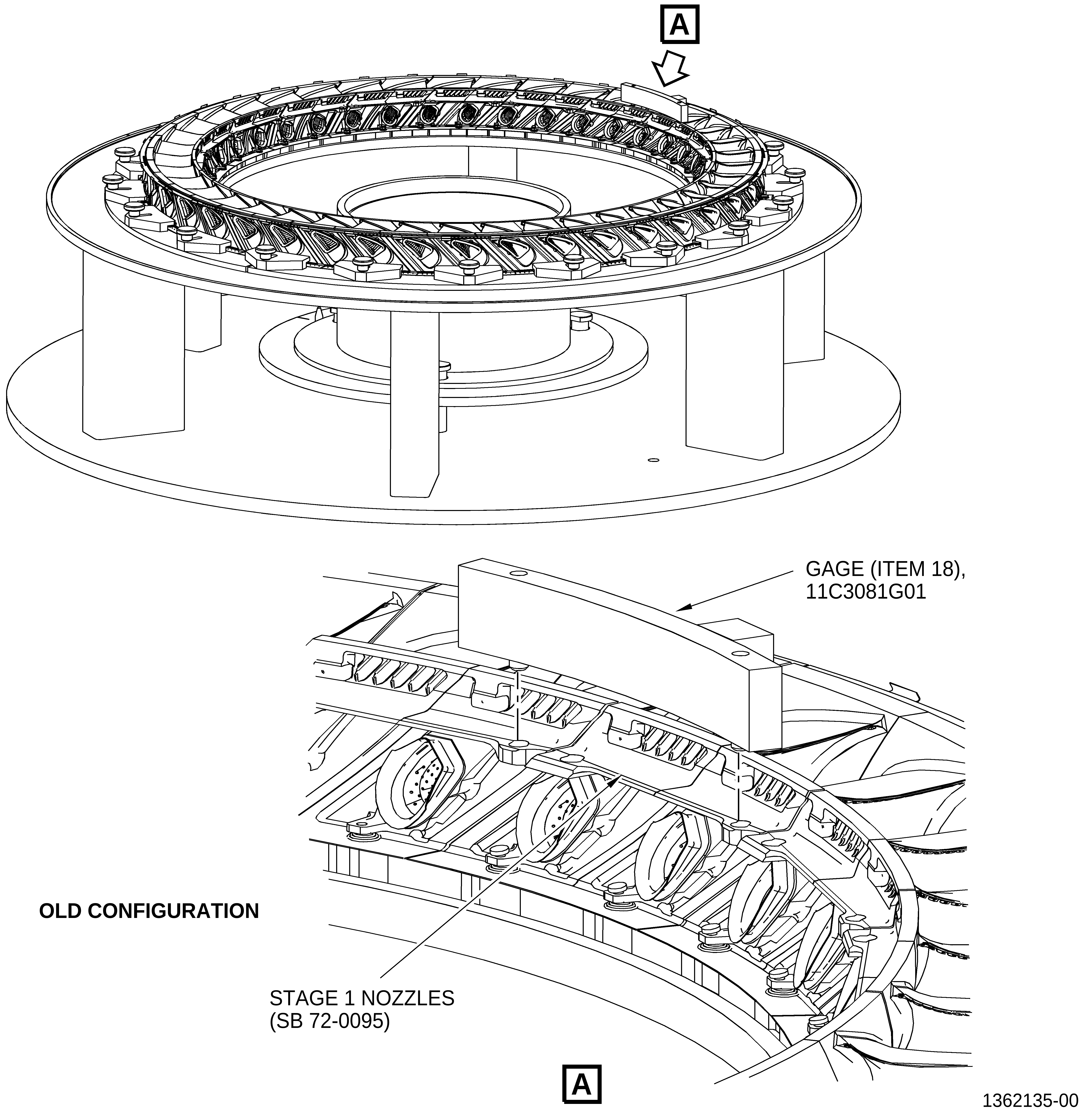

| (2) | Measure the radius (H1S) at point H for each nozzle segment as follows. Refer to (1, Figure 4) and (1, Figure 5) . |

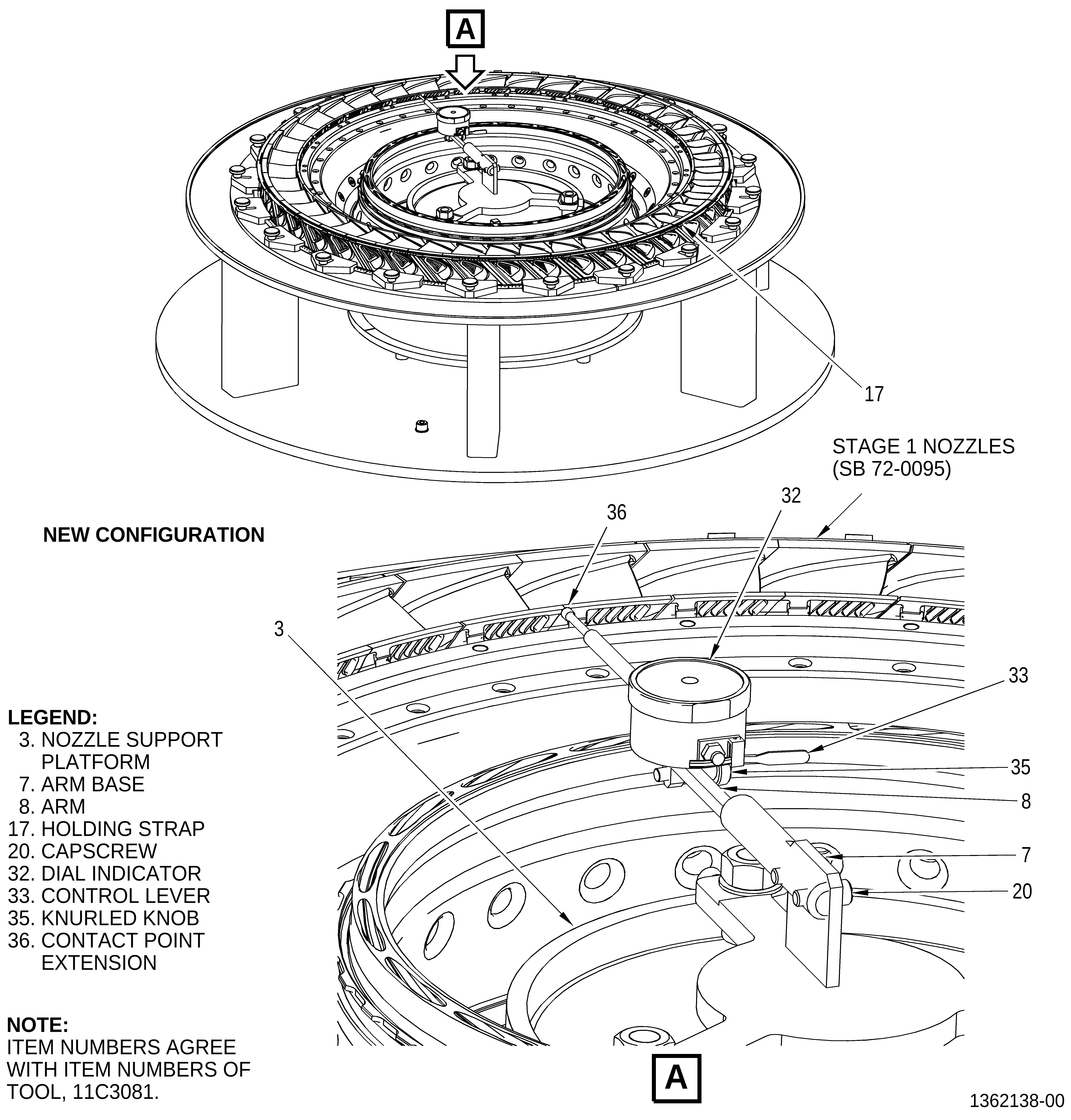

| (a) | Engage the dial indicator (item 32) at each position. |
| (b) | Subtract the value on the dial indicator (item 32) from the value marked on the gage block (item 12) to find the radius H1S. |
| NOTE: |
|
| (c) | Record radius (H1S) for each nozzle segment. |
| (d) | Make sure that the radius for each nozzle segment is 13.321-13.353 inches (338.35-339.17 mm). |
