 | GEnx-1B SERVICE BULLETIN - 72-0530 R00 | Revised: 08/06/2024 |
| SB 72-0530 R00 ENGINE - Combustor Diffuser Assembly (72-41-00) - Introduction of New Bolt and Spacer for Improved CDP Manifold Assembly Clamping | Issued: 08/06/2024 | |
| GEnx-1B SERVICE BULLETIN - 72-0530 R00 | Revised: 08/06/2024 |
| SB 72-0530 R00 ENGINE - Combustor Diffuser Assembly (72-41-00) - Introduction of New Bolt and Spacer for Improved CDP Manifold Assembly Clamping | Issued: 08/06/2024 | |
| GE Designated: -CONFIDENTIAL- | |
| The information contained in this document is GE proprietary information and is disclosed in confidence. It is the property of GE and shall not be used, disclosed to others or reproduced without the express written consent of GE, including, but without limitation, it is not to be used in the creation, manufacture, development, or derivation of any repairs, modifications, spare parts, designs, or configuration changes or to obtain FAA or any other government or regulatory approval to do so. If consent is given for reproduction in whole or in part, this notice and the notice set forth on each page of this document shall appear in any such reproduction in whole or part. | |
| This technical data is considered subject to the Export Administration Regulations (EAR) pursuant to 15 CFR Parts 730-774. Transfer of this data by any means to a Non-U.S. Person, whether in the United States or abroad, without the proper U.S. Government authorization (e.g., License, exemption, NLR, etc.), is strictly prohibited. | |
| Copyright (2024) General Electric Company, U.S.A. |
| 1. | PLANNING INFORMATION |
| A. | Effectivity |
| * * * FOR GEnx-1B64, -1B64/P1, -1B64/P2, -1B67, -1B67/P1, -1B67/P2, -1B70, -1B70/75/P1, -1B70/75/P2, -1B70/P1, -1B70/P2, -1B70C/P1, -1B70C/P2, -1B74/75/P1, -1B74/75/P2, -1B76/P2, -1B76A/P2 |
| This Service Bulletin is applicable to all GEnx-1B engines. |
| The machine bolt (bolt) P/N J334P08A is affected by this Service Bulletin. |
| B. | Description |
| This Service Bulletin releases a new spacer P/N 2991M40P01, bolt P/N J334P10A, and alternate bolt P/N MS9697-10 to the combustor discharge manifold to improve the clamp. |
| C. | Compliance |
| Category 5 |
| GE recommends that you do this Service Bulletin as soon as the combustor discharge manifold is removed from the engine. |
| Impact E |
| This recommendation is to improve the cost of ownership, reduce maintenance requirements or is a product improvement. |
| NOTE: |
|
| This Service Bulletin is offered to improve the reliability or performance of your GE product, or to help prevent the occurrence of the event or condition described in this Service Bulletin. If the operator elects not to participate in the bulletin, that decision will be taken into consideration by GE in evaluating future product performance issues that may arise in the operator’s fleet. |
| D. | Concurrent Requirements |
| None. |
| E. | Reason |
| (1) | Objective: |
| To introduce new parts. |
| (2) | Condition: |
| Cracks and missing material are found on the combustor discharge manifold. |
| (3) | Cause: |
| Residual motion between the combustor discharge manifold and surrounding hardware can lead to cracking on the combustor discharge manifold. |
| (4) | Improvement: |
| Adding the new spacer with longer bolt in order to increase the clamp on the combustor discharge manifold. |
| (5) | Substantiation: |
| Substantiation is by analysis. |
| F. | Approval |
| The data contained in this Service Bulletin has been reviewed by the FAA or authorized entity representing the FAA and the repair(s) and modification(s) herein comply with the applicable Aviation Regulations and are APPROVED for installation in the model(s) listed in this Service Bulletin. |
| G. | Manpower |
| No additional man-hours are required to comply with this Service Bulletin. |
| H. | Weight and Balance |
| Weight and balance are not changed. |
| I. | References (Use the latest version of these documents) |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| NOTE: |
|
| J. | Publications Affected |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| K. | Interchangeability |
| Qualified interchangeability. |
| The new longer bolt and spacer are one-way interchangeable with the old bolt and must be used as a set together when accomplishing this Service Bulletin. |
| Bolt P/N MS9697-10 is two-way interchangeable with bolt P/N J334P10A. |
| L. | Software Accomplishment Summary |
| Not applicable. |
| 2. | MATERIAL INFORMATION |
| A. | Material - Price and Availability |
| (1) | Parts necessary to do this Service Bulletin: |
|
| NOTE: |
|
| (2) | Other Spare Parts: |
| None. |
| (3) | Consumables: |
| None. |
| B. | Industry Support Information |
| None. |
| C. | Configuration Chart |
|
| Operation Codes AD=Added RE=Replace RM=Remains |
| Change Codes 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability. |
| Support Codes A=Old parts will no longer be supplied. |
| D. | Parts Disposition |
| Scrap removed hardware. |
| E. | Tooling - Price and Availability |
| None. |
| 3. | ACCOMPLISHMENT INSTRUCTIONS |
| A. | Disassembly |

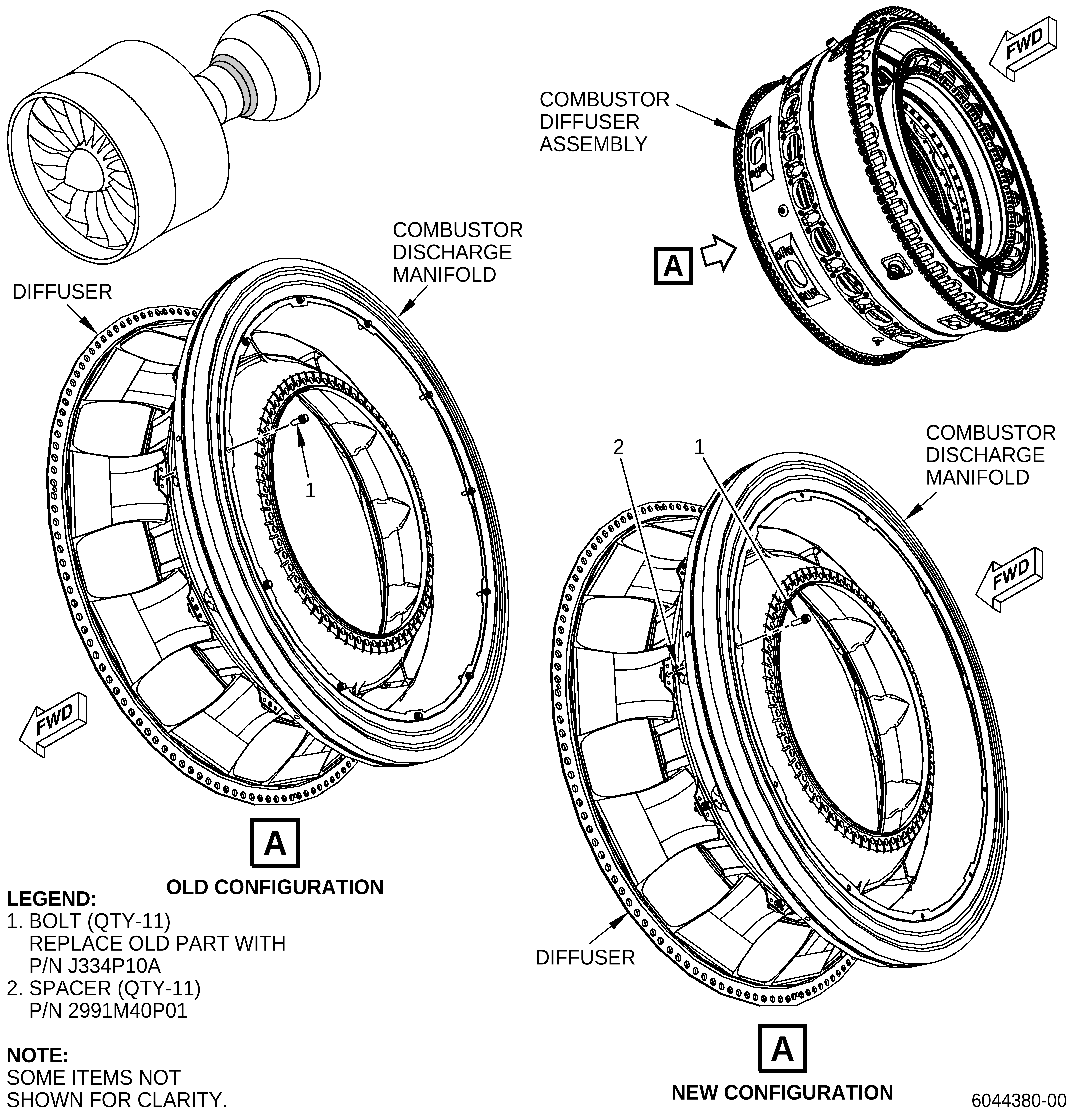

| (1) | Disassemble the combustor diffuser assembly and remove the old bolt (1, Figure 1). Refer to the GEnx-1B EM, 72-41-00, DISASSEMBLY 001, CONFIG 01 or CONFIG 02. |
| B. | Assembly |
| (1) | Assemble the combustor diffuser assembly with the new bolt (1, Figure 1) and spacer (2). Refer to the GEnx-1B EM, 72-41-00, ASSEMBLY 001, CONFIG 01 or CONFIG 02. |
