1.PLANNING INFORMATION
A.Effectivity
* * * FOR GEnx-1B64/P2, -1B67/P2, -1B70/75/P2, -1B70/P2, -1B70C/P2, -1B74/75/P2, -1B76A/P2
This Service Bulletin is applicable to all GEnx-1B engines.
The electrical clip inserts (clip inserts) P/N 1793M46P02, P/N 1793M46P03, P/N 1793M46P04, P/N 1793M46P05, P/N 1793M46P06, and P/N 1793M46P07 are affected by this Service Bulletin.
B.Description
This Service Bulletin eliminates 40 plastic clip inserts from selected harness support spring clip locations.
C.Compliance
Category 7
GE recommends that you do this Service Bulletin at customer's convenience/option.
Impact F
Implement as deemed necessary per the Service Bulletin Category.
NOTE:
This Service Bulletin can be done on wing or in shop.
D.Concurrent Requirements
None.
E.Reason
(1)Objective:
To remove parts from service.
(2)Condition:
Plastic clip inserts were introduced as a response to customer concerns on poor routing experience for legacy sustaining programs.
(3)Cause:
Successful field harness experience across engine programs has demonstrated that harness peek overbraid at the spring clips performs its chafe guard purpose adequately when the spring clips are correctly sized and the latest harness design process has been followed.
(4)Improvement:
Clip inserts removal leads to assembly process simplification through reduced parts count, improves field shop operations, eliminates potential foreign object damage concerns, and resolves special considerations to abate clip inserts damage and their proliferation by error-proofing maintenance activity.
(5)Substantiation:
Substantiation is by analysis and comparative analysis.
F.Approval
This Service Bulletin contains no modification information that revises the approved configuration and therefore does not require FAA or regulatory approval.
G.Manpower
No additional man-hours are required to comply with this Service Bulletin.
H.Weight and Balance
The complete compliance with this Service Bulletin decreases weight by 0.41 lb (0.19 kg).
I.References (Use the latest version of these documents)
GEnx-1B, Boeing 787 Aircraft Maintenance Manual (AMM)
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
NOTE:
The reference documents listed below are for the engine manufacturer's internal use only:
CID: 551266
BPP: 17-72-00-71021
J.Publications Affected
GEnx-1B, Boeing 787 Aircraft Maintenance Manual (AMM)
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
K.Interchangeability
Two-way interchangeable.
L.Software Accomplishment Summary
Not applicable.
2.MATERIAL INFORMATION
A.Material - Price and Availability
(1)Parts necessary to do this Service Bulletin:
None.
(2)Other Spare Parts:
None.
(3)Consumables:
None.
B.Industry Support Information
None.
C.Configuration Chart

New Part Number
Qty/ Eng
Part Name
Old Part Number/ IPC Location
Qty/ Eng
Op Code
Chg/ Sprt Code

(PRODUCTION ONLY)

2447M10G03
(X)
GEnx Engine Assembly
2447M10G03
(X)
RM
-/-

--
(-)
Insert, Electrical Clip
(SIN 67177)
.1793M46P03
30-040, 73-21-65
(1)
DE
5/E

--
(-)
Insert, Electrical Clip
(SIN 67178)
.1793M46P04
30-030, 73-21-65
(1)
DE
5/E

.1793M46P04
50-040A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67178)
.1793M46P04
50-040, 73-21-65
(2)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67179)
.1793M46P07
40-030, 73-21-65
(1)
DE
5/D

.2447M20G05
(1)
Propulsor, Module Assembly
(SIN 0010C)
.2447M20G05
(1)
RM
-/-

--
(-)
Insert, Electrical Clip
(SIN 67172)
..1793M46P02
20-020A, 73-21-65
(2)
DE
5/D

--
(-)
Insert, Electrical Clip
(SIN 67173)
..1793M46P03
20-030, 73-21-65
25-040, 73-21-65
30-020, 73-21-65
40-050, 73-21-65
45-050, 73-21-65
75-030, 73-21-65
(8)
DE
5/E

..1793M46P03
35-030A, 73-21-65
(2)
Insert, Electrical Clip
(SIN 67173)
..1793M46P03
35-030, 73-21-65
(3)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67174)
..1793M46P04
20-040, 73-21-65
25-030, 73-21-65
30-050, 73-21-65
35-040, 73-21-65
40-040, 73-21-65
45-040, 73-21-65
55-030, 73-21-65
(15)
DE
5/E

..1793M46P05
20-050A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67175)
..1793M46P05
20-050, 73-21-65
(2)
QTC
5/E

..1793M46P05
55-020A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67175)
..1793M46P05
55-020, 73-21-65
(2)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67176)
..1793M46P06
20-060, 73-21-65
25-020, 73-21-65
(3)
DE
5/E

..1793M46P06
50-021A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67176)
..1793M46P06
50-021, 73-21-65
(3)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 6717A)
..1793M46P07
40-020, 73-21-65
45-030, 73-21-65
(3)
DE
5/D

(FIELD ONLY)

2447M10G01
(X)
GEnx Engine Assembly
2447M10G01
(X)
RM
-/-

--
(-)
Insert, Electrical Clip
(SIN 67177)
.1793M46P03
30-040, 73-21-65
(1)
DE
5/E

--
(-)
Insert, Electrical Clip
(SIN 67178)
.1793M46P04
30-030, 73-21-65
(1)
DE
5/E

.1793M46P04
50-040A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67178)
.1793M46P04
50-040, 73-21-65
(2)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67179)
.1793M46P07
40-030, 73-21-65
(1)
DE
5/D

.2447M20G04
(1)
Propulsor, Module Assembly
(SIN 0010C)
.2447M20G04
(1)
RM
-/-

--
(-)
Insert, Electrical Clip
(SIN 67172)
..1793M46P02
20-020A, 73-21-65
(2)
DE
5/D

--
(-)
Insert, Electrical Clip
(SIN 67173)
..1793M46P03
20-030, 73-21-65
25-040, 73-21-65
30-020, 73-21-65
40-050, 73-21-65
45-050, 73-21-65
75-030, 73-21-65
(8)
DE
5/E

..1793M46P03
35-030A, 73-21-65
(2)
Insert, Electrical Clip
(SIN 67173)
..1793M46P03
35-030, 73-21-65
(3)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67174)
..1793M46P04
20-040, 73-21-65
25-030, 73-21-65
30-050, 73-21-65
35-040, 73-21-65
40-040, 73-21-65
45-040, 73-21-65
55-030, 73-21-65
(15)
DE
5/E

..1793M46P05
20-050A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67175)
..1793M46P05
20-050, 73-21-65
(2)
QTC
5/E

..1793M46P05
55-020A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67175)
..1793M46P05
55-020, 73-21-65
(2)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67176)
..1793M46P06
20-060, 73-21-65
25-020, 73-21-65
(3)
DE
5/E

..1793M46P06
50-021A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67176)
..1793M46P06
50-021, 73-21-65
(3)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 6717A)
..1793M46P07
40-020, 73-21-65
45-030, 73-21-65
(3)
DE
5/D

2447M10G02
(X)
GEnx Engine Assembly
2447M10G02
(X)
RM
-/-

--
(-)
Insert, Electrical Clip
(SIN 67177)
.1793M46P03
30-040, 73-21-65
(1)
DE
5/E

--
(-)
Insert, Electrical Clip
(SIN 67178)
.1793M46P04
30-030, 73-21-65
(1)
DE
5/E

.1793M46P04
50-040A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67178)
.1793M46P04
50-040, 73-21-65
(2)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67179)
.1793M46P07
40-030, 73-21-65
(1)
DE
5/D

.2447M20G02
(1)
Propulsor Module Assembly
(SIN 0010C)
.2447M20G02
(1)
RM
-/-

--
(-)
Insert, Electrical Clip
(SIN 67172)
..1793M46P02
20-020A, 73-21-65
(2)
DE
5/D

--
(-)
Insert, Electrical Clip
(SIN 67173)
..1793M46P03
20-030, 73-21-65
25-040, 73-21-65
30-020, 73-21-65
40-050, 73-21-65
45-050, 73-21-65
75-030, 73-21-65
(8)
DE
5/E

..1793M46P03
35-030A, 73-21-65
(2)
Insert, Electrical Clip
(SIN 67173)
..1793M46P03
35-030, 73-21-65
(3)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67174)
..1793M46P04
20-040, 73-21-65
25-030, 73-21-65
30-050, 73-21-65
35-040, 73-21-65
40-040, 73-21-65
45-040, 73-21-65
55-030, 73-21-65
(15)
DE
5/E

..1793M46P05
20-050A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67175)
..1793M46P05
20-050, 73-21-65
(2)
QTC
5/E

..1793M46P05
55-020A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67175)
..1793M46P05
55-020, 73-21-65
(2)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 67176)
..1793M46P06
20-060, 73-21-65
25-020, 73-21-65
(3)
DE
5/E

..1793M46P06
50-021A, 73-21-65
(1)
Insert, Electrical Clip
(SIN 67176)
..1793M46P06
50-021, 73-21-65
(3)
QTC
5/E

--
(-)
Insert, Electrical Clip
(SIN 6717A)
..1793M46P07
40-020, 73-21-65
45-030, 73-21-65
(3)
DE
5/D
Operation Codes
DE=Delete
QTC=Quantity Change RM=Remains
Change Codes
5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability.
Support Codes
D=Old parts will be supplied for engines that have not been changed by this Service Bulletin. E=Old parts will be supplied, and can be used at other engine locations.
D.Parts Disposition
Use serviceable old parts at other engine locations.
E.Tooling - Price and Availability
None.
3.ACCOMPLISHMENT INSTRUCTIONS
A.Clip Insert Removal
NOTE:
It is not necessary to fully remove the harnesses for the removal of the clip inserts from the locations specified in the steps below. You can remove the harnesses from the spring clips in order to remove the clip inserts at each location. The harness can be attached to the spring clip immediately after the clip insert is removed.

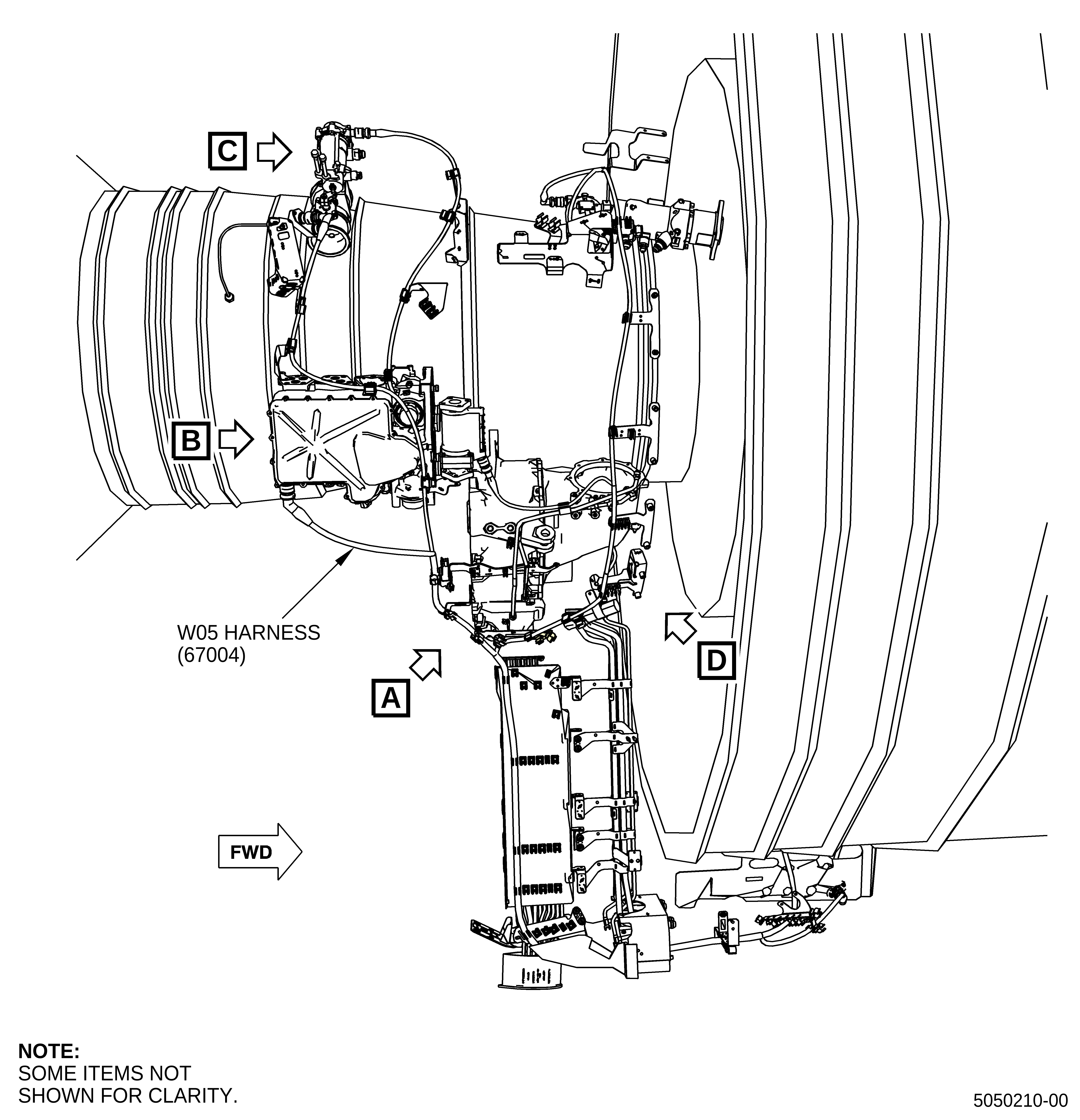

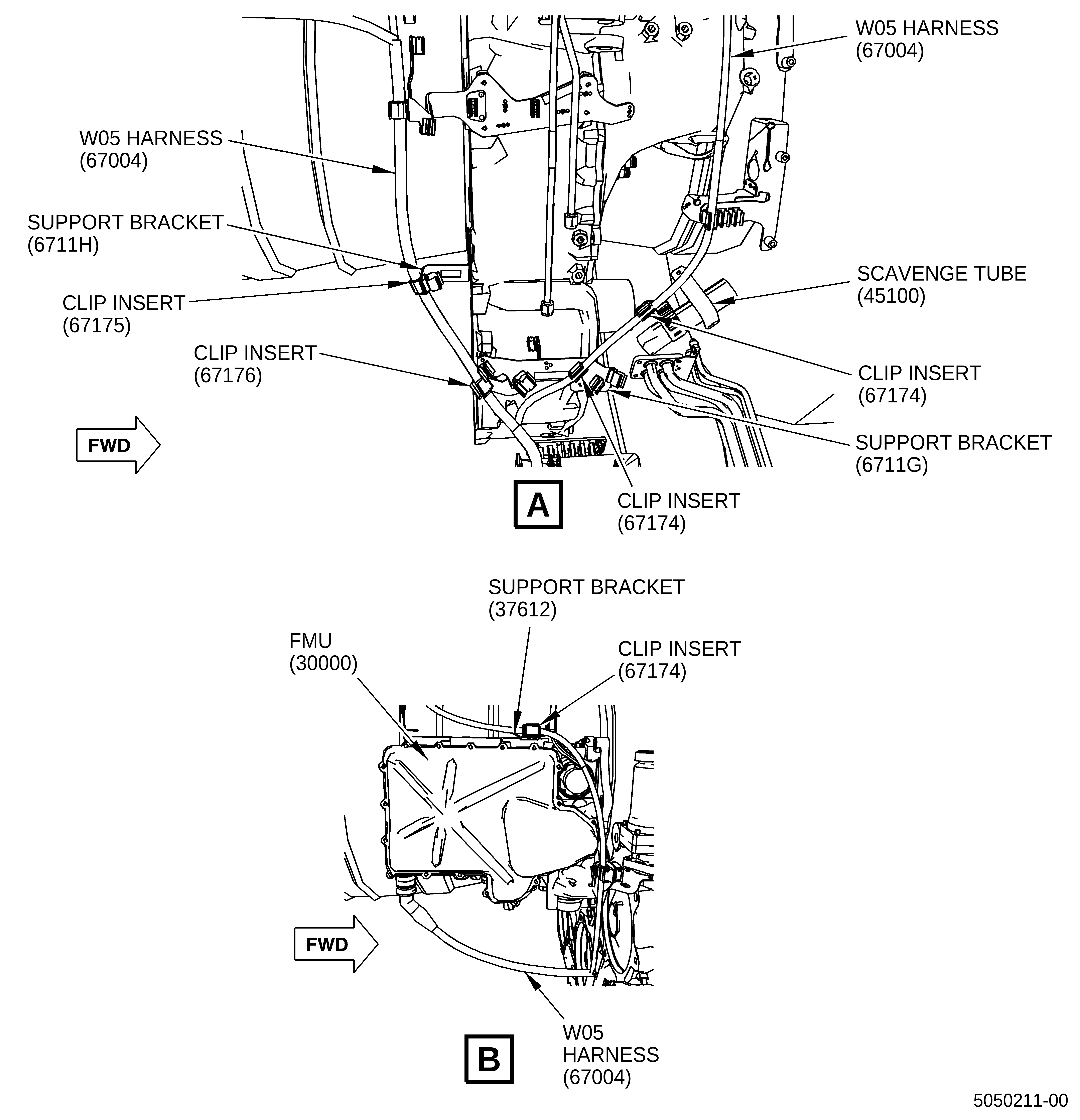

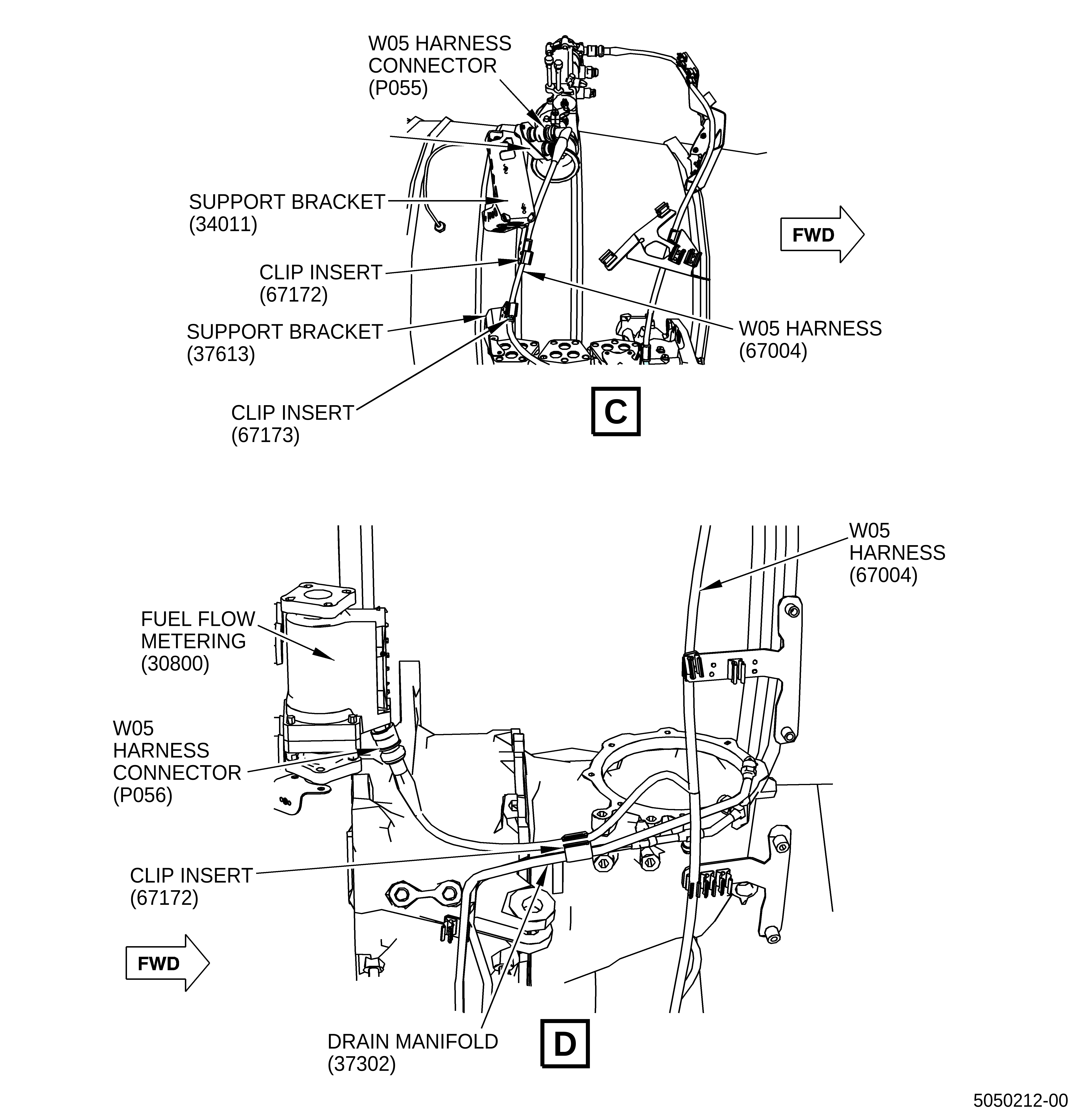

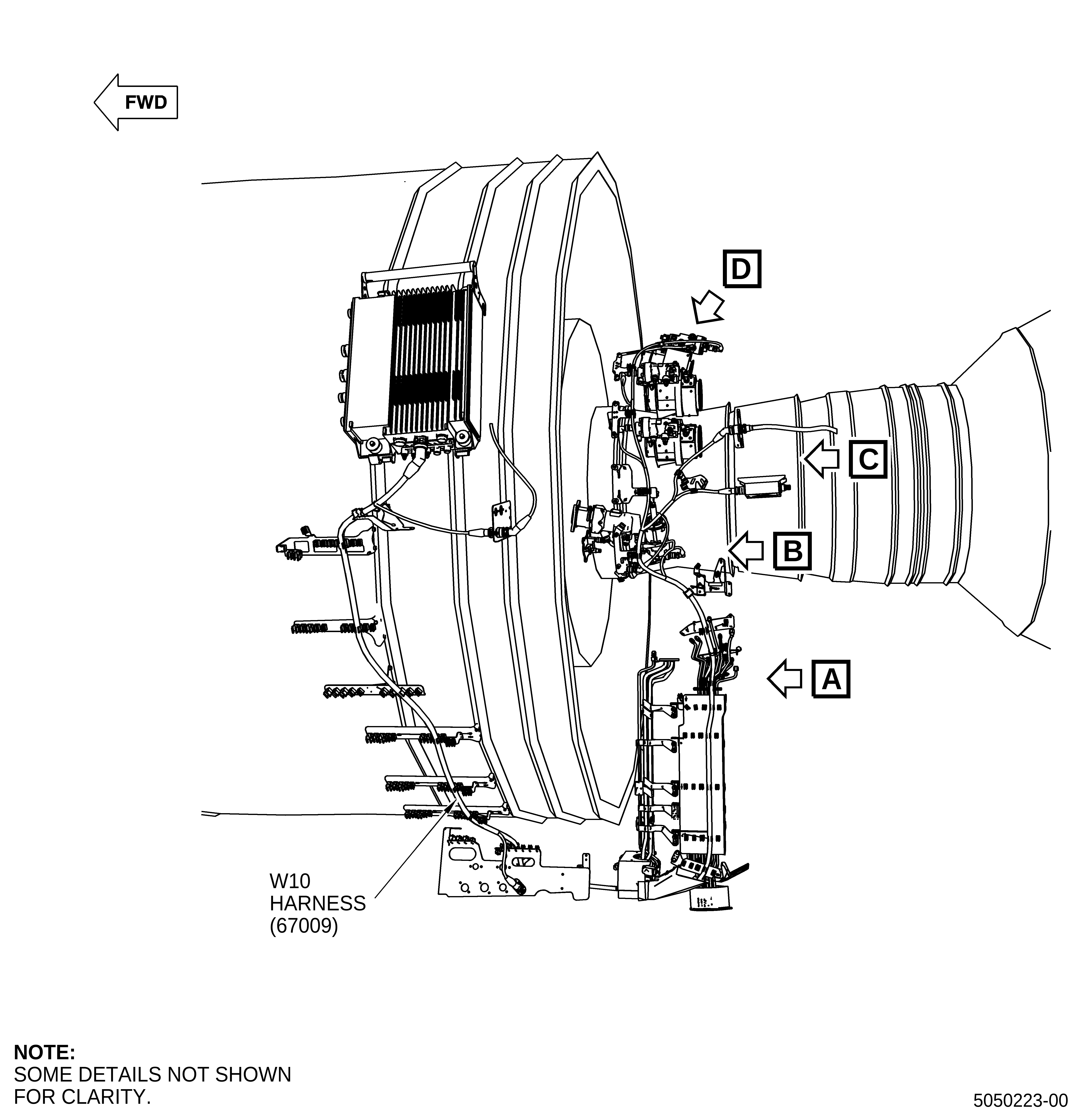

(1)Remove the clip inserts that support the W05 harness. Refer to Figure 1 and do as follows:
(a)Remove the W05 harness (SIN 67004) from the support brackets (SIN 6711H and SIN 6711G).
(b)Remove the W05 harness (SIN 67004) from the scavenge tube (SIN 45100).
(c)Remove the clip insert (SIN 67175) from the support bracket (SIN 6711H).
(d)Remove the clip insert (SIN 67176) from the support bracket (SIN 6711G).
(e)Remove the clip insert (SIN 67174) from the support bracket (SIN 6711G).
(f)Remove the clip insert (SIN 67174) from the scavenge tube (SIN 45100).
(g)Remove the W05 harness (SIN 67004) from the support bracket (SIN 37612).
(h)Remove the clip insert (SIN 67174) from the support bracket (SIN 37612).
(i)Remove the W05 harness (SIN 67004) from the support brackets (SIN 37613 and SIN 34011).
(j)Remove the clip insert (SIN 67173) from the support bracket (SIN 37613).
(k)Remove the clip insert (SIN 67172) from the support bracket (SIN 34011).
(l)Remove the W05 harness (SIN 67004) from the drain manifold (SIN 37302).
(m)Remove the clip insert (SIN 67172) from the drain manifold (SIN 37302).
(n)Attach the W05 harness (SIN 67004) to the spring clips.

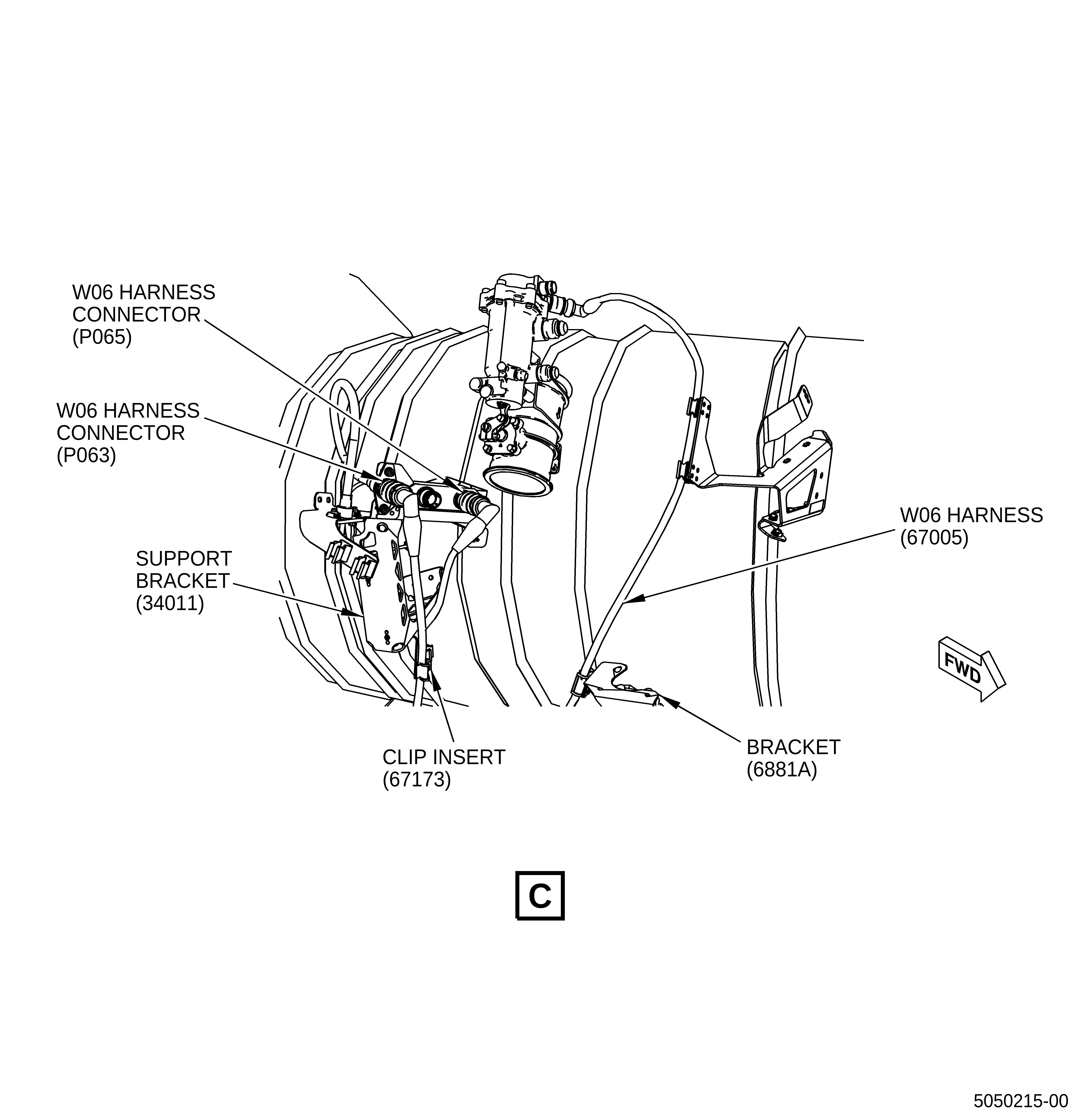

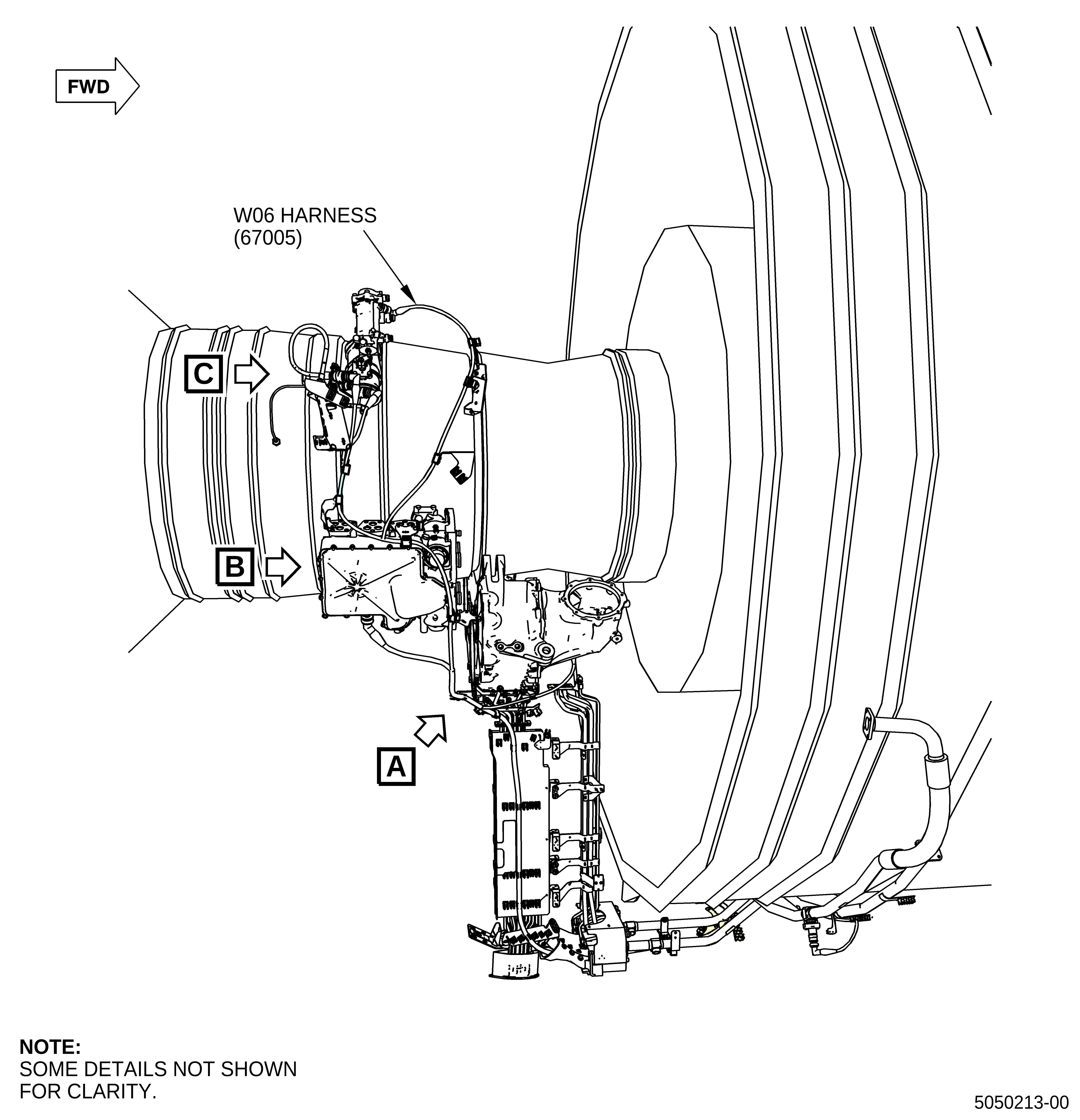

(2)Remove the clip inserts that support the W06 harness. Refer to Figure 2 and do as follows:
(a)Remove the W06 harness (SIN 67005) from the support brackets (SIN 6711G and SIN 6711H).
(b)Remove the clip insert (SIN 67176) from the support bracket (SIN 6711G).
(c)Remove the clip insert (SIN 67176) from the support bracket (SIN 6711H).
(d)Remove the W06 harness (SIN 67005) from the support brackets (SIN 37612 and SIN 37613).
(e)Remove the clip insert (SIN 67174) from the support bracket (SIN 37612).
(f)Remove the clip insert (SIN 67173) from the support bracket (SIN 37613).
(g)Remove the W06 harness (SIN 67005) from the support bracket (SIN 34011).
(h)Remove the clip insert (SIN 67173) from the support bracket (SIN 34011).
(i)Attach the W06 harness (SIN 67005) to the spring clips.

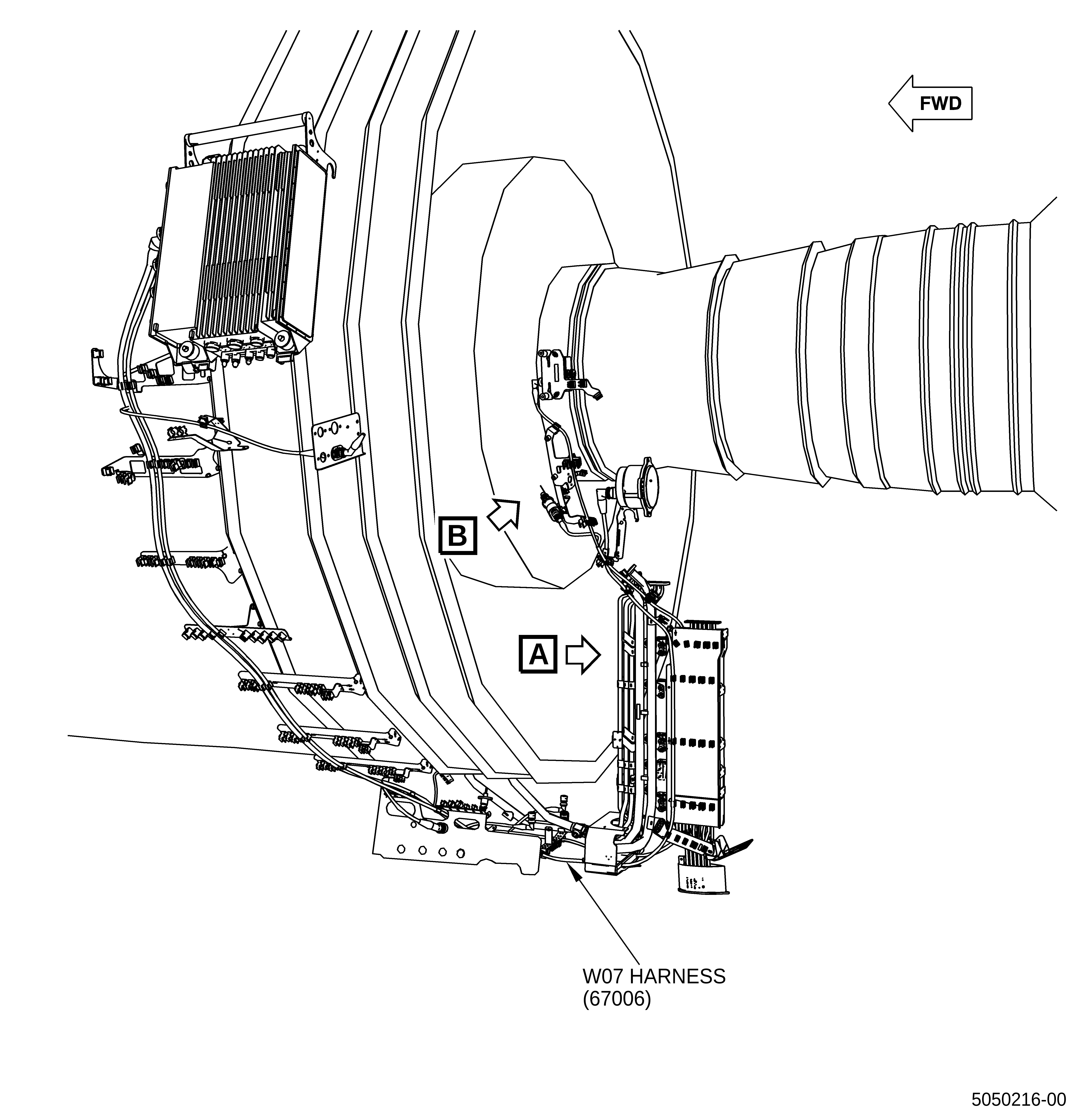

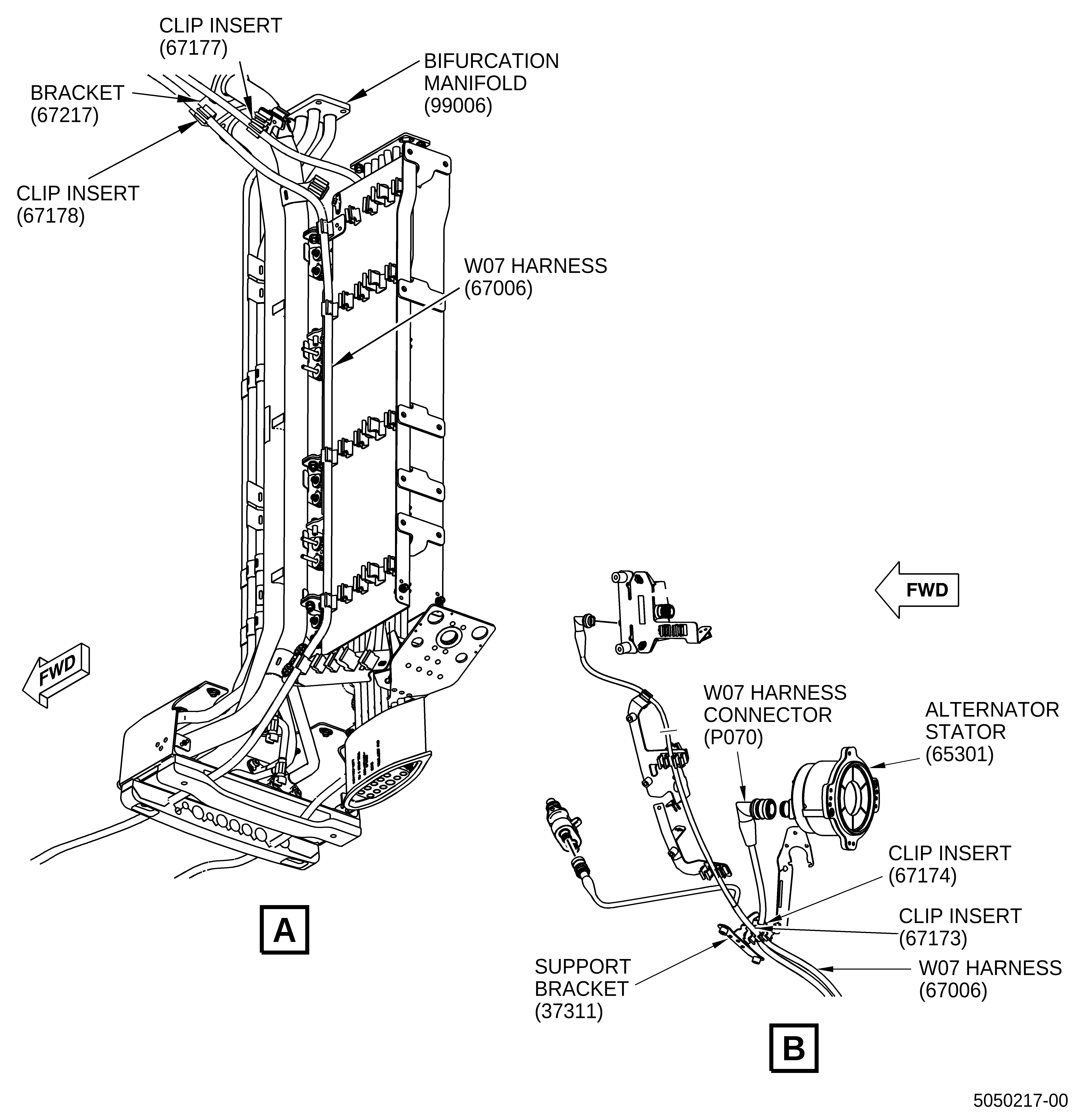

(3)Remove the clip inserts that support the W07 harness. Refer to Figure 3 and do as follows:
(a)Remove the W07 harness (SIN 67006) from the bracket (SIN 67217).
(b)Remove the W07 harness (SIN 67006) from the bifurcation manifold (SIN 99006).
(c)Remove the clip insert (SIN 67178) from the bracket (SIN 67217).
(d)Remove the clip insert (SIN 67177) from the bifurcation manifold (SIN 99006).
(e)Remove the W07 harness (SIN 67006) from the support bracket (SIN 37311).
(f)Remove the clip insert (SIN 67174) from the support bracket (SIN 37311).
(g)Remove the clip insert (SIN 67173) from the support bracket (SIN 37311).
(h)Attach the W07 harness (SIN 67006) to the spring clips.
(4)Remove the clip inserts that support the W08 harness. Refer to Figure 4 and do as follows:

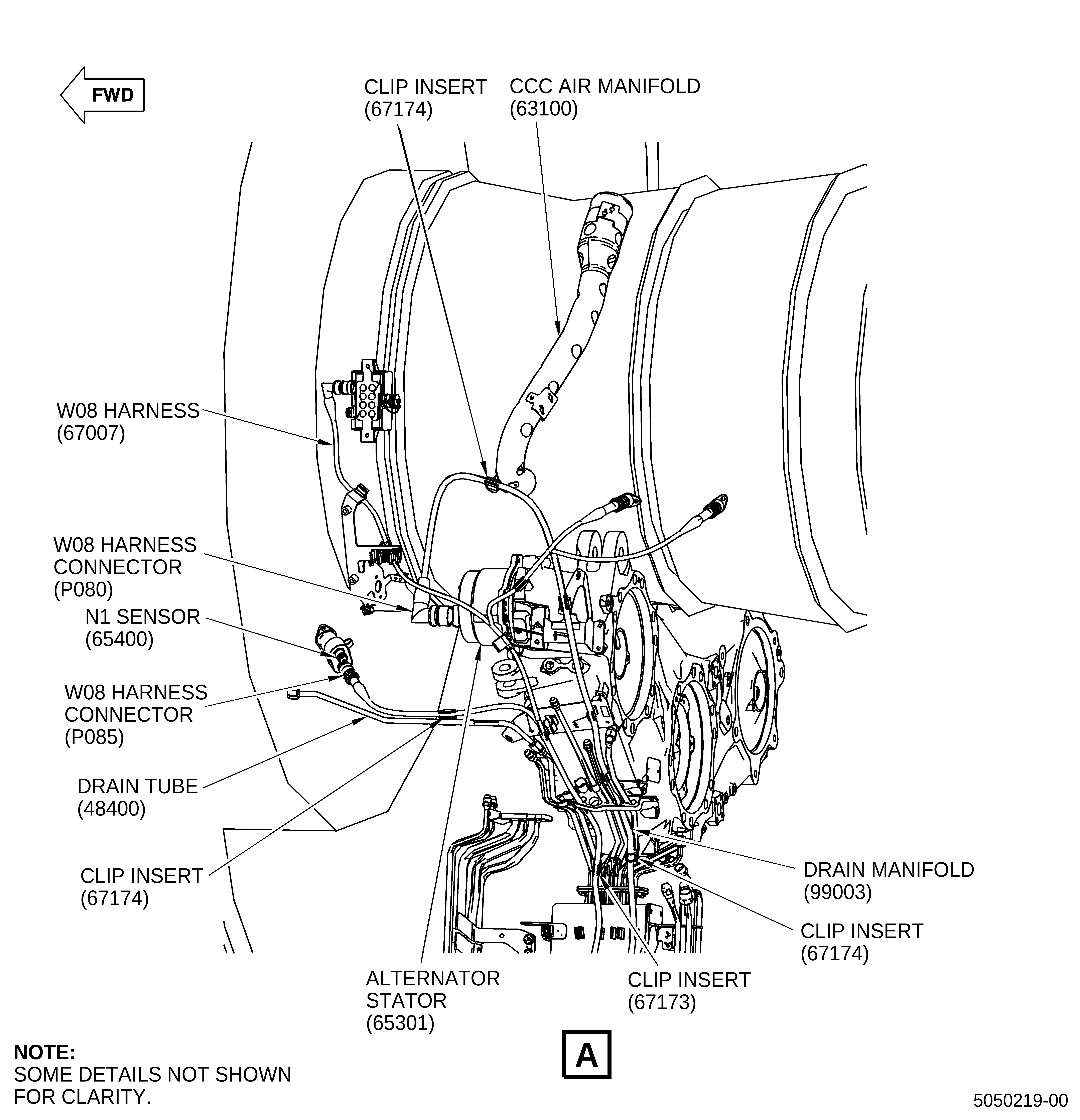

(a)Remove the W08 harness (SIN 67007) from the drain manifold (SIN 99003).
(b)Remove the clip insert (SIN 67174) from the drain manifold (SIN 99003).
(c)Remove the clip insert (SIN 67173) from the drain manifold (SIN 99003).
(d)Remove the W08 harness (SIN 67007) from the drain tube (SIN 48400).
(e)Remove the clip insert (SIN 67174) from the drain tube (SIN 48400).
(f)Remove the W08 harness (SIN 67007) from the core compartment cooling (CCC) air manifold (SIN 63100).
(g)Remove the clip insert (SIN 67174) from the CCC air manifold (SIN 63100).
(h)Attach the W08 harness (SIN 67007) to the spring clips.

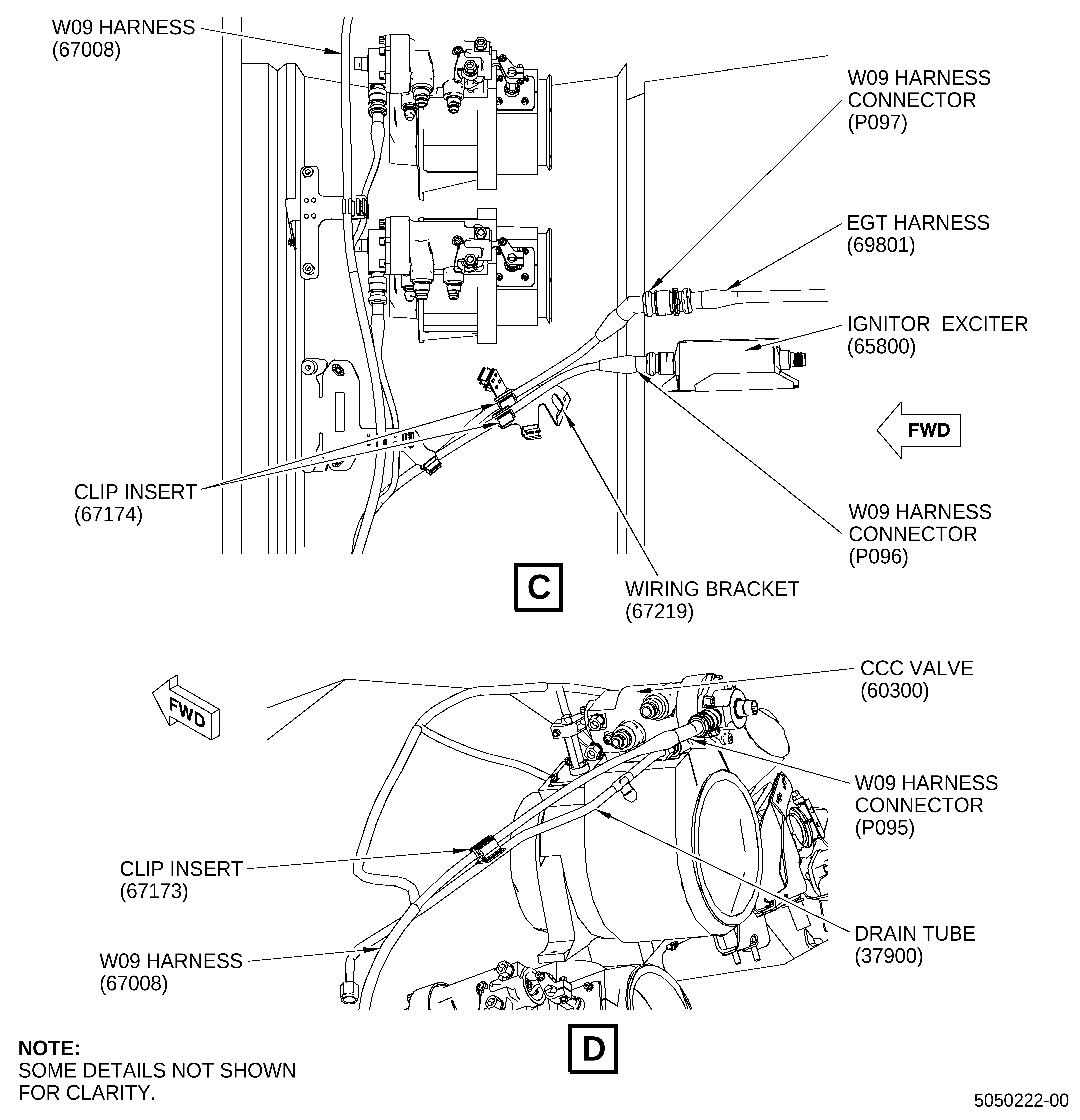

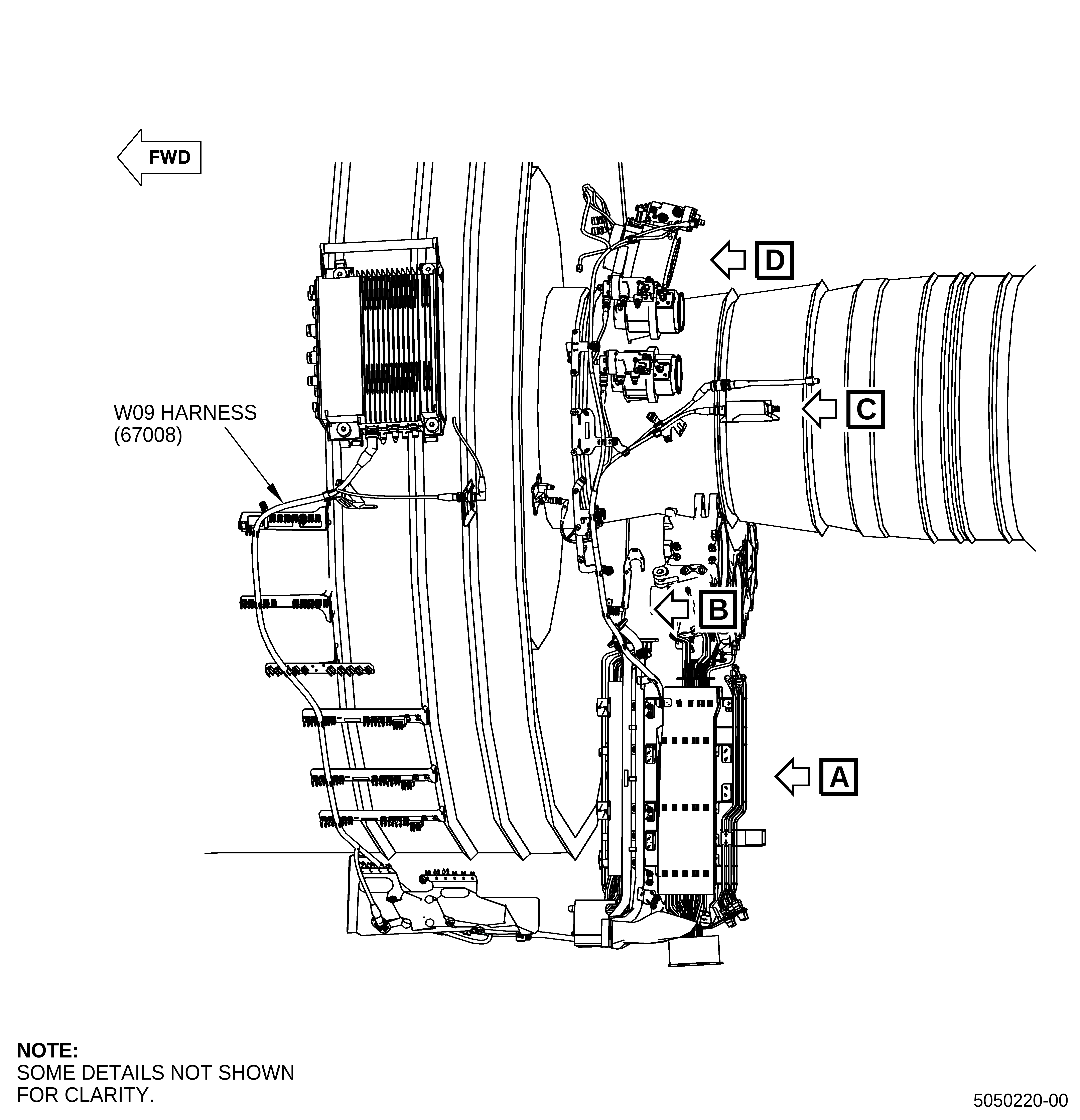

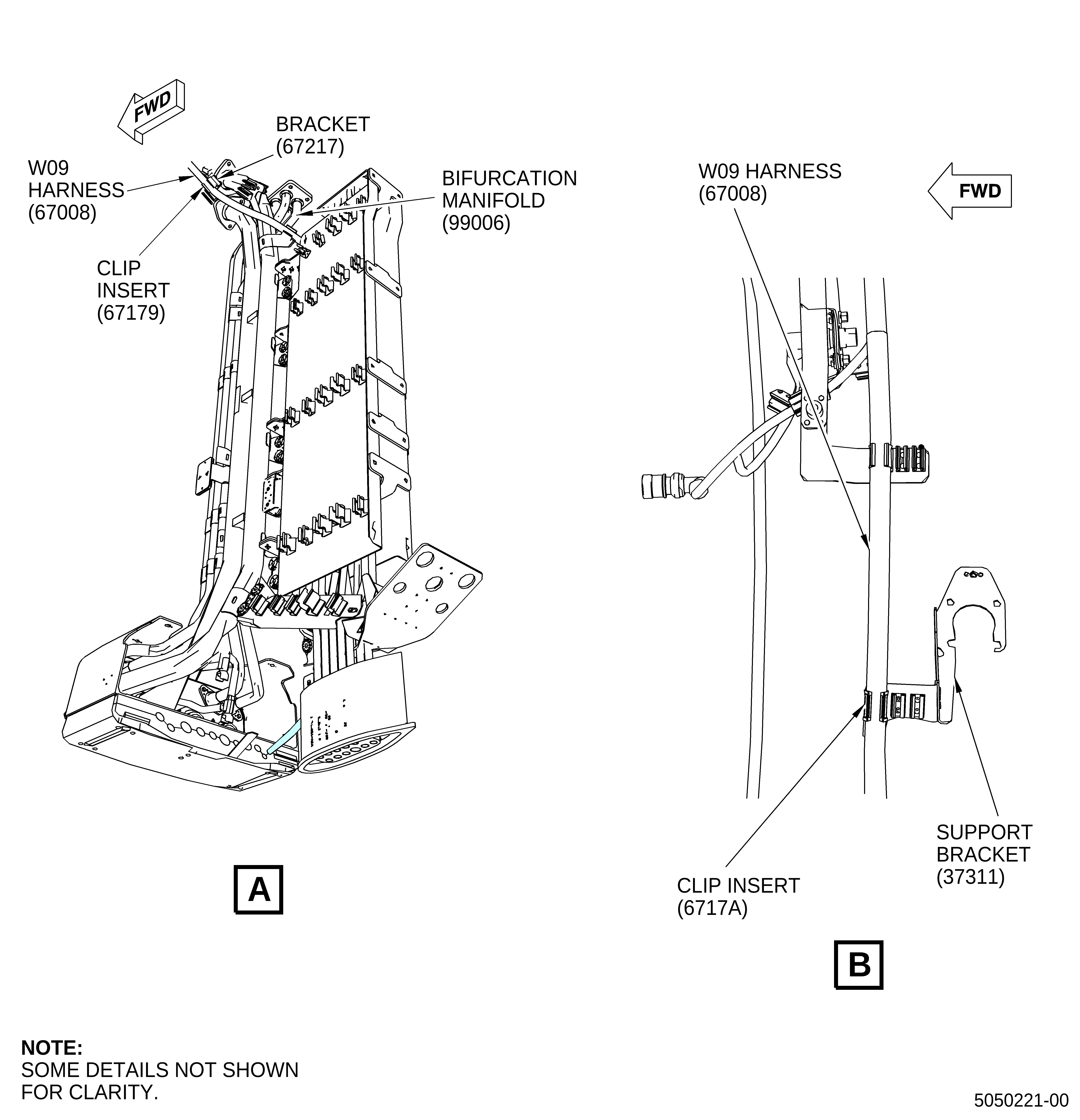

(5)Remove the clip inserts that support the W09 harness. Refer to Figure 5 and do as follows:
(a)Remove the W09 harness (SIN 67008) from the bracket (SIN 67217).
(b)Remove the clip insert (SIN 67179) from the bracket (SIN 67217).
(c)Remove the W09 harness (SIN 67008) from the support bracket (SIN 37311).
(d)Remove the clip insert (SIN 6717A) from the support bracket (SIN 37311).
(e)Remove the W09 harness (SIN 67008) from the wiring bracket (SIN 67219).
(f)Remove the clip inserts (SIN 67174) from the wiring bracket (SIN 67219).
(g)Remove the W09 harness (SIN 67008) from the drain tube (SIN 37900).
(h)Remove the clip insert (SIN 67173) from the drain tube (SIN 37900).
(i)Attach the W09 harness (SIN 67008) to the spring clips.

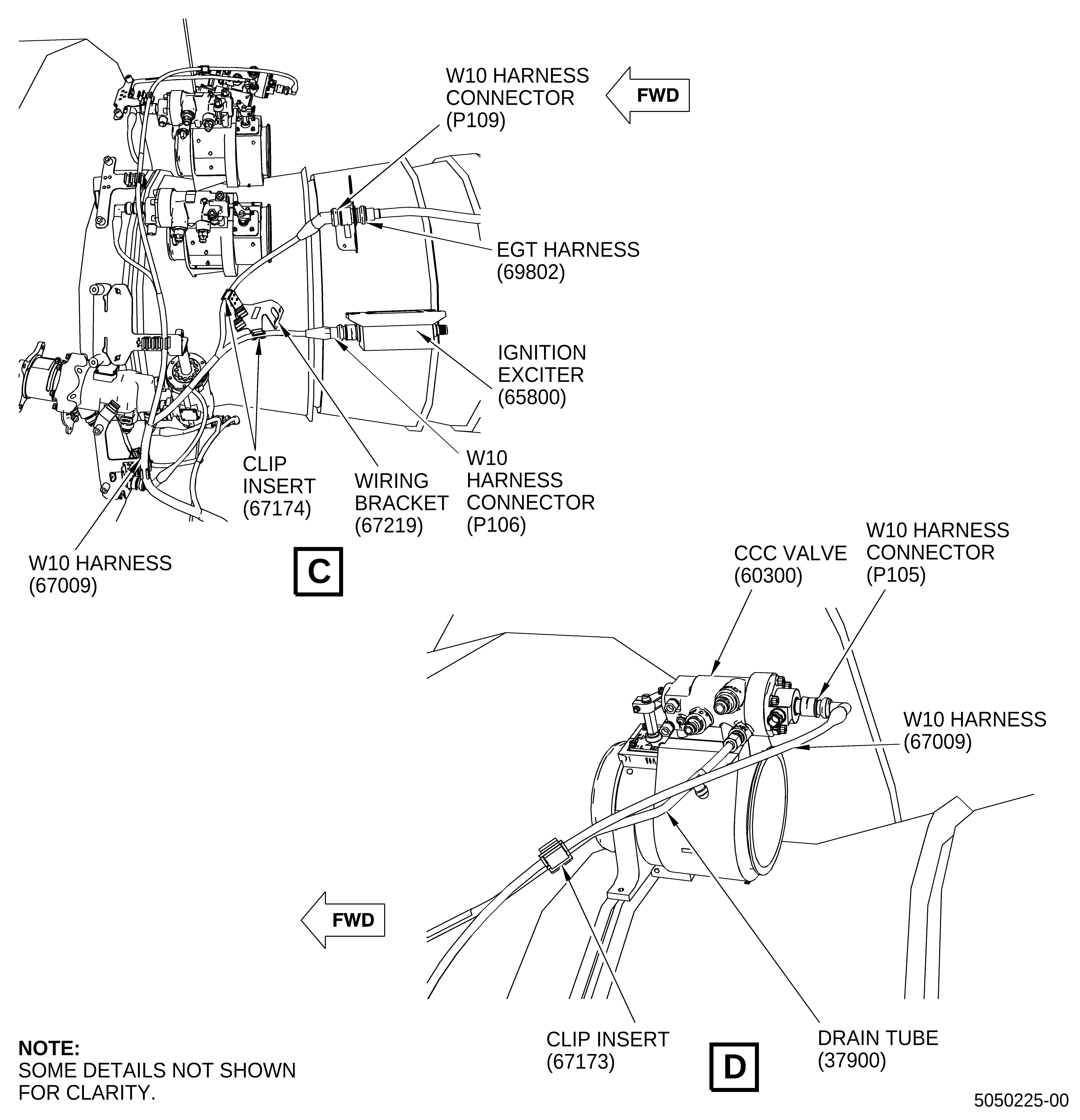

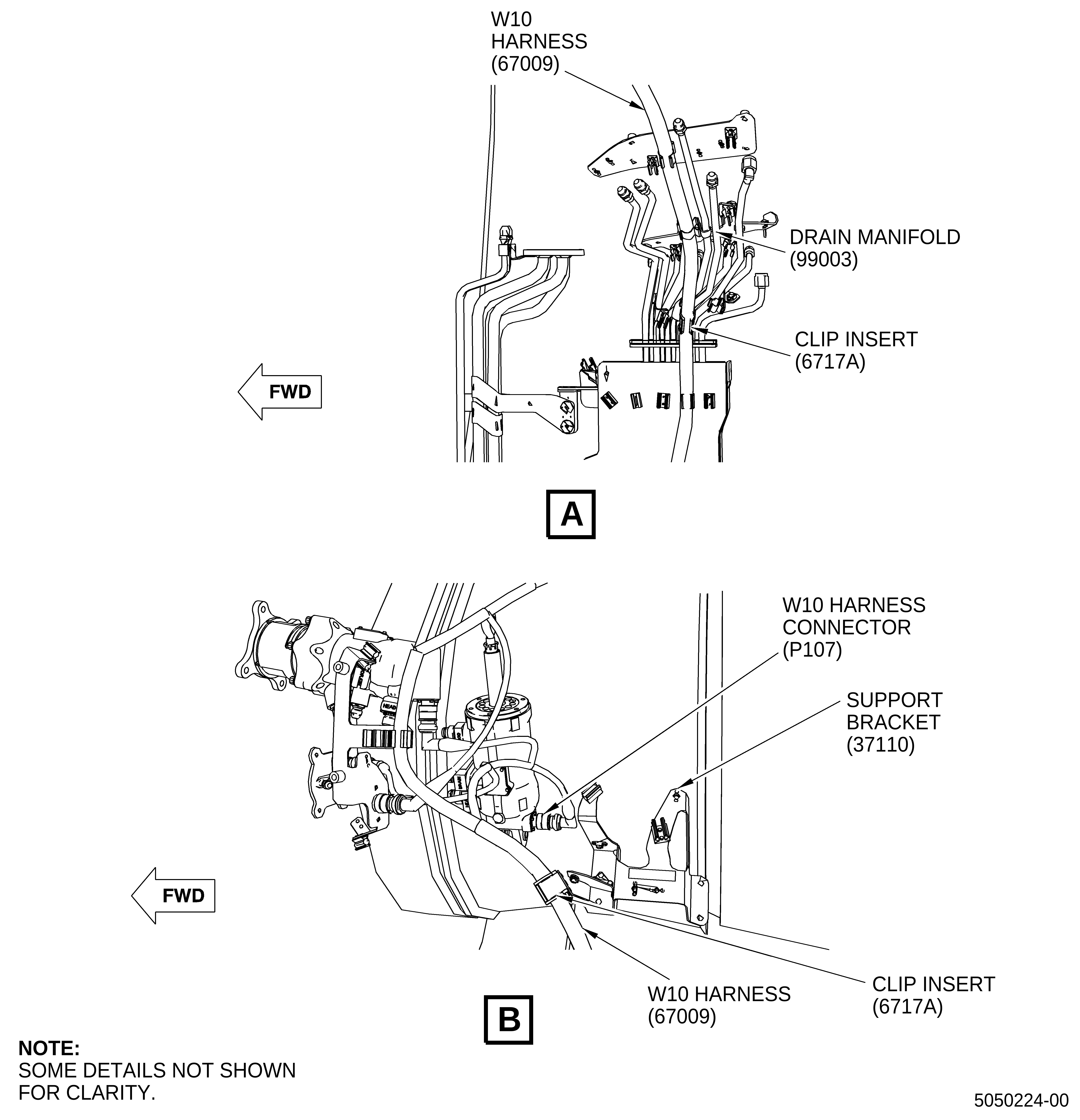

(6)Remove the clip inserts that support the W10 harness. Refer to Figure 6 and do as follows:
(a)Remove the W10 harness (SIN 67009) from the drain manifold (SIN 99003).
(b)Remove the clip insert (SIN 6717A) from the drain manifold (SIN 99003).
(c)Remove the W10 harness (SIN 67009) from the support bracket (SIN 37110).
(d)Remove the clip insert (SIN 6717A) from the support bracket (SIN 37110).
(e)Remove the W10 harness (SIN 67009) from the wiring bracket (SIN 67219).
(f)Remove the clip inserts (SIN 67174) from the wiring bracket (SIN 67219).
(g)Remove the W10 harness (SIN 67009) from the drain tube (SIN 37900).
(h)Remove the clip insert (SIN 67173) from the drain tube (SIN 37900).
(i)Attach the W10 harness (SIN 67009) to the spring clips.

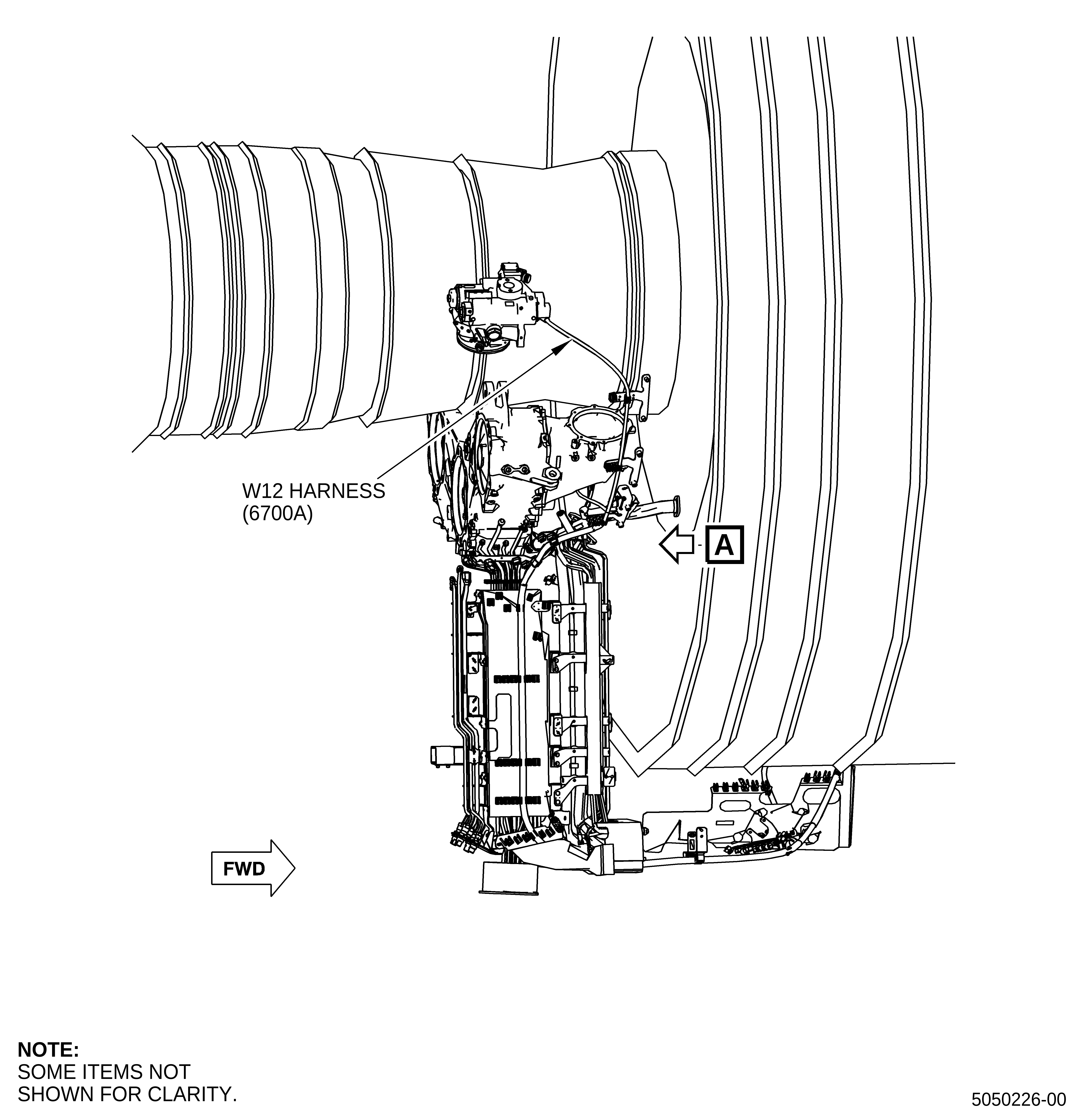

(7)Remove the clip inserts that support the W12 harness. Refer to Figure 7 and do as follows:
(a)Remove the W12 harness (SIN 6700A) from the support bracket (SIN 6711G) and the A-sump scavenge tube (SIN 45100).
(b)Remove the clip inserts (SIN 67176) from the support bracket (SIN 6711G) and the A-sump scavenge tube (SIN 45100).
(c)Remove the W12 harness (SIN 6700A) from the bracket (SIN 67217).
(d)Remove the clip insert (SIN 67178) from the bracket (SIN 67217).
(e)Attach the W12 harness (SIN 6700A) to the spring clips.

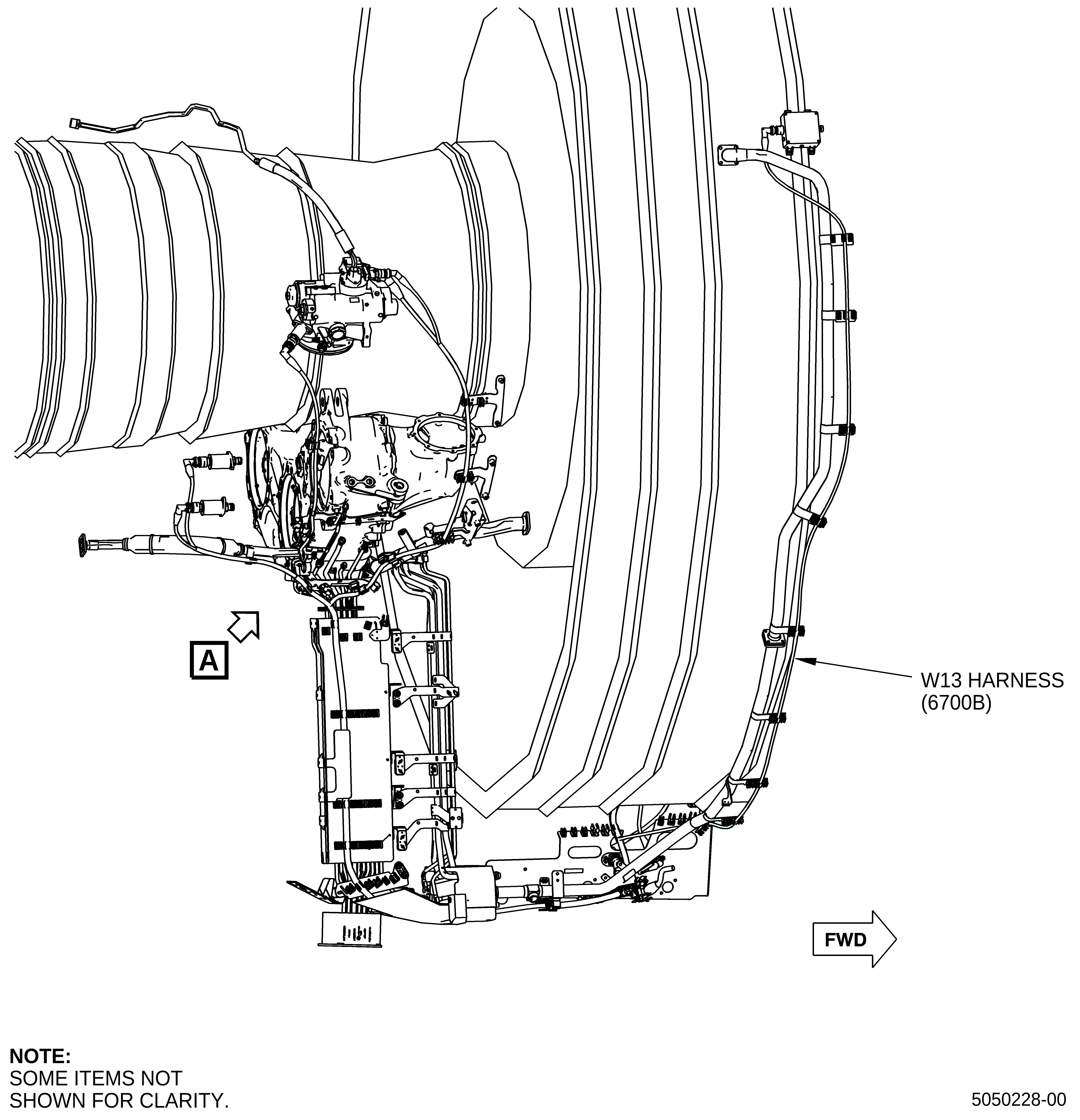

(8)Remove the clip inserts that support the W13 harness. Refer to Figure 8 and do as follows:
(a)Remove the W13 harness (SIN 6700B) from the support bracket (SIN 6711G).
(b)Remove the clip insert (SIN 67174) from the support bracket (SIN 6711G).
(c)Remove the clip insert (SIN 67175) from the support bracket (SIN 6711G).
(d)Remove the W13 harness (SIN 6700B) from the A-sump scavenge tube (SIN 45100).
(e)Remove the clip insert (SIN 67174) from the A-sump scavenge tube (SIN 45100).
(f)Remove the W13 harness (SIN 6700B) from the scavenge oil tube and hose (SIN 45202).
(g)Remove the clip insert (SIN 67174) from the scavenge oil tube and hose (SIN 45202).
(h)Attach the W13 harness (SIN 6700B) to the spring clips.

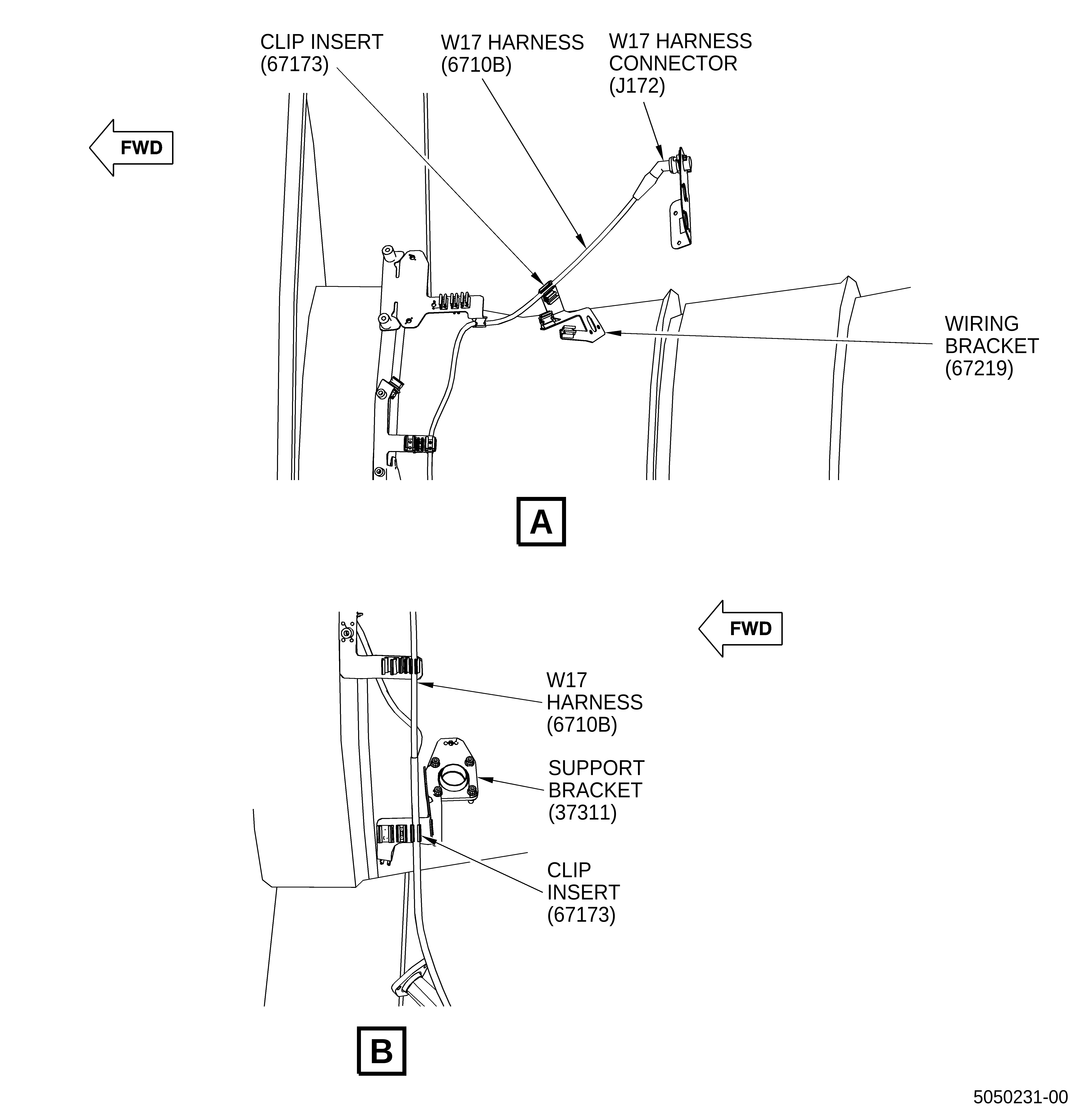

(9)Remove the clip inserts that support the W17 harness. Refer to Figure 9 and do as follows:
(a)Remove the W17 harness (SIN 6710B) from the wiring bracket (SIN 67219).
(b)Remove the clip insert (SIN 67173) from the wiring bracket (SIN 67219).
(c)Remove the W17 harness (SIN 6710B) from the support bracket (SIN 37311).
(d)Remove the clip insert (SIN 67173) from the support bracket (SIN 37311).
(e)Attach the W17 harness (SIN 6710B) to the spring clips.
W05 Harness
Figure 1   (Sheet 1)
W05 Harness
Figure 1   (Sheet 2)
W05 Harness
Figure 1   (Sheet 3)
W06 Harness
Figure 2   (Sheet 1)
W06 Harness
Figure 2   (Sheet 2)
W06 Harness
Figure 2   (Sheet 3)
W07 Harness
Figure 3   (Sheet 1)
W07 Harness
Figure 3   (Sheet 2)
W08 Harness
Figure 4   (Sheet 1)
W08 Harness
Figure 4   (Sheet 2)
W09 Harness
Figure 5   (Sheet 1)
W09 Harness
Figure 5   (Sheet 2)
W09 Harness
Figure 5   (Sheet 3)
W10 Harness
Figure 6   (Sheet 1)
W10 Harness
Figure 6   (Sheet 2)
W10 Harness
Figure 6   (Sheet 3)
W12 Harness
Figure 7   (Sheet 1)
W12 Harness
Figure 7   (Sheet 2)
W13 Harness
Figure 8   (Sheet 1)
W13 Harness
Figure 8   (Sheet 2)
W17 Harness
Figure 9   (Sheet 1)
W17 Harness
Figure 9   (Sheet 2)
