| SB 73-0092 R00 ENGINE FUEL AND CONTROL - Fuel Metering Unit (73-21-40) - Introduction of New FMU | Issued: 07/16/2021 | |
| GEnx-1B SERVICE BULLETIN - 73-0092 R00 | Revised: 07/16/2021 |
| SB 73-0092 R00 ENGINE FUEL AND CONTROL - Fuel Metering Unit (73-21-40) - Introduction of New FMU | Issued: 07/16/2021 | |
| GE Designated: -CONFIDENTIAL- | |
| The information contained in this document is GE proprietary information and is disclosed in confidence. It is the property of GE and shall not be used, disclosed to others or reproduced without the express written consent of GE, including, but without limitation, it is not to be used in the creation, manufacture, development, or derivation of any repairs, modifications, spare parts, designs, or configuration changes or to obtain FAA or any other government or regulatory approval to do so. If consent is given for reproduction in whole or in part, this notice and the notice set forth on each page of this document shall appear in any such reproduction in whole or part. | |
| This technical data is considered subject to the Export Administration Regulations (EAR) pursuant to 15 CFR Parts 730-774. Transfer of this data by any means to a Non-U.S. Person, whether in the United States or abroad, without the proper U.S. Government authorization (e.g., License, exemption, NLR, etc.), is strictly prohibited. | |
| Copyright (2021) General Electric Company, U.S.A. |
| 1. | PLANNING INFORMATION |
| A. | Effectivity |
| * * * FOR GEnx-1B64/P2, -1B67/P2, -1B70/75/P2, -1B70/P2, -1B70C/P2, -1B74/75/P2, -1B76/P2, -1B76A/P2 |
| This Service Bulletin has been introduced in production to these GEnx-1B engines: |
| • |
|
| These serial numbers are the best available data. |
| The fuel metering unit (FMU) VIN 8062-1106 (P/N 2459M17P01) and tube cap P/N J1315G08 are affected by this Service Bulletin. |
| B. | Description |
| This Service Bulletin introduces a new FMU VIN 8062-1197 (P/N 2459M17P03). |
| Also, this Service Bulletin provides instructions to rework the affected FMU to VIN 8062-1197 (P/N 2459M17P03). |
| C. | Compliance |
| Category 6 |
| GE recommends that you do this Service Bulletin when the affected FMU is routed for repair. |
| Impact E |
| This recommendation is to improve the cost of ownership, reduce maintenance requirements or is a product improvement. |
| NOTE: |
|
| This Service Bulletin is offered to improve the reliability or performance of your GE product, or to help prevent the occurrence of the event or condition described in this Service Bulletin. If the operator elects not to participate in the bulletin, that decision will be taken into consideration by GE in evaluating future product performance issues that may arise in the operators fleet. |
| D. | Concurrent Requirements |
| None. |
| E. | Reason |
| (1) | Objective: |
| To introduce a new FMU part number and provide instructions to rework the FMU to the latest standard part number. |
| (2) | Condition: |
| The current operability bleed valve (OBV) electro-hydraulic servo valve (EHSV) on the FMU is unused (non-functional). |
| (3) | Cause: |
| The OBV is not installed on production engines. |
| (4) | Improvement: |
| The new ram FMUs do not include OBV EHSV, reducing weight of the assembly. |
| (5) | Substantiation: |
| Substantiation is by analysis and comparative analysis. |
| F. | Approval |
| The data contained in this Service Bulletin has been reviewed by the FAA or authorized entity representing the FAA and the repair(s) and modification(s) herein comply with the applicable Aviation Regulations and are APPROVED for installation in the model(s) listed in this Service Bulletin. |
| G. | Manpower |
| No additional man-hours are required to comply with this Service Bulletin. |
| H. | Weight and Balance |
| Refer to the attached Woodward Service Bulletin 84461-73-0010 (latest version). |
| I. | References (Use the latest version of these documents) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| GEK 114011, GEnx-1B Component Maintenance Manual (CMM), 73-21-10 |
| GEK 114091, GEnx-1B Component Maintenance Manual (CMM), 73-21-11 |
| Woodward Service Bulletin 84461-73-0010, ENGINE FUEL AND CONTROL - FUEL METERING UNIT (FMU) - CONVERSION OF 8062-1106 TO 8062-1197 WITH REMOVAL OF THE OBV EHSV |
| NOTE: |
|
| J. | Publications Affected |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| GEK 114091, GEnx-1B Component Maintenance Manual (CMM), 73-21-11 |
| K. | Interchangeability |
| Qualified interchangeability. |
| The old and new hardware are two-way interchangeable. |
| L. | Software Accomplishment Summary |
| Not applicable. |
| 2. | MATERIAL INFORMATION |
| A. | Material - Price and Availability |
| (1) | Parts necessary to do this Service Bulletin: |
| Refer to the attached Woodward Service Bulletin 84461-73-0010 (latest version). |
| (2) | Other Spare Parts: |
| None. |
| (3) | Consumables: |
| None. |
| B. | Industry Support Information |
| None. |
| C. | Configuration Chart |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Codes DE=Delete RE=Replace RM=Remains RW=Rework |
| Change Codes 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability. |
| Support Codes B=Old parts will be supplied until all old parts are sold. E=Old parts will be supplied, and can be used at other engine locations. |
| D. | Parts Disposition |
| Refer to the attached Woodward Service Bulletin 84461-73-0010 (latest version). |
| E. | Tooling - Price and Availability |
| Refer to the attached Woodward Service Bulletin 84461-73-0010 (latest version). |
| 3. | ACCOMPLISHMENT INSTRUCTIONS |
| A. | General |

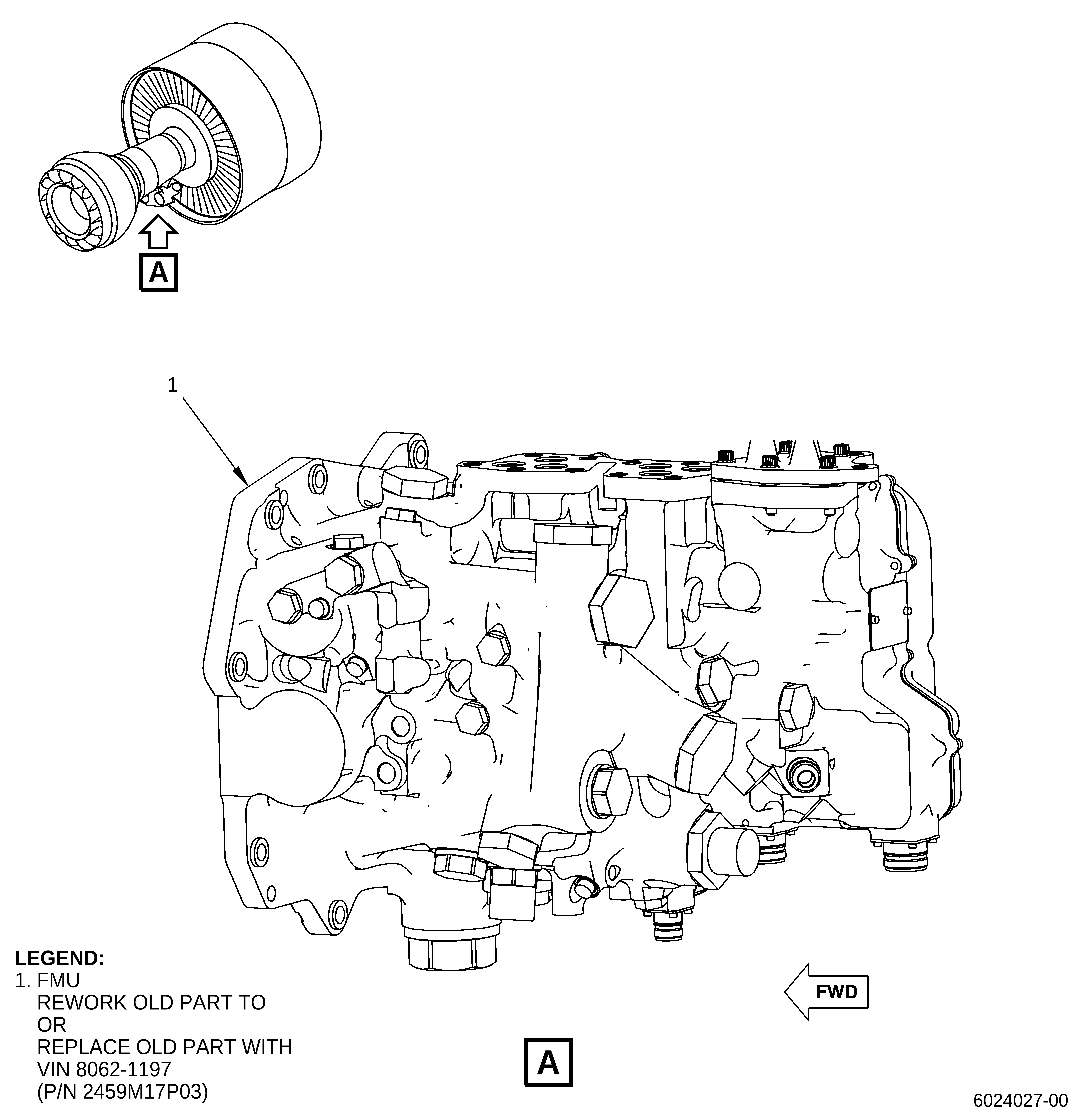

| (1) | Rework the FMU (1, Figure 1). Refer to the attached Woodward Service Bulletin 84461-73-0010 (latest version). |
| 4. | APPENDIX A |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| NOTE: |
|
