1.PLANNING INFORMATION
A.Effectivity
* * * FOR GEnx-1B54, -1B58, -1B64, -1B67, -1B70
This Service Bulletin has been introduced in production to these GEnx-1B engines:
•
GEnx-1B engines, serial numbers 956-118 and up.
These serial numbers are the best available data.
The self-locking nuts P/N AS3486-10 are affected by this Service Bulletin.
B.Description
This Service Bulletin releases new brackets P/N 2430M29G01 to secure the oil vent hose tubes.
C.Compliance
Category 7
GE recommends that you do this Service Bulletin at customer's convenience.
NOTE:
This Service Bulletin can be accomplished in shop.
D.Concurrent Requirements
None.
E.Reason
(1)Objective:
To introduce new parts and to improve reliability and maintainability.
(2)Condition:
The oil vent hose tubes are installed at the cowl support with two flange seal gaskets and four self-locking nuts in a tight area generating a risk of foreign object damage.
(3)Cause:
The self-locking nuts at the cowl support are complicated to install and uninstall in this particular zone.
(4)Improvement:
Two small brackets with riveted nut plates will replace the self-locking nuts for easy assembly.
(5)Substantiation:
Substantiation is by comparative analysis.
F.Approval
This Service Bulletin has been reviewed by the FAA and the repair(s) and modification(s) herein comply with the applicable Federal Aviation Regulations and are FAA APPROVED for installation in the model(s) listed in this Service Bulletin.
G.Manpower
No additional man-hours are required to comply with this Service Bulletin.
H.Weight and Balance
The complete compliance with this Service Bulletin increases weight by 0.05 lb (0.02 kg).
I.References (Use the latest version of these documents)
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
NOTE:
The reference documents listed below are for the engine manufacturer's internal use only:

CID: 547761

BPP: 10-72-00-05
J.Publications Affected
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
K.Interchangeability
New parts have to be installed at the same time.
L.Software Accomplishment Summary
Not applicable.
2.MATERIAL INFORMATION
A.Material - Price and Availability
(1)Parts necessary to do this Service Bulletin:

Part Number
Qty/ Eng
Part Name
Unit ($) Price
Pkg Qty
Lead Time Days

2430M29G01
(2)
Bracket
45.25
(1)
30
NOTE:
Prices are provided for planning purposes and are subject to change.
(2)Other Spare Parts:
None.
(3)Consumables:
None.
B.Industry Support Information
None.
C.Configuration Chart

New Part Number
Qty/ Eng
Part Name
Old Part Number/ IPC Location
Qty/ Eng
Op Code
Chg/ Sprt Code

2305M10G03/G06
(X)
GEnx Engine Assembly
2305M10G03/G06
(X)
RM
-/-

--
(-)
Nut, Self-Locking
(SIN 46041)
.AS3486-10
01-140, 79-22-30
(4)
DE
5/E

.2430M29G01
01-145, 79-22-30
(2)
Bracket
(SIN 46014)
--
(-)
AD
5/-
Operation Codes
AD=Add
DE=Delete
RM=Remains
Change Code 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability.
Support Code E=Old parts will be supplied, and can be used at other engine locations.
D.Parts Disposition
Use serviceable old parts at other engine locations.
E.Tooling - Price and Availability
None.
3.ACCOMPLISHMENT INSTRUCTIONS
A.Removal of Self-Locking Nuts
(1)Removal instructions for self-locking nuts (1, Figure 1) have not changed. Refer to the GEnx-1B EM, 72-00-01, REMOVAL 001, Subtask 72-00-01-020-010.
B.Installation of New Brackets
(1)Install four machine bolts (01-120, 79-22-30) and two brackets (2, Figure 1) to attach the oil vent hose tubes (01-091 and 01-151) and two flange seal gaskets (01-130).
(2)Torque the four machine bolts (01-120) to 106-124 lb in. (12.0-14.0 Nm).

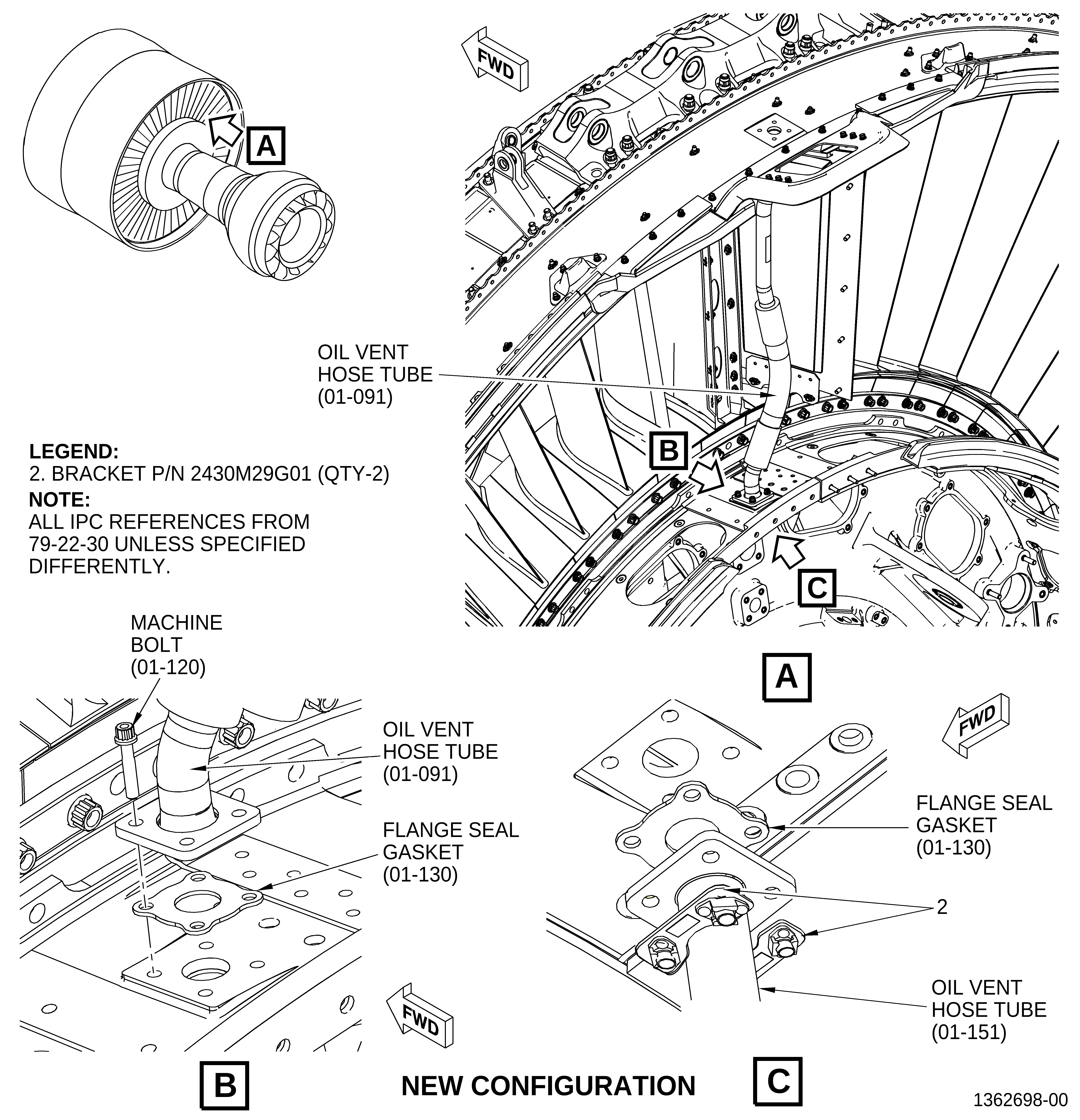

Introduction of New Brackets
Figure 1   (Sheet 1)

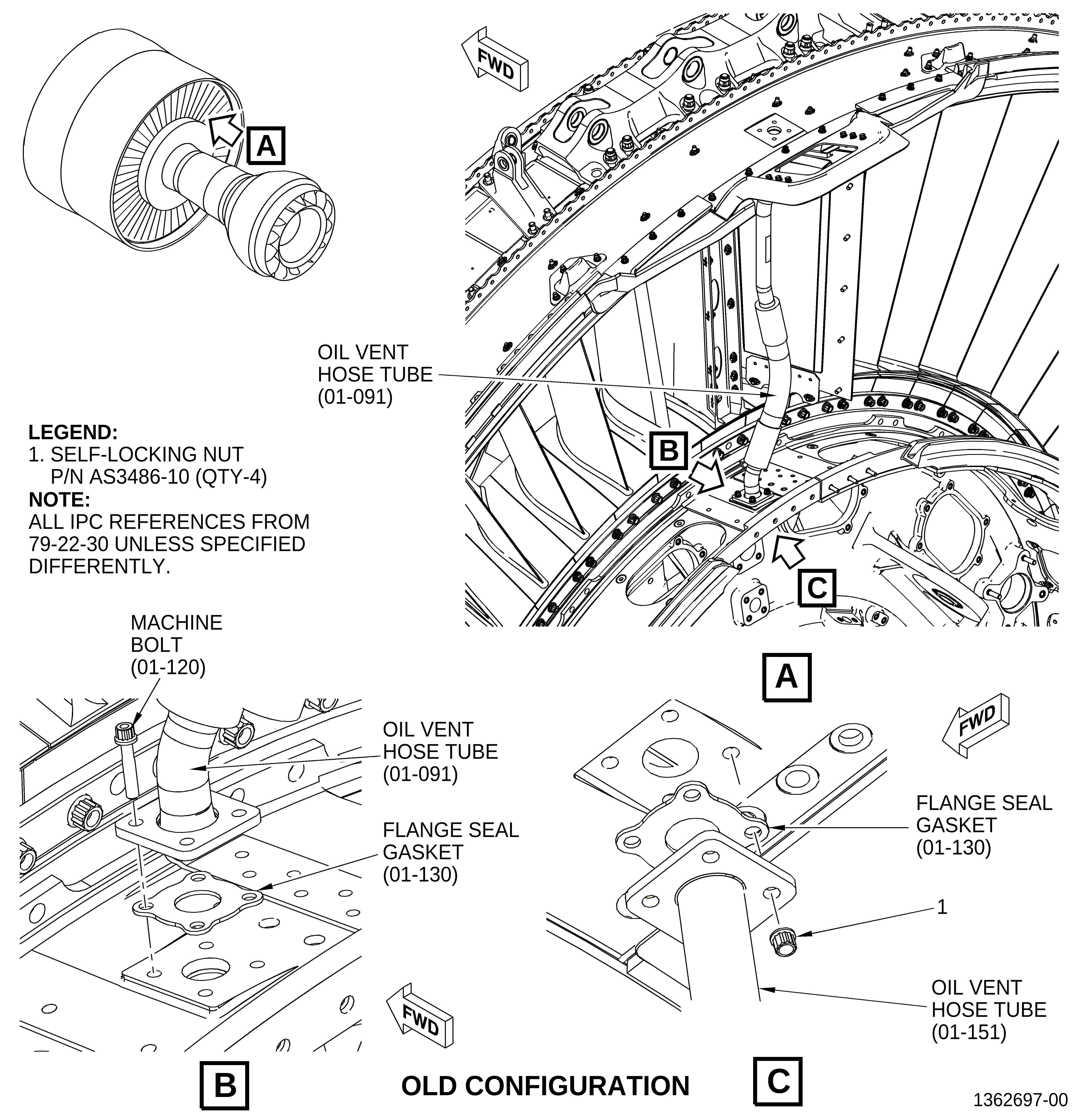

Introduction of New Brackets
Figure 1   (Sheet 2)
