 | GEnx-1B SERVICE BULLETIN - 79-0034 R00 | Revised: 08/04/2016 |
| SB 79-0034 R00 OIL - Lower Bifurcation to Fuel/Oil Heat Exchanger VFSG Oil Tubes (79-22-10) - GEnx-1B VFSG Oil Tubes Optimization | Issued: 08/04/2016 | |
| GEnx-1B SERVICE BULLETIN - 79-0034 R00 | Revised: 08/04/2016 |
| SB 79-0034 R00 OIL - Lower Bifurcation to Fuel/Oil Heat Exchanger VFSG Oil Tubes (79-22-10) - GEnx-1B VFSG Oil Tubes Optimization | Issued: 08/04/2016 | |
| GE PROPRIETARY INFORMATION | |
| The information contained in this document is GE proprietary information and is disclosed in confidence. It is the property of GE and shall not be used, disclosed to others or reproduced without the express written consent of GE, including, but without limitation, it is not to be used in the creation, manufacture, development, or derivation of any repairs, modifications, spare parts, designs, or configuration changes or to obtain FAA or any other government or regulatory approval to do so. If consent is given for reproduction in whole or in part, this notice and the notice set forth on each page of this document shall appear in any such reproduction in whole or in part. | |
| This technical data is considered EAR controlled pursuant to 15 CFR Parts 730-774 respectively. Transfer of this data by any means to a Non-US Person, whether in the United States or abroad, without the proper U.S. Government authorization (e.g., License, exemption, NLR, etc.), is strictly prohibited. | |
| Copyright (2016) General Electric Company, U.S.A. |
| 1. | PLANNING INFORMATION |
| A. | Effectivity |
| * * * FOR GEnx-1B64, -1B64/P1, -1B64/P2, -1B67, -1B67/P1, -1B67/P2, -1B70, -1B70/75/P1, -1B70/75/P2, -1B70/P1, -1B70/P2, -1B70C/P1, -1B70C/P2, -1B74/75/P1, -1B74/75/P2 |
| This Service Bulletin is applicable to all GEnx-1B engines. |
| This Service Bulletin has been introduced in production to these GEnx-1B engines: |
| • |
|
| These serial numbers are the best available data. |
| The parts listed in Table 1 below are affected by this Service Bulletin: |
|
| B. | Description |
| This Service Bulletin introduces new parts listed in Table 2 below: |
|
| C. | Compliance |
| Category 7 |
| GE recommends that you do this Service Bulletin at customer's convenience/option. |
| NOTE: |
|
| D. | Concurrent Requirements |
| None. |
| E. | Reason |
| (1) | Objective: |
| To introduce new parts. |
| (2) | Condition: |
| The current configuration uses two double seal fittings and reducers to allow weld of the tubing section to the port fittings and to the T-sensor fittings. |
| (3) | Cause: |
| The use of reducers increases the difficulty of manufacturability of the system. |
| (4) | Improvement: |
| To reduce the manufacturing complexity and eliminate the risk of leakage with these single seal fittings configured for safety wire use. |
| (5) | Substantiation: |
| Substantiation is by analysis and comparative analysis. |
| F. | Approval |
| The data contained in this Service Bulletin has been reviewed by the appropriate governmental authority and the repair(s) and modification(s) herein comply with the applicable Aviation Regulations and are APPROVED for installation in the model(s) listed in this Service Bulletin. |
| G. | Manpower |
| No additional man-hours are required to comply with this Service Bulletin. |
| H. | Weight and Balance |
| The complete compliance with this Service Bulletin decreases weight by 0.32 lb (0.15 kg). |
| I. | References (Use the latest version of these documents) |
| GEK 9250, Commercial Engine Standard Practices Manual (SPM) |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| NOTE: |
|
| J. | Publications Affected |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| K. | Interchangeability |
| The old VFSG cooling oil tube hose P/N ER6002G01, tube assembly P/N ER6003G01, and preformed packing P/N J1438P016 must be replaced with the new VFSG cooling oil tube hose P/N ER9344G01, tube assembly P/N ER9345G01, and cable safety kit P/N 736L680G01 as a set. |
| The old oil tube hose P/N ER5734G01, oil VFSG return tube P/N ER6004G01, and preformed packing P/N J1438P016 must be replaced with the new oil tube hose P/N ER9346G01, oil VFSG return tube P/N ER9347G01, and cable safety kit P/N 736L680G01 as a set. |
| Parts added and parts deleted. |
| L. | Software Accomplishment Summary |
| Not applicable. |
| 2. | MATERIAL INFORMATION |
| A. | Material - Price and Availability |
| (1) | Parts necessary to do this Service Bulletin: |
|
| NP = Not Provisioned |
| NOTE: |
|
| *Part not supplied by GE Engine Services Distribution L.L.C. To procure parts, contact the following: |
|
| (2) | Other Spare Parts: |
| None. |
| (3) | Consumables: |
| None. |
| B. | Industry Support Information |
| None. |
| C. | Configuration Chart |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Codes AD=Add DE=Delete RE=Replace RM=Remains |
| Change Codes 2=Two-way interchangeable. 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability. |
| Support Codes B=Old parts will be supplied until all old parts are sold. |
| D. | Parts Disposition |
| Use serviceable old parts for engines that have not changed. |
| E. | Tooling - Price and Availability |
| None. |
| 3. | ACCOMPLISHMENT INSTRUCTIONS |
| A. | Removal |

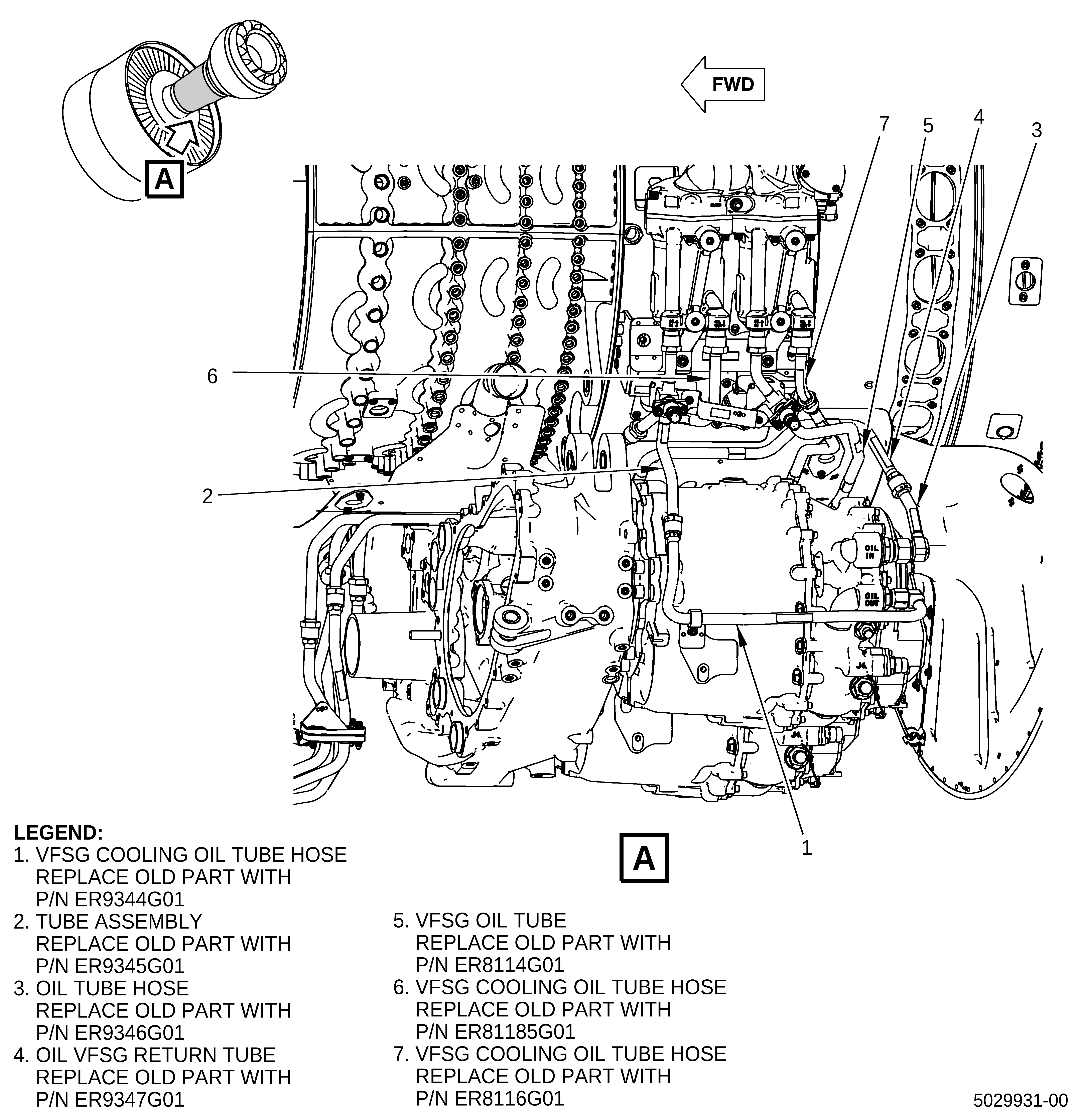

| (1) | Removal instructions for the VFSG cooling oil tube hoses (1, 6, and 7, Figure 1), tube assembly (2), oil tube hose (3), oil VFSG return tube (4), and VFSG oil tube (5) have not changed. Refer to the GEnx-1B EM, 72-00-02, DISASSEMBLY 002, CONFIG 01, Subtask 72-00-02-030-620 and CONFIG 02, Subtask 72-00-02-030-610. |

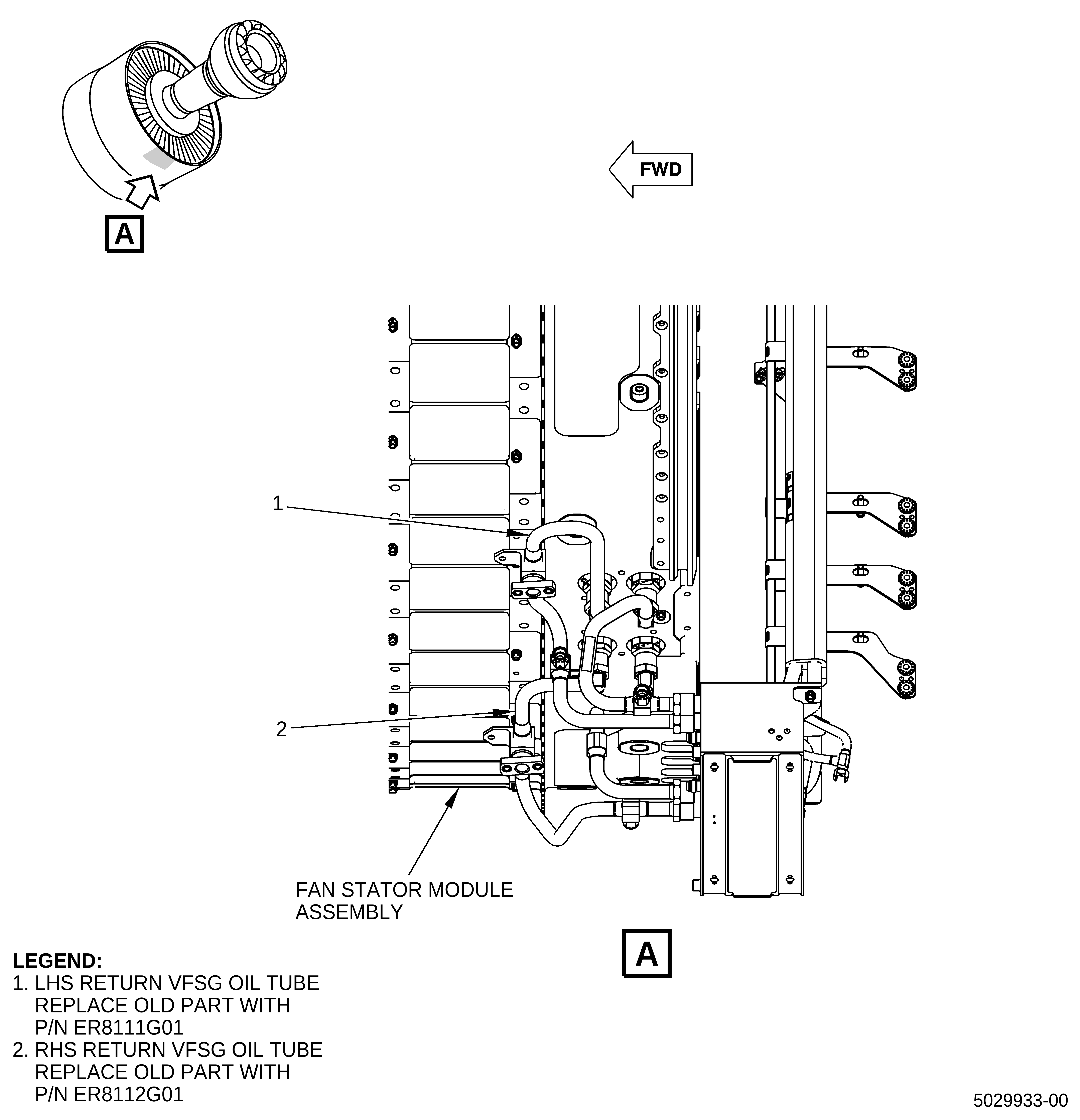

| (2) | Removal instructions for the LHS return VFSG oil tube (1, Figure 2) and RHS return VFSG oil tube (2) have not changed. Refer to the GEnx-1B EM, 72-00-01, DISASSEMBLY 001, Subtask 72-00-01-040-054, steps (11) through (13). |
| B. | Installation |
| (1) | For base GEnx-1B engines: |
| (a) | Install the new VFSG cooling oil tube hose (1, Figure 1), tube assembly (2), and VFSG oil tube (5). Installation instructions have not changed. Refer to the GEnx-1B EM, 72-00-02, ASSEMBLY 005 - CONFIG 01, Subtask 72-00-02-440-448 and omit steps (b) and (c). |
| (b) | Install the new oil tube hose (3, Figure 1) and oil VFSG return tube (4). Installation instructions have not changed. Refer to the GEnx-1B EM, 72-00-02, ASSEMBLY 005 - CONFIG 01, Subtask 72-00-02-440-446 and omit steps (d) and (f). |
| (c) | Install the new VFSG cooling oil tube hoses (6 and 7, Figure 1). Installation instructions have not changed. Refer to the GEnx-1B EM, 72-00-02, ASSEMBLY 005 - CONFIG 01, Subtask 72-00-02-440-184, steps (3) and (4). |
| (d) | Install the new LHS return VFSG oil tube (1, Figure 2) and LHS return VFSG oil tube (2). Installation instructions have not changed. Refer to the GEnx-1B EM, 72-00-01, ASSEMBLY 001, Subtask 72-00-01-430-503 and Subtask 72-00-01-430-495. |
| NOTE: |
|
| (2) | For PIP GEnx-1B engines: |
| (a) | Install the new VFSG cooling oil tube hose (1, Figure 1), tube assembly (2), and VFSG oil tube (5). Refer to the GEnx-1B EM, 72-00-02, ASSEMBLY 005 - CONFIG 02, Subtask 72-00-02-440-304, step (6). |
| (b) | Install the new oil tube hose (3, Figure 1) and oil VFSG return tube (4). Refer to the GEnx-1B EM, 72-00-02, ASSEMBLY 005 - CONFIG 02, Subtask 72-00-02-440-304, step (5). |
| (c) | Install the new VFSG cooling oil tube hoses (6 and 7, Figure 1). Refer to the GEnx-1B EM, 72-00-02, ASSEMBLY 005 - CONFIG 02, Subtask 72-00-02-440-304, steps (3) and (4). |
| NOTE: |
|
