 | COMMERCIAL ENGINE STANDARD PRACTICES MANUAL | Dated: 04/01/2006 |
| SPM 70-48-13 SHANK NUT REPAIR | ||
| COMMERCIAL ENGINE STANDARD PRACTICES MANUAL | Dated: 04/01/2006 |
| SPM 70-48-13 SHANK NUT REPAIR | ||
| TASK 70-48-13-350-024 |
| 1 . | General. |
| The following procedure must be used to repair shank nuts that are damaged beyond usable limits specified in the engine manual. |
| 2 . | Equipment. |
| Subtask 70-48-13-350-241 |
| A. | Flaring tool. |
| 3 . | Materials. |
| Subtask 70-48-13-350-242 |
| A. | Use only approved replacement parts specified in applicable manual. |
| 4 . | Procedure. |
| Subtask 70-48-13-350-243 |
| A. | Remove shank nuts from their mounting flanges by drilling into the base of flared shank of the nut. |
| B. | Select proper drill size for the part being replaced(refer to applicable engine manual). |

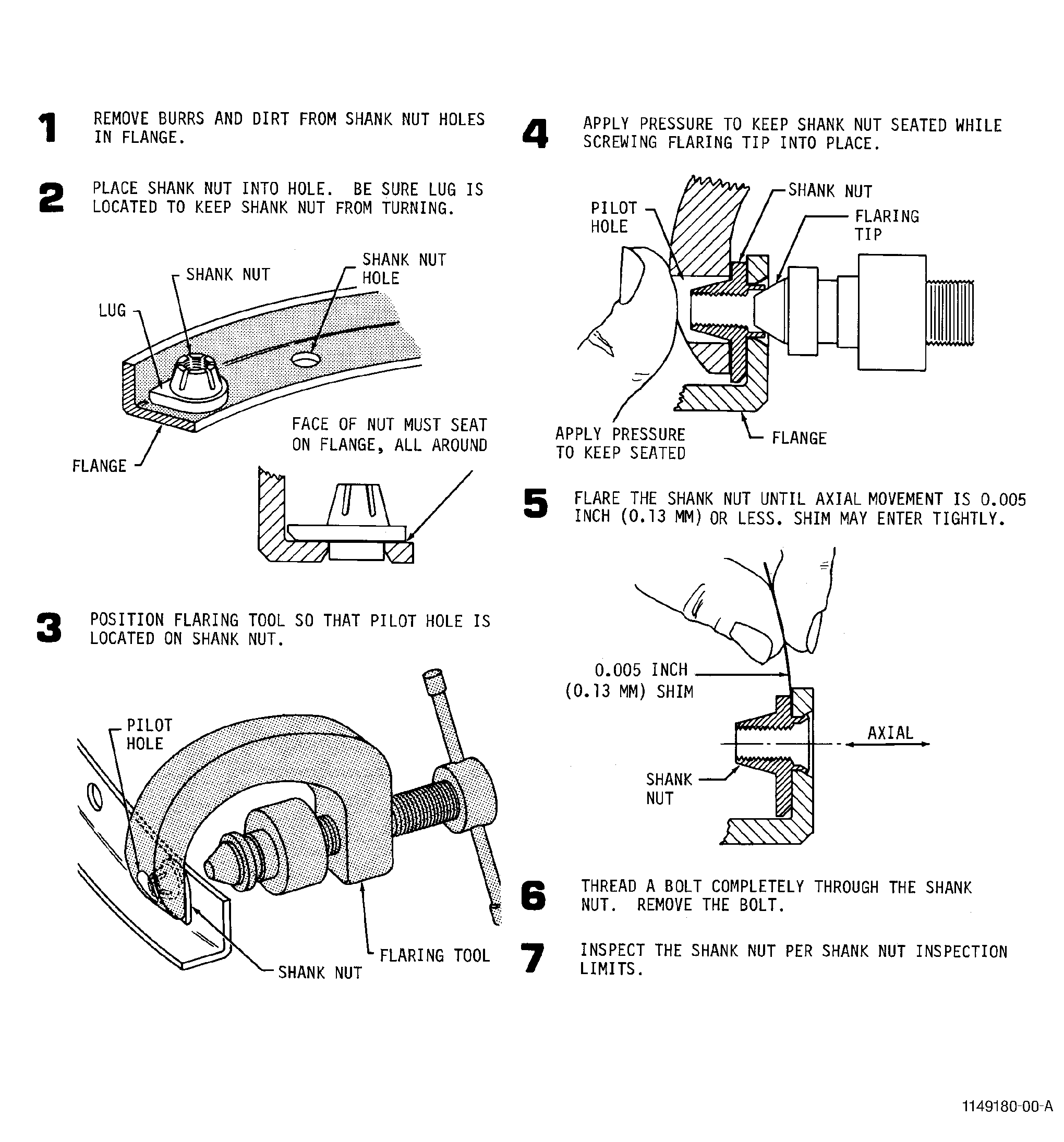

| C. | Replace shank nuts as shown in Figure 1. |
