* * * FOR ALL
TASK 72-00-22-100-801
1 . General.
A.Cleaning of the fan booster assembly (80000) as a unit will be restricted to local or spot cleaning for the purposes of inspection or repair. Refer to Figure 601.
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment. None.
B.Consumable Materials.

Code No.
Description

C10-021
Tape, Plastic (Tape)
C.Referenced Procedures.

ATA No.
Description

70-21-03
Steam Cleaning

70-21-23
Hand Wipe Degreasing
D.Expendable Parts. None.
3 . General Cleaning.
Subtask 72-00-22-160-001
CAUTION:
MASK TUBES, DUCTS, AND OPENINGS WITH C10-021 TAPE BEFORE YOU DO THE CLEANING PROCEDURE TO PREVENT CONTAMINATION.
A.Mask all the tubes, ducts, and openings with C10-021   Tape to prevent contamination in the fan booster assembly (80000).
B.Clean the fan booster assembly (80000) as follows:
(1)Alternative Procedure Available. Use the steam cleaning method to clean the fan booster assembly. Refer to TASK 70-21-03-160-001 (CLEANING METHOD 3 - STEAM CLEANING).
Subtask 72-00-22-110-002
(1).A.Alternative Procedure. Use the exterior cleaning method to clean the fan booster assembly. Refer to TASK 70-21-23-110-053 (CLEANING METHOD 23 - HAND-WIPE DEGREASING).
(2)Remove the tape from the tubes, ducts, and openings.
* * * FOR ALL

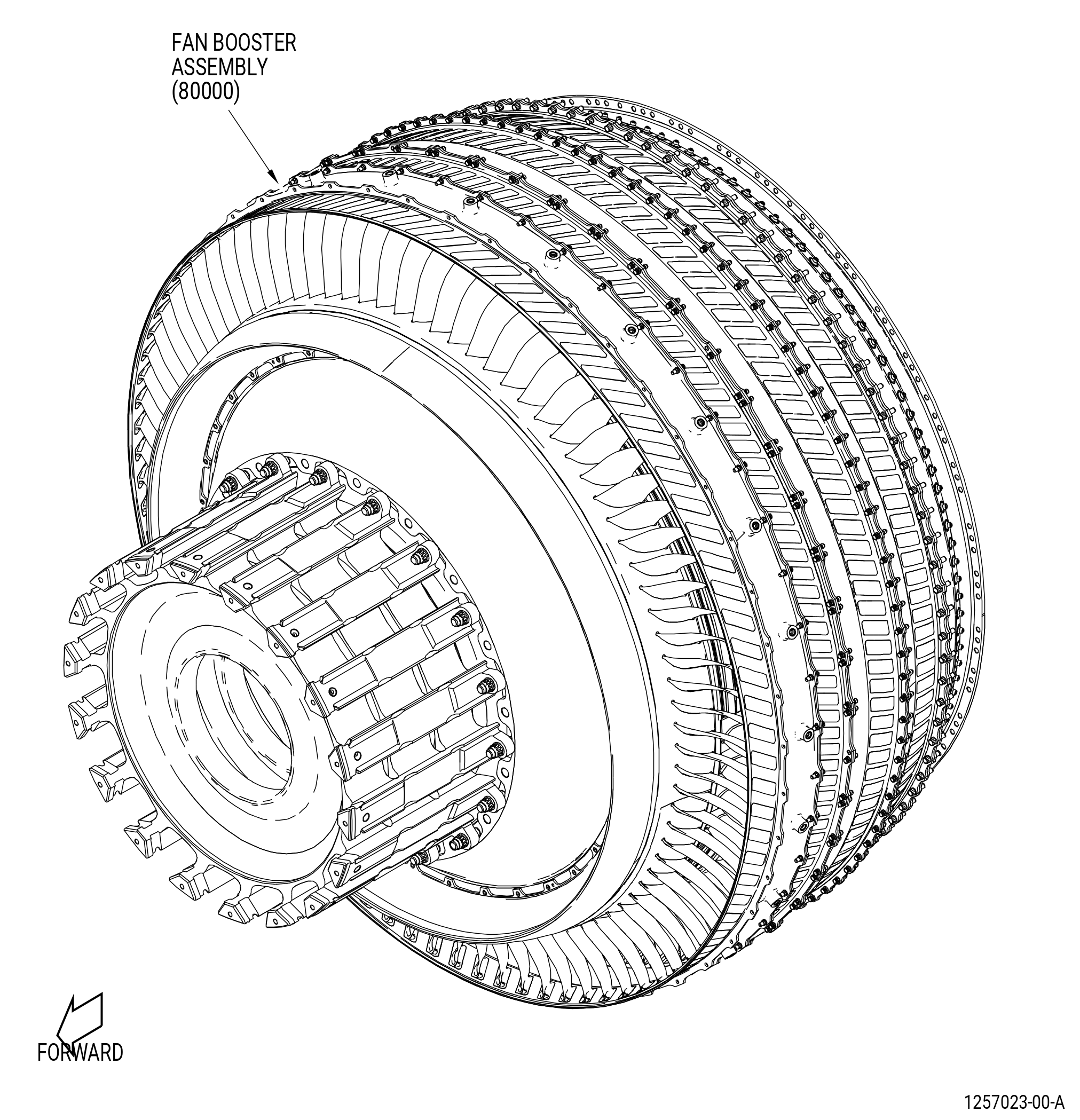

Figure 601   Fan Booster Assembly
