TASK 72-32-01-300-808
1 . Replacement of Key-Locked Inserts.
A.This procedure gives instructions to repair the high pressure compressor stator forward case (forward case) by replacing the damaged key-locked inserts. Refer to Figure 901.
B.The following maximum repairable limits apply to this repair:
NOTE:
The information below gives maximum repairable limits for the applicable Inspection sections. The paragraphs are numbered the same as the manual Inspection sections.
C.The subsequent table gives a list of the part numbers that are applicable to this repair. All part numbers are applicable to all paragraphs unless specified differently.

Part Number(s)

2514M80G01
--
--
--
D.Proprietary/Complex Process Statement.
(1)None.
2 . Tools, Equipment, and Materials.
NOTE:
Repair sources can use equivalent alternatives for tools, equipment, and consumable materials, however, the repair source must demonstrate and document equivalency.
A.Tools and Equipment.
(1)Special Tools. None.
(2)Standard Tools and Equipment. None.
(3)Locally Manufactured Tools. None.
B.Consumable Materials. None.
C.Referenced Procedures.

ATA No.
Description

70-48-11
Installation of Key-locked Inserts

72-32-01
Cleaning 001
D.Expendable Parts. None.
E.SPD Information.
(1)Spares Supplied.

CSN
Description

--
Insert Key-locked, Inconel 718, Self-locking Screw Thread (J1466P04) (insert)

--
Insert Key-locked, Inconel 718, Self-locking Screw Thread (J1466P06) (insert)
(2)Protected Spares. None.
(3)Locally Manufactured Spares. None.
F.Special Solutions. None.
G.Test Specimens. None.
3 . Dimensional Information.
None.
4 . Setup Information.
None.
5 . Procedure.
Subtask 72-32-01-160-011
A.If necessary, clean the forward case. Refer to TASK 72-32-01-100-801 (72-32-01, CLEANING 001).
Subtask 72-32-01-350-081
B.Remove the damaged key-locked inserts from the forward case. Refer to TASK 70-48-11-350-014 (INSTALLATION OF KEY-LOCKED INSERTS) and Figure 902.
Subtask 72-32-01-350-082
C.Install the new key-locked inserts in the forward case. Refer to TASK 70-48-11-350-014 (INSTALLATION OF KEY-LOCKED INSERTS), Figure 901, Figure 902, and as follows:
(1)Install the new inserts (J1466P04   ) and inserts (J1466P06   ) in the forward case.
* * * FOR ALL
Figure 901   High Pressure Compressor Stator Forward Case
* * * FOR ALL

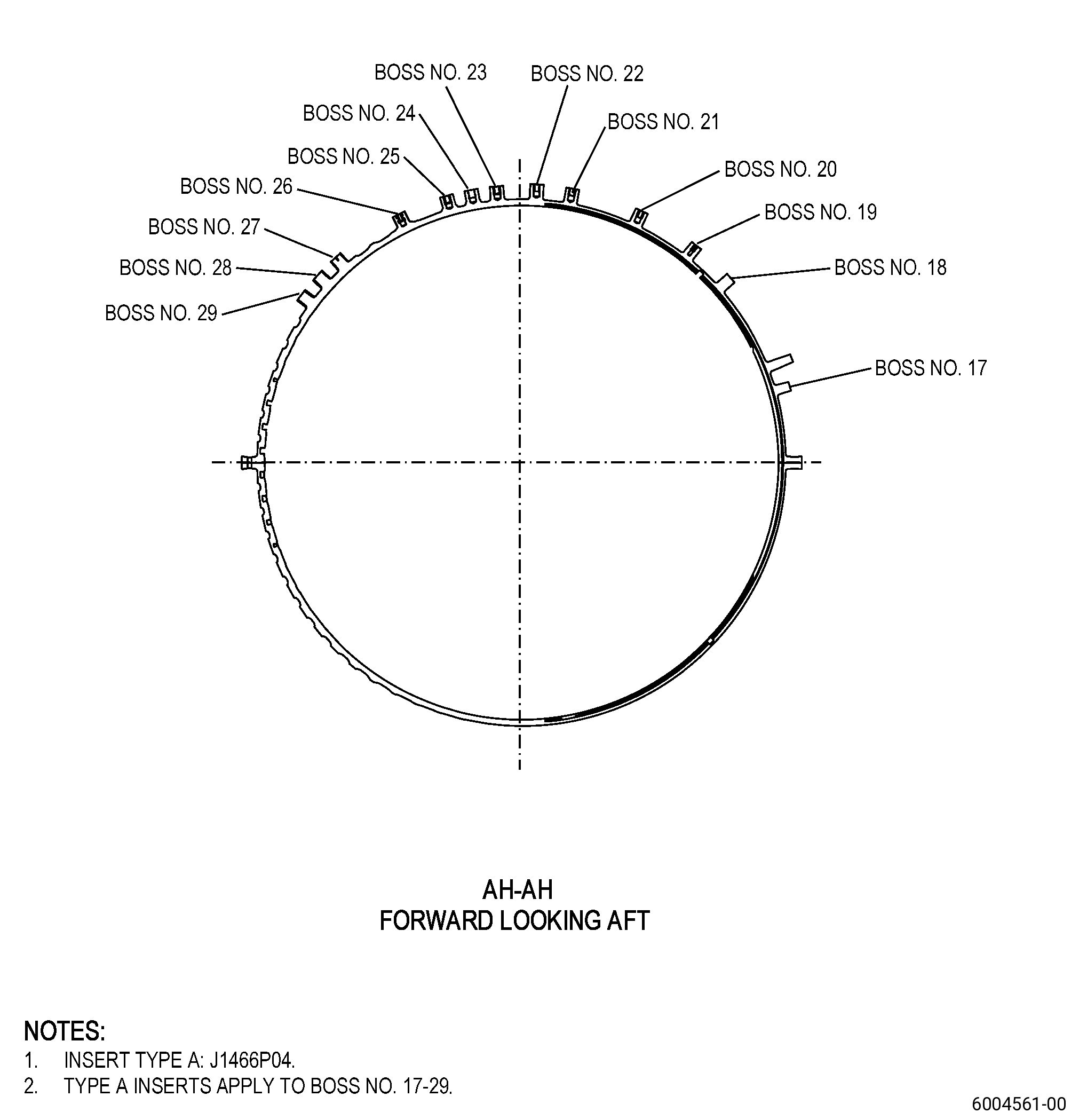

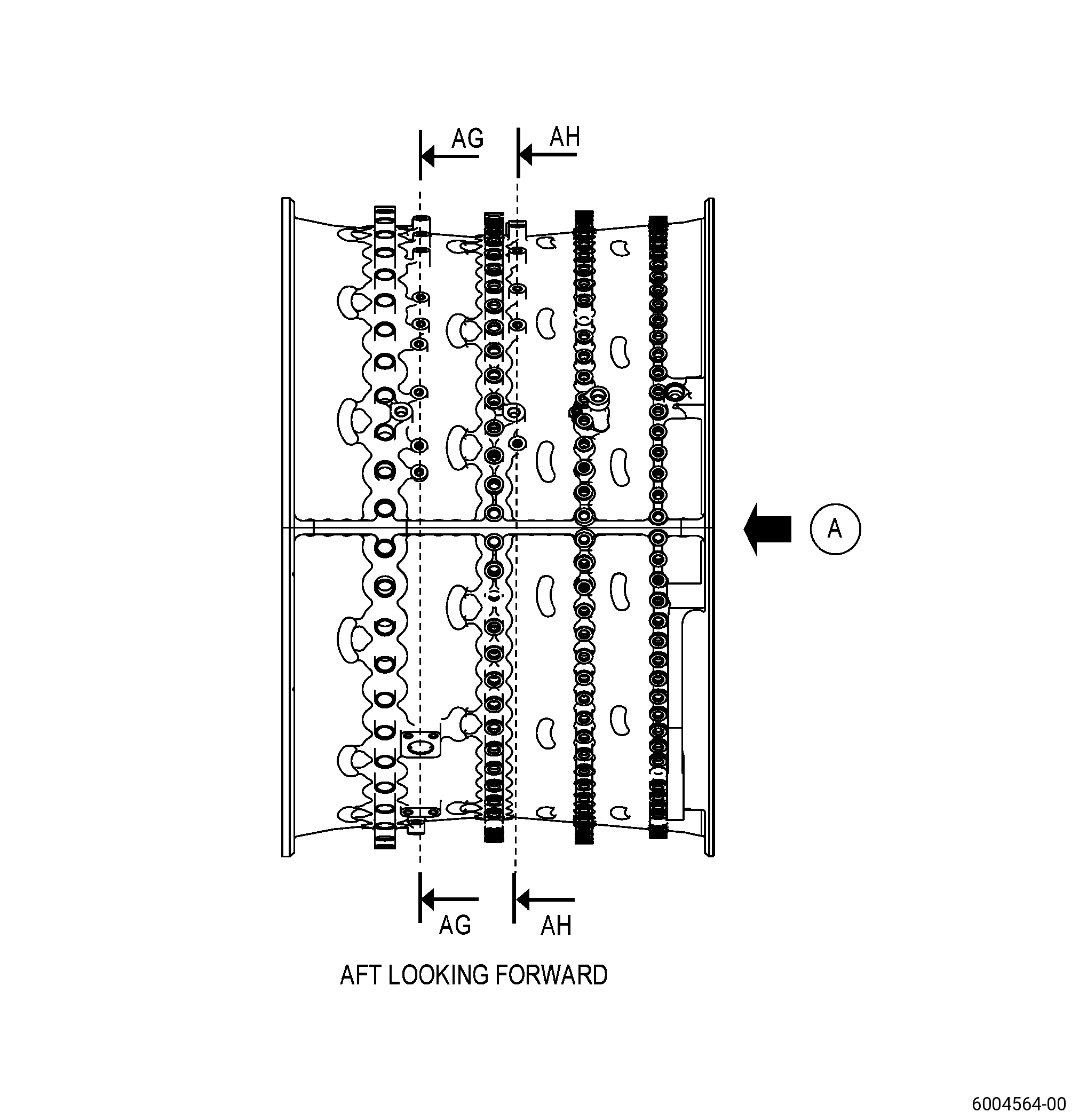

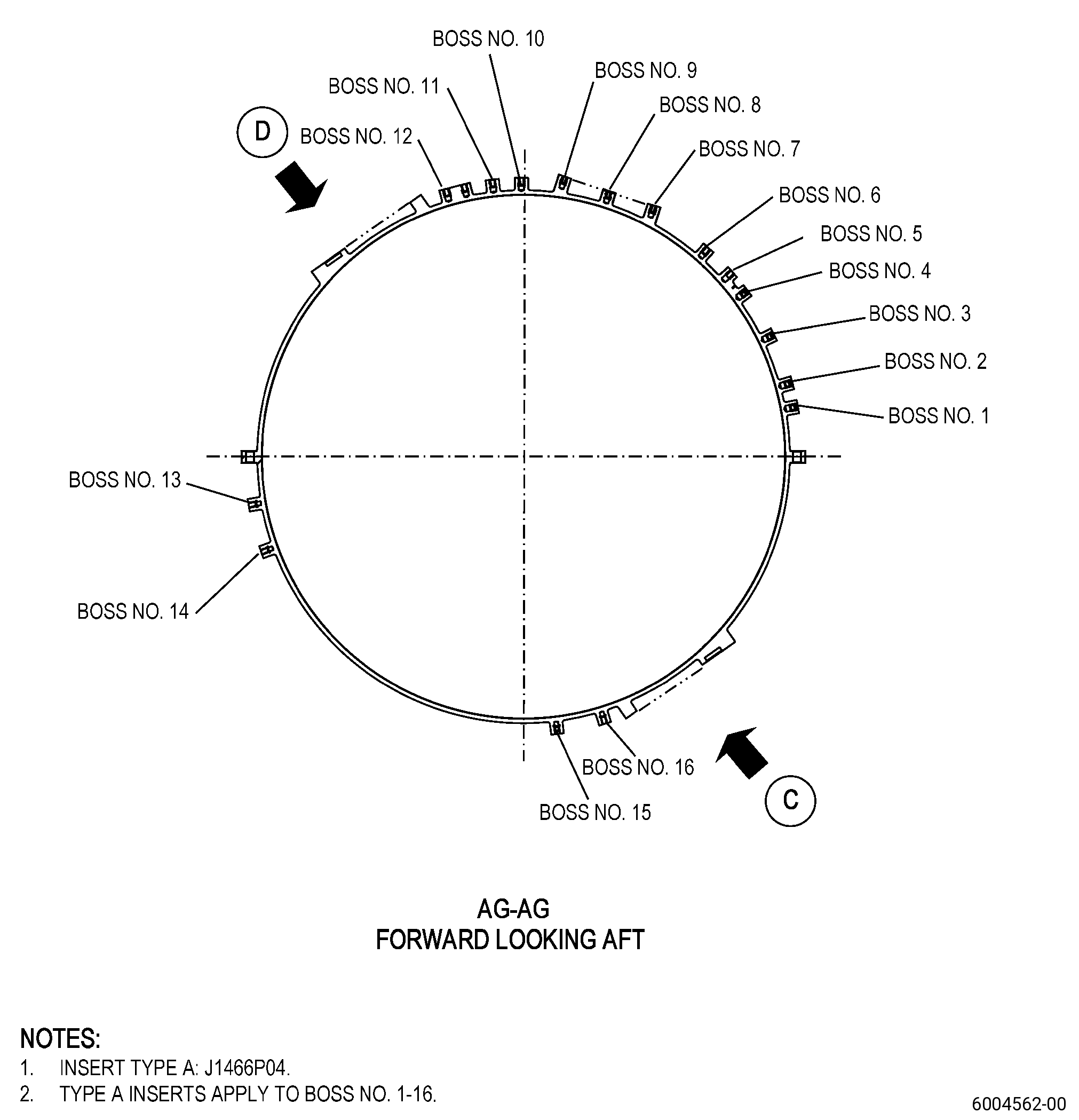

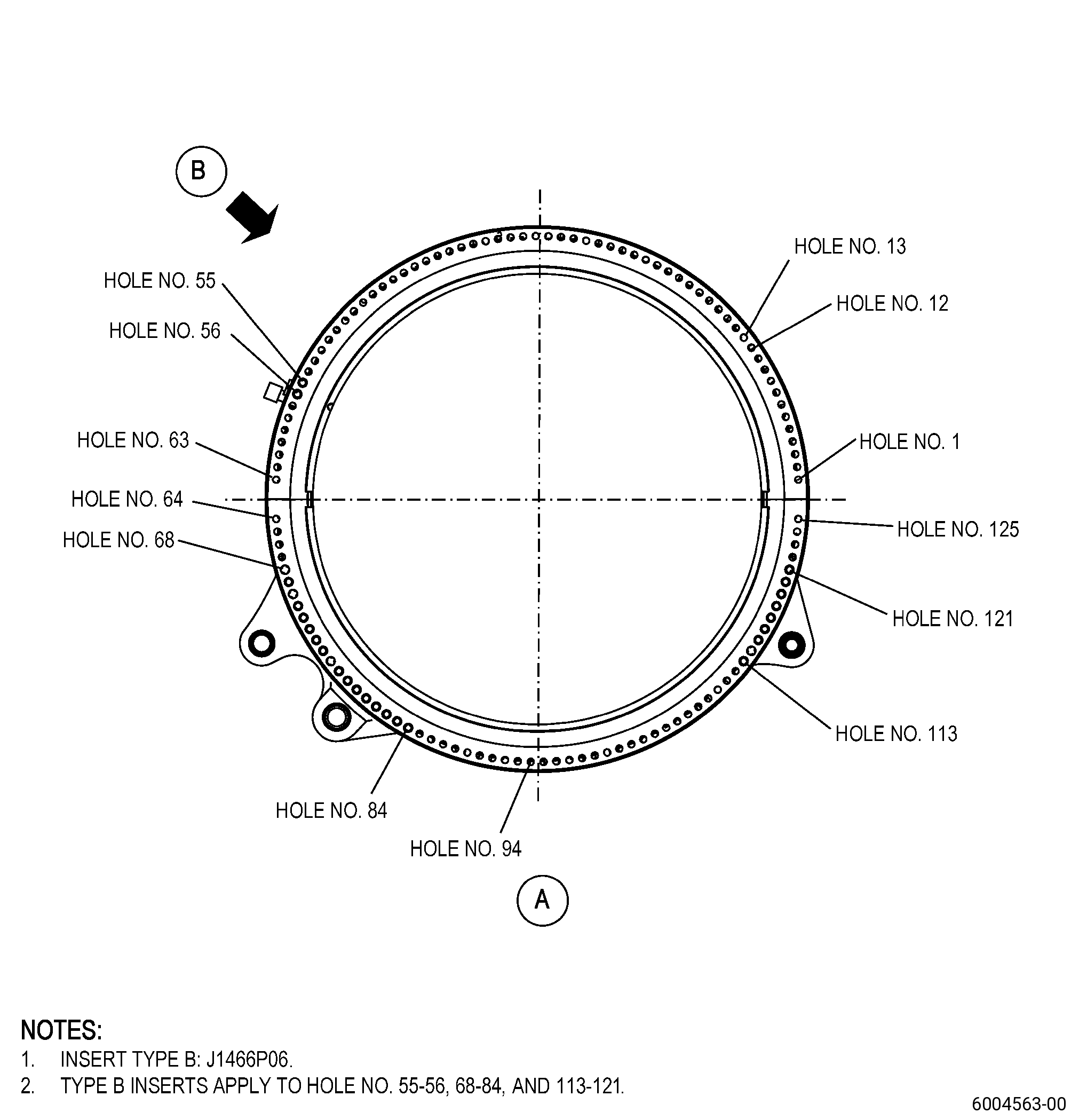

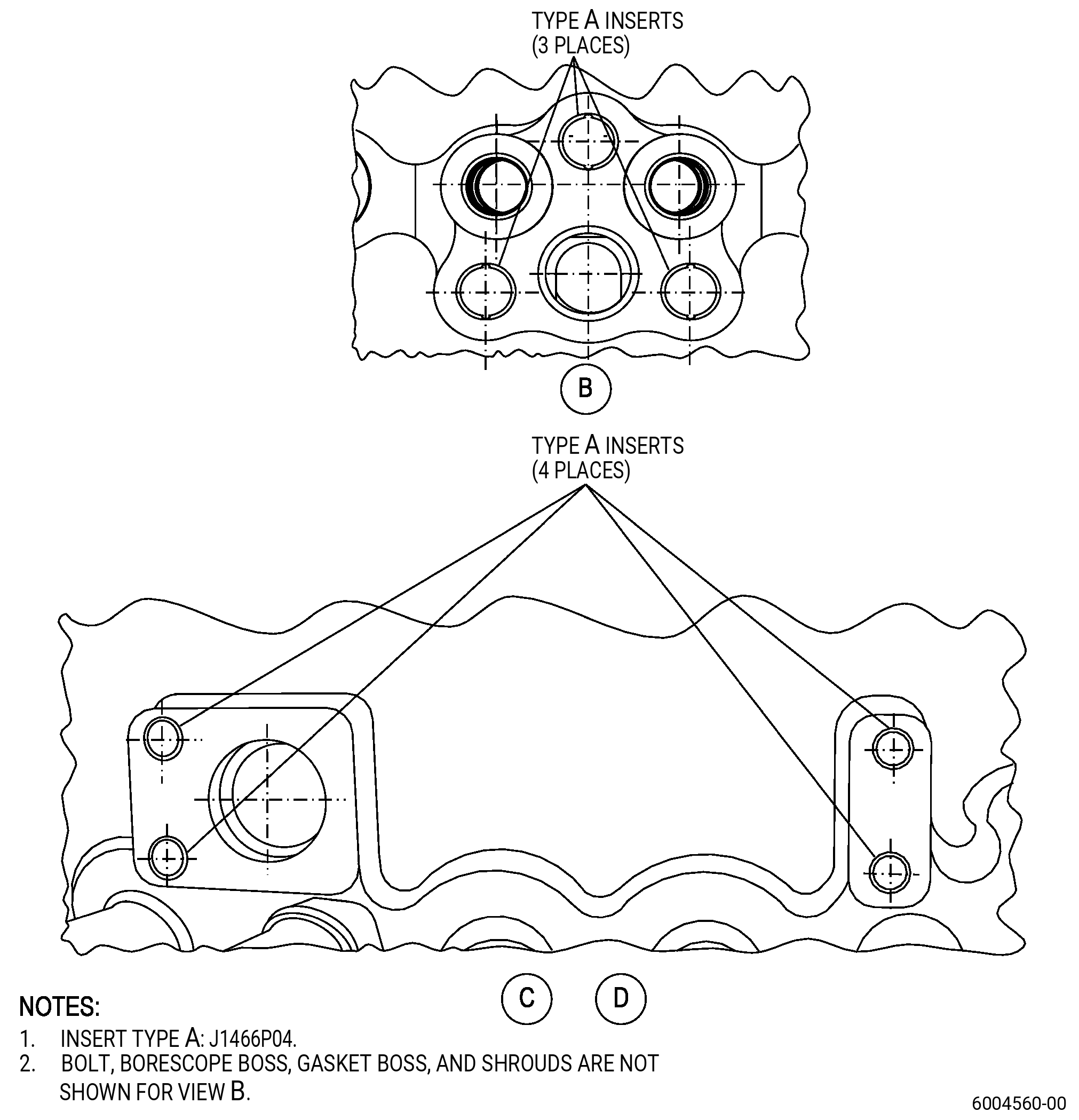

Figure 902   (Sheet 1 ) High Pressure Compressor Stator Forward Case - Key-locked Insert Location
* * * FOR ALL
Figure 902   (Sheet 2 ) High Pressure Compressor Stator Forward Case - Key-locked Insert Location
* * * FOR ALL
Figure 902   (Sheet 3 ) High Pressure Compressor Stator Forward Case - Key-locked Insert Location
* * * FOR ALL
Figure 902   (Sheet 4 ) High Pressure Compressor Stator Forward Case - Key-locked Insert Location
* * * FOR ALL
Figure 902   (Sheet 5 ) High Pressure Compressor Stator Forward Case - Key-locked Insert Location
