TASK 72-64-11-200-801
1 . General.
  A.This procedure gives instructions to do an inspection of the right hand vertical link (link) (25-180 , 72-00-02) (SIN 03802).
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools. None.
(2)Standard Tools and Equipment. None.
(3)Locally Manufactured Tools. None.
B.Consumable Materials. None.
C.Referenced Procedures.

ATA No.
Description

70-32-02
Fluorescent Penetrant Inspection

70-42-00
Blending and Removal of High Metal Procedures
D.Expendable Parts. None.
3 . Specific Inspection Procedure.
Subtask 72-64-11-230-001
A.Do a Class A fluorescent penetrant inspection of the link. Refer to TASK 70-32-02-230-001 (FLUORESCENT PENETRANT INSPECTION).
(1)Cracks are not permitted.
4 . Visual Inspection.
Refer to Figure 801.
Subtask 72-64-11-220-001
A.Do an inspection of the surfaces for:
(1)Nicks, dents, or scratches:
Maximum serviceable limit:
Not serviceable.
Maximum repairable limit:
Any amount, 0.010 inch (0.25 mm) in depth after the removal of high metal.
Repair method:
Remove the high metal with a blend procedure. Refer to TASK 70-42-00-350-002 (BLENDING AND REMOVAL OF HIGH METAL PROCEDURES).
Subtask 72-64-11-220-002
(2)Pickup or high metal:
Maximum serviceable limit:
Not serviceable.
Maximum repairable limit:
Any amount.
Repair method:
Remove pickup or high metal with a blend procedure. Refer to TASK 70-42-00-350-002 (BLENDING AND REMOVAL OF HIGH METAL PROCEDURES).
Subtask 72-64-11-220-004
B.Do an inspection of the spherical bearing for:
(1)Nicks, dents, or scratches:
Maximum serviceable limit:
Any amount, 0.010 inch (0.25 mm) in depth.
Repair method:
Repair. Refer to TASK 72-64-11-300-801 (72-64-11, REPAIR 001).
Subtask 72-64-11-220-005
(2)Pickup or high metal:
Maximum serviceable limit:
Not serviceable.
Maximum repairable limit:
Any amount.
Repair method:
Remove the pickup or high metal with a blend procedure. Refer to TASK 70-42-00-350-002 (BLENDING AND REMOVAL OF HIGH METAL PROCEDURES) .
* * * FOR ALL

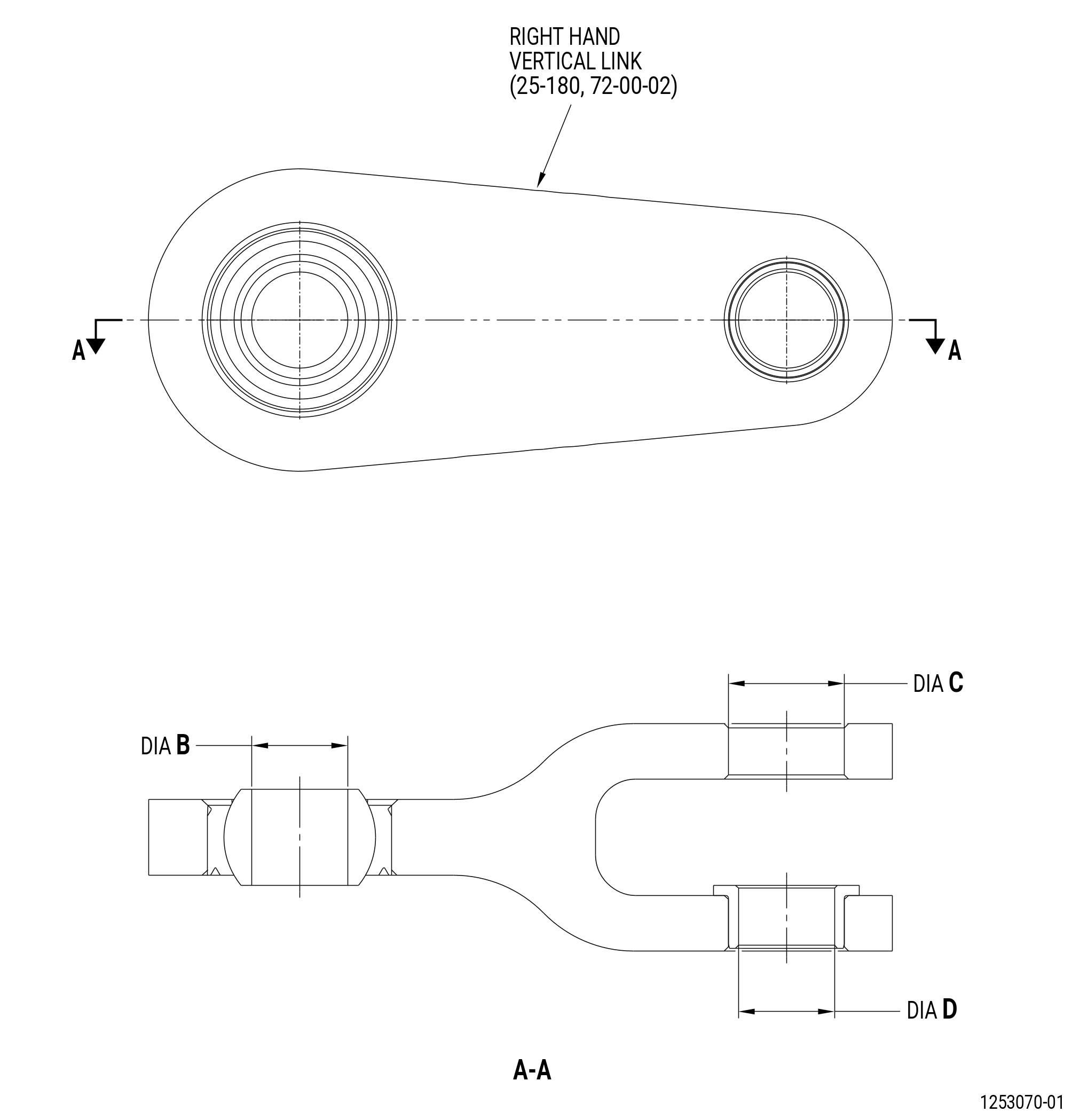

Figure 801   Right Hand Vertical Link - Inspection
Subtask 72-64-11-220-006
(3)Wear on the sphere ID and on the spherical surfaces:
Maximum serviceable limit:
Any amount, if the wear is in the dimensional limits. Refer to Subtask 72-64-11-220-013 (paragraph 5.).
Repair method:
Repair. Refer to TASK 72-64-11-300-801 (72-64-11, REPAIR 001).
Subtask 72-64-11-220-019
(4)Loose ball:
Maximum serviceable limit:
Any amount to a maximum radial clearance of 0.002 inch (0.05 mm).
Repair method:
Replace the bearing.
Subtask 72-64-11-220-020
(5)Loose outer race in the link:
Maximum serviceable limit:
Not serviceable.
Repair method:
Replace the bearing.
Subtask 72-64-11-220-010
C.Do an inspection of the bushing for:
(1)Fretting on the ID of the bushing:
Maximum serviceable limit:
Any amount, if the ID of the bushing is in dimensional limits. Refer to Subtask 72-64-11-220-013 (paragraph 5.).
Repair method:
Repair. Refer to TASK 72-64-11-300-802 (72-64-11, REPAIR 002).
Subtask 72-64-11-220-011
(2)Loose bushing:
Maximum serviceable limit:
Not serviceable.
Repair method:
Repair. Refer to TASK 72-64-11-300-802 (72-64-11, REPAIR 002).
Subtask 72-64-11-220-018
(3)Nicks, dents, scratches, or wear on bushing edges:
Maximum serviceable limit:
0.100 inch (2.54 mm) in length, 0.025 inch (0.64 mm) in depth. The distance between the nicks is at least the length of the longest nick. Remove the pickup or high metal by blending. Refer to TASK 70-42-00-350-002 (BLENDING AND REMOVAL OF HIGH METAL PROCEDURES) .
Repair method:
Repair. Refer to TASK 72-64-11-300-802 (72-64-11, REPAIR 002).
5 . Dimensional Inspection.
Refer to Figure 801.
Subtask 72-64-11-220-013
NOTE:
Do this inspection only if the visual inspection or some other condition makes it necessary.
NOTE:
Do not remove the bearing/bushing unless they are loose or the inside diameter of the bearing/bushing is not in the serviceable limits.
A.Do an inspection of the subsequent diameters:
(1)Diameter at location B (bearing internal diameter):
Minimum serviceable limit:
0.7495 inch (19.037 mm).
Maximum serviceable limit:
0.7502 inch (19.055 mm).
Repair method:
Repair. Refer to TASK 72-64-11-300-801 (72-64-11, REPAIR 001).
Subtask 72-64-11-220-014
(2)Diameter at location C (bore diameter):
Minimum serviceable limit:
0.9071 inch (23.040 mm).
Maximum serviceable limit:
0.9081 inch (23.065 mm).
Repair method:
Replace the link.
Subtask 72-64-11-220-015
(3)Diameter at location D (bushing internal diameter):
Minimum serviceable limit:
0.7490 inch (19.024 mm).
Maximum serviceable limit:
0.7506 inch (19.065 mm).
Repair method:
Repair. Refer to TASK 72-64-11-300-802 (72-64-11, REPAIR 002).
