 | GEnx-1B SERVICE BULLETIN - 72-0440 R00 | Revised: 02/28/2019 |
| SB 72-0440 R00 ENGINE - Turbine Center Frame Assembly Air Adapters and Tubes (72-54-00) - Introduction of New Oil Tubes and Piston Seal Rings | Issued: 02/28/2019 | |
| GEnx-1B SERVICE BULLETIN - 72-0440 R00 | Revised: 02/28/2019 |
| SB 72-0440 R00 ENGINE - Turbine Center Frame Assembly Air Adapters and Tubes (72-54-00) - Introduction of New Oil Tubes and Piston Seal Rings | Issued: 02/28/2019 | |
| GE Designated: -CONFIDENTIAL- | |
| The information contained in this document is GE proprietary information and is disclosed in confidence. It is the property of GE and shall not be used, disclosed to others or reproduced without the express written consent of GE, including, but without limitation, it is not to be used in the creation, manufacture, development, or derivation of any repairs, modifications, spare parts, designs, or configuration changes or to obtain FAA or any other government or regulatory approval to do so. If consent is given for reproduction in whole or in part, this notice and the notice set forth on each page of this document shall appear in any such reproduction in whole or part. | |
| This technical data is considered subject to the Export Administration Regulations (EAR) pursuant to 15 CFR Parts 730-774. Transfer of this data by any means to a Non-U.S. Person, whether in the United States or abroad, without the proper U.S. Government authorization (e.g., License, exemption, NLR, etc.), is strictly prohibited. | |
| Copyright (2019) General Electric Company, U.S.A. |
| 1. | PLANNING INFORMATION |
| A. | Effectivity |
| * * * FOR GEnx-1B64, -1B64/P1, -1B64/P2, -1B67, -1B67/P1, -1B67/P2, -1B70, -1B70/75/P1, -1B70/75/P2, -1B70/P1, -1B70/P2, -1B70C/P1, -1B70C/P2, -1B74/75/P1, -1B74/75/P2, -1B76/P2, -1B76A/P2 |
| This Service Bulletin is applicable to these GEnx-1B engines: |
| • |
|
| This Service Bulletin has been introduced in production to these GEnx-1B engines: |
| • |
|
| These serial numbers are the best available data. |
| The parts listed in Table 1 are affected by this Service Bulletin: |
|
| B. | Description |
| This Service Bulletin introduces new parts listed in Table 2. |
|
| C. | Compliance |
| Category 5 |
| GE recommends that you do this Service Bulletin as soon as the main drain tube, oil supply tube, or scavenge tubes are removed from the engine. |
| Impact D |
| This recommendation is to address a condition that may result in a Delay or Cancellation (D&C). |
| NOTE: |
|
| This Service Bulletin is offered to improve the reliability or performance of your GE product, or to help prevent the occurrence of the event or condition described in this Service Bulletin. If the operator elects not to participate in the bulletin, that decision will be taken into consideration by GE in evaluating future product performance issues that may arise in the operators fleet. |
| D. | Concurrent Requirements |
| None. |
| E. | Reason |
| (1) | Objective: |
| To introduce new parts and improve reliability. |
| (2) | Condition: |
| The old piston seal rings experience wear and can be dislodged, causing air leakage out of the turbine center frame (TCF). |
| (3) | Cause: |
| The dimensions of the oil tubes, piston seal rings, and the cavity in which piston seal rings are sitting lead to loads applied to the seal and extended wear during engine operation. |
| (4) | Improvement: |
| The new oil tubes and piston seal rings have different shape and a dedicated load stop feature that has been added to make sure that the piston seal ring does not get loads related to the tube movement. |
| (5) | Substantiation: |
| Substantiation is by comparative analysis and analysis. |
| F. | Approval |
| The data contained in this Service Bulletin has been reviewed by the FAA or authorized entity representing the FAA and the repair(s) and modification(s) herein comply with the applicable Aviation Regulations and are APPROVED for installation in the model(s) listed in this Service Bulletin. |
| G. | Manpower |
| No additional man-hours are required to comply with this Service Bulletin. |
| H. | Weight and Balance |
| The complete compliance with this Service Bulletin increases weight by 0.186 lb (0.084 kg). |
| I. | References (Use the latest version of these documents) |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| GEnx-1B S/B 72-0162, ENGINE - General (72-00-00) - GEnx-1B/P2 Hardware Release (TCF Module) |
| NOTE: |
|
| J. | Publications Affected |
| GEK 112851, GEnx-1B Engine Manual (EM) |
| GEK 112862, GEnx-1B Cleaning, Inspection, and Repair Manual (CIR) |
| GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC) |
| K. | Interchangeability |
| Qualified interchangeability. |
| The following parts are one-way interchangeable as sets with the old configuration. Interchangeability at the piece-part level is not permitted. |
| It is permitted to install one set (for example, oil supply tube with adjacent piston seal rings and outer retainers) and leave the other sets unchanged. However, since this is a product improvement for issues with oil tubes and piston seal rings, it is strongly recommended to replace all parts (all sets) at the same time, during one shop visit. |
|
|
|
|
| L. | Software Accomplishment Summary |
| Not applicable. |
| 2. | MATERIAL INFORMATION |
| A. | Material - Price and Availability |
| (1) | Parts necessary to do this Service Bulletin: |
|
| NOTE: |
|
| (2) | Other Spare Parts: |
| None. |
| (3) | Consumables: |
| None. |
| B. | Industry Support Information |
| None. |
| C. | Configuration Chart |
|
| Operation Codes AD=Add DE=Delete RE=Replace RM=Remains |
| Change Codes 5=Qualified interchangeability. Refer to paragraph 1.K., Interchangeability. |
| Support Codes A=Old parts will no longer be supplied. C=Old parts will be supplied until December, 2023. |
| D. | Parts Disposition |
| None. |
| E. | Tooling - Price and Availability |
| None. |
| 3. | ACCOMPLISHMENT INSTRUCTIONS |
| A. | General |

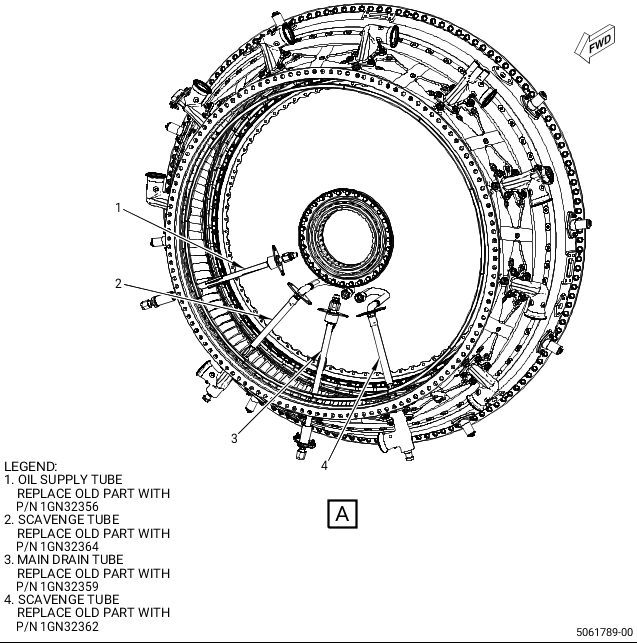

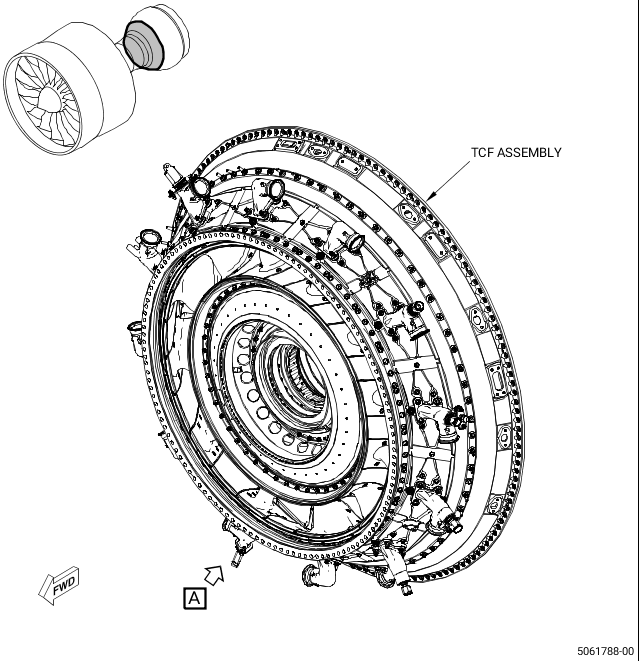

| (1) | Disassemble the old oil supply tube (1, Figure 1), scavenge tubes (2 and 4), and main drain tube (3). Refer to the GEnx-1B EM, 72-54-00, DISASSEMBLY 001, CONFIG 01 or CONFIG 02. |
| (2) | Assemble the new oil supply tube (1, Figure 1), scavenge tubes (2 and 4), and main drain tube (3). Refer to the GEnx-1B EM, 72-54-00, ASSEMBLY 001, CONFIG 01 or CONFIG 02. |
