1.PLANNING INFORMATION
A.Effectivity
* * * FOR GEnx-1B64, -1B64/P1, -1B64/P2, -1B67, -1B67/P1, -1B67/P2, -1B70, -1B70/75/P1, -1B70/75/P2, -1B70/P1, -1B70/P2, -1B70C/P1, -1B70C/P2, -1B74/75/P1, -1B74/75/P2, -1B76/P2, -1B76A/P2
This Service Bulletin has been introduced in production to these GEnx-1B engines:
•
GEnx-1B engines, serial numbers 958-776 and up.
These serial numbers are the best available data.
The preformed packings (packings) P/N J1437P966 and P/N J1437P1127 are affected by this Service Bulletin.
B.Description
This Service Bulletin releases new energized seals (packings) P/N 1GN32407 and P/N 1GN32408 to the turbine center frame (TCF) assembly.
C.Compliance
Category 5
GE recommends that you do this Service Bulletin as soon as the affected packings are removed from the engine.
Impact E
This recommendation is to improve the cost of ownership, reduce maintenance requirements or is a product improvement.
NOTE:
This Service Bulletin can be done in shop.
This Service Bulletin is offered to improve the reliability or performance of your GE product, or to help prevent the occurrence of the event or condition described in this Service Bulletin. If the operator elects not to participate in the bulletin, that decision will be taken into consideration by GE in evaluating future product performance issues that may arise in the operators fleet.
D.Concurrent Requirements
None.
E.Reason
(1)Objective:
To introduce new parts and improve reliability.
(2)Condition:
The affected packings are susceptible to deterioration. This can lead to oil leakage and possibly high oil consumption (HOC) in service.
(3)Cause:
Packings that operate for long times at sump operating temperatures can deteriorate, this can result in loss of sealing efficiency.
(4)Improvement:
The new packings have improved materials and geometry to provide a more durable seal.
(5)Substantiation:
Substantiation is by analysis and comparative analysis.
F.Approval
The data contained in this Service Bulletin has been reviewed by the FAA or authorized entity representing the FAA and the repair(s) and modification(s) herein comply with the applicable Aviation Regulations and are APPROVED for installation in the model(s) listed in this Service Bulletin.
G.Manpower
No additional man-hours are required to comply with this Service Bulletin.
H.Weight and Balance
Weight and balance are not changed.
I.References (Use the latest version of these documents)
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
NOTE:
The reference documents listed below are for the engine manufacturer's internal use only:
CID: 20GN004
BPP/EPEX No.: 19-72-54-81979
J.Publications Affected
GEK 112851, GEnx-1B Engine Manual (EM)
GEK 112864, GEnx-1B Engine Illustrated Parts Catalog (EIPC)
K.Interchangeability
One-way interchangeable.
L.Software Accomplishment Summary
Not applicable.
2.MATERIAL INFORMATION
A.Material - Price and Availability
(1)Parts necessary to do this Service Bulletin:

Part Number
Qty/ Eng
Part Name
Unit ($) Price
Pkg Qty
Lead Time Days

1GN32407
(1)
Seal, Energized
344.75
(1)
Quote

1GN32408
(1)
Seal, Energized
344.75
(1)
Quote
NOTE:
Prices are provided for planning purposes and are subject to change.
(2)Other Spare Parts:
None.
(3)Consumables:
None.
B.Industry Support Information
None.
C.Configuration Chart

New Part Number
Qty/ Eng
Part Name
Old Part Number/ IPC Location
Qty/ Eng
Op Code
Chg/ Sprt Code

1GN38001
(X)
Turbine Center Frame Assembly
1GN38001
(X)
RM
-/-

1GN38003
(X)
Turbine Center Frame Assembly
1GN38003
(X)
RM
-/-

2305M58G02/
G05/G06/G07/
G08
(X)
Turbine Center Frame Assembly
2305M58G02/
G05/G06/G07/
G08
(X)
RM
-/-

.1GN32407
15-110A, 72-54-00
(1)
Packing
(Old Name)
Seal, Energized
(New Name)
(SIN 01451)
.J1437P966
15-110, 72-54-00
(1)
RE
1/A

.1GN32408
15-100A, 72-54-00
(1)
Packing
(Old Name)
Seal, Energized
(New Name)
(SIN 01450)
.J1437P1127
15-100, 72-54-00
(1)
RE
1/A
Operation Codes
RE=Replace
RM=Remains
Change Codes
1=One-way interchangeable.
Support Codes
A=Old parts will no longer be supplied.
D.Parts Disposition
Discard old parts.
E.Tooling - Price and Availability
None.
3.ACCOMPLISHMENT INSTRUCTIONS
A.General
(1)Remove the packings (1 and 2, Figure 1). Removal instructions have not changed. Refer to the GEnx-1B EM, 72-54-00, DISASSEMBLY 001, CONFIG 01 or CONFIG 02.
(2)Install the new packings (1 and 2, Figure 1). Installation instructions have changed. Refer to the GEnx-1B S/B 72-0496 paragraphs in the GEnx-1B EM, 72-54-00, ASSEMBLY 001, CONFIG 01 or CONFIG 02.

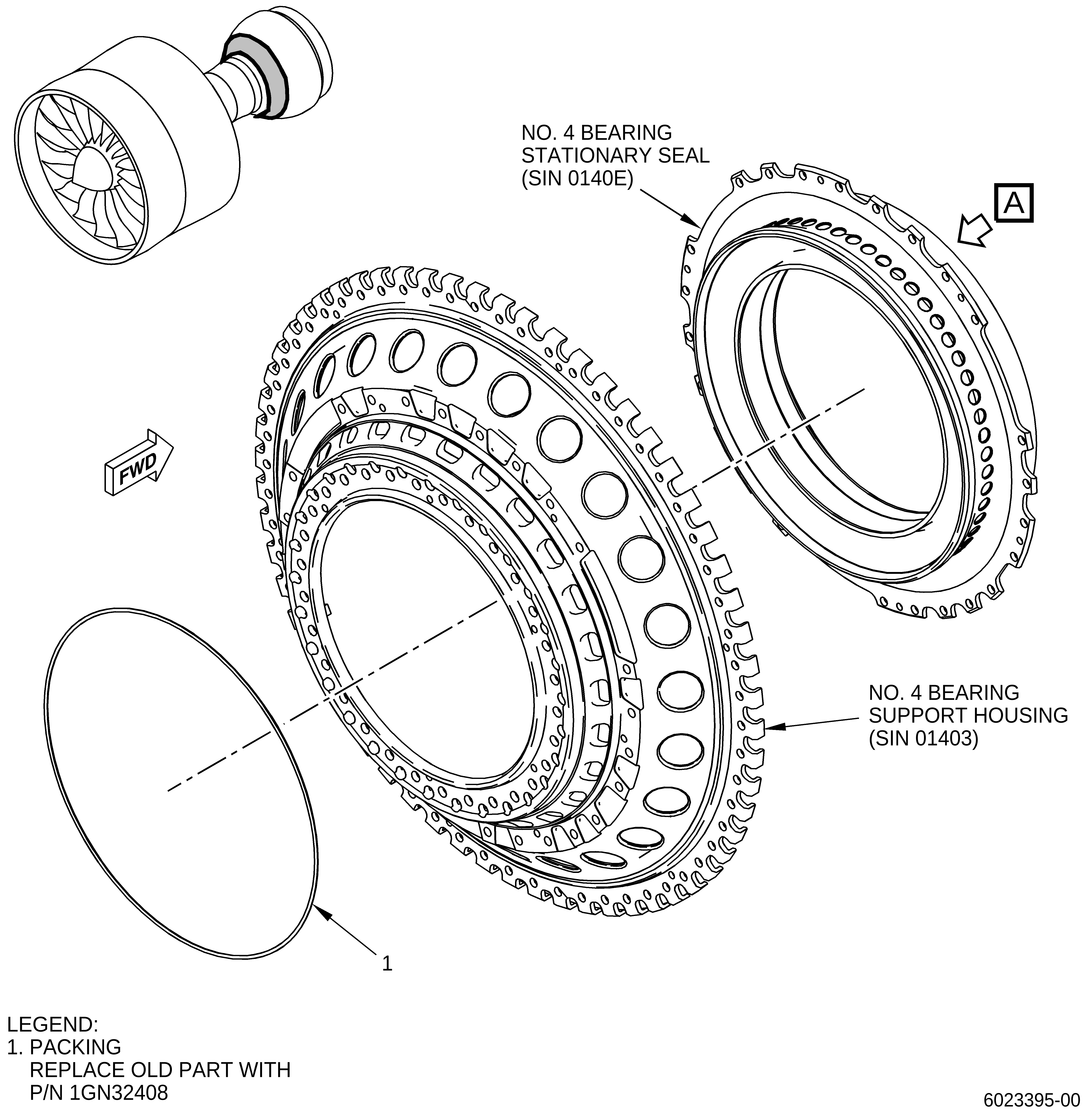

Packings Location
Figure 1   (Sheet 1)

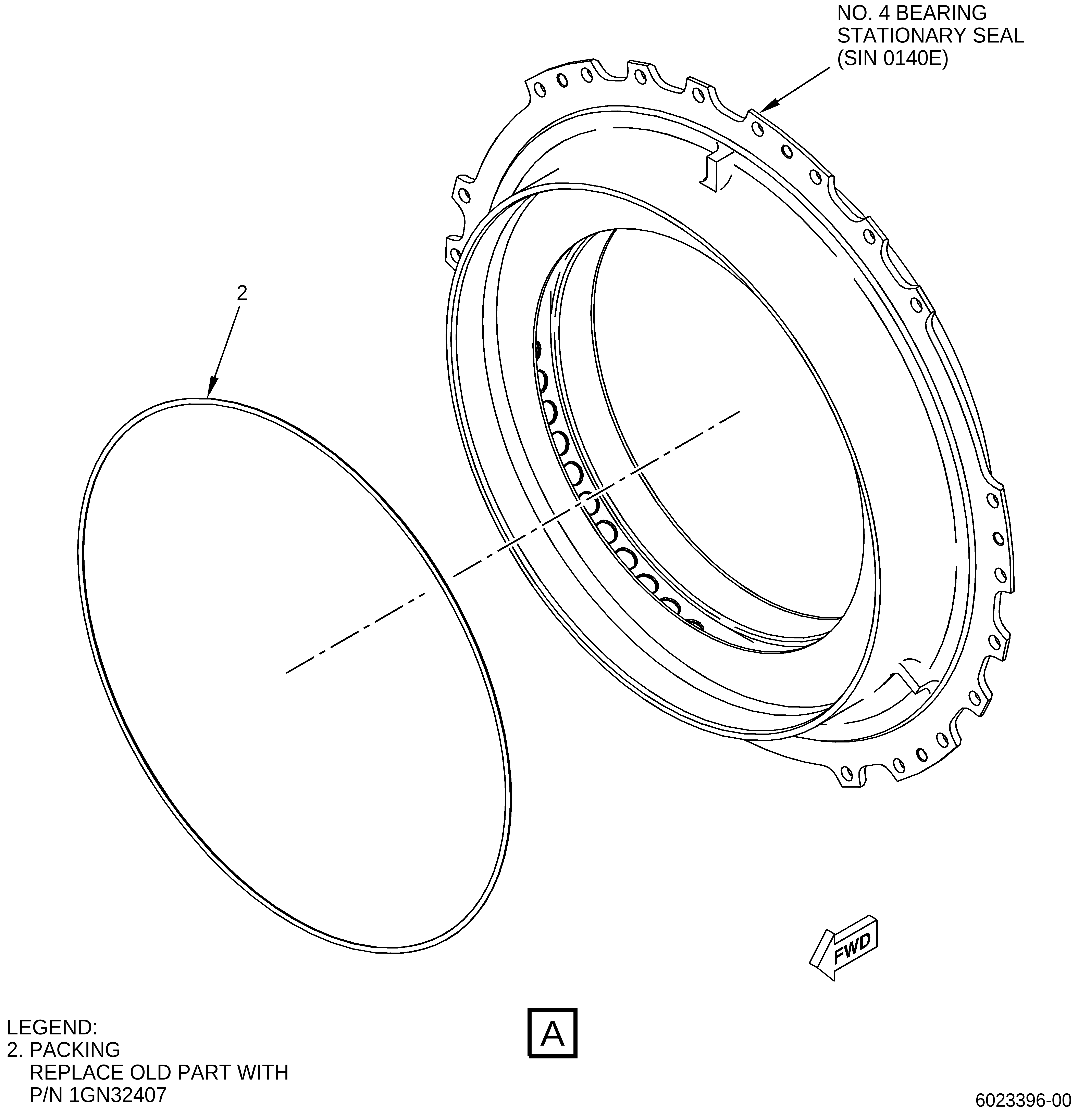

Packings Location
Figure 1   (Sheet 2)
