* * * FOR 1B/P/G03.1B/P/G04
TASK 72-56-00-040-801
1 . General.
A.This procedure gives instructions to disassemble the low pressure turbine (LPT) rotor/stator assembly (01-010 , 72-00-04) for PRE SB 72-0040 engines. Refer to Figure 501.
NOTE:
For SB 72-0040 engines refer to TASK 72-56-00-040-802 (72-56-00 DISASSEMBLY 001 CONFIG. 02) .
B.The LPT rotor/stator assembly is installed on the 11C3520   buildup stand.
  C.If an axisymmetric rotating part with a visible crack through the axial or radial thickness of the part feature is found during the disassembly procedure, then the mating Life Limited Part(s) (LLP) can be affected. The mating LLP must be considered not serviceable and not repairable.
  NOTE:
Typical axisymmetric parts are disks, spools, blisks, seals, shafts, retainers, and other rotating structures.
  NOTE:
Contact GE Aerospace with part details of the cracked part and mating LLP with the Inquiries Widget on the https://my.geaerospace.com/ portal.
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

10C2011G02
Deleted

11C3506G02
Stand, Buildup/Transport/Storage - LPT Module (buildup/transport/storage stand)

11C3520G02
Stand, Buildup - LPT Rotor/Stator (buildup stand)

11C3524G02
Cap, Lift - LPT Cone Shaft Aft (lift cap)

11C3528G02
Table, Rotary - LPT Blade Install (rotary table)

11C3530G02
Fixture, Lift Vertical, LPT Module Components (lift fixture)

11C3531G02
Fixture, Lift/Turn - LPT Cone Shaft Forward (cone shaft lift/turn fixture)

11C3540G05
Deleted

11C3541G03
Fixture, Lift/Turn - LPT Disks Stage 1-7 (LPT disk lift/turn fixture)

11C3541G05
Fixture, Lift/Turn - LPT Disks Stage 1-7 (LPT disk lift/turn fixture)

11C3560G01
Wrench, Nut Tighten - LPT Rotor Disk (nut tighten wrench)

11C3592G01
Shroud Remove Tool - Stage 1-3 (shroud remove tool)

11C3636G01
Hammer, Sliding Nozzle Segment (sliding hammer)
(2)Standard Tools and Equipment.

Description
Manufacturer

Jacking Screw 0.250-28 UNF-3A (Qty 4)
Local Purchase
(3)Locally Manufactured Tools.
B.Consumable Materials. None.
C.Referenced Procedures. None.
D.Expendable Parts. None.
* * * FOR 1B/P/G03.1B/P/G04

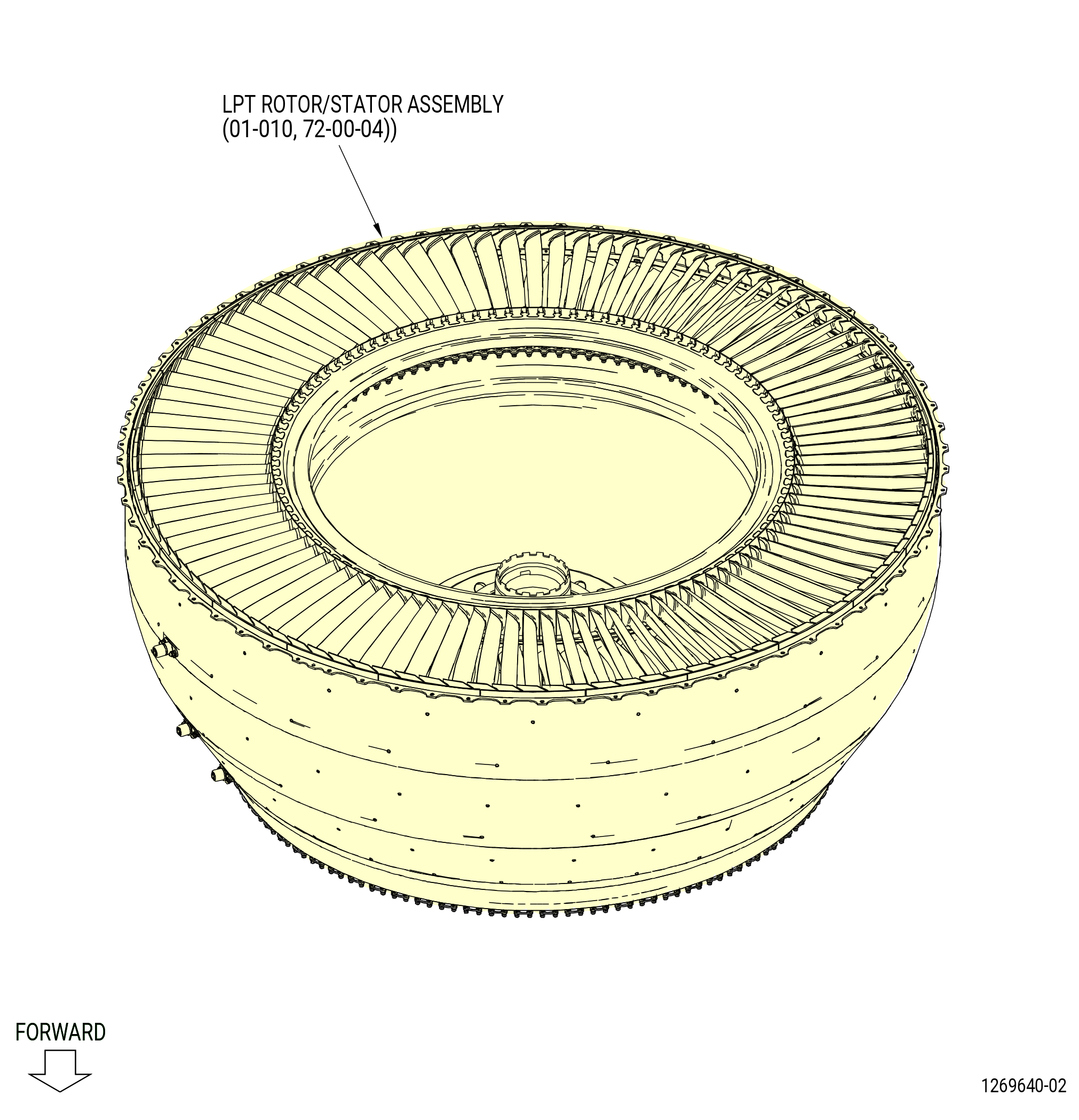

Figure 501   Low Pressure Turbine Rotor/Stator Assembly
3 . Procedure.
Subtask 72-56-00-040-032
A.Remove the stage 7 disk (10-200) and blade assembly and the stage 7 rotating air seal from the LPT case (01-011) as follows.
(1)Make sure the 11C3520   buildup stand plate (item 45) is at the NOMINAL position. Refer to Figure 502.
(a)If necessary, use the power jack (item 23) to adjust the plate (item 45) to the NOMINAL position. The slots of the locking post (item 9) shall be in the up position.
(b)The height of the plate (item 45) shall be 1.601-1.605 inch (40.66-40.76 mm) from the plate (item 4).
CAUTION:
HOLD THE BOLT AND TURN ONLY THE NUT WHEN YOU LOOSEN THE BOLT/NUT JOINT OF THE LPT DISKS. IF THE BOLT TURNS, IT COULD CAUSE DAMAGE TO THE BOLTHOLES OF THE LPT DISKS.

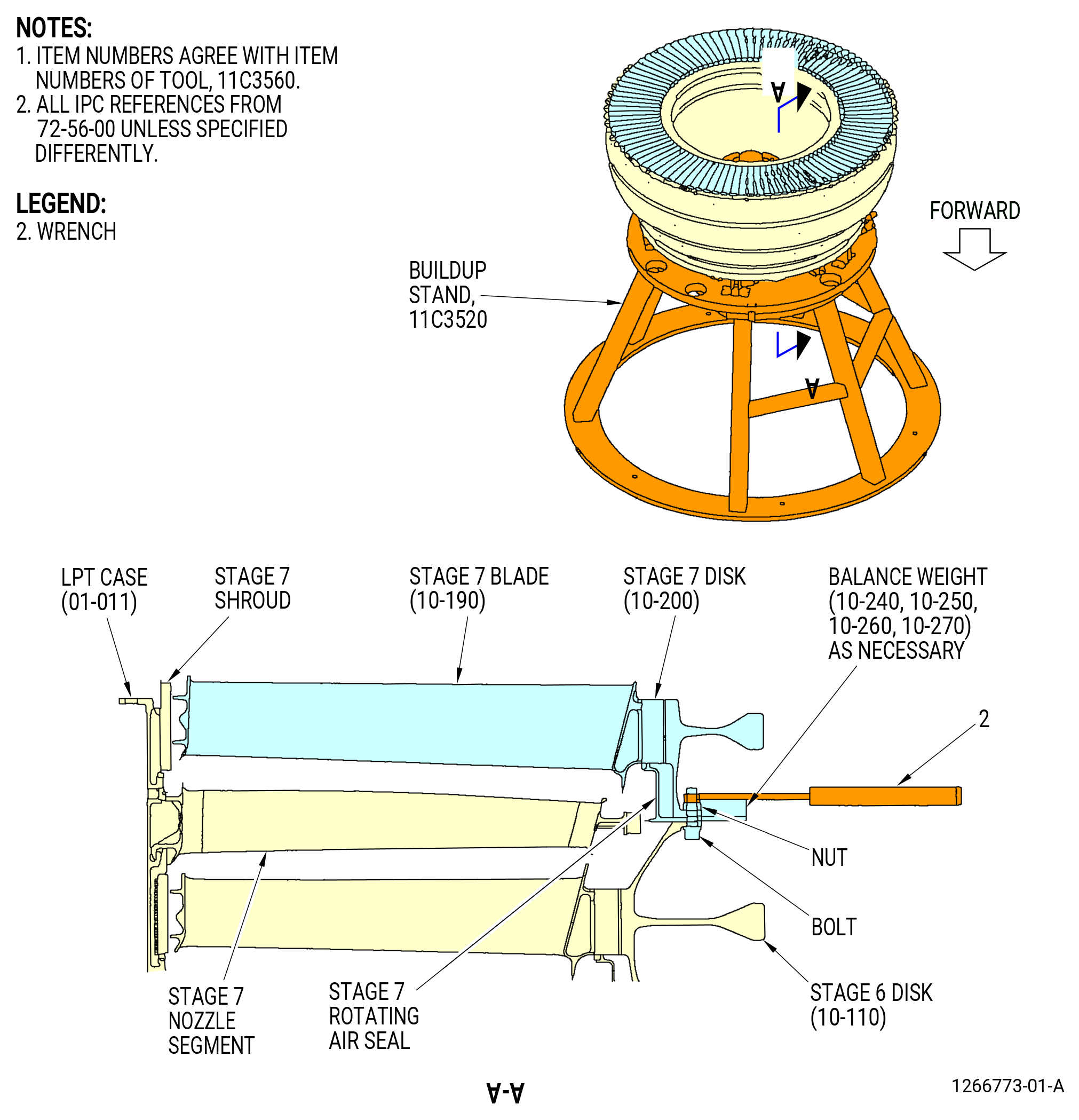

(2)Remove the nuts, bolts, and balance weights from the stage 6 disk (10-110), stage 7 rotating air seal, and stage 7 disk. Use the wrench (item 2) of the 11C3560   nut tighten wrench. Refer to Figure 503.
(3)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 7 disk and blade assembly. Refer to Figure 504 and do as follows:

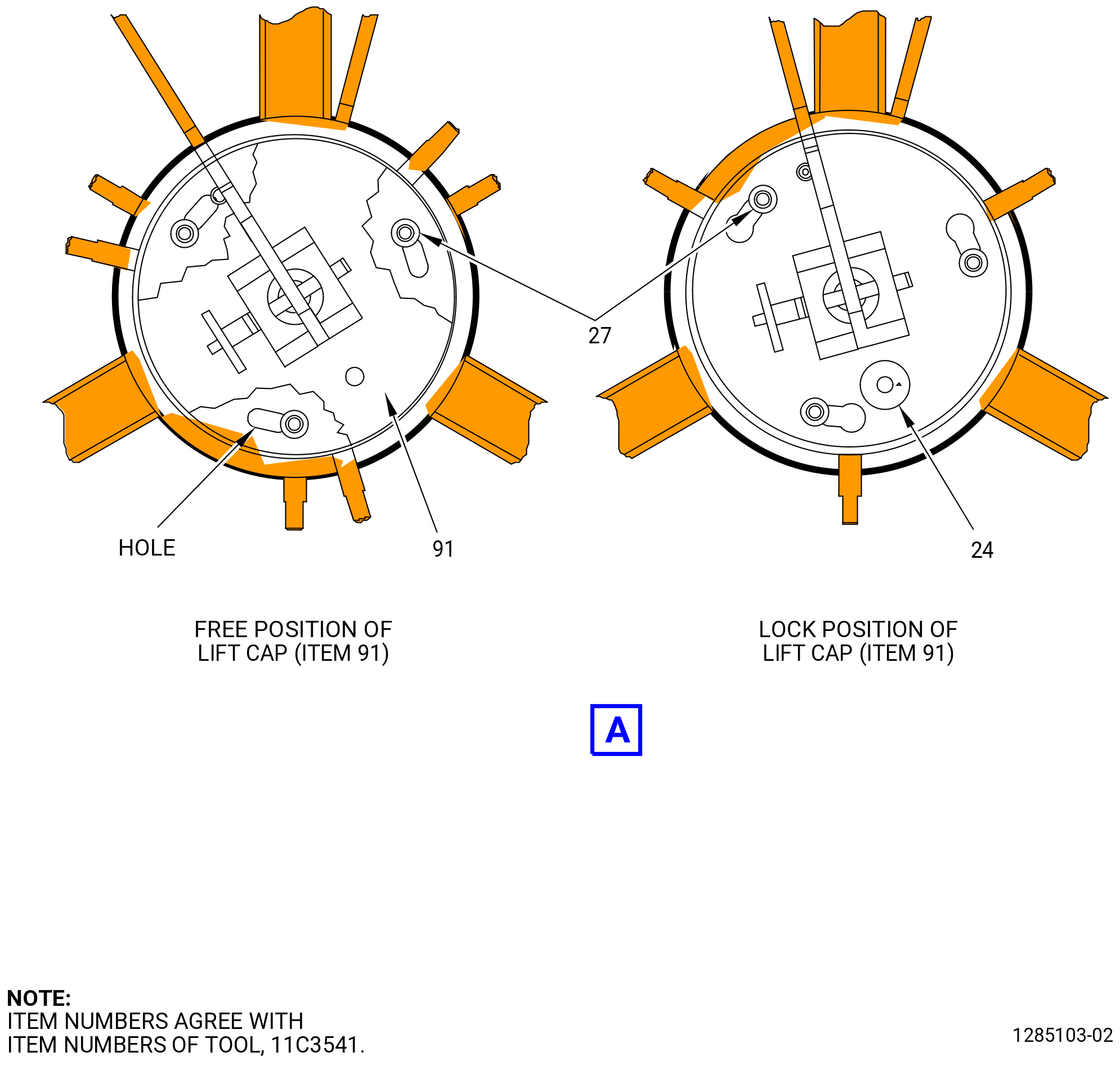

(a)Install the lift cap (item 43) on the spider (item 42).
1Put the lift cap on the spider so the screws (item 27) go into the holes in the free positions of the spider.
2Turn the lift cap CW until the pins are in the lock positions.
3Insert the ball lock pin (item 24) to lock the lift cap to the spider.
(b)Install the set of feet marked for stage 7 (item 100) into the lift bars (item 46) and insert the ball lock pins (item 22).
(c)Install the bar/foot assemblies in the legs of the spider (item 42).
1Insert two of three lift bars (item 46) in the legs of the spider.
2Adjust the positions of the two lift bars (item 46) so the scribed lines for stage 7 align with the edges of the spider legs.
3Insert the ball lock pins (item 54) to lock the lift bars to the spider.
4Fully insert a third lift bar (item 46) into the third spider leg.
* * * FOR 1B/P/G03.1B/P/G04

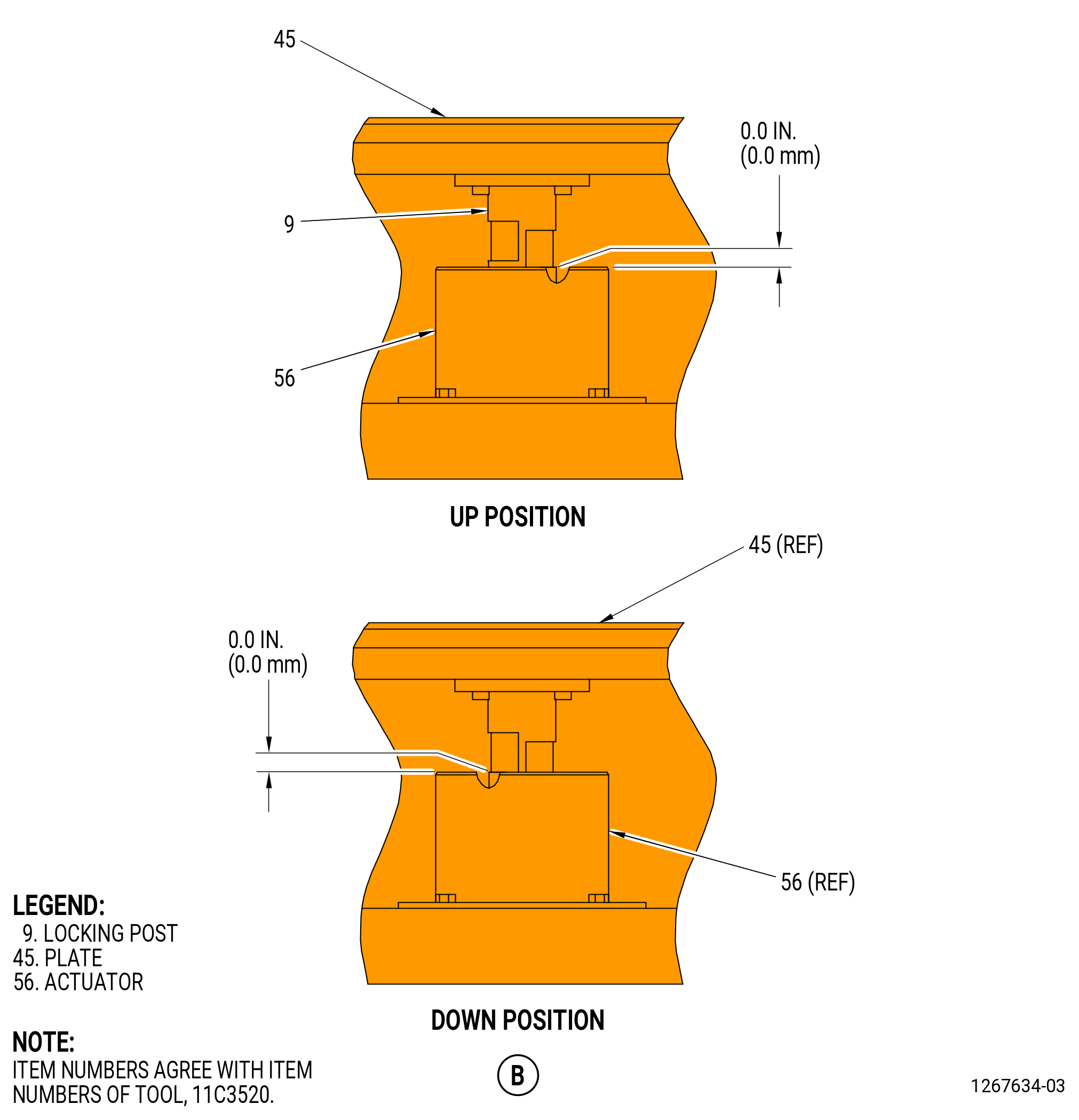

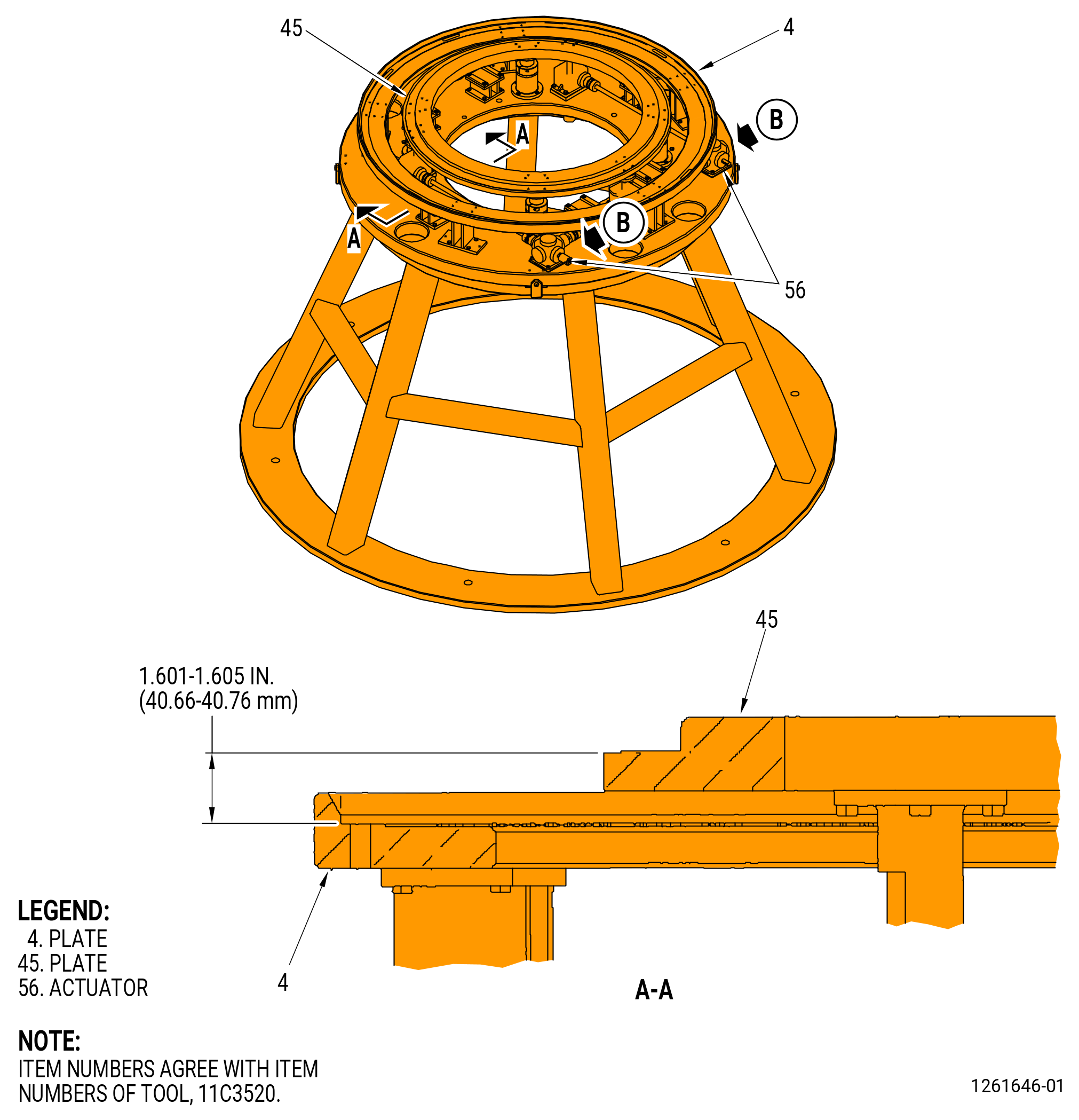

Figure 502   (Sheet 1 ) Buildup Stand, 11C3520, Support Plate Nominal Height Position
* * * FOR 1B/P/G03.1B/P/G04
Figure 502   (Sheet 2 ) Buildup Stand, 11C3520, Support Plate Nominal Height Position
Subtask 72-56-00-040-111
(4)Install the 11C3541   LPT disk lift turn fixture on the stage 7 disk (10-200). Refer to Figure 504 and do as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach a hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 7) CAN FALL FROM THE SPIDER (ITEM 2) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 7 disk.
(d)Put the stage 7 foot (item 100) at two locations into the stage 7 disk.
(e)Extend the third lift bar (item 46) that you inserted in the third spider leg.
1Adjust the position of the lift bar (item 46) so the scribed line for stage 7 comes to the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 54).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(5)Lift the stage 7 disk and blade assembly from the LPT case and put the assembly in a safe location.
(6)Remove the 11C3541   LPT disk lift/turn fixture from the stage 7 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from the one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 7 disk.
(7)Remove the stage 7 rotating air seal from the stage 6 disk. Refer to Figure 503.
* * * FOR 1B/P/G03.1B/P/G04

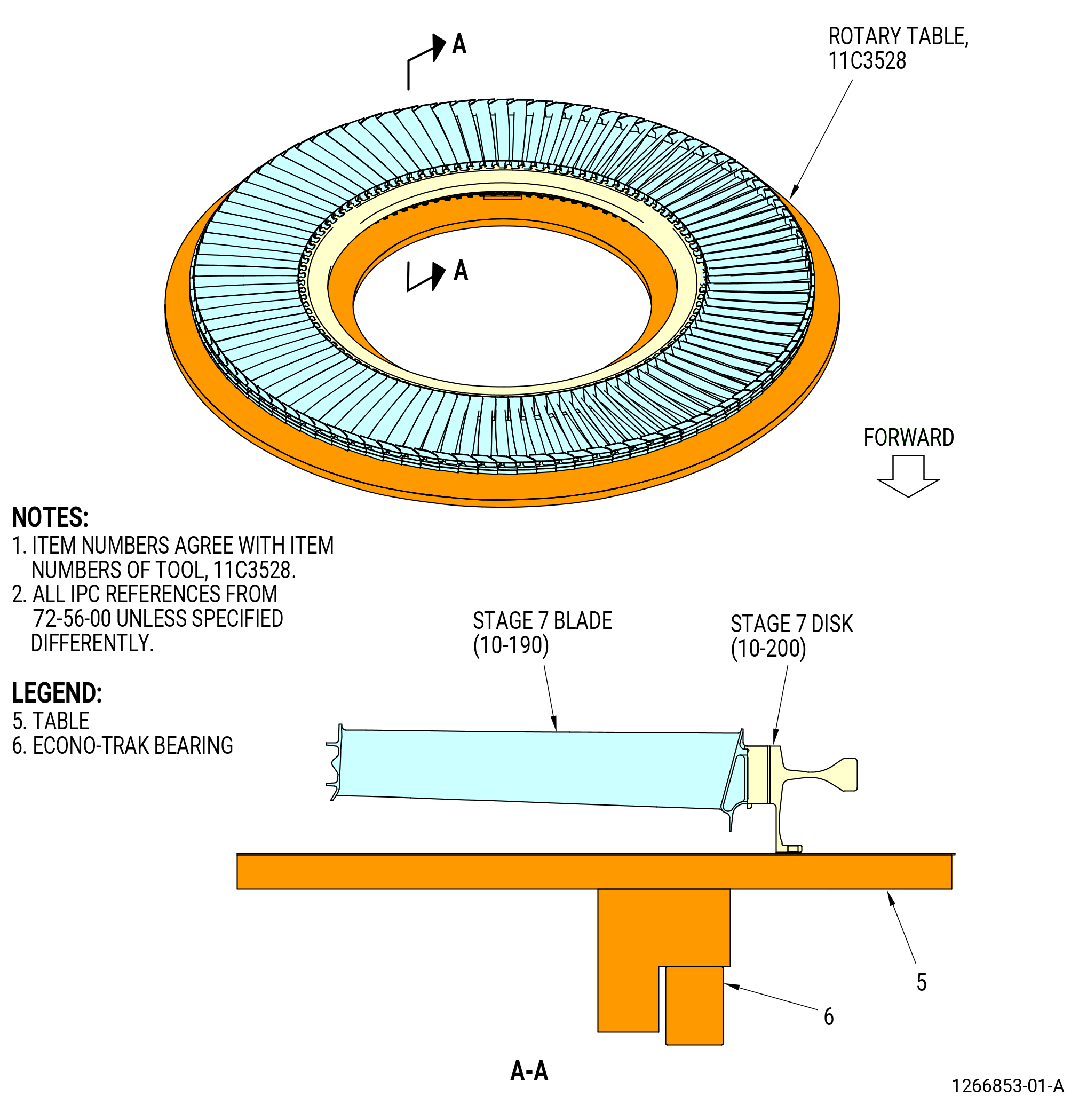

Figure 503   Removal of the Stage 7 Disk and Stage 7 Seal
* * * FOR 1B/P/G03.1B/P/G04

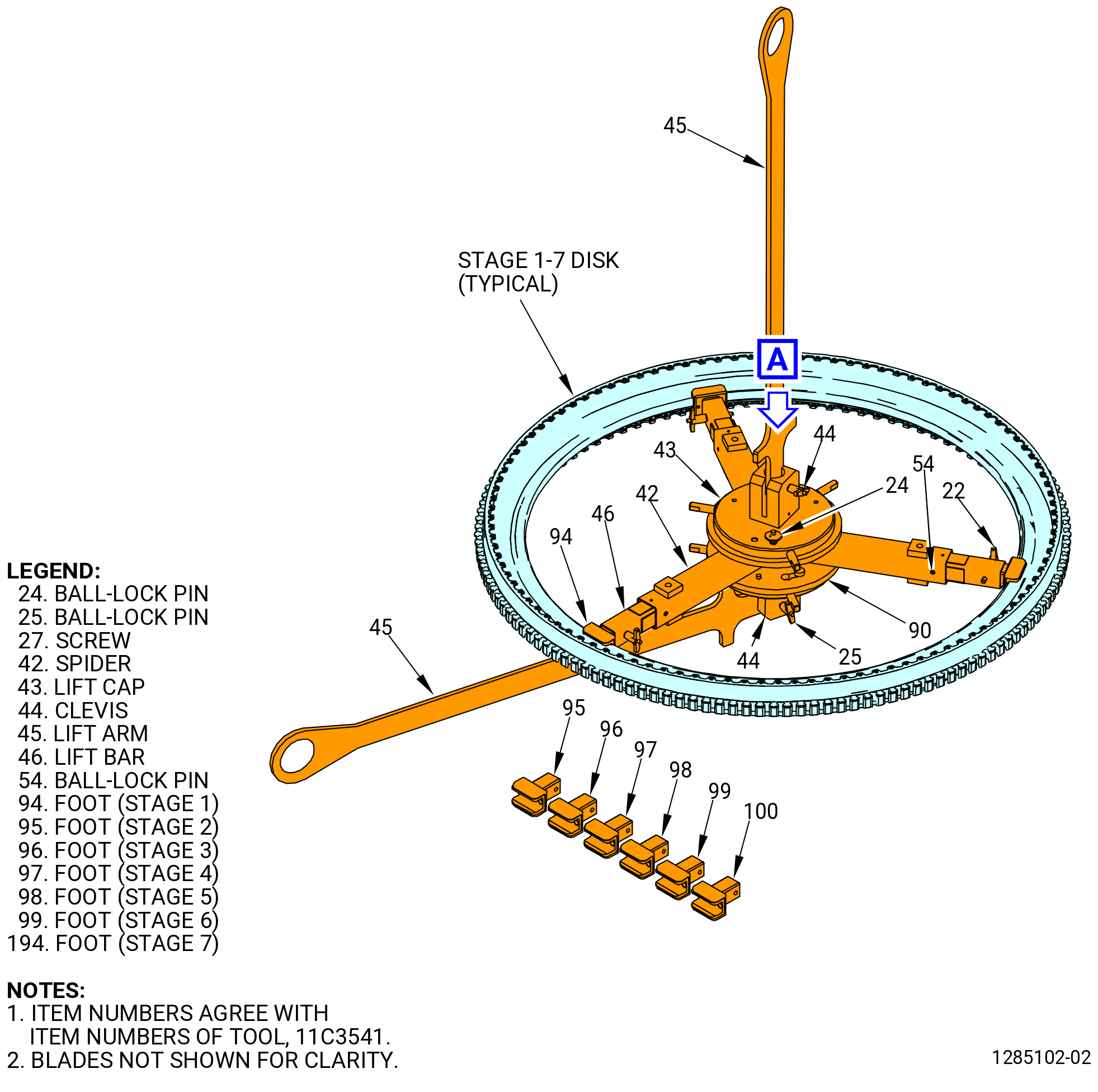

Figure 504   (Sheet 1 ) Installation of the LPT Disk Lift/Turn Fixture, 11C3541, on the LPT Disk
* * * FOR 1B/P/G03.1B/P/G04
Figure 504   (Sheet 2 ) Installation of the LPT Disk Lift/Turn Fixture, 11C3541, on the LPT Disk
Subtask 72-56-00-040-033

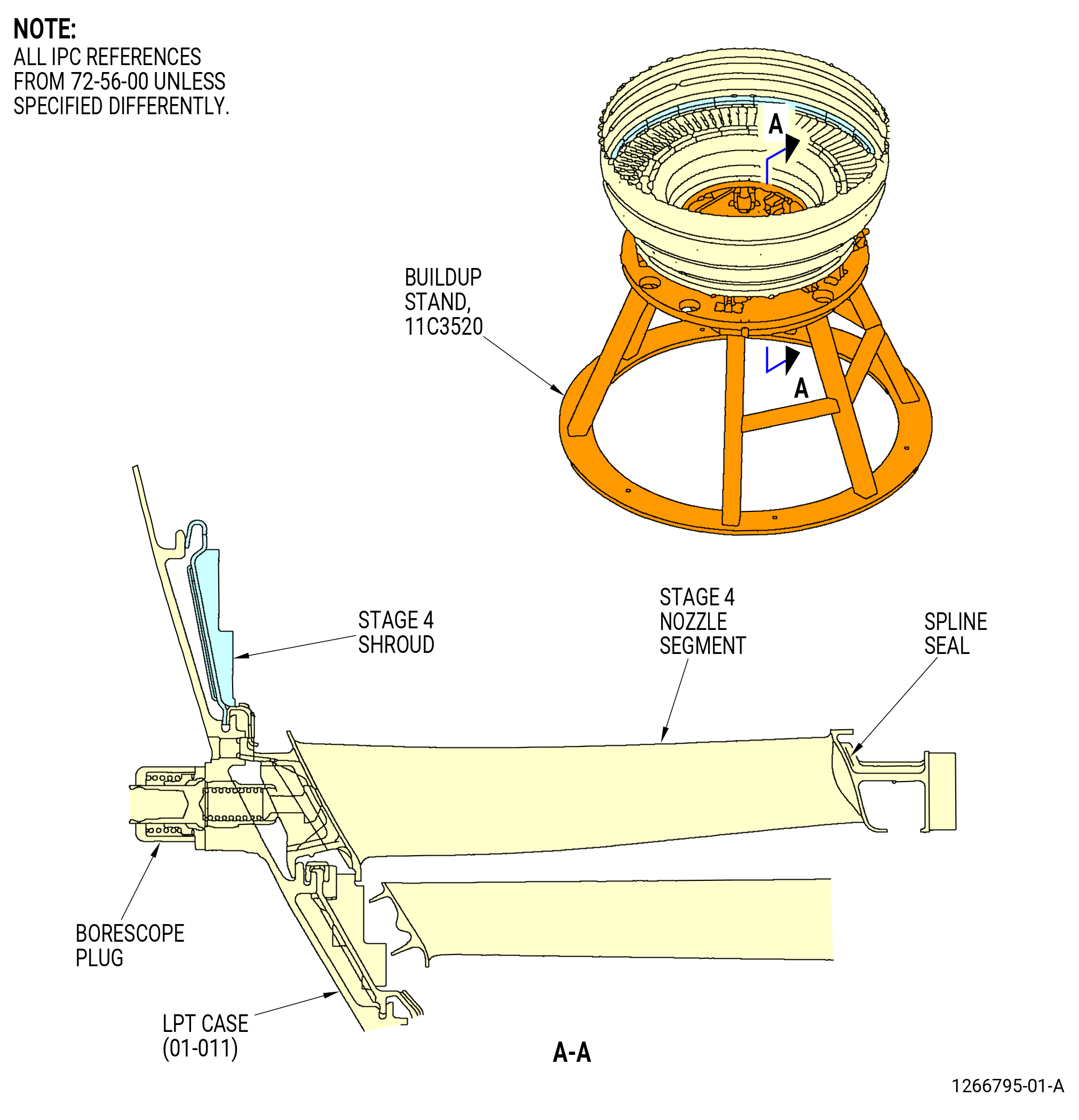

B.Remove the stage 7 shrouds from the LPT case as follows. Refer to Figure 503.
(1)Move the aft ends of the stage 7 shrouds radially in to disengage the rail of the LPT case.
(2)Remove the stage 7 shrouds.
Subtask 72-56-00-040-034

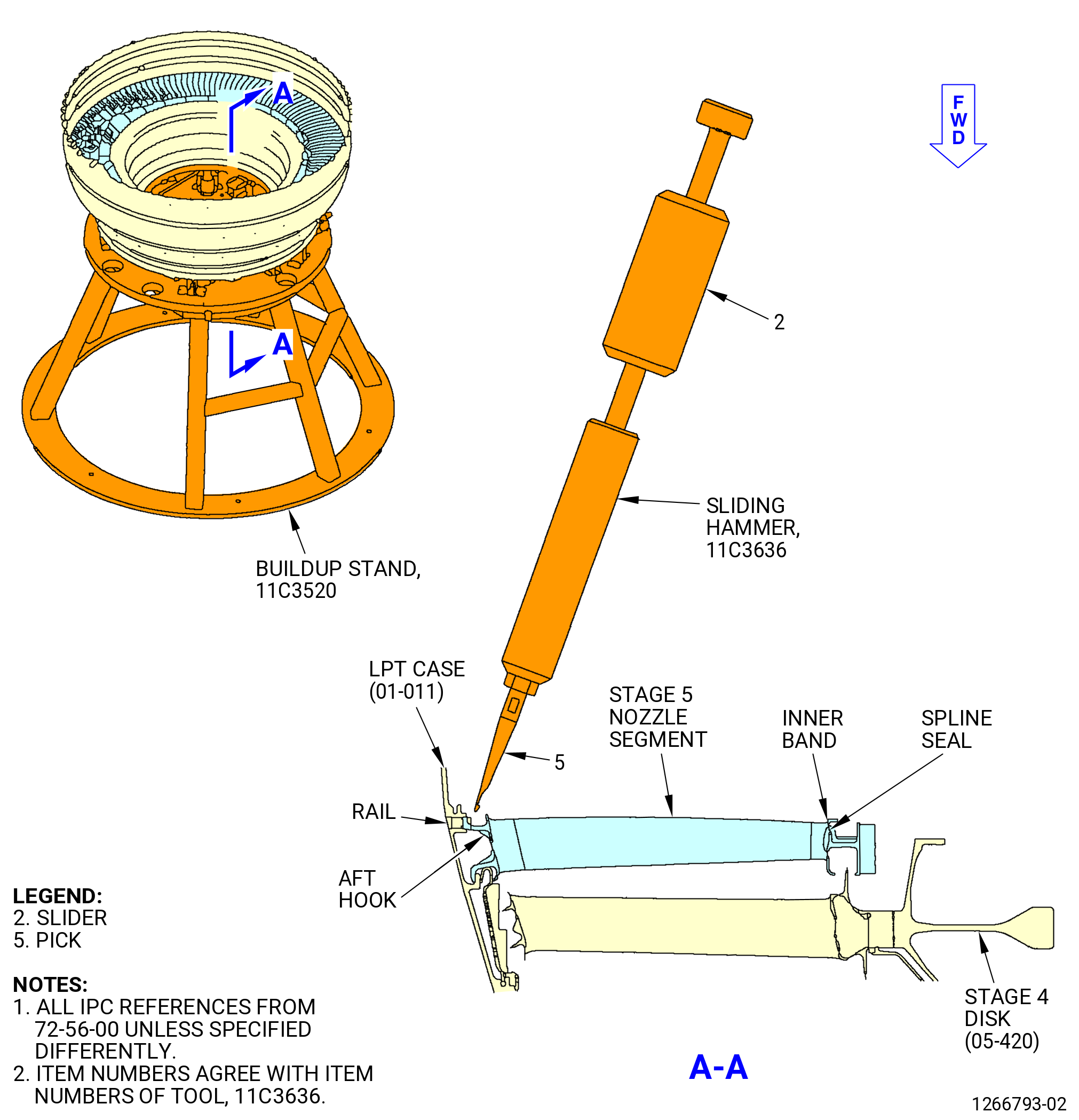

C.Remove the stage 7 nozzle segments from the LPT case (01-011) as follows. Refer to Figure 505.
(1)Disengage the stage 7 nozzle segments from the rail of the LPT case as follows:
(a)Push down on the ends of adjacent stage 7 nozzle segments and move them aft to help with removal of the first nozzle segment.
(b)Move the inboard end of the stage 7 nozzle segments forward on the 11C3520   buildup stand.
(c)If necessary, lightly tap the inner band aft lips of the stage 7 segments with a mallet. This will disengage the aft hook of the outer band from the rail of the LPT case.
(d)Engage the pick (item 5) of the 11C3636   sliding hammer with the anti-rotation slot of the stage 7 nozzle segments.
(e)Quickly move the slider (item 2) to disengage the stage 7 nozzle segments from the LPT case.
(2)Remove the stage 7 nozzle segments.
(3)Move the LPT rotors aft to the NOMINAL position on the 11C3520   buildup stand. Refer to Figure 502.
* * * FOR 1B/P/G03.1B/P/G04

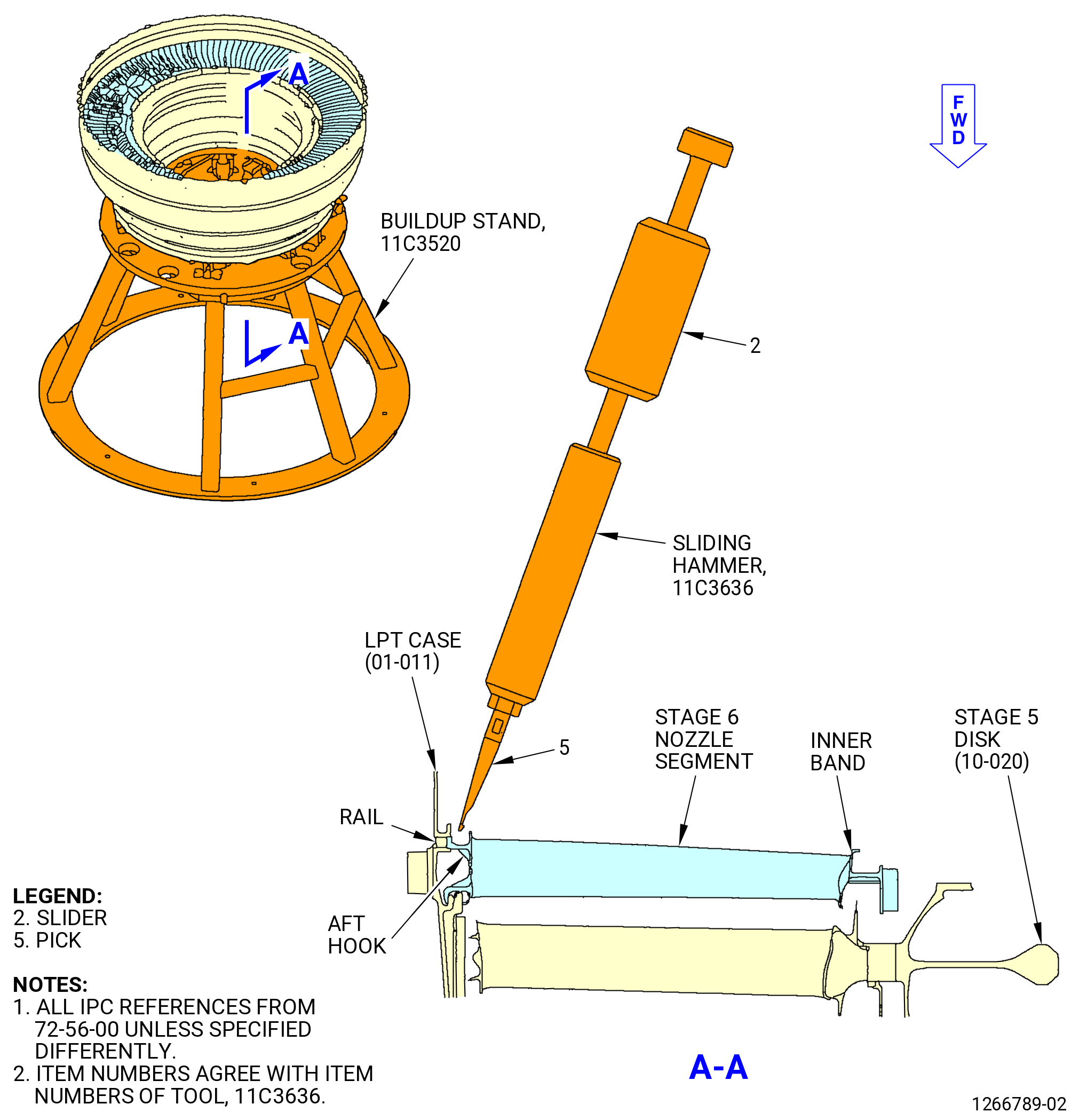

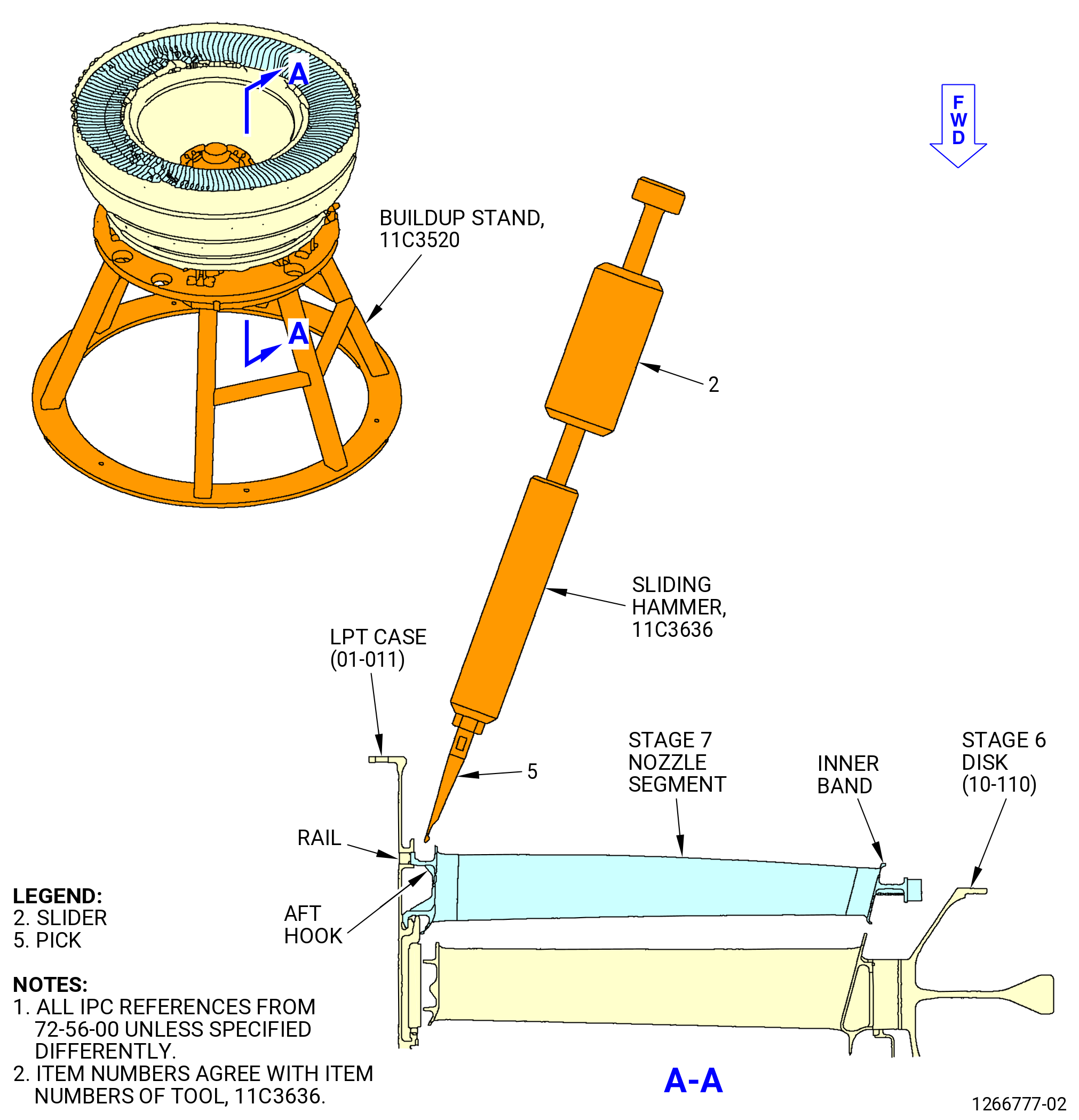

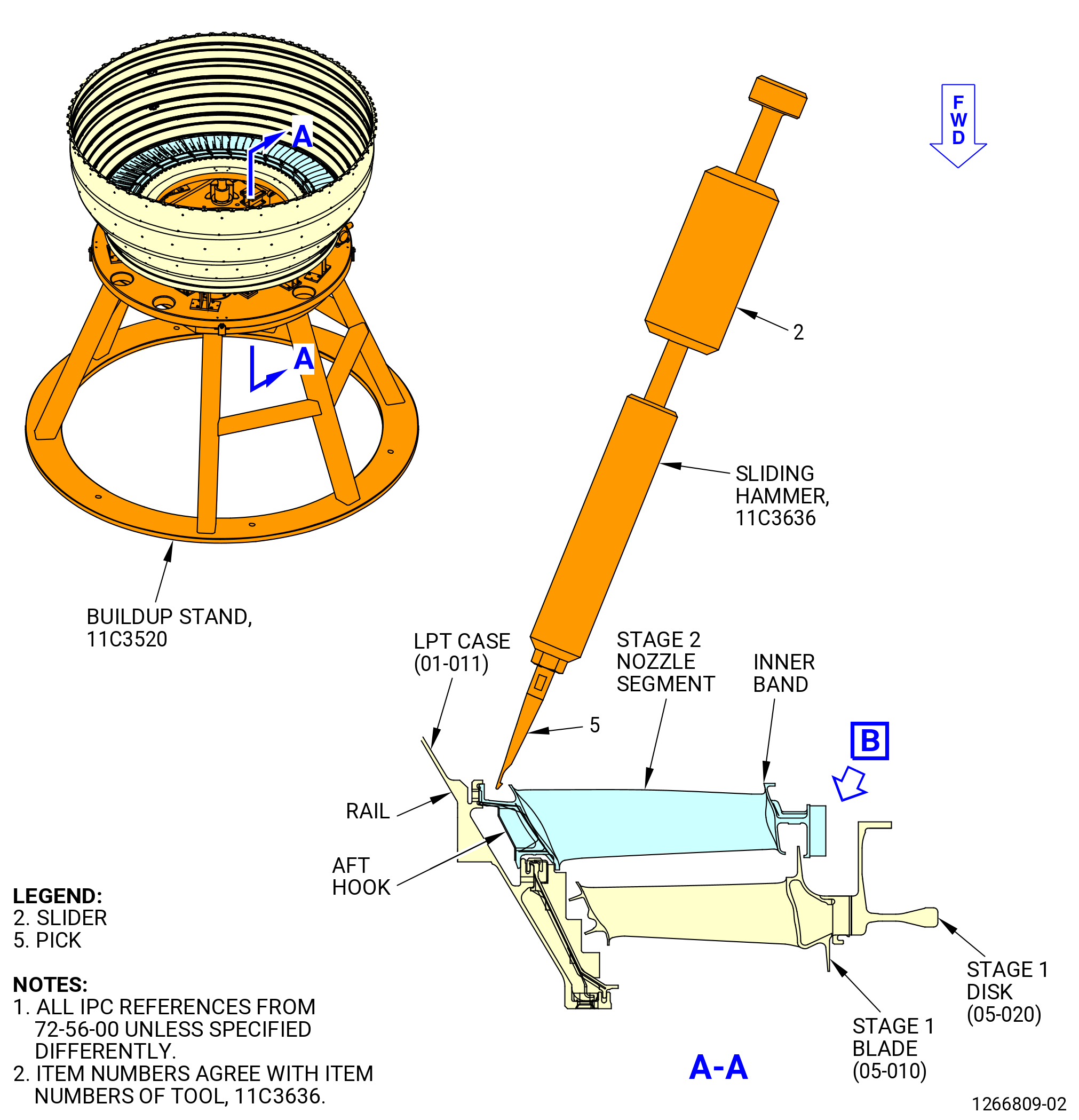

Figure 505   Removal of the LPT Stage 7 Nozzle Segments
Subtask 72-56-00-040-002
D.Remove the stage 6 disk (10-110) and blade assembly from the LPT case(01-011) as follows:
CAUTION:
HOLD THE BOLT AND TURN ONLY THE NUT WHEN YOU LOOSEN THE BOLT/NUT JOINT OF THE LPT DISKS. IF THE BOLT TURNS, IT COULD CAUSE DAMAGE TO THE BOLTHOLES OF THE LPT DISKS.
(1)Remove the nuts, bolts, and bolt retainers that attach the stage 6 disk to the LPT cone shaft. Refer to Figure 506.
(2)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 6 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet (item 99) marked for stage 6 into the lift bars (item 46) and attach with the ball-lock pins (item 22).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the bar/foot assemblies into the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for stage 6 align with the edges of the spider legs.
2Insert the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider.
3Fully insert a third lift bar (item 46) into the third spider leg.
(3)Install the 11C3541   LPT disk lift/turn fixture to the stage 6 disk as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach a hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 6 disk.
(d)Put the stage 6 foot (item 99) at two locations into the stage 6 disk.
(e)Extend the third lift bar (item 46) that you inserted in the third spider leg and engage into the stage 6 disk as follows:
1Adjust the position of the lift bar (item 46) so the scribed line for stage 6 aligns with the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 54).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(4)Lift the stage 6 disk and blade assembly from the LPT case and put the assembly in a safe location. Refer to Figure 506.
(5)Remove the 11C3541   LPT disk lift/turn fixture from the stage 6 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball-lock pins (item 54) from one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 6 disk.
* * * FOR 1B/P/G03.1B/P/G04

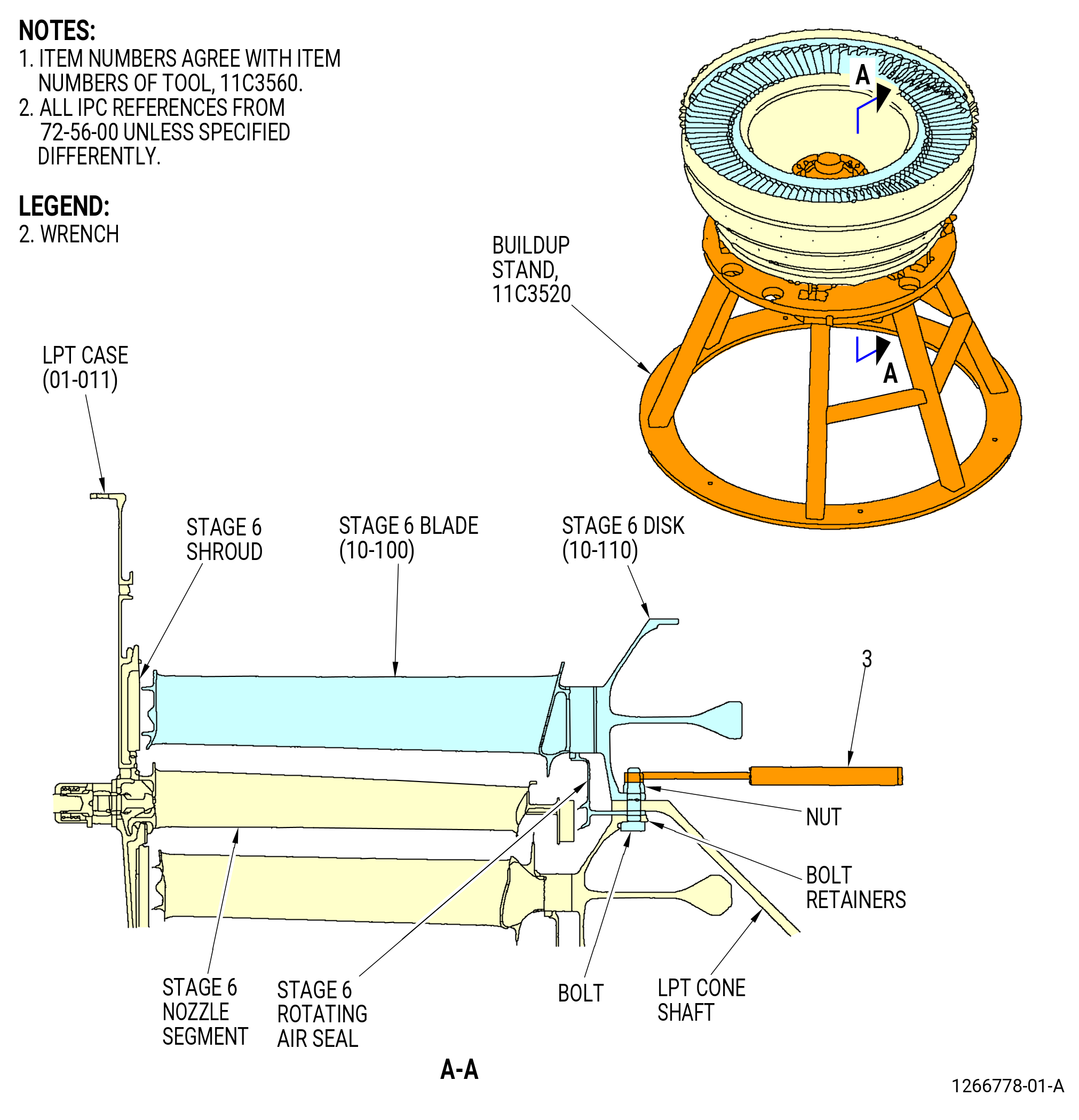

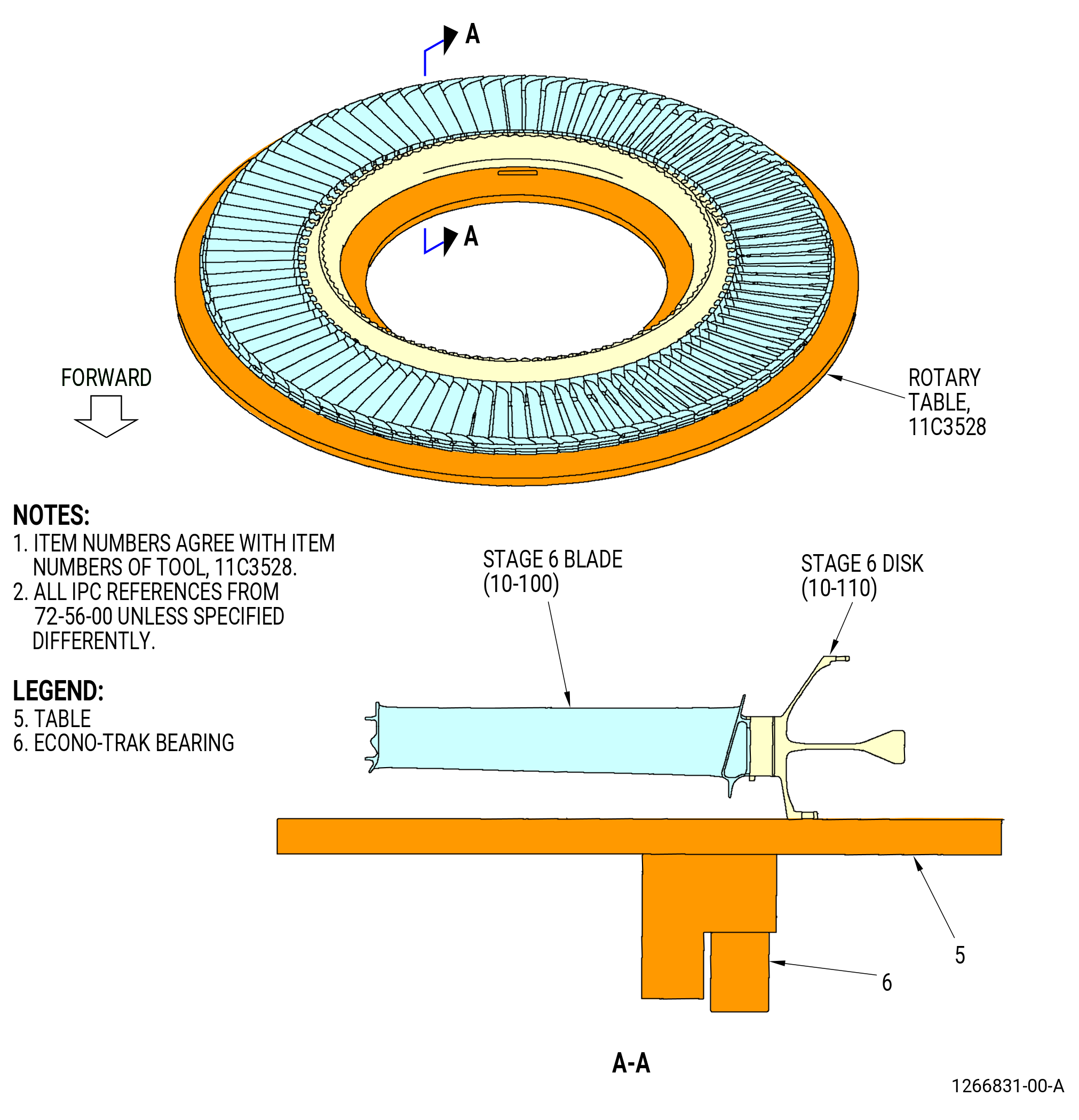

Figure 506   Removal of the Stage 6 Disk and Blade Assembly
Subtask 72-56-00-040-035
E.Remove the LPT cone shaft and the stage 6 rotating air seal from the LPT case (01-011) as follows. Refer to Figure 506 and Figure 507.
(1)Install the 11C3524   lift cap on the LPT cone shaft until it is tight. Refer to Figure 508.
(a)Turn the lift cap (item 3) CW on the aft threads of the LPT cone shaft until it is tight.
(b)Put the body (item 2) on the lift cap (item 3) so the three screws (item 10) go in the ellipse holes in the free positions of the lift cap.
(c)Turn the body (item 2) on to the lift cap (item 3) CW until the screws (item 10) come to the lock positions.
(d)Install the ball lock pin (item 7) to lock the body (item 2) to the lift cap (item 3)
(e)Install the clevis (item 4) and the washer (item 5) to the body (item 2) to the lift cap (item 3).
(f)Install the lift arm (item 6) to the clevis (item 4) and insert the ball lock pin (item 8).
(2)Attach a hoist to the lift arm (item 6) to the clevis (item 4) and insert the ball lock pin (item 8).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(3)Lift the LPT cone shaft from the LPT case.
CAUTION:
THE CASTORS MUST REMAIN LOCKED AT ALL TIMES EXCEPT WHEN REQUIRED TO MOVE THE STAND. THE STAND CASTORS DO NOT PROVIDE SUFFICIENT STABILITY TO ALLOW FOR SAFE WORKING CONDITIONS.
(4)Put the LPT cone shaft, forward end down, onto the 11C3506   buildup/transport/storage stand as follows. Refer to Figure 509.
(a)Lower the LPT cone shaft onto the seal support (item 4).
(b)Align the holes of the seal support (item 4) to the D-head bolts and put the mid forward flange onto the seal support.
(c)Attach the LPT cone shaft to the seal support (item 4) with nut (item 5) at four locations.
(5)Remove the hoist from the lift arm (item 6) of the 11C3524   lift cap.

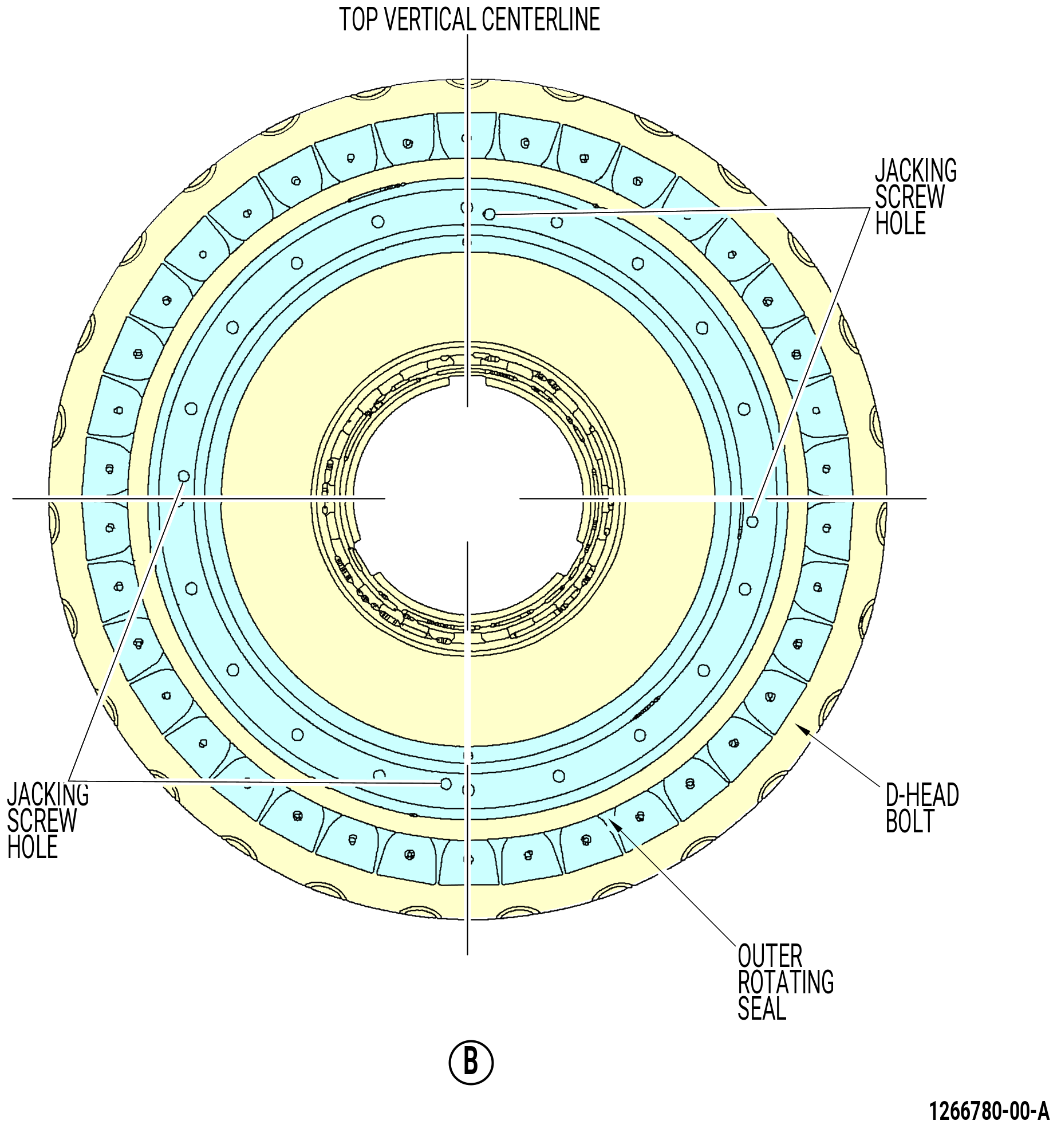

(6)Remove the bolts from the outer rotating seal.
(7)Remove the outer rotating seal from the LPT cone shaft. If necessary, remove the outer rotating seal with four jacking screws (0.250-28 UNF-2A). Refer to Figure 507.

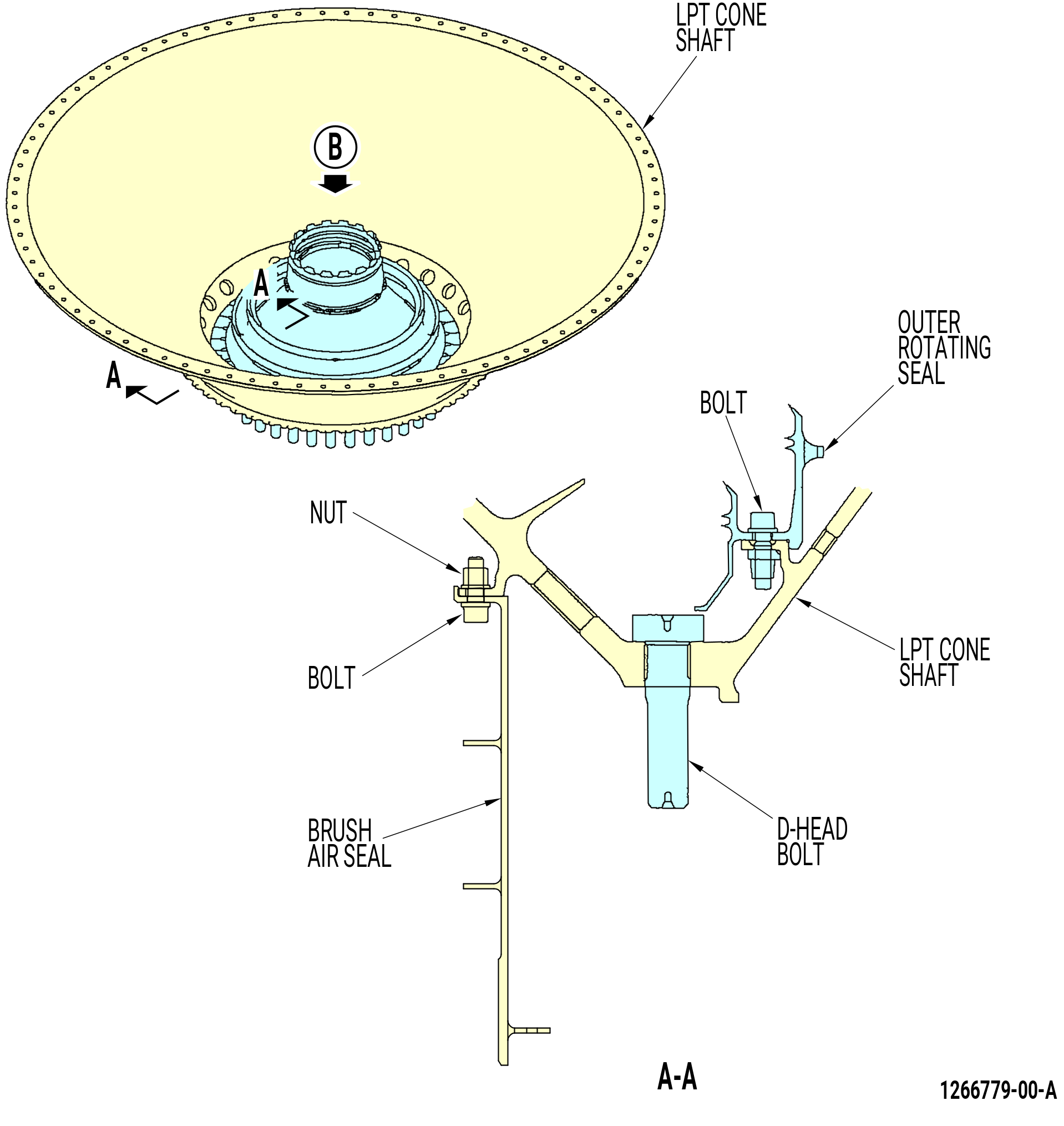

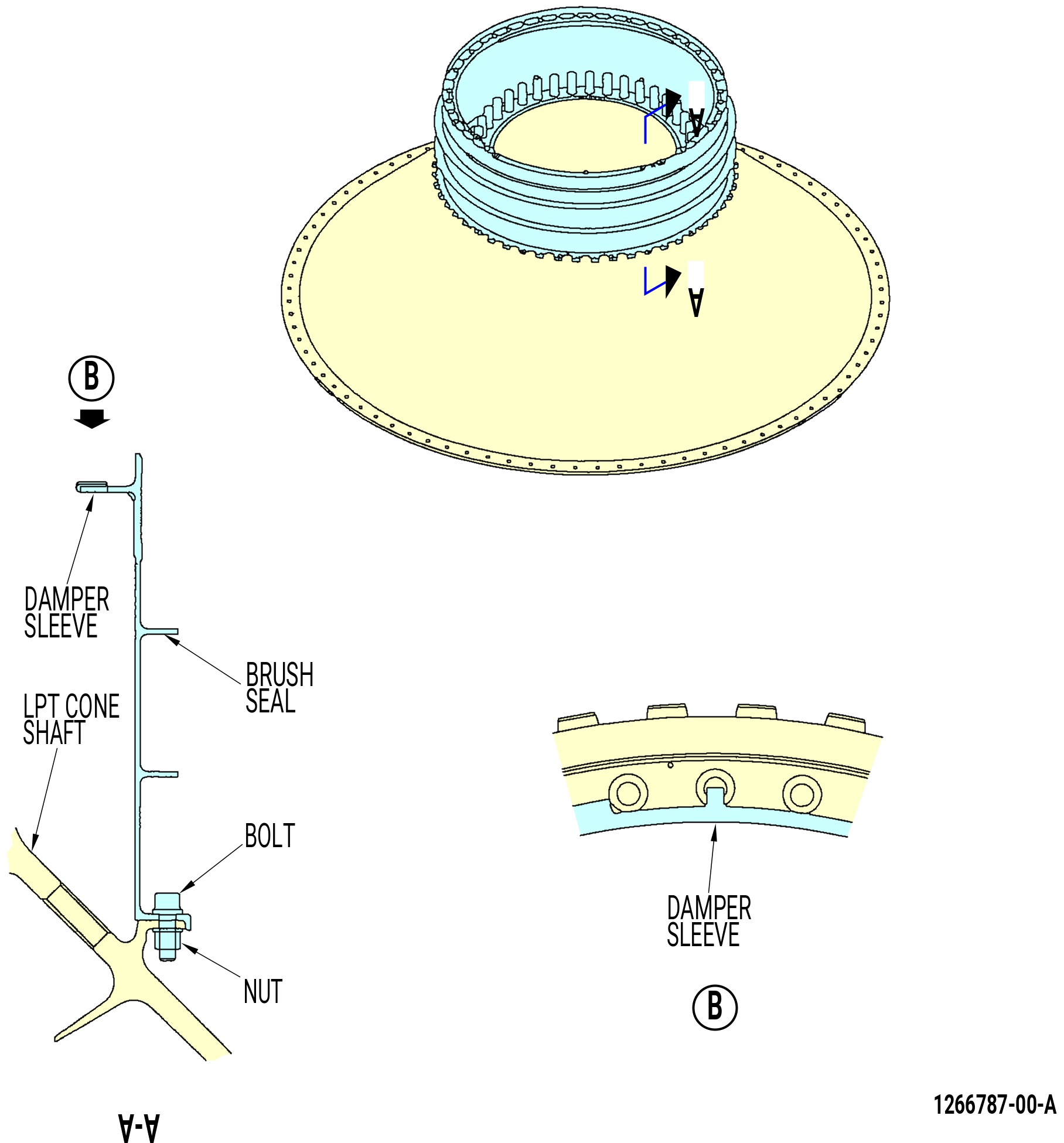

(8)Remove the brush air seal from the LPT cone shaft as follows. Refer to Figure 507 and Figure 511.
(a)Remove the nuts and bolts.
(b)Remove the brush air seal from the LPT cone shaft and carefully place onto the 11C3506   buildup/transport/storage stand as follows:
1If necessary, deflect the damper seal locating tabs from locating holes while moving the air brush seal aft and away from the flange to allow the removal of the damper sleeve.
2Carefully lower the air brush seal onto the 11C3506   buildup/transport/storage stand.
(9)Remove the nuts (item 5) at four locations from the D-head bolts.
(10)Remove the D-head bolts from the LPT cone shaft.
(11)Attach a hoist to the lift arm (item 6) of the 11C3524   lift cap.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(12)Carefully lift the LPT cone shaft from the 11C3506   buildup/transport/storage stand.
(13)Remove the brush air seal from the buildup/transport/storage stand.
(14)Remove the damper sleeve from the brush air seal.

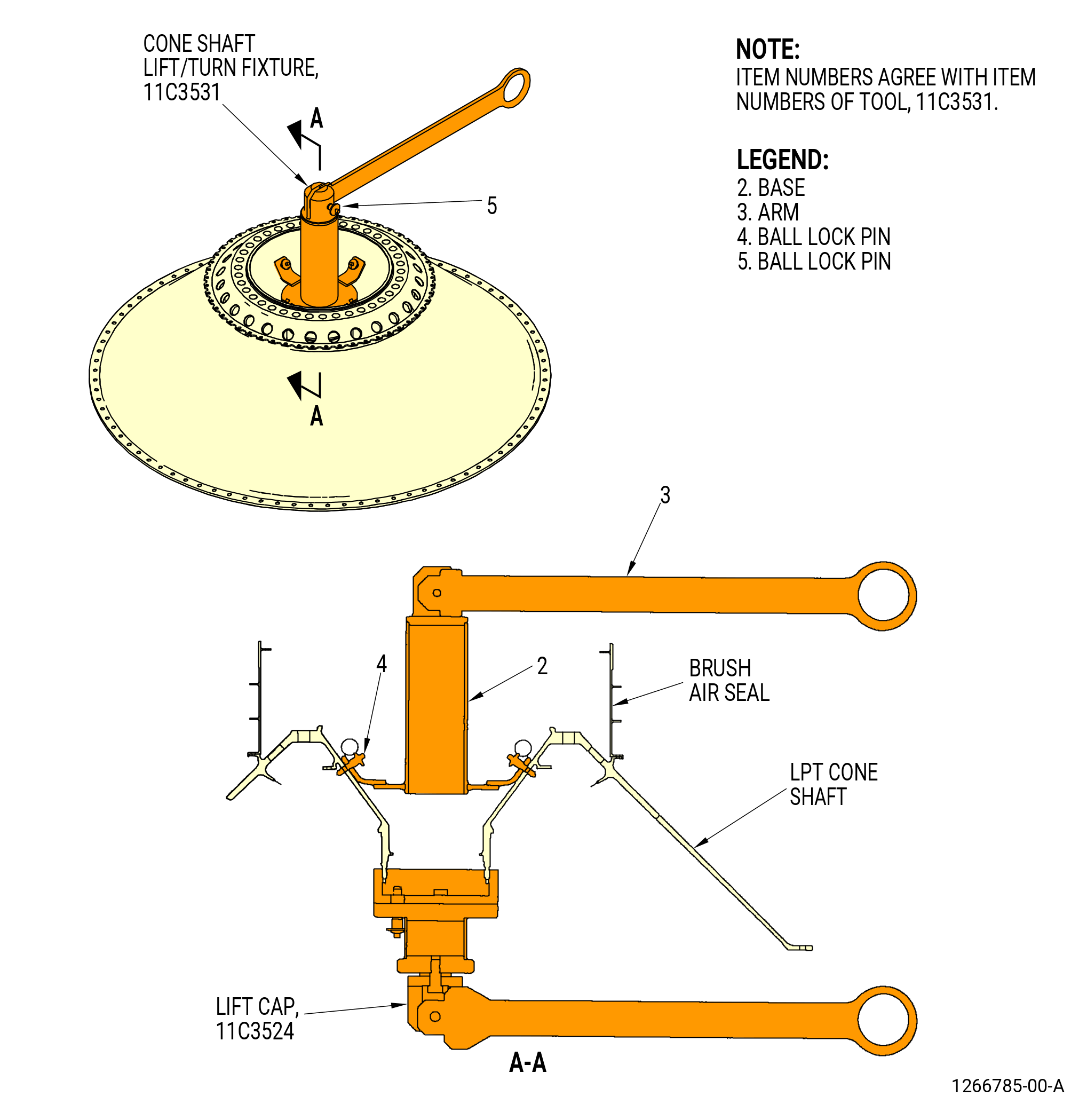

(15)Install the 11C3531   cone shaft lift/turn fixture to the LPT cone shaft as follows. Refer to Figure 510.
(a)Install the base (item 2) to the forward side of the LPT cone shaft.
(b)Secure the base to the LPT cone shaft with the ball rock pins (item 4).
(c)Attach the arm (item 3) to the base (item 2) with the ball rock pin (item 5).
(16)Attach a hoist to the arm (item 3).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(17)Lift the forward side of the LPT cone shaft and lower the aft side of the LPT cone shaft at the same time. This will turn over the LPT cone shaft, aft side down. Lift until the load is supported by the 11C3531   cone shaft lift/turn fixture.
(18)Remove the hoist from the lift arm (item 6) of the 11C3524   lift cap. Refer to Figure 508.
(19)Remove the 11C3524   lift cap from the LPT cone shaft as follows:
(a)Pull the pin (item 8) out and remove the lift arm (item 6) from the clevis (item 4).
(b)Pull the ball lock pin (item 7) out and remove the body (item 2) from the lift cap (item 3).
(c)Remove the lift cap (item 3) from the LPT cone shaft.
(20)Put the LPT cone shaft, aft side down, on a worktable. Refer to Figure 510.
(21)Remove the 11C3531   cone shaft lift/turn fixture from the LPT cone shaft.
(22)Remove the stage 6 rotating air seal from the stage 5 disk.
* * * FOR 1B/P/G03.1B/P/G04
Figure 507   (Sheet 1 ) Removal of the LPT Cone Shaft and Stage 6 Rotating Air Seal
* * * FOR 1B/P/G03.1B/P/G04
Figure 507   (Sheet 2 ) Removal of the LPT Cone Shaft and Stage 6 Rotating Air Seal
* * * FOR 1B/P/G03.1B/P/G04

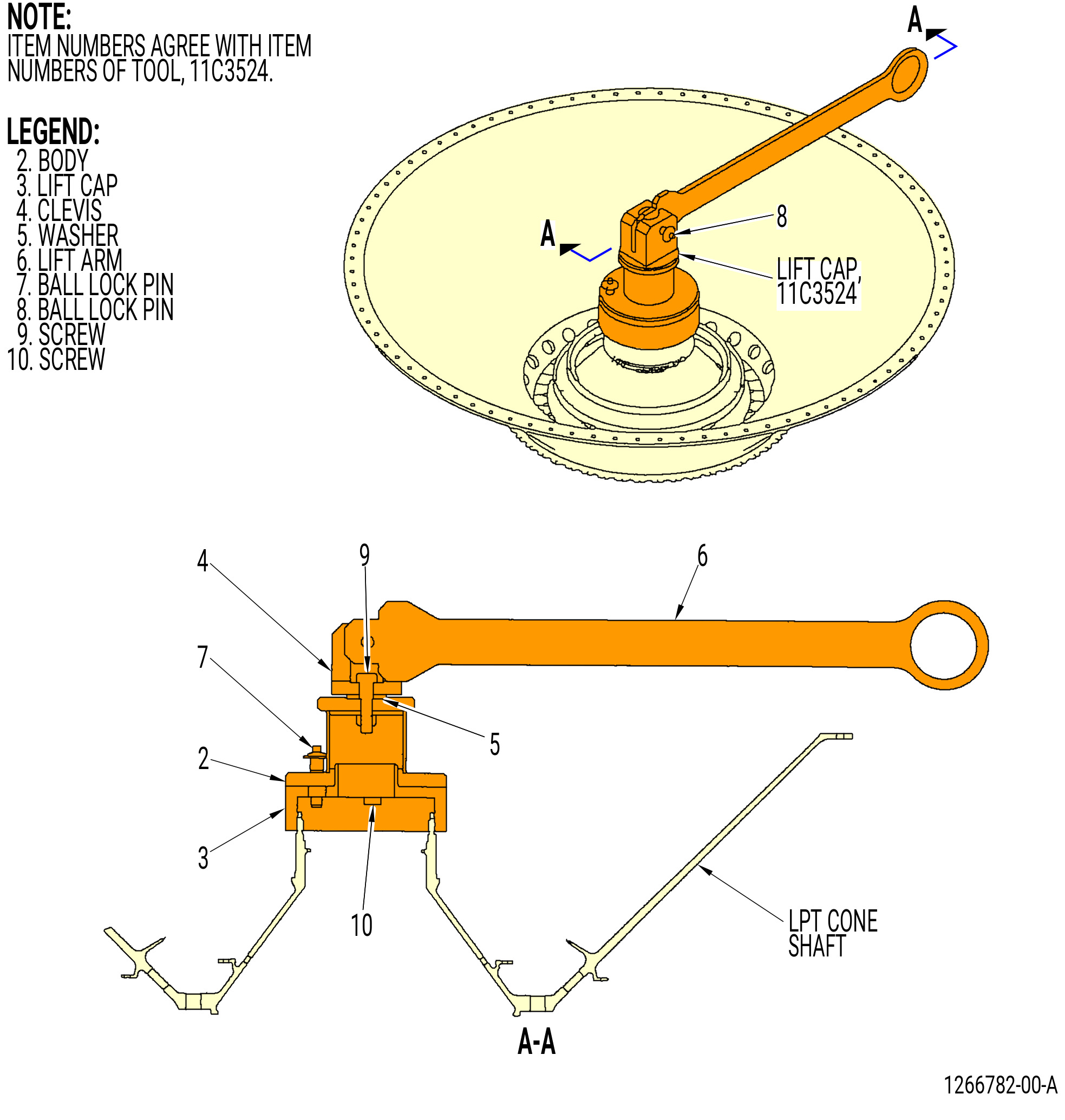

Figure 508   Installation of the Lift Cap, 11C3524, on the LPT Cone Shaft
* * * FOR 1B/P/G03.1B/P/G04

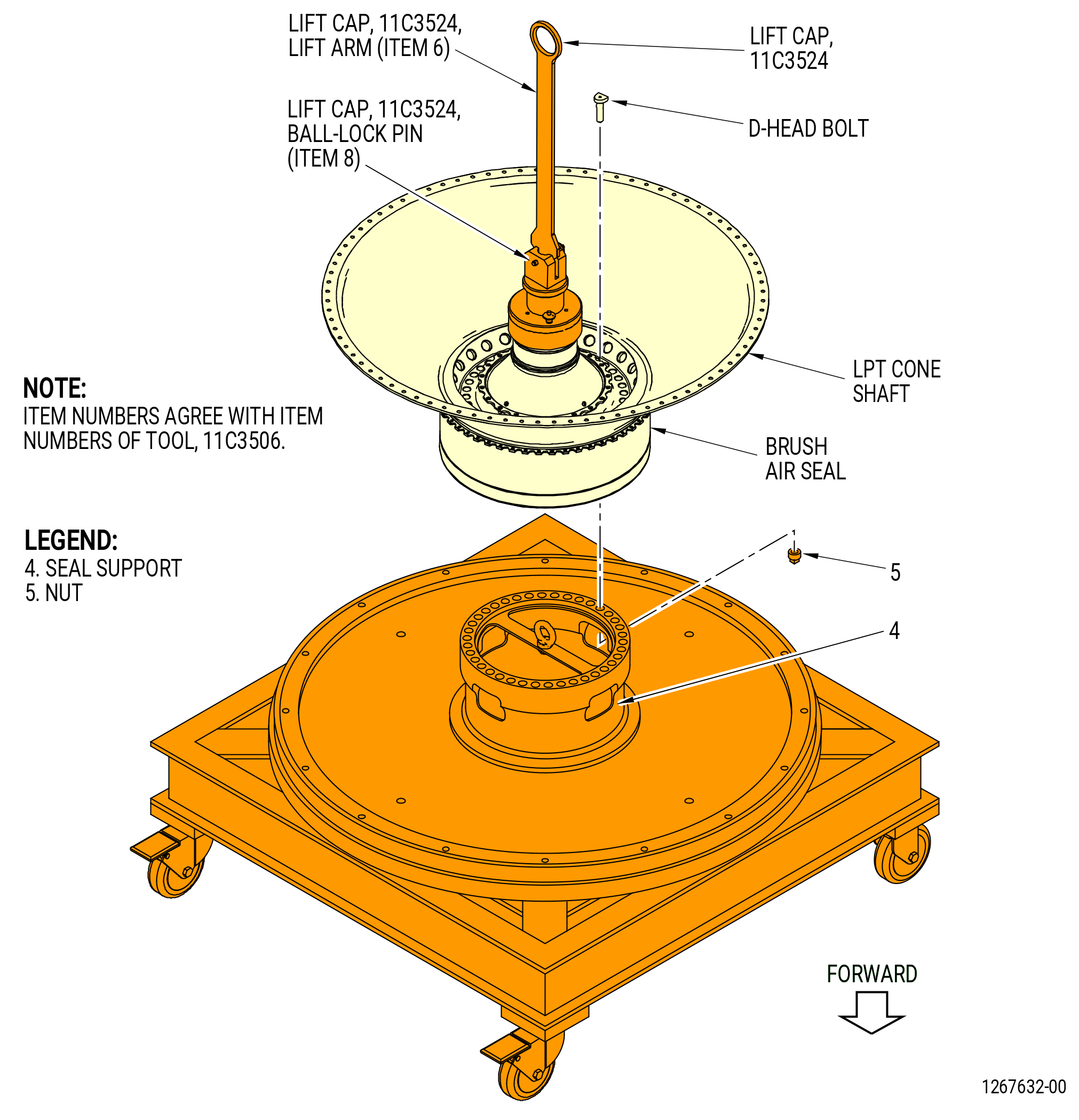

Figure 509   Installation of the LPT Cone Shaft onto the Buildup/Transport/Storage Stand, 11C3506
* * * FOR 1B/P/G03.1B/P/G04
Figure 510   Installation of the Cone Shaft Lift/Turn Fixture, 11C3531, on the LPT Cone Shaft
* * * FOR 1B/P/G03.1B/P/G04
Figure 511   Removal of the Brush Air Seal from the LPT Cone Shaft
Subtask 72-56-00-040-005
F.Remove the stage 6 shrouds from the LPT case (01-011) as follows. Refer to Figure 512.
(1)Move the aft ends of the stage 6 shrouds radially in to disengage the rail of the LPT case.
(2)Remove the stage 6 shrouds.
Subtask 72-56-00-040-078
G.Remove the stage 6 nozzle segments from the LPT case (01-011) as follows. Refer to Figure 513.
(1)Remove the borescope plug from the LPT case and the stage 6 nozzle segment at the 9:30 o'clock position. Refer to Figure 512.
(2)Disengage the stage 6 nozzle segments from the rail of the LPT case.
(a)Move the inboard end of the stage 6 nozzle segments forward on the 11C3520   buildup stand. Refer to Figure 502.
(b)If necessary, lightly tap the inner band aft lips of the stage 6 segments with a mallet. This will disengage the aft hook of the outer band from the rail of the LPT case.
(c)Engage the pick (item 5) of the 11C3636   sliding hammer with the anti-rotation slot of the stage 6 nozzle segments.
(d)Rapidly move the slider (item 2) to disengage the stage 6 nozzle segments from the LPT case.
(3)Remove the stage 6 nozzle segments.
(4)Adjust the height of the LPT rotors aft to the NOMINAL position on the 11C3520   buildup stand. Refer to Figure 502.
* * * FOR 1B/P/G03.1B/P/G04
Figure 512   Removal of the Stage 6 Shrouds
* * * FOR 1B/P/G03.1B/P/G04

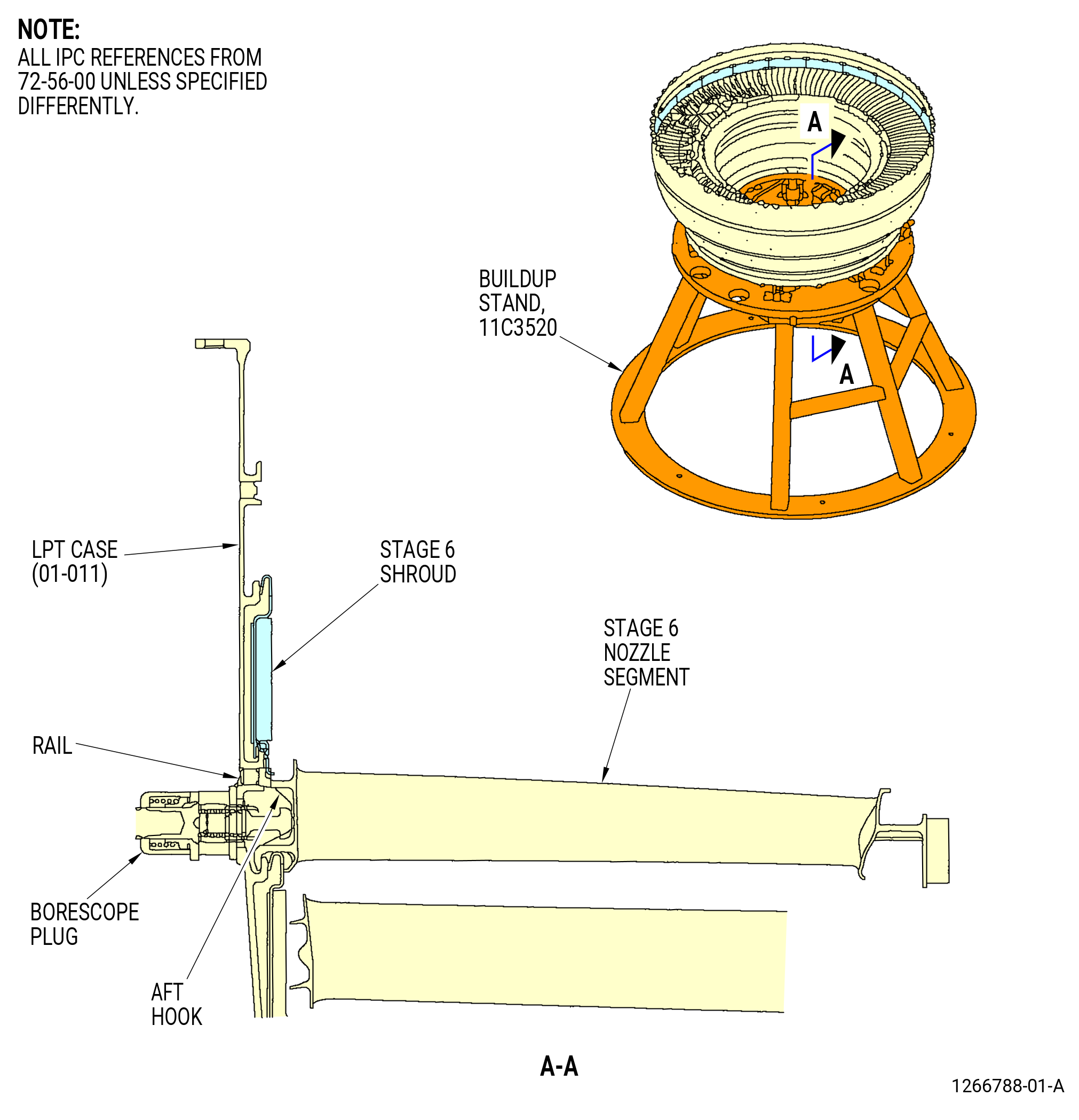

Figure 513   Removal of the LPT Stage 6 Nozzle Segments and Shrouds
Subtask 72-56-00-040-079
H.Remove the stage 5 disk (10-020) and blade assembly and the stage 5 rotating air seal from the LPT case (01-011) as follows:
CAUTION:
HOLD THE BOLT AND TURN ONLY THE NUT WHEN YOU LOOSEN THE BOLT/NUT JOINT OF THE LPT DISKS. IF THE BOLT TURNS, IT COULD CAUSE DAMAGE TO THE BOLTHOLES OF THE LPT DISKS.
(1)Remove the nuts and bolts from the stage 4 disk (05-420), the stage 5 rotating air seal, and the stage 5 disk. Refer to Figure 514.
(2)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 5 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet marked for stage 5 (item 98) into the lift bars (item 46) and insert the ball lock pins (item 22).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the bar/foot assemblies into the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for stage 5 align with the edges of the spider legs.
2Insert the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider.
3Fully insert a third lift bar (item 46) into the third spider leg.
(3)Install the 11C3541   LPT disk lift/turn fixture LPT disk lift/turn fixture to the stage 5 disk as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 5 disk.
(d)Extend the third lift bar (item 46) that you inserted in the third spider leg.
1Adjust the position of the lift bar (item 46) so the scribed line for stage 5 aligns with the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 54).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(4)Lift the stage 5 disk and blade assembly from the LPT case and put the assembly in a safe location. Refer to Figure 514.
(5)Remove the 11C3541   LPT disk lift/turn fixture from the stage 5 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 5 disk.
(6)Remove the stage 5 rotating air seal from the stage 4 disk. Refer to Figure 514.
* * * FOR 1B/P/G03.1B/P/G04

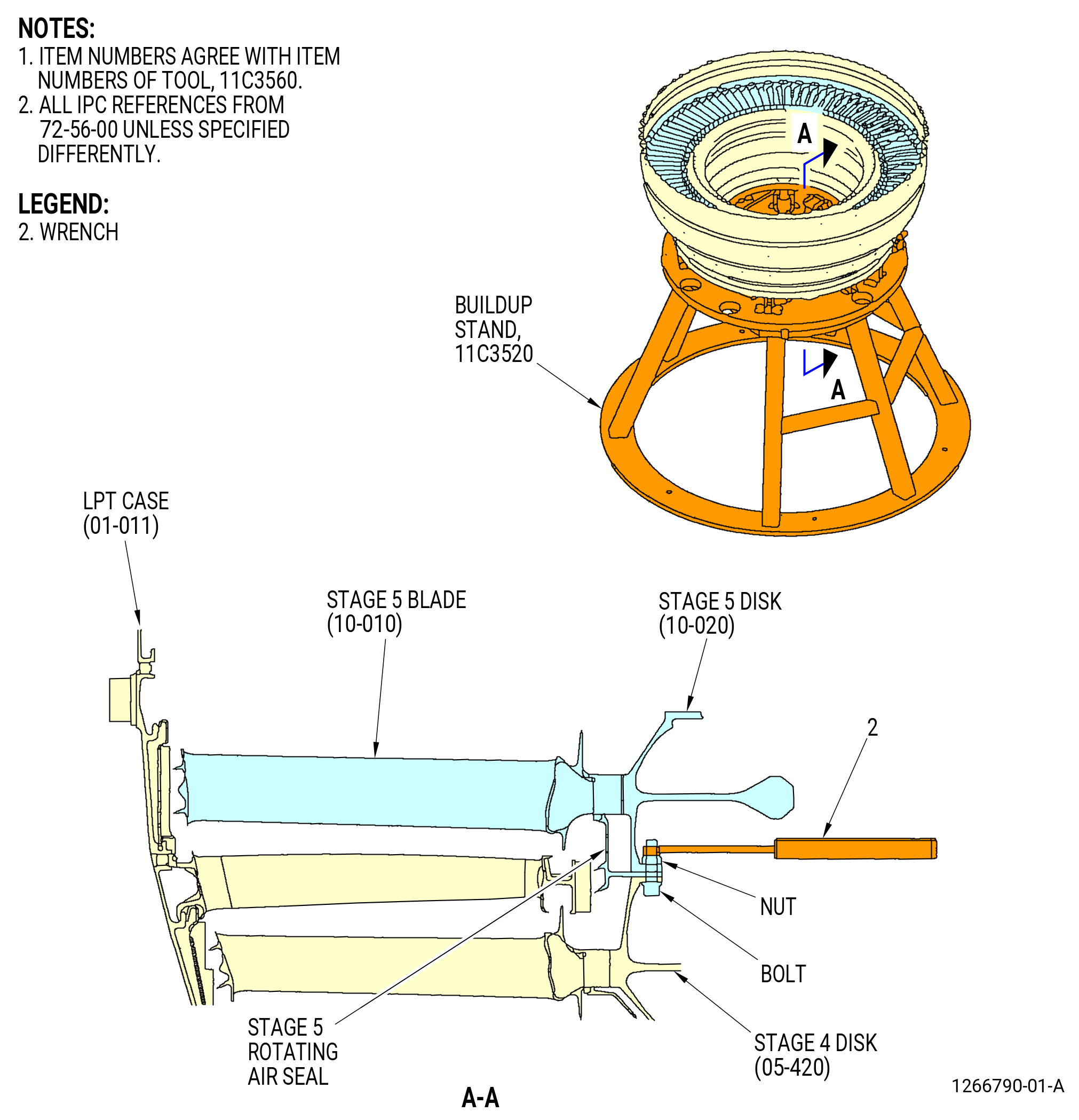

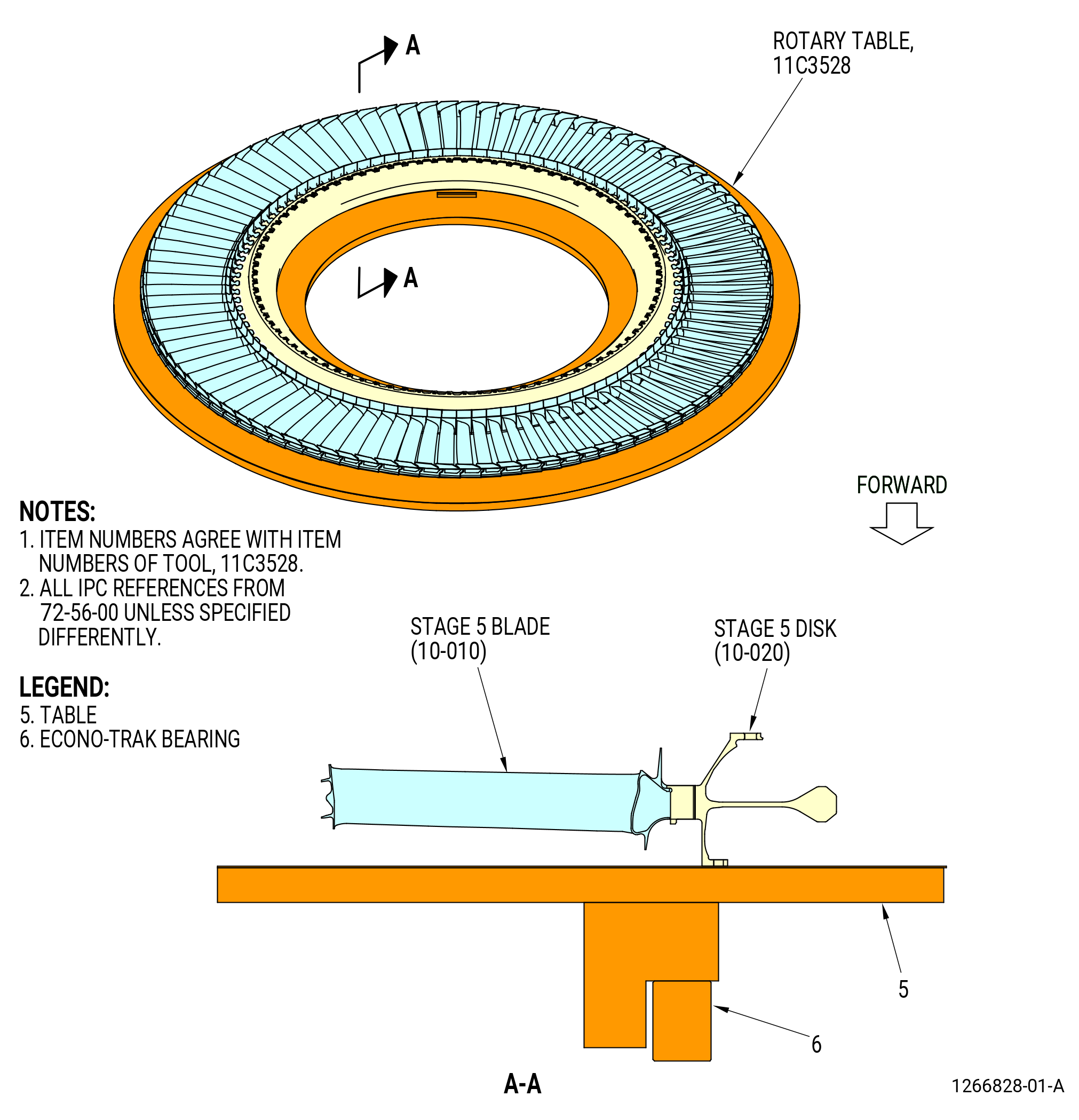

Figure 514   Removal of the Stage 5 Disk and Stage 5 Seal
Subtask 72-56-00-040-080
I.Remove the stage 5 shrouds from the LPT case (01-011) as follows. Refer to Figure 515.
(1)Move the aft ends of the stage 5 shrouds radially in to disengage the rail of the LPT case.
(2)Remove the stage 5 shrouds.
Subtask 72-56-00-040-081
J.Remove the stage 5 nozzle segments from the LPT case (01-011) as follows. Refer to Figure 516.
(1)Disengage the stage 5 nozzle segments from the rail of the LPT case.
(a)Move the inboard end of the stage 5 nozzle segments forward on the 11C3520   buildup stand. Refer to Figure 502.
(b)If necessary, lightly tap the inner band aft lips of the stage 5 segments with a mallet. This will disengage the aft hook of the outer band from the rail of the LPT case.
(c)Engage the pick (item 5) of the 11C3636   sliding hammer with the anti-rotation slot of the stage 5 nozzle segments.
(d)Quickly move the slider (item 2) to disengage the stage 5 nozzle segments from the LPT case.
(2)Remove the stage 5 nozzle segments.
(3)Remove and discard the spline seals (10-090) (SIN 935YD) from the grooves of the stage 5 nozzle segments.
(4)Adjust the LPT rotors aft to the NOMINAL position on the 11C3520   buildup stand. Refer to Figure 502.
* * * FOR 1B/P/G03.1B/P/G04
Figure 515   Removal of the Stage 5 Shrouds
* * * FOR 1B/P/G03.1B/P/G04
Figure 516   Removal of the LPT Stage 5 Nozzle Segments
Subtask 72-56-00-040-009
K.Remove the stage 4 disk (05-420) and blade assembly, and the stage 4 rotating air seal from the LPT case (01-011) as follows:
CAUTION:
HOLD THE BOLT AND TURN ONLY THE NUT WHEN YOU LOOSEN THE BOLT/NUT JOINT OF THE LPT DISKS. IF THE BOLT TURNS, IT COULD CAUSE DAMAGE IN THE BOLTHOLES OF THE LPT DISKS.
(1)Remove the nuts and bolts from the stage 3 disk (05-290) , stage 4 rotating air seal, and stage 4 disk. Refer to Figure 517.
(2)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 4 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet marked for stage 4 (item 97) into the lift bars (item 46) and insert the ball lock pins (item 22).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the bar/foot assemblies into the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for stage 4 align with the edges of the spider legs.
2Insert the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider.
3Fully insert a third lift bar (item 46) into the third spider leg.
(3)Install the 11C3541   LPT disk lift/turn fixture on the stage 4 disk as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 4 disk.
(d)Extend the third lift bar (item 46) that you inserted in the third spider leg.
1Adjust the position of the lift bar (item 46) so the scribed line for stage 4 aligns with the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 54).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.

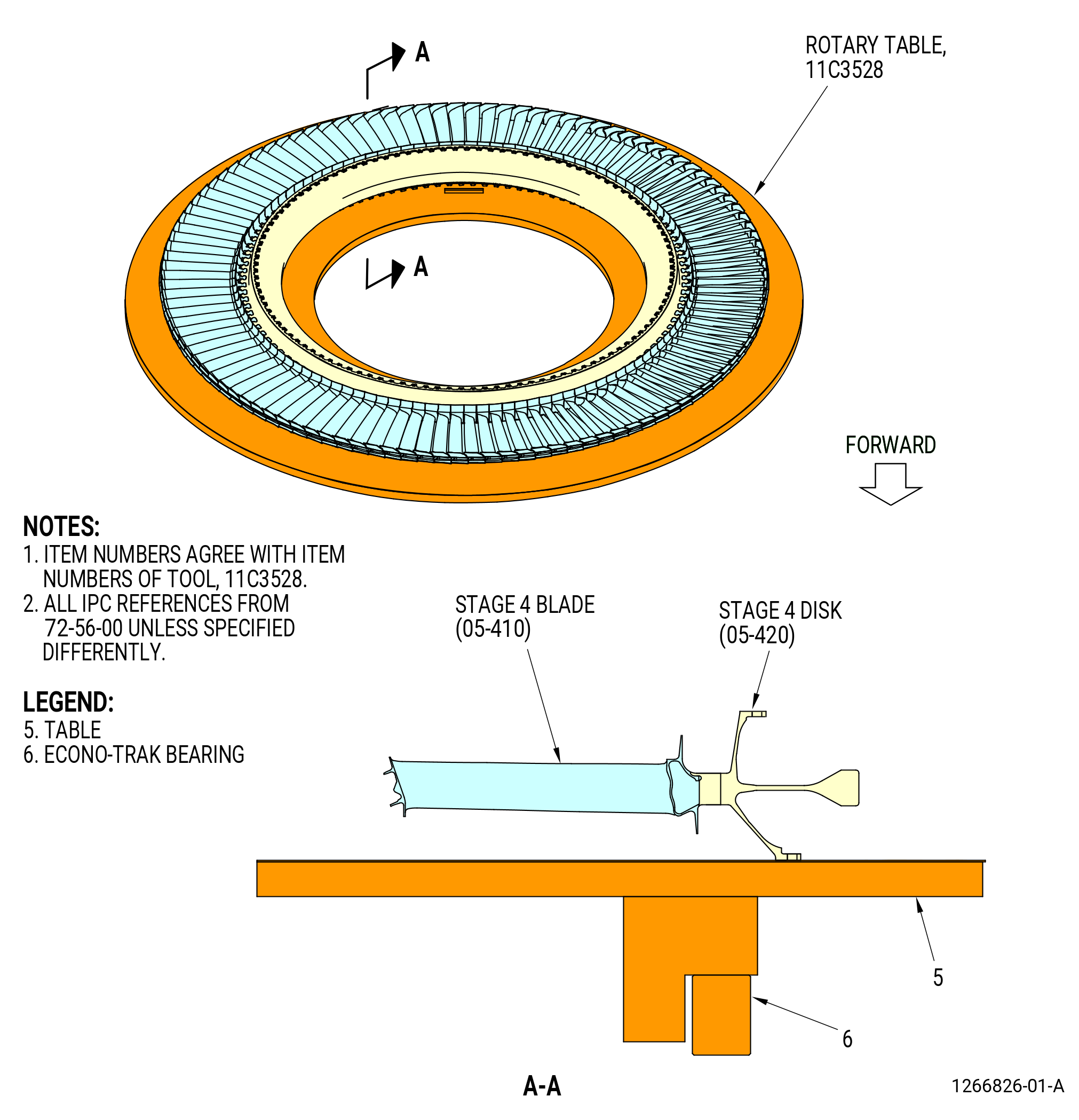

(4)Lift the stage 4 disk and blade assembly from the LPT case and put the assembly in a safe location. Refer to Figure 517.
(5)Remove the 11C3541   LPT disk lift/turn fixture from the stage 4 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from the one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 4 disk.
(6)Remove the stage 4 rotating air seal from the stage 3 disk. Refer to Figure 517.
* * * FOR 1B/P/G03.1B/P/G04

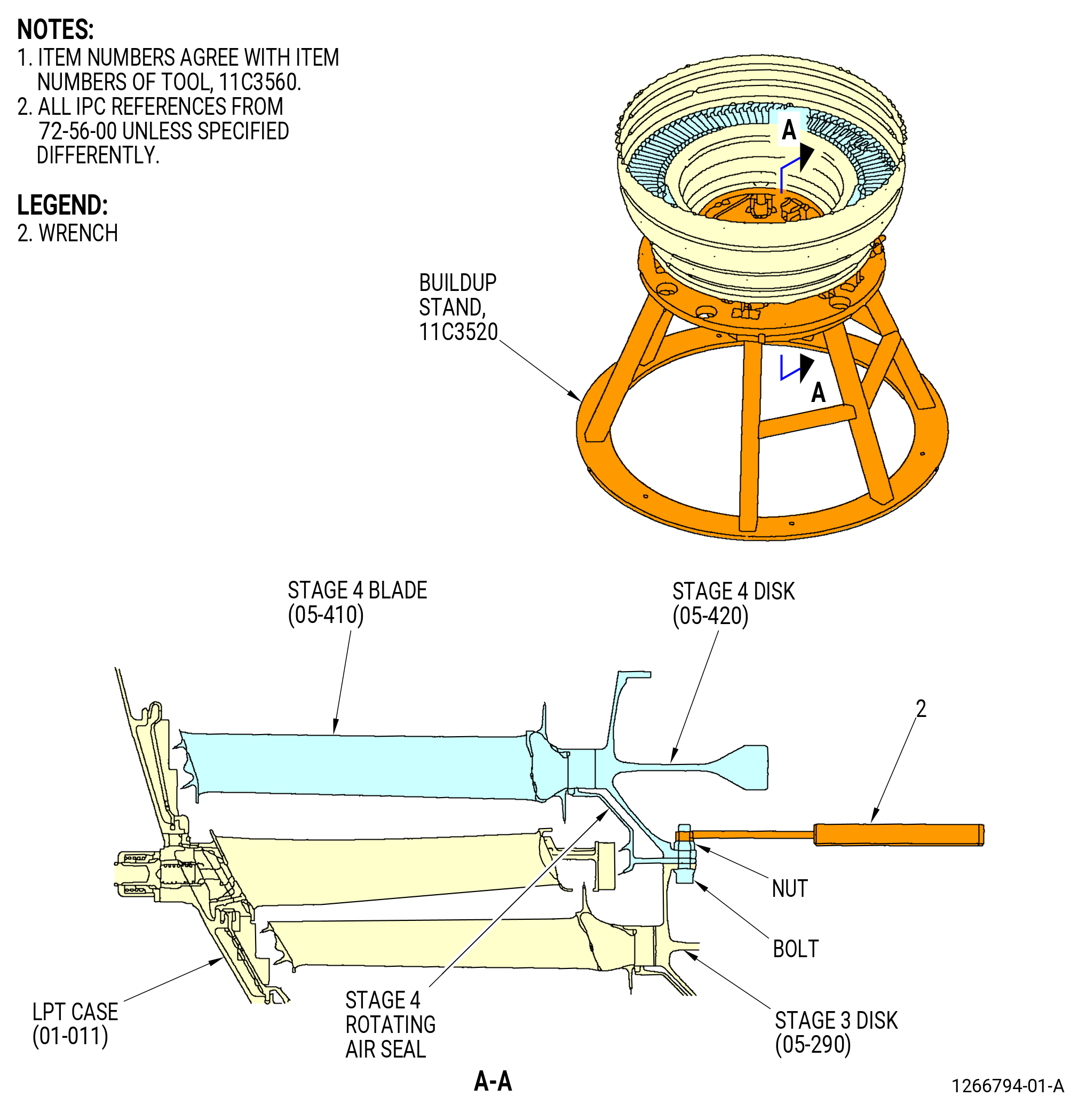

Figure 517   Removal of the Stage 4 Disk and Stage 4 Rotating Air Seal
Subtask 72-56-00-040-043
L.Remove the stage 4 shrouds from the LPT case (01-011) as follows. Refer to Figure 518.
(1)Move the aft ends of the stage 4 shrouds radially in to disengage the rail of the LPT case.
(2)Remove the stage 4 shrouds.
Subtask 72-56-00-040-045
M.Remove the stage 4 nozzle segments from the LPT case (01-011).
(1)Remove the borescope plug from the LPT case and the stage 4 nozzle segment at the 9:30 o'clock position. Refer to Figure 518.
(2)Disengage the stage 4 nozzle segments from the rail of the LPT case as follows. Refer to Figure 519.
(a)Move the inboard end of the stage 4 nozzle segments forward on the 11C3520   buildup stand. Refer to Figure 502.
(b) If necessary, lightly tap the inner band aft lips of the stage 4 segments with a mallet. This will disengage the aft hook of the outer band from the rail of the LPT case.
(c)Engage the pick (item 5) of the 11C3636   sliding hammer with the anti-rotation slot of the stage 4 nozzle segments.
(d)Quickly move the slider (item 2) to disengage the stage 4 nozzle segments from the LPT case.
(3)Remove the stage 4 nozzle segments.
(4)Remove and discard the LPT stage 4 spline seals (spline seal) (05-520) (SIN 935Y7), (05-530) (SIN 935Y8), (05-540) (SIN 935Y9), and (05-550) (SIN 935YA) from the grooves of the stage 4 nozzle segments.
(5)Move the LPT rotors aft to the NOMINAL position on the 11C3520   buildup stand. Refer to Figure 502.
* * * FOR 1B/P/G03.1B/P/G04
Figure 518   Removal of the Stage 4 Shrouds
* * * FOR 1B/P/G03.1B/P/G04

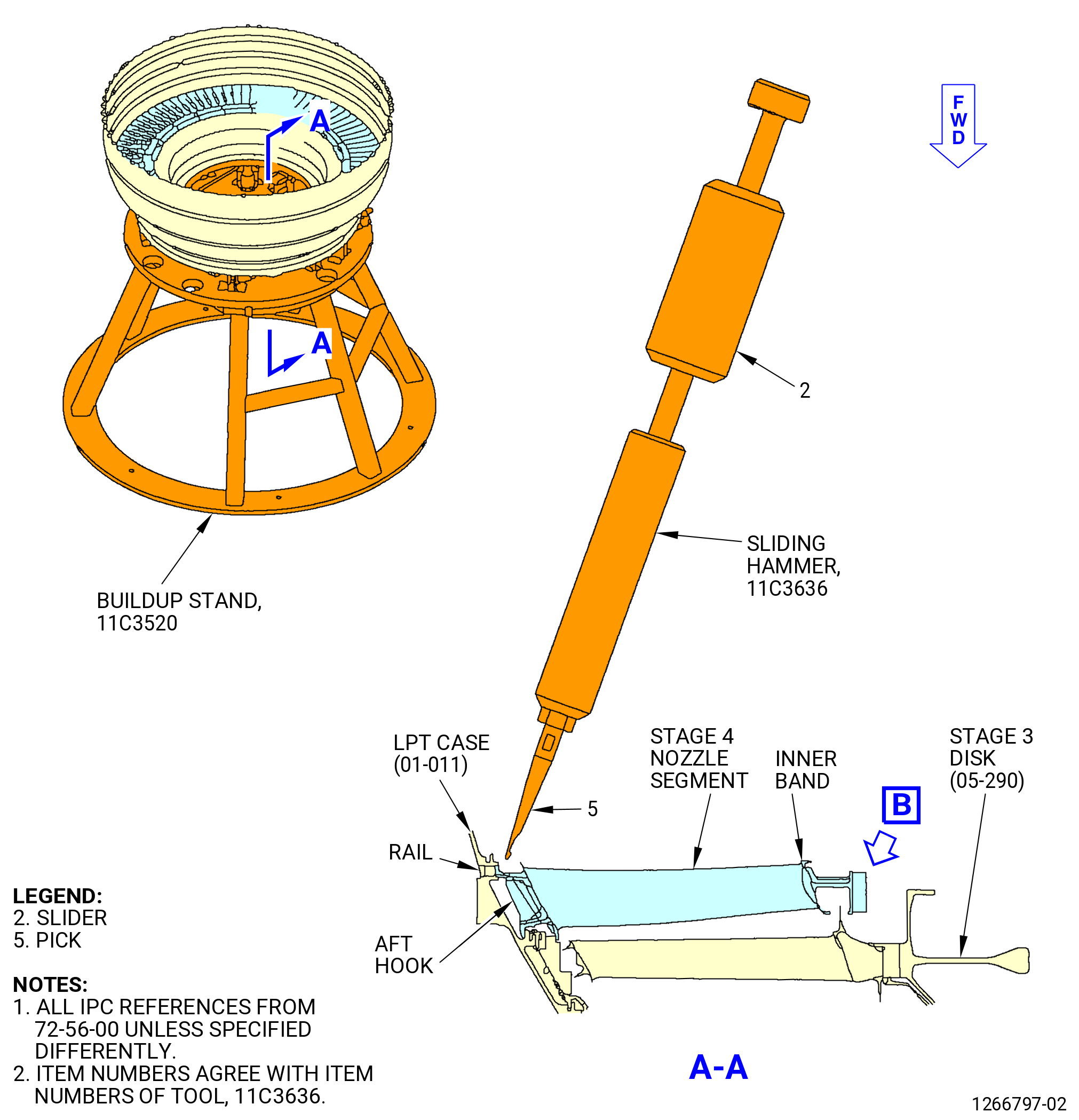

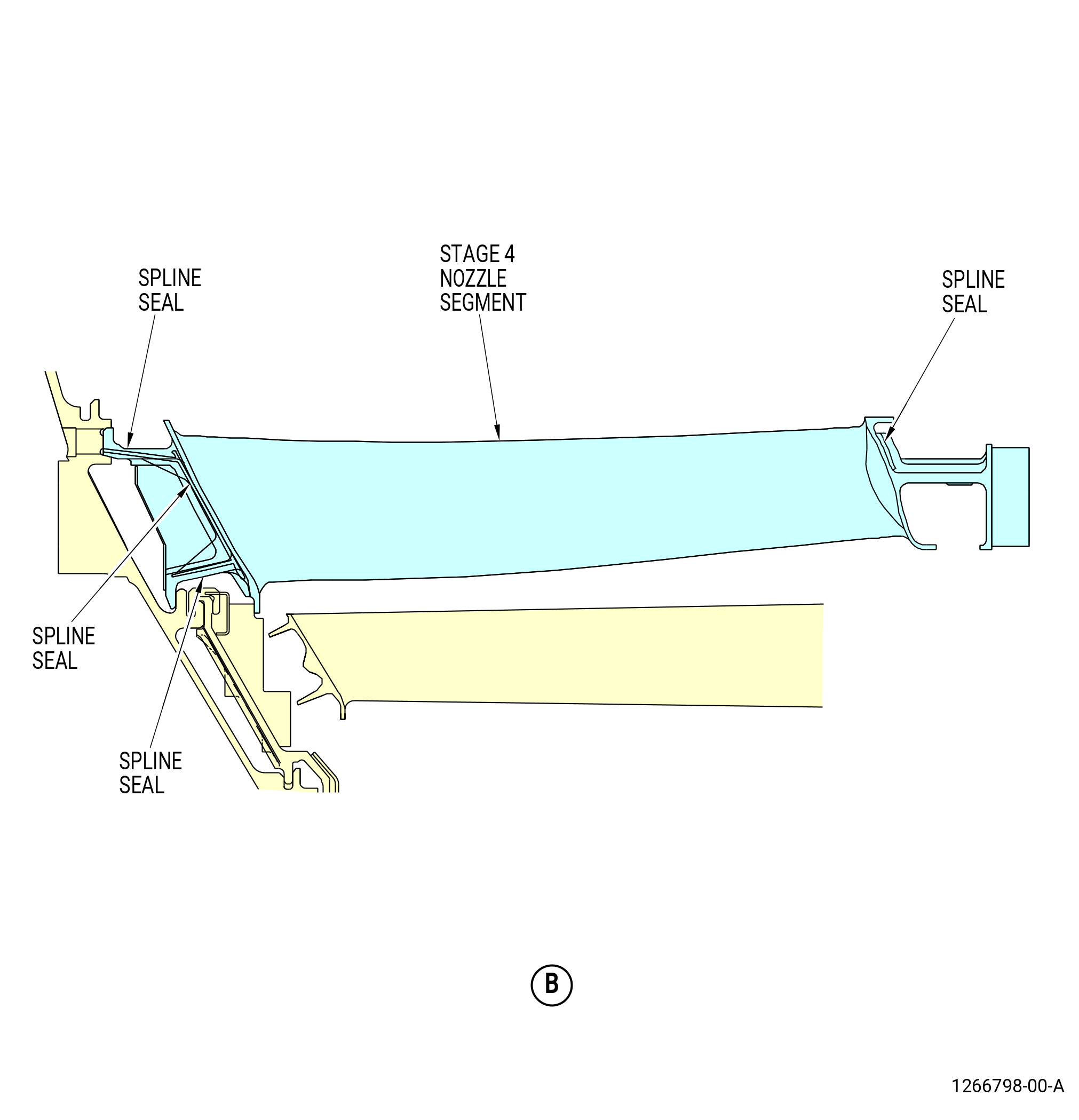

Figure 519   (Sheet 1 ) Removal of the LPT Stage 4 Nozzle Segments
* * * FOR 1B/P/G03.1B/P/G04
Figure 519   (Sheet 2 ) Removal of the LPT Stage 4 Nozzle Segments
Subtask 72-56-00-040-012
N.Remove the stage 3 disk (05-290) and blade assembly, and the stage 3 rotating air seal as follows:
CAUTION:
HOLD THE BOLT AND TURN ONLY THE NUT WHEN YOU LOOSEN THE BOLT/NUT JOINT OF THE LPT DISKS. IF THE BOLT TURNS, IT COULD CAUSE DAMAGE TO THE BOLTHOLES OF THE LPT DISKS.
(1)Remove the nuts and bolts from the stage 2 disk (05-120), stage 3 rotating air seal, and stage 3 disk. Refer to Figure 520.
(2)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 3 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet marked for stage 3 (item 96) into the lift bars (item 46) and insert the ball lock pins (item 22).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the bar/foot assemblies into the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for stage 3 align with the edges of the spider legs.
2Insert two of the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider.
3Fully insert a third lift bar (item 46) into the third spider leg.
(3)Install the 11C3541   LPT disk lift/turn fixture to the stage 3 disk as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 3 disk.
(d)Extend the third lift bar (item 46) that you inserted in the spider leg.
1Adjust the position of the lift bar (item 46) so that the scribed line for stage 3 aligns with the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 25).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(4)Lift the stage 3 disk and blade assembly from the LPT case and put the assembly in a safe location. Refer to Figure 520.
(5)Remove the 11C3541   LPT disk lift/turn fixture from the stage 3 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 3 disk.
(6)Remove the stage 3 rotating air seal from the stage 2 disk.
* * * FOR 1B/P/G03.1B/P/G04

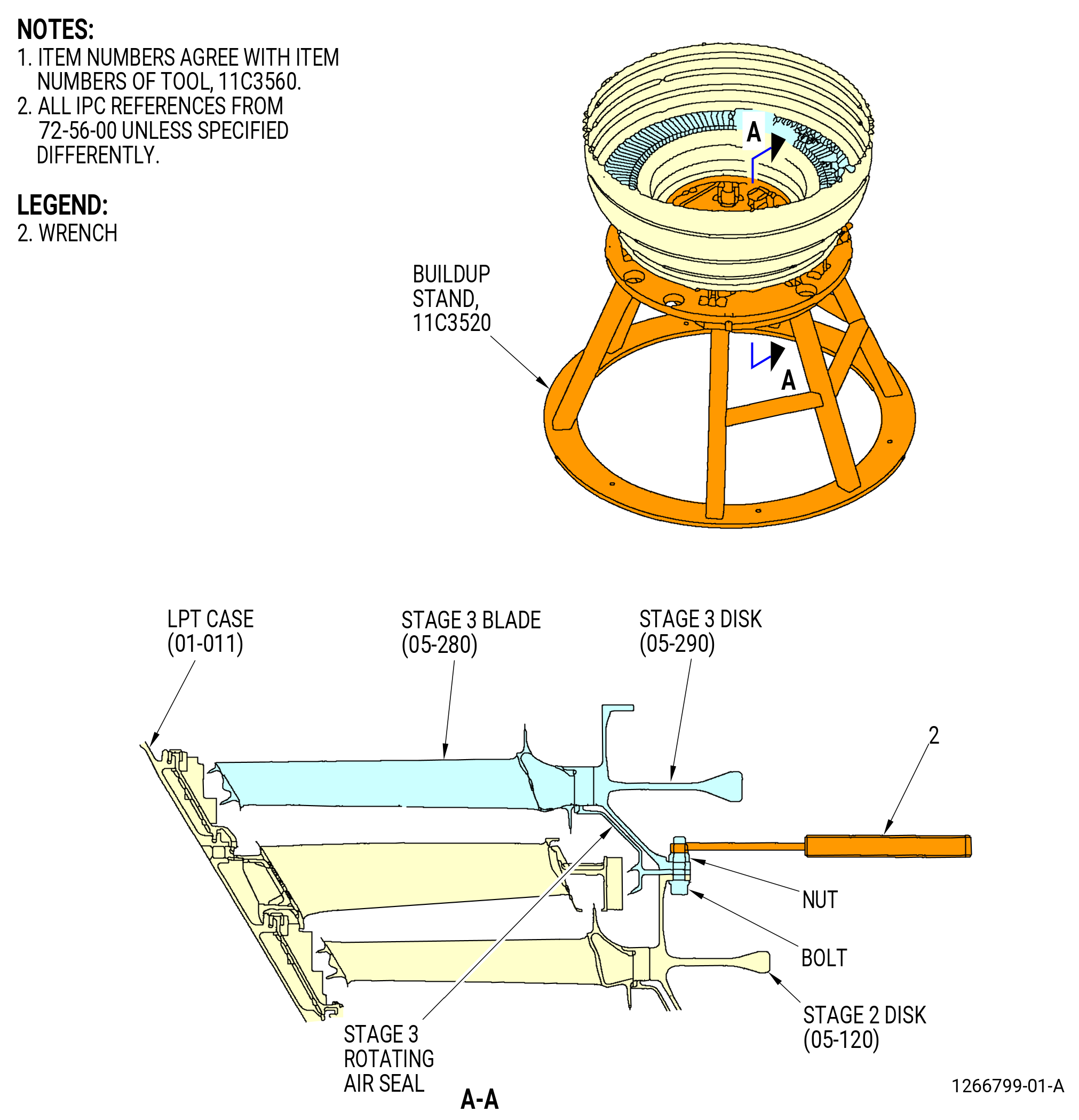

Figure 520   Removal of the Stage 3 Disk and Stage 3 Rotating Air Seal
Subtask 72-56-00-040-090
O.Remove the stage 3 shrouds from the LPT case (01-011) as follows. Refer to Figure 521 and Figure 522.
(1)Remove and discard the stage 3 shroud retainer clips (05-350) (SIN 935B9) from the stage 3 shrouds with the 11C3592   shroud remove tool as follows:
(a)Insert the tip of the wrench (item 2) under the outer end of the retaining clip.
(b)Pull the retaining clip upward as far as possible with the wrench (item 2).
(c)Insert the wedge (item 3) under the partially removed retainer clip.
(d)Hit the wedge (item 3) with a nylon bar and steel hammer to push it equally under the retainer clip.
(e)Hit the wedge again until the retainer clip is fully removed.
(f)Do the above steps again to remove all the retainer clips.
CAUTION:
MAKE SURE YOU MOVE THE AFT END OF THE SHROUD RADIALLY INWARD, OR YOU COULD CAUSE DAMAGE TO THE SHROUD.
(2)Move the aft ends of the stage 3 shrouds radially in and disengage the rail from the edge of the LPT case.
(3)Lift the stage 3 shrouds to remove them.
(4)Remove and discard the shroud stage 3 seals (seal) (05-360) (SIN 935W3).
* * * FOR 1B/P/G03.1B/P/G04

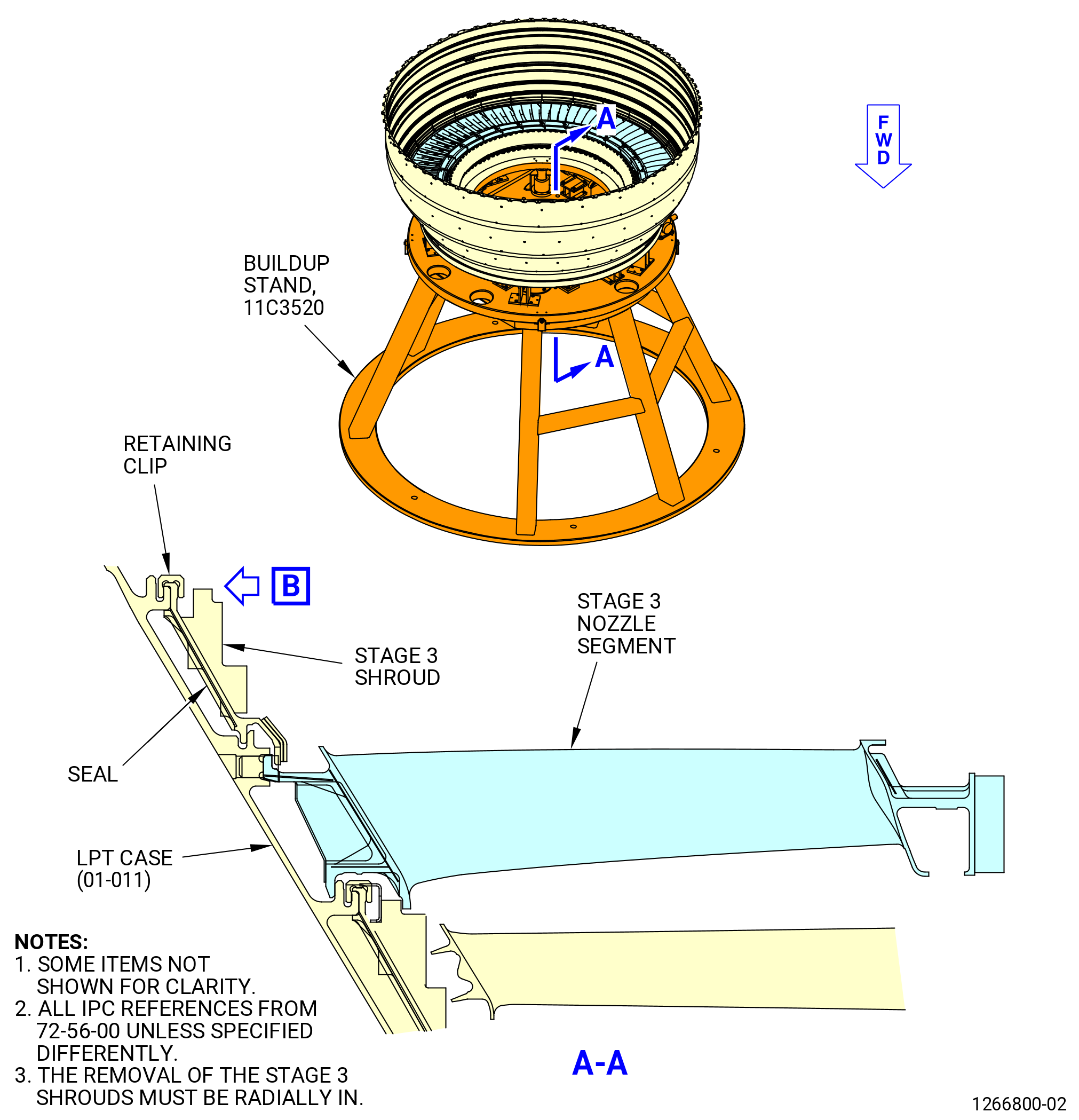

Figure 521   Removal of the Stage 3 Shrouds
* * * FOR 1B/P/G03.1B/P/G04
Figure 522   Removal of the Stage 3 Shrouds with Shroud Remove Tool, 11C3592
Subtask 72-56-00-040-091
P.Remove the stage 3 nozzle segments from the LPT case (01-011 as follows. Refer to Figure 523.
(1)Disengage the stage 3 nozzle segments from the rail of the LPT case.
(a)Move the inboard end of the stage 3 nozzle segments forward on the 11C3520   buildup stand. Refer to Figure 502.
(b)If necessary, lightly tap the inner band aft lips of the stage 3 segments with a mallet. This will disengage the aft hook of the outer band from the rail of the LPT case.
(c)Engage the pick (item 5) of the 11C3636   sliding hammer with the anti-rotation slot of the stage 3 nozzle segments.
(d)Quickly move the slider (item 2) to disengage the stage 3 nozzle segments from the LPT case.
(2)Remove the stage 3 nozzle segments.
(3)Remove and discard the LPT stage 3 spline seals (spline seal) (05-370) (SIN 935W7), (05-380) (SIN 935Y4), (05-390) (SIN 935Y5), and (05-400) (SIN 935Y6) from the grooves of the stage 3 nozzle segments.
(4)Move the LPT rotors aft to the NOMINAL position on the 11C3520   buildup stand. Refer to Figure 502.
* * * FOR 1B/P/G03.1B/P/G04

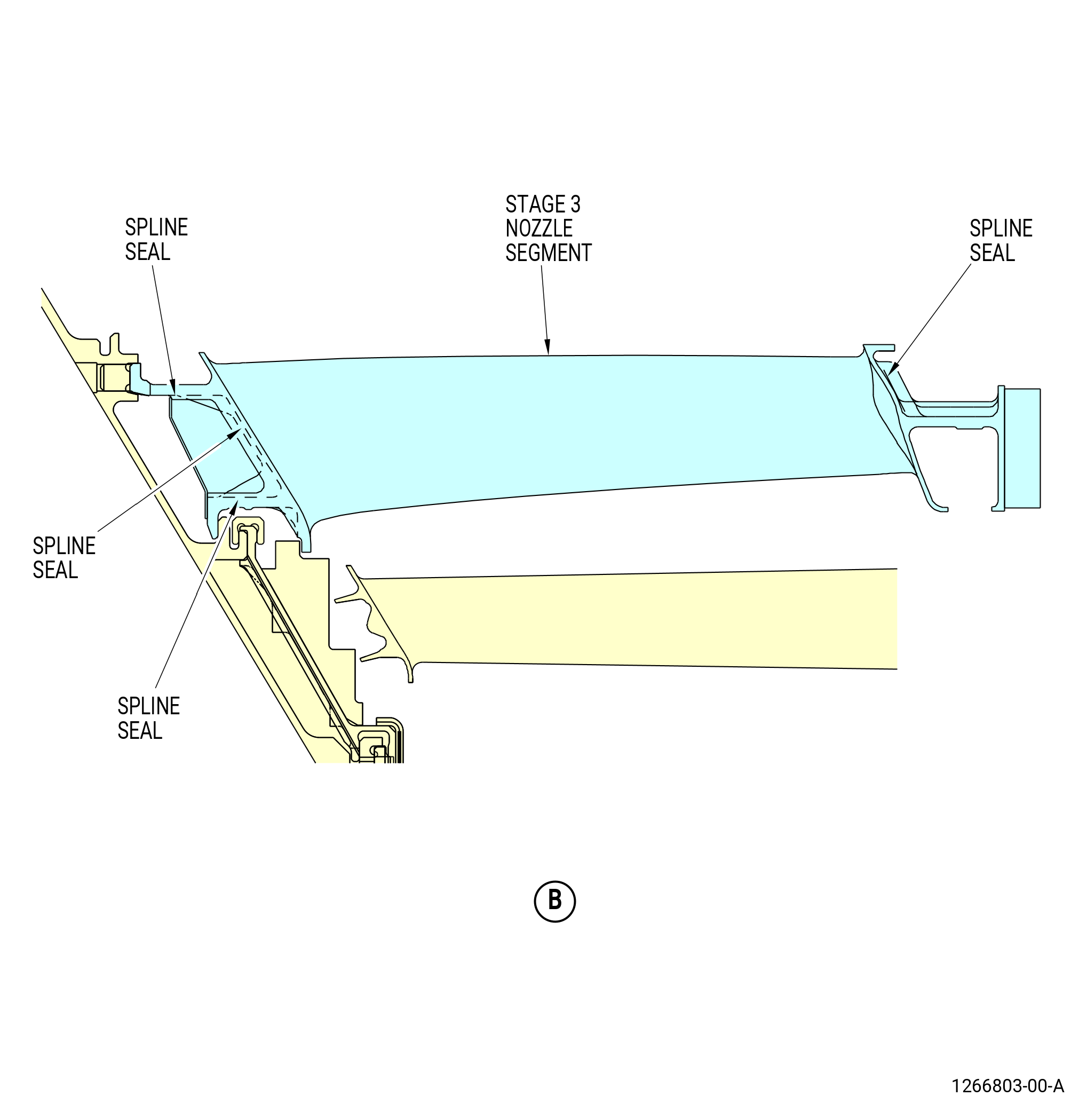

Figure 523   (Sheet 1 ) Removal of the Stage 3 Nozzle Segments
* * * FOR 1B/P/G03.1B/P/G04
Figure 523   (Sheet 2 ) Removal of the Stage 3 Nozzle Segments
Subtask 72-56-00-040-092
Q.Remove the stage 2 disk (05-120) and blade assembly and the stage 2 rotating air seal from the LPT case (01-011) as follows:
CAUTION:
HOLD THE BOLT AND TURN ONLY THE NUT WHEN YOU LOOSEN THE BOLT/NUT JOINT OF THE LPT DISKS. IF THE BOLT TURNS, IT COULD CAUSE DAMAGE TO THE BOLTHOLES OF THE LPT DISKS.

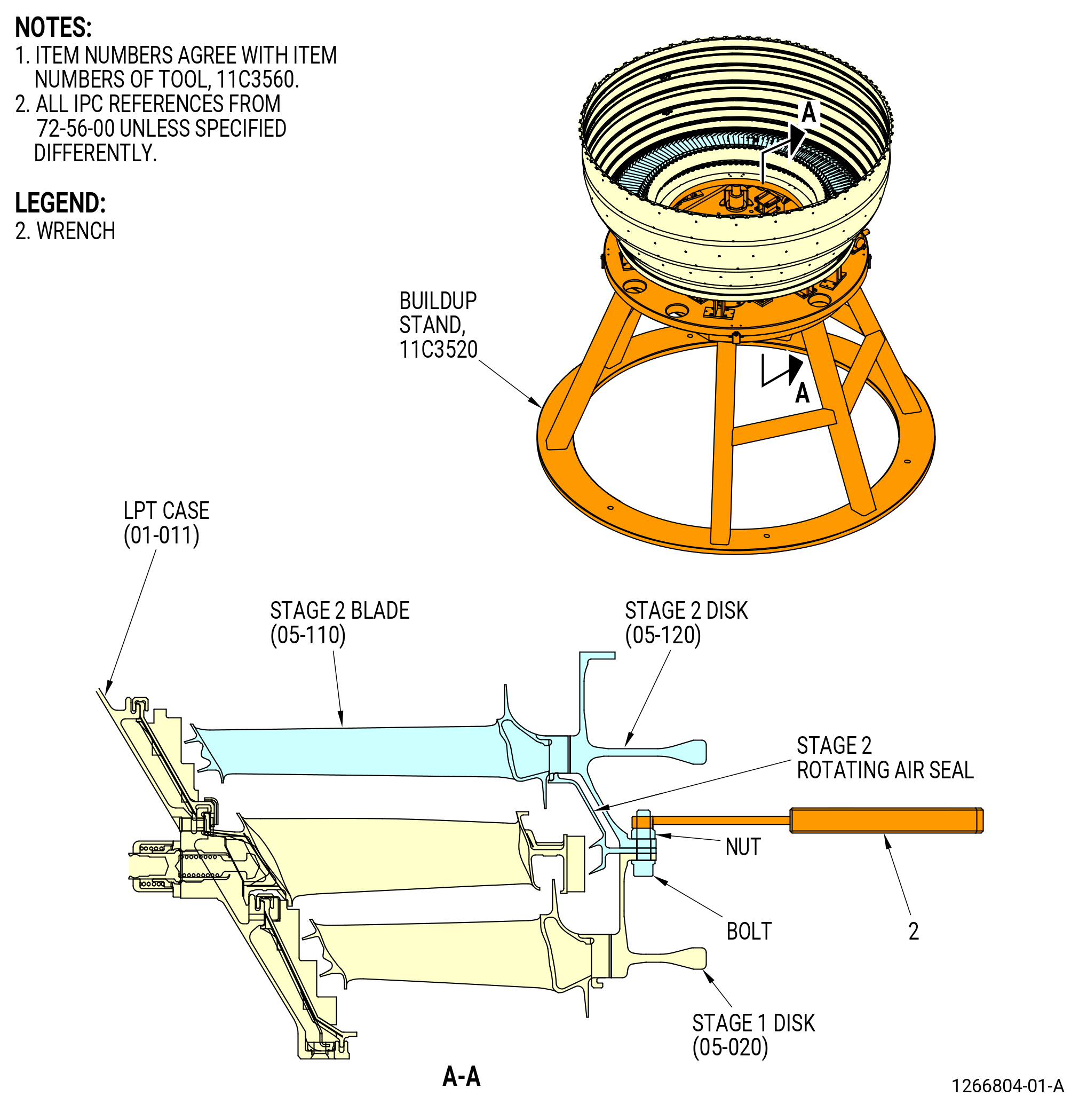

(1)Remove the nuts and bolts from the stage 1 disk (05-020), stage 2 rotating air seal, and stage 2 disk. Use the wrench (item 2) of the 11C3560   nut tighten wrench. Refer to Figure 524.
(2)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 2 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet marked for stage 2 (item 95) into the lift bars (item 46) and insert the ball lock pins (item 22).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the bar/foot assemblies into the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for stage 2 align with the edges of the spider legs.
2Insert the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider.
3Fully insert a third lift bar (item 46) into the third spider leg.
(3)Install the 11C3541   LPT disk lift/turn fixture on the stage 2 disk as follows:
(a)Install the lift arm (item 45) in the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 2 disk.
(d)Extend the third lift bar (item 46) that you inserted in the third spider leg.
1Adjust the position of the lift bar so the scribed line for stage 2 aligns with the edge of the spider leg.
2Lock the lift bar in the spider (item 42) with the ball lock pins (item 54).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.

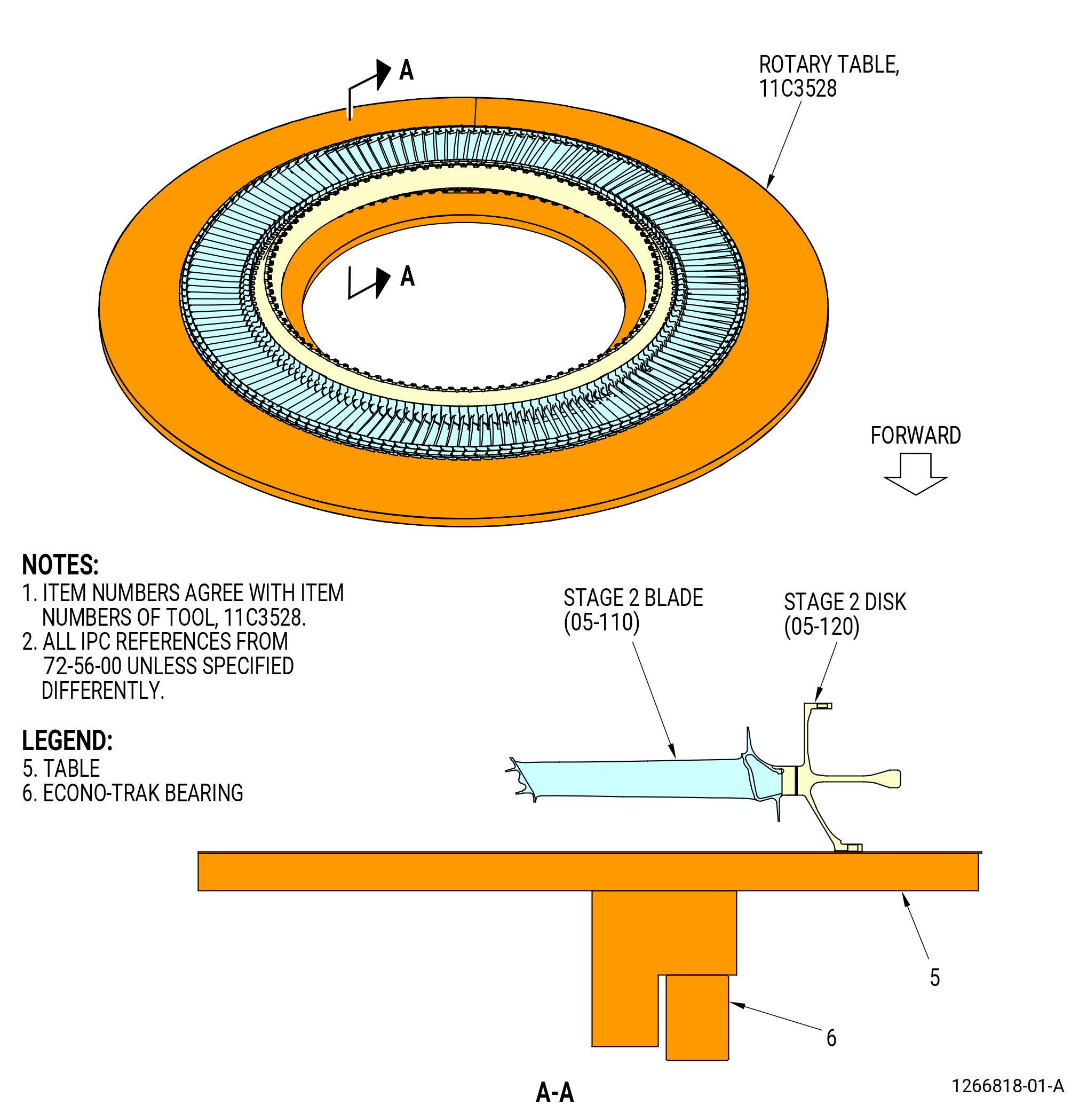

(4)Lift the stage 2 disk and blade assembly from the LPT case and put the assembly in a safe location. Refer to Figure 524.
(5)Remove the 11C3541   LPT disk lift/turn fixture from the stage 2 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 2 disk.
(6)Remove the stage 2 rotating air seal from the stage 1 disk. Refer to Figure 524.
* * * FOR 1B/P/G03.1B/P/G04
Figure 524   Removal of the Stage 2 Disk and Stage 2 Rotating Air Seal
Subtask 72-56-00-040-093
R.Remove the stage 2 shrouds from the LPT case (01-011). Refer to Figure 525, Figure 522, and do as follows:
(1)Remove and discard the stage 2 shroud retainer clips (05-180) (SIN 935B8) from the stage 2 shrouds with the 11C3592   shroud remove tool.
(a)Insert the tip of the wrench (item 2) under the outer end of the retaining clip.
(b)Pull the retaining clip up as far as possible with the wrench (item 2).
(c)Insert the wedge (item 3) under the partially removed retainer clip.
(d)Hit the wedge (item 3) with a nylon bar and steel hammer to push it equally under the retainer clip.
(e)Hit the wedge again until the retainer clip is fully removed.
(f)Do the above steps again to removed all the retainer clips.
CAUTION:
MAKE SURE YOU MOVE THE AFT END OF THE SHROUD RADIALLY INWARD, OR YOU COULD CAUSE DAMAGE TO THE SHROUD.
(2)Move the aft ends of the stage 2 shrouds radially in to disengage the rail from the edge of the LPT case.
(3)Lift the stage 2 shrouds to remove them.
(4)Remove and discard the shroud stage 2 seals (seal) (05-190) (SIN 935W2).
* * * FOR 1B/P/G03.1B/P/G04

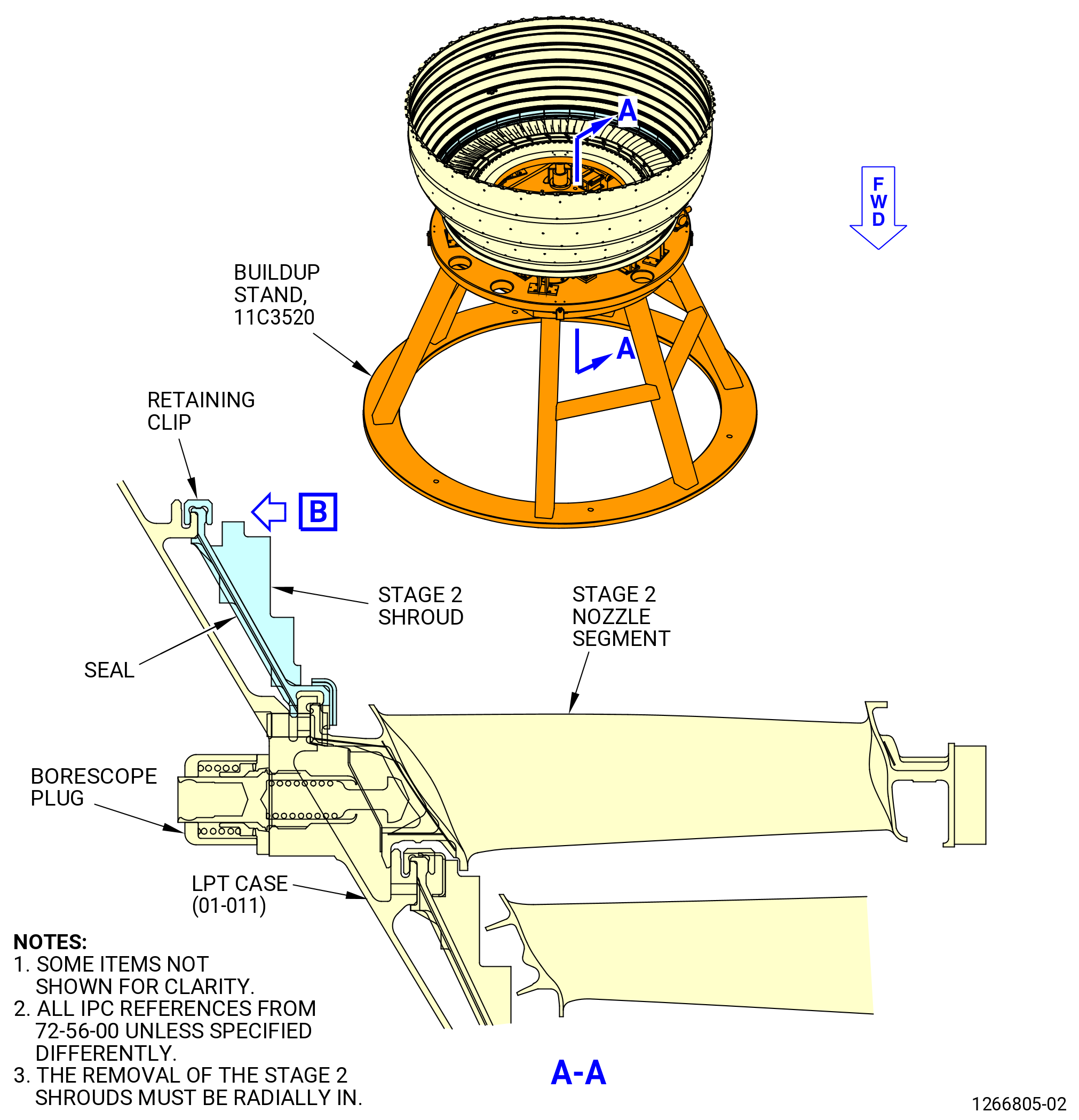

Figure 525   Removal of the Stage 2 Shrouds
Subtask 72-56-00-040-094
S.Remove the stage 2 nozzle segments from the LPT case (01-011) as follows:
(1)Remove the borescope plug from the LPT case and the stage 2 nozzle segment at the 9:30 o'clock position. Refer to Figure 526.
(2)Disengage the stage 2 nozzle segments from the rail of the LPT case. Refer to Figure 527.
(a)Move the inboard end of the stage 2 nozzle segments forward on the 11C3520   buildup stand. Refer to Figure 502.
(b)If necessary, lightly tap the inner band aft lips of the stage 2 segments with a mallet. This will disengage the aft hook of the outer band from the rail of the LPT case.
(c)Engage the pick (item 5) of the 11C3636   sliding hammer with the anti-rotation slot of the stage 2 nozzle segments.
(d)Quickly move the slider (item 2) to disengage the stage 2 nozzle segments from the LPT case.
(3)Remove the stage 2 nozzle segments.
(4)Remove and discard the LPT stage 2 seals (spline seal) (05-200) (SIN 935Y0), (05-210) (SIN 935Y1), (05-230) (SIN 935Y3), and (05-220) (SIN 935Y2) and outer platform seal (05-570) (SIN 935YE) from the grooves of the stage 2 nozzle segments.
(5)Move the LPT rotors aft to the NOMINAL position on the 11C3520   buildup stand. Refer to Figure 502.
* * * FOR 1B/P/G03.1B/P/G04

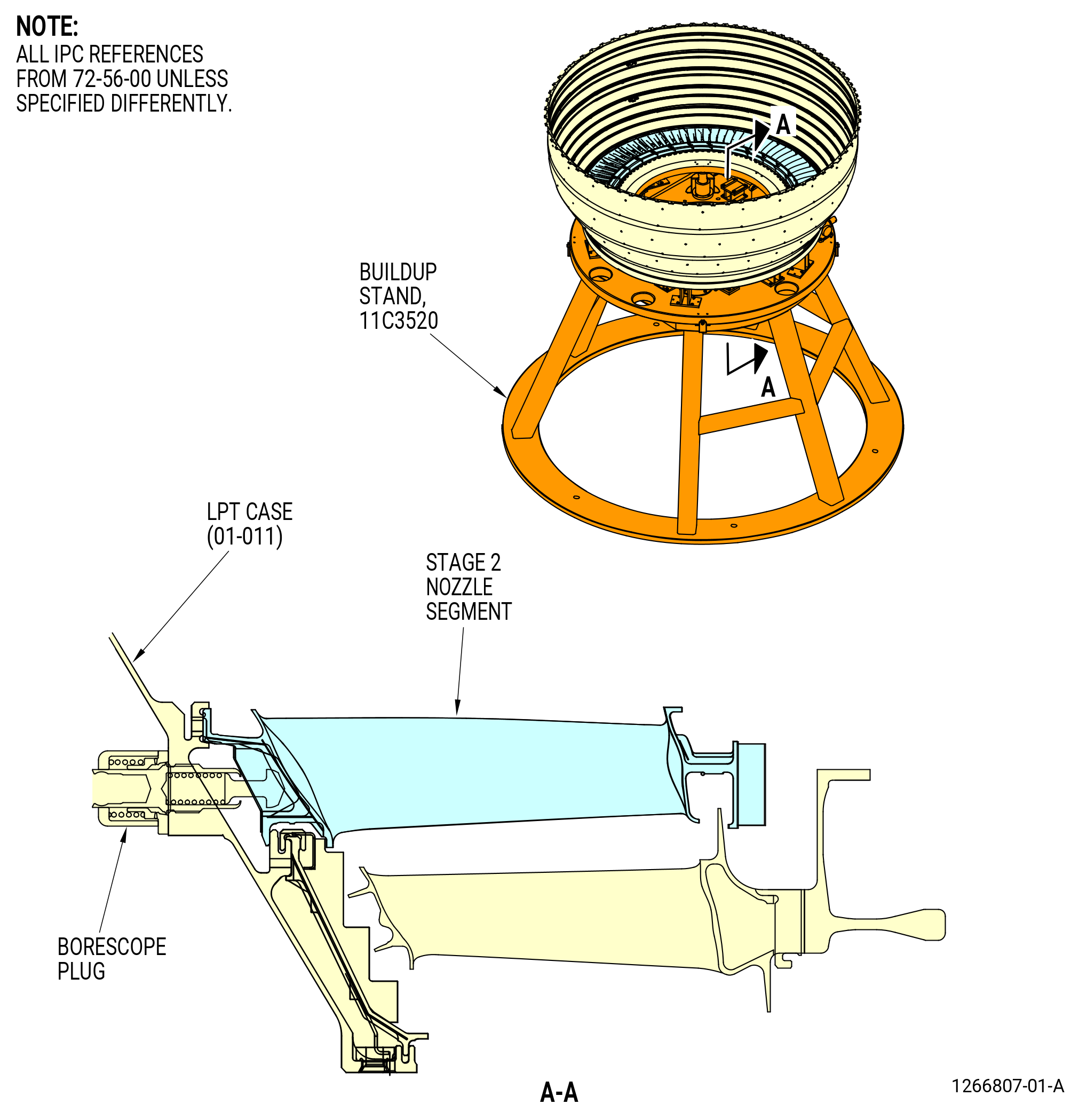

Figure 526   Removal of the Borescope Plug from the Stage 2 Nozzle Segment
* * * FOR 1B/P/G03.1B/P/G04

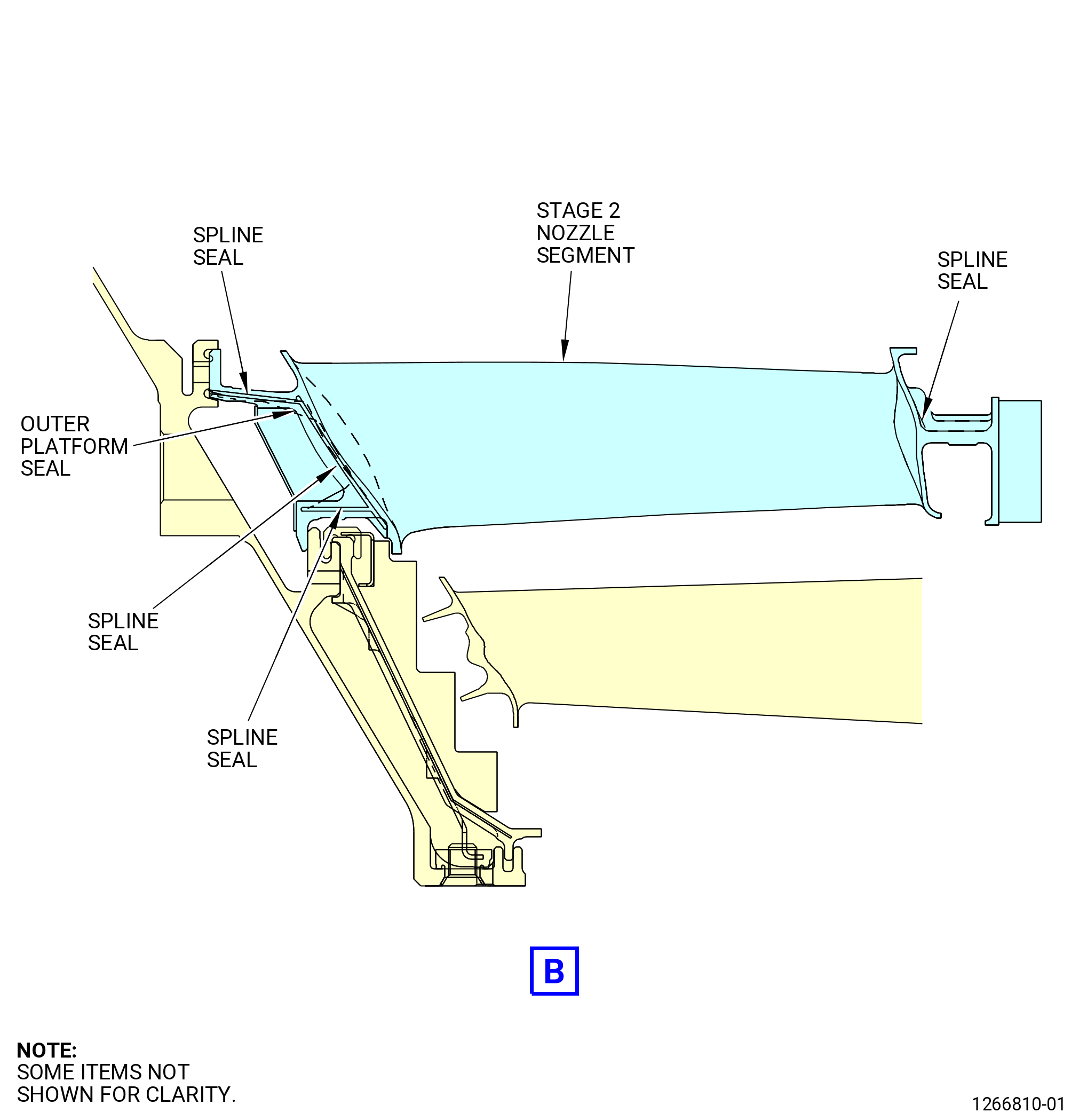

Figure 527   (Sheet 1 ) Removal of the Stage 2 Nozzle Segments
* * * FOR 1B/P/G03.1B/P/G04
Figure 527   (Sheet 2 ) Removal of the Stage 2 Nozzle Segments
Subtask 72-56-00-040-015
T.Remove the stage 1 disk (05-020) and blade assembly from the LPT case (01-011) as follows:
(1)Prepare the 11C3528   rotary table for the stage 1 disk and blade assembly. Refer to Figure 528.
(a)Put the table (item 5) on the econo-trak bearing (item 6) so it is level.
(2)Install the 11C3530   lift fixture on the stage 1 disk as follows. Refer to Figure 529.
(a)Pull the pins (item 3) out from the hook blocks (item 2).
(b)Attach the hook blocks (item 2) to the flange of the stage 1 disk at three equally spaced bolthole locations.
(c)Install the pins (item 3) in the hook blocks (item 2).
(3)Attach an overhead hoist to the sling assembly (item 4).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(4)Lift the stage 1 disk and blade assembly from the LPT case.
(5)Install the stage 1 disk and blade assembly on the 11C3528   rotary table as follows. Refer to Figure 530.
(a)Lower the stage 1 disk and blade assembly on the 11C3528   rotary table.
(b)Put the blocks (item 7) on the table (item 5) so the blocks give support to the hub of the stage 1 disk.
(c)Continue to lower the stage 1 disk and blade assembly on the blocks (item 7).
(6)Remove the overhead hoist and the 11C3530   lift fixture from the stage 1 disk and blade assembly.
* * * FOR 1B/P/G03.1B/P/G04

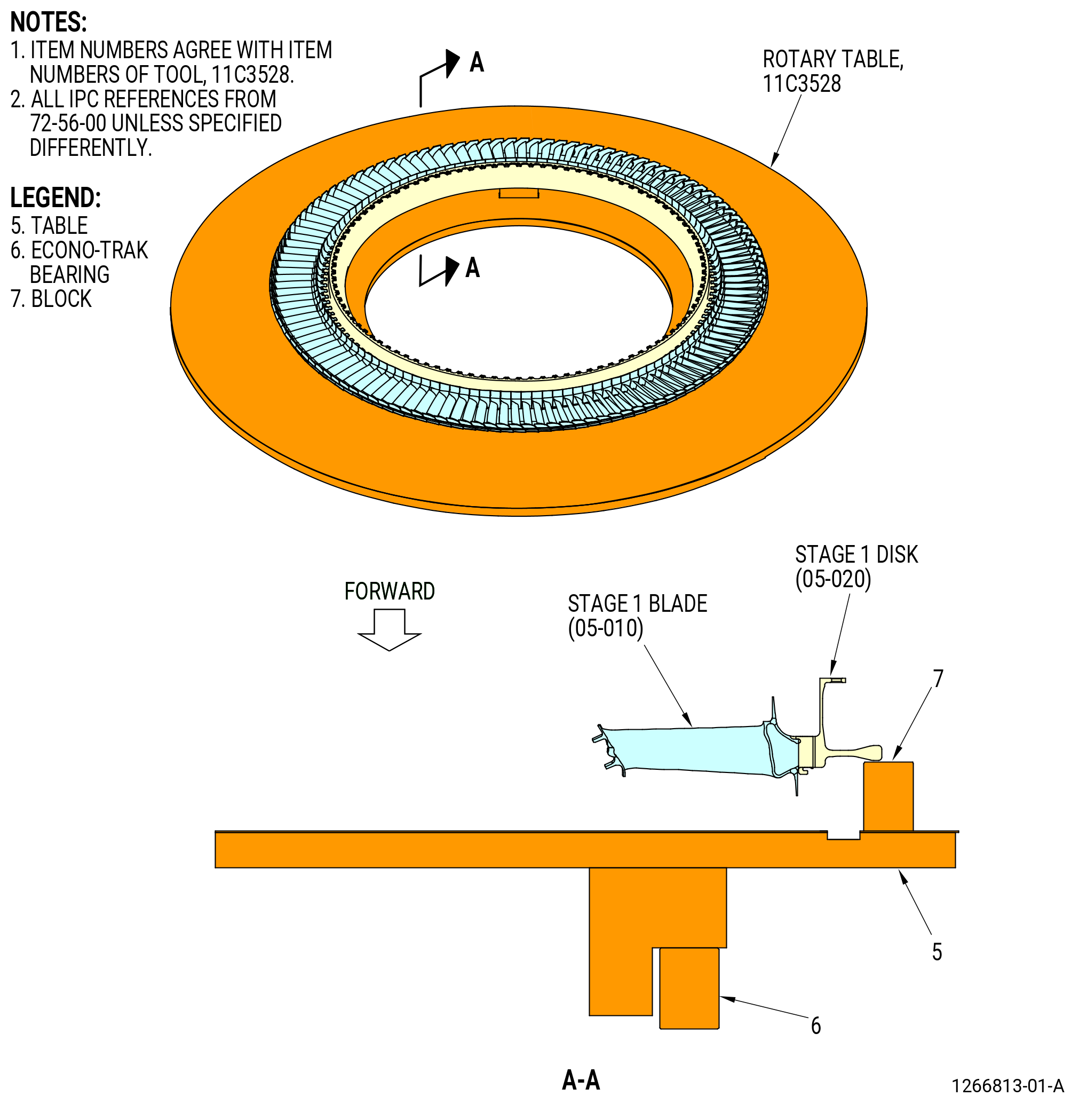

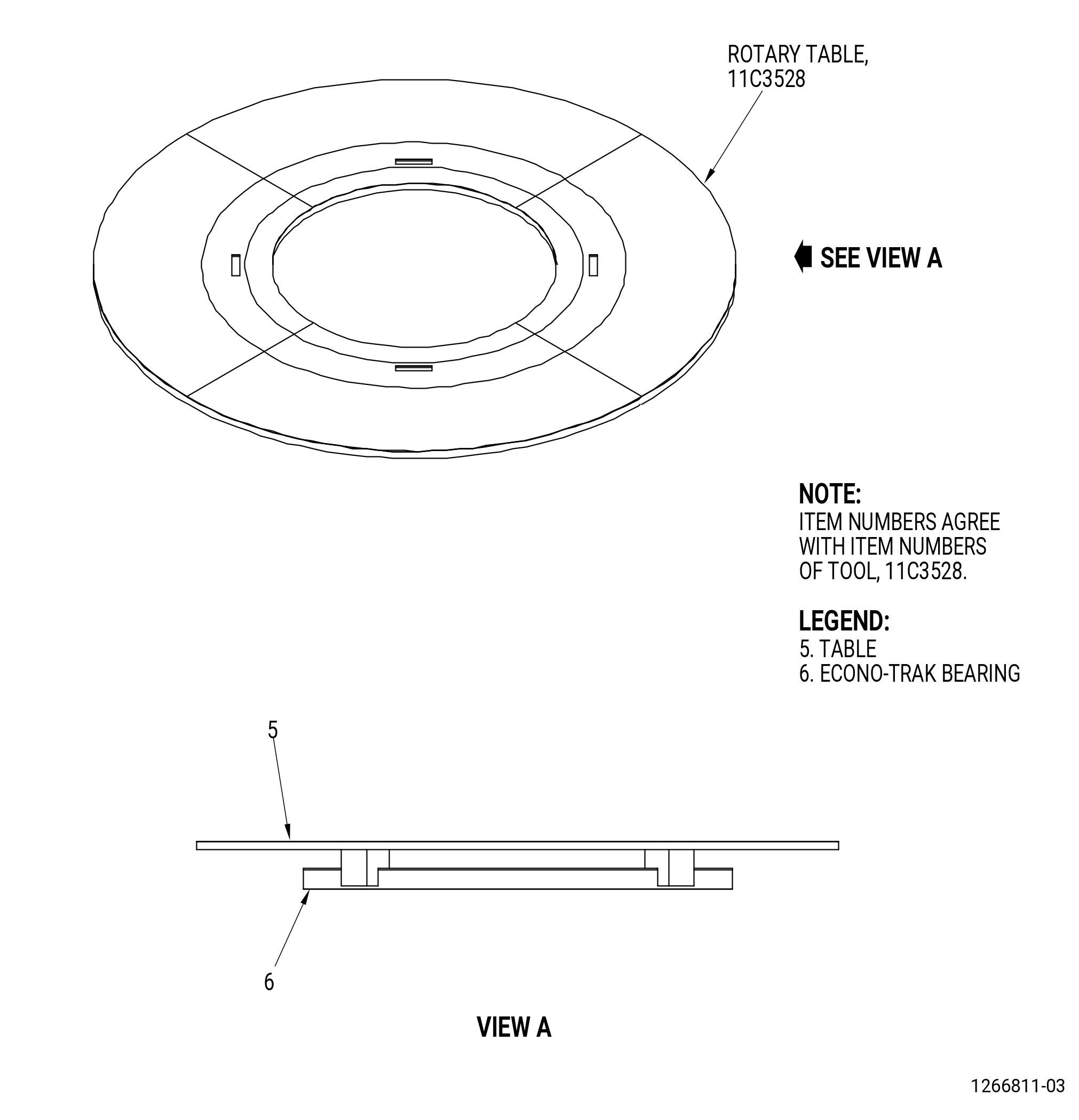

Figure 528   Preparation of the Rotary Table, 11C3528
* * * FOR 1B/P/G03.1B/P/G04

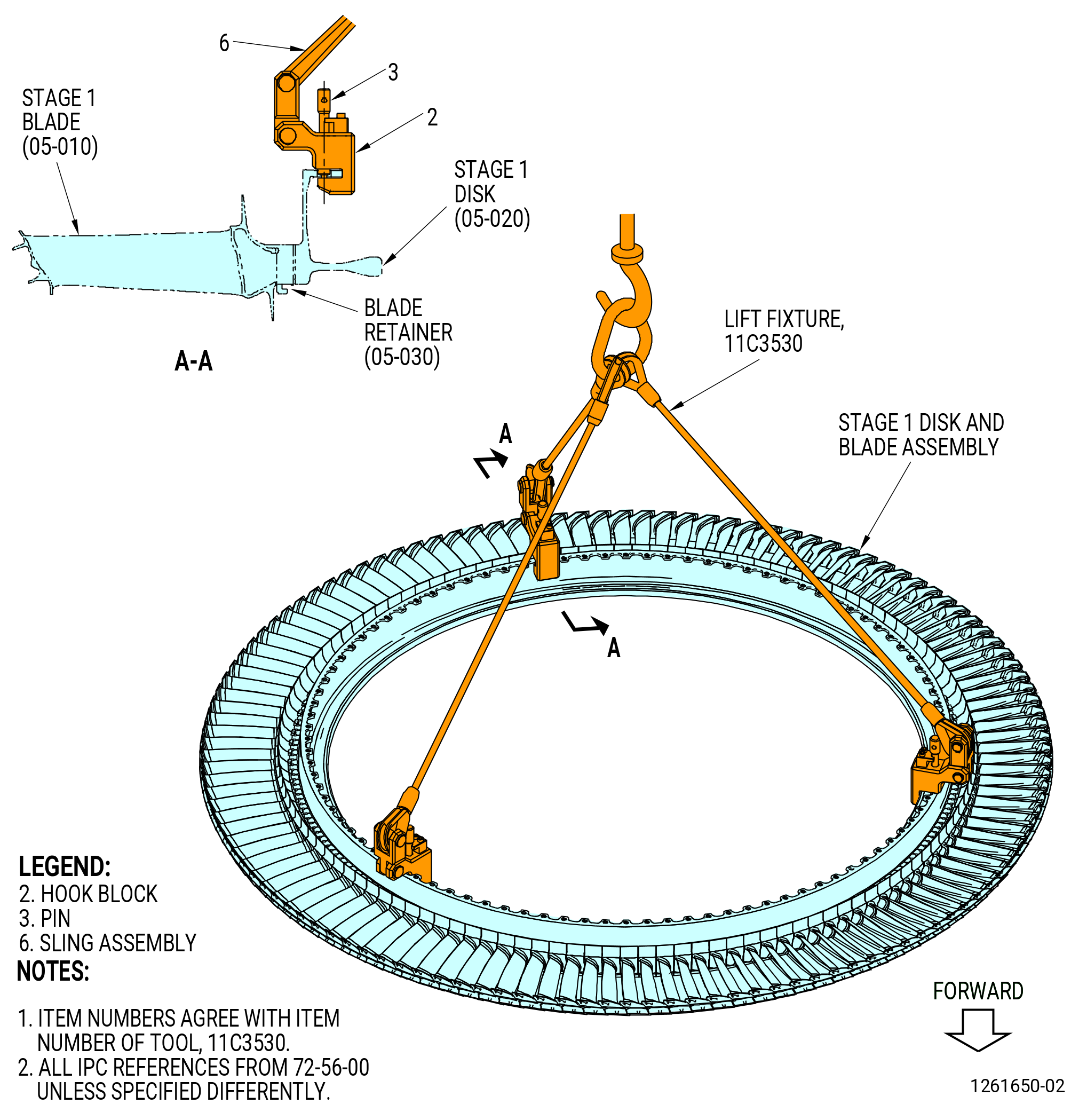

Figure 529   Removal of the Stage 1 Disk with Lift Fixture, 11C3530
* * * FOR 1B/P/G03.1B/P/G04
Figure 530   Disassembly of the Stage 1 Blades from the Stage 1 Disk
Subtask 72-56-00-040-097
U.Remove the stage 1 shrouds from the LPT case (01-011) as follows. Refer to Figure 531 and Figure 522.
(1)Remove and discard the stage 1 shroud retainer clips (05-080) (SIN 935B7) from the stage 1 shrouds with the 11C3592   shroud remove tool.
(a)Insert the tip of the wrench (item 2) under one end of a retaining clip.
(b)Pull the retaining clip up as far as possible with the wrench (item 2).
(c)Insert the wedge (item 3) under the partially removed retainer clip.
(d)Hit the wedge (item 3) with a nylon bar and steel hammer and push it equally under the retainer clip.
(e)Hit the wedge again until the retainer clip is fully removed.
(f)Do the above steps again to remove all the retainer clips.
CAUTION:
MAKE SURE YOU MOVE THE AFT END OF THE SHROUD RADIALLY INWARD, OR YOU COULD CAUSE DAMAGE TO THE SHROUD.
(2)Move the aft ends of the stage 1 shrouds radially in to disengage the rail from the edge of the LPT case.
(3)Lift the stage 1 shrouds to remove them.
(4)Remove and discard the shroud stage 1 seals (seal) (05-090) (SIN 935W1) and (05-100) (SIN 935W8).
* * * FOR 1B/P/G03.1B/P/G04

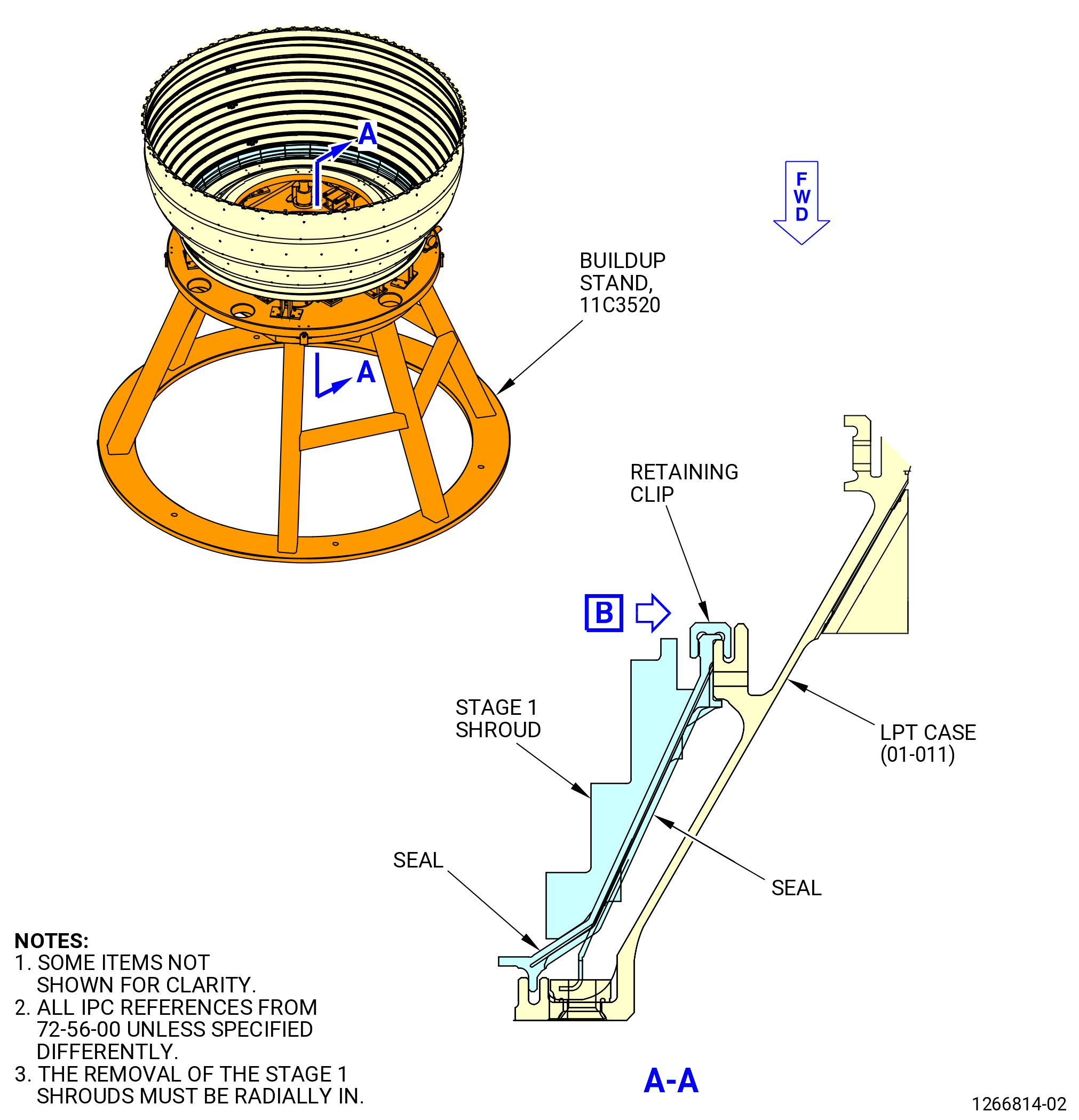

Figure 531   Removal of the Stage 1 Shrouds
Subtask 72-56-00-040-098
V.Remove the blade retainer from the stage 1 disk (05-020) as follows:
(1)Prepare the 11C3541   LPT disk lift/turn fixture to lift the stage 1 disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet (item 94) marked for stage 1 into the lift bars (item 46) and insert the ball lock pins (item 54).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the lift bar/foot assemblies into the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for stage 1 align with the edges of the spider legs.
2Insert the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider (item 42).
3Fully insert the third lift bar (item 46) into the third spider leg.
(2)Install the 11C3541   LPT disk lift/turn fixture on the stage 1 disk as follows:
(a)Install the lift arm (item 45) into the clevis and insert the ball lock pin (item 44).
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541   LPT DISK LIFT/TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the stage 1 disk.
(d)Extend the third lift bar (item 46) that you inserted into the third spider leg.
1Adjust the position of the lift bar (item 46) so the scribed line for stage 1 comes to the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 54).
Subtask 72-56-00-040-099
(3)Turn the stage 1 disk and blade assembly over as follows. Refer to Figure 504.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(a)Lift the stage 1 disk and blade assembly with an overhead hoist. Lift high enough to install the second lift cap (item 89) and lift arm (item 5) on the lower side of the spider (item 2).
(b)Install the second lift cap (item 89) on the spider (item 2).
1Put the lift cap on the spider so the screws (item 27) go into the holes in the free positions of the spider.
2Turn the lift cap CW until the pins are in the lock positions.
3Insert the ball lock pin (item 24) to lock the lift cap to the spider.
(c)Install the second lift arm (item 5) into the clevis (item 4) on the second lift cap (item 89) and insert the ball lock pin (item 36).
(d)Attach a second overhead hoist to the second lift arm (item 5).
(e)Align the face of the lift arms (item 5) parallel to the plane of the hoists to make sure of a smooth rotation.
(f)Lift the second lift arm (item 5) with the second overhead hoist to turn the stage 1 disk and blade assembly over.
(g)Remove the first hoist from the first lift arm (item 5).
(h)Remove the first ball lock pin (item 36) then the first lift arm (item 5).
(i)Remove the blocks (item 7) of the 11C3528   rotary table from the table (item 5). Refer to Figure 530.
(j)Put the stage 1 disk and blade assembly on the table (item 5).
(k)Remove the second hoist from the second lift arm (item 45) of the 11C3541   LPT disk lift/turn fixture.
(l)Remove the second ball lock pin (item 44) and the second lift arm (item 45).
* * * FOR 1B/P/G03.1B/P/G04

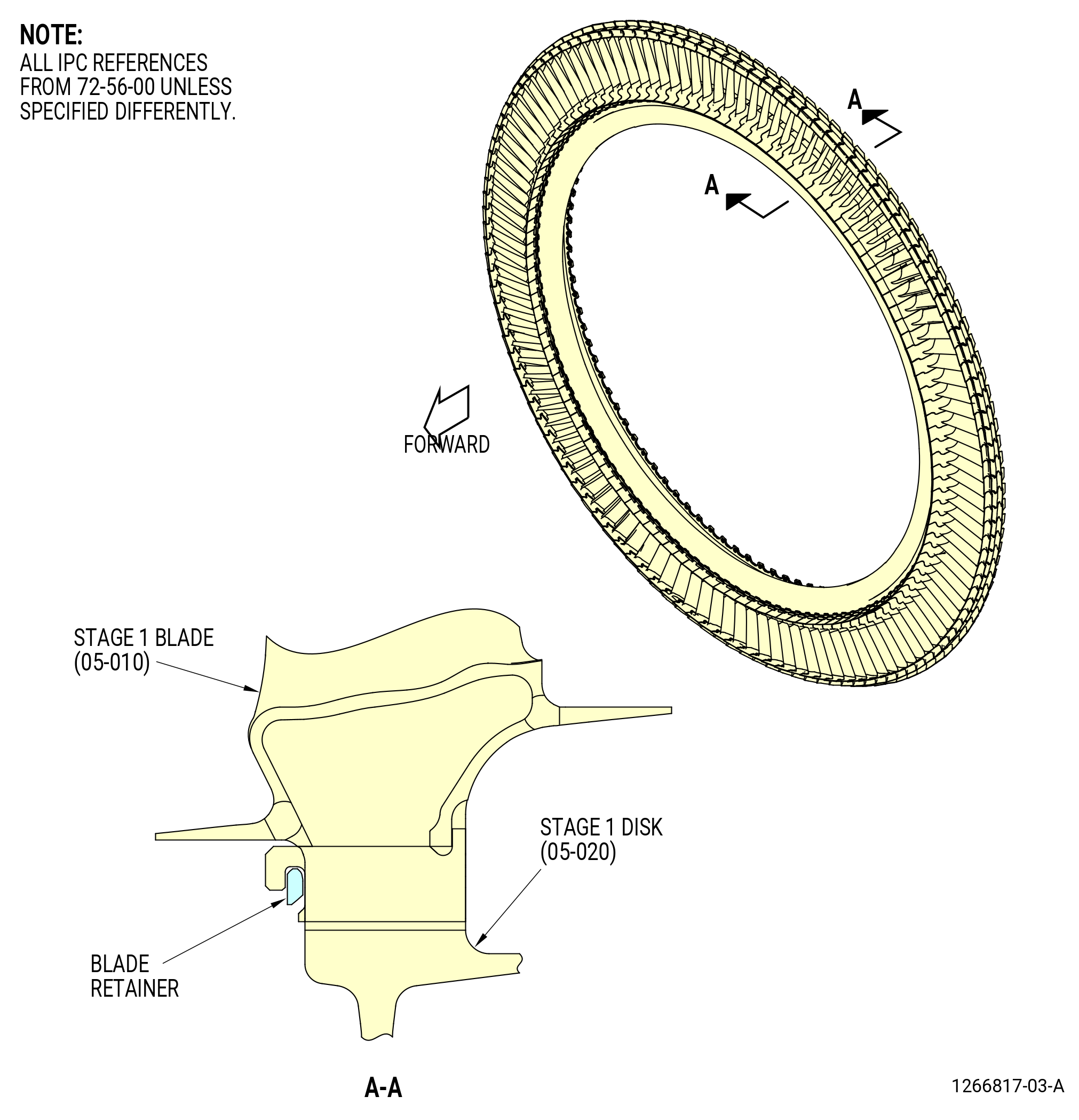

Figure 532   Removal of the Blade Retainer from the Stage 1 Disk
Subtask 72-56-00-040-100
(4)Twist the two piece blade retainer (blade retainer) 25-35 degrees as you pull them radially out of the groove. Refer to Figure 532.
Subtask 72-56-00-040-101
W.Disassemble the stage 1 disk (05-020) and blade assembly as follows:
(1)Use the 11C3541   LPT disk lift/turn fixture to put the stage 1 disk and blade assembly on the 11C3528   rotary table. Refer to Figure 504 and Figure 530 and do as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) on the top lift cap (item 43) and insert the ball-lock pin (item 25) of the 11C3541   LPT disk lift/turn fixture.
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the stage 1 disk and blade assembly. Lift high enough to install the second lift arm (item 45) on the bottom side of the spider (item 42).
(d)Install the second lift cap (item 90) on the bottom side of the spider (item 42).
1Put the lift cap (item 43) on the spider so the pins go in the holes in the free positions of the spider (item 42).
2Turn the lift cap CW until the pins are in the lock positions.
3Insert the ball lock pin (item 24) to lock the lift cap (item 43) to the spider (item 42).
(e)Install the second lift arm (item 45) in the clevis (item 44) on the second lift cap (item 43). Insert the ball lock pin (item 25).
(f)Attach a second overhead hoist to the second lift arm (item 45).
(g)Align the face of the lift arms (item 45) parallel to the plane of the hoists to make sure of a smooth rotation.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(h)Lift the second lift arm (item 45) with the second overhead hoist to turn over the stage 1 disk and blade assembly.
(i)Remove the first hoist from the first lift arm (item 45).
(j)Remove the first ball lock pin (item 25), then remove the first lift arm (item 45).
(k)Lower the stage 1 disk and blade assembly on the 11C3528   rotary table.
(l)Put the blocks (item 7) on the table (item 5) so the blocks give support to the hub of the stage 1 disk.
(m)Continue to lower the stage 1 disk and blade assembly and put it on the blocks (item 7).
CAUTION:
DO NOT HIT THE AIRFOILS, OR YOU WILL CAUSE DAMAGE.
(2)Tap the dovetails of the stage 1 blades (05-010) with a Nylon drift or a non-metallic tool. Continue until the stage 1 blades are fully disengaged from the stage 1 disk. Do not hit the airfoils or you will damage the stage 1 blade.
CAUTION:
HANDLE LPT BLADES WITH CARE. DO NOT STACK LPT BLADES ON TOP OF EACH OTHER. CAREFULLY PUT LPT BLADES IN BINS OR RACK. DAMAGE TO THE BLADES CAN OCCUR.
(3)Remove the stage 1 blades from the stage 1 disk and put the blades in a safe location.
(4)Lift the stage 1 disk from the 11C3528   rotary table with the 11C3541   LPT disk lift/turn fixture.
(a)Install the lift arm (item 45) into the clevis (item 44) on the top lift cap (item 43). Install the ball lock pin (item 25).
(b)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the stage 1 disk and blade assembly. Lift high enough to install the second lift arm (item 45) to the bottom side of the spider (item 42).
(d)Install the second lift cap (item 43) on the bottom of the spider (item 42).
1Put the lift cap on the spider so the screws (item 27) go in the holes in the free positions of the spider.
2Turn the lift cap CW until the pins are in the lock positions.
3Insert the ball lock pin (item 24) to lock the lift cap to the spider.
(e)Install the second lift arm (item 45) into the clevis (item 44) on the second lift cap (item 43) and insert the ball lock pin (item 25).
(f)Attach a second overhead hoist to the second lift arm (item 45).
(g)Align the face of the lift arms (item 45) parallel to the plane of the hoists to make sure of a smooth rotation.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(h)Lift the second lift arm (item 45) with the second hoist to turn over the stage 1 disk and blade assembly.
(i)Remove the first hoist from the first lift arm (item 45).
(j)Remove the first ball lock pin (item 24) then the first lift arm (item 45).
(k)Put the stage 1 disk in a safe location.
(5)Remove the 11C3541   LPT disk lift/turn fixture from the stage 1 disk. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the stage 1 disk.
Subtask 72-56-00-040-102
X.Disassemble the stage 2 disk (05-120) and blade assembly as follows:
(1)If necessary, remove the blocks (item 7) from the table (item 5) of the 11C3528   rotary table. Refer to Figure 530.
(2)Prepare the 11C3541   LPT disk lift/turn fixture to lift the disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Install the set of feet marked for the correct stage into the lift bars (item 46) and insert the ball lock pins (item 22).
NOTE:
The stage numbers are stamped on the feet.
(b)Install the bar/foot assemblies in the legs of the spider (item 42).
1Adjust the positions of two of the lift bars (item 46) so the scribed lines for the correct stage align with the edges of the spider legs.
2Insert the ball lock pins (item 54) to lock the two lift bars (item 46) to the spider.
3Fully insert a third lift bar (item 46) in the third spider leg.
(3)Install the 11C3541   LPT disk lift/turn fixture to the disk as follows:
(a)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(b)Attach a hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541 LIFT AND TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Carefully lift the 11C3541   LPT disk lift/turn fixture and lower it into the bore of the disk.
(d)Extend the third lift bar (item 46) that you inserted in the third spider leg.
1Adjust the position of the lift bar so the scribed line for the correct stage aligns with the edge of the spider leg.
2Lock the lift bar (item 46) in the spider (item 42) with the ball lock pins (item 54).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(4)Lift the disk and blade assembly and put it forward side down on the 11C3528   rotary table. Refer to Figure 533.
(5)Remove the overhead hoist from the lift arm (item 45) of the 11C3541   LPT disk lift/turn fixture.
(6)Remove the ball lock pin (item 25), then remove the lift arm (item 45) from the clevis (item 44).
CAUTION:
DO NOT HIT THE BLADES, OR YOU WILL CAUSE DAMAGE.
(7)Tap the dovetails of the stage 2 blades (05-110) with a Nylon drift or a non-metallic tool. Continue until the blades are fully disengaged from the disk. Do not hit the blades or you will damage them.
CAUTION:
HANDLE LPT BLADES WITH CARE. DO NOT STACK LPT BLADES ON TOP OF EACH OTHER. CAREFULLY PUT LPT BLADES IN BINS OR RACK. DAMAGE TO THE BLADES CAN OCCUR.
(8)Remove the blades from the stage 2 disk and put the blades in a safe location.
(9)Install the lift arm (item 45) into the clevis (item 44) and insert the ball lock pin (item 25).
(10)Attach an overhead hoist to the lift arm (item 45).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(11)Lift the disk from the 11C3528   rotary table and put the disk in a safe location.
(12)Remove the 11C3541   LPT disk lift/turn fixture from the disk and blade assembly. Refer to Figure 504 and do as follows:
(a)Remove the ball lock pins (item 54) from one of the three legs of the spider (item 42).
(b)Retract the lift bar (item 46).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT TILT THE 11C3541 LIFT AND TURN FIXTURE. THE LIFT BAR (ITEM 46) CAN FALL FROM THE SPIDER (ITEM 42) AND DAMAGE THE DISK.
(c)Lift the 11C3541   LPT disk lift/turn fixture from the disk.
(13)Remove the blocks (item 7) of the 11C3528   rotary table from the table (item 5). Refer to Figure 530.
Subtask 72-56-00-040-112
CAUTION:
HANDLE LPT BLADES WITH CARE. DO NOT STACK LPT BLADES ON TOP OF EACH OTHER. CAREFULLY PUT LPT BLADES IN BINS OR RACK. DAMAGE TO THE BLADES CAN OCCUR.
CAUTION:
BE VERY CAREFUL WITH STAGE 6 AND 7 LPT BLADES. STAGE 6 AND 7 LPT BLADES ARE BRITTLE AT ROOM TEMPERATURE AND CAN EASILY BREAK. DAMAGE TO THE BLADES CAN OCCUR.
Y.Continue to disassemble the stages 3 through 7 disk and blade assemblies. Refer to the procedure above for the stage 2 disk and blade assembly.
NOTE:
The feet used with the 11C3541   LPT disk lift/turn fixture will have different item numbers for each stage.
* * * FOR 1B/P/G03.1B/P/G04
Figure 533   Disassembly of the Stage 2 Blades from the Stage 2 Disk
* * * FOR 1B/P/G03.1B/P/G04

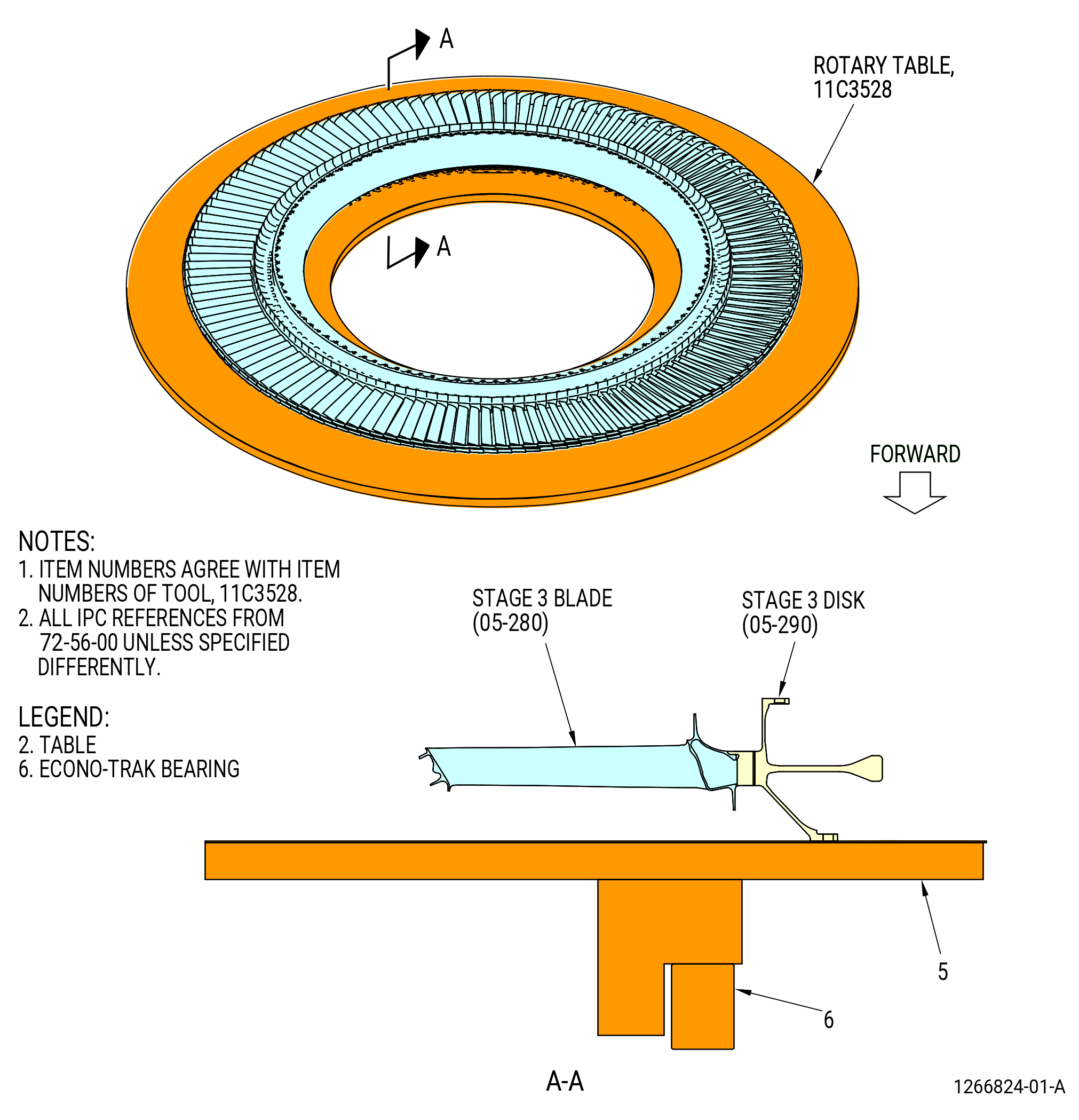

Figure 534   Disassembly of the Stage 3 Blades from the Stage 3 Disk
* * * FOR 1B/P/G03.1B/P/G04
Figure 535   Disassembly of the Stage 4 Blades from the Stage 4 Disk
* * * FOR 1B/P/G03.1B/P/G04
Figure 536   Disassembly of the Stage 5 Blades from the Stage 5 Disk
* * * FOR 1B/P/G03.1B/P/G04
Figure 537   Disassembly of the Stage 6 Blades from the Stage 6 Disk
* * * FOR 1B/P/G03.1B/P/G04
Figure 538   Disassembly of the Stage 7 Blades from the Stage 7 Disk
Subtask 72-56-00-040-113
Z.Remove the LPT case (01-011) from the 11C3520   buildup stand and install on the 11C3506   buildup/transport/storage stand as follows:
(1)Attach the 11C3530   lift fixture to the LPT case as follows. Refer to Figure 539.
(a)Attach the sling assembly (item 12) to an overhead hoist hook.
(b)Turn the pin (item 4) counterclockwise (CCW) to remove the pin from the hook blocks (item 10).
CAUTION:
THE HOOK BLOCKS MUST BE ATTACHED TO THE LPT CASE AFT OUTER FLANGE TO PREVENT DAMAGE WHEN YOU LIFT THE LPT CASE.
(c)Attach the hook blocks (item 10) at three equal locations to the aft outer flange of the LPT case. You must turn the pin (item 4) CW to attach the hook blocks (item 10) to the LPT case.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2)Lift the LPT case with the 11C3530   lift fixture and put the LPT case on the 11C3506   build stand as follows:
CAUTION:
THE CASTORS MUST REMAIN LOCKED AT ALL TIMES EXCEPT WHEN REQUIRED TO MOVE THE STAND. THE STAND CASTORS DO NOT PROVIDE SUFFICIENT STABILITY TO ALLOW FOR SAFE WORKING CONDITIONS.
(a)Put the LPT case, forward end down, onto the 11C3506   buildup/transport/storage stand as follows. Refer to Figure 540.
1Lock the castors (item 13) to prevent movement of the buildup/transport/storage stand.
2Lower the LPT case onto the plate (item 3).
3Attach the LPT case to the plate (item 3) with capscrews (item 7) at 16 locations.
* * * FOR 1B/P/G03.1B/P/G04

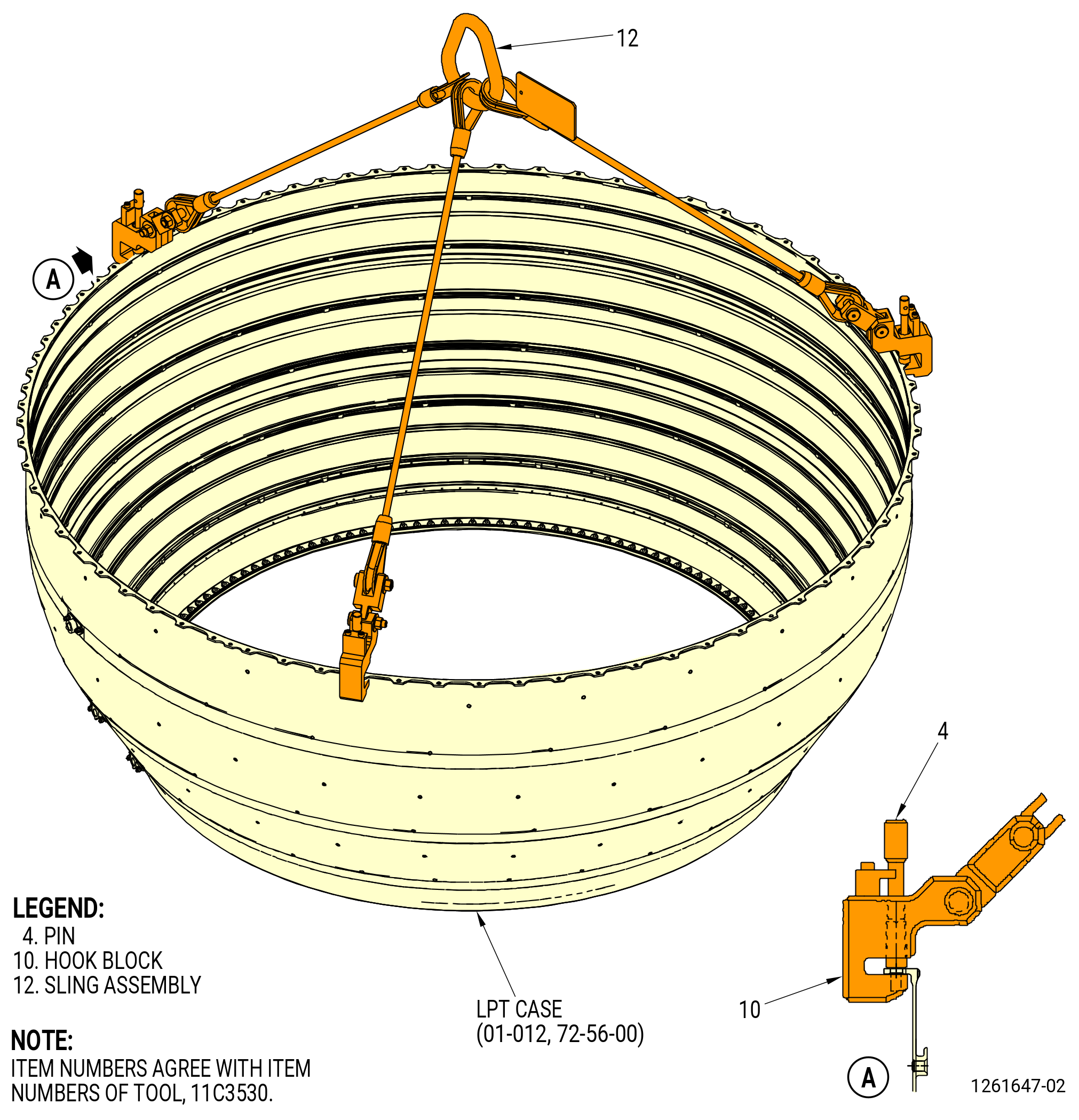

Figure 539   Attach the Lift Fixture, 11C3530, to the LPT Case
* * * FOR 1B/P/G03.1B/P/G04
Figure 540   Install the LPT Case on the Build Stand, 11C3506
