* * * FOR ALL PIP 2
TASK 72-21-00-040-805
1 . General.
A.This procedure gives instructions to disassemble the aft fan stator case assembly (01-021 , 72-00-01) (SIN 00109). Refer to Figure 501.
B.This procedure begins with the fan stator assembly in vertical position, forward end down, at the equivalent build status of TASK 72-21-00-040-803 (72-21-00, DISASSEMBLY 001) .
C.Before this procedure is done, read the assembly and disassembly techniques section. Refer to TASK 70-10-00-800-009 (ASSEMBLY AND DISASSEMBLY TECHNIQUES) .
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

11C3237G02
Fixture, Restrain - Installation Outer Guide Vane (restrain fixture)

11C4636G01
Fixture, Assembly - Case Assembly Stator (base assembly)

11C4643G01
Fixture, Firewall
(2)Standard Tools and Equipment.

Description
Manufacturer

Drill, 1/8 inch (3.18 mm)
Local Purchase

Slow Speed Pneumatic Drill Gun, 1/4 inch (6.35 mm) (drill gun)
Local Purchase
(3)Locally Manufactured Tools. None.
B.Consumable Materials.

Code No.
Description

C01-176
RTV, Silicone Elastomer (RTV)

C04-035
Solvent, General (isopropyl alcohol)
C.Referenced Procedures.

ATA No.
Description

70-10-00
Assembly and Disassembly Techniques

72-00-01
Disassembly 001
D.Expendable Parts. None.
* * * FOR ALL PIP 2

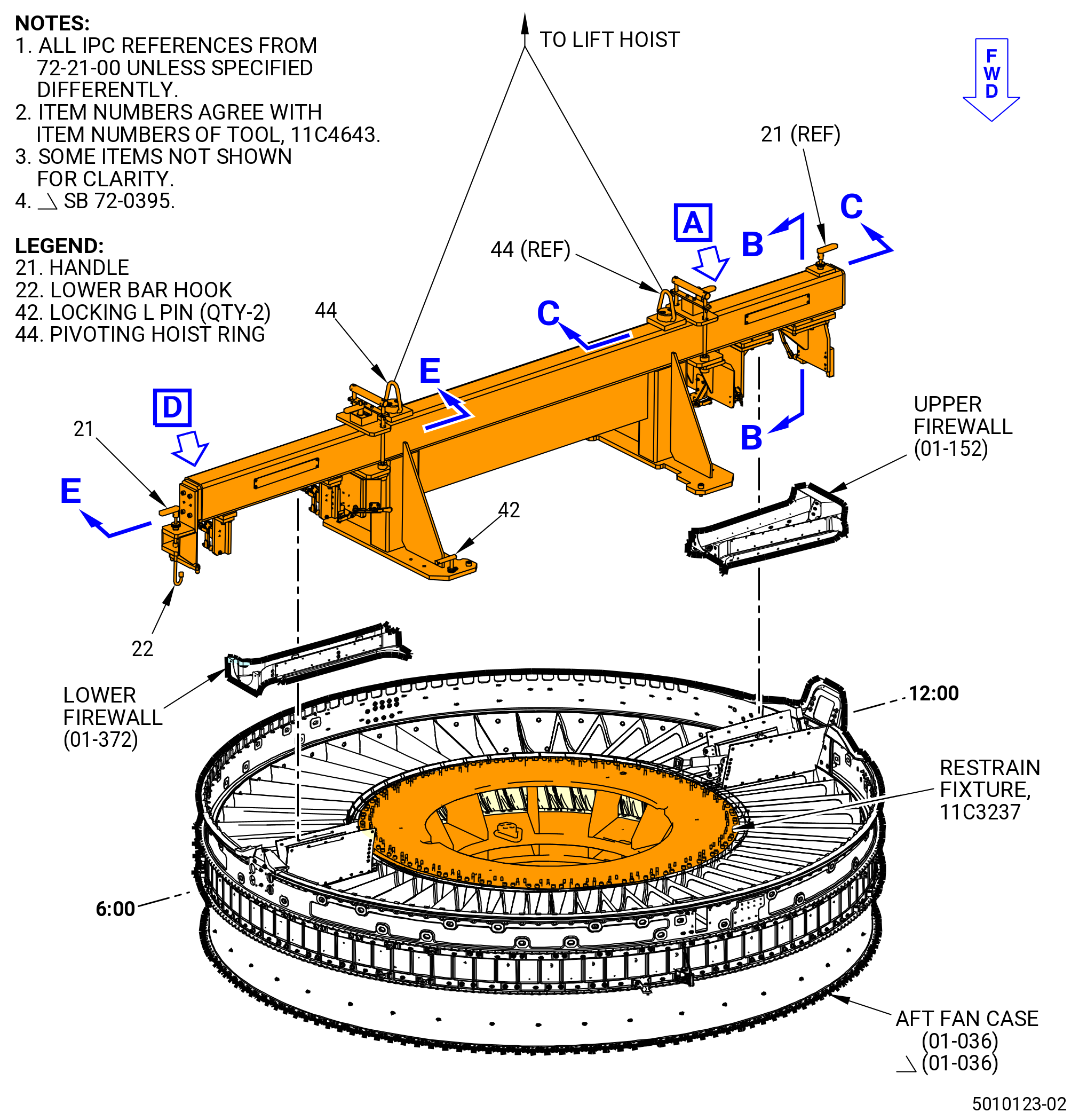

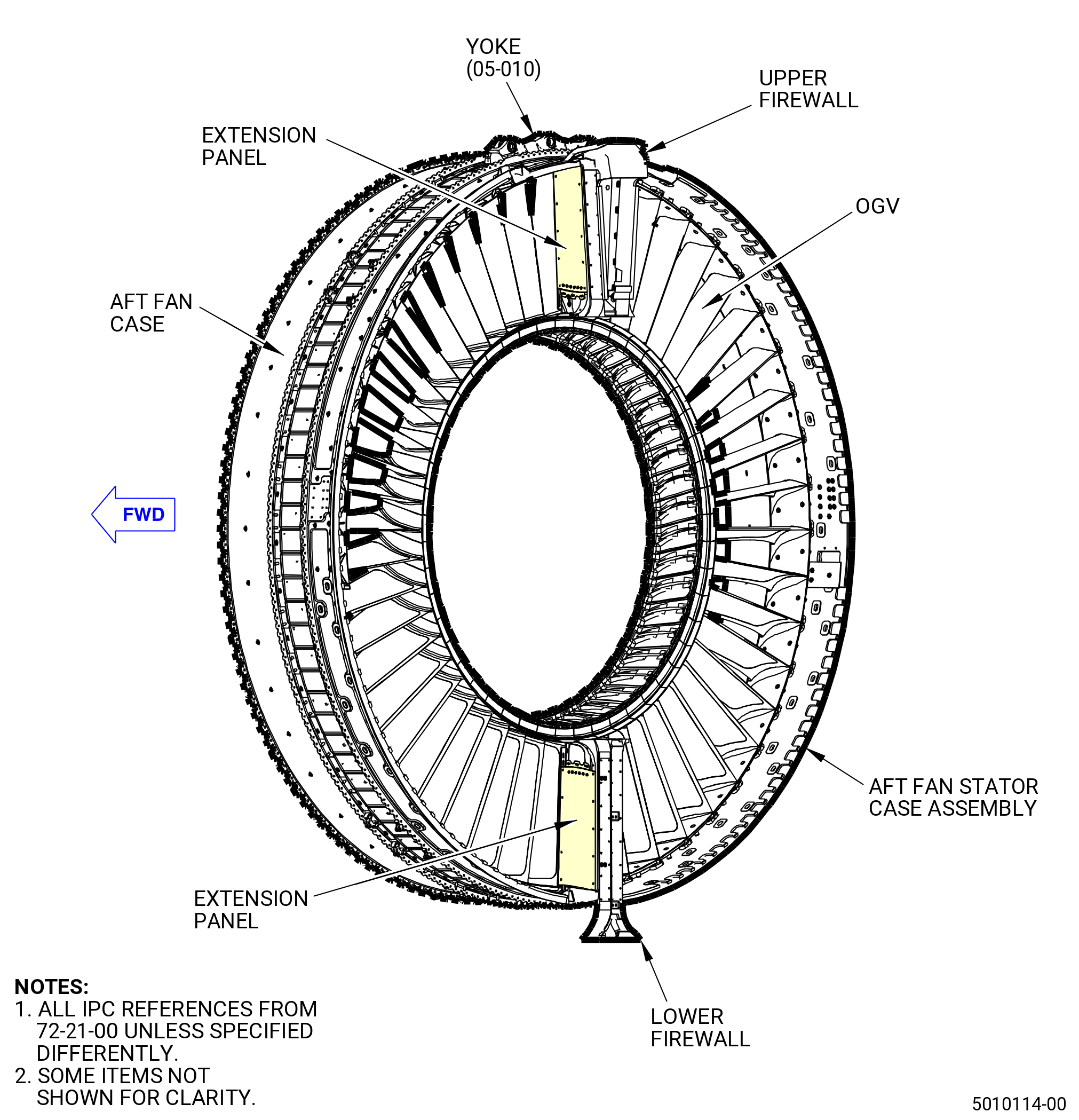

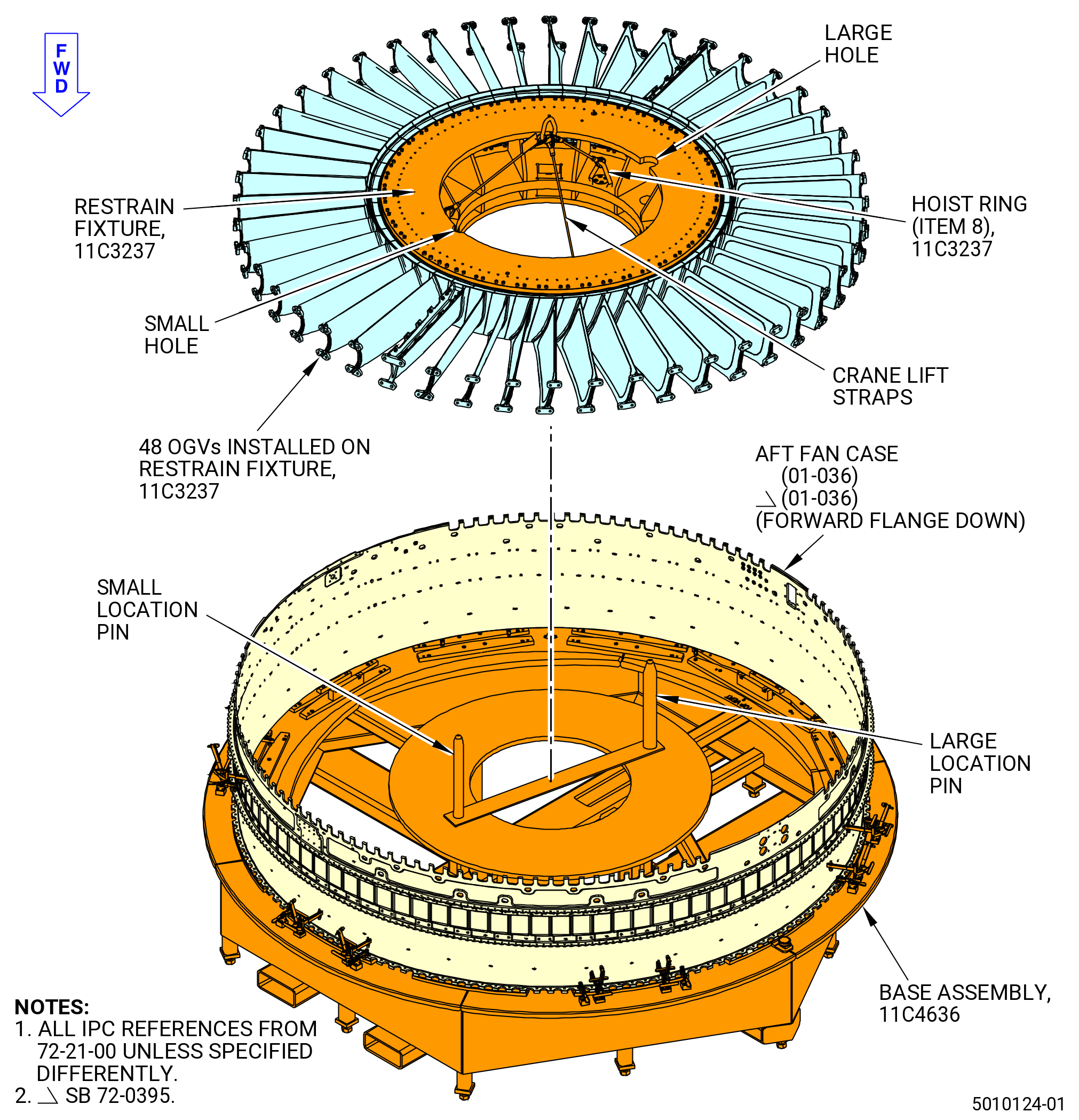

Figure 501   Fan Stator Case Assembly
3 . Procedure.
Subtask 72-21-00-040-113
A.Install the 11C4643   firewall fixture on the upper firewall (01-152) (SIN 84401) and the lower firewall (01-372) (SIN 84501). Refer to Figure 502 and do as follows:
(1)Prepare to attach the 11C4643   firewall fixture to the upper firewall as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(a)Attach an overhead hoist to the hoist rings (item 40) and lift the 11C4643   firewall fixture.
(b)Make sure to disengage all clamps (items 31, 38, and 39), then loosen the knurled knobs (item 43) to release the lower bar hook (item 22) and upper bar hook (item 32) through the head press fit bushings (items 33 and 34) to let the lower and upper firewalls attach to the clamping mechanisms.
(c)Put the 11C4643   firewall fixture on the 11C3237   restrain fixture that is already seated on the 11C4643   firewall fixture.
(d)Lower the 11C4643   firewall fixture to align it on the top surface of the 11C3237   restrain fixture and attach it with the two locking L pins (item 42) and the four socket head cap screws (item 63).
(2)Attach the 11C4643   firewall fixture to the upper and lower firewalls. Refer to Figure 502 and do as follows:
(a)Carefully lower the 11C4643   firewall fixture until the three protuberant points on the internal surface of the lower firewall touch the locator block pin (item 18) and locator lower pins (item 20) and until the three protuberant points on the internal surface of the upper firewall touch the upper block locator back, front, and center inboards (items 11 and 14).
(b)Carefully adjust the 11C4643   firewall fixture to make sure that there is contact between surfaces of the two protuberant points on the side of the lower firewall and the locator center pins (item 19), and the two protuberant points on the side of the upper firewall and the upper block locator back and center inboard (items 10 and 14).
(c)When the protuberant points of the lower firewall contact each other, turn the handle (item 21) inwards to close the lower bar hook (item 22) and pull it up to support the bottom surface of the lower firewall, then hand tighten the knurled knob (item 43) to secure the position of the lower bar hook (item 22).
(d)When the protuberant points of the upper firewall contact each other, turn the handle (item 21) inwards to close the upper bar hook (item 32) and pull it up to support the internal top surface of the upper firewall, then hand tighten the knurled knob (item 43) to secure the position of the upper bar hook (item 32).
(e)Complete the clamping of the lower firewall by engaging the two vertical hold down clamps (item 38) and three horizontal spanners (item 39). If needed adjust the position of the spindles (item 41) with the hexagonal nuts (item 66).
(f)Complete the clamping of the upper firewall by engaging the toogle clamps (item 31) and three horizontal spanners (item 39). If needed adjust the position of spindles (item 41) with the hexagonal nuts (item 66).
NOTE:
At this point, both firewalls will be attached and secured by the clamping mechanisms of the fixture.
* * * FOR ALL PIP 2

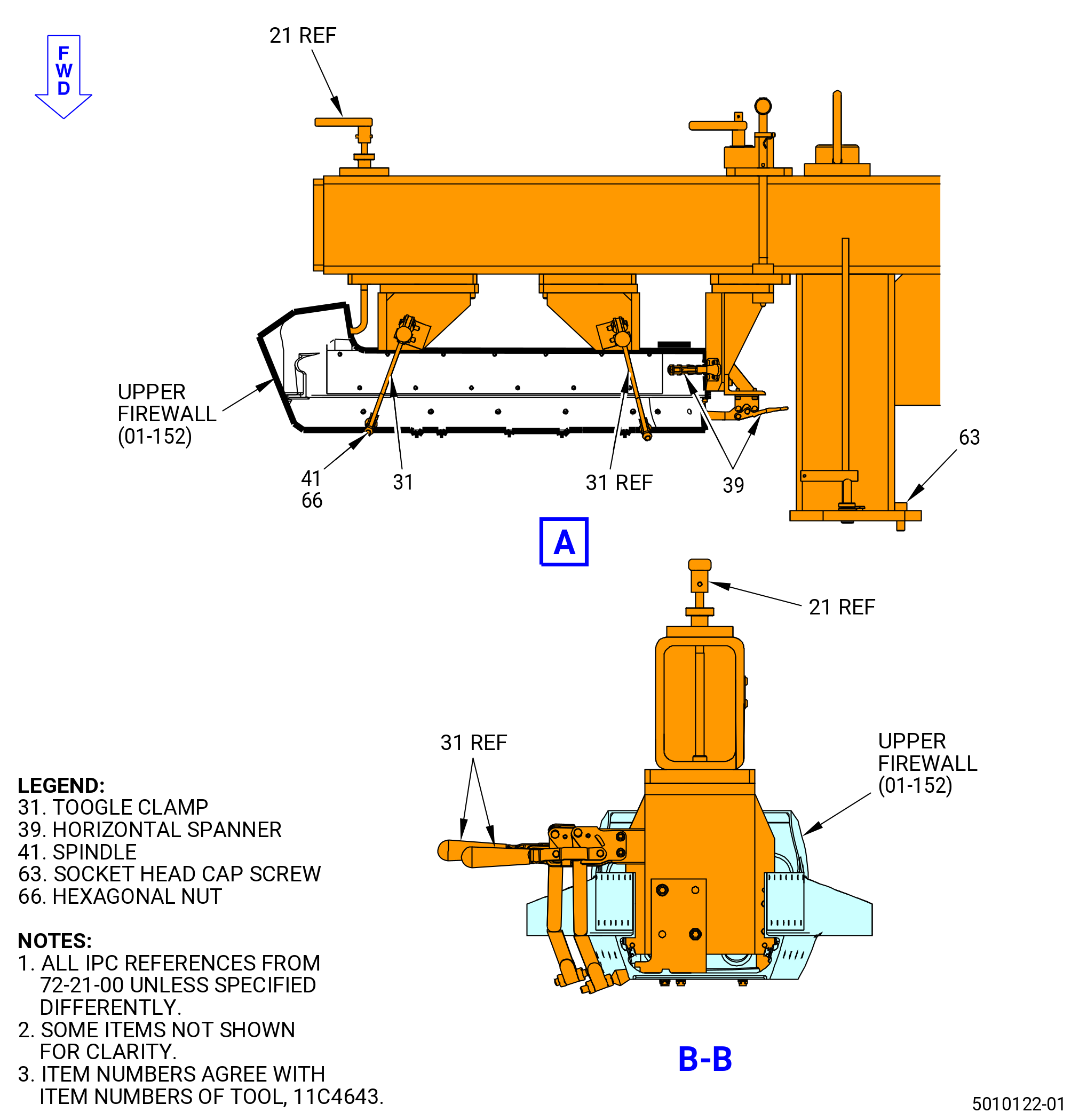

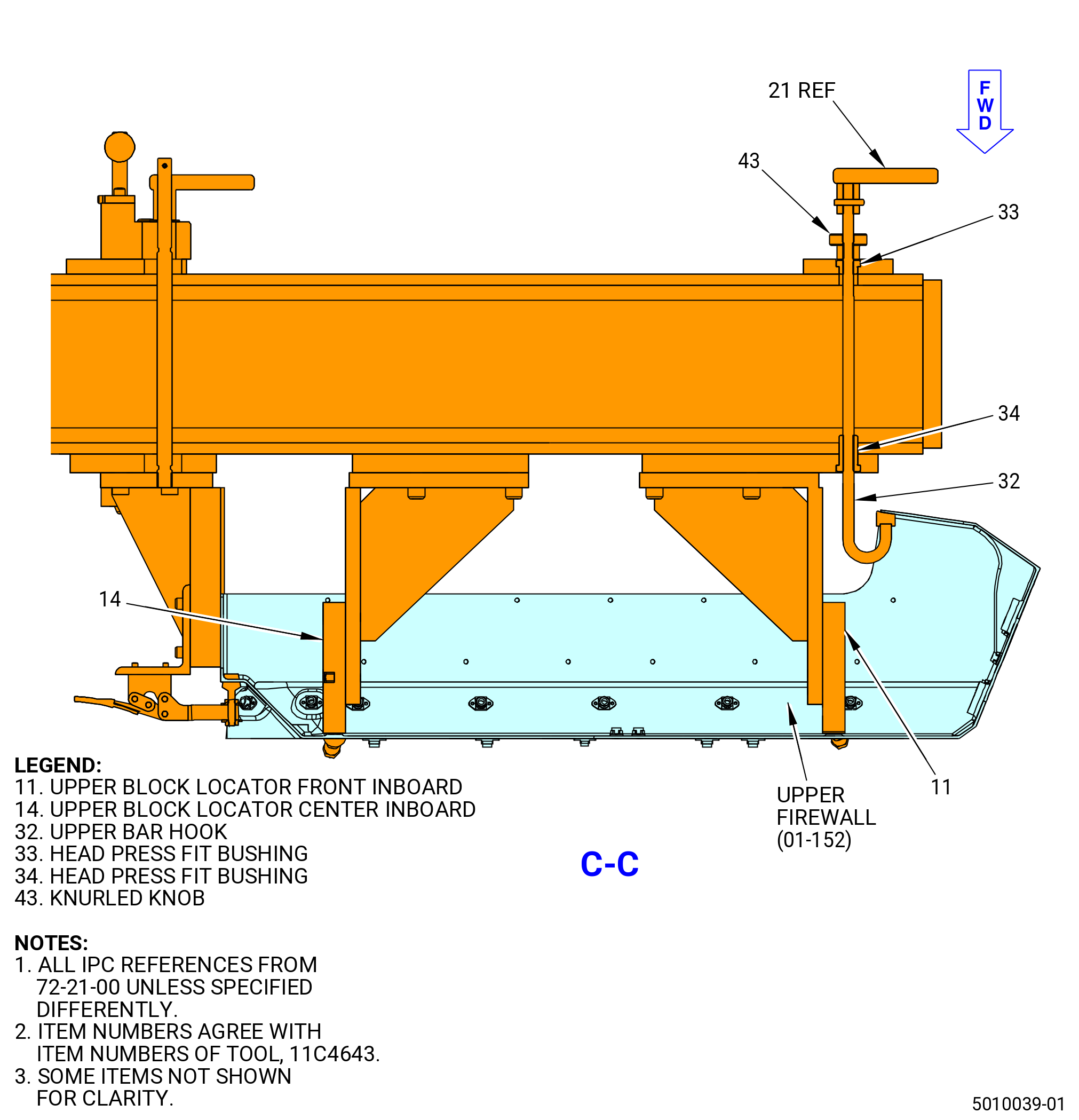

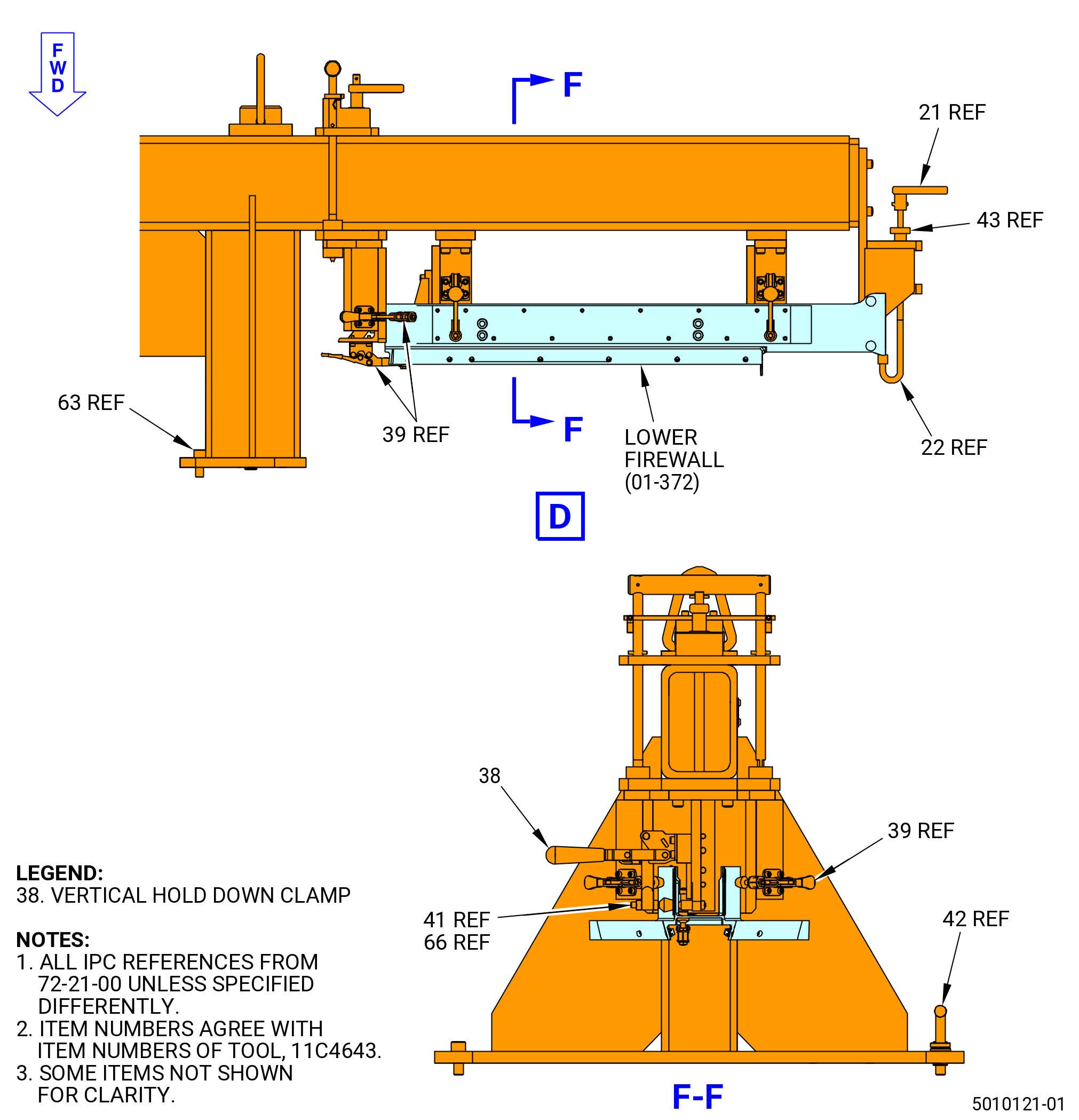

Figure 502   (Sheet 1 ) Attachment of the Upper/Lower Firewalls to the Firewall Fixture, 11C4643
* * * FOR ALL PIP 2
Figure 502   (Sheet 2 ) Attachment of the Upper/Lower Firewalls to the Firewall Fixture, 11C4643
* * * FOR ALL PIP 2
Figure 502   (Sheet 3 ) Attachment of the Upper/Lower Firewalls to the Firewall Fixture, 11C4643
* * * FOR ALL PIP 2
Figure 502   (Sheet 4 ) Attachment of the Upper/Lower Firewalls to the Firewall Fixture, 11C4643
* * * FOR ALL PIP 2
Figure 502   (Sheet 5 ) Attachment of the Upper/Lower Firewalls to the Firewall Fixture, 11C4643
Subtask 72-21-00-040-124
B.Remove the OGV extension panels (01-160) (SIN 84402) and (01-170) (SIN 84403) from the upper firewall (01-152) (SIN 84401). Refer to Figure 503 and do as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
CAUTION:
WHEN THE RTV IS CUT BETWEEN THE OGV EXTENSION PANEL AND THE AFT OUTER ACOUSTIC PANELS, DO NOT TOUCH THE AFT FAN CASE OR THE AFT OUTER ACOUSTIC PANEL. SCRATCHES, SCORES, OR DAMAGE TO THE PANELS OR THE AFT FAN CASE SURFACE CAN OCCUR.
(1)Cut the C01-176  RTV from upper side of the OGV extension panel and the aft outer acoustic panel.
NOTE:
After the OGV extension panels are removed, the remaining RTV from the panels can be cut or removed with C04-035  isopropyl alcohol or equivalent.
(2)Remove the bolts (01-220) (SIN 84420) from the OGV extension panels.
(3)Remove the OGV extension panels from the upper firewall.
* * * FOR ALL PIP 2

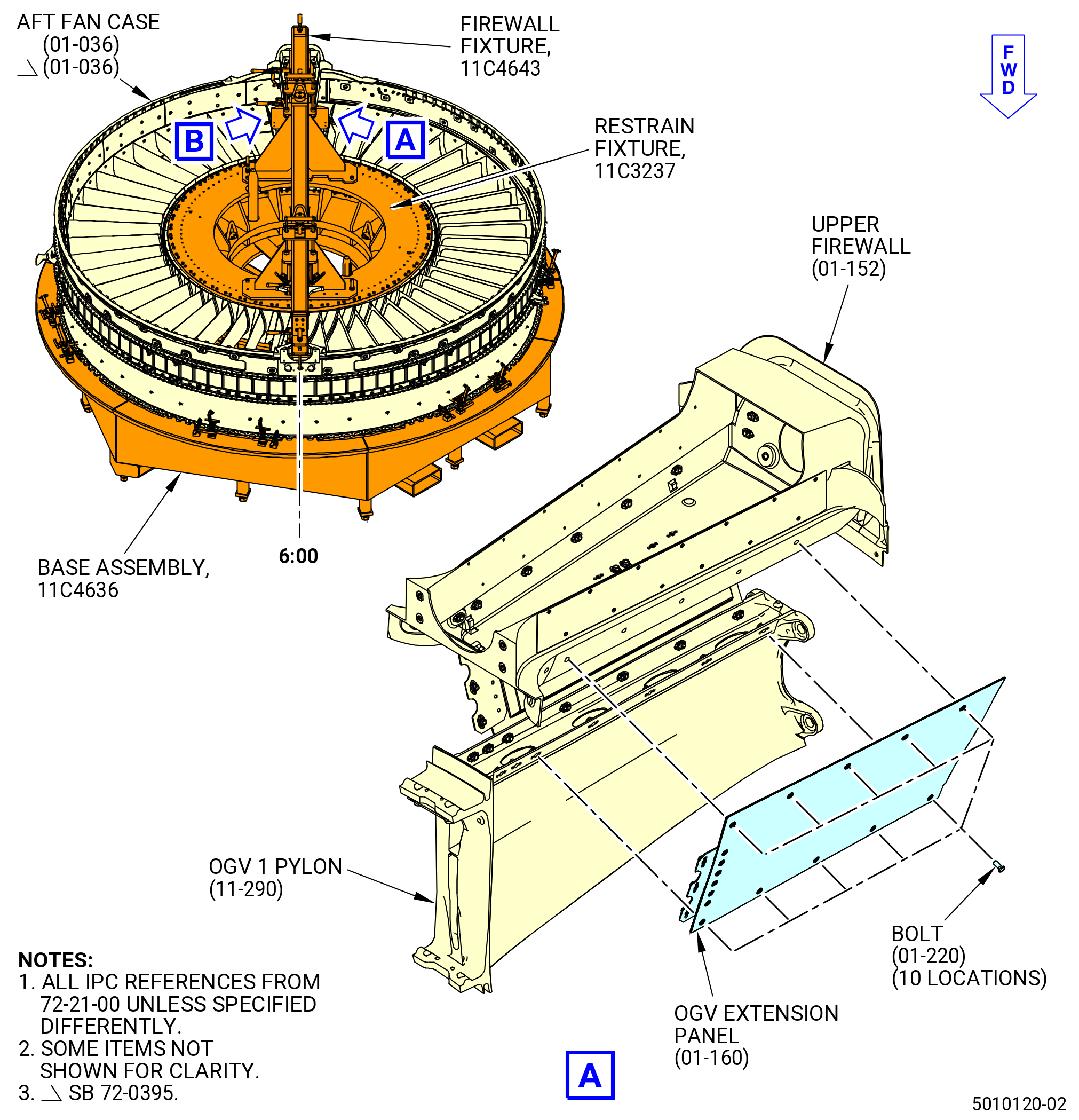

Figure 503   (Sheet 1 ) Removal of the OGV Extension Panels from the Upper Firewall
* * * FOR ALL PIP 2
Figure 503   (Sheet 2 ) Removal of the OGV Extension Panels from the Upper Firewall
Subtask 72-21-00-040-125
C.Remove the OGV extension panels (01-380) (SIN 84502) and (01-390) (SIN 84503) from the aft fan case (01-036) (SIN 84100) at OGV 25 pylon (11-300) (SIN 8400K). Refer to Figure 504 and do as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
CAUTION:
WHEN THE RTV IS CUT BETWEEN THE OGV EXTENSION PANEL AND THE AFT OUTER ACOUSTIC PANELS, DO NOT TOUCH THE AFT FAN CASE OR THE AFT OUTER ACOUSTIC PANEL. SCRATCHES, SCORES, OR DAMAGE TO THE PANELS OR THE AFT FAN CASE SURFACE CAN OCCUR.
(1)Cut the C01-176  RTV from joints between the OGVs.
NOTE:
After the OGV extension panels are removed, the remaining RTV from the panels, OGVs, and pylon can be cut or removed with C04-035  isopropyl alcohol or equivalent.
(2)Remove the bolts (01-430) (SIN 84520) from the OGV extension panels.
(3)Remove the OGV extension panels from the OGV 25 pylon.
* * * FOR ALL PIP 2

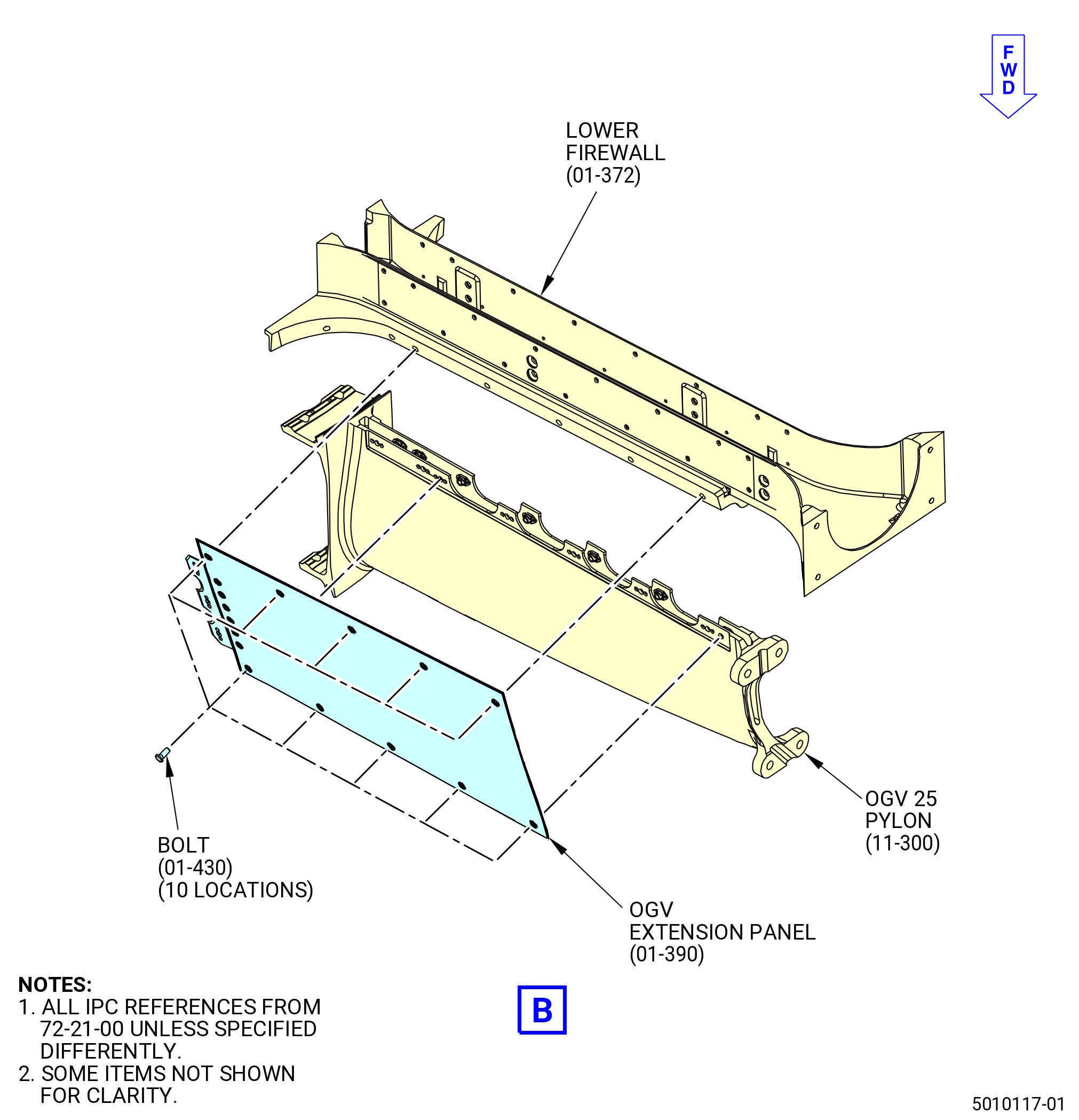

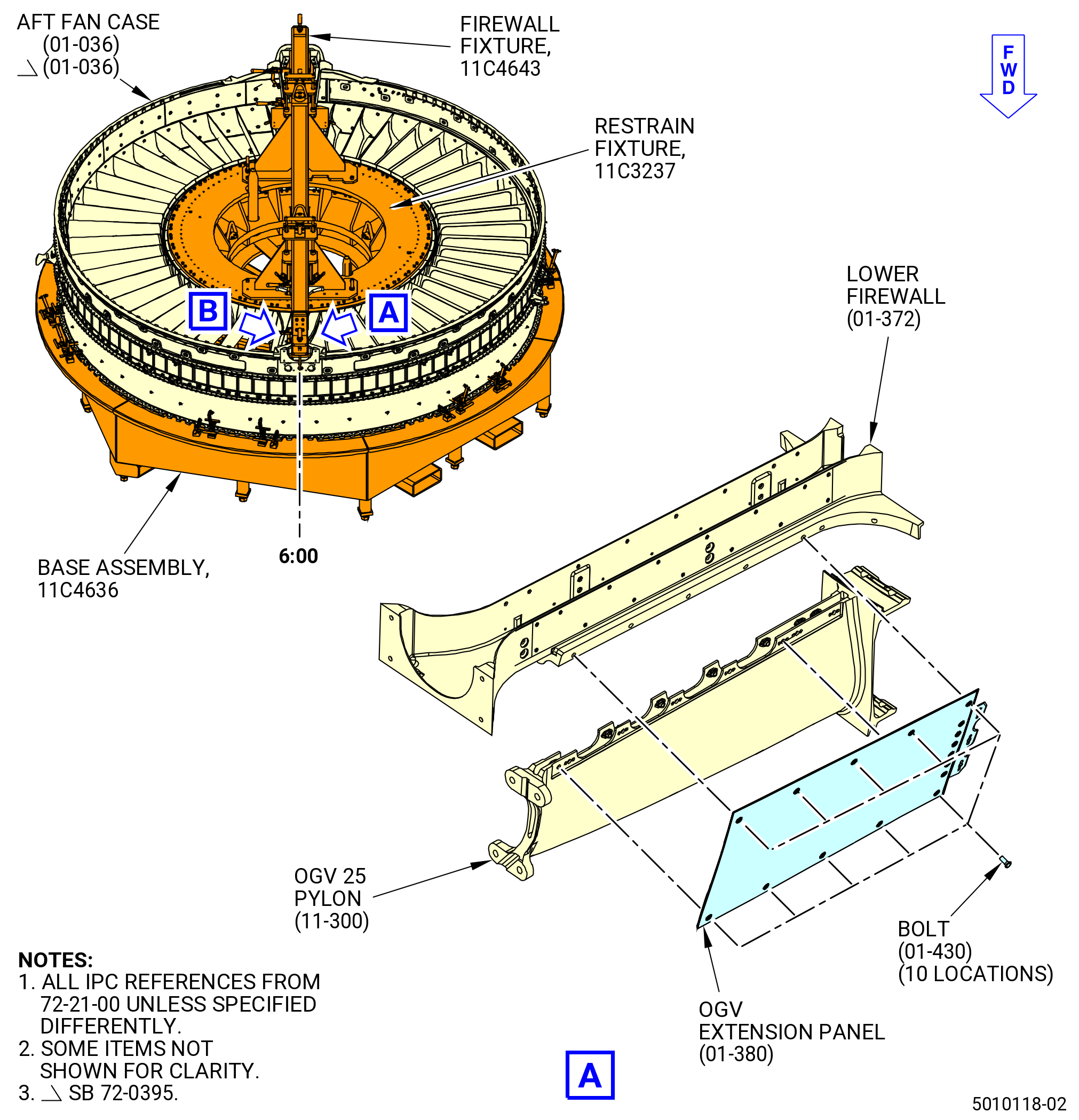

Figure 504   (Sheet 1 ) Removal of the OGV Extension Panels from the OGV 25 Pylon
* * * FOR ALL PIP 2
Figure 504   (Sheet 2 ) Removal of the OGV Extension Panels from the OGV 25 Pylon
Subtask 72-21-00-040-115
* * * PRE SB   72-0215( Lower Firewall without Bumper )
D.Remove the lower extension support (support) (01-420) (SIN 84508) from the lower firewall (01-372) (SIN 84501) and the aft fan case. Refer to Figure 505 and do as follows:
(1)Remove the self-locking nuts (01-480) (SIN 84541) and (01-570) (SIN 84542) and washers (01-460) (SIN 84532) and (01-470) (SIN 84533) from the bolts on the aft fan case.
(2)Remove the self-locking nuts and washers from the bolts (01-440) (SIN 84521) and (01-450) (SIN 84522) on the support.
(3)Remove the bolts from the lower firewall and the support.
(4)Remove the support from lower firewall support and the aft fan case.
* * * END PRE SB   72-0215
Subtask 72-21-00-040-128
* * * SB   72-0215( Lower Firewall with Bumper )
D.A.Remove the support (01-420) (SIN 84508) from the lower firewall (01-372) (SIN 84501) and aft fan case. Refer to Figure 505 and do as follows:
(1)Remove the self-locking nuts (01-480) (SIN 84541) and (01-570) (SIN 84542) and washers (01-460) (SIN 84532) and (01-471) (SIN 84533) from the bolts on the aft fan case.
(2)Remove the self-locking nuts and washers from the bolts (01-440) (SIN 84521) and (01-451) (SIN 84522) on the support.
(3)Remove the bumper (01-425) (SIN 84518).
(4)Remove the bolts from the lower firewall and the support.
(5)Remove the support from the lower firewall support and the fan case.
* * * END SB   72-0215
* * * FOR ALL PIP 2
* * * PRE SB   72-0215( Lower Firewall without Bumper )

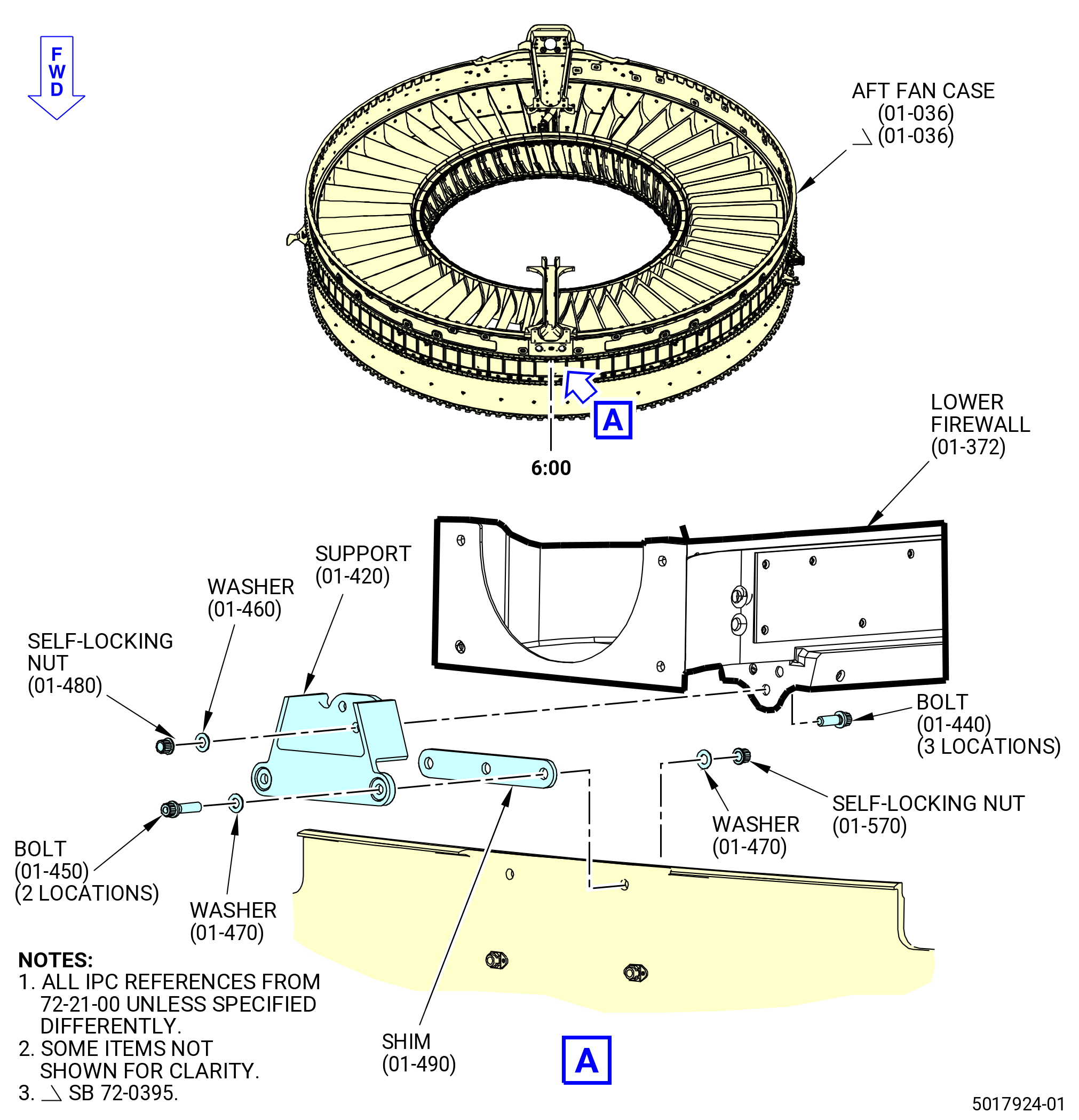

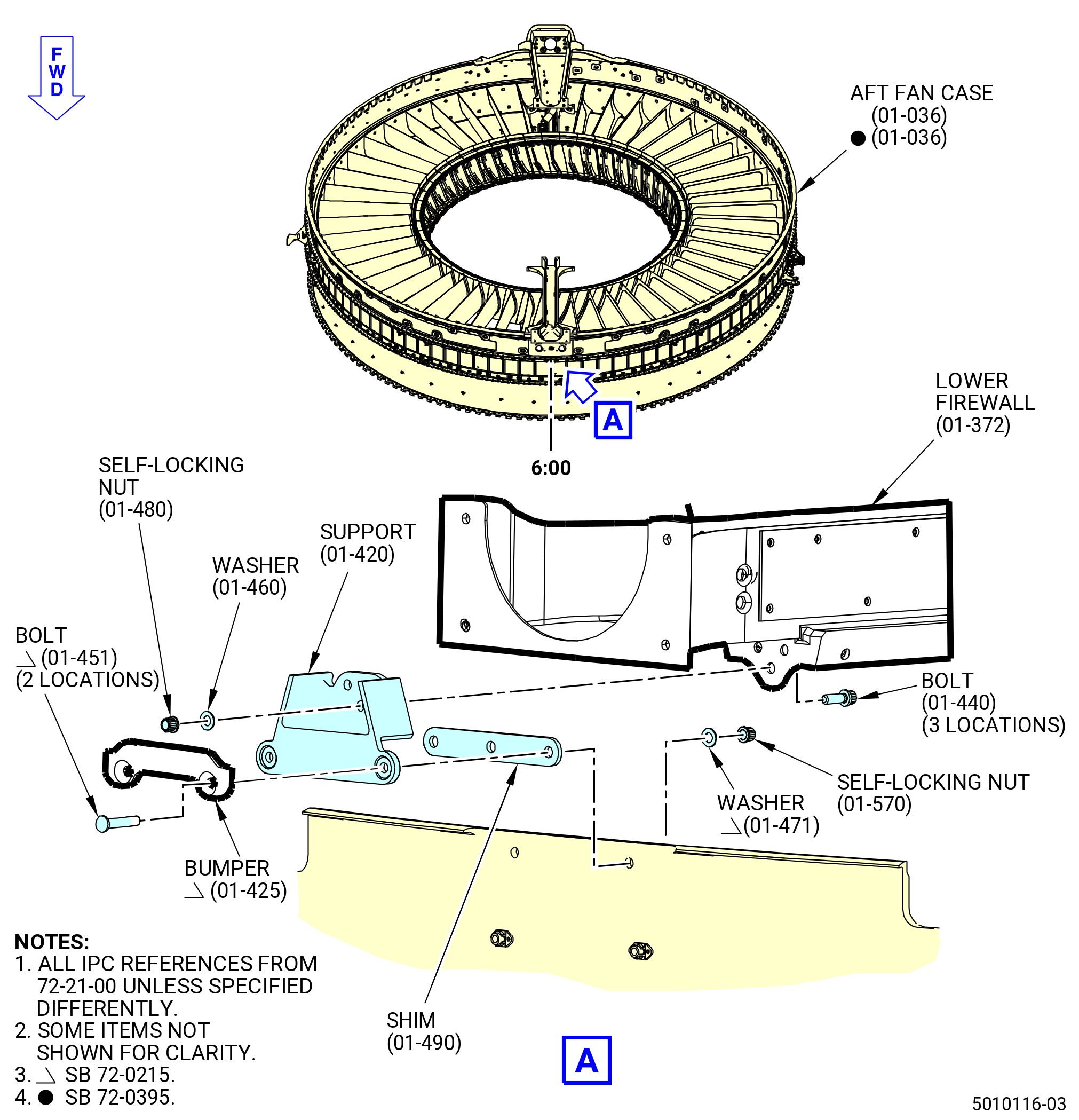

Figure 505   (Sheet 1 ) Removal of the Support from the Lower Firewall and Aft Fan Case
* * * FOR ALL PIP 2
* * * SB   72-0215( Lower Firewall with Bumper )
Figure 505   (Sheet 2 ) Removal of the Support from the Lower Firewall and Aft Fan Case
Subtask 72-21-00-040-116
E.Remove the barrier (01-190) (SIN 84405) from the aft fan case and the upper firewall (01-152) (SIN 84401). Refer to Figure 506 and do as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
CAUTION:
DO NOT TOUCH THE PANELS, THE PYLON, OR THE OGVs WHEN THE RTV IS CUT BETWEEN THE LOWER LEFT/RIGHT PANELS, THE OGV 25 PYLON, AND THE OGVs. DAMAGE TO THE PANELS, PYLON, AND OGVs CAN OCCUR.
(1)Cut the C01-176  RTV from the joints between the barrier and the upper firewall.
NOTE:
After the barrier is removed, the remaining caulking from the barrier, the upper firewall, and the aft fan case can be cut or be removed with C04-035  isopropyl alcohol or equivalent.
(2)Remove the self-locking nuts (01-300) (SIN 84441) and washers (01-270) (SIN 84432) from the bolts (01-240) (SIN 84422) on the aft fan case.
(3)Remove the bolts from the barrier and the upper firewall.
(4)Remove the barrier from the upper firewall and the aft fan case.
Subtask 72-21-00-040-117
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
F.Lift the upper firewall (01-152) (SIN 84401) and the lower firewall (01-372) (SIN 84501) from the aft fan case with the 11C4643   firewall fixture. Refer to Figure 502 and do as follows:
(1)Disengage the two locking L pins (item 44) and remove the four socket head cap screws (item 67).
(2)If not installed, attach an overhead hoist to the hoist rings (item 40).
(3)Lift the 11C4643   firewall fixture with the firewalls.
* * * FOR ALL PIP 2

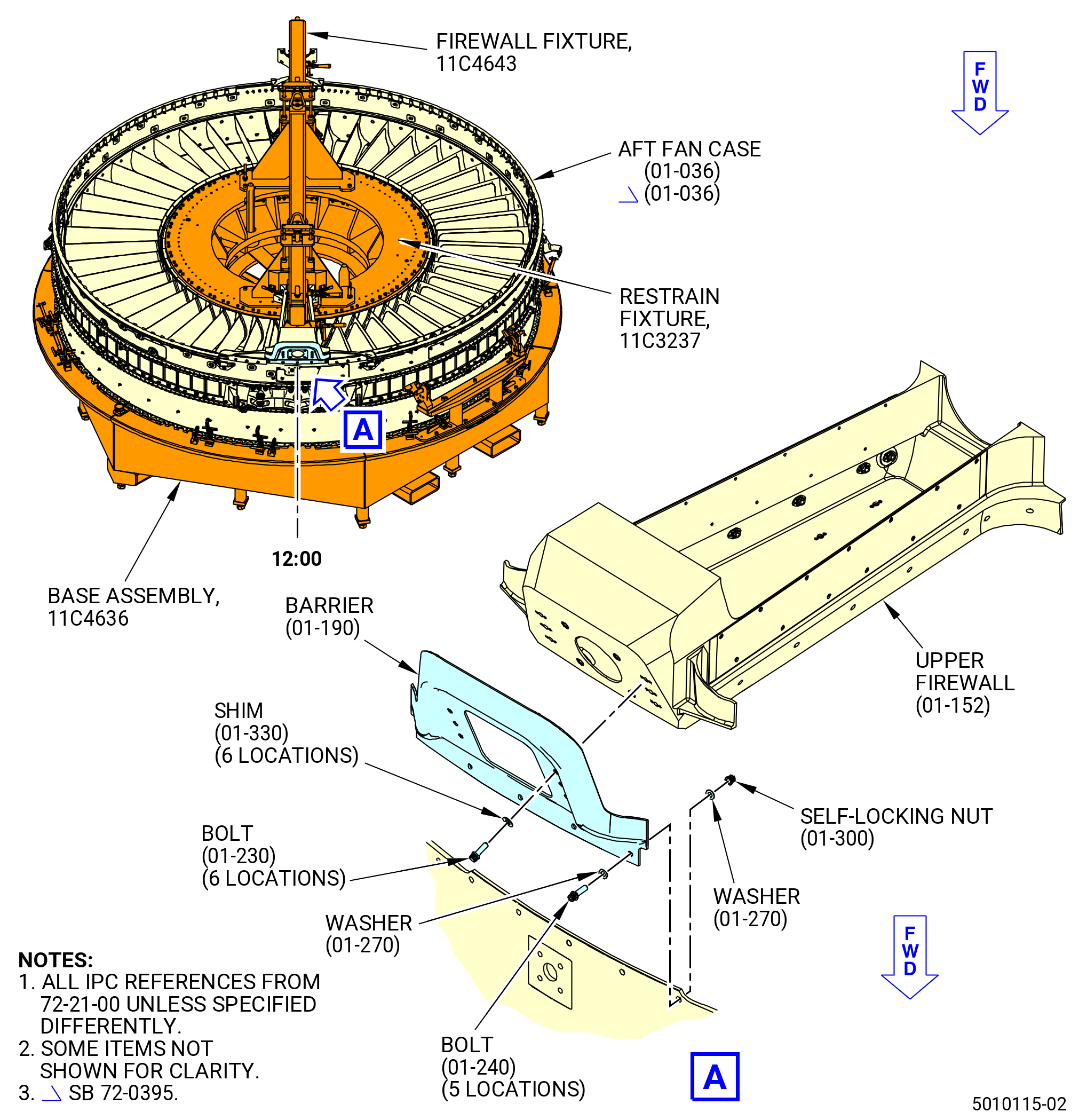

Figure 506   Removal of the Barrier from the Upper Firewall and the Aft Fan Case
Subtask 72-21-00-040-118
G.Remove the seal retainers (01-182) (SIN 84404) and (01-341) (SIN 84504) from the aft fan case. Refer to Figure 507 and do as follows:
(1)Remove the self-locking nuts (01-320) (SIN 84445) and washers (01-280) (SIN 84435) from the bolts (01-260) (SIN 8442E) on the seal retainers.
(2)Remove the bolts and washers from the seal retainers.
(3)Remove the seal retainers from the aft fan case.
* * * FOR ALL PIP 2

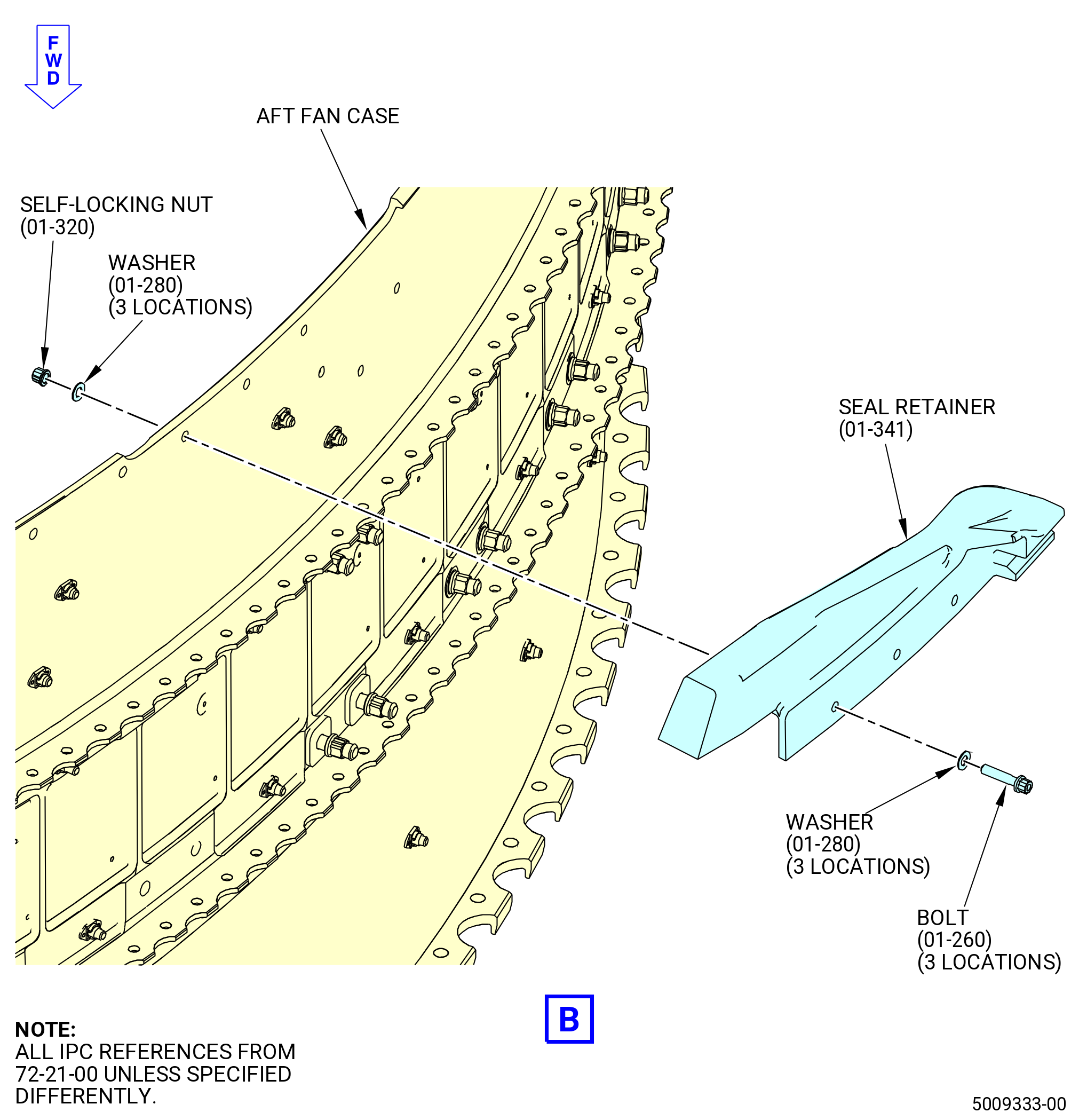

Figure 507   (Sheet 1 ) Removal of the Seal Retainers from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 507   (Sheet 2 ) Removal of the Seal Retainers from the Aft Fan Case
Subtask 72-21-00-040-119
CAUTION:
INCORRECT REMOVAL SEQUENCE OF THE OGVS CAN CAUSE DAMAGE THE AFT FAN CASE.
H.Remove the OGVs 3-47 from the aft fan case in the correct order the self-locking nuts, washers, bolts, shims, and brackets must be removed from the OGV locations as follows. Refer to Figure 508.
(1)If necessary, install the 11C3237   restrain fixture on the OGVs.
(2)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121), and shims from OGVs 4-6, 9-12 (11-230) (SIN 8400C), (11-240) (SIN 8400D), and (11-250) (SIN 8400E).
(3)Remove the self-locking nuts (11-430) (SIN 84144), nut retainers (11-440) (SIN 84180), washers (11-390) (SIN 84131), bolts (11-380) (SIN 8412C), and brackets (01-590) (SIN 98218), (01-601) (SIN 98219) and (01-625) (SIN 9821C) from OGVs 7 and 8 (11-240) (SIN 8400D).
(4)Remove the self-locking nuts (11-430) (SIN 84144), nut retainers (11-440) (SIN 84180), washers (11-390) (SIN 84131), bolts (11-380) (SIN 8412C), shims, and brackets (01-590) (SIN 98218), (01-601) (SIN 98219) from OGVs 29 and 30 (11-250) (SIN 8400E).
(5)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131), washers (11-400) (SIN 84135), bolts (11-350) (SIN 84121), and shims from OGVs 31-34, 38, 44-46 (11-220) (SIN 8400A), (11-260) (SIN 8400F), (11-280) (SIN 8400H).
(6)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-405) (SIN 84136), bolts (11-355) (SIN 8412D), and shims from OGVs 40-41 (11-270) (SIN 8400G).
(7)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121) and (11-370) (SIN 84129), shims, and bracket (05-090) (SIN 98216) from OGV 15 (11-250) (SIN 8400E).
(8)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121), and shims from OGVs 16-19, 22, 25-28 (11-250) (SIN 8400E), (11-220) (SIN 8400A), (11-260) (SIN 8400F), (11-300) (SIN 8400K), (11-240) (SIN 8400D).
(9)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-405) (SIN 84136), bolts (11-355) (SIN 8412D), and shims from OGVs 23-24 (11-270) (SIN 8400G).
(10)Remove the self-locking nuts (11-430) (SIN 84144), nut retainers (11-440) (SIN 84180), washers (11-390) (SIN 84131), bolts (11-380) (SIN 8412C), shims, and brackets (01-590) (SIN 98218), (01-601) (SIN 98219), (01-615) (SIN 9821B) from OGVs 20 and 21 (11-260) (SIN 8400F).
(11)Remove the self-locking nuts (11-430) (SIN 84144), nut retainers (11-440) (SIN 84180), washers (11-390) (SIN 84131), bolts (11-380) (SIN 8412C), shims, and brackets (01-590) (SIN 98218) and (01-605, 72-21-00) (SIN 9821A) from OGVs 42 and 43 (11-270) (SIN 8400G).
(12)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121) and (11-370) (SIN 84129), shims, and support assembly (01-280 , 79-11-10) (SIN 40010) from the OGV 14 (11-250) (SIN 8400E).
(13)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121), and shims from OGV 13 (11-250) (SIN 8400E).
(14)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-405) (SIN 84136), bolts (11-380) (SIN 8412C) and (11-355) (SIN 8412D), shims, and full authority digital engine control (FADEC) brackets (05-080) (SIN 65H11) from OGV 39 (11-270) (SIN 8400G).
(15)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121) and (11-380) (SIN 8412C), shims, and FADEC brackets (05-140) (SIN 65H13) from OGVs 36 and 37 (11-260) (SIN 8400F).
(16)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131) and (11-400) (SIN 84135), bolts (11-350) (SIN 84121) and (11-370) (SIN 84129), shims, and bracket (05-100) (SIN 98217) from OGV 35 (11-260) (SIN 8400F).
(17)Remove the self-locking nut (11-420) (SIN 84143), washers (11-390) (SIN 84131), bolts (11-370) (SIN 84129), shims (05-070) (SIN 8417A), and right cowl support bracket (05-050) (SIN 98112) from OGV 3 (11-230) (SIN 8400C).
(18)Remove the self-locking nuts (11-420) (SIN 84143), washers (11-390) (SIN 84131), bolts (11-370) (SIN 84129), shims (05-070) (SIN 8417A), and left bracket (05-060) (SIN 98113) from OGV 47 (11-280) (SIN 8400H).
* * * FOR ALL PIP 2

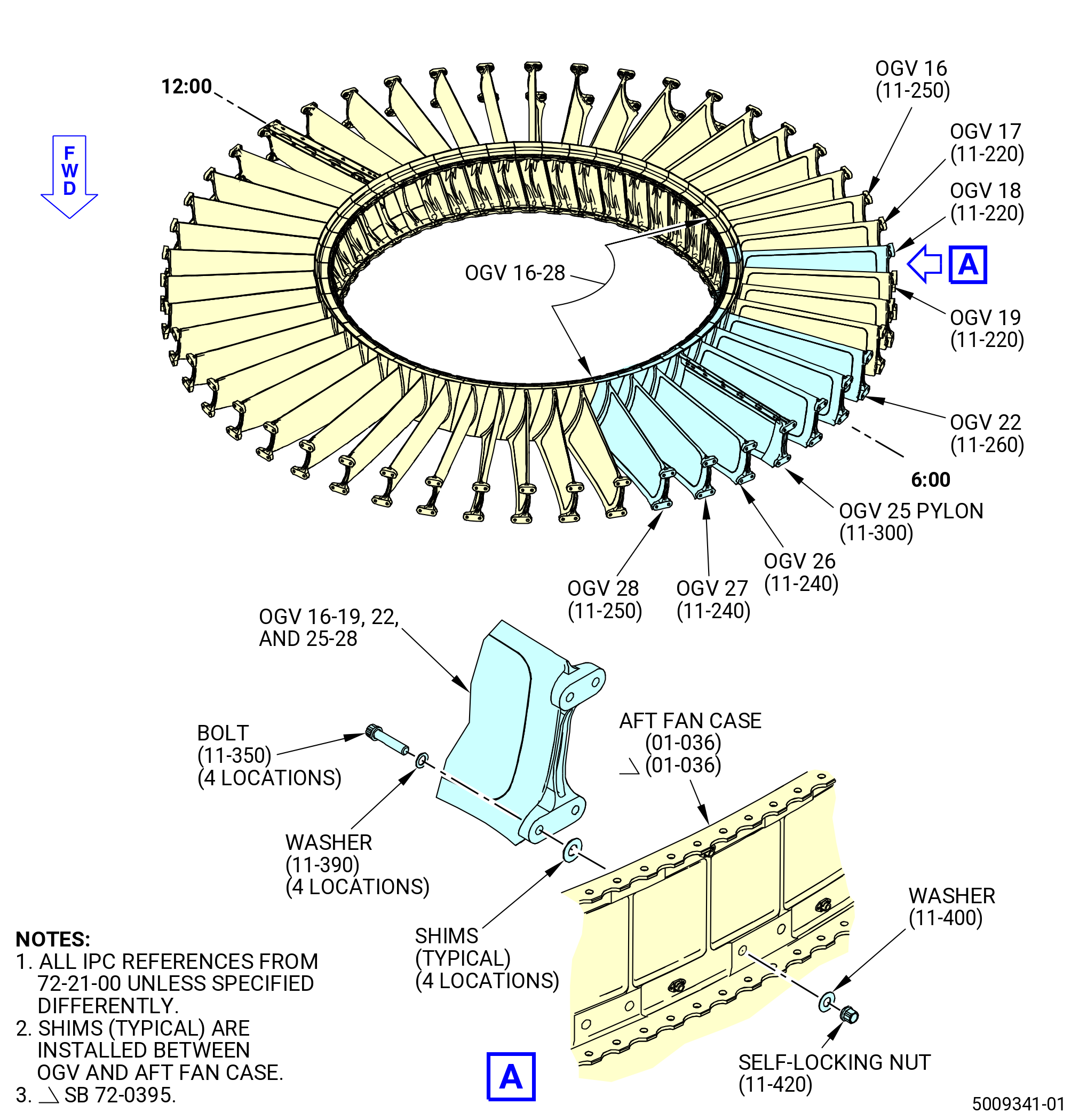

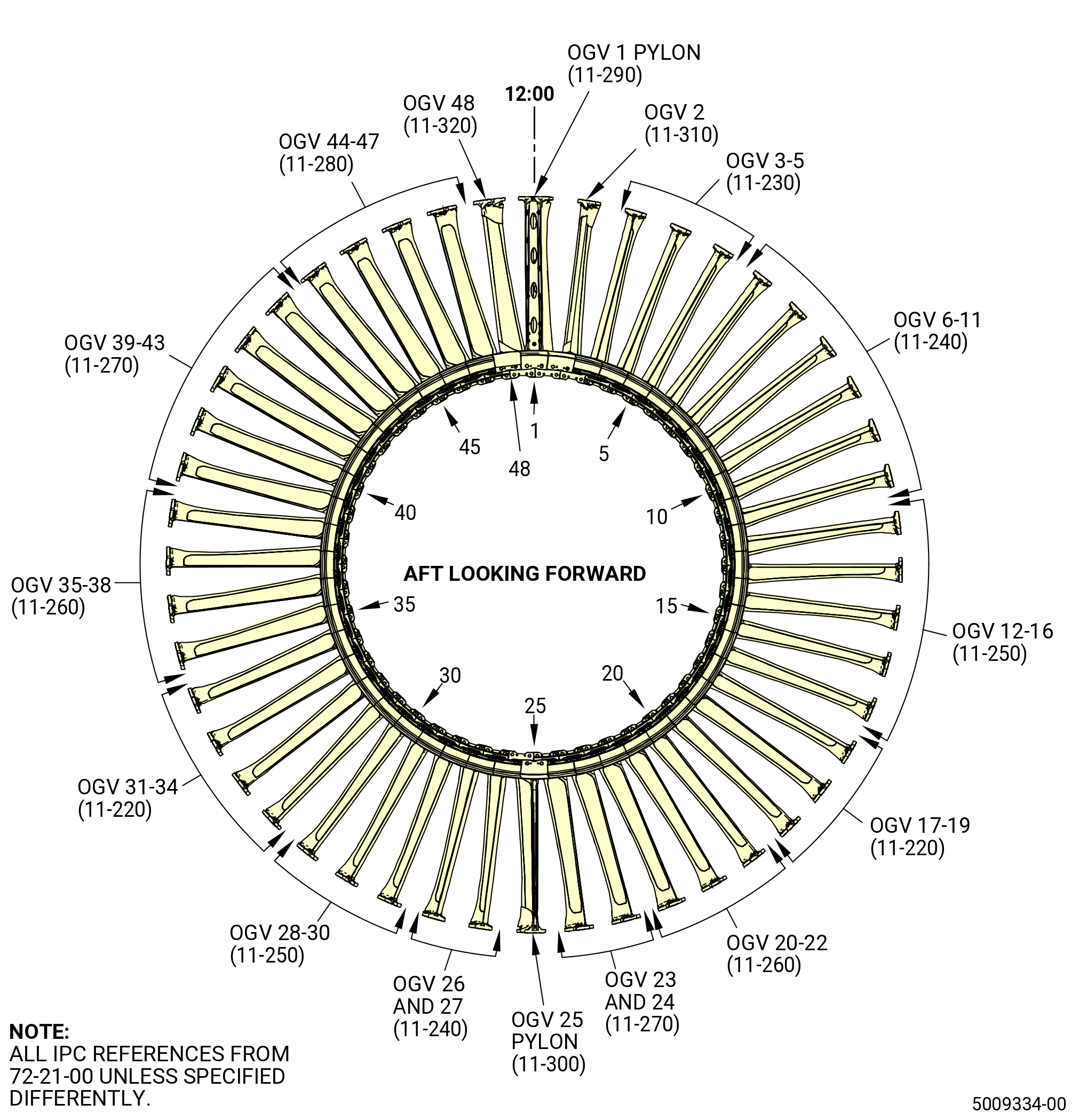

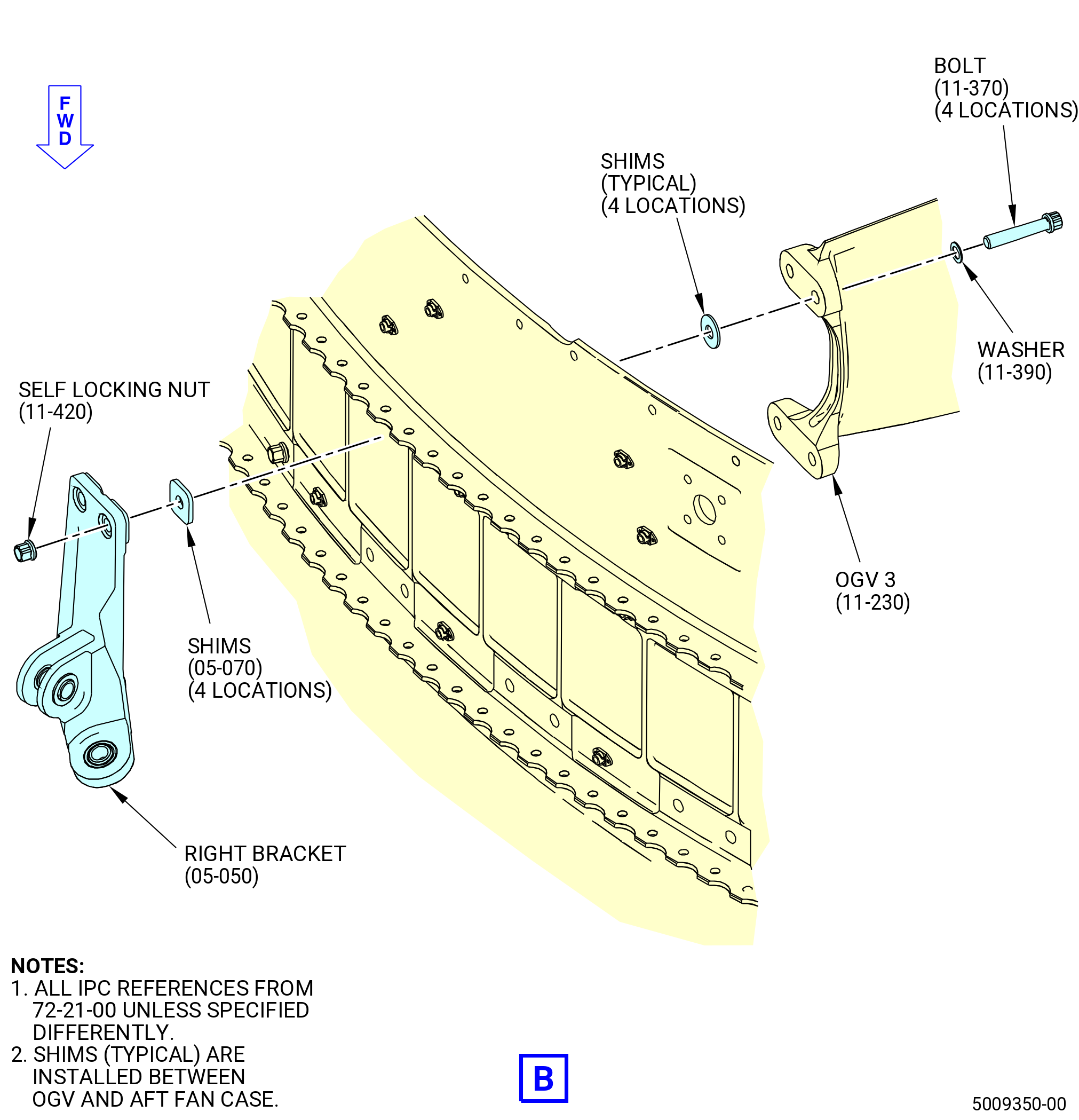

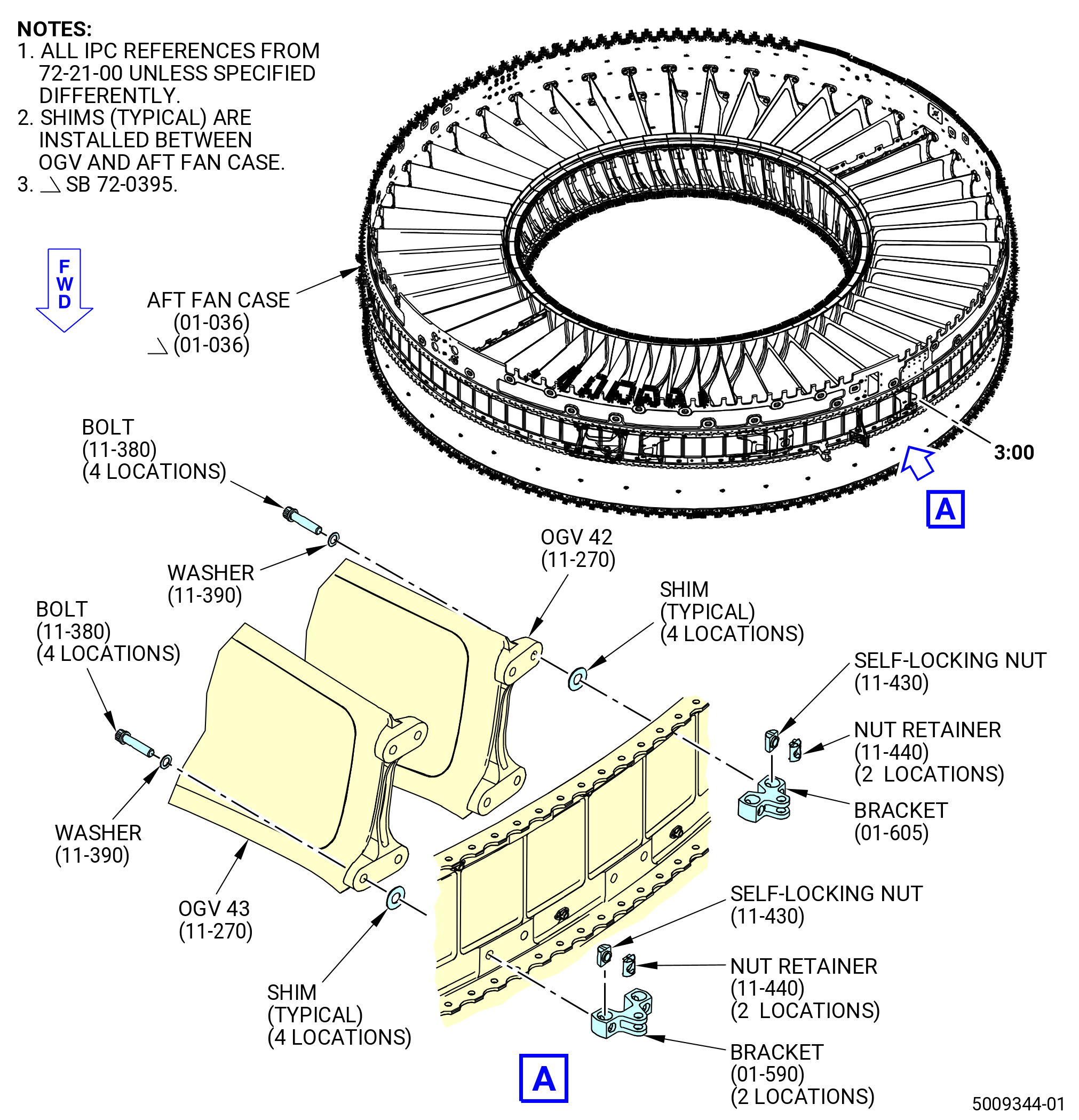

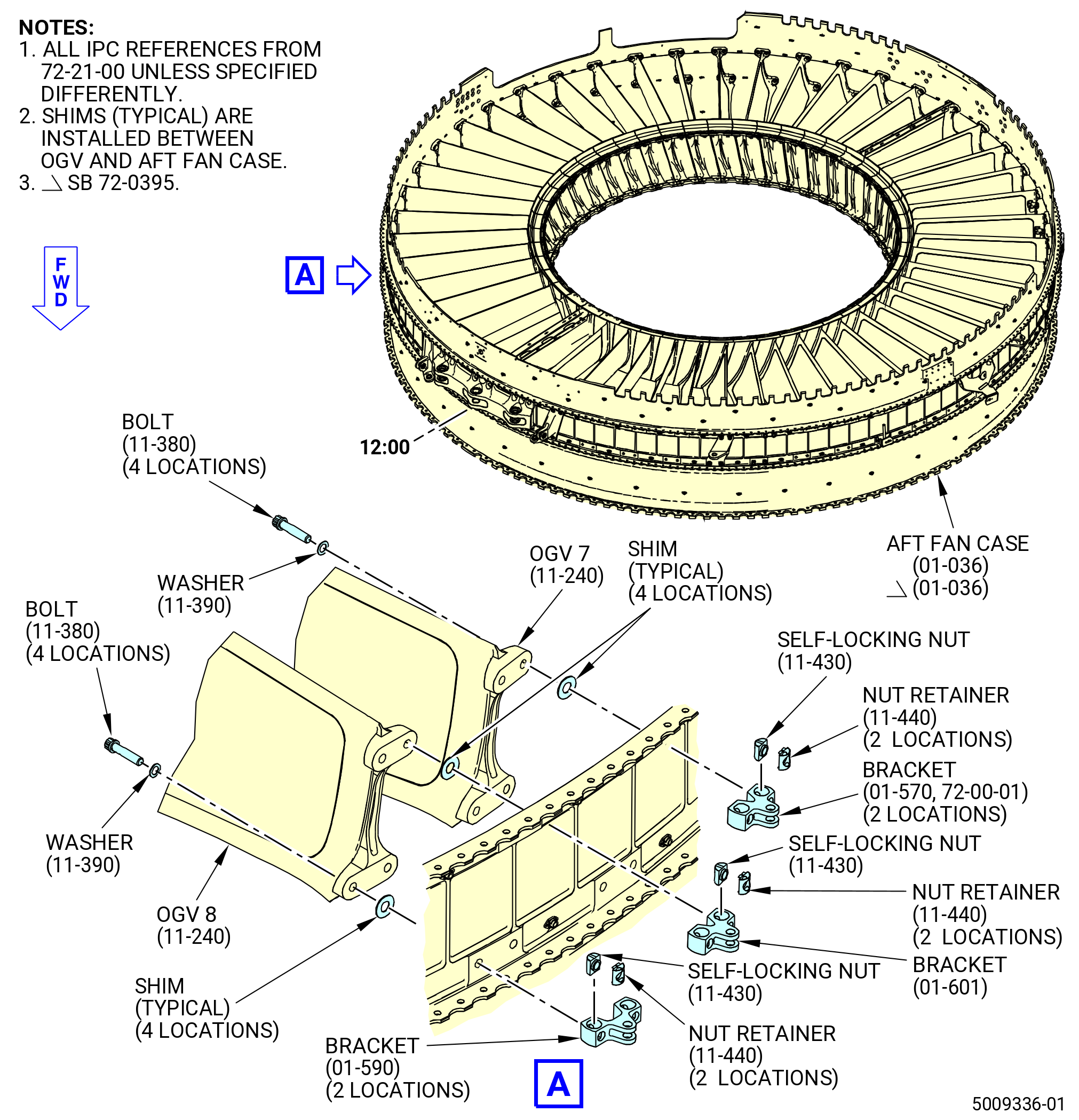

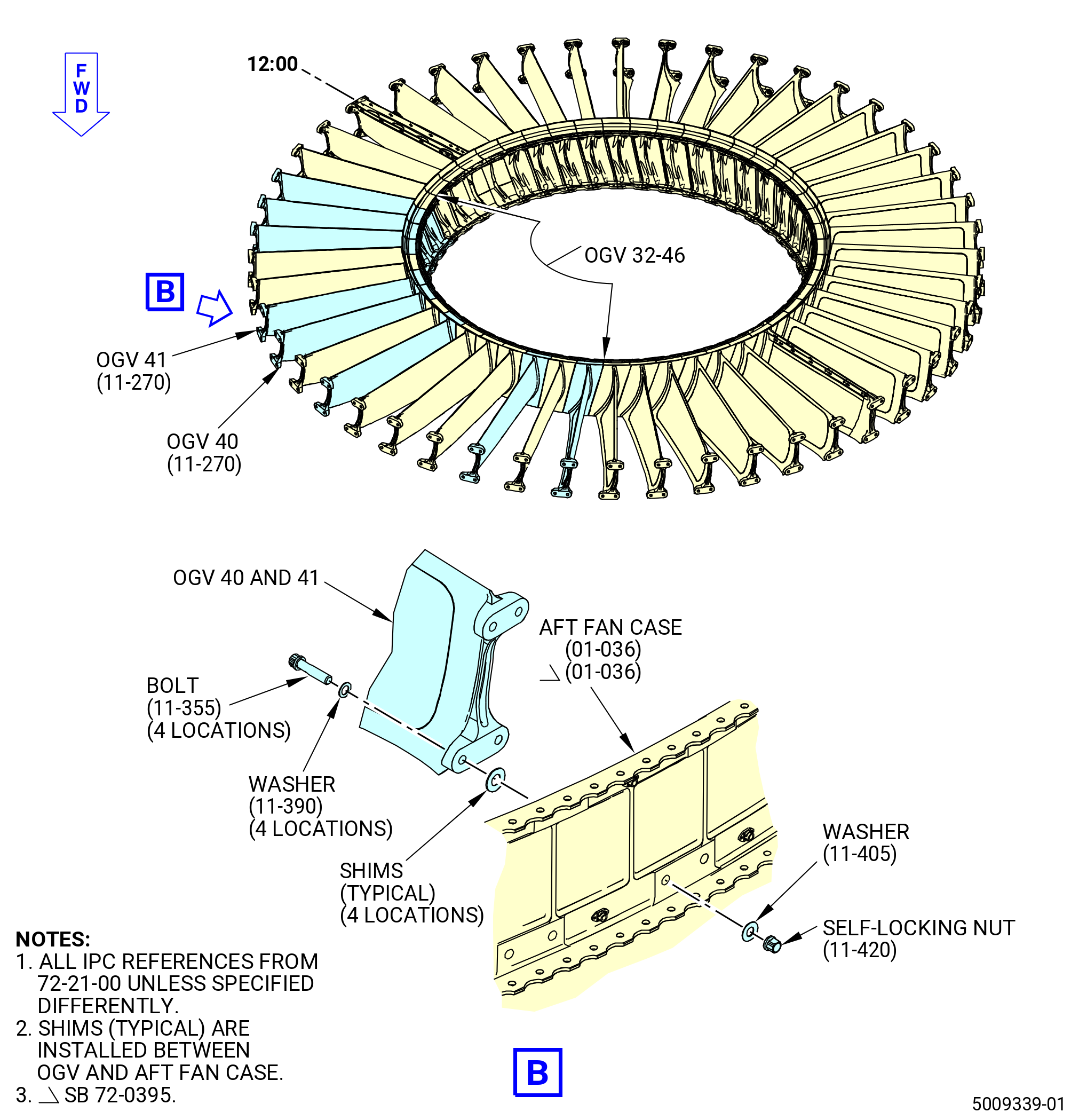

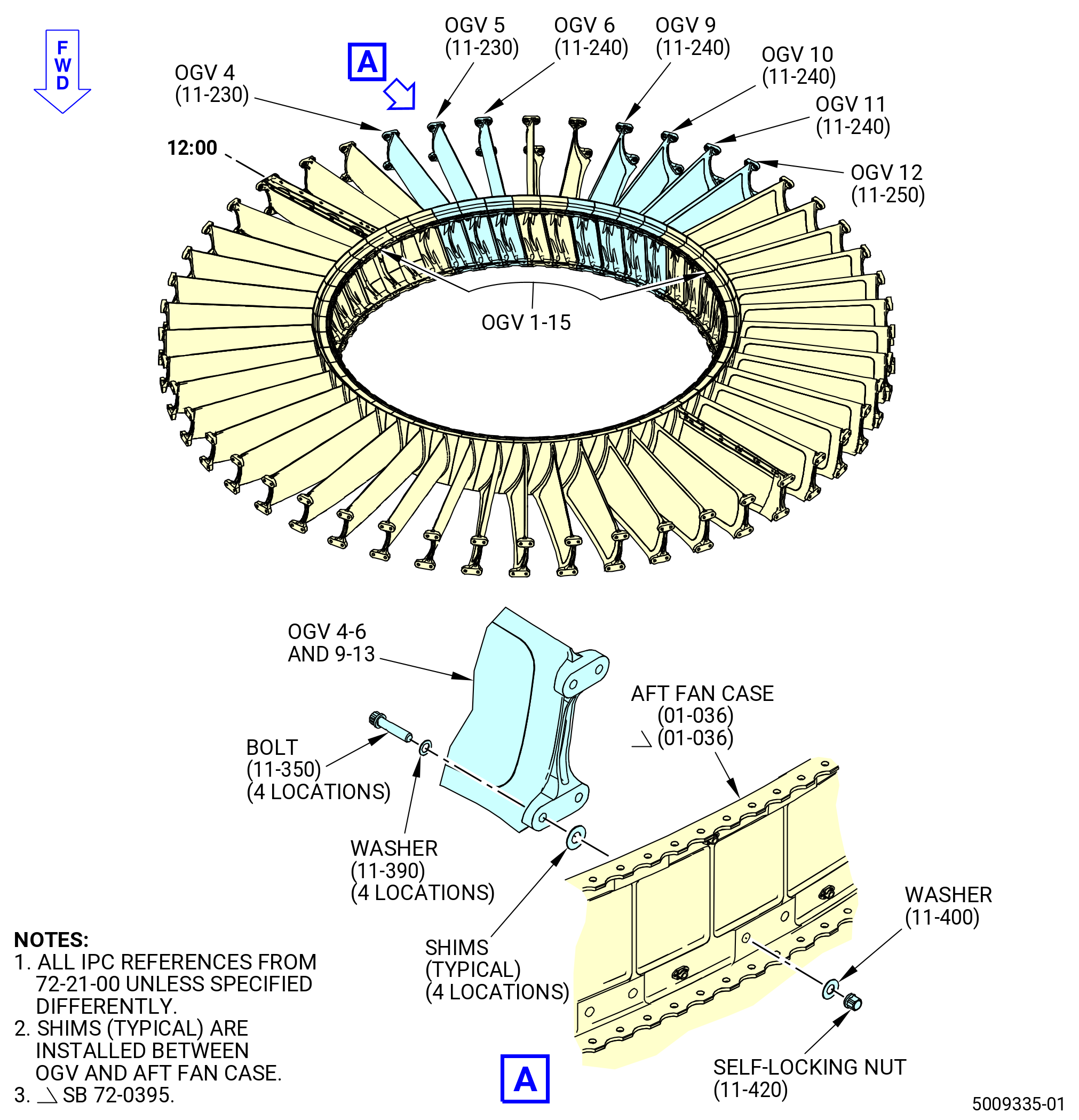

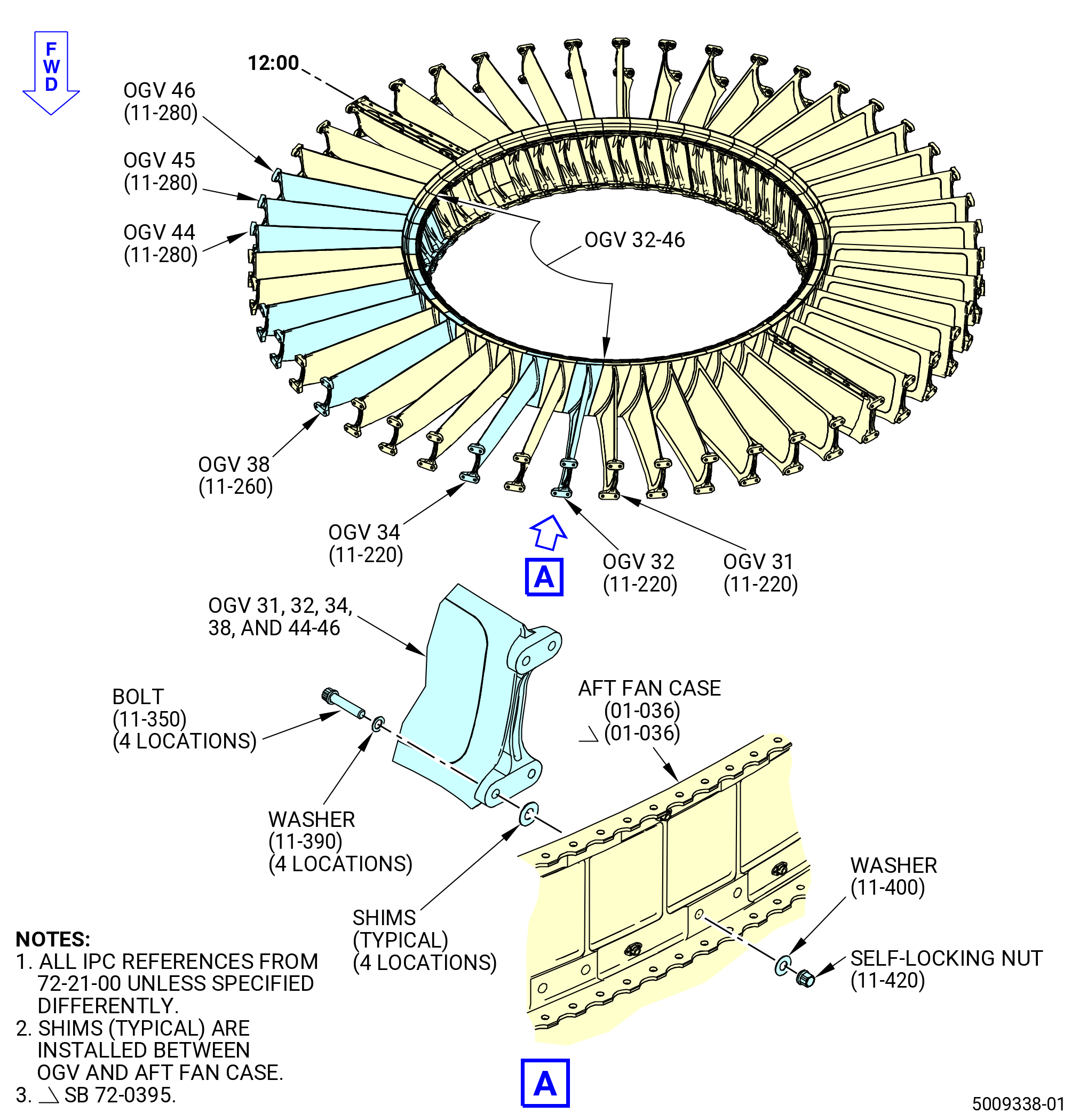

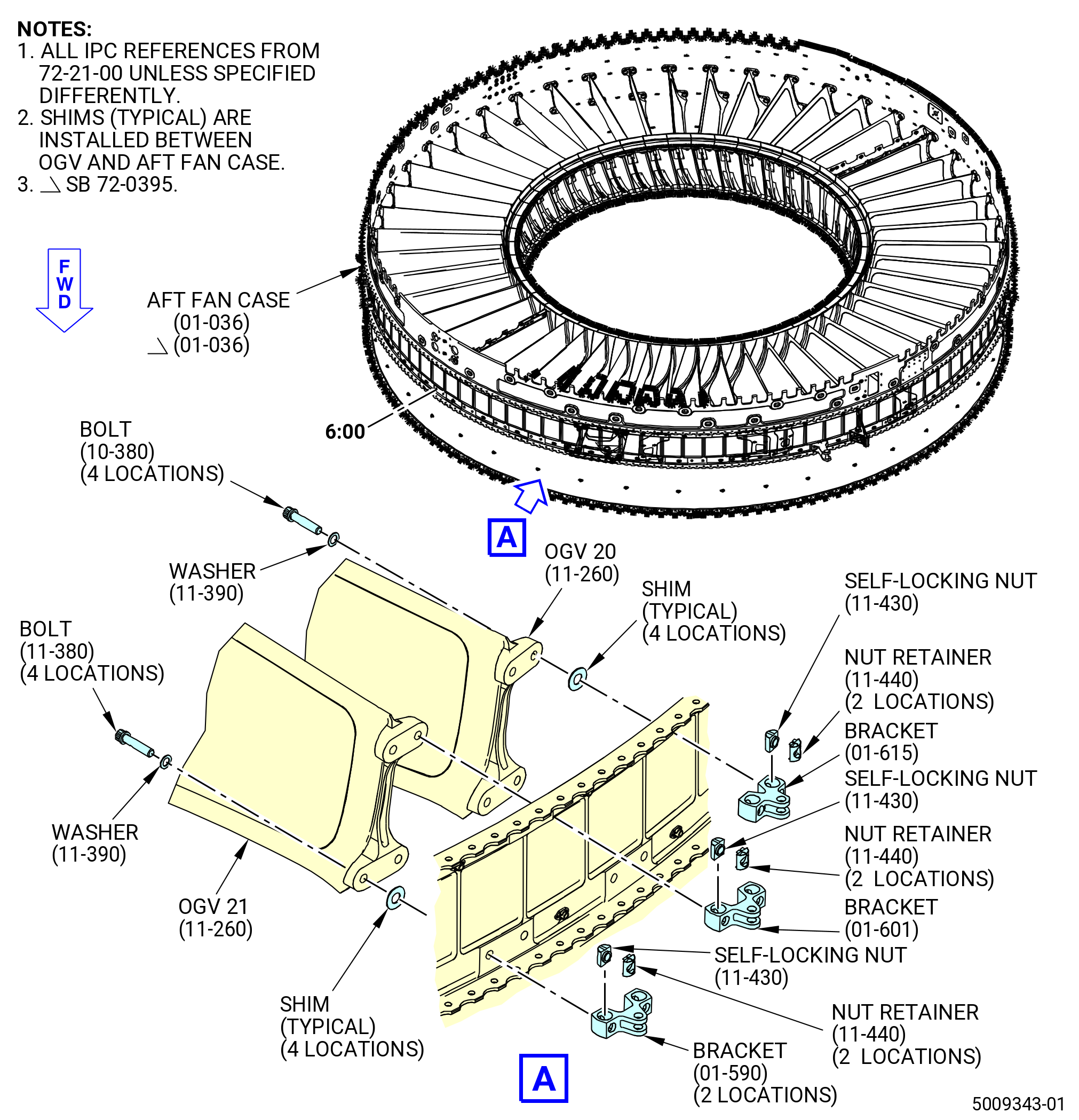

Figure 508   (Sheet 1 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2

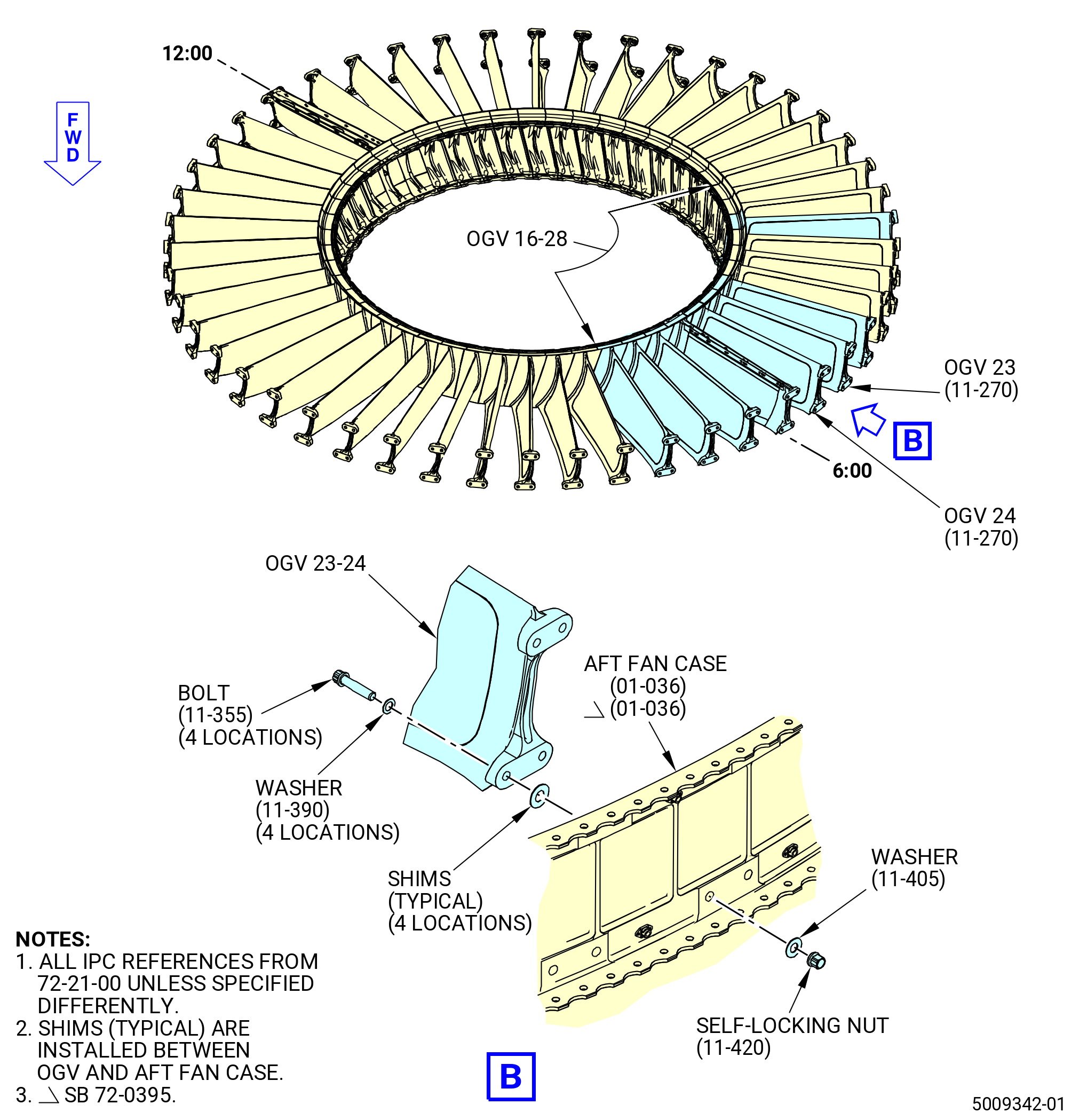

Figure 508   (Sheet 2 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2

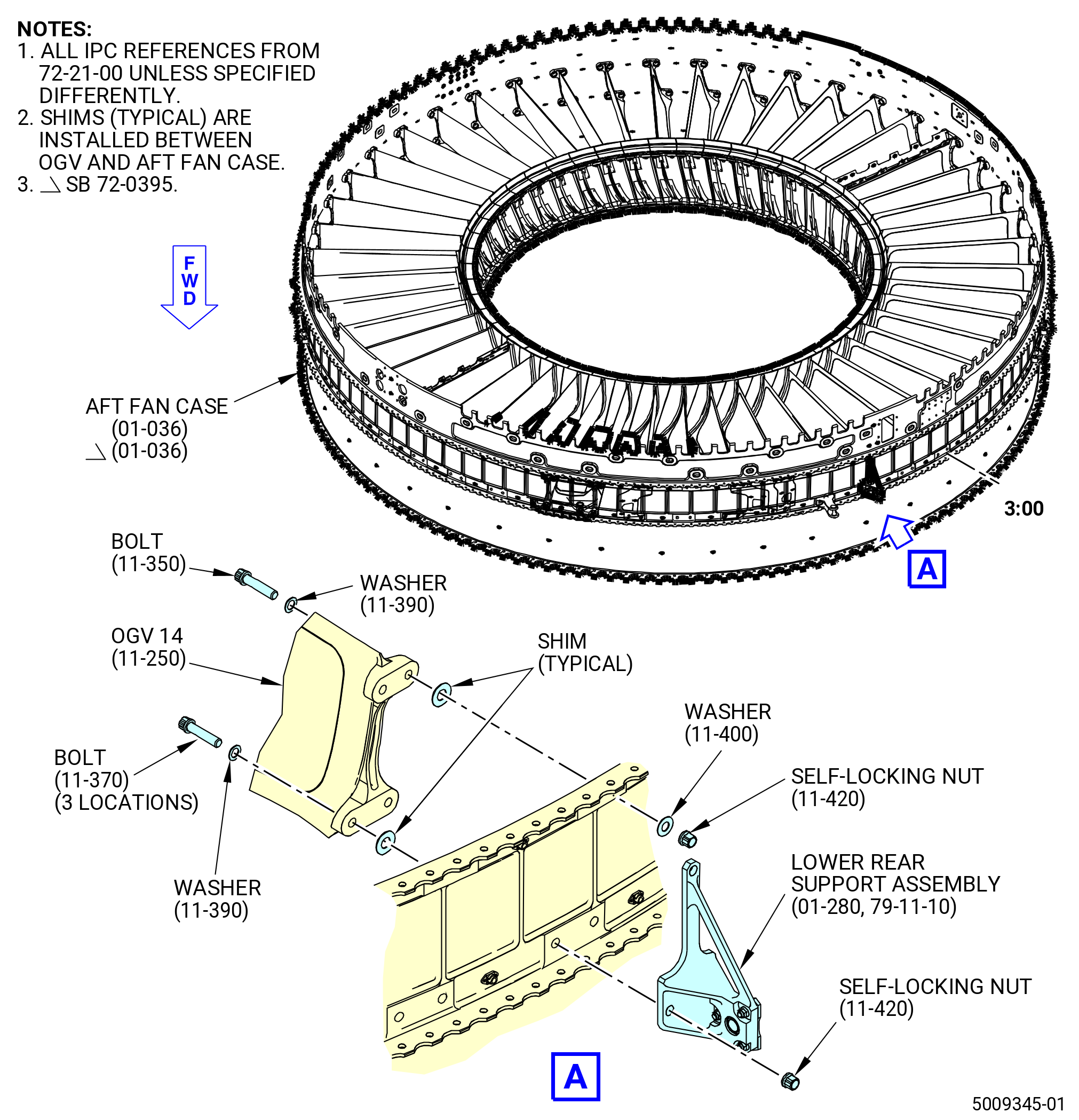

Figure 508   (Sheet 3 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2

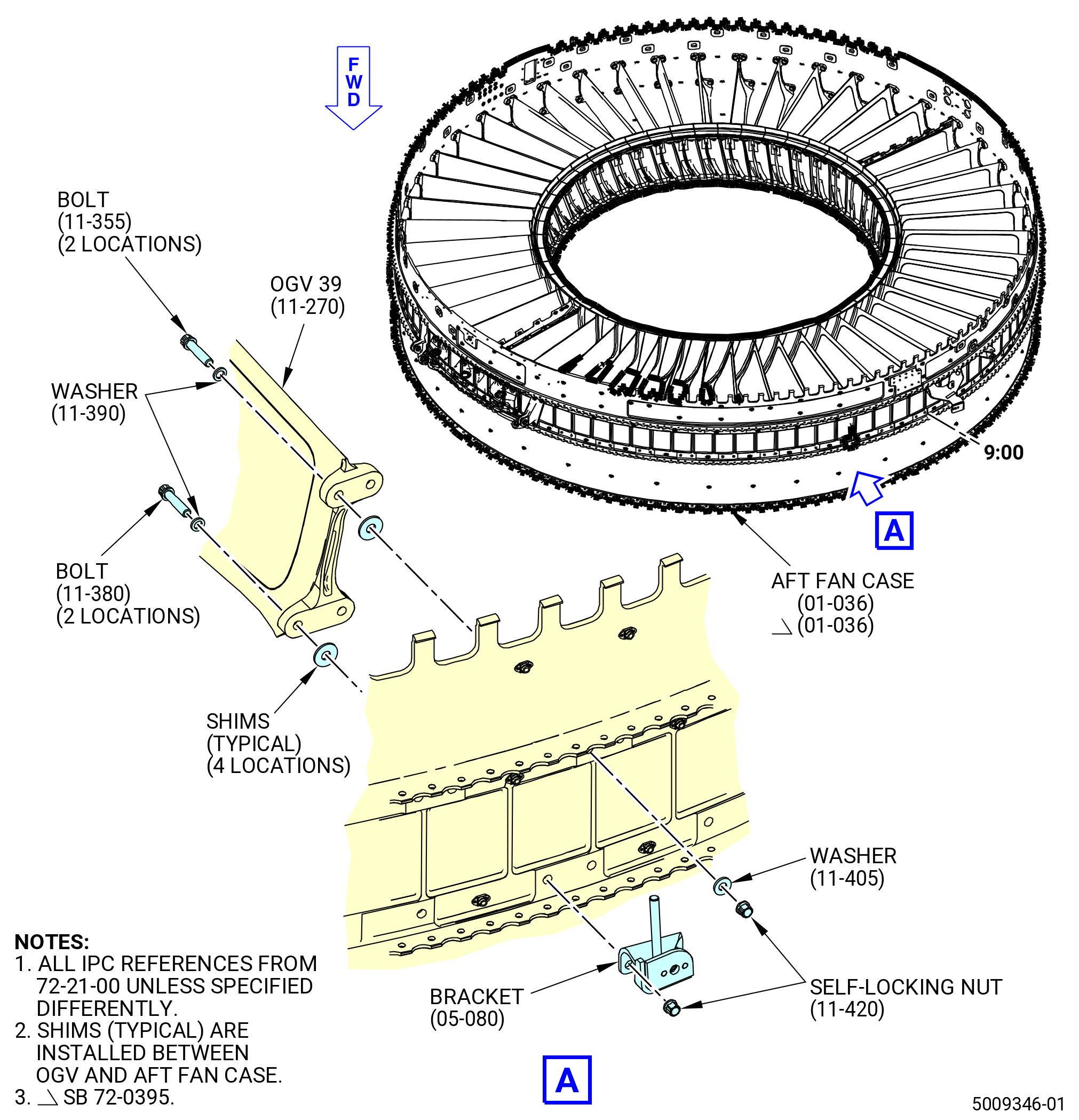

Figure 508   (Sheet 4 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 5 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 6 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 7 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 8 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 9 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 10 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 11 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 12 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 13 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 14 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 15 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 16 ) Removal of the OGVs 3-47 from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 508   (Sheet 17 ) Removal of the OGVs 3-47 from the Aft Fan Case
Subtask 72-21-00-040-120
I.Remove the forward engine mount yoke (yoke) (05-010) (SIN 84803) from the aft fan case at OGV 1 pylon (11-290) (SIN 8400J), OGV 2 (11-310) (SIN 8400L), and OGV 48 (11-320) (SIN 8400M). Refer to Figure 509 and do as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(1)Attach an overhead head hoist with a lift sling to the yoke.
(2)Remove the self-locking nuts (05-040) (SIN 84840) and (11-410) (SIN 84141) from the bolts (11-360) (SIN 84123) and (05-020) (SIN 84124) on the yoke.
(3)Remove the bolts and spacers (05-030) (SIN 8417Y) and (05-170) (SIN 84130) from the yoke.
(4)Remove the shims (11-540) (SIN 8417C), (11-630) (SIN 8417M), (11-610) (SIN 8417K), and (11-710) (SIN 8417W), from the aft fan case and the yoke.
(5)Remove the yoke from the aft fan case.
(6)Remove the overhead hoist lift slings from the yoke.
* * * FOR ALL PIP 2

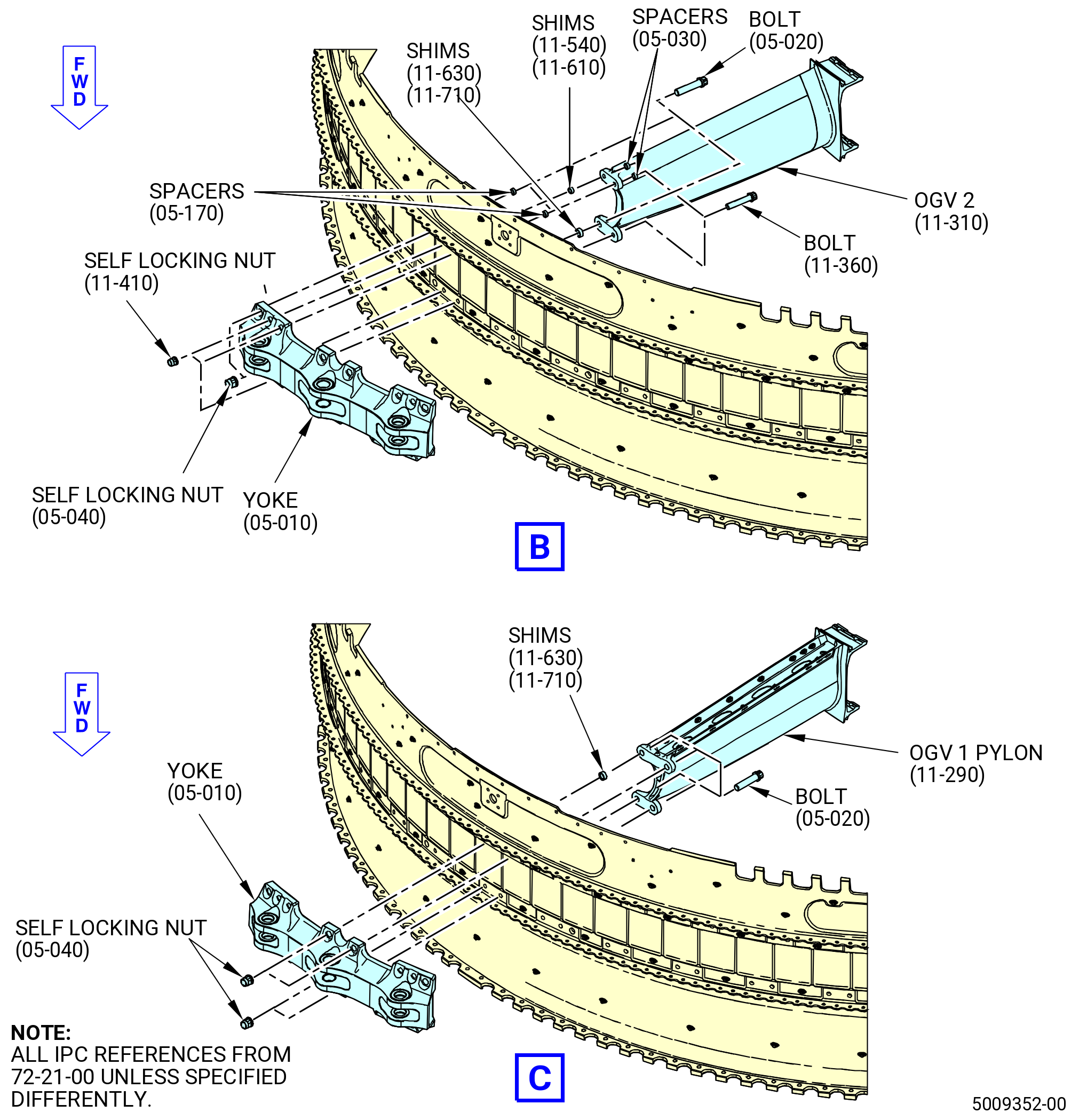

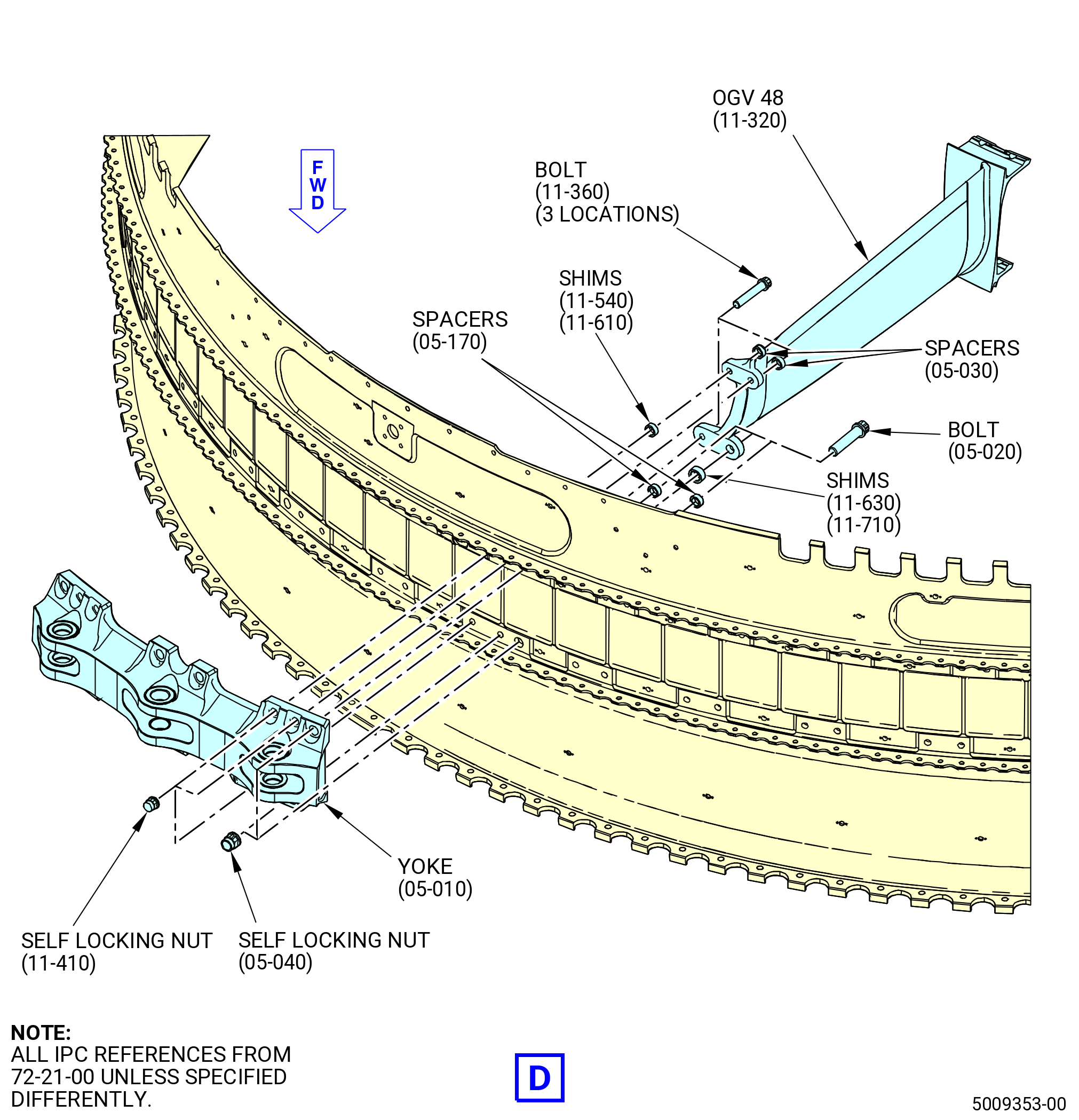

Figure 509   (Sheet 1 ) Removal of the Yoke from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 509   (Sheet 2 ) Removal of the Yoke from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 509   (Sheet 3 ) Removal of the Yoke from the Aft Fan Case
Subtask 72-21-00-040-122
J.Remove the thrust channels (01-061) (SIN 84116) and (01-071) (SIN 84118) from the aft fan case. Refer to Figure 510 and do as follows:
(1)Remove self-locking nuts (01-730) (SIN 84449), washers (01-105) (SIN 84535) and (01-115) (SIN 84536), and bolts (01-125) (SIN 8442P) from the thrust channels and aft fan case.
(2)Remove the self-locking nuts (01-101) (SIN 84440) and washers (01-111) (SIN 84534) from the screws (01-090) (SIN 84424) on the inboard side of the aft fan case.
(3)Remove the screws and the thrust channel from the outboard side of the aft fan case.
* * * FOR ALL PIP 2

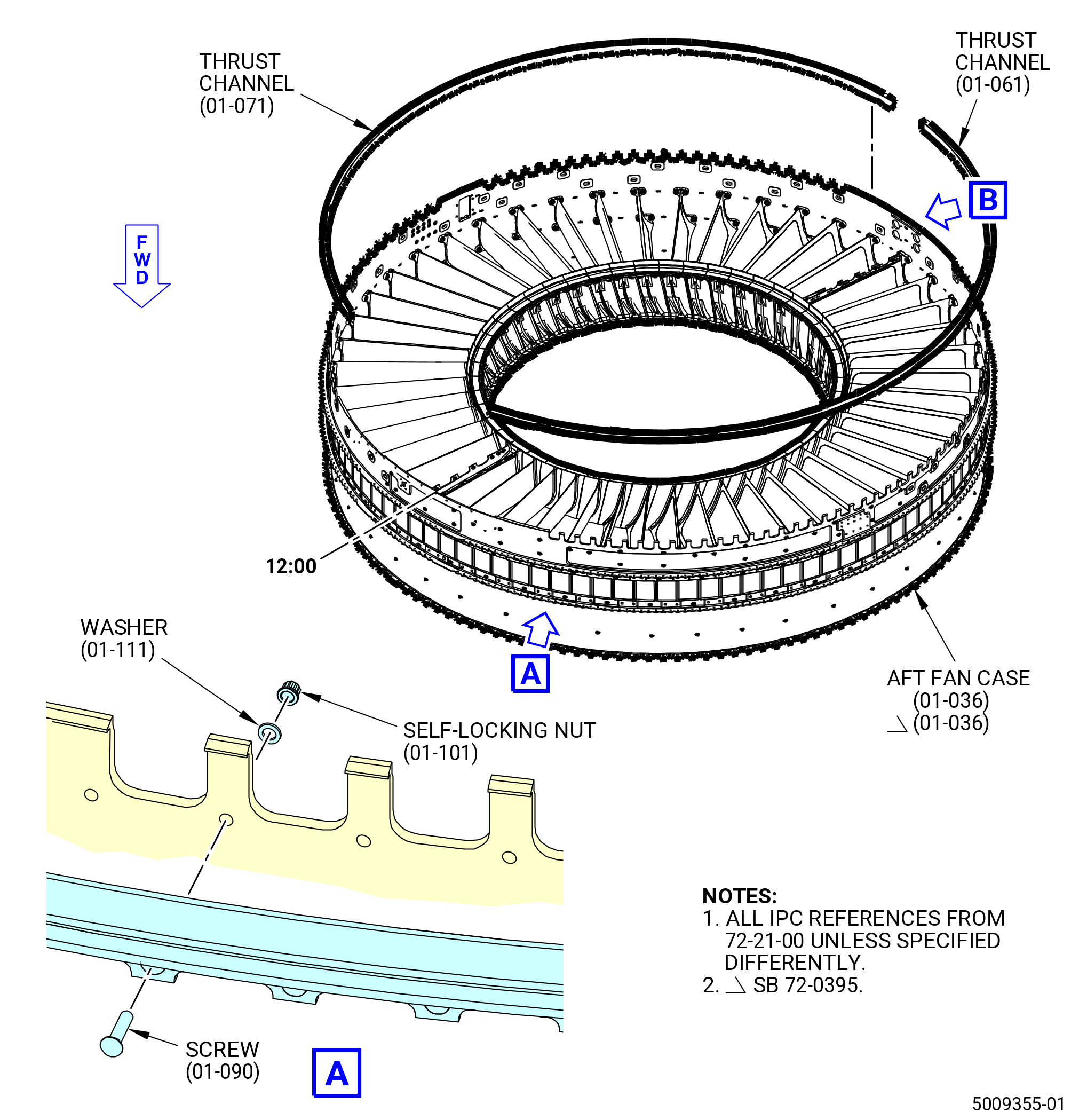

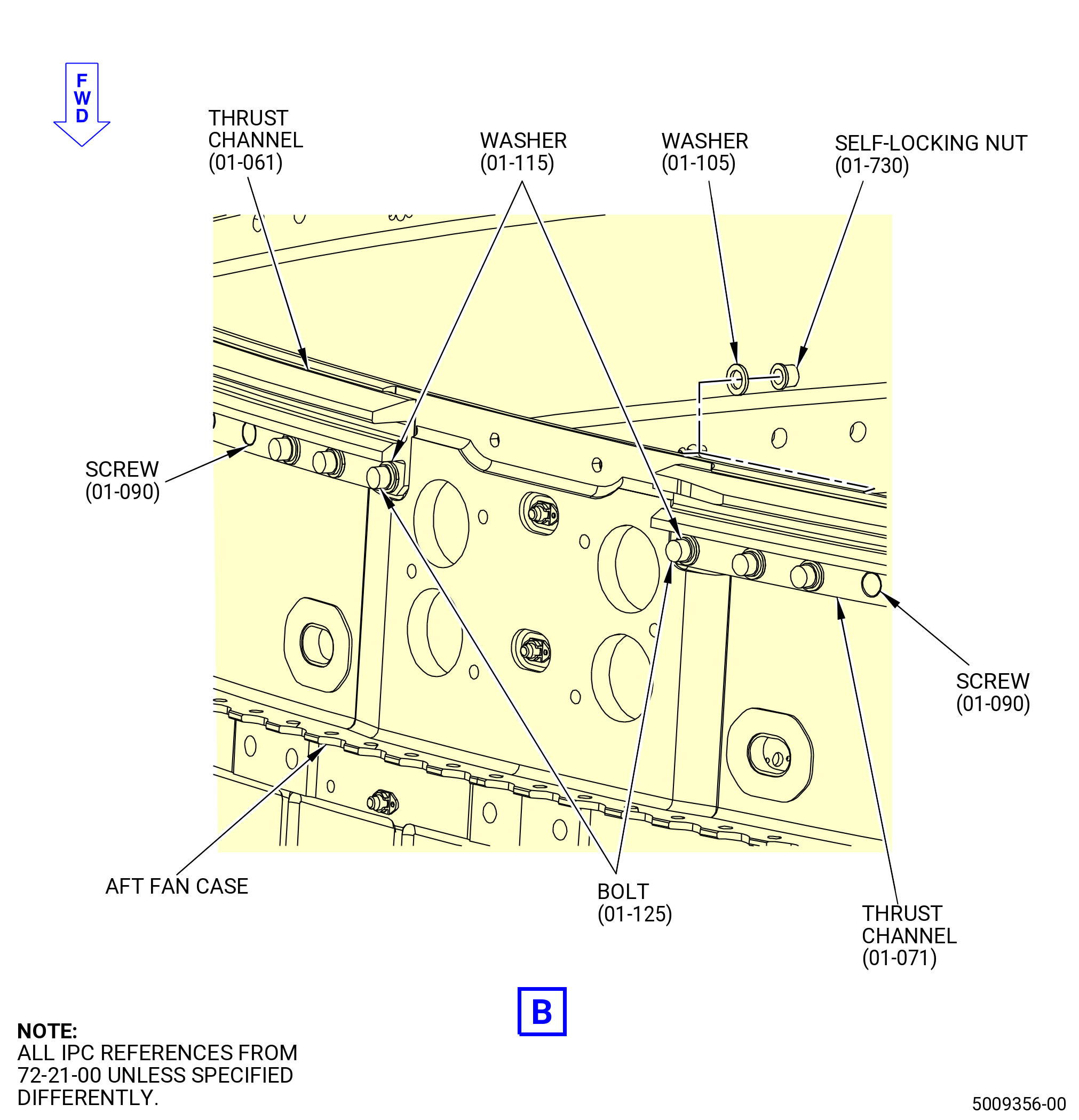

Figure 510   (Sheet 1 ) Removal of the Thrust Channels from the Aft Fan Case
* * * FOR ALL PIP 2
Figure 510   (Sheet 2 ) Removal of the Thrust Channels from the Aft Fan Case
Subtask 72-21-00-040-126
K.Remove the OGVs 1-48 from the aft fan case. Refer to Figure 511 and do as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(1)Lift the 11C3237   restrain fixture and the OGVs 1-48 from the aft fan case.
(2)Align the bushings on the 11C3237   restrain fixture with the pins on a floor mounted storage stand, as the 11C3237   restrain fixture is lowered on the support stand.
(3)Attach the 11C3237   restrain fixture to the floor mounted support stand.
(4)Remove the overhead hoist lift slings from the 11C3237   restrain fixture.
(5)Remove the OGVs 1-48 from the 11C3237   restrain fixture as follows:
(a)Support the OGV and remove the capscrews (item 15) from the aft inner mounting flange of the inner platform at 88 locations.
(b)Support the OGV and remove the capscrews (item 10) from the aft inner mounting flange of the inner platform at eight locations.
(c)Carefully lower the outer end of the OGV and lift the inner platform from the alignment pin (item 13) and the locator pin (item 7).
(6)Carefully keep the OGVs in storage and record the position where the OGV was removed.
(7)Put the 11C3237   restrain fixture in its storage location, and remove the lift straps from the hoist and the fixture.
* * * FOR ALL PIP 2

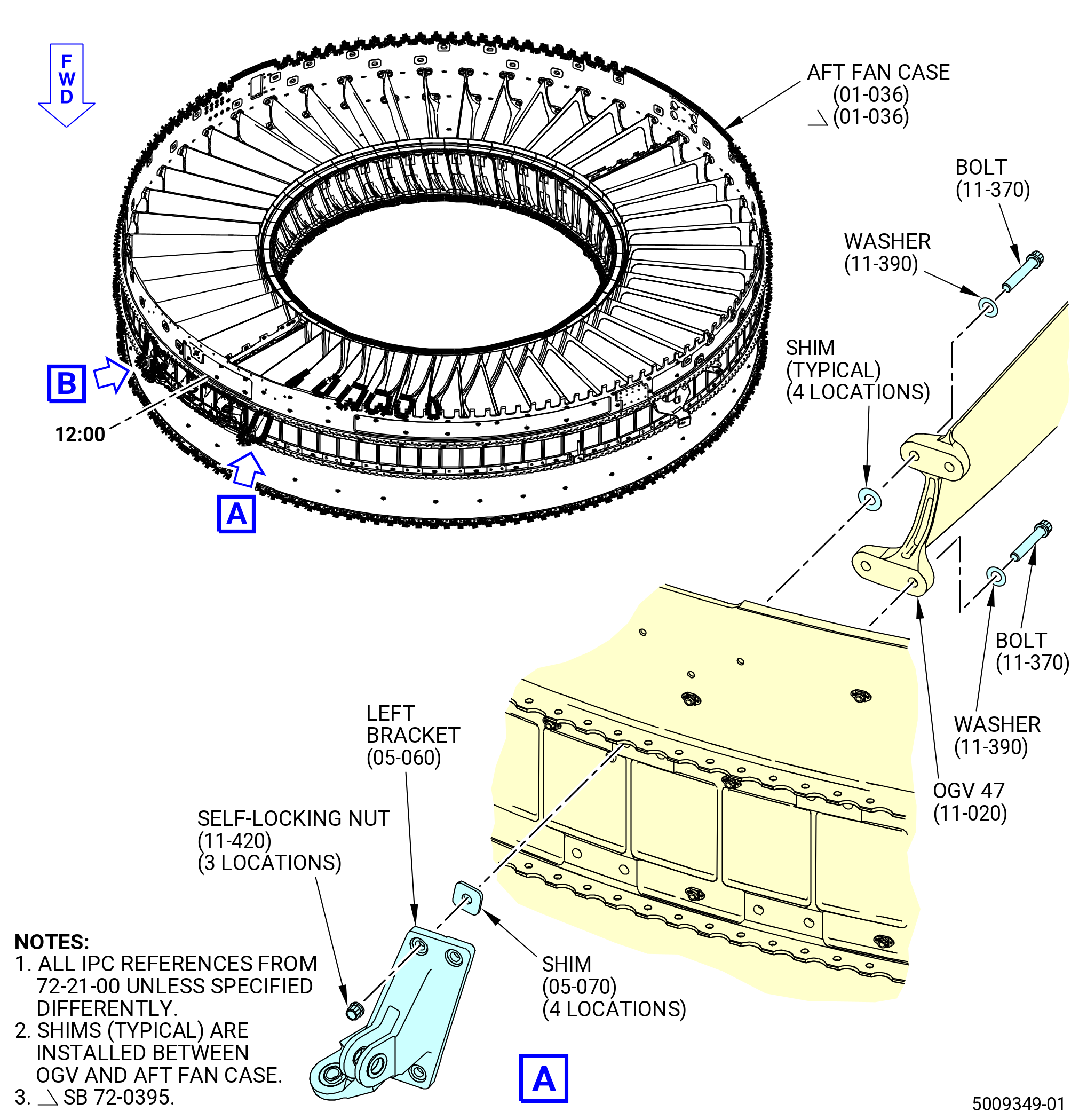

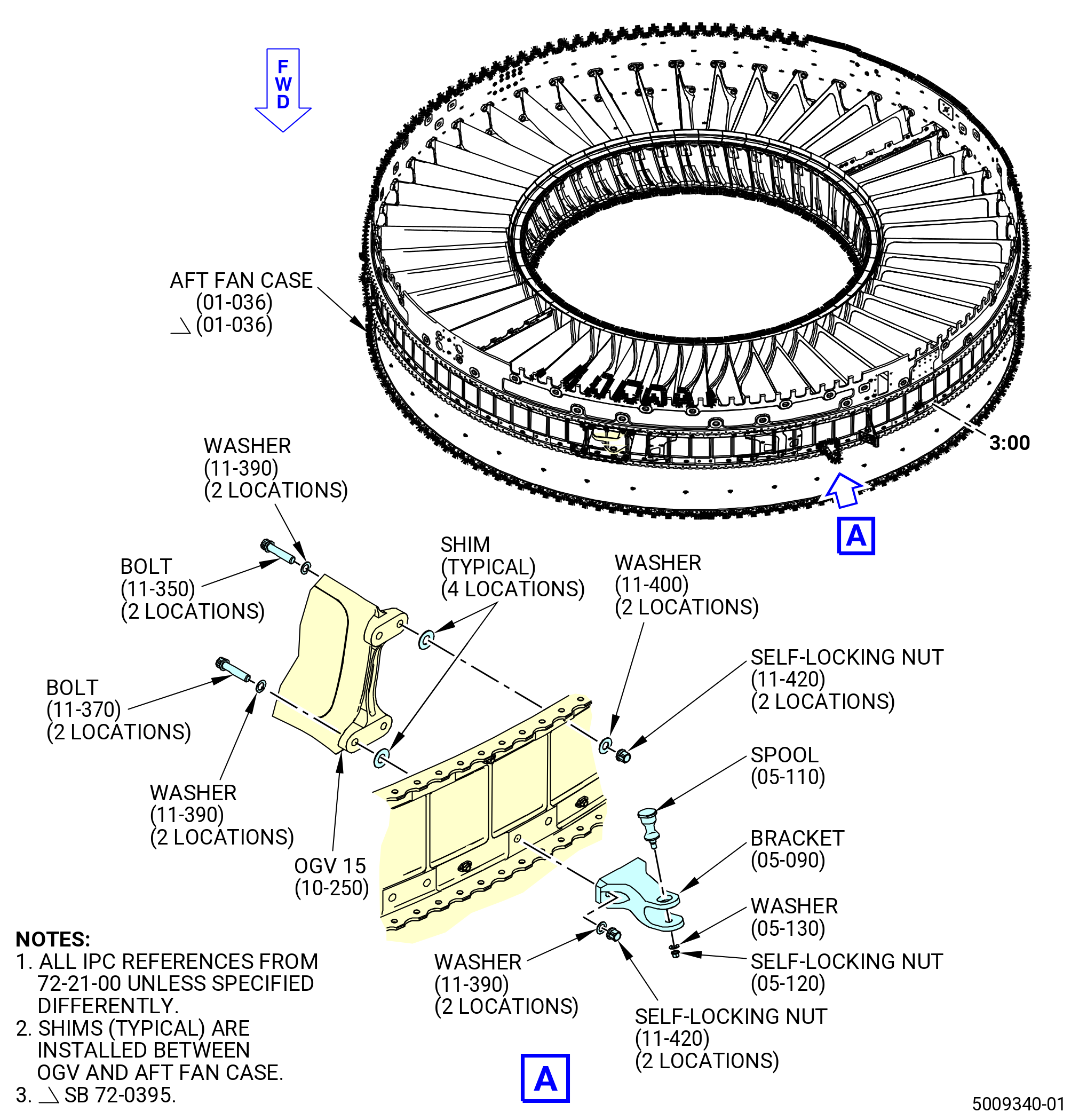

Figure 511   Removal of the OGVs from the Aft Fan Case
