* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
TASK 72-21-00-440-804
1 . General.
A.This procedure gives instructions to assemble the stator case assembly (01-020 , 72-00-01) (SIN 00109) thru the installation of the OGVs and OGV related hardware.
B.Make sure that there is no foreign material inside the aft fan case (01-035) (SIN 84100).
C.Before you do this procedure, read the Assembly and Disassembly Techniques section. Refer to TASK 70-10-00-800-009 (ASSEMBLY AND DISASSEMBLY TECHNIQUES) .
D.Make sure that the mating parts are serviceable and have no damage.
WARNING:
STODDARD SOLVENT IS TOXIC. USE PERSONAL PROTECTION EQUIPMENT.
WARNING:
ISOPROPYL ALCOHOL IS TOXIC AND FLAMMABLE. USE PERSONAL PROTECTION EQUIPMENT. USE IN A WELL-VENTILATED AREA.
E.Clean surfaces with C04-002  Stoddard solvent , or C04-035  isopropyl alcohol , or 50-50 alcohol blend.
F.Install all bolts with heads uppermost or forward unless noted otherwise.
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

11C3237G02
Fixture, Restrain - Installation Outer Guide Vane (restrain fixture)

11C4524G01
Bracket Set, Install - Mini Bracket Mounting (alignment bracket)

11C4636G01
Fixture, Assembly - Case Assembly Stator (base assembly)

11C4638G01
Fixture, Drill - Fan Stator Assembly (drill fixture)

4096680-066
Deleted
(2)Standard Tools and Equipment.

Description
Manufacturer

Bushing P/N UDB A23122 0.5291 inch (13.439 mm) (drill bushing)
Local Purchase

Bushing, for 0.627 inch (15.93 mm) Drill (drill bushing)
Local Purchase

Drill, 31/64 inch (12.30 mm)
Local Purchase

Drill, 39/64 inch (15.48 mm)
Local Purchase

Reamer, 0.502 inch (12.75 mm)
Local Purchase

Reamer, 0.626 inch (15.90 mm)
Local Purchase

Reamer Bushing, P/N UDB A23122 0.5021 inch (12.753 mm) (reamer bushing)
Local Purchase

Reamer Bushing, 0.627 inch (15.93 mm) (reamer bushing)
Local Purchase

Slow Speed Pneumatic Gun (air gun)
Local Purchase

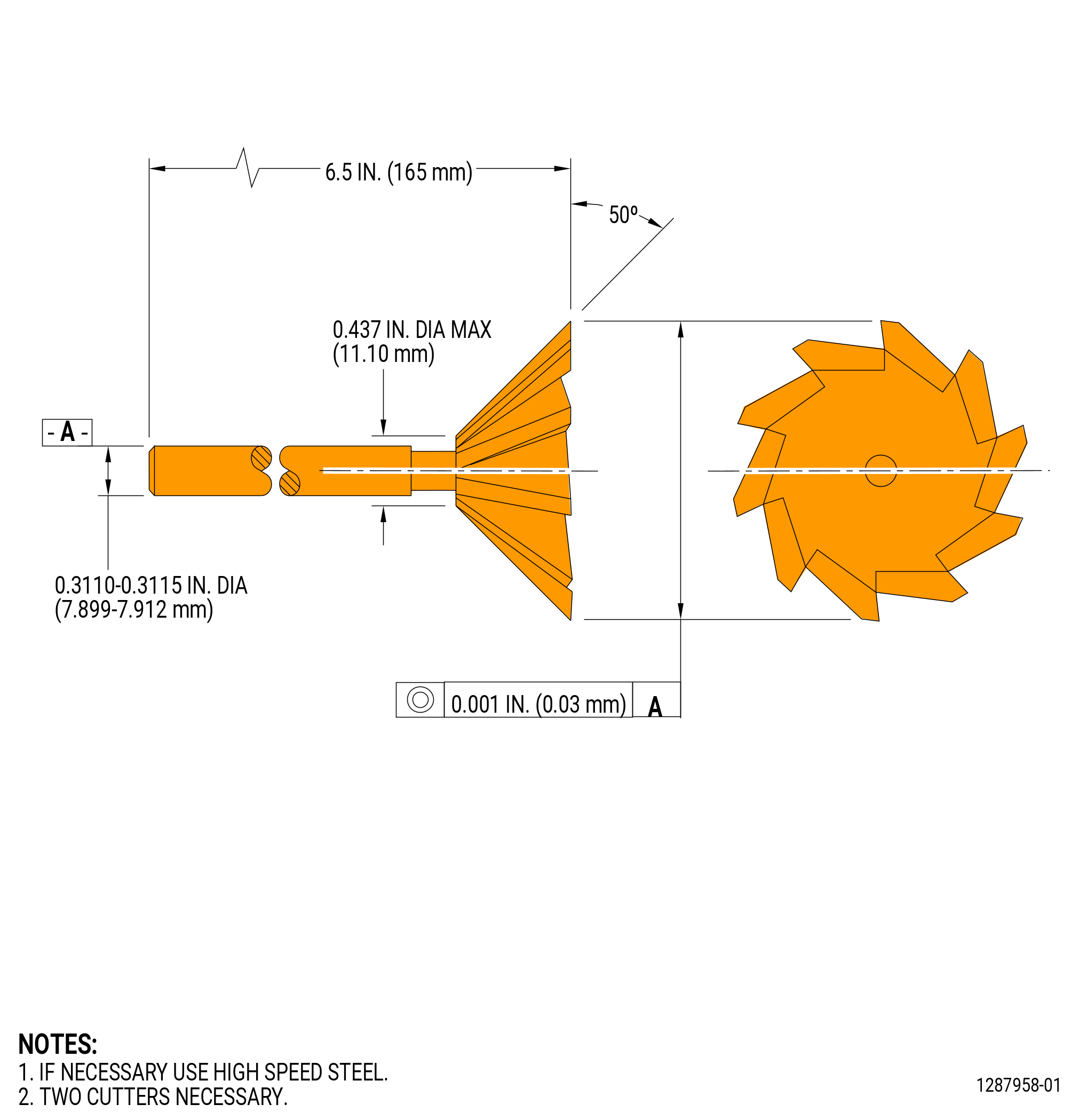

Chamfer Cutting Tool (chamfer tool) (Figure 1008))
Local Purchase

Drill Gun P/N 158QGDBV S400 (drill gun)
Quackenbush
(3)Locally Manufactured Tools. None.
B.Consumable Materials.

Code No.
Description

C02-047
Lubricant, Cutting Fluid (lubricant)

C02-058
Compound, Thread Lubricating (lubricant)

C03-001
Primer, Zinc Chromate (TT-P-1757 Type 1 or 2, Class C or Class N; AMS 3110, Color Y) (primer)

C03-100
Primer, Paint, Zinc-Molybdate, Alkyd Type (TT-P-645) (primer)

C04-002
Solvent, General (Stoddard solvent)

C04-035
Solvent, General (isopropyl alcohol)

C05-003
Marking Pens (marking pen)

C10-021
Tape, Plastic (tape)

C10-182
Cloth, Cleaning for Aircraft Structural (SAE-AMS 3819, BMS 15-5) (cloth)
C.Referenced Procedures. Refer to Engine Manual GEK 112851, unless instructed differently.

ATA No.
Description

70-10-00
Assembly and Disassembly Techniques

70-16-02
Temporary Marking

70-32-02
Fluorescent Penetrant Inspection

70-42-00
Blending and Removal of High Metal Procedures

70-43-07
Chemical Touch-Up Surface Refinishing Process for Aluminum

72-00-01
Assembly 001

72-00-01
Inspection 001

72-21-02
Inspection 001

72-21-60
Inspection 001
D.Expendable Parts. None.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1001   Fan Stator Case Assembly
3 . Procedure.
Subtask 72-21-00-440-431
A.Install the fan outlet guide vane OGV 1 pylon, OGVs 2-24, OGV 25 pylon, and OGVs 26-48, on the 11C3237   restrain fixture as follows:
(1)Record the part number for each of the 48 OGVs that will be installed. Refer to Figure 1002 and as follows:
•
OGVs 18-20, 32-34 (10-220) (SIN 8400A) six locations
•
OGVs 3-7 (10-230) (SIN 8400C) five locations
•
OGVs 8-12, 26, 27 (10-240) (SIN 8400D) seven locations
•
OGVs 13-17, 28-31 (10-250) (SIN 8400E) nine locations
•
OGVs 21, 35-38 (10-260) (SIN 8400F) five locations
•
OGVs 22-24, 39-41 (10-270) (SIN 8400G) six locations
•
OGVs 42-47 (10-280) (SIN 8400H) six locations
•
OGVs pylon (OGV 1) (10-290) (SIN 8400J)
•
OGVs pylon (OGV 25) (10-300) (SIN 8400K)
•
OGV 2 (10-310) (SIN 8400L)
•
OGV 48 (10-320) (SIN 8400M).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2)Attach a lift sling to the 11C3237   restrain fixture and lift it to put it on a floor mounted support stand. The support stands must be a minimum of 36.0 inches (914 mm) in height.
(3)Engage the pins on the floor stand with the corresponding bushings on the hub fixture to secure the 11C3237   restrain fixture to the floor stand.
(4)Remove the lift sling from the 11C3237   restrain fixture.
CAUTION:
MAKE SURE THAT EACH OGV IS INSTALLED CORRECTLY ON THE FRAME OF THE FIXTURE. THE OGVS MUST HAVE SUPPORT FOR CORRECT INSTALLATION.
(5)Install each OGV on the 11C3237   restrain fixture as follows:
(a)Install the OGVs into position on the 11C3237   restrain fixture as follows. Make sure that you install the OGVs in the correct position. Refer to Figure 1003.
1Use the locator pins (item 17) to align the OGVs at the bottom V groove above the frame (item 16) and use the top V groove to set the assembly position of the OGVs above the frame (item 16).
NOTE:
The OGV 1 pylon (10-290) (SIN 8400J) is installed at the TVCL mark (12:00 o'clock position).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

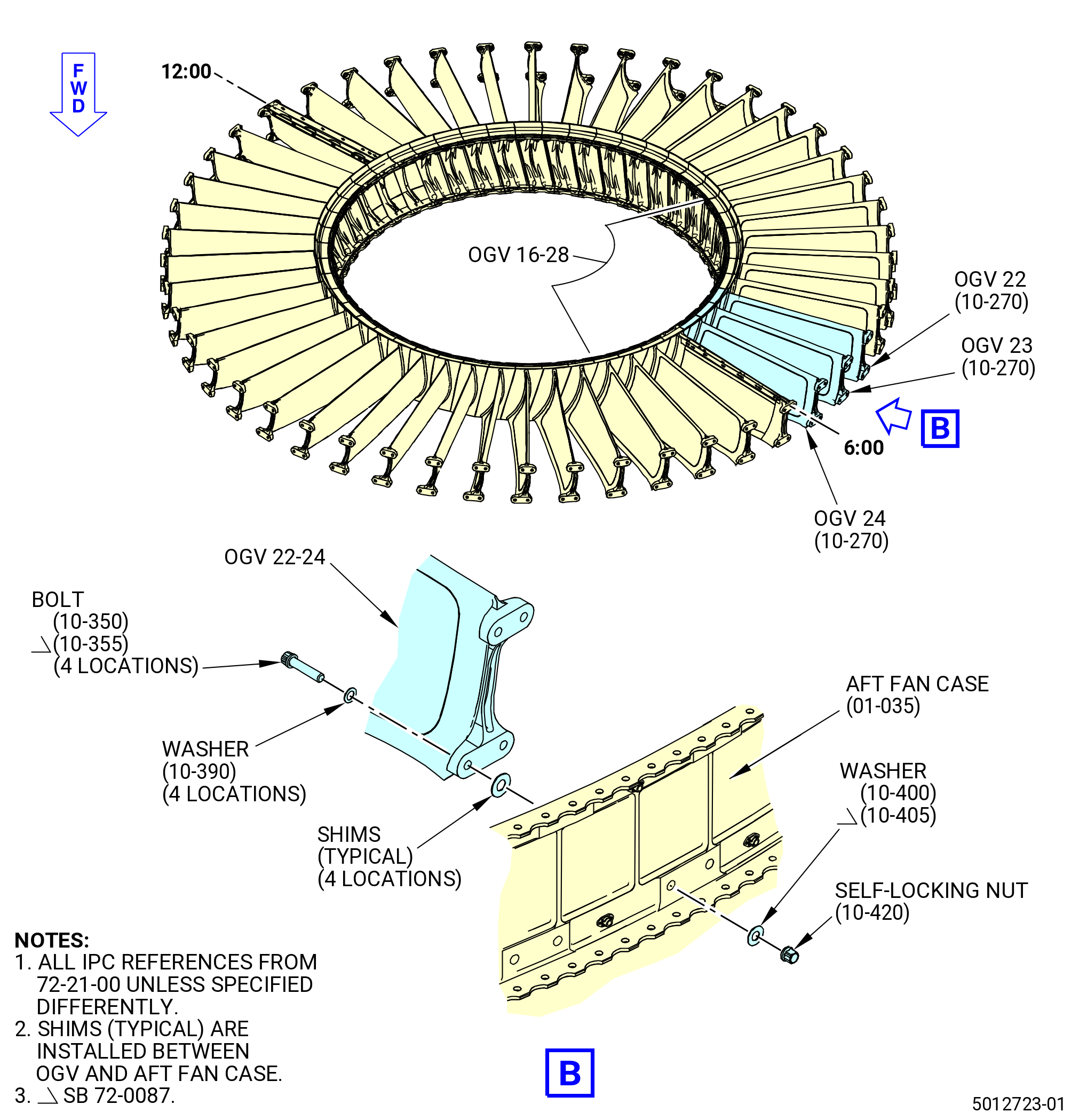

Figure 1002   Installation Location of the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

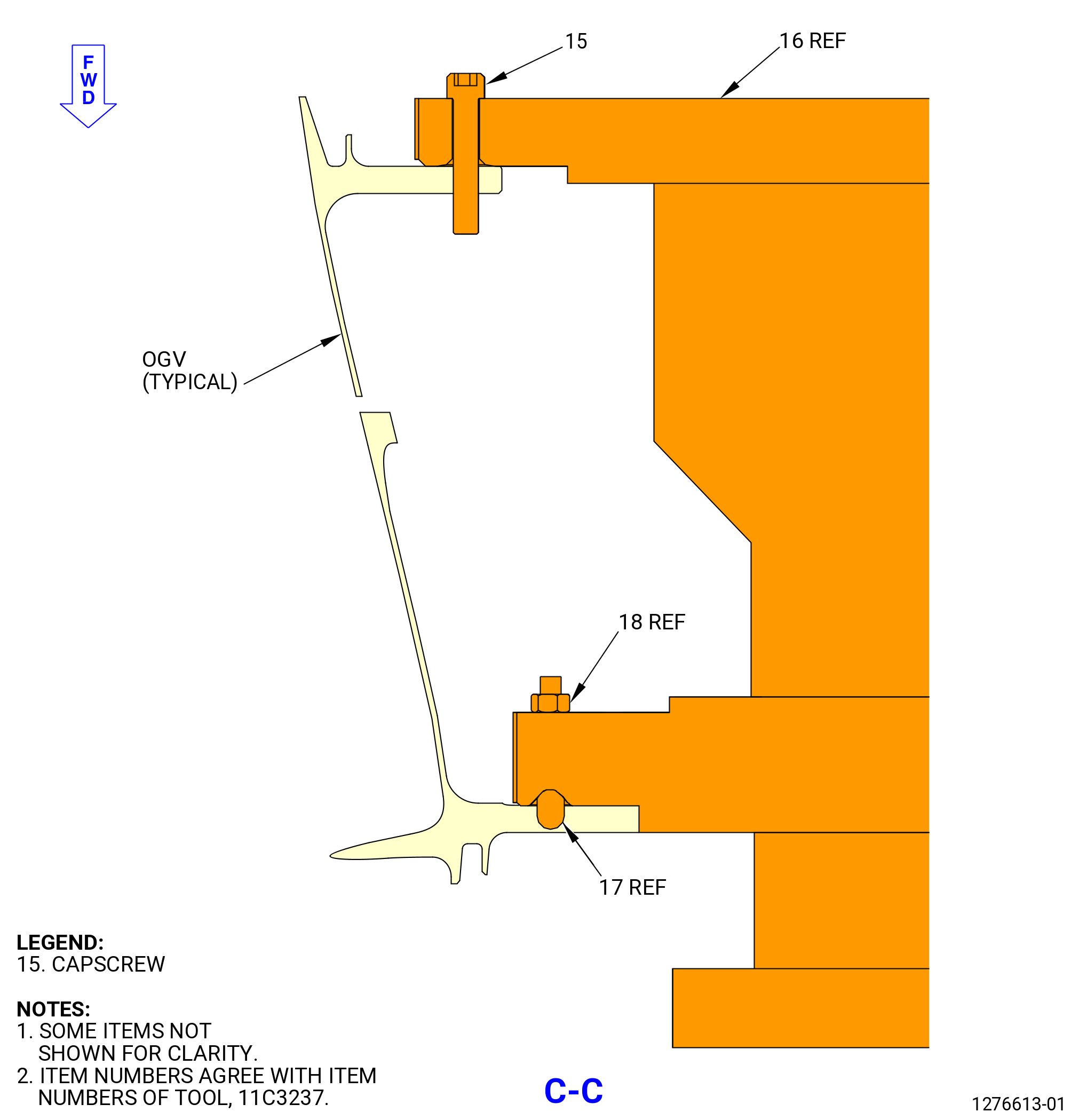

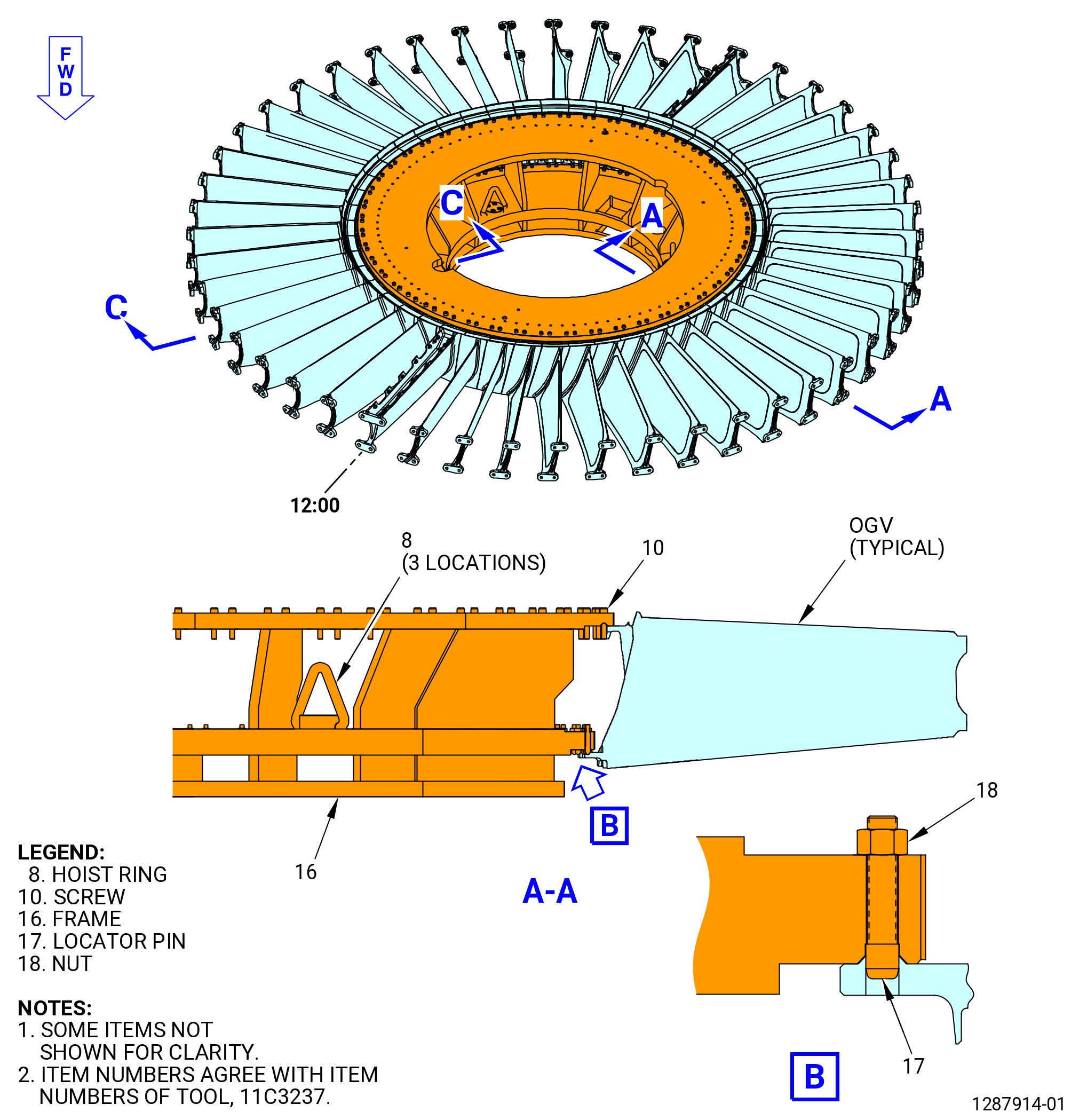

Figure 1003   (Sheet 1 ) Installation of the OGVs on the Restrain Fixture, 11C3237
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1003   (Sheet 2 ) Installation of the OGVs on the Restrain Fixture, 11C3237
Subtask 72-21-00-440-432
2Attach the OGVs to the 11C3237   restrain fixture with the capscrews (item 10) at hole locations 9-16 on the aft inner mounting flange of the inner platform.
3Attach the OGVs to the 11C3237   restrain fixture with the capscrews (item 15) at the hole locations that remain on the aft inner mounting flange of the inner platform.
(b)Tighten the capscrews (item 10 and 15) by hand.
(c)Make sure that the 48 OGVs are in the correct position on the 11C3237   restrain fixture.
Subtask 72-21-00-440-433
B.Attach the aft fan case (01-035) (SIN 84100) to the 11C4636   base assembly . Refer to Figure 1004 and do as follows:
(1)Remove the aft fan case from the shipping container as follows:
(a)Attach lift straps or equivalent to the aft fan case at four to six locations on the aft flange.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(b)Slowly lift the aft fan case from the shipping container with a lift fixture.
(2)Lower the aft fan case onto four stands or a table (or equivalent) to support the aft fan case.
(3)Install the aft fan case on the 11C4636   base assembly. Refer to Figure 1004 and do as follows:
(a)Make sure that the 11C4636   base assembly is on a level surface and the base fixture plate is flat 0.002 inch (0.05 mm) or less before the aft fan case is installed on the base assembly fixture.
(b)Make sure that the dial indicator (item 58) is at zero before the aft fan case is installed.
(c)Remove the cover (item 52) and make sure that the toggle clamps (item 37) and horizontal clamps (item 56) are in the open position.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(d)Lift the aft fan case and slowly lower it onto the 11C4636   base assembly with the forward flange downward and make sure that it points to the 11C4636   base assembly.
(e)Align the top vertical centerline (TVCL) of the aft fan case with the TVCL mark on the 11C4636   base assembly.
(f)Align the offset flange hole on the forward flange of the aft fan case with the clocking pin (item 13) of the 11C4636   base assembly.
(g)Put the 12 horizontal clamps (item 56) to hold the aft fan case.
(h)Put the locator button (item 48), dovetail (item 57), dial indicator (item 58), and bracket dovetail (item 59) on the body of the aft fan case. Do not put the locator button (item 48), dovetail (item 57), dial indicator (item 58), and bracket dovetail (item 59) against the flange of the aft fan case. Refer to Figure 1004.
(i)Make sure that the dial indicator (item 58) is at zero before starting the inspection.
(j)Put the locator button (item 48), dovetail (item 57), dial indicator (item 58), and bracket dovetail (item 59) at the 11:00 o'clock position with the locator block (item 4) set to zero.
(k)With the full weight of the aft fan case on the 11C4636   base assembly, slowly move the dial indicator (item 58) to each locator (items 3, 4, 5, and 12) around the aft fan case.
(l)Adjust the aft fan case to the center of the 11C4636   base assembly to a total run-out of 0.010 inch (0.25 mm) with a maximum of 0.020 inch (0.51 mm).
(4)Remove the lift straps or equivalent from the aft fan case.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1004   Installation of the Aft Fan Case onto the Base Assembly, 11C4636
Subtask 72-21-00-440-435
C.Install the 11C3237   restrain fixture with the 48 OGVs attached, to the aft fan case (01-035) (SIN 84100). Refer to Figure 1005 and as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
MAKE SURE THAT THE OGVS DO NOT TOUCH THE INSIDE OF THE AFT FAN CASE WHEN YOU INSTALL THEM. THE OUTER BOSSES OF THE OGVS CAN CAUSE SCRATCHES AND DAMAGE TO THE ANTI-CORROSION PRIMER ON THE INSIDE SURFACE OF THE AFT FAN CASE.
(1)Lift the 11C3237   restrain fixture with the three hoist rings (item 8) and slowly lower it onto the 11C4636   base assembly. Hold the OGVs and the 11C3237   restrain fixture to prevent it from turning when is lifted. Refer to Figure 1003 and Figure 1005.
NOTE:
Two people are necessary to lift the OGVs and the fixture.
(a)Make sure that the holes in the 11C3237   restrain fixture align with the two large pins on the 11C4636   base assembly, and the 12:00 o'clock position on the aft fan case is aligned with the TOP VERT mark on the 11C3237   restrain fixture.
(2)Align the TVCL of the 11C3237   restrain fixture with the TVCL of the 11C4636   base assembly.
(3)Lower the 11C3237   restrain fixture and the OGVs into the aft fan case.
(4)Remove the hoist from the 11C3237   restrain fixture.
(5)Make sure that the OGVs holes are aligned with the aft fan case holes.
(6)Put the OGV 1 pylon (10-290) (SIN 8400J) at position 1.
(7)Measure all 48 OGVs and record the radial gap between the OGV at the position 1 outer bosses (four positions) and the aft fan case inner diameter.
NOTE:
This measurement will give you the distances necessary for shims.
(8)Make sure that all OGVs are in the correct positions.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

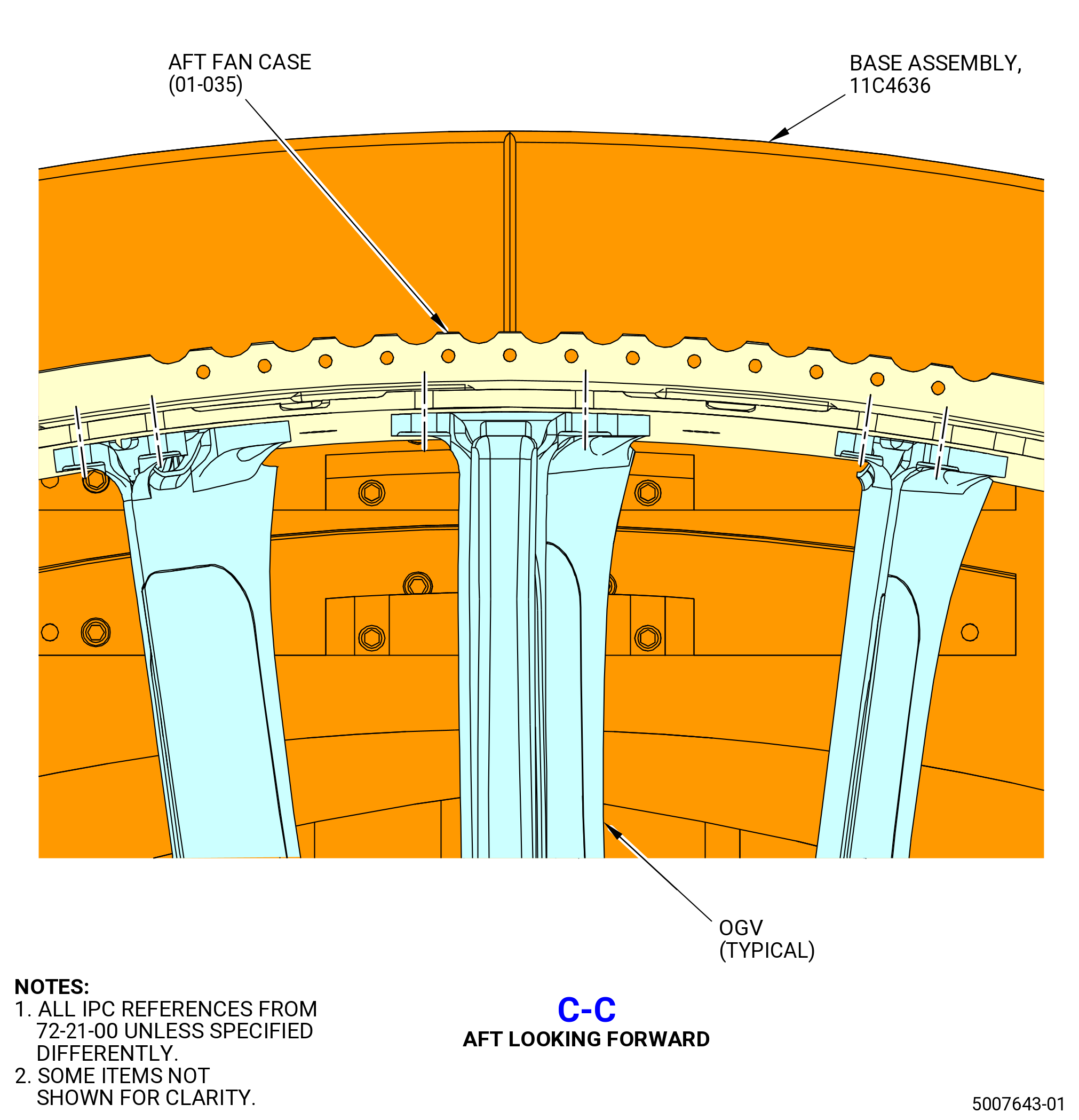

Figure 1005   (Sheet 1 ) Installation of the Restrain Fixture, 11C3237, on the Base Assembly, 11C4636
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1005   (Sheet 2 ) Installation of the Restrain Fixture, 11C3237, on the Base Assembly, 11C4636
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1005   (Sheet 3 ) Installation of the Restrain Fixture, 11C3237, on the Base Assembly, 11C4636
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1005   (Sheet 4 ) Installation of the Restrain Fixture, 11C3237, on the Base Assembly, 11C4636
Subtask 72-21-00-440-436
(9)Calculate the number of shims necessary to fill the radial gaps with the criteria that follows:
NOTE:
There are shims (10-540) (SIN 8417C), (10-550) (SIN 8417D), (10-560) (SIN 8417E), (10-570) (SIN 8417F), (10-580) (SIN 8417G), (10-590) (SIN 8417H), (10-600) (SIN 8417J), (10-610) (SIN 8417K), (10-620) (SIN 8417L), (10-630) (SIN 8417M), (10-640) (SIN 8417N), (10-650) (SIN 8417P), (10-660) (SIN 8417R), (10-670) (SIN 8417S), (10-680) (SIN 8417T), (10-690) (SIN 8417U), (10-700) (SIN 8417V), (10-710) (SIN 8417W), (05-030) (SIN 8417Y) of different thickness available for OGVs 2 and 48.
NOTE:
There are shims (10-450) (SIN 84170), (10-460) (SIN 84171), (10-470) (SIN 84172), (10-480) (SIN 84173), (10-490) (SIN 84174), (10-500) (SIN 84175), (10-510) (SIN 84176), (10-520) (SIN 84177), (10-530) (SIN 84178) of different thickness available for OGVs 3 thru 47.
(a)You can use a maximum of three shims at each hole to fill the radial gap at each OGV boss location. The total installed shim thickness must be within 0.055-0.145 inch (1.40-3.68 mm).
(b)A maximum radial gap of 0.006 inch (0.15 mm) is permitted after the shims are installed and before each OGV vane is tightened to the aft fan case.
(c)If the shim thickness and radial gap are difficult to get, the 11C3237   restrain fixture must be removed from the 11C4636   base assembly and Subtask 72-21-00-440-433 (paragraph 3.B.) thru Subtask 72-21-00-440-435 (paragraph 3.C.) done again to get the correct radial gap and the shim thickness.
(d)Install a shim to get the correct bore position between the aft fan case (01-035) (SIN 84100) and the left cowl support bracket (05-060) (SIN 98113) and the right cowl support bracket (05-050) (SIN 98112) as follows:
1The total thickness of the shims must be 0.100-0.160 inch (2.54-4.06 mm).
2All shim thickness must be 0.005 inch (0.13 mm) within adjacent shim.
Subtask 72-21-00-440-437
D.Install the yoke (05-010) (SIN 84803) on the aft fan case (01-035) (SIN 84100) as follows:
(1)Put a mark on OGVs 1, 2, and 48 with a temporary marker to show their positions. Refer to TASK 70-16-02-350-017 (TEMPORARY MARKING).
(2)Put a temporary mark of the OGV position number on the shims after you remove them. Refer to TASK 70-16-02-350-017 (TEMPORARY MARKING). Use C10-021  tape and a C05-003  marking pen.
(3)Measure the 12 aft fan case boltholes at the yoke position for OGVs 1, 2, and 48 as follows:
(a)If the aft fan case holes at the yoke position have a diameter of 0.501-0.503 inch (12.73-12.78 mm) at six locations and a diameter of 0.626-0.628 inch (15.90-15.95 mm) at six locations, go to Subtask 72-21-00-220-026 (paragraph 3.H.).
(b)If the 12 aft fan case holes at the yoke position have a diameter less than 0.501 inch (12.73 mm), go to Subtask 72-21-00-220-026 (paragraph 3.H.).
Subtask 72-21-00-320-029
WARNING:
METAL PARTICLES FROM MACHINING CAN CAUSE DAMAGE, INJURY, OR IRRITATION TO YOU. USE PERSONAL PROTECTION EQUIPMENT.
CAUTION:
METAL PARTICLES FROM MACHINING CAN CAUSE DAMAGE TO PARTS. USE A PROTECTIVE COVER TO KEEP METAL PARTICLES FROM THE OGV.
(4)Drill the aft fan case (01-035) (SIN 84100) that is not fitted for the yoke (05-010) (SIN 84803), at the pylon OGV 1 pylon, OGV 2, and OGV 48 as follows. Drill at hole locations shown for holes DN and DP. Refer to Figure 1006.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

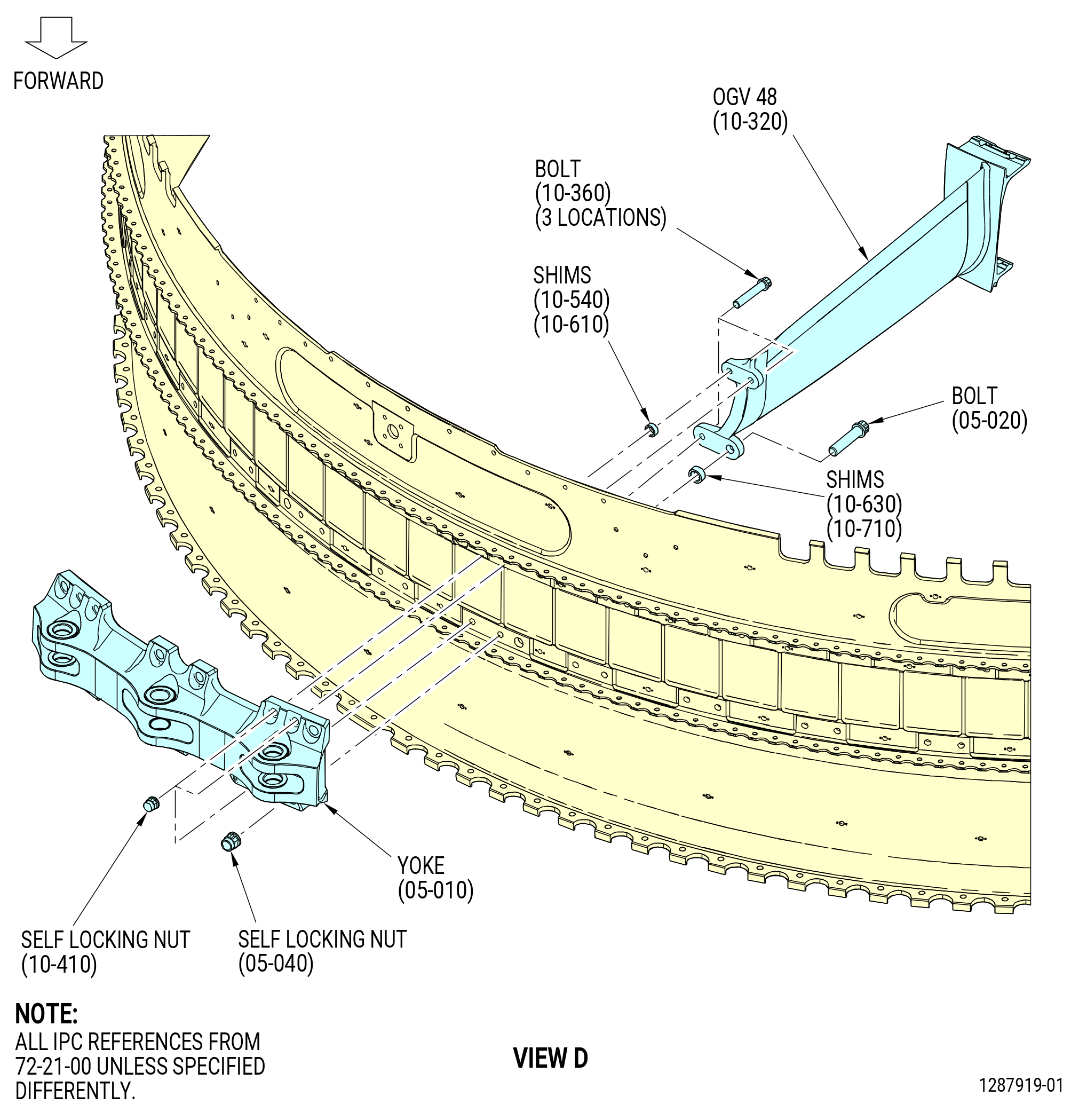

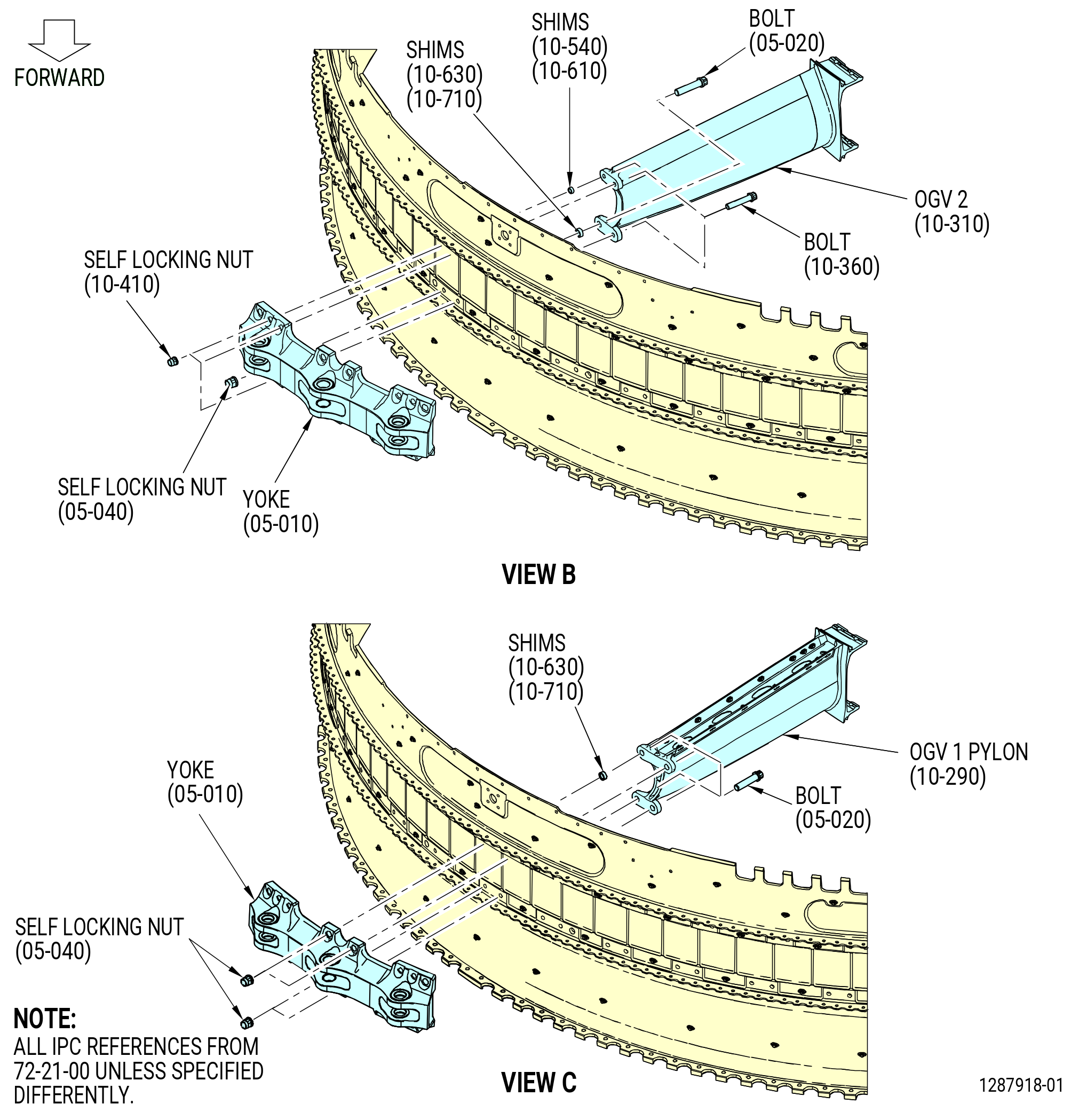

Figure 1006   (Sheet 1 ) Aft Fan Case Yoke
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1006   (Sheet 2 ) Aft Fan Case Yoke
Subtask 72-21-00-160-008
WARNING:
ISOPROPYL ALCOHOL IS TOXIC AND FLAMMABLE. USE PERSONAL PROTECTION EQUIPMENT. USE IN A WELL-VENTILATED AREA.
(a)Clean the surface of the drill fixture that will be mounted to the aft fan case with C04-035  isopropyl alcohol.
Subtask 72-21-00-320-030
WARNING:
METAL PARTICLES FROM MACHINING CAN CAUSE DAMAGE, INJURY, OR IRRITATION TO YOU. USE PERSONAL PROTECTION EQUIPMENT.
CAUTION:
METAL PARTICLES FROM MACHINING CAN CAUSE DAMAGE TO PARTS. USE A PROTECTIVE COVER TO KEEP METAL PARTICLES FROM THE OGV.
(b)Put a yellow protective tape on the open end of the OGVs 1, 2, and 48.
(c)Attach plastic to the aft fan case inner wall with plastic tape to restrain the C02-047  lubricant and metal particles.
(d)Put plastic tape on the aft fan case flange where the drill fixture will be mounted.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(e)Attach an overhead hoist and lift slings to the hoist swivel rings (item 11) of the 11C4638   drill fixture and lift the support bracket (item 2 or 7) onto the aft fan case (01-035) (SIN 84100) aligned with the TVCL.
CAUTION:
MAKE SURE THAT YOU ALIGN THE FIXTURE MARKINGS WITH THE CORRECT ENGINE CLOCK POSITION ON THE AFT FAN CASE.
(f)Attach the 11C4638   drill fixture to the aft fan case at OGV’s No. 48, 1, and 2. Refer to Figure 1006 (Sheet 1) and do as follows:
1Insert the locator pin (item 4) at location 9 through the aft fan case and the OGV pylon. Attach tightly with a flat washer (item 13) and a hexagonal nut (item 14) to prevent movement.
CAUTION:
THERE MUST BE TWO PINS INSTALLED ON EACH OGV FOR CORRECT ALIGNMENT WHEN YOU DRILL.
2Insert a locator pin (item 4) at location 3 through the aft fan case and the OGV pylon. Attach tightly with a flat washer (item 13) and a hexagonal nut (item 14) to prevent movement.
3Insert locator pins (item 3) at locations 1, 6, 8, and 11 through the aft fan case and the OGV pylon. Attach each one tightly with a screw lock (item 12), flat washer (item 13), and a hexagonal nut (item 14) to prevent movement.
4Deleted.
5Deleted.
Subtask 72-21-00-320-031
(g)Install a drill bushing for a 31/64 inch (12.30 mm) drill and a 31/64 inch (12.30 mm) drill on the drill gun. Drill holes through the aft fan case (01-035) (SIN 84100) and the OGV’s at locations 2, 4, 5, 7, 10, and 12. Refer to Figure 1006 (Sheet 1).
(h)Install a drill bushing for a 1/2 inch (12.70 mm) drill and a 1/2 inch (12.70 mm) reamer on the drill gun. Ream holes through the aft fan case and the OGV’s at locations 2 and 5. Refer to Figure 1006 (Sheet 1).
(i)Install a drill bushing for a 39/64 inch (15.47 mm) drill and a 39/64 inch (15.47 mm) drill on the drill gun. Drill holes through the aft fan case and the OGV’s at locations 4, 7, 10, and 12. Refer to Figure 1006 (Sheet 1).
(j)Install a drill bushing for a 5/8 inch (15.88 mm) drill and a 5/8 inch (15.88 mm) reamer on the drill gun. Ream holes through the aft fan case and the OGV’s at locations 4, 7, 10, and 12. Refer to Figure 1006 (Sheet 1).
(k)Insert the locator pins (item 5) at locations 2 and 5 through the aft fan case and the OGV pylon. Attach each one tightly with a flat washer (item 13) and a hexagonal nut (item 14) to prevent movement. Refer to Figure 1006 (Sheet 1).
(l)Insert the locator pins (item 6) at locations 4, 7, 10, and 12 through the aft fan case and the OGV pylon. Attach each one tightly with a flat washer (item 13) and a hexagonal nut (item 14) to prevent movement. Refer to Figure 1006 (Sheet 1).
(m)Remove the locator pins (items 3 and 4) at locations 1, 3, 6, 8, 9, and 11 from the 11C4638   drill fixture. Refer to Figure 1006 (Sheet 1).
(n)Install a drill bushing for a 31/64 inch (12.30 mm) drill and a 31/64 inch (12.30 mm) drill on the drill gun. Drill holes through the aft fan case and the OGV’s at locations 1, 6, 8, and 11. Refer to Figure 1006 (Sheet 1).
(o)Install a drill bushing for a 1/2 inch (12.70 mm) drill and a 1/2 inch (12.70 mm) reamer on the drill gun. Ream holes through the aft fan case and the OGV’s at locations 1, 6, 8, and 11. Refer to Figure 1006 (Sheet 1).
(p)Install a drill bushing for a 39/64 inch (15.47 mm) drill and a 39/64 (15.47 mm) inch drill on the drill gun. Drill holes through the aft fan case and the OGV’s at locations 3 and 9. Refer to Figure 1006 (Sheet 1).
(q)Install a drill bushing for a 5/8 inch (15.88 mm) drill and a 5/8 inch (15.88 mm) reamer on the drill gun. Ream holes through the aft fan case and the OGV’s at locations 3 and 9. Refer to Figure 1006 (Sheet 1).
(r)Remove all the remaining drill bushings and locator pins from the tool and store them in the container (item 10).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(s)Attach a lift the fixture with the applicable capacity to the hoist swivel rings (item 11).
(t)Lift the support brackets (item 2 or 7) and remove them from the engine.
(u)Make sure that the final dimensions of the drilled holes agree to the ones shown in Figure 1006.
Subtask 72-21-00-320-032
(v)Deleted.
(w)Deleted.
(x)Deleted.
(y)Deleted.
NOTE:
Deleted.
(z)Deleted.
(aa)Deleted.
Subtask 72-21-00-320-033
(ab)Deleted.
(ac)Deleted.
(ad)Deleted.
(ae)Deleted.
Subtask 72-21-00-320-034
WARNING:
DELETED.
(af)Deleted.
(ag)Deleted.
NOTE:
Deleted.
(ah)Deleted.
(ai)Deleted.
(aj)Deleted.
(ak)Deleted.
(al)Deleted.
(am)Deleted.
(an)Deleted.
(ao)Deleted.
(ap)Deleted.
(aq)Deleted.
(ar)Deleted.
(as)Deleted.
(at)Deleted.
(au)Deleted.
Subtask 72-21-00-320-035
(av)Deleted.
Subtask 72-21-00-320-036
(5)Deburr all the drilled holes on the aft fan case (01-035) (SIN 84100). Refer to TASK 70-42-00-350-002 (BLENDING AND REMOVAL OF HIGH METAL PROCEDURES).
WARNING:
METAL PARTICLES FROM MACHINING CAN CAUSE DAMAGE, INJURY, OR IRRITATION TO YOU. USE PERSONAL PROTECTION EQUIPMENT.
(6)Remove all sharp edges from the drilled holes DN and DP in the aft fan case and OGV 1 pylon (10-290) (SIN 8400J), OGV 2 (10-310) (SIN 8400L), and OGV 48 (10-320) (SIN 8400M) as follows. Refer to Figure 1006.
(a)Chamfer holes DN to 0.57-0.59 inch (14.48-14.99 mm).
(b)Chamfer holes DP to 0.71-0.73 inch (18.03-18.54 mm).
(7)Install a location bushing in the 11C4638   drill fixture drilled hole locations. If necessary, make a location bushing that fits the shank of the chamfer tool and the fixture hole. Refer to Figure 1007.
(8)Install the chamfer tool (from the far side) through the OGV vane, the aft fan case, and the location bushing. Refer to Figure 1007.
(9)Attach the chamfer tool in the chuck of an air gun.
(10)Start the air gun and set it to the slowest run speed.
CAUTION:
THE CHAMFER SURFACE FINISH MUST BE AS SMOOTH OR SMOOTHER THAN A NEW BOLTHOLE AT AN UNDRILLED LOCATION.
(11)Retract the air gun until it touches the OGV with the chamfer, then lightly machine the chamfer.
(12)Stop the air gun and remove the chamfer.
(13)Remove the air gun.
(14)Do a check of the dimensions of the chamfer holes. Refer to Figure 1006.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1007   Chamfer Tool (Typical)
Subtask 72-21-00-320-037
(15)Do the procedure again for the remaining holes (in the same axial plane)
(16)Carefully remove unwanted material from the drilled areas.
Subtask 72-21-00-100-004
(17)Deleted.
Subtask 72-21-00-440-438
(18)Put a temporary mark on the three drilled OGVs (positions 1, 2, and 48) with their aft fan case positions. Refer to TASK 70-16-02-350-017 (TEMPORARY MARKING).
(19)Remove the OGVs 1, 2, and 48 from the 11C3237   restrain fixture.
Subtask 72-21-00-350-015
(20)Remove all sharp edges from the drilled holes DN and DP in the aft fan case (01-035) (SIN 84100) and OGV 1 pylon (10-290) (SIN 8400J), OGV 2 (10-310) (SIN 8400L), and OGV 48 (10-320) (SIN 8400M). Refer to Figure 1006 and as follows:
(a)Chamfer holes DN to 0.57 to 0.59 inch (14.48 to 14.99 mm).
(b)Chamfer holes DP to 0.71 to 0.73 inch (18.03 to 18.54 mm).
(21)Remove the plastic tap from the aft fan case and the OGVs.
Subtask 72-21-00-110-045
WARNING:
ISOPROPYL ALCOHOL IS TOXIC AND FLAMMABLE. USE PERSONAL PROTECTION EQUIPMENT. USE IN A WELL-VENTILATED AREA.
WARNING:
STODDARD SOLVENT IS TOXIC. USE PERSONAL PROTECTION EQUIPMENT.
CAUTION:
REMOVE ALL UNWANTED MATERIAL BEFORE YOU CLEAN. UNWANTED MATERIAL IN THE DRILLED AREAS CAN CAUSE DAMAGE TO THE COMPONENTS.
E.Clean the mating surface of the aft fan case (01-035) (SIN 84100), OGV 1 pylon (10-290) (SIN 8400J), OGV 2 (10-310) (SIN 8400L), and OGV 48 (10-320) (SIN 8400M) and the drilled areas of the aft fan case. Use a clean, white C10-182  cloth wet with C04-002  Stoddard solvent, C04-035  isopropyl alcohol, or 50-50 alcohol blend.
Subtask 72-21-00-230-005
F.Do a fluorescent penetrant inspection of the drilled areas as follows. Refer to TASK 70-32-02-230-001 (FLUORESCENT PENETRANT INSPECTION). Use a Class A penetrant, but use Class B acceptance data.
•
The 12 aft fan case holes at the drilled OGV locations
•
The 12 outer platform OGV holes.
Subtask 72-21-00-380-131
G.Do a surface refinish of the 12 drilled holes on the aft fan case (84100). Refer to TASK 70-43-07-380-007 (CHEMICAL TOUCH-UP SURFACE REFINISHING PROCESS FOR ALUMINUM) with C03-001  primer or C03-100   primer.
(1)Apply C03-001  primer or C03-100  primer to the inner hole diameters on the aft fan case.
Subtask 72-21-00-220-026
H.Measure and record each of the six drilled as follows:
(1)OGV holes DP at OGVs 1, 2, and 48. The drilled boltholes must be a 0.501-0.503 inch (12.73-12.78 mm) in diameter. Refer to Figure 1006.
(2)Aft fan case (01-035) (SIN 84100) holes DN at OGV 1 pylon, OGV 2, and OGV 48. The holes must be a 0.626 to 0.628 inch (15.90 to 15.95 mm) in diameter.
Subtask 72-21-00-440-439
I.Install the yoke (05-010) (SIN 84803) at OGV 1 pylon (10-290) (SIN 8400J), OGV 2 (10-310) (SIN 8400L), and OGV 48 (10-320) (SIN 8400M) as follows. Refer to Figure 1008.
(1)Make sure that the OGVs 24 thru 28 have been shimmed.
Subtask 72-21-00-380-132
(2)Apply C03-072  primer to the hardware and holes that follow:
•
Shank and bearing surfaces of the bolts (10-360) (SIN 84123)
•
Shims
•
Inside of the mating surfaces of the holes in OGV pylon 1 and the OGVs 2 and 48
•
Yoke (05-010) (SIN 84803).
NOTE:
You must install the bolts and shims while they are wet with primer.
Subtask 72-21-00-640-102
(3)Apply C02-058  lubricant to the bolt threads.
Subtask 72-21-00-440-440
(4)Attach the yoke (05-010) (SIN 84803) to the two sides of the outer platform of OGV 1 pylon and the outside of OGV 2 and OGV 48. Use the bolts (10-360) (SIN 84123), shims, and self locking nuts (10-410) (SIN 84141).
(5)Tighten the self locking nuts (05-040) (SIN 84840), (10-410) (SIN 84141) on the bolts (10-360) (SIN 84123), (05-020) (SIN 84124) at OGV 1 pylon, OGV 2, and OGV 48 enough to prevent movement. Do not torque at this time.
(6)Remove the 11C3237   restrain fixture from the aft fan case (01-035) (SIN 84100).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1008   (Sheet 1 ) Installation of the Yoke
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1008   (Sheet 2 ) Installation of the Yoke
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1008   (Sheet 3 ) Installation of the Yoke
Subtask 72-21-00-440-441
J.Prepare the brackets, OGVs, and aft fan case (01-035) (SIN 84100) for installation as follows:
Subtask 72-21-00-110-046
(1)Clean mating surfaces to ensure electrical bonding as follows:
WARNING:
STODDARD SOLVENT IS TOXIC. USE PERSONAL PROTECTION EQUIPMENT.
WARNING:
ISOPROPYL ALCOHOL IS TOXIC AND FLAMMABLE. USE PERSONAL PROTECTION EQUIPMENT. USE IN A WELL-VENTILATED AREA.
(a)Clean the mating surfaces of the following components with C04-002  Stoddard solvent, or C04-035  isopropyl alcohol, or 50-50 alcohol blend:
•
Aft fan case (01-035) (SIN 84100)
•
Yoke (05-010) (SIN 84803)
•
OGV 1 pylon (10-290) (SIN 8400J)
•
OGV 2 (10-310) (SIN 8400L)
•
OGV 13 (10-250) (SIN 8400E)
•
OGV 25 pylon (10-300) (SIN 8400K)
•
OGV 36 (10-260) (SIN 8400F)
•
OGV 48 (10-320) (SIN 8400M).
Subtask 72-21-00-380-133
(2)Apply C03-001  primer or C03-100  primer to the bearing surfaces of the brackets. Allow primer to air dry before assembly.
(3)Apply C03-001  primer or C03-100  primer to the shank and bearing surfaces of the bolts, the bearing surfaces of the washers and shims, and to OGV inside mating surfaces of the holes. Install bolts, shims, and washers while primer is wet.
Subtask 72-21-00-640-103
(4)Apply C02-058  lubricant to the threads of the bolts.
Subtask 72-21-00-440-442
K.Install the left bracket (05-060) (SIN 98113) on OGV 47 (10-280) (SIN 8400H) and the right bracket (05-050) (SIN 98112) on OGV 3 (10-230) (SIN 8400C), and the aft fan case (01-035) (SIN 84100). Refer to Figure 1009 and as follows:
(1)Find the shim (05-070) (SIN 8417A) thickness to install with the cowl support bracket locator of the 11C4636   base assembly as follows. Refer to Figure 1004.
(a)Attach the cowl support bracket locator (bracket locator) to the 11C4636   base assembly.
(b)Pivot the nut plate to align the captive nut with the bushed holes.
(c)Insert the pin through the right bracket (05-050) (SIN 98112) and thread into the nut plate.
(d)Insert the pin through the left bracket (05-060) (SIN 98113) and thread into the nut plate.
(e)Measure the gap between the right and left brackets and the aft fan case at the eight bolthole locations.
(f)Install shims to get the correct bore position between the aft fan case and the left bracket (05-060) (SIN 98113) at OGV 47 and the right bracket (05-050) (98112) at OGV 3 as follows:
1The total thickness of the shims shall be 0.100-0.160 inch (2.54-4.06 mm).
2All shim thickness shall be 0.005 inch (0.13 mm) within adjacent shim.
NOTE:
Example: If shim No. 1 is 0.125 inch (3.18 mm) thick, shim No. 2 is 0.123 inch (3.12 mm) thick, and shim No. 3 is 0.127 inch (3.23 mm) thick, then the range is 0.004 inch (0.10 mm) and is within the thickness range.
3Trim the edge of the shim to prevent it from extending the edge of the bracket 0.050 inch (1.27 mm).
4The total thickness of the shims shall be 0.100-0.160 inch (2.54-4.06 mm).
(2)Install the left bracket (05-060) (SIN 98113) as follows:
(a)Attach with the bolts (10-370) (SIN 84129), shims (05-070) (SIN 8417A), washers (10-390) (SIN 84131), and self locking nuts (10-420) (SIN 84143) at the two aft locations. Do not torque at this time. Install the shims between the bracket and the aft fan case.
(b)Attach with the bolt, shim, and washer at the two forward locations. Do not torque at this time.
(3)Install the right bracket (05-050) (SIN 98112) as follows:
(a)Attach with the bolts (10-370) (SIN 84129), shims (05-070) (SIN 8417A), washers (10-390) (SIN 84131), and self locking nuts (10-420) (SIN 84143) at four locations. Do not torque at this time. Install the shims between the bracket and the aft fan case.
(4)Tighten the bolts to prevent movement.
(5)Verify the bolt thread extends 0.100 inch (2.54 mm) above the self locking nut.
(6)Make sure that the left bracket and the right bracket flanges are correctly aligned. Put a 0.490 inch (12.45 mm) pin into both ends of the brackets. If the pin does not go througth the brackets, do Subtask 72-21-00-440-442 (paragraph 3.K.(1)) thru Subtask 72-21-00-440-442 (paragraph 3.K.(5)) again.
(7)Remove the bracket locator of the 11C4636   base assembly away from the aft fan case.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1009   (Sheet 1 ) Install the LH/RH Brackets on the OGVs and the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1009   (Sheet 2 ) Install the LH/RH Brackets on the OGVs and the Aft Fan Case
Subtask 72-21-00-440-443
(8)Remove the bolts (10-370) (SIN 84129), shims (05-070) (SIN 8417A), washers (10-390) (SIN 84131), and self locking nuts (10-420) (SIN 84143), left bracket (05-060) (SIN 98113), and right bracket (05-050) (SIN 98112).
Subtask 72-21-00-380-134
(9)Apply C03-072  primer to the two sides of the shims (05-070) (SIN 8417A).
Subtask 72-21-00-440-444
(10)Reinstall the left bracket (05-060) (SIN 98113), right bracket (05-050) (SIN 98112), bolts (10-370) (SIN 84129), shims (05-070) (SIN 8417A), washers (10-390) (SIN 84131), and self locking nuts (10-420) (SIN 84143) as follows:
(a)Make sure that the shim (05-070) (SIN 8417A) between the bracket and the aft fan case are installed.
(b)Install the washers under the heads of the bolts.
(c)Tighten the self locking nuts to prevent movement. Do not torque the self locking nuts at this time.
(11)Install the bracket locator of the 11C4636   base assembly to the left and right cowl support brackets.
(12)Tighten the self locking nuts to prevent movement. Do not torque.
(13)Remove the bracket locator of the 11C4636   base assembly.
(14)Make sure that the OGVs 24 thru 28 have been shimmed before torquing the yoke (05-010) (SIN 84803), left bracket (05-060) (SIN 98113), and right bracket (05-050) (SIN 98112). Refer to Subtask 72-21-00-440-445 (paragraph 3.L.) and Figure 1008.
(15)Torque the self locking nuts (10-410) (SIN 84141) on the bolts (10-360) (SIN 84123) at OGV 1 pylon, OGV 2, and OGV 48 to 69-81 lb ft (94-110 N.m).
NOTE:
Self locking nuts (10-410) (SIN 84141) are installed at drilled holes DP.
(16)Torque the self locking nuts (05-040) (SIN 84840) on the bolts (05-020) (SIN 84124) at OGVs 1, 2, and 48 to 125-145 lb ft (169-197 N.m).
NOTE:
Self locking nuts (05-040) (SIN 84840) are installed at drilled holes DN.
(17)Apply torque again to the self locking nuts (05-040) (SIN 84840) on the bolts (05-020) (SIN 84124) at OGV 1 pylon, OGV 2 and OGV 48 to 125-145 lb ft (169-197 N.m).
(18)Torque the self locking nuts (10-420) (SIN 84143) on the bolts (10-370) (SIN 84129) at OGVs 3 and 47 to 368-432 lb in. (41.6-48.8 N.m).
(19)Make sure that the bolt thread extends 0.100 inch (2.54 mm) above the self locking nut.
Subtask 72-21-00-440-445
L.Install the OGV 24 (10-270) (SIN 8400G), OGV 25 (10-300) (SIN 8400K), OGVs 26-27 (10-240) (SIN 8400D), and OGV 28 (10-250) (SIN 8400E) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
Subtask 72-21-00-440-743
* * * PRE SB   72-0087
(2)Attach the OGV 24 to the aft fan case as follows:
(a)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131) and (10-400) (SIN 84135), shims, and self-locking nuts (10-420) (SIN 84143) on the OGV 24. Refer to Figure 1010 and do as follows:
1Install the washers (10-390) (SIN 84131) under the boltheads.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
* * * END PRE SB   72-0087
Subtask 72-21-00-440-744
* * * SB   72-0087
(2).A.Attach the OGV 24 to the aft fan case as follows:
(a)Install the bolts (10-355) (SIN 8412D), washers (10-390) (SIN 84131), washers (10-405) (SIN 84136), shims, and self locking nuts (10-420) (SIN 84143) on the OGV 24 as follows. Refer to Figure 1010.
1Install the washers (10-390) (SIN 84131) under the boltheads.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-405) (SIN 84135) under the self locking nuts.
NOTE:
Deleted.
* * * END SB   72-0087
Subtask 72-21-00-440-745
(3)Attach the OGVs 25-28 to the aft fan case (01-035) (SIN 84100) as follows:
(a)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131) and (10-400) (SIN 84135), shims, and self-locking nuts (10-420) (SIN 84143) on the OGVs 25-28. Refer to Figure 1010 and do as follows:
1Install the washers (10-390) (SIN 84131) under the boltheads.
2Install the shims between the OGV and the aft fan case (01-035) (SIN 84100).
3Install the washers (10-400) (SIN 84135) under the self-locking nuts (10-420) (SIN 84143).
(4)Make sure OGV 1 pylon, OGV 2, and OGV 48 have the shims installed.
(5)Torque the self locking nuts at OGVs 24-28 to 368 to 432 lb in. (41.6 to 48.8 Nm).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1010   (Sheet 1 ) Installation of the OGVs 18, 22-28 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1010   (Sheet 2 ) Installation of the OGVs 18, 22-28 to the Aft Fan Case
Subtask 72-21-00-440-446
M.Attach the OGVs 35-38 (10-260) (SIN 8400F), OGV 39 (10-270) (SIN 8400G) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the brackets and OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Attach the support clevis (05-100) (SIN 98217) at the 8:30 o'clock position to the OGV 35 (10-260) (SIN 8400F) as follows. Refer to Figure 1011.
(a)Attach the bracket to the OGV 35 as follows. The bracket is installed on the aft holes of the OGV with the threaded flange in the aft position.
1Install the washers (10-390) (SIN 84131) under the head of the bolts (10-350) (SIN 84121) and under the self locking nuts (10-420) (SIN 84143).
2Install the shims between the OGV and the aft fan case.
(b)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shim, self locking nuts (10-420) (SIN 84143) on the bracket (05-100) (SIN 98217) and the OGV 35 (10-260) (SIN 8400F) forward holes at two locations as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts (10-350) (SIN 84121).
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (84135) under the self locking nuts (10-420) (SIN 84143).
(c)Attach the hold open spool (05-110) (SIN 98270) to the flanges on the bracket (05-100) (SIN 98217) as follows:
1Put the threaded shaft of the spool into the forward flange of the clevis and into the aft flange.
2Attach the spool with a washer (05-130) (SIN 98230) and a self locking nut (10-420) (SIN 84143).
3Torque the self locking nut to 368-432 lb in. (41.6-48.8 N.m).
(3)Install the full authority digital engine control (FADEC) brackets (05-140) (SIN 65H13) to the OGVs 36 and 37 and the aft fan case at the 9:00 o'clock position as follows. Refer to Figure 1012.
(a)Attach the FADEC bracket on the aft holes of the OGV as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts (10-350) (SIN 84121), and bolts (10-380) (SIN 8412C).
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts (10-420) (SIN 84143).
(b)Install the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, and self locking nuts (10-420) on the OGVs aft holes as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(c)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, self locking nuts (10-420) on the OGV 36 and 37 at three locations.
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts (10-420).
(4)Attach the OGV 38 to the aft fan case as follows. Refer to Figure 1013.
(a)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
(5)Install the FADEC brackets (05-080) (SIN 65H11) to the OGV 39 and the aft fan case at the 9:30 o'clock position as follows. Refer to Figure 1014.
(a)Attach the FADEC bracket to the OGV 39 on the forward holes at two locations as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts (10-380) (SIN 8412C).
2Install the shims between the OGV and the aft fan case.
Subtask 72-21-00-440-918
* * * PRE SB   72-0087
(b)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131) (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGV 39 on the aft holes at two locations as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
* * * END PRE SB   72-0087
Subtask 72-21-00-440-920
* * * SB   72-0087
(b).A.Install the bolts (10-355) (SIN 8412D), washers (10-390) (SIN 84131) and (10-405) (SIN 84136), shims, and self-locking nuts (10-420) (SIN 84143) on the aft holes of the OGV 39 at two locations as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-405) (SIN 84136) under the self locking nuts.
* * * END SB   72-0087
Subtask 72-21-00-440-919
(6)Make sure that the OGVs 11-15 have the shims installed.
(7)Torque the self locking nuts (10-420) (SIN 84143) at OGVs 35-39 to 368-432 lb in. (41.6-48.8 N.m).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1011   Installation of the Brackets and the Spool on OGV 35
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1012   Installation of the FADEC Bracket to OGVs 36 and 37
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1013   (Sheet 1 ) Installation of the OGVs 32, 34, 38, 40, 41, and 44-46 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1013   (Sheet 2 ) Installation of the OGVs 32, 34, 38, 40, 41, and 44-46 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1014   Installation of the FADEC Bracket to OGV 39
Subtask 72-21-00-440-447
N.Attach the OGVs 11-12 (10-240) (SIN 8400D) and OGVs 13-15 (10-250) (SIN 8400E) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Attach the OGVs 11 and 12 to the aft fan case as follows. Refer to Figure 1015.
(a)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
(3)Install the air cooled oil cooler (ACOC) bracket (52212) to the OGV 13 and the aft fan case at the 3:00 o'clock position as follows. Refer to Figure 1016.
(a) Attach the ACOC bracket with the bolts (10-380) (SIN 8412C), shims, washers (10-390) (SIN 84131), and self locking nuts (10-420) (SIN 84143) to the OGV 13 at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(4)Install the lower rear support assembly (01-280 , 79-11-10) (SIN 40010) to the OGV 14 (10-250) (SIN 8400E) and the aft fan case at the 3:00 o'clock position as follows. Refer to Figure 1017.
(a)Attach the lower rear support assembly with the bolts (10-370) (SIN 84129), washers (10-390) (SIN 84131), shims, and self locking nuts (10-420) (SIN 84143) to the OGV 14 at three locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(b)Install the bolt (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGV 14 10-250) (SIN 8400E) as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
(5)Attach the bracket (05-090) (SIN 98216) to the OGV 15 and the aft fan case at the 3:30 o'clock position as follows. Refer to Figure 1018.
(a)Attach the bracket with the bolts (10-370) (SIN 84129), washers (10-390) (SIN 84131), shims, and self locking nuts (10-420) (SIN 84143) to the OGV 15 at two locations. The bracket is installed on the forward holes of the OGV with the threaded flange in the forward position.
(b)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGV 15 aft holes at two locations as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
(c)Attach the hold open spool (05-110) (SIN 98270) to the flanges on the bracket (05-090) (SIN 98216) as follows:
1Put the threaded shaft of the spool into the aft flange of the bracket and into the forward flange.
2Attach the spool with a washer (05-130) (SIN 98230) and a self-locking nut (05-120 , 71-21-00) (SIN 98240).
3Torque the self-locking nut (05-120 , 71-21-00) (SIN 98240) to 69-81 lb in. (7.8-9.2 N.m).
(6)Make sure that the OGVs 35-39 have the shims installed.
(7)Torque the self locking nuts at OGVs 11-15 to 368-432 lb in. (41.6-48.8 N.m).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   Installation of the OGVs 1-15 on the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1016   Installation of the OGV 13 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1017   Installation of the OGV 14 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1018   Installation of the OGV 15 to the Aft Fan Case
Subtask 72-21-00-440-448
O.Attach the OGVs 42-46 (10-280) (SIN 8400H) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the aft bracket (01-600) (SIN 98219) to the OGVs 42 and 43 and the aft fan case as follows. Refer to Figure 1019.
(a)Attach with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, self locking nuts (10-430) (SIN 84144), and nut retainers (10-440) (SIN 84180) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(3)Install the forward bracket (01-590) (SIN 98218) to OGVs 42 and 43 and the aft fan case as follows. Refer to Figure 1019.
(a)Attach with the bolts, washers, shims, self locking nuts, and nut retainer at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(4)Attach the OGVs 44-46 to the aft fan case as follows. Refer to Figure 1013.
(a)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
1Install the washers (10-390) (SIN 84131) under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self locking nuts.
(5)Make sure OGVs 19-23 have the shims installed.
(6)Tighten the bolts (10-380) (SIN 8412C) for OGVs 42 and 43, but do not torque the bolts at this time.
(7)Torque the self locking nuts for OGVs 44-46 to 368-432 lb in. (41.6-48.8 N.m).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1019   Installation of the OGVs 42 and 43 to the Aft Fan Case
Subtask 72-21-00-440-449
P.Attach the OGVs 19 and 20 (10-220) (SIN 8400A), OGV 21 (10-260) (SIN 8400F), OGVs 22 and 23 (10-270) (SIN 8400G) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the ACOC bracket (52215) to the OGV 19 and the aft fan case at the 5:00 o'clock position as follows. Refer to Figure 1020.
(a)Attach the ACOC bracket with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, and self locking nuts (10-420) (SIN 84143) to the OGV 19 at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(3)Install the aft bracket (01-600) (SIN 98219) to the OGVs 20 and 21 and the aft fan case as follows. Refer to Figure 1021.
(a)Attach with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, self locking nuts (10-430) (SIN 84144), and nut retainers (10-440) (SIN 84180) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(4)Install the forward bracket (01-590) (SIN 98218) to OGVs 20 and 21 and the aft fan case as follows. Refer to Figure 1021.
(a)Attach with the bolts, washers, shims, self locking nuts (10-430) (SIN 84144), and nut retainer (10-440) (SIN 84180) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
Subtask 72-21-00-440-746
* * * PRE SB   72-0087
(5)Attach the OGVs 22 and 23 to the aft fan case as follows. Refer to Figure 1010.
(a)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
1Install the washers (10-390) (SIN 84131) under the boltheads.
2Install the shims between the OGV and the aft fan case.
3Install the washers (10-400) (SIN 84135) under the self-locking nuts (10-420) (SIN 84143).
* * * END PRE SB   72-0087
Subtask 72-21-00-440-747
* * * SB   72-0087
(5).A.Attach the OGVs 22 and 23 to the aft fan case as follows. Refer to Figure 1010.
(a)Install the bolts (10-355) (SIN 8412D), washers (10-390) (SIN 84131), washers (10-405) (SIN 84136), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
1Install the washers (10-390) (SIN 84131) under the boltheads.
2Install the shims between the OGVs and the aft fan case.
3Install the washers (10-405) (SIN 84136) under the self-locking nuts (10-420) (SIN 84143).
* * * END SB   72-0087
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1020   Installation of the OGV 19 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1021   Installation of the OGVs 20 and 21 to the Aft Fan Case
Subtask 72-21-00-440-450
4Deleted.
Subtask 72-21-00-440-748
4.A.Deleted.
Subtask 72-21-00-440-749
(6)Make sure that the OGVs 43-47 have the shims installed.
(7)Tighten the bolts (10-380) (SIN 8412C) for OGVs 20 and 21, but do not torque the bolts.
(8)Torque the self locking nuts at OGVs 19, 22, and 23 to 368 to 432 lb in. (41.6 to 48.8 Nm).
Subtask 72-21-00-440-451
* * * PRE SB   72-0087
Q.Attach the OGVs 40 and 41 (10-270) (SIN 8400G) to the aft fan case (01-035) (SIN 84100). Refer to Figure 1013 and do as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
(a)Install the washers (10-390) (SIN 84131) under the boltheads.
(b)Install the shims between the OGV and the aft fan case.
(c)Install the washers (10-400) (SIN 84135) under the self locking nuts.
(3)Make sure that the OGVs 19-23 have the shims installed.
(4)Torque the self locking nuts for OGVs 16-18 to 368 to 432 lb in. (41.6 to 48.8 Nm).
* * * END PRE SB   72-0087
Subtask 72-21-00-440-750
* * * SB   72-0087
Q.A.Attach the OGVs 40 and 41 (10-270) (SIN 8400G) to the aft fan case (01-035) (SIN 84100). Refer to Figure 1013 and do as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the bolts (10-355) (SIN 8412D), washers (10-390) (SIN 84131), washers (10-405) (SIN 84136), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs as follows:
(a)Install the washers (10-390) (SIN 84131) under the head of the bolts.
(b)Install the shims between the OGV and the aft fan case.
(c)Install the washers (10-405) (SIN 84136) under the self locking nuts.
(3)Make sure that the OGVs 19-23 have the shims installed.
(4)Torque the self locking nuts for OGVs 16-18 to 368 to 432 lb in. (41.6 to 48.8 Nm).
* * * END SB   72-0087
Subtask 72-21-00-440-452
R.Attach the OGVs 16 and 17 (10-250) (SIN 8400E), OGV 18 (10-220) (SIN 8400A) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the bracket (5221K) to the OGV 16 and the aft fan case as follows. Refer to Figure 1022.
(a)Attach the bracket with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, and self locking nuts (10-420) (SIN 84143) as follows:
1Install the washers under the head of the bolts (10-370) (SIN 84129).
2Install the shims between the OGV and the aft fan case.
(3)Install the bracket (52214) to the OGV 17 and the aft fan case as follows. Refer to Figure 1023.
(a)Attach with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, and self locking nuts (10-420) (SIN 84143) as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(4)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGV 18 at four locations as follows. Refer to Figure 1010.
(a)Install the washers (10-390) (SIN 84131) under the head of the bolts.
(b)Install the shims between the OGV and the aft fan case.
(c)Install the washers (10-400) (SIN 84135) under the self locking nuts.
(5)Make sure that the OGVs 40-42 have the shims installed.
(6)Torque the self locking nuts for OGVs 16-18 to 368 to 432 lb in. (41.6 to 48.8 Nm).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   Installation of the OGV 16 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1023   Installation of the OGV 17 to the Aft Fan Case
Subtask 72-21-00-440-453
S.Attach the OGVs 29-31 (10-250) (SIN 8400E), OGVs 32-34 (10-220) (SIN 8400A) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the bracket (01-600) (SIN 98219) to the OGVs 29 and 30 and the aft fan case as follows. Refer to Figure 1024.
(a)Attach with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, self locking nuts (10-430) (SIN 84144), and nut retainers (10-440) (SIN 84180) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(3)Install the bracket (01-590) (SIN 98218) to OGVs 29 and 30 and the aft fan case as follows. Refer to Figure 1024.
(a)Attach with the bolts, washers, shims, self locking nuts, and nut retainer at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(4)Install the bracket (5221E) to the OGV 31 and the aft fan case as follows. Refer to Figure 1025.
(a)Attach with the bolts, washers, shims, and self locking nuts (10-420) (SIN 84143) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(5)Install the bracket (5221C) to the OGV 33 and the aft fan case as follows. Refer to Figure 1026.
(a)Attach with the bolts, washers, shims, and self locking nuts at four locations as follows:
1Install the washers under the head of the bolt.
2Install the shims between the OGV and the aft fan case.
(6)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, self locking nuts on the OGVs 32 and 34 at four locations as follows. Refer to Figure 1013.
(a)Install the washers (10-390) (SIN 84131) under the head of the bolts (10-350) (SIN 84121).
(b)Install the shims between the OGV and the aft fan case.
(c)Install the washers (10-400) (SIN 84135) under the self locking nuts (10-420) (SIN 84143).
(7)Make sure that the OGVs 4-9 have the shims installed.
(8)Tighten the bolts (10-380) (SIN 8412C) for OGVs 29 and 30, but do not torque the bolts at this time.
(9)Torque the self locking nuts for OGVs 31-34 to 368 to 432 lb in. (41.6 to 48.8 Nm).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1024   Installation of the OGVs 29 and 30 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1025   Installation of the OGV 31 to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1026   Installation of the OGV 33 to the Aft Fan Case
Subtask 72-21-00-440-454
T.Attach the OGVs 4-7 (10-230) (SIN 8400C) and OGVs 8-10 (10-240) (SIN 8400D) to the aft fan case (01-035) (SIN 84100) as follows:
(1)Prepare the OGVs for installation. Refer to Subtask 72-21-00-440-441 (paragraph 3.J.).
(2)Install the bracket (01-600) (SIN 98219) to the OGVs 7 and 8 and the aft fan case as follows. Refer to Figure 1027.
(a)Attach with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, self locking nuts (10-430) (SIN 84144), and nut retainers (10-440) (SIN 84180) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(3)Install the bracket (01-590) (SIN 98218) to OGVs 7 and 8 and the aft fan case as follows. Refer to Figure 1027.
(a)Attach with the bolts (10-380) (SIN 8412C), washers (10-390) (SIN 84131), shims, self locking nuts (10-430) (SIN 84144), and nut retainers (10-440) (SIN 84180) at four locations as follows:
1Install the washers under the head of the bolts.
2Install the shims between the OGV and the aft fan case.
(4)Install the bolts (10-350) (SIN 84121), washers (10-390) (SIN 84131), washers (10-400) (SIN 84135), shims, and self locking nuts (10-420) (SIN 84143) on the OGVs 5, 6, 9, and 10 at four locations as follows. Refer to Figure 1015.
(a)Install the washers (10-390) (SIN 84131) under the head of the bolts.
(b)Install the shims between the OGV and the aft fan case.
(c)Install the washers (10-400) (SIN 84135) under the self locking nuts.
(5)Make sure that the OGVs 29-34 have the shims installed.
(6)Tighten the bolts (10-380) (SIN 8412C) for OGVs 7 and 8, but do not torque the bolts at this time.
(7)Torque the self locking nuts for OGVs 5, 6, 9, and 10 to 368 to 432 lb in. (41.6 to 48.8 Nm).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1027   Installation of the OGVs 7 and 8 to the Aft Fan Case
Subtask 72-21-00-220-027
U.Make sure that the washers (10-390) (SIN 84131) are installed under the self locking nuts (10-420) (SIN 84143) on the OGVs attached to the aft fan case (01-035) (SIN 84100) as follows:
(1)Make sure that a washer is under the self locking nut at four locations on OGVs 3-5, 9-18, 22-28, 31-41, and 44-46.
(2)On OGV 14, make sure that the washer is under the upper right self locking nut.
NOTE:
The aft fan case will be in the horizontal position, forward side down. The lower position will be in the forward direction and the upper position will be in the aft direction.
(3)For OGV 15, make sure that the washer (10-400) (SIN 84135) is under the upper left and the upper right self locking nut. Make sure that the washer (10-390) (SIN 84131) is under the self locking nut that attaches the horizontal support clevis (05-090) (SIN 98216).
(4)For OGV 35, make sure that the washer is under the lower left and the lower right self locking nut. Make sure that the washer (10-390) (SIN 84131) is under the self locking nut that attaches the horizontal support clevis (05-100) (SIN 98217).
(5)For OGV 36, make sure that the washer (10-400) (SIN 84135) is under the lower left, lower right, and upper right self locking nut.
(6)For OGV 39, make sure a washer is under the upper left and the upper right self locking nut.
Subtask 72-21-00-440-455
V.Align the bracket (01-600) (SIN 98219) and bracket (01-590) (SIN 98218) on the aft fan case (01-035) (SIN 84100) as follows:
(1)Install the 11C4524   alignment bracket on the OGV brackets. Refer to Figure 1029 and do as follows:
NOTE:
The alignment brackets are marked for correct location and orientation.
NOTE:
OGV brackets are installed at four locations in sets of four.
(a)Put each of the four locating pins (item 7) on the right upper installation bracket (item 3) and into the OGV brackets.
(b)If it is not possible to put the locating pin (item 7) into one or more of the OGV brackets, loosen the bolt (10-380) (SIN 8412C) while retaining the OGV bracket and move it until the OGV bracket aligns with the locating pin.
CAUTION:
MAKE SURE TO APPLY FULL TORQUE TO AN ASSEMBLY WITHOUT RAISING THE TORQUE GRADUALLY ON THE OTHER ASSEMBLIES. IT CAN CAUSE BINDING BETWEEN THE 11C4524   ALIGNMENT BRACKET AND OGV BRACKETS.
(2)Gradually increase torque to 368 to 432 lb in. (41.6 to 48.8 Nm) on each bolt (10-380) (SIN 8412C), rotating through all positions.
(3)Repeat paragraphs 3.V.(1) and 3.V.(2) for left upper installation bracket (item 2), left lower installation bracket (item 4), and right lower installation bracket (item 5) at remaining locations.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1028   DELETED
Subtask 72-21-00-440-456
(4)Deleted.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1029   (Sheet 1 ) Alignment of the Brackets to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1029   (Sheet 2 ) Alignment of the Brackets to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1029   (Sheet 3 ) Alignment of the Brackets to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1029   (Sheet 4 ) Alignment of the Brackets to the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1029   (Sheet 5 ) Alignment of the Brackets to the Aft Fan Case
Subtask 72-21-00-220-028
W.Do a check of the outer diameter runout of the forward flange rabbet. Refer to Figure 1004 and do as follows:
(1)Release the 24 clamps of the 11C4636   base assembly from the forward flange of the aft fan case (01-035) (SIN 84100).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2)Slowly lift the aft fan case and the 11C4636   base assembly. Lift until the forward rabbet of the aft fan case does not touch the locating rabbet of the base assembly fixture.
(3)Install aluminum shims of the same thickness, or equivalent, under the aft fan case.
(4)Lower the aft fan case on the 11C4636   base assembly.
(5)Do a check of the outer diameter runout of the forward flange rabbet with the dial indicator (item 58) of the 11C4636   base assembly as follows:
(a)Slide the dial indicator block on the plate until the locator buttons touch with the outside diameter of the locator block.
(b)If the dial indicator does not engage with the aft fan case flange, adjust the dial indicator block as follows:
1Loosen the two lock screws on the indicator bracket.
2Turn the adjusting screw until the contact point of the indicator engages the aft fan case flange.
3Tighten the two lock screws.
(c)Slowly move the indicator block along the outside diameter of the locator block. You must maintain contact with the locator buttons and the locator block.
(d)Record the high and the low indicator values for the ten locator blocks.
(e)Determine the highest and the lowest values of the ten locator blocks.
(6)If the runout is more than 0.050 inch (1.27 mm), do Subtask 72-21-00-440-435 (paragraph 3.C.) and Subtask 72-21-00-440-439 (paragraph 3.I.) thru Subtask 72-21-00-440-454 (paragraph 3.T.), after removal of all the OGVs. Do this procedure until the runout is not more than 0.050 inch (1.27 mm).
Subtask 72-21-00-440-740
X.Continue to assemble the fan stator. Refer to TASK 72-21-00-440-805 (72-21-00, ASSEMBLY 002).
