* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
TASK 72-21-00-440-805
1 . General.
A.This procedure gives instructions to assemble the stator case assembly (01-020 , 72-00-01) (SIN 00109). Refer to Figure 1001.
B.This procedure begins wth the fan stator assembly in the vertical position, forward end down, at the equivalent build status of TASK 72-21-00-440-804 (72-21-00, ASSEMBLY 001 - CONFIG 01) .
C.Make sure that there is no foreign material inside the fan containment case assembly (01-010) (SIN 83500), (01-011) (SIN 83500) or (01-012) (SIN 83500) and the aft fan case (01-035) (SIN 84100).
D.Before you do this procedure, read the Assembly and Disassembly Techniques section. Refer to TASK 70-10-00-800-009 (ASSEMBLY AND DISASSEMBLY TECHNIQUES) .
E.Make sure that the mating parts are serviceable and have no damage.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
F.Clean surfaces with C04-002  Stoddard solvent , C04-035  isopropyl alcohol , or 50-50 alcohol blend.
G.Install all bolts with heads uppermost or forward unless specified differently.
H.Follow the instruction to safety parts with safety wire, safety cable, cotter pins, or tab washers. Refer to TASK 70-11-00-400-001 (FASTENER RETENTION PROCEDURES) .
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

11C3237G02
Fixture, Restrain - Installation Outer Guide Vane (restrain fixture)

11C3458G01
Fixture, Handling Lift/Turn - Forward Fan Case (handling fixture)

11C4643G01
Fixture, Firewall (firewall fixture)
(2)Standard Tools and Equipment.

Description
Manufacturer

Bushing P/N UDB A23122 0.5291 inch (13.439 mm) (drill bushing)
Local Purchase

Bushing, for 0.627 inch (15.93 mm) Drill (drill bushing)
Local Purchase

Drill, 31/64 inch (12.30 mm)
Local Purchase

Drill, 39/64 inch (15.48 mm)
Local Purchase

Gripper Pin 0.25 inch (6.4 mm) Diameter (avdel pin)
Local Purchase

Reamer, 0.502 inch (12.75 mm)
Local Purchase

Reamer, 0.626 inch (15.90 mm)
Local Purchase

Reamer Bushing, P/N UDB A23122 0.5021 inch (12.753 mm) (reamer bushing)
Local Purchase

Reamer Bushing, 0.627 inch (15.93 mm) (reamer bushing)
Local Purchase

Drill Gun P/N 158QGDBV S400 (drill gun)
Quackenbush
(3)Locally Manufactured Tools. None.
B.Consumable Materials.

Code No.
Description

C01-007
RTV, Silicone Elastomer (RTV 106)

C01-122
RTV, Silicone Elastomer (RTV 157)

C01-159
Primer, RTV (RTV primer)

C01-176
RTV, Silicone Elastomer (RTV 133)

C01-208
Adhesive, Silicone Rubber (silicone rubber adhesive)

C02-047
Lubricant, Cutting Fluid (lubricant)

C02-058
Compound, Thread Lubricating (lubricant)

C03-001
Primer, Zinc Chromate (TT-P-1757 Type 1 or 2, Class C or Class N; AMS 3110, Color Y) (primer)

C03-083
Conversion Coating, Chromated, (coating)

C03-100
Primer, Paint, Zinc-Molybdate, Alkyd Type (TT-P-645) (primer)

C04-002
Solvent, General (Stoddard solvent)

C04-003
Solvent, General (acetone)

C04-014
Solvent, General (denatured alcohol)

C04-035
Solvent, General (isopropyl alcohol)

C04-228
Solvent, General (94-96% assay Ethanol) Alcohol, Ethyl, Anhydrous, Denatured (denatured alcohol)

C10-021
Tape, Plastic (tape)

C10-040
Tape, Teflon

C10-067
Tape, Platers

C10-071
Safety Wire, 0.020 or 0.032 in. dia. (safety wire)

C10-109
Wax, Utility (wax)

C10-143
Safety Cable Assembly (321 Stainless Steel AS 4536, AS 3510) (safety cable)

C10-182
Cloth, Cleaning for Aircraft Structural (SAE-AMS 3819, BMS 15-5) (cloth)
C.Referenced Procedures.

ATA No.
Description

70-10-00
Assembly and Disassembly Techniques

70-13-02
Acceptability Limits for Hi-Shear Rivets

70-42-00
Blending and Removal of High Metal Procedures

70-43-07
Chemical Touch-Up Surface Refinishing Process for Aluminum

72-00-01
Assembly 001

72-00-01
Inspection 001

72-21-02
Inspection 001

72-21-60
Inspection 001
D.Expendable Parts.

CSN
Description

01-680
Fire Shield

01-690
Fire Shield

01-700
Fire Shield

01-710
Fire Shield

01-720
Lower Firewall Insulation Blanket

01-070 , 79-22-30
Seal Flange Gasket (Qty 2)
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

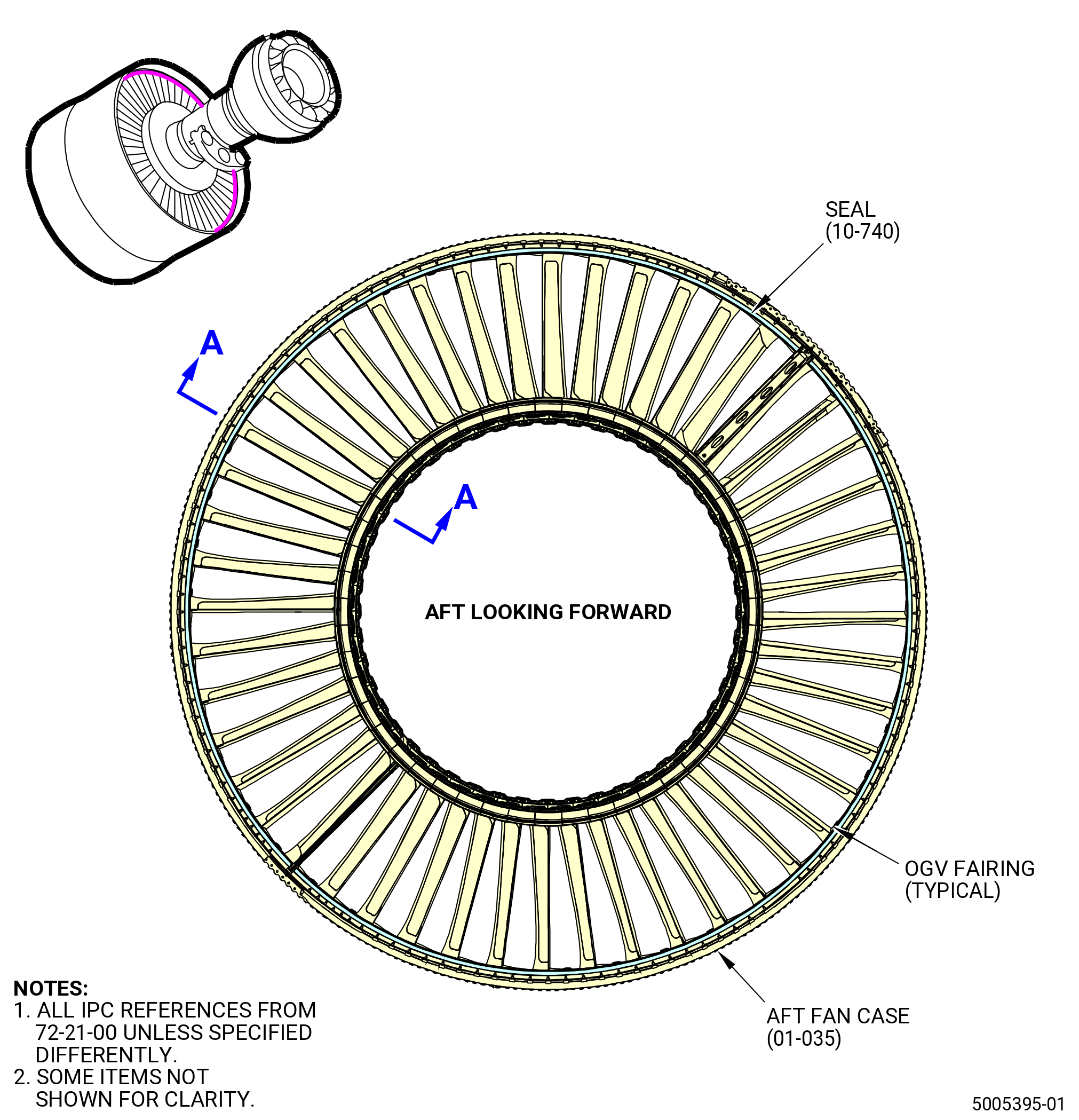

Figure 1001   Stator Case Assembly
3 . Procedure.
Subtask 72-21-00-440-617
A.Match-drill the thrust channels (84116, 84118) to the aft fan case, if they are new as follows:
(1)Match-drill the thrust channels (84116, 84118) to the aft fan case, if they are new as follows. Refer to Figure 1002.
CAUTION:
BE CAREFUL WHEN YOU CLAMP. YOU COULD SCORE OR SCRATCH THE AFT FAN CASE OR THE THRUST REVERSER CHANEL.
(a)Put the thrust channel (84116, 84118) on the outer diameter of the aft fan case (84100) as follows:
1Align the thrust channel (84116, 84118) to the aft fan case. Use the undersized pilot hole in the aft fan case and the undersized hole in the thrust channel to align.
2Install a 0.240 inch (6.10 mm) stepped pin into the pilot hole in the thrust channel (84116, 84118) and the pilot hole in the aft fan case from one end to the opposite end.
NOTE:
Large diameter of stepped pin has to be left to right.
NOTE:
The diameter of the stepped pin must be no more than 0.002 inch (0.05 mm) smaller than the pilot holes in the thrust channel (84116, 84118) and the aft fan case.
NOTE:
The two axial tabs on the thrust channel (84116, 84118) must be tight against the aft edge of the aft fan case (84100) for correct axial position.
3Keep a gap of 0.0000-0.0100 inch (0.000-0.254 mm) between the bottom surface of the lip on the end to the opposite end on the thrust reverser channel (84116, 84118).
4Use a non-abrasive scissor clamp to secure the thrust channel (84116, 84118) to the aft fan case.
5Attach a scissor clamp every 15 inches (381.0 mm).
6The holes in each thrust channel (84116, 84118) must align with the pilot hole in the aft fan case.
CAUTION:
THE PILOT HOLE IN THE UPPER SEAL RETAINER FITTING IS LARGER THAN THE PILOT HOLE IN THE AFT FAN CASE. BE SURE THAT THESE TWO HOLES ARE CONCENTRIC BEFORE YOU MATCH-DRILL. IF THEY ARE NOT CONCENTRIC, THE UPPER SEAL RETAINER CAN HAVE A POSITION THAT IS NOT CORRECT.
CAUTION:
THE DRILL MUST STAY LEVEL TO PREVENT THE DRILLED HOLE FROM ANGLING UP OR DOWN.
(b)Match-drill through the thrust channel (01-060) (SIN 84116) and (01-070) (SIN 84118), and the aft fan case (01-035) (SIN 84100). Drill at the hole adjacent to the pilot holes in the thrust channel (01-060) (SIN 84116) and (01-070) (SIN 84118), and the aft fan case (01-035) (SIN 84100). Use a 0.243 inch (6.17 mm) diameter drill bit. Make sure that the drill stays level so the screws (01-090) (SIN 84424) are against the thrust channel and the aft fan case (01-035) (SIN 84100) in the correct position.
(c)Install an avdel pin, a slave bolt, washer, and self-locking nut, or equivalent through the match-drilled hole and tighten into position. This will hold the thrust channel (84116, 84118) in the correct position in relation to the aft fan case (84100).
(d)Do this procedure again for the remaining holes in the thrust channel (84116).
(e)Install a new 0.2500 inch (6.350 mm) diameter spiral fluted reamer in a drill gun.
WARNING:
MAKE SURE THAT THE REAMER IS COMPLETELY VERTICAL TO PREVENT DAMAGE OR INJURY.
(f)Make sure that the drill gun is in the correct position and locked.
(g)Start the drill gun and set the controls to the slowest speed and feed settings.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(h)Ream through the thrust channel (84116, 84118) and the aft fan case (84100). Use C02-047  lubricant when you ream.
NOTE:
If the reamer becomes clogged, a new 0.2400 inch (6.096 mm) diameter intermediate reamer with a bush or equivalent can be used at each bolthole.
(i)After the reamer goes through the thrust channel (84116, 84118) and the aft fan case (84100), slowly remove it, but do not turn off the drill gun.
(j)Turn off the drill gun after you remove the reamer from the hole.
(k)Chamfer and deburr the aft fan case (84100) and the thrust channels (84116, 84118) drilled holes.
(l)Remove all raised material and sharp edges. Refer to TASK 70-42-00-350-002 (BLENDING AND REMOVAL OF HIGH METAL PROCEDURES).
(m)Do the procedure again for the remaining holes in the thrust channel (84116, 84118) and the aft fan case.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

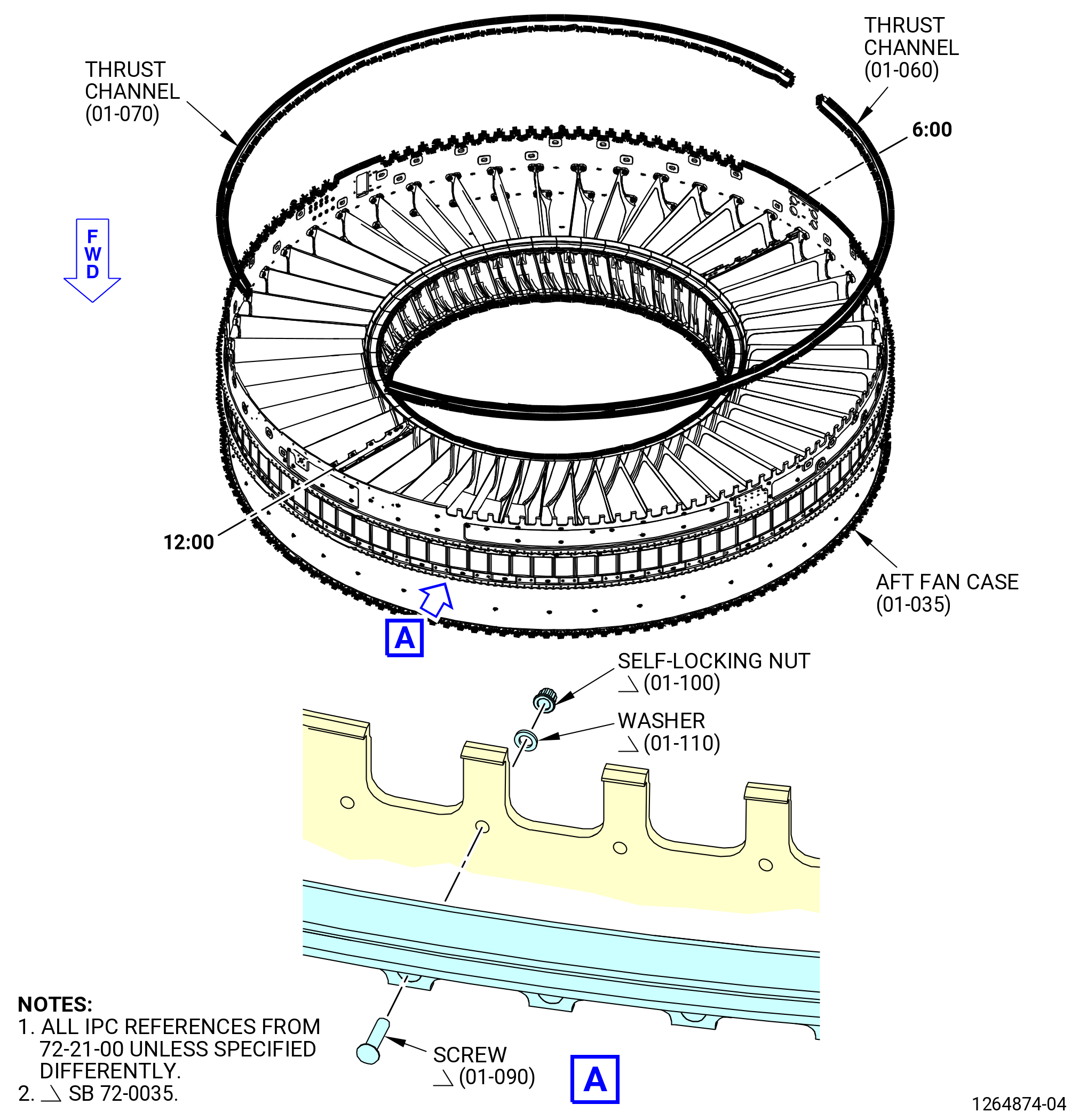

Figure 1002   Installation of the Thrust Channels on the Aft Fan Case
Subtask 72-21-00-110-059
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
CAUTION:
REMOVE ALL UNWANTED MATERIAL BEFORE YOU CLEAN. UNWANTED MATERIAL IN THE DRILLED AREAS CAN CAUSE DAMAGE TO THE COMPONENTS.
(n)Clean the mating surface and the drilled/reamed areas of the aft fan case (84100) and the thrust channel (84116, 84118). Use a clean C10-182  cloth wet with C04-002  Stoddard solvent, C04-035  isopropyl alcohol, or 50-50 alcohol blend.
Subtask 72-21-00-220-033
(o)Use a 0.250-0.254 inch (6.35-6.45 mm) go-no-go gage to inspect the drilled holes.
(p)If you scored the aft fan case or the thrust channel (84116, 84118), do an inspection. Refer to TASK 72-21-02-200-801 (72-21-02, INSPECTION 001) to inspect the aft fan case (84100) and TASK 72-21-60-200-801 (72-21-60, INSPECTION 001) to inspect the thrust channels (84116, 84118).
Subtask 72-21-00-380-220
(q)Apply C03-083  coating to the inner diameter of the 12 drilled holes on the aft fan case (84100). Refer to TASK 70-43-07-380-007 (CHEMICAL TOUCH-UP SURFACE REFINISHING PROCESS FOR ALUMINUM).
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(r)Apply C03-001  primer or C03-100  primer to the drilled holes and any uncoated surfaces of the aft fan case (84100).
(s)Apply C03-001  primer or C03-100  primer to the drilled holes, V-grooves, and any uncoated surfaces on the thrust channels (84116, 84118).
Subtask 72-21-00-440-618
B.Install the thrust channels (84116, 84118) on the aft fan case (84100) as follows. Refer to Figure 1002.
Subtask 72-21-00-640-183
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the machine screws (screws) (01-090) (SIN 84424).
Subtask 72-21-00-380-221
(2)Apply C03-001  primer or C03-100  primer to the self-locking nuts (nuts) (01-100) (SIN 84440), screws (01-090) (SIN 84424), and washers (01-110) (SIN 84534) as follows:
(a)The bearing surfaces of the self-locking nuts and the washers.
(b)The shanks and the chamfers of the screws.
Subtask 72-21-00-440-619
(3)Attach the thrust channels (01-060) (SIN 84116) and (01-070) (SIN 84118) to the aft fan case (01-035) (SIN 84100) with screws (01-090) (SIN 84424) and washers (01-110) (SIN 84534) wet with C03-001  primer or C03-100  primer. The washer is installed under the self-locking nut.
(4)Torque the screws (01-090) (SIN 84424) to 83 to 97 lb in. (9.4 to 11.0 Nm).
(5)Torque the screws (01-090) (SIN 84424) again to 83 to 97 lb in. (9.4 to 11.0 Nm).
(6)Make sure that the head of the screws are below the surface of the thrust channels (84116, 84118). The head of the screws must be below the surface of the trust reverser channels.
Subtask 72-21-00-110-060
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(7)Clean any excess C03-001  primer, C03-100  primer, or C03-083  coating from the trust reverser channels (84116, 84118) and the aft fan case (84100). Use a clean C10-182  cloth wet with C04-035  isopropyl alcohol. Make sure to remove the C03-100  primer from the inside the V-groove and below the V-groove of the thrust channels.
Subtask 72-21-00-440-625
C.Install the power door opening system (PDOS) brackets (95111, 95112) on the aft fan case (84100) as follows. Refer to Figure 1003.
Subtask 72-21-00-640-185
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the bolts (95120, 95121).
Subtask 72-21-00-380-225
(2)Apply C03-001  primer or C03-100  primer as follows:
(a)To the shank of the bolts (95120, 95121).
(b)To the bracket (95111, 95112) and washer (95130) contact surfaces.
(c)To the inside diameter of the boltholes.
Subtask 72-21-00-440-626
(3)Put the PDOS bracket (95111) on the aft fan case (94100) at the 3:00 o'clock position between OGV 12 and 13.
(4)Put the PDOS bracket (95112) on the aft fan case at the 9:00 o'clock position between OGV 37 and 38.
(5)Attach with bolts (95120), washers (95130), and nuts (95140) on the aft four boltholes. The washer is installed with the bolt on the inner side.
(6)Attach with bolts (95121), washers, and nuts on the forward nine boltholes. The washer is installed with the bolt on the inner side.
(7)Torque the nuts to 69-81 lb in. (7.8-9.2 N.m).
(8)Torque the nuts again to 69-81 lb in. (7.8-9.2 N.m).
(9)Torque the nuts to 69-81 lb in. (7.8-9.2 N.m) again to make sure that all nuts are torqued correctly.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

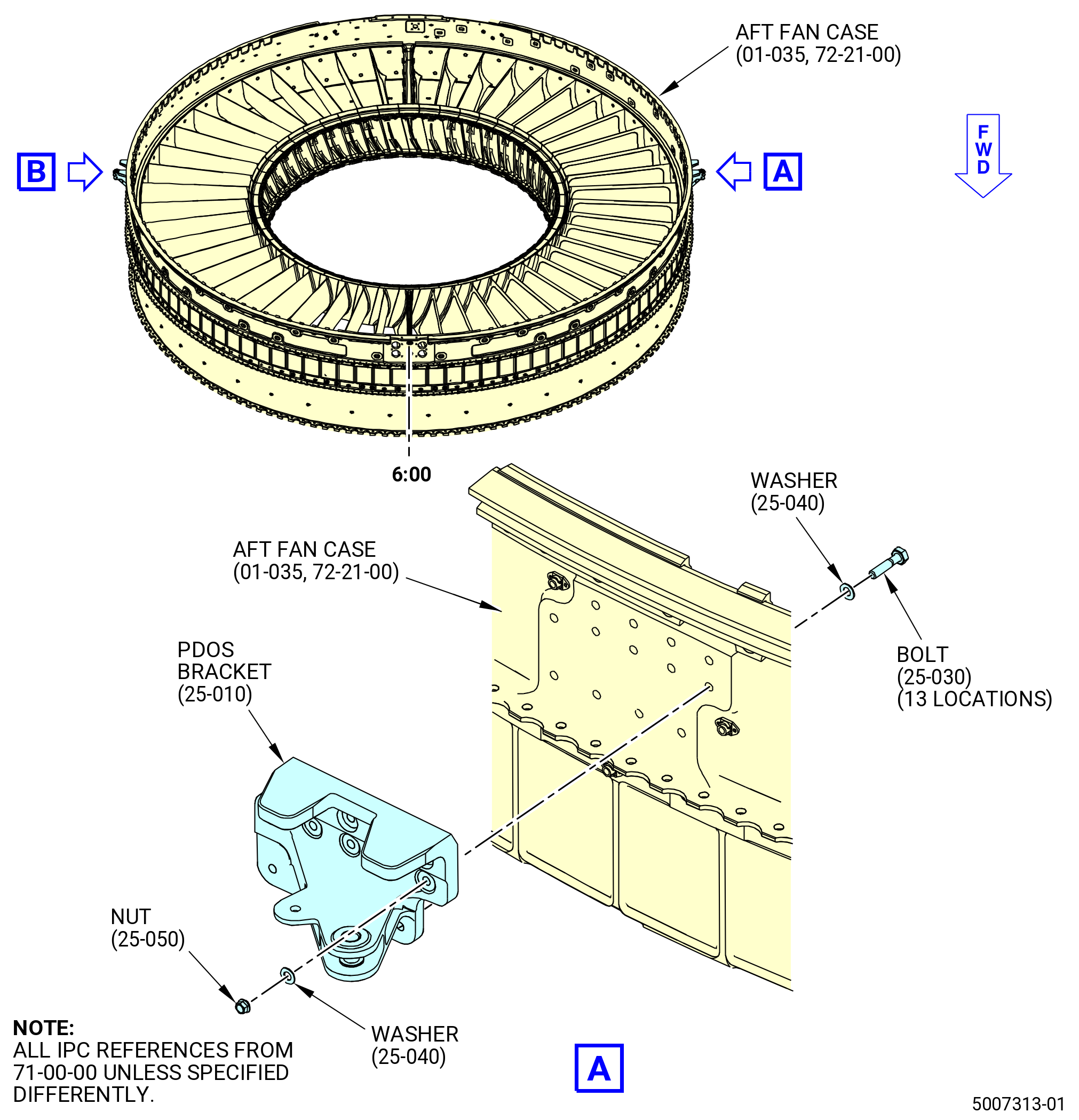

Figure 1003   (Sheet 1 ) Installation of the PDOS Brackets on the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

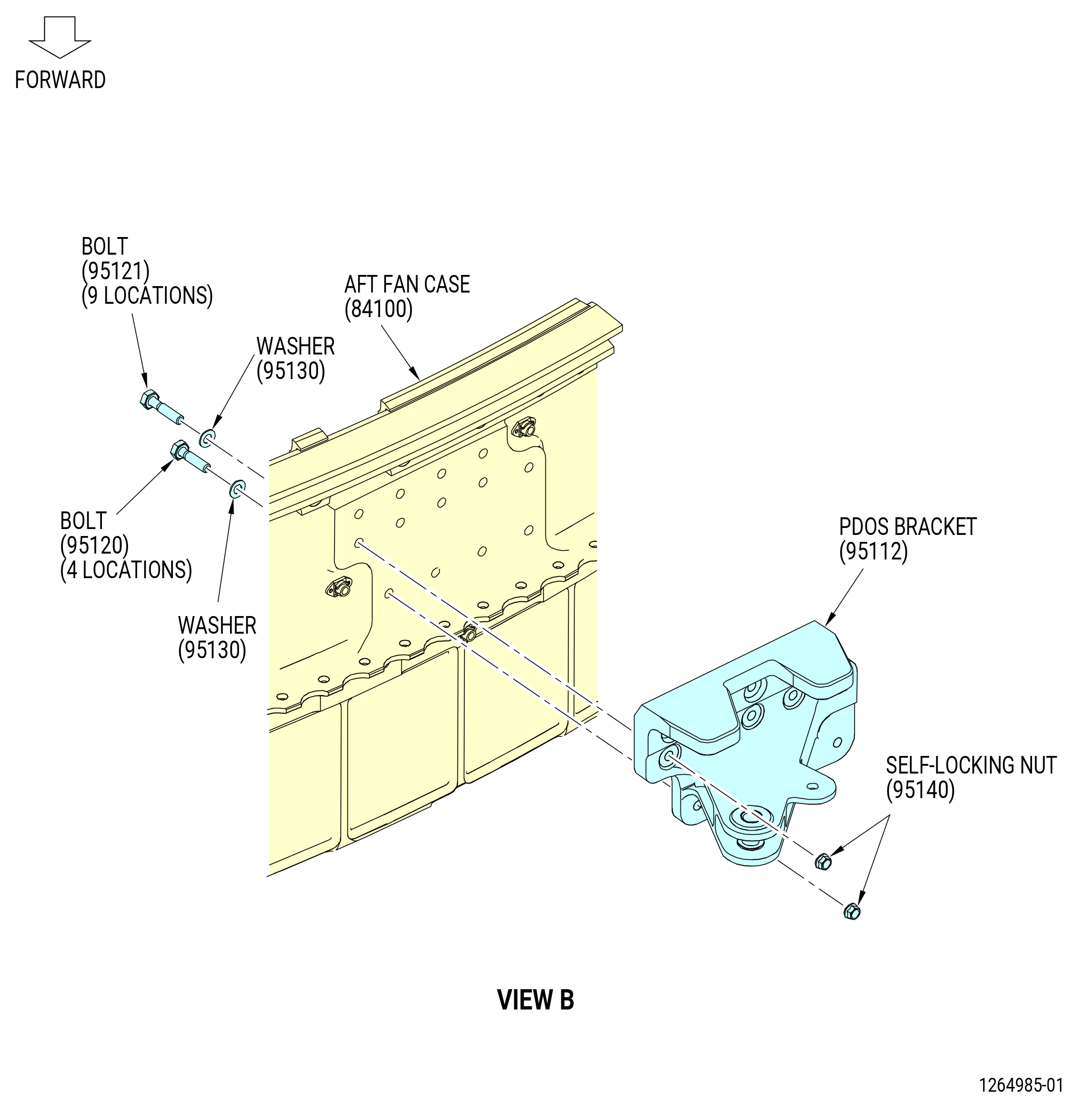

Figure 1003   (Sheet 2 ) Installation of the PDOS Brackets on the Aft Fan Case
Subtask 72-21-00-440-627
D.Install the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) and the right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504) on the aft fan case (01-035) (SIN 84100). Refer to Figure 1004 and do as follows:
Subtask 72-21-00-380-226
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C03-001  primer or C03-100  primer as follows:
(a)To the bolt (8442E) shank and the bearing surface of the bolt head. Do not apply C03-001  primer or C03-100  primer to the bolt threads.
(b)To the pre-drilled holes in the aft fan case (01-035) (SIN 84100) and left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) and the right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504).
(c)To the nut (84445) and the washer (84435) contact surfaces.
(d)To the inside diameter of the boltholes in the aft fan case (01-035) (SIN 84100) and the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) and the right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504).
Subtask 72-21-00-640-186
(2)Apply C02-058  lubricant to the threads of the bolts (8442E).
Subtask 72-21-00-440-628
(3)Put the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) on the right side (ALF) of the aft fan case (01-035) (SIN 84100) at the 12:30 o'clock position.
(4)Put the seal retainer on the left side (ALF) of the aft fan case at the 11:30 o'clock position.
(5)Attach the left and right seal retainer with bolts (8442E), washers (84435), and self-locking nuts (84445) at three locations.
NOTE:
The washers are installed with the bolt and the self-locking nut.
(6)Do not torque the nuts at this time.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1004   (Sheet 1 ) Installation of the Seal Retainers on the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1004   (Sheet 2 ) Installation of the Seal Retainers on the Aft Fan Case
Subtask 72-21-00-440-928
* * * SB   72-0035( Installation of the Fire Shields )
* * * SB   72-0045( Installation of the Insulation Blanket )
E.Install the fire shields (01-680) (SIN 844A1), (01-690) (SIN 844A2), (01-700) (SIN 844A3), (01-710) (SIN 844A4) and lower firewall insulation blanket (insulation blanket) (01-720) (SIN 844A5) to the upper firewall (01-151) (SIN 84401) or (01-152) (SIN 84401) and lower firewall (01-371) (SIN 84501) or (01-372) (SIN 84501). Refer to Figure 1005, Figure 1006, and do as follows:
NOTE:
PRE SB 72-0035 and PRE SB 72-0045 do not use this procedure.
(1)Bond the insulation blanket (01-720) (SIN 844A5) to the lower firewall (firewall) as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THESE PRODUCTS.
(a)Clean the bonding area of the insulation blanket and firewall with a 50-50 blend of C04-014  denatured alcohol and C04-035  isopropyl alcohol or C04-002  Stoddard solvent.
(b)Apply C01-159  RTV primer to the insulation blanket bonding surface.
(c)Clean the insulation blanket and firewall in the surfaces adjacent to the bonding surface with a 50-50 blend of C04-014   denatured alcohol and C04-035   isopropyl alcohol or C04-002   Stoddard solvent.
(d)Mask the area with C10-021  tape .
(e)Apply C01-007  RTV 106 to the transition areas where the insulation blanket touches other surfaces. Make sure that there is a smooth transition of the sealant between mating components.
(f)Apply sufficient pressure to prevent movement of the insulation blanket during cure of C01-007  RTV 106.
(g)Let the sealant cure for 12 hours at room temperature.
(h)Remove the C10-021  tape from the masked area.
(2)Bond the fire shields (01-680) (SIN 844A1) thru (01-710) (SIN 844A4) to the upper firewall as follows:
(a)Clean the bonding area of each fire shield and firewall with a 50-50 blend of C04-014  denatured alcohol and C04-035  isopropyl alcohol or C04-002  Stoddard solvent.
(b)Apply C01-159  RTV primer to the fire shield bonding surface.
(c)Clean the fire shield and firewall in the surfaces adjacent to the bonding surface with a 50-50 blend of C04-014  denatured alcohol and C04-035  isopropyl alcohol or C04-002  Stoddard solvent.
(d)Mask the area with C10-021  tape .
(e)Trim the fire shields as necessary to bond flush.
(f)Apply C01-007  RTV 106 to the transition areas where the fire shield touches other surfaces. Make sure that there is a smooth transition of the sealant between mating components.
(g)Apply sufficient pressure to prevent movement of the fire shield during cure of C01-007  RTV 106.
(h)Let the sealant cure for 12 hours at room temperature.
(i)Remove the C10-021  tape from the masked area.
* * * END SB   72-0035
* * * END SB   72-0045
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0045( Installation of the Insulation Blanket )
Figure 1005   Installation of the Lower Firewall Insulation Blanket on the Lower Firewall
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0035( Installation of the Fire Shields )
Figure 1006   Installation of the Fire Shields on the Upper Firewall
Subtask 72-21-00-440-629
F.Install the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401) and the lower firewall (01-370) (SIN 84501) or (01-371) (SIN 84501) or (01-372) (SIN 84501) on the 11C4643   firewall fixture as follows:
(1)Put the upper firewall on a clean, secure workbench with the aft end down. The surface coated with grey oil is the aft end.
(2)Prepare the 11C4643   firewall fixture to install the upper firewall on the fixture. Refer to Figure 1007 and do as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(a)Attach an overhead hoist to the pivoting hoist rings (item 44) and lift the 11C4643   firewall fixture.
(b)Disengage all toogle clamps (item 31), vertical hold down clamps (item 38), and horizontal spanners (item 39).
(c)Loosen the knurled knobs (item 43) to release the lower bar hook (item 22) and upper bar hook (item 32) through the head press fit bushings (items 33 and 34).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

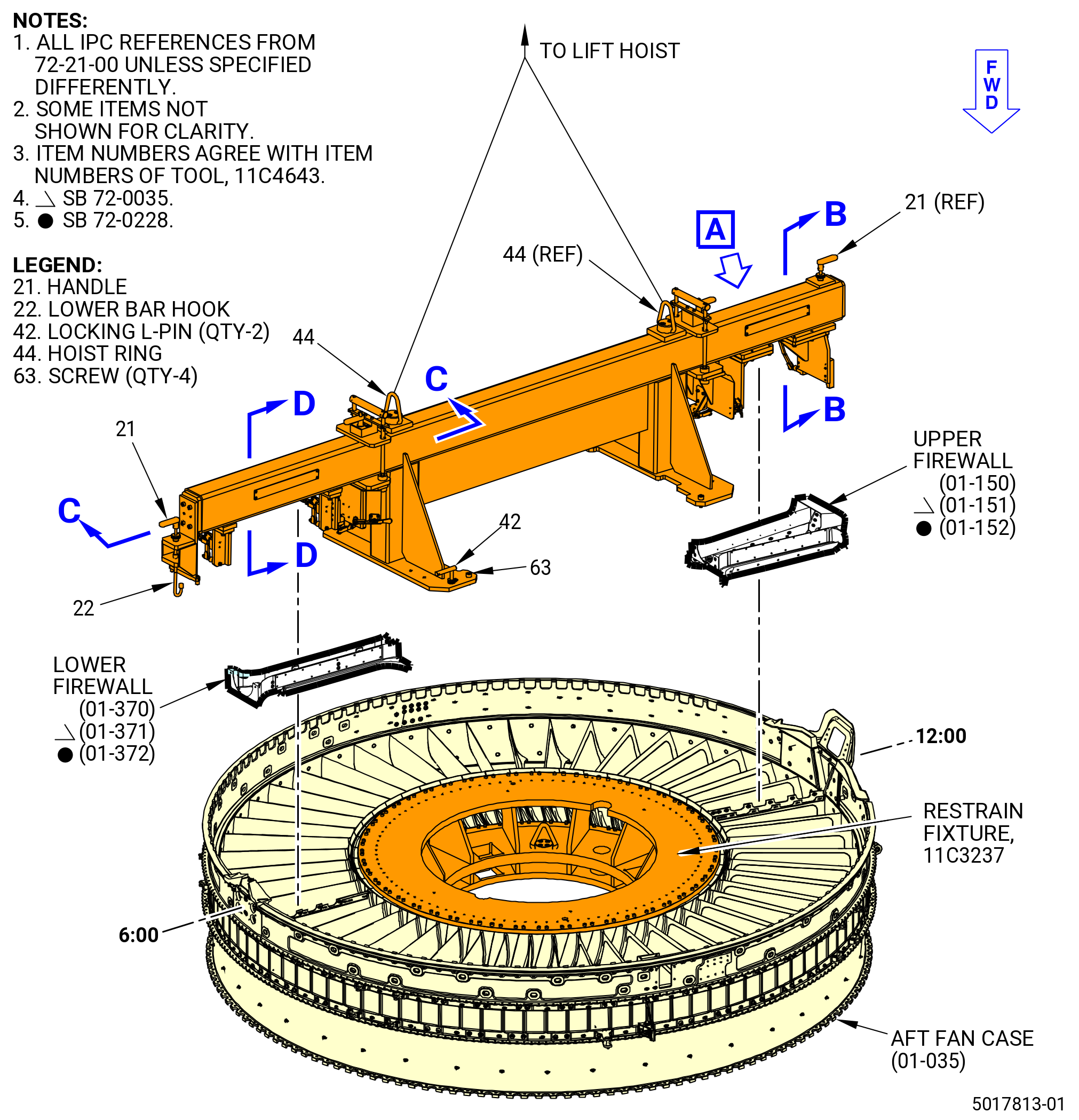

Figure 1007   (Sheet 1 ) Installation of the Upper/Lower Firewalls on the Firewall Fixture, 11C4643
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1007   (Sheet 2 ) Installation of the Upper/Lower Firewalls on the Firewall Fixture, 11C4643
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1007   (Sheet 3 ) Installation of the Upper/Lower Firewalls on the Firewall Fixture, 11C4643
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1007   (Sheet 4 ) Installation of the Upper/Lower Firewalls on the Firewall Fixture, 11C4643
Subtask 72-21-00-440-630
(3)Attach the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401) to the 11C4643   firewall fixture as follows:
(a)Take the upper firewall and manually put its face against the surface of the upper stopper bracket (item 7).
(b)Carefully move the upper firewall until the three protuberant points on the internal surface of the upper firewall touch the upper block locator back, front and center inboards (items 10, 11, and 14).
(c)The two protuberant points on the side of the upper firewall must contact the upper block locator back and center inboard (items 10 and 14) faces. Carefully move the upper firewall to make sure that the surfaces contact each other.
(d)When the protuberant points of the upper firewall make contact, turn the handle (item 21) inwards to close the upper bar hook (item 32) and pull it up to support the internal top surface of the upper firewall.
(e)Manually tighten the knurled knob (item 43) to secure the position of the upper bar hook (item 32).
(f)Complete the clamping of the upper firewall by engaging the toogle clamps (item 31) and three horizontal spanners (item 39). If needed, adjust the position of the spindles (item 41) with the hexagonal nuts (item 66).
(4)Attach the lower firewall (01-370) (SIN 84501) or (01-371) (SIN 84501) or (01-372) (SIN 84501) to the 11C4643   firewall fixture as follows:
(a)Take the lower firewall and manually put its face against the surface of the lower stopper bracket (item 6).
(b)Carefully move the lower firewall until the three protuberant points on the internal surface of the lower firewall touch the locator block pin (item 18) and locator lower pins (item 20).
(c)The two protuberant points on the side of the lower firewall must contact the locator center pins (item 19). Carefully adjust the lower firewall to make sure that the surfaces contact each other.
(d)When the protuberant points of the lower firewall make contact, turn the handle (item 21) inwards to close the lower bar hook (item 22) and pull it up to support the bottom surface of the lower firewall.
(e)Tighten the knurled knob (item 43) to secure the position of the lower bar hook (item 22).
(f)Complete the clamping of the lower firewall by engaging the two vertical hold down clamps (item 38) and the three horizontal spanners (item 39). If needed, adjust the position of the spindles (item 41) use the hexagonal nuts (item 66).
NOTE:
At this point, the two firewalls will be attached and secured by the clamping mechanisms of the fixture.
(5)Install the 11C4643   firewall fixture, upper firewall, and lower firewall to the aft fan case. Refer to Figure 1007 and do as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(a)Use the overhead hoist or crane to lift and move the 11C4643   firewall fixture with the firewalls attached.
(b)Put the 11C4643   firewall fixture over the 11C3237   restrain fixture that is already seated on the 11C4636   base assembly.
(c)Lower the 11C4643   firewall fixture to align it over the top surface of the 11C3237   restrain fixture.
(d)Attach the 11C4643   firewall fixture with the two locking L pins (item 42) and the four screws (item 63).
(6)Torque the self-locking nuts (84445) to 83 to 97 lb in. (9.4 to 11.0 Nm). Refer to Figure 1004.
(7)Torque the self-locking nuts again to 83 to 97 lb in. (9.4 to 11.0 Nm).
Subtask 72-21-00-440-631
G.Install the barrier (01-190) (SIN 84405) on the aft fan case (01-035) (SIN 84100) and the upper firewall (01-150) (SIN 84401), (01-151) (SIN 84401) or (01-152) (SIN 84401). Refer to Figure 1008 and do as follows:
Subtask 72-21-00-640-187
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the bolts (84422, 84421).
Subtask 72-21-00-440-632
(2)Align the barrier (84405) with the aft fan case (84100).
(3)Attach the barrier with the bolts (84422), washers (84432) at ten locations, and self-locking nuts (84441) as follows:
(a)Put the head of the bolt on the outside of the aft fan case and the self-locking nut on the inside.
(b)Put a washer under the head of the bolt and the self-locking nut.
(4)Do not torque the self-locking nuts at this time.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

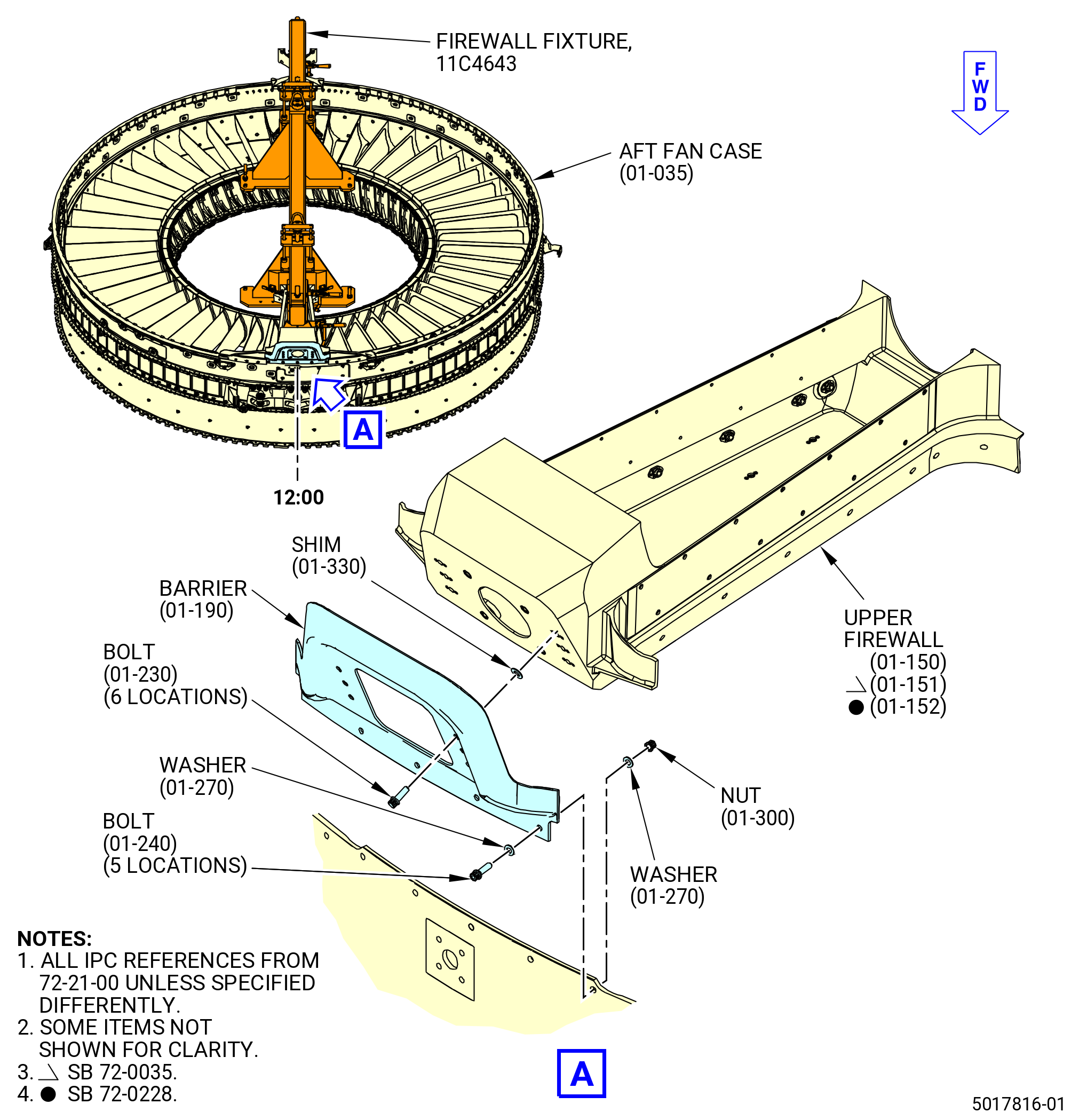

Figure 1008   Installation of the Vapor Barrier on the Upper Firewall
Subtask 72-21-00-440-633
(5)Install shims (01-330) (SIN 84470) between the barrier (01-190) (SIN 84405) and the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401) as follows:
(a)Use a taper gauge to measure the gap between the barrier and the upper firewall. The gap must not be more than 0.100 inch (2.54 mm). If the gap is more than 0.100 inch (2.54 mm), determine the cause and correct before installing the shims (84470).
(b)Remove the barrier from the aft fan case.
(c)Peel the shim to the size as the measured gap. The shim must give a 0.000-0.006 inch (0.00-0.15 mm) gap between the barrier and the upper firewall.
Subtask 72-21-00-380-227
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(d)Apply C03-001  primer or C03-100  primer to the bearing surface of the shim (84470).
Subtask 72-21-00-440-634
(e)Install the shims (01-330) (SIN 84470) on the barrier (01-190) (SIN 84405) and the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401) at six locations.
(f)Install the barrier (84405) to the aft fan case with bolts (84422), washers (84432), and self-locking nuts (84441).
(g)Attach the barrier to the upper firewall with the bolts (84421).
NOTE:
The bolt (84421) attaches to the nutplate on the upper firewall.
(h)Torque the bolts (84421) to 83-97 lb in. (9.4-11.0 N.m).
(i)Torque the bolts (84421) again to 83-97 lb in. (9.4-11.0 N.m).
(j)Torque the self-locking nuts to 83-97 lb in. (9.4-11.0 N.m).
(k)Torque the self-locking nuts again to 83-97 lb in. (9.4-11.0 N.m).
Subtask 72-21-00-110-061
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(l)Clean all surfaces around the barrier (84405) gaps with C04-035  isopropyl alcohol or equivalent.
(m)Make sure that all tools are clean before you apply the C01-176  RTV.
(n)Clean the areas adjacent to the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) and right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504) with C04-035   isopropyl alcohol or equivalent. Refer to Figure 1004.
Subtask 72-21-00-440-635

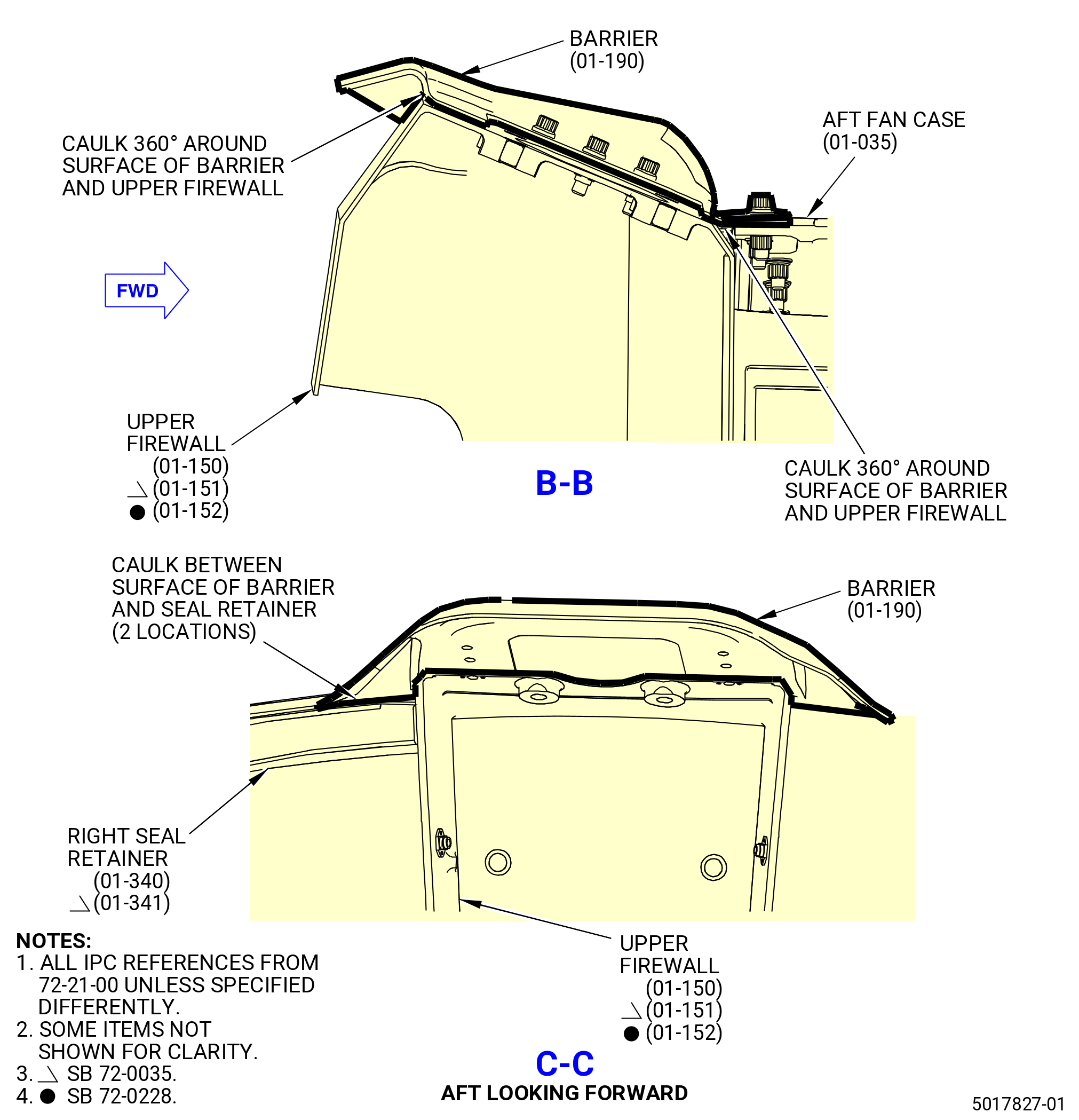

(6)Apply C01-176  RTV around the barrier (01-190) (SIN 84405) and the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401). Refer to Figure 1016 and do as follows:
Subtask 72-21-00-380-228
(a)Apply C01-159  RTV primer to all surfaces where the C01-176  RTV will be applied.
(b)Apply C01-176  RTV to the gaps between the barrier (01-190) (SIN 84405) and the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401) around the center hole.
(c)Apply C01-176  RTV to the inside edges of the barrier (01-190) (SIN 84405) adjacent to the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) and right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504). Refer to Figure 1004.
(d)If necessary, apply C01-176  RTV with a syringe to the area between the barrier lower edge, the aft surface of the aft fan case (01-035) (SIN 84100), left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404) or (01-182) (SIN 84404), and right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504). Refer to Figure 1004.
(e)Make sure that all areas of C01-176  RTV are smooth after application.
(f)Remove the unwanted C01-176  RTV .
Subtask 72-21-00-440-636
H.Install the tube hose (01-090 , 79-22-30) (SIN 46004) or (01-091 , 79-22-30) (SIN 46004) on the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401). Refer to Figure 1009 and do as follows:
(1)Install the oil tube support bracket (bracket) (46010) on the forward face of the upper firewall. The bracket has the stud on the right side, from inboard to outboard, forward looking aft. Refer to Figure 1009.
(2)Attach the bracket with bolts (46020). Do not use lubricant on the bolt.
(3)Torque the bolts to 106-124 lb in. (12.0-14.0 N.m).
(4)Torque the bolts again to 106-124 lb in. (12.0-14.0 N.m).
(5)Put the loop clamp (46080) on the oil vent tube/hose. The oil vent tube/hose is installed on the upper firewall with the flexible rubber end inboard.
(6)Attach the loop clamp to the bracket (46010) with a bolt. Do not use lubricant on the bolt.
(7)Tighten the bolt enough to hold the oil vent tube/hose in the loop clamp, but let the oil vent tube/hose to slide inboard and outboard. Do not torque at this time.
(8)Put the two seal flange gaskets (gasket) (46053) before the attachment of the oil vent tube/hose (46040) to the aft fan case (84100) and to oil vent tube/hose (46000), and the brackets (46012).
(9)Attach the oil vent tube/hose (46040) to the aft fan case, to the oil vent tube/hose (4600), and the brackets. Refer to TASK 72-00-01-430-803 (72-00-01, ASSEMBLY 001).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1009   Installation of the Oil Vent Tube/Hose on the Upper Firewall
Subtask 72-21-00-440-637
* * * PRE SB   72-0215
I.Install the support (01-420) (SIN 84508) to the lower firewall (01-370) (SIN 84501), (01-371) (SIN 84501) or (01-372) (SIN 84501) and the aft fan case (01-035) (SIN 84100). Refer to Figure 1010 and do as follows:
Subtask 72-21-00-640-188
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the bolts (84521, 84522).
Subtask 72-21-00-380-229
(2)Apply C03-001  primer or C03-100  primer as follows:
(a)The shank and bearing surface of the bolts (84521, 84522).
(b)The bearing surface of the washers (84532, 84533).
Subtask 72-21-00-440-638
(3)Align the support (01-420) (SIN 84508) to the three holes on the lower firewall (01-370) (SIN 84501) or (01-371) (SIN 84501) or (01-372) (SIN 84501). Refer to Figure 1010.
(4)Install the bolts (84521) from the inboard side of the aft fan case (84100) on the support.
(5)Install the washers (84532) and self-locking nuts (84541) on the bolts. Tighten the self-locking nuts to prevent movement. Do not torque at this time.
(6)Align the support to the two holes on the aft fan case.
(7)Install the bolts (84522) to align the support to the aft fan case.
(8)Install shims (84570) between the support and the aft fan case as follows:
(a)Use a taper gauge to measure the gap between the support and the aft fan case. The gap must not be more than 0.100 inch (2.54 mm). If the gap is more than 0.100 inch (2.54 mm), determine the cause and correct it before installing the shims (84570).
(b)Peel the shim to the size of the measured gap. The shim must give a +0.000 to -0.003 inch (+0.000 to -0.008 mm) gap between the support and the aft fan case.
(c)Bend the shim to fit the radius of the aft fan case.
Subtask 72-21-00-380-230
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(9)Apply C03-001  primer or C03-100  primer to both sides of the shim (84570).
Subtask 72-21-00-440-639
(10)Loosen the self-locking nuts (84541) on the bolts (84521).
(11)Remove the bolts (84522) from the support (84508).
(12)Install the shim (84570) between the support and the aft fan case (84100). Make sure the holes are aligned.
(13)Install the bolts and washers (84533) on the support from the outboard side.
(14)Install the self-locking nuts (84542) on the bolts on the aft fan case inboard side.
(15)Torque the self-locking nuts (84541, 84542) to 83 to 97 lb in. (9.4 to 11.0 Nm).
(16)Torque the self-locking nuts (84541, 84542) again to 83 to 97 lb in. (9.4 to 11.0 Nm).
* * * END PRE SB   72-0215
Subtask 72-21-00-440-932
* * * SB   72-0215
I.A.Install the support (01-420) (SIN 84508) to the lower firewall (01-370) (SIN 84501), (01-371) (SIN 84501) or (01-372) (SIN 84501) and the aft fan case (01-035) (SIN 84100). Refer to Figure 1010 and do as follows:
Subtask 72-21-00-640-270
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THESE PRODUCTS.
(1)Apply C02-058  lubricant to the threads of the bolts (01-440) (SIN 84521).
(2)Apply C02-071  anti-seize to the threads of the bolts (01-451) (SIN 84522).
Subtask 72-21-00-380-322
(3)Apply C03-001  primer or C03-100  primer as follows:
(a)To the shank and bearing surface of the bolts (01-440) (SIN 84521).
(b)To the bearing surface of the washers (01-460) (SIN 84532) and (01-471) (SIN 84533).
Subtask 72-21-00-440-933
(4)Align the support (01-420) (SIN 84508) to the three holes on the lower firewall (01-370) (SIN 84501) or (01-371) (SIN 84501) or (01-372) (SIN 84501). Refer to Figure 1010.
(5)Install the machine bolts (bolts) (01-440) (SIN 84521) from the inboard side of the aft fan case (01-035) (SIN 84100) on the support.
(6)Install the washers (01-460) (SIN 84532) and self-locking nuts (nuts) (01-480) (SIN 84541) on the bolts. Tighten the nuts to prevent movement. Do not torque the nuts at this time.
(7)Align the support to the two holes on the aft fan case.
(8)Install the bolts (01-451) (SIN 84522) to align the support to the aft fan case.
(9)Install the shim (01-490) (SIN 84570) between the support and the aft fan case as follows:
(a)Use a taper gauge to measure the clearance between the support and the aft fan case. The clearance must not be more than 0.100 inch (2.54 mm). If the clearance is more than 0.100 inch (2.54 mm), find out the cause and correct it before the shims are installed.
(b)Peel the shim to the size of the measured clearance. The shim must give a plus 0.000 to minus 0.003 inch (plus 0.000 to minus 0.08 mm) gap between the support and aft fan case.
(c)Bend the shim to fit the radius of the aft fan case.
Subtask 72-21-00-380-323
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THESE PRODUCTS.
(10)Apply C03-001  primer or C03-100  primer to the two both sides of the shim (01-490) (SIN 84570).
Subtask 72-21-00-440-934
(11)Loosen the nuts (01-480) (SIN 84541) on the bolts (01-440) (SIN 84521).
(12)Remove the bolts (01-451) (SIN 84522) from the support (01-420) (SIN 84508).
(13)Install the shim (01-490) (SIN 84570) between the support and aft fan case. Make sure that the holes are aligned.
(14)Install the bumper (01-425) (SIN 84518), bolts (01-451) (SIN 84522) and washers (01-471) (SIN 84533) on the support from the outboard side.
(15)Install the self-locking nuts (nuts) (01-570) (SIN 84542) on the bolts on the aft fan case inboard side.
(16)Torque the nuts (01-480) (SIN 84541) and (01-570) (SIN 84542) to 83-97 lb in. (9.4-11.0 N.m).
(17)Torque the nuts (01-480) (SIN 84541) and (01-570) (SIN 84542) again to 83-97 lb in. (9.4-11.0 N.m).
* * * END SB   72-0215
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * PRE SB   72-0215
Figure 1010   (Sheet 1 ) Installation of the Support to the Lower Firewall and Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0215
Figure 1010   (Sheet 2 ) Installation of the Support to the Lower Firewall and Aft Fan Case
Subtask 72-21-00-440-640
J.Install the lower seal (SIN 84509), the lower right cowl seal (01-400) (SIN 84151), (01-401) (SIN 84151) or (01-402) (SIN 84151), lower left cowl seal (01-410) (SIN 84152), (01-411) (SIN 84152) or (01-412) (SIN 84152) on the aft fan case (01-035) (SIN 84100), and the lower OGV fan pylon (OGV 25) (10-300) (SIN 8400K). Refer to Figure 1011 and do as follows:
(1)Put the lower seal on the aft fan case at the 6:00 o'clock position. Mark the aft fan case with an approved marker where the lower seal touches the aft fan case.
Subtask 72-21-00-110-062
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(2)Clean the mating surfaces and adjacent areas of the aft fan case (84100) and the OGV 25 (8400K) with C04-035  isopropyl alcohol where the lower seal (84509) will be installed.
(3)Wipe off excess C04-035  isopropyl alcohol with a clean C10-182  cloth.
(4)Allow the cleaned area to dry for five minutes.
Subtask 72-21-00-440-641
(5)Attach the lower seal (84509) to the aft fan case (84100) and OGV 25 (8400K) as follows:
(a)Put the lower seal on the aft fan case and record where the lower seal touches the aft fan case.
(b)Remove the lower seal from the aft fan case.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(c)Apply C01-159  RTV primer to the aft fan case (84100) in the areas where the lower seal will make contact.
(d)Apply C01-122  RTV 157 to the mating surfaces where the lower seal touches the aft fan case. Use a tool to apply an adhesive layer of approximately 0.020 inch (0.51 mm) in thickness.
(e)Put the lower seal on the aft fan case and the OGV 25 (8400K).
(f)Apply C10-021  tape to hold the lower seal on the aft fan case and OGV 25 (8400K) tightly in place.
(g)Let the adhesive cure for 1 hour.
(h)Remove the C10-021   tape.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1011   Installation of the Lower Seal and Lower Left/Right Cowl Door Seals on the Aft Fan Case
Subtask 72-21-00-440-642
K.Install the lower right cowl seal (01-400) (SIN 84151), (01-401) (SIN 84151) or (01-402) (SIN 84151), the lower left cowl seal (01-410) (SIN 84152), (01-411) (SIN 84152) or (01-412) (SIN 84152) on the aft fan case (01-035) (SIN 84100). Refer to Figure 1011 and do as follows:
Subtask 72-21-00-110-063
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Clean the mating surfaces and adjacent areas of the aft fan case (01-035) (SIN 84100) with C04-035   isopropyl alcohol where the lower right cowl seal (01-400) (SIN 84151), (01-401) (SIN 84151) or (01-402) (SIN 84151) and the lower left cowl seal (01-410) (SIN 84152), (01-411) (SIN 84152) or (01-412) (SIN 84152) will be installed.
(2)Wipe off excess C04-035  isopropyl alcohol with a clean C10-182  cloth.
(3)Let the area to dry for 5 minutes.
Subtask 72-21-00-440-643
(4)Attach the lower right cowl seal (01-400) (SIN 84151), (01-401) (SIN 84151) or (01-402) (SIN 84151) and the lower left cowl seal (01-410) (SIN 84152), (01-411) (SIN 84152) or (01-412) (SIN 84152) to the aft fan case (01-035) (SIN 84100) as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C01-159  RTV primer to the aft fan case (84100), thrust channel (84116), and lower support extension (84508) in the areas where the cowl door seal will make contact.
(b)Apply C01-122  RTV 157 to the mating surfaces of the aft fan case (84100). Use a tool to apply an adhesive layer of approximately 0.020 inch (0.51 mm) in thickness.
(c)Put the lower right cowl seal (01-400) (SIN 84151) or (01-401) (SIN 84151) or (01-402) (SIN 84151) and the lower left cowl seal (01-410) (SIN 84152) or (01-411) (SIN 84152) or (01-412) (SIN 84152) on the aft fan case.
(d)Apply C10-021   tape to hold the lower right cowl seal (01-400) (SIN 84151) or (01-401) (SIN 84151) or (01-402) (SIN 84151) and the lower left cowl seal (01-410) (SIN 84152) or (01-411) (SIN 84152) or (01-412) (SIN 84152) tightly in place.
(e)Let the adhesive cure for 1 hour.
(f)Remove the C10-021   tape.
Subtask 72-21-00-440-644
L.Install the OGV upper right extension panel (upper right extension panel) (01-160) (SIN 84402) and OGV upper left extension panel (upper left extension panel) (01-170) (SIN 84403) on the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401). Refer to Figure 1012 and do as follows:
(1)Make sure all accessible components are installed before installation of the panels. Refer to Subtask 72-21-00-440-629 (paragraph 3.F.) thru Subtask 72-21-00-440-643 (paragraph 3.K.(4)).
Subtask 72-21-00-640-189
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(2)Apply C02-058  lubricant to the threads of the Torx bolts (bolts) (84520).
Subtask 72-21-00-440-645
(3)Install the upper right extension panel (84402) and the upper left extension panel (84403) as follows:
(a)Align the upper right extension panel (01-160) (SIN 84402) and the upper left extension panel (01-170) (SIN 84403) holes with the upper firewall (01-150) (SIN 84401) or (01-151) (SIN 84401) or (01-152) (SIN 84401).
(b)Attach the upper right extension panel (01-160) (SIN 84402) and the upper left extension panel (01-170) (SIN 84403) with the bolts (01-430) (SIN 84520), and finger-tight at the 10 locations.
CAUTION:
THE BOLTHEADS CAN SIT PROUD EVEN AFTER TORQUE. DO NOT OVER TORQUE THE BOLTS OR DAMAGE TO THE EXTENSION PANEL CAN OCCUR.
(4)Torque the 10 bolts to 70 to 80 lb in. (7.9 to 9.0 Nm), in an alternating pattern. Refer to Figure 1014 and do as follows:
(a)Torque in an identified sequence.
(b)Torque the upper right extension panel (01-160) (SIN 84402) and the upper left extension panel (01-170) (SIN 84403) in the same sequence.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1012   (Sheet 1 ) Installation of the OGV Extension Panels on the Upper Firewall
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1012   (Sheet 2 ) Installation of the OGV Extension Panels on the Upper Firewall
Subtask 72-21-00-440-646
M.Install the lower right OGV extension panel (lower right extension panel) (84502) and lower left OGV extension panel (lower left extension panel) (84503) on the aft fan case (84100) OGV 25 (8400K) as follows. Refer to Figure 1013.
(1)Make sure all accessible components are installed before installation of the panels. Refer to Subtask 72-21-00-440-629 (paragraph 3.F.) thru Subtask 72-21-00-440-643 (paragraph 3.K.(4)).
Subtask 72-21-00-640-190
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(2)Apply C02-058  lubricant to the threads of the Torx bolts (bolts) (84520).
Subtask 72-21-00-440-647
(3)Install the lower right extension panel (84502) and the lower left extension panel (84503) as follows:
(a)Align the lower right extension panel (84502) and the lower left extension panel (84503) holes with the OGV 25 (8400K).
(b)Attach the lower right extension panel (01-380) (SIN 84502) and the lower left extension panel (01-390) (SIN 84503) with the bolts (01-430) (SIN 84520), and finger-tight at the 10 locations.
CAUTION:
THE BOLTHEADS CAN SIT PROUD EVEN AFTER TORQUE. DO NOT OVER TORQUE THE BOLTS OR DAMAGE TO THE EXTENSION PANEL CAN OCCUR.
(4)Torque the 10 bolts to 70 to 80 lb in. (7.9 to 9.0 Nm), in an alternating pattern. Refer to Figure 1014 and do as follows:
(a)Torque in an identified sequence.
(b)Torque the lower right extension panel (01-380) (SIN 84502) and the lower left extension panel (01-390) (SIN 84503) in the same sequence.
Subtask 72-21-00-380-231
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(5)Apply C01-159   RTV primer where the lower right extension panel (01-380) (SIN 84502) and the lower left extension panel (01-390) (SIN 84503) meet the lower seal (SIN 84509) and the lower left cowl seal (01-410) (SIN 84152) or (01-411) (SIN 84152) or (01-412) (SIN 84152) and lower right cowl seal (01-400) (SIN 84151) or (01-401) (SIN 84151) or (01-402) (SIN 84151).
(6)Apply C01-176   RTV where the lower right extension panel (01-380) (SIN 84502) and the lower left extension panel (01-390) (SIN 84503) touch the lower left cowl seal (01-410) (SIN 84152) or (01-411) (SIN 84152) or (01-412) (SIN 84152) and lower right cowl seal (01-400) (SIN 84151) or (01-401) (SIN 84151) or (01-402) (SIN 84151).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1013   (Sheet 1 ) Installation of the OGV Extension Panels on the OGV 25
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1013   (Sheet 2 ) Installation of the OGV Extension Panels on OGV 25
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1014   Extension Panel Installation Torque Sequence
Subtask 72-21-00-440-648
N.Remove the 11C4643   firewall fixture from the aft fan case (01-035) (SIN 84100). Refer to Figure 1007 and do as follows:
(1)Prepare the upper end of the 11C4643   firewall fixture for removal as follows:
(a)Loosen the knurled knob (item 43) to release the upper bar hook (item 32) that firmly attaches and supports the internal top surface of the upper firewall.
(b)Disengage the two horizontal spanners (item 39) at the sides of the upper stopper bracket (item 7).
(c)Disengage the toogle clamps (item 31) that firmly attach the side surface of the upper firewall.
(d)Manually take the bar handle (item 26) to bring up the locating round and diamond bars (items 27 and 28) until these are attached by the clips (item 30) with the headless straight pins (item 49).
(e)Manually loosen the bar handle (item 36) that is attached to the adjustment rod (item 29) to manually move the upper stopper bracket (item 7) to the left in order to avoid damage to the engine hardware when disengaging the horizontal spanner (item 39) that attaches the bottom surface of the upper firewall.
(f)Manually tighten again the bar handle (item 36) to maintain the position of the upper stopper bracket (item 7) to remove the fixture from the aft fan case.
(2)Prepare the lower end of the 11C4643   firewall fixture for removal as follows:
(a)Loosen the knurled knob (item 43) to release the lower bar hook (item 22) that firmly attaches and supports the lower firewall from its bottom surface.
(b)Disengage the two vertical hold down clamps (item 38) that firmly attach the side surface of the lower firewall.
(c)Manually take the bar handle (item 26) to bring up the locating round and diamond bars (items 27 and 28) until these are attached by the clips (item 30) with the headless straight pins (item 49).
(d)Disengage the two horizontal spanners (item 39) at the sides of the lower stopper bracket (item 6).
(e)Manually loosen the bar handle (item 36) that fastens the adjustment rod (item 29) to manually move the lower stopper bracket (item 6) to the right in order to avoid damage to the engine hardware when disengaging the horizontal spanner (item 39) that attaches the bottom surface of the lower firewall.
(f)Manually tighten again the bar handle (item 36) to maintain the position of the lower stopper bracket (item 6) to remove the fixture from the aft fan case.
(3)Remove the screws (item 63) and disengage the locking L-pins (item 42) that firmly attach the 11C4643   firewall fixture over the surface of the 11C3237   restrain fixture.
(4)Attach a bridle sling to the hoist rings (item 44) at two locations.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(5)Lift the 11C4643   firewall fixture from the aft fan case.
(6)Safely store the 11C4643   firewall fixture.
Subtask 72-21-00-440-649
O.Deleted.
Subtask 72-21-00-440-650
P.Install the 1-48 OGV fairings (8410S, 8410R, 8410P, 8410J, 8410F, 8410E, 8410D, 8410C, 8410B, 8410A) between the OGVs 1-48 (8400J, 8400L, 8400C, 8400D, 8400E, 8400A, 8400F, 8400G, 8400K, 8400H, 8400M) as follows. Refer to Figure 1015.
Subtask 72-21-00-640-191
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the screws (84127, 84128).
Subtask 72-21-00-380-232
(2)Apply C01-159  RTV primer to the shank of the screws (84127, 84128). Dip the screw in the primer. Install and torque the screws in less but not more than 3 hours after you apply the C01-159  RTV primer.
Subtask 72-21-00-440-651
(3)Install the 1-11 OGV fairings between the OGVs 1-12 as follows:
(a)Install the OGV fairing (8410S) between OGVs 1 and 2 (8400J, 8400L).
(b)Install the OGV fairing (8410R) between OGVs 2 and 3 (8400L, 8400C).
(c)Install the OGV fairings (8410P) at four locations between OGVs 3 and 7 (8400C).
(d)Install the OGV fairing (8410J) between OGVs 7 and 8 (8400C, 8400D).
(e)Install the OGV fairings (8410F) at two locations between OGVs 8 and 10 (8400D).
(f)Install the OGV fairing (8410F) at two locations between OGVs 10 and 12 (8400D).
(g)Attach the OGV fairing (8410S) with a screw (84127) in the forward hole and a washer (84132) and a screw (84127) in the aft hole.
(h)Attach the fairings with the screws (84127) in the forward hole of each fairing.
(i)Attach the fairings with the screws (84128) in the aft hole of each fairing. Do not install a screw (84128) in the aft hole for OGV fairing (8410S).
(j)Tighten the screws (84127, 84128) to prevent movement. Do not torque at this time.

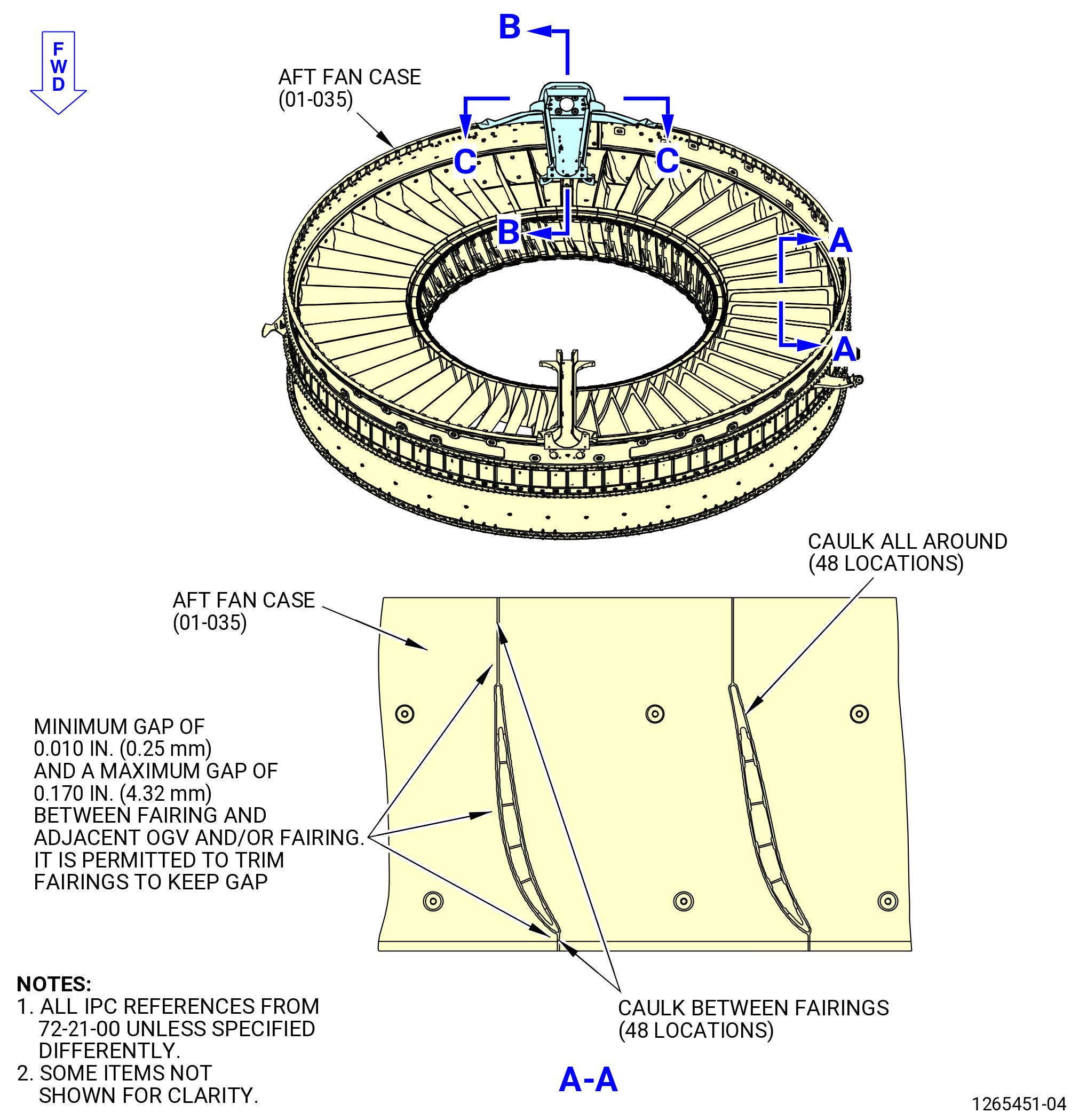

(k)Make sure that there is a 0.010-0.170 inch (0.25-4.32 mm) gap between the OGV and the faring. If necessary, trim the OGV fairing to the correct gap.
(4)Install the fairings 12-21 between the OGVs 12-22 as follows:
(a)Install the OGV fairing (8410E) between OGVs 12 and 13 (8400D, 8400E).
(b)Install the OGV fairings (8410D) at four locations between OGVs 13-17 (8400E).
(c)Install the OGV fairing (8410C) between OGVs 17 and 18 (8400E, 8400A).
(d)Install the OGV fairings (8410B) at two locations between OGVs 18 and 20 (8400A).
(e)Install the OGV fairing (8410A) between OGVs 20 and 21 (8400A, 8400F).
(f)Install the OGV fairing (84108) between OGVs 21 and 22 (8400F, 8400G).
(g)Attach the fairings with screws (84127) in the forward hole of each fairing.
(h)Attach the fairings with the screws (84128) in the aft hole of each fairing.
(i)Tighten the screws (84127, 84128) to prevent movement. Do not torque at this time.
(j)Make sure that there is a 0.010-0.170 inch (0.25-4.32 mm) gap between the OGV and the faring. If necessary, trim the OGV fairing to the correct gap.
(5)Install the fairings 22-33 between the OGVs 22-34 as follows:
(a)Install the OGV fairings (84107) at two locations between OGVs 22 and 24 (8400G).
(b)Install the OGV fairing (8410H) between OGVs 24 and 25 (8400G, 8400K).
(c)Install the OGV fairing (8410G) between OGVs 26 and 25.
(d)Install the OGV fairing (8410F) between OGVs 26 and 27 (8400D).
(e)Install the OGV fairing (8410E) between OGVs 27 and 28 (8400D, 8400E).
(f)Install the OGV fairings (8410D) at three locations between OGVs 28 and 31 (8400E).
(g)Install the OGV fairing (8410C) between OGVs 31 and 32 (8400E, 8400A).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   (Sheet 1 ) Installation of the OGV Fairings Between the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   (Sheet 2 ) Installation of the OGV Fairings Between the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   (Sheet 3 ) Installation of the OGV Fairings Between the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   (Sheet 4 ) Installation of the OGV Fairings Between the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   (Sheet 5 ) Installation of the OGV Fairings Between the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1015   (Sheet 6 ) Installation of the OGV Fairings Between the OGVs
Subtask 72-21-00-440-652
(h)Install the OGV fairings (8410B) at two locations between OGVs 32 and 34 (8400A).
(i)Attach the fairings with the screws (84127) in the forward hole of each fairing.
(j)Attach the fairings with the screws (84128) in the aft hole of each fairing.
(k)Tighten the screws (84127, 84128) to prevent movement. Do not torque at this time.
(l)Make sure that there is a 0.010-0.170 inch (0.25-4.32 mm) gap between the OGV and the faring. If necessary, trim the OGV fairing to the correct gap.
(6)Install the fairings 34-41 between the OGVs 34-42 as follows:
(a)Install the OGV fairing (8410A) between OGVs 34 and 35 (8400A, 8400F).
(b)Install the OGV fairings (84109) at three locations between OGVs 35 and 38 (8400F).
(c)Install the OGV fairing (84108) between OGVs 38 and 39 (8400F, 8400G).
(d)Install the OGV fairings (84107) at two locations between OGVs 39 and 41 (8400G).
(e)Install the OGV fairing (84106) between OGVs 41 and 42 (8400G, 8400H).
(f)Attach the OGV fairings with screws (84127) in the forward hole of each fairing.
(g)Attach the OGV fairings with the screws (84128) in the aft hole of each fairing.
(h)Tighten the screws (84127, 84128) to prevent movement. Do not torque at this time.
(i)Make sure that there is a 0.010-0.170 inch (0.25-4.32 mm) gap between the OGV and the OGV faring. If necessary, trim the OGV fairing to the correct gap.

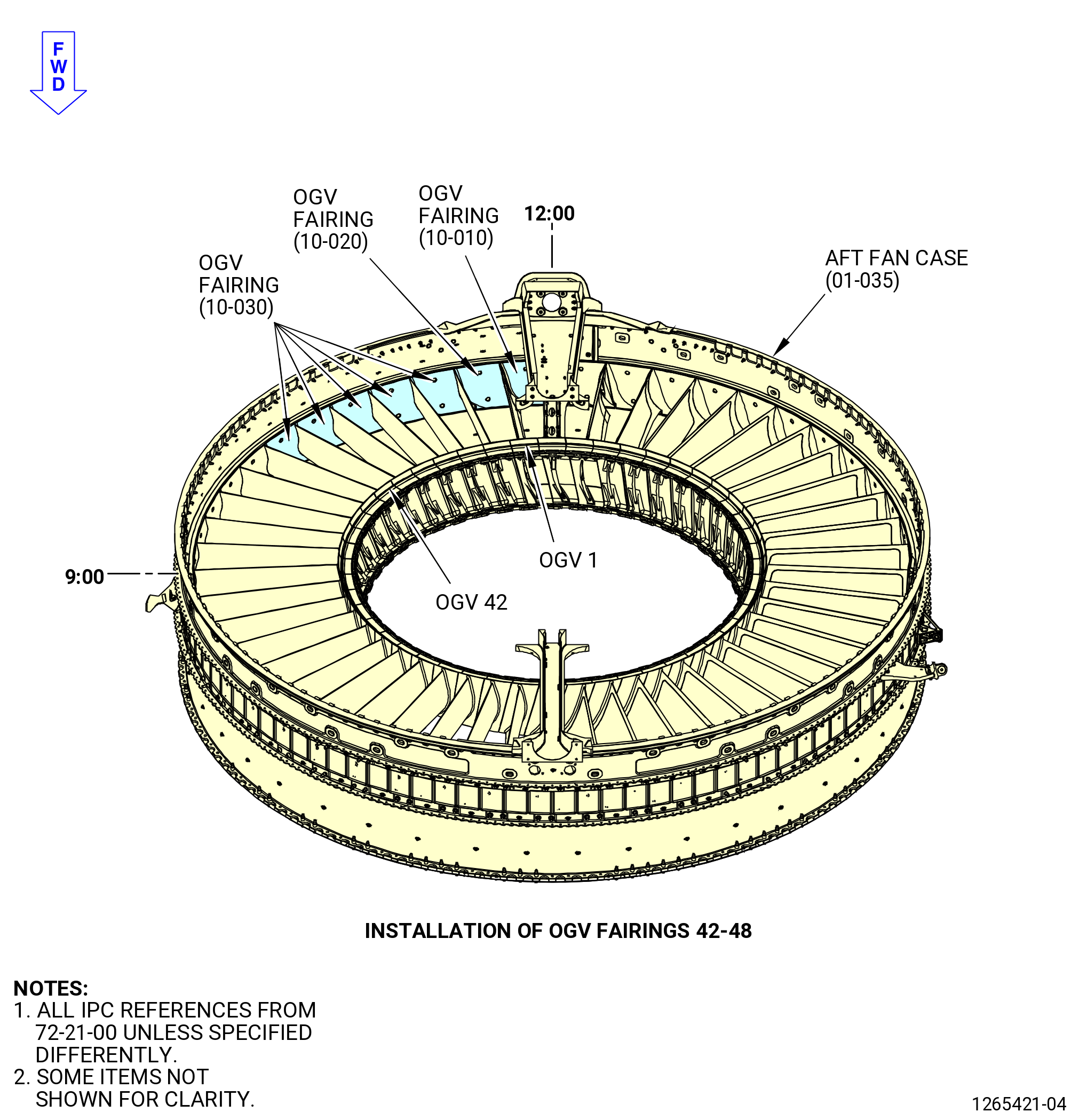

(7)Install the OGV fairings 42-48 between the OGVs 42-1 as follows:
(a)Install the OGV fairings (84105) at five locations between OGVs 42 and 47 (8400H).
(b)Install the OGV fairing (84104) between OGVs 47 and 48 (8400H, 8400M).
(c)Install the OGV fairing (84103) OGVs 48 and 1 (8400M, 8400J).
(d)Attach the OGV fairing (84103) with a screw (84127) in the forward hole and a washer (84132) and screw (84127) in the aft hole.
(e)Attach the OGV fairings with the screws (84127) in the forward hole of each fairing.
(f)Attach the OGV fairings with the screws (84128) in the aft hole of each fairing. Do not install a screw (84128) in OGV fairing (84103).
(g)Tighten the screws (84127, 84128) to prevent movement. Do not torque at this time.
(h)Make sure that there is a 0.010-0.170 inch (0.25-4.32 mm) gap between the OGV and the OGV faring. If necessary, trim the OGV fairing to the correct gap.
(8)Torque the screws (84127, 84128) to 83-97 lb in. (9.4-11.0 N.m).
(9)Torque the screws again (84127, 84128) to 83-97 lb in. (9.4-11.0 N.m).
(10)Make sure there is a 0.010-0.170 inch (0.25-4.32 mm) gap between the OGV and the OGV faring. If necessary, trim the OGV fairing to the correct gap.
Subtask 72-21-00-380-326
(11)Apply C01-176  RTV 133 to the heads of all aft screws (10-210) (SIN 84128) of the OGV fairing. Refer to Figure 1015 and do as follows:
NOTE:
C01-176  RTV 133 application is not necessary for the forward row of OGV fairing screws.
(a)Apply C10-109  wax or C10-040  teflon tape to drive recesses of the bolts.
(b)Apply C01-176  RTV 133 to the heads of the screws.
(c)Use a spatula, wooden depressor, or a rubber glove, to manually smooth the C01-176  RTV 133.
(d)Remove all excess of C01-176  RTV 133 and make a smooth surface that is flush to the surface.
(e)Make sure that the C01-176  RTV 133 does not extend onto the OGV fairings more than the filled gap.
(f)Make sure that the C01-176  RTV 133 is smooth, flush, and equal after application.
(g)Let the C01-176  RTV 133 dry for a minimum of 2 hours.
Subtask 72-21-00-110-064
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(12)Clean the OGVs 1-48 and the OGV fairings 1-48 with C04-035   isopropyl alcohol a minimum 2.00 inches (50.8 mm) to both sides of the area where the C01-176   RTV will be applied.
Subtask 72-21-00-380-233
(13)Apply C01-159  RTV primer to the 1-48 OGV fairings and the OGVs 1-48 as follows:
(a)Do several up and down brush strokes to make sure you have complete primer coverage.
(b)Apply primer to the edges of the 1-48 OGV fairings.
(c)Apply primer 0.250 inch (6.35 mm) on the back side of the OGVs.
(d)Apply primer 0.250-0.500 inch (6.35-12.70 mm) in width to each side of the OGV fairing gap surfaces, at both the forward and the aft end of the OGVs.
(e)Let the primer to dry a minimum 15 minutes.
Subtask 72-21-00-440-653
(14)Apply C01-176  RTV to the 1-48 OGV fairings as follows. Refer to Figure 1016.
(a)Make sure all tools are clean before using them.
(b)Apply C01-176  RTV between the OGV and the OGV fairing 0.250 inch (6.35 mm) behind the OGV fairing surface. The RTV must be above the OGV fairing surface.
(c)Use a rubber glove to smooth the C01-176  RTV manually. Remove all excess RTV and make a smooth surface that is flush to the surface of the OGV fairing. The RTV must not extend onto the OGV fairing or the OGV more than the filled gap.
(d)Put C10-021  tape on the aft side of the OGV fairings and the joint between the OGV fairing that is aft of the OGV. Put the tape approximately 0.500 inch (12.70 mm) on each side of the gap.
(e)Put C10-021  tape on the forward side of the OGV fairings and the joint between the OGV fairing that is forward of the OGV. Put the tape approximately 0.500 inch (12.70 mm) on each side of the gap.
(f)Apply C01-176  RTV to the joints between the OGV fairings. Use a tool to smooth the RTV.
(g)Make sure all surfaces are flush, smooth, and equal to the OGVs and the OGV fairings.
(15)Do Subtask 72-21-00-380-233 (paragraph 3.P.(12)) and Subtask 72-21-00-440-653 (paragraph 3.P.(13)) for all the OGVs and the OGV fairings.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1016   (Sheet 1 ) RTV Caulk Application to Gaps Around OGVs, OGV Fairings, and Vapor Barrier
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1016   (Sheet 2 ) RTV Caulk Application to Gaps Around OGVs, OGV Fairings, and Vapor Barrier
Subtask 72-21-00-440-751
Q.Install the seal (10-740) (SIN 521J0). Refer to Figure 1017 and do as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Clean the aft fan case and the OGV fairings 1-48 with C04-035  isopropyl alcohol at the area where the C01-208  silicone rubber adhesive will be applied.
(2)Bond the seal (10-740) (SIN 521J0) to the aft fan case (01-035) (SIN 84100) with C01-208   silicone rubber adhesive to sit flush against the aft ribs of the OGV fairings 1-48.
NOTE:
A maximum of 12 butt joints is permitted in the seal with a maximum permitted clearance of 0.020 inch (0.50 mm).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

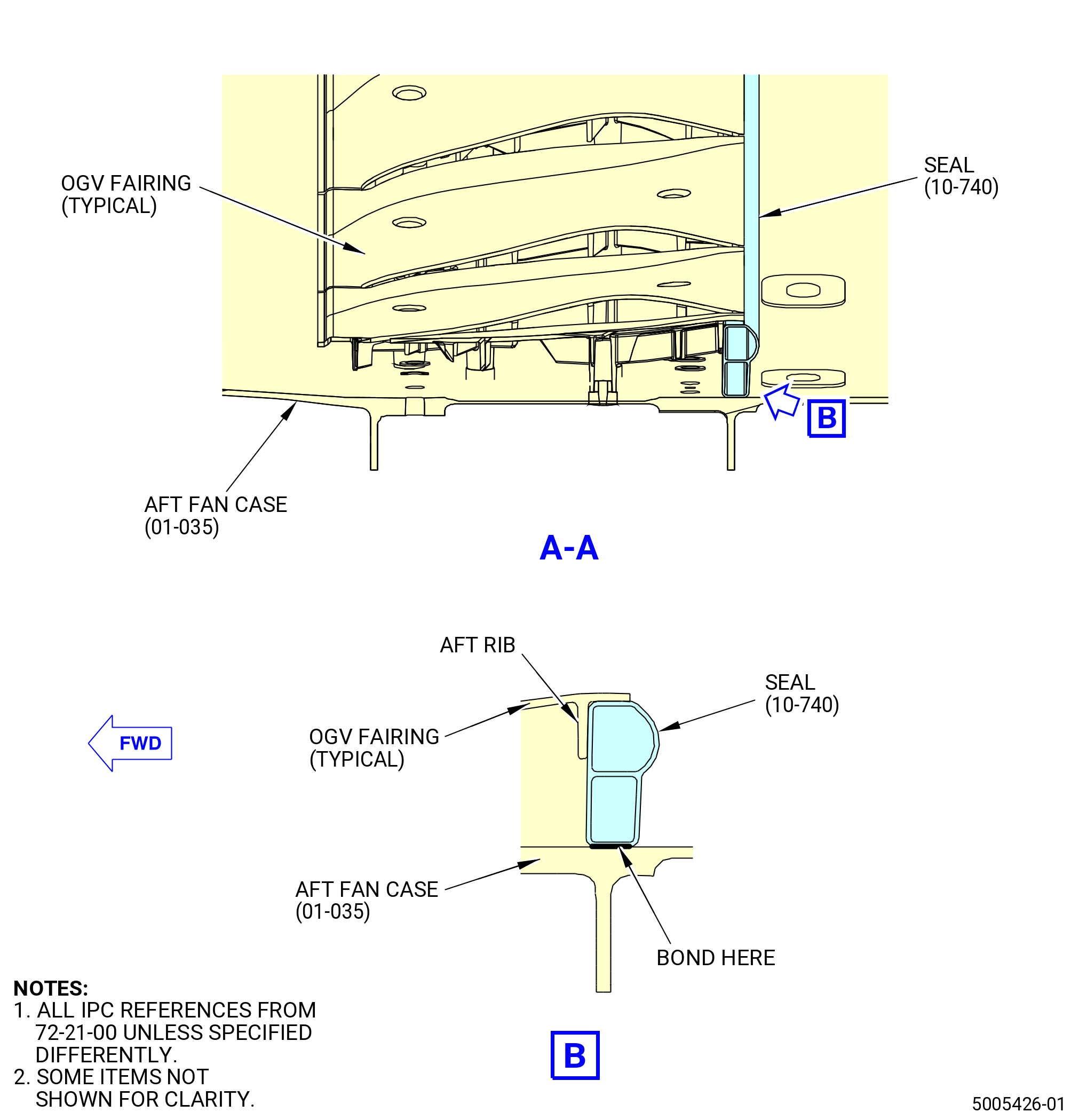

Figure 1017   (Sheet 1 ) Installation of the OGV Seal in the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1017   (Sheet 2 ) Installation of the OGV Seal in the Aft Fan Case
Subtask 72-21-00-440-654
* * * PRE SB   72-0217( Titanium Upper Alignment Guides )
R.Install the left/right upper alignment guides (01-200) (SIN 84408) and (01-210) (SIN 84409) on the aft fan case (01-035) (SIN 84100). Refer to Figure 1018 and do as follows:
Subtask 72-21-00-640-192
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the bolt (01-250) (SIN 8442C).
Subtask 72-21-00-380-234
(2)Apply C03-001  primer or C03-100  primer to the shank of the bolts (8442C) as follows:
(a)Soak the bolts in primer for a few seconds.
(b)Torque all hardware in less but not more than 3 hours after applying the primer.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(c)Apply C03-001  primer or C03-100  primer to the inside diameter of the bolthole in the aft fan case (01-035) (SIN 84100).
(d)Apply C03-001  primer or C03-100  primer to the bearing surface of the washer (01-290) (SIN 84436) and the left/right upper alignment guides (01-200) (SIN 84408) and (01-210) (SIN 84409).
Subtask 72-21-00-440-655
(3)Attach the left/right upper alignment guides (01-200) (SIN 84408) and (01-210) (SIN 84409) to the aft fan case (01-035) (SIN 84100) with the bolts (01-250) (SIN 8442C) and washers (01-290) (SIN 84436) from the inboard side of the aft fan case.
(4)Install the self-locking nuts (01-310) (SIN 84443) on the bolts.
(5)Torque the self-locking nuts to 83 to 97 lb in. (9.4 to 11.0 Nm).
* * * END PRE SB   72-0217
Subtask 72-21-00-440-935
* * * SB   72-0217( Aluminum Upper Alignment Guides )
R.A.Install the left/right upper alignment guides (01-201) (SIN 84408) and (01-211) (SIN 84409) on the aft fan case (01-035) (SIN 84100). Refer to Figure 1018 and do as follows:
Subtask 72-21-00-640-271
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the bolt (01-250) (SIN 8442C).
Subtask 72-21-00-380-324
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(2)Apply C03-001  primer or C03-100  primer to the shank of the bolts (01-250) (SIN 8442C) as follows:
(a)Soak the bolts in primer for a few seconds.
(b)Torque all hardware in less but not more than 3 hours after applying the primer.
(c)Apply C03-001  primer or C03-100  primer to the inside diameter of the bolthole in the aft fan case (01-035) (SIN 84100).
(d)Apply C03-001  primer or C03-100  primer to the bearing surface of the washer (01-291) (SIN 84436) and the left/right upper alignment guides (01-201) (SIN 84408) and (01-211) (SIN 84409).
Subtask 72-21-00-440-936
(3)Attach the left/right upper alignment guides (01-201) (SIN 84408) and (01-211) (SIN 84409) to the aft fan case (01-035) (SIN 84100) with the bolts (01-250) (SIN 8442C) and washers (01-291) (SIN 84436) from the inboard side of the aft fan case.
(4)Install the washers (01-291) (SIN 84436) and self-locking nuts (01-310) (SIN 84443) on the bolts.
(5)Torque the self-locking nuts to 83 to 97 lb in. (9.4 to 11.0 Nm).
* * * END SB   72-0217
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * PRE SB   72-0217( Titanium Upper Alignment Guides )

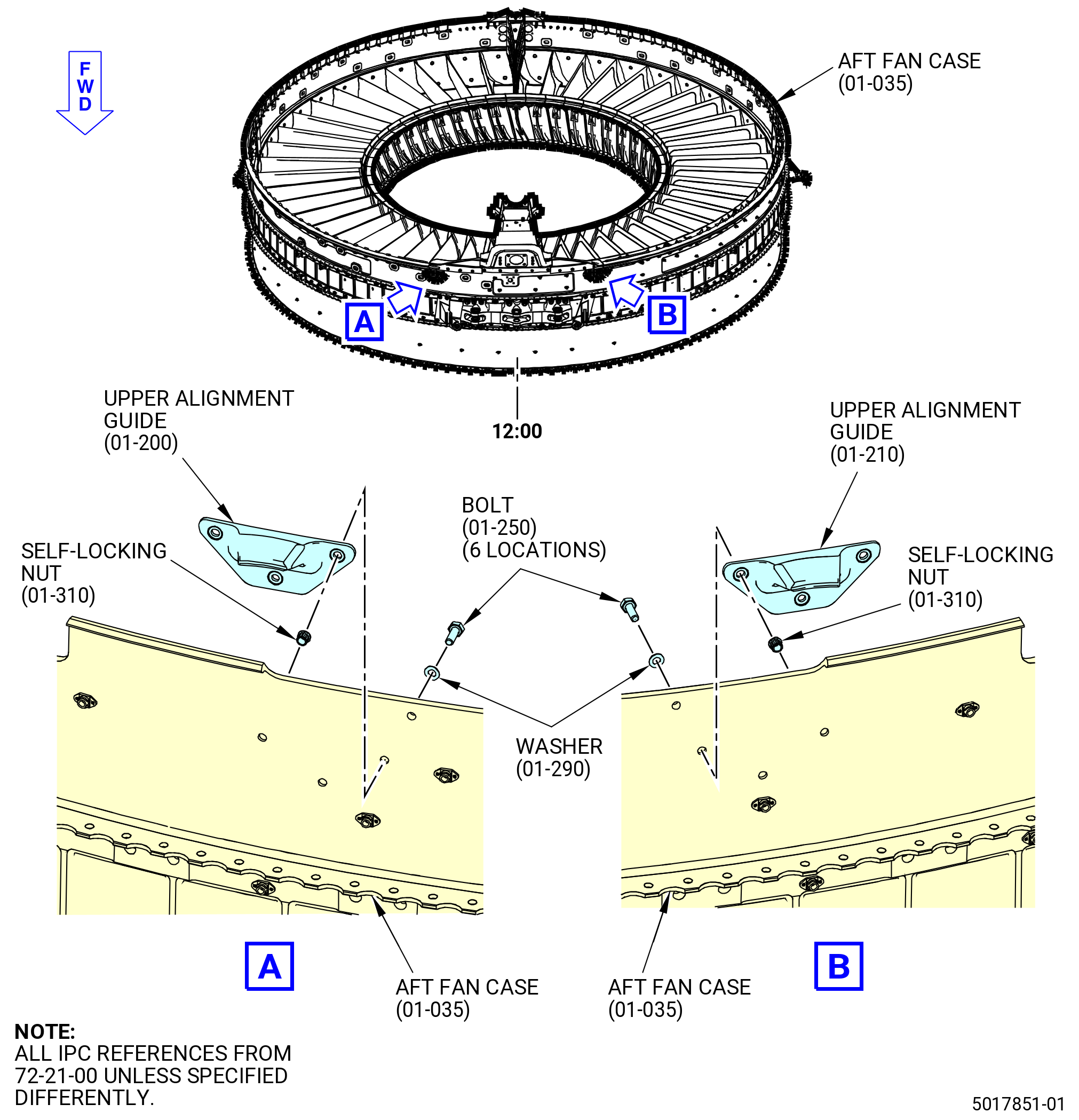

Figure 1018   (Sheet 1 ) Installation of the Upper Alignment Guides on the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0217( Aluminum Upper Alignment Guides )
Figure 1018   (Sheet 2 ) Installation of the Upper Alignment Guides on the Aft Fan Case
Subtask 72-21-00-440-656
S.Install the thrust seal reverser (seal) (01-080) (SIN 84150) in the V-groove of the thrust channels (01-060) (SIN 84116) and (01-070) (SIN 84118), the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404), and the right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504) on the aft fan case (01-035) (SIN 84100). Refer to Figure 1019 and do as follows:
NOTE:
The seal is a two piece seal.
Subtask 72-21-00-110-065
(1)Clean the V-grooves in the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404), right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504), and thrust channels (01-060) (SIN 84116) and (01-070) (84118) as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Use compressed air to remove loose dirt from the V-groove.
(b)Clean the V-groove with a clean C10-182  cloth, moist with C04-035  isopropyl alcohol. Let the alcohol to dry for a minimum of 5 minutes.
Subtask 72-21-00-380-235
(2)Apply the C01-159  RTV primer over the entire length of the V-groove in the thrust channels (84116, 84118).
(3)Apply the C01-159  RTV primer to the V-groove of the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404) and right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504).
(4)Make sure to apply the primer up to the scribe lines.
Subtask 72-21-00-440-657
(5)Apply the C01-178  RTV in the V-grooves. Use a spatula approximately 0.40 inch (10.2 mm) in width to apply a maximum 0.050 inch (1.27 mm) layer of adhesive in the V-groove.
(6)Install the seal (84150) in the V-grooves. It is recommended that to put the seal in the V-groove in less but not more than 2 minutes after applying the C01-178  RTV. Use two people to apply the C01-178  RTV and install the seal.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1019   (Sheet 1 ) Installation of the Thrust Channel on the Aft Fan Case
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1019   (Sheet 2 ) Installation of the Thrust Channel on the Aft Fan Case
Subtask 72-21-00-440-658
(7)Cut the seal (01-080) (SIN 84150) 1.50-1.90 inches (38.1-48.3 mm) from the edge of the left seal retainer (01-180) (SIN 84404), (01-181) (SIN 84404), or (01-182) (SIN 84404), and right seal retainer (01-340) (SIN 84504) or (01-341) (SIN 84504). Refer to Figure 1019.
(8)Cut the seal ± 0.100 inch (2.54 mm) from the edge of the thrust channel (84118).
(9)Hold the seal in the V-groove with C10-067  platers tape a minimum 1 hour to let the C01-178  RTV to dry.
Subtask 72-21-00-440-659
T.Install the spacer (10-330) (SIN 8417B) on the OGVs 1-48. Refer to Figure 1020 and do as follows:
Subtask 72-21-00-640-193
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Apply C02-058  lubricant to the threads of the 12 PT HD bolts (bolts) (10-340) (SIN 84023).
Subtask 72-21-00-440-660
(2)Align the spacers (10-330) (SIN 8417B) to the OGVs 1-48. The spacers overlap each OGV. Use an alignment pin to align the spacers.
(3)Attach the spacer at 48 locations with the bolts (10-340) (SIN 84023) at 96 locations. Put the bolthead forward.
Subtask 72-21-00-440-752
* * * PRE SB   72-0145( Installation of the Spacer Bolts without Safety Cable )
(4)Torque the bolts (10-340) (SIN 84023) as follows:
(a)Torque the bolts to 16-19 lb in. (1.8-2.1 N.m).
(b)Torque the bolts again to 16-19 lb in. (1.8-2.1 N.m).
* * * END PRE SB   72-0145
Subtask 72-21-00-440-753
* * * SB   72-0145( Installation of the Spacer Bolts with Safety Cable )
(4).A.Torque the bolts (10-340) (SIN 84023) as follows:
(a)Torque the bolts to 28-32 lb in. (3.2-3.6 N.m).
(b)Torque the bolts again to 28-32 lb in. (3.2-3.6 N.m).
(c)Safety the adjacent boltheads with C10-071  safety wire or C10-143  safety cable.
* * * END SB   72-0145
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * PRE SB   72-0145( Installation of the Spacer Bolts without Safety Cable )

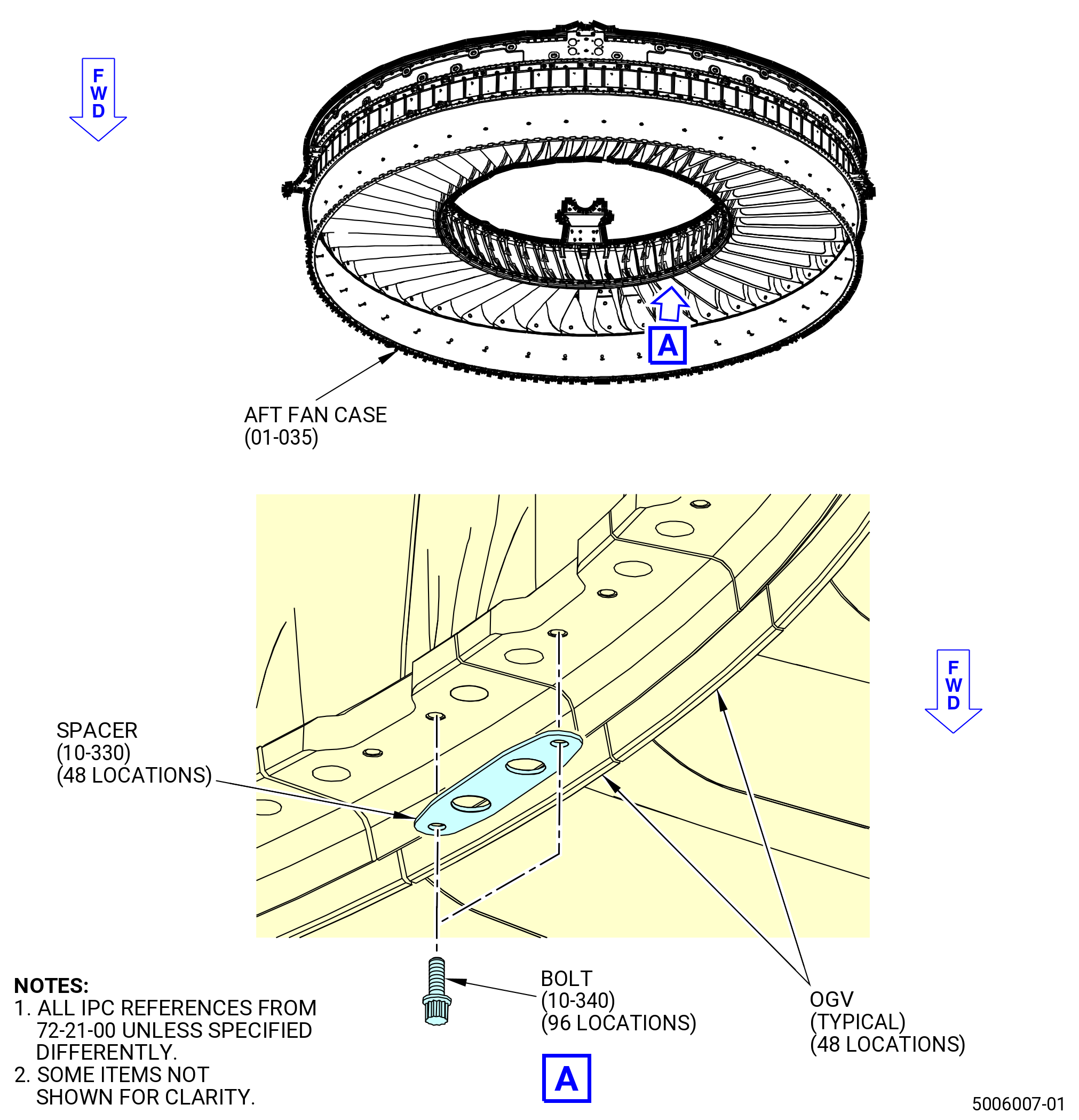

Figure 1020   (Sheet 1 ) Installation of the Spacers on the OGVs
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0145( Installation of the Spacer Bolts with Safety Cable )

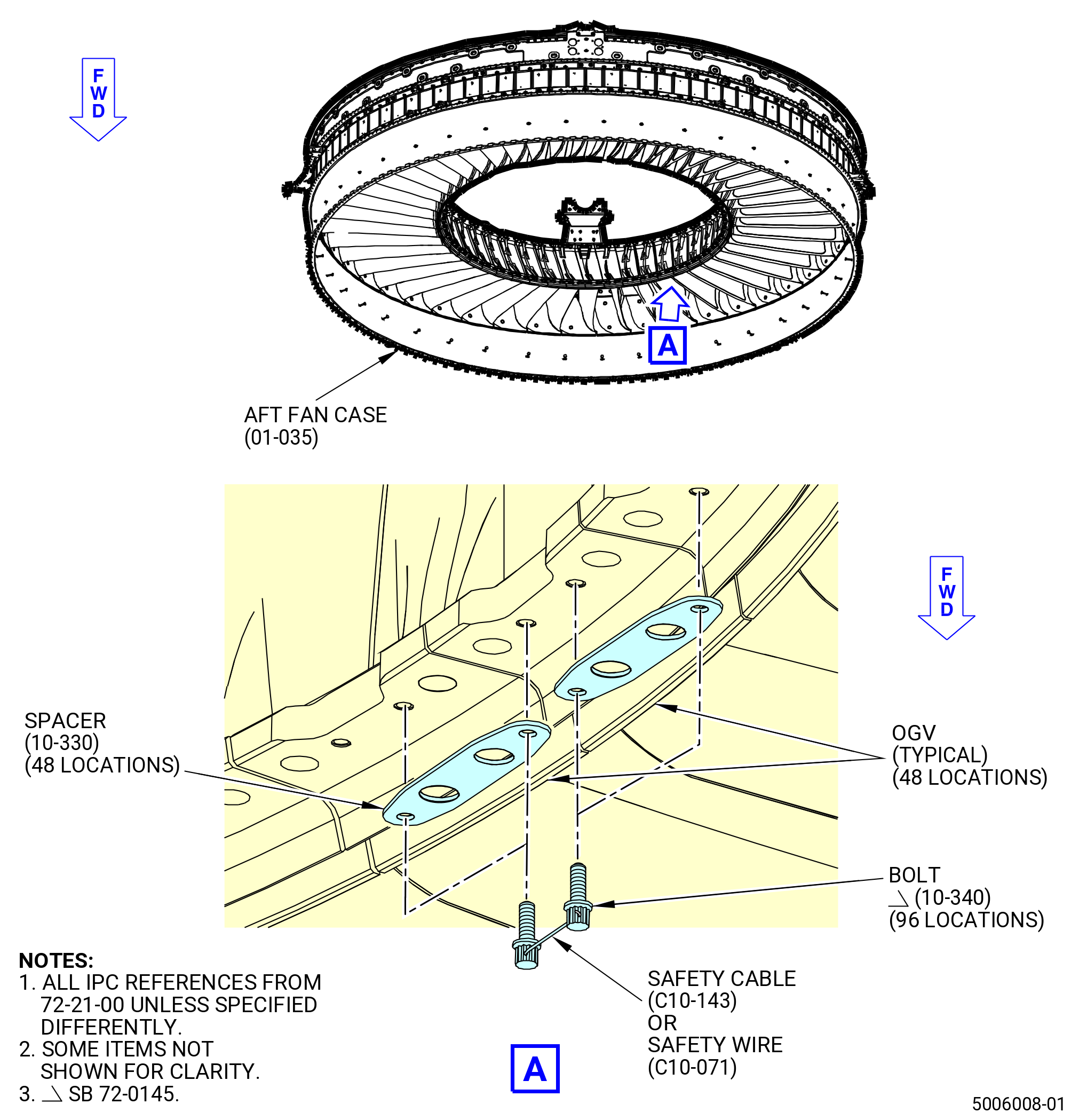

Figure 1020   (Sheet 2 ) Installation of the Spacers on the OGVs
Subtask 72-21-00-440-663
U.Install the aft fan case (01-035) (SIN 84100) to the fan containment case assembly (01-010) (SIN 83500), (01-011) (SIN 83500) or (01-012) (SIN 83500). The fan containment case must be in the horizontal position with the forward end down, and do as follows:
(1)Prepare the fan containment case assembly as follows:
(a)Use the 11C3458   handling fixture, if necessary, to move the fan containment case into position.
(b)Count the holes in the split flange, aft ring, and forward ring from the 12:00 o'clock position, aft looking forward. Use C10-021  tape to identify every tenth hole.
NOTE:
The split flange has 144 holes, the aft and the forward rings have 288 holes.
Subtask 72-21-00-220-035
(c)Do an inspection of the aft fan case (01-035) (SIN 84100) forward flange for bare metal. If necessary, repair the bare metal as follows:
Subtask 72-21-00-110-067
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
1Clean the repair area with C04-035  isopropyl alcohol.
Subtask 72-21-00-380-237
2Apply a C03-083  coating to bare metal on the aft fan case (01-035) (SIN 84100) forward flange.
Subtask 72-21-00-440-664
(2)Install the aft fan case (01-035) (SIN 84100) on the fan containment case assembly (01-010) (SIN 83500), (01-011) (SIN 83500) or (01-012) (SIN 83500) as follows:
(a)If necessary, attach the 11C3237   restrain fixture to the OGVs. Refer to TASK 72-21-00-440-804 (72-21-00, ASSEMBLY 001).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(b)Lift the aft fan case (84100) with the 11C3237   restrain fixture and carefully lower onto the fan containment case assembly. Lower the aft fan case until there are 2.00-3.00 inches (50.8-76.2 mm) above the fan containment case assembly.
(c)Align the offset holes at four locations 90 degrees apart on the aft fan case and the fan containment case assembly. Use alignment pins to align the offset holes.
(d)Carefully lower the aft fan case onto the fan containment case assembly. Make sure the rabbet diameter on the aft fan case captures the outside diameter of the forward flange on the fan containment case assembly.
(e)Remove the alignment pins.
Subtask 72-21-00-440-665
CAUTION:
AFTER THE COMPLETION OF THE STATOR-LEVEL ASSEMBLY, DO A FINAL TORQUE VERIFICATION WITH A MANUAL TORQUE WRENCH ON THE B-FLANGE HARDWARE IN A CIRCUMFERENTIAL PATTERN.
V.Install the brackets and hardware on the aft fan case (01-035) (SIN 84100) and the fan containment case assembly (01-010) (SIN 83500), (01-011) (SIN 83500) or (01-012) (SIN 83500) flanges as follows:
(1)Install a protective tape 1.00-2.00 inches (25.4-50.8 mm) below the aft flange of the fan containment case assembly.
(2)Install the bolts (83520), spacers (83570), and self-locking nuts (83540) in boltholes No. 6-8, 11, 12, 15, 16, 19, 20, 23-26, 36-38, 42, 43, 46-48, 51-53, 56-61, 64-69, 74-76, 79-82, 85, 86, 89, 90, 93, 94, 97, 105, 106, 109, 110, 113, 121, 122, 125, 126, 129, 134, 138, and 142 as follows. Refer to Figure 1021.
Subtask 72-21-00-640-195
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts and ID of the boltholes and friction surfaces of the spacer that touches the fan case.
(b)Apply C02-058  lubricant to the threads of the bolts (01-045) (SIN 83520) and self-locking nuts (01-040) (SIN 83540).
Subtask 72-21-00-440-666
(c)Install the bolts (83520) and spacers (83570) on the forward side of the flange.
(d)Attach the spacers and self-locking nuts (83540) to the bolts on the aft side of the flange.
(e)Torque the self-locking nuts (01-040) (SIN 83540) to 202 to 238 lb in. (22.8 to 26.9 Nm). Apply torque in a criss-cross pattern to all self-locking nuts (01-040) (SIN 83540) to seat the B-flanges as follows:
1Divide all boltholes to eight sectors (equal boltholes numbers for each sector).
2When one sector is completed, continue with the next diametrically opposed sector until all the sectors are complete.
(f)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-667
(3)Install the harness support brackets (bracket) (6701N, 6881F) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 143, 144, and 1 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-238
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-080 , 72-00-01) (SIN 83520), (01-050 , 72-00-01) (SIN 83525), friction surfaces of the washer (01-090 , 72-00-01) (SIN 83530), ID of boltholes, and surface of the bracket (01-140 , 72-00-01) (SIN 6881F) that contacts the fan case.
Subtask 72-21-00-640-196
(b)Apply C02-058  lubricant to the threads of the bolts (83520, 83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-668
(c)Install the bolts (83525) and the bracket (6701N) at boltholes No. 143 and 144 on the forward side of the fan case forward ring.
(d)Install the bolt (83520) at bolthole No. 1 on the forward side of the split flange.
(e)Install the bracket (6881F) on the aft side of the split flange at boltholes No. 1 and 144. The tab of the bracket (6881F) must point aft.
(f)Install the self-locking nuts (83540) on the bolts at bolt holes No. 1, and 144 on the aft side of the fan case forward ring.
(g)Install a washer (83530) and a self-locking nut on the bolt at bolthole No. 143.
(h)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(i)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1021   Installation of the Bolts to the After Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01

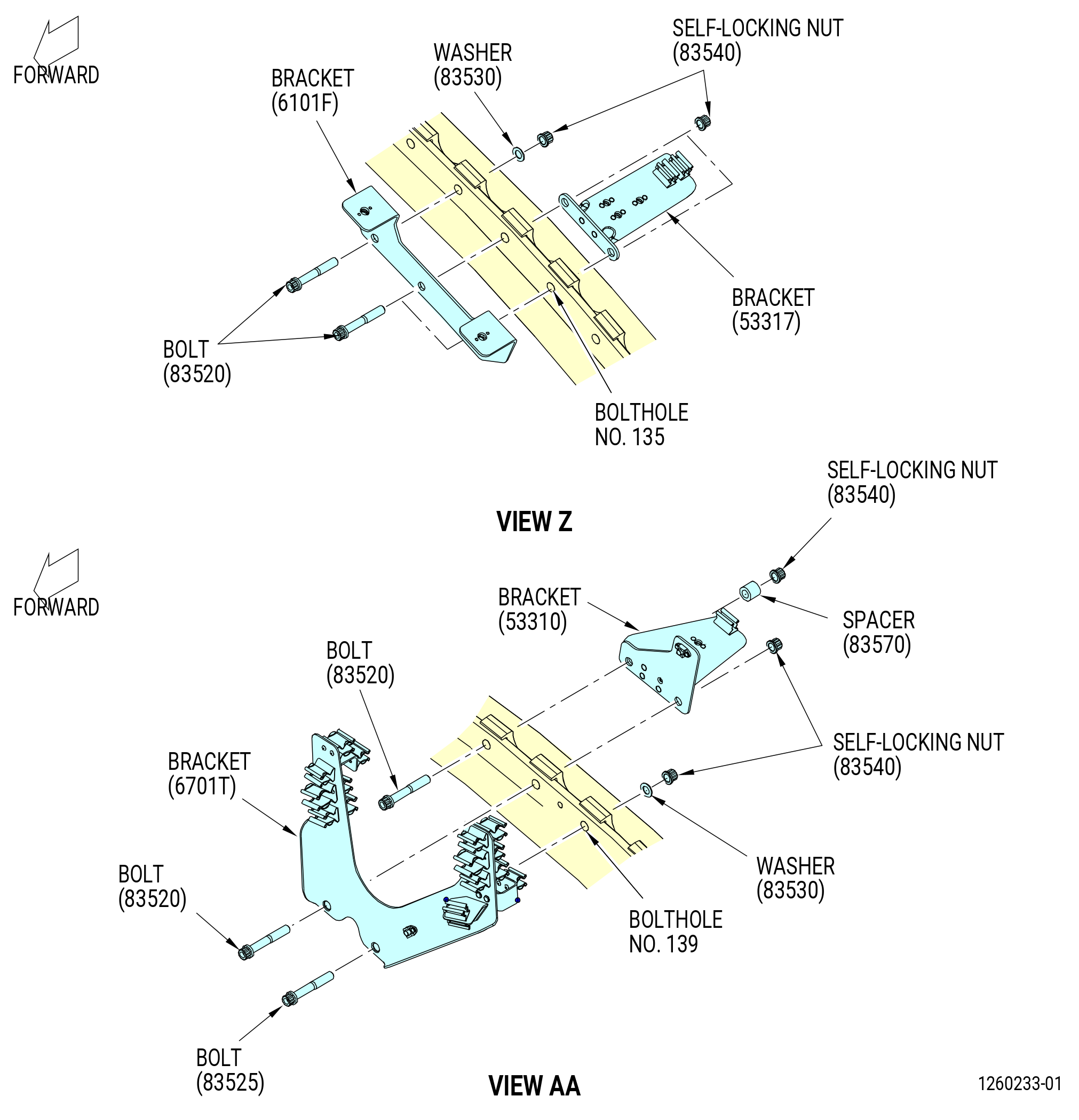

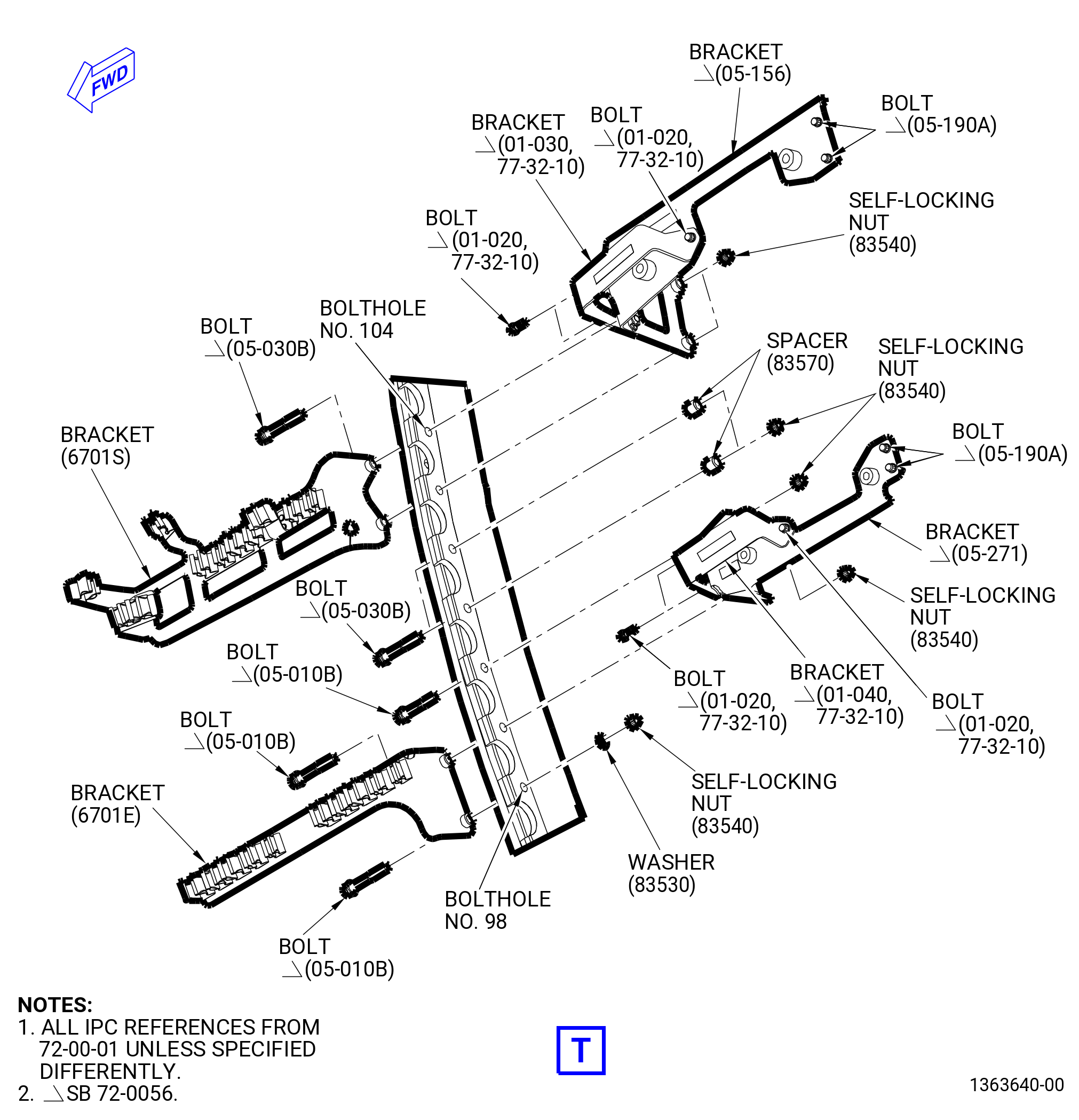

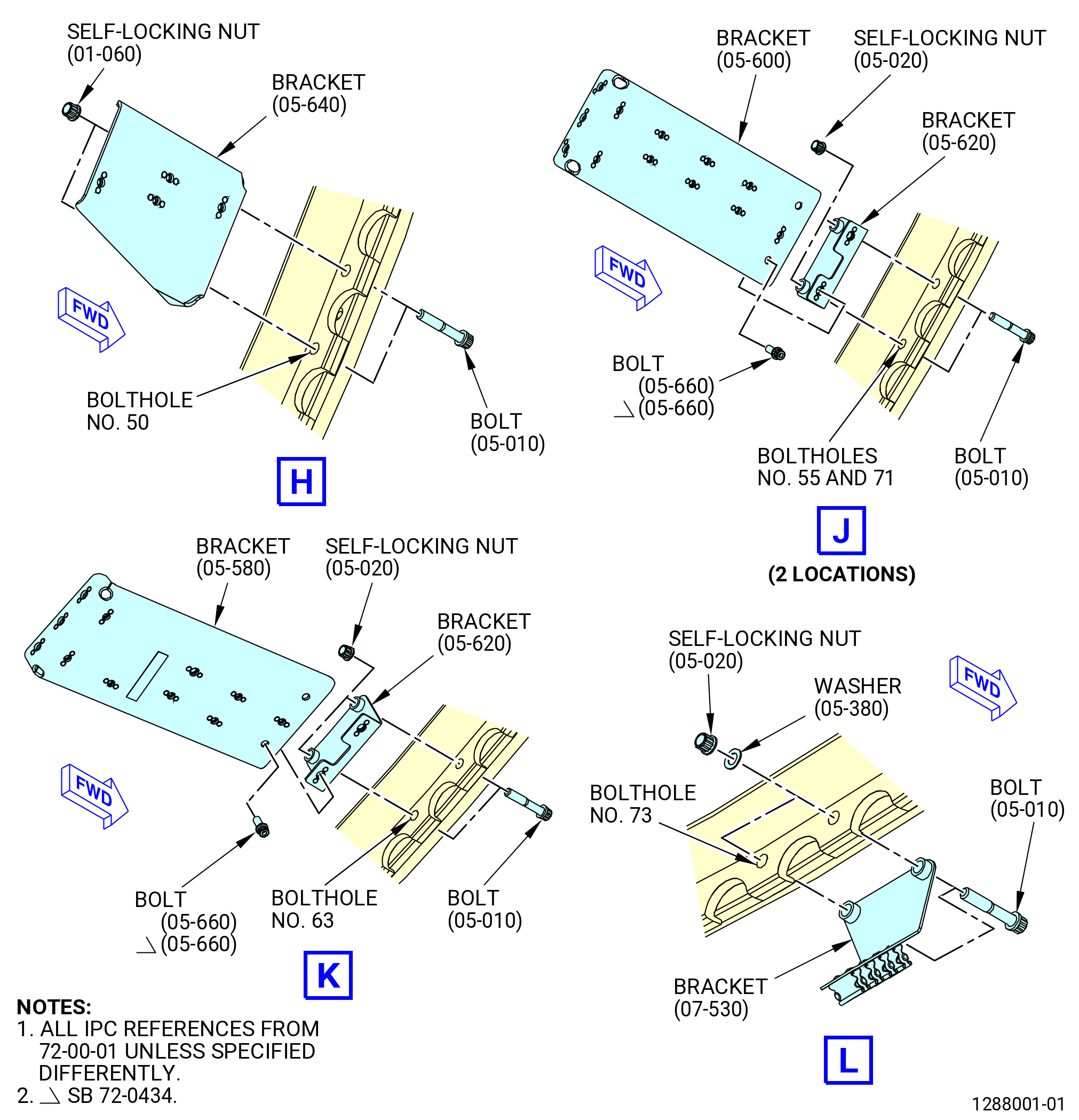

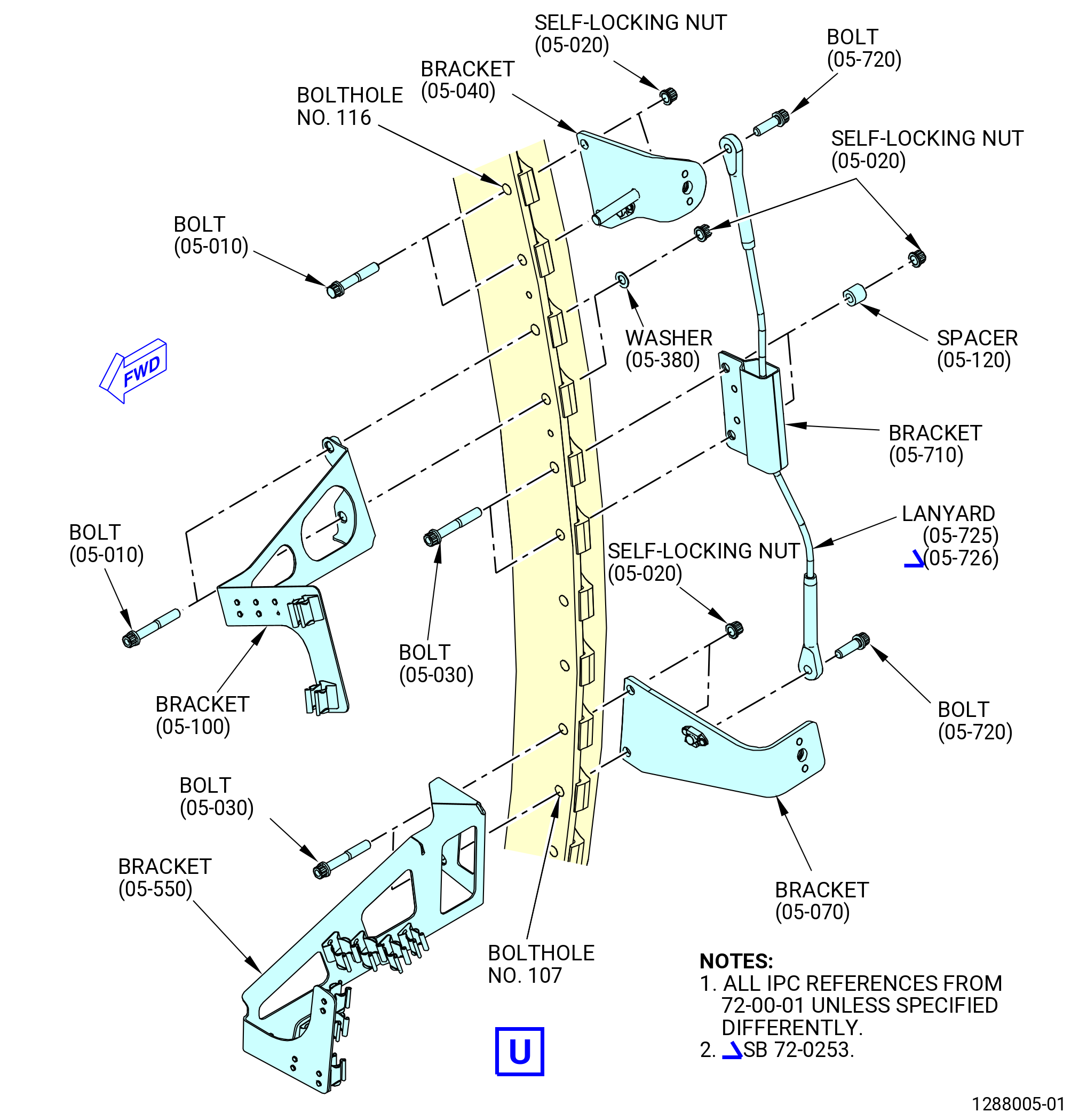

Figure 1022   (Sheet 1 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 2 ) Installation of the Brackets and Hardware on the Aft Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * PRE SB   72-0224( Bracket Introduction with Spring Clip )
Figure 1022   (Sheet 3 ) Installation of the Brackets and Hardware on the Aft Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0224( Bracket Introduction without Spring Clip )
Figure 1022   (Sheet 4 ) Installation of the Brackets and Hardware on the Aft Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 5 ) Installation of the Brackets and Hardware on the Aft Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 6 ) Installation of the Brackets and Hardware on the Aft Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 7 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * PRE SB   72-0056( EMU Support Brackets )
Figure 1022   (Sheet 8 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
* * * SB   72-0056( Introduction of the new EMU Support Brackets )
Figure 1022   (Sheet 9 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 10 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 11 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1022   (Sheet 12 ) Installation of the Brackets and Hardware on the Fan Case Forward Ring Flange
Subtask 72-21-00-440-669
(4)Install the brackets (6701Y) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 2 and 3 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-239
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (07-230 , 72-00-01) (SIN 6701Y) that contacts the fan case.
Subtask 72-21-00-640-197
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-670
(c)Install the bolt (83525) at boltholes No. 2 and 3 on the forward side of the fan case forward ring.
(d)Install the bracket (6701Y) on the aft side of the split flange at boltholes No. 2 and 3. The tab of the support bracket must point aft.
(e)Install the self-locking nuts (83540) at boltholes No. 2 and 3 on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-671
(5)Install the tube bracket (bracket) (07-130 , 72-00-01) (SIN 53319) or (07-130A , 72-00-01) (SIN 53319) to the forward ring where the fan case assembly and the fan aft case are connected at the boltholes No. 4 and 5. Refer to Figure 1022 and do as follows:
Subtask 72-21-00-380-240
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-040 , 72-00-01) (SIN 83520), ID of the boltholes, and surface of the bracket (07-130 , 72-00-01) (SIN 53319) or (07-130A , 72-00-01) (SIN 53319) that contact the fan case.
Subtask 72-21-00-640-198
(b)Apply C02-058  lubricant to the threads of the bolts (07-040 , 72-00-01) (SIN 83520) and self-locking nuts (07-020 , 72-00-01) (SIN 83540).
Subtask 72-21-00-440-672
(c)Install the bolts (07-040 , 72-00-01) (SIN 83520) at the boltholes No. 4 and 5 on the forward side of the fan case forward ring.
(d)Install the bracket (07-130 , 72-00-01) (SIN 53319) or (07-130A , 72-00-01) (SIN 53319) on the aft side of the split flange at the boltholes No. 4 and 5.
(e)Install the self-locking nuts (07-020 , 72-00-01) (SIN 83540) at the boltholes No. 4 and 5 on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-673
(6)Install the support brackets (bracket) (46013) at four locations to the forward ring where the fan case assembly and the fan aft case are connected in boltholes No. 9 and 10, 13 and 14, 17 and 18, and 21 and 22 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-241
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (10-260 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (10-130 , 72-00-01) (SIN 46013) that touches the fan case.
Subtask 72-21-00-640-199
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-674
(c)Install the bolts (83525) in the boltholes on the forward side of the fan case forward ring.
(d)Install the support bracket (46013) on the aft side of the split flange.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring boltholes No. 9, 10, 13, 14, 17, 18, 21, and 22.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-675
(7)Install the bracket (98214) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 27, 28, and 29 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-242
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-080 , 72-00-01) (SIN 83520), ID of boltholes, the friction surfaces of the washers (01-090 , 72-00-01) (SIN 83530), and surface of the bracket (01-070 , 72-00-01) (SIN 98214) that contacts the fan case.
Subtask 72-21-00-640-200
(b)Apply C02-058  lubricant to the threads of the bolts (83520) and the self-locking nuts (83540).
Subtask 72-21-00-440-676
(c)Install the bolts (83520) in the boltholes on the forward side of the fan case forward ring.
(d)Install the bracket (98214) on the aft side of the fan case forward ring at boltholes No. 27, 28, and 29.
(e)Install the washers (83530) and the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-741
* * * PRE SB   79-0003( Installation of the Support Bracket without Additional Bracket )
(8)Install the debris monitoring system (DMS) conditioner support bracket (DMS bracket) (01-030 , 72-00-01) (SIN 42510) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 30 and 31. Refer to Figure 1022 and do as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF CONSUMABLE PRODUCTS.
(a)Clean the surface areas where the DMS bracket (01-030 , 72-00-01) (SIN 42510) touches the aft fan case to ensure electrical bonding. Clean the surfaces with C04-002  Stoddard solvent, C04-035  isopropyl alcohol, or a 50-50 blend of C04-035  isopropyl alcohol and C04-228  denatured alcohol.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(b)Apply C03-001 primer or C03-100 primer to the friction surfaces of the bolts (01-050 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (01-030 , 72-00-01) (SIN 42510) that contacts the fan case.
(c)Apply C02-058 lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
(d)Install the bolts (83525) in the boltholes on the forward side of the fan case forward ring.
(e)Install the bracket (42510) on the aft side of the split flange at boltholes No. 30 and 31.
(f)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(g)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(h)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
* * * END PRE SB   79-0003
Subtask 72-21-00-440-677
* * * SB   79-0003( Installation of the Support Bracket with Additional Bracket )
(8).A.Install the bracket (01-140 , 79-22-20) (SIN 45312) and the support bracket (bracket) (42510) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 30 and 31 as follows. Refer to Figure 1022.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-050 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (01-030 , 72-00-01) (SIN 42510) that contacts the fan case.
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
(c)Install the bolts (83525) in the boltholes on the forward side of the fan case forward ring.
(d)Install the bracket (01-140 , 79-22-20) (SIN 45312) and the bracket (42510) on the aft side of the split flange at boltholes No. 30 and 31.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
* * * END SB   79-0003
Subtask 72-21-00-440-679
(9)Install the upper support link (40014) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 32 and 33 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-244
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-050 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the upper support link (01-030 , 79-11-10) (SIN 40014) that touches the fan case.
Subtask 72-21-00-640-202
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-680
(c)Install the bolts (83525) in the boltholes on the forward side of the fan case forward ring.
(d)Install the upper support link (40014) on the aft side of the split flange at boltholes No. 32 and 33.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-681
(10)Install the bracket (45311) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 34 and 35 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-245
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), the ID of boltholes, the friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and the surface of the bracket (07-110 , 72-00-01) (SIN 45311) that touches the fan case.
Subtask 72-21-00-640-203
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-682
(c)Install the bolts (83525) and the bracket (45311) on the forward side of the fan case forward ring at boltholes No. 34 and 35.
(d)Install the washers (83530) and the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(e)Torque the self-locking nuts to 202-238 lb in. (22.9-26.9 N.m).
(f)Torque the self-locking nuts again to 202-238 lb in. (22.9-26.9 N.m).
Subtask 72-21-00-440-683
(11)Install the brackets (40012, 45311) and the forward support link (44012) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 39, 40, and 41 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-246
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-040 , 72-00-01) (SIN 83520), (07-010 , 72-00-01) (SIN 83525), the ID of boltholes, the friction surfaces of the washer (07-070 , 72-00-01) (SIN 83530), and the surface of the brackets that touches the fan case.
Subtask 72-21-00-640-204
(b)Apply C02-058  lubricant to the threads of the bolts (83520, 83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-684
(c)Install the bolts (83520) and the bracket (45311) on the forward side of the fan case forward ring at bolthole No. 40.
(d)Install the bolts (83525) and the bracket on the forward side of the fan case forward ring at boltholes No. 40 and 41.
(e)Install the forward support link (40012) on the aft side of the fan case forward ring at boltholes No. 40 and 41.
(f)Install the washer (83530) on the bolt at bolthole No. 39 on the aft side of the fan case forward ring.
(g)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(h)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(i)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-685
(12)Install the bracket (45311) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 44 and 45 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-247
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), ID of boltholes, friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and surface of the bracket (07-110 , 72-00-01) (SIN 45311) that contacts the fan case.
Subtask 72-21-00-640-205
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-686
(c)Install the bolts (83525) and the bracket (45311) on the forward side of the fan case forward ring at boltholes No. 44 and 45.
(d)Install the washers (83530) and the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(e)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(f)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-687
(13)Install the bracket (44013) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 49 and 50 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-248
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-010 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (05-640 , 72-00-01) (SIN 44013) that touches the aft fan case.
Subtask 72-21-00-640-206
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-688
(c)Install the bolts (83525) on the forward side of the fan case forward ring at boltholes No. 49 and 50.
(d)Install the bracket (44013) on the aft side of the aft fan case forward ring at boltholes No. 49 and 50.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-689
(14)Install the oil tube support bracket (bracket) (44012) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 54 and 55, and 70 and 71 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-249
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-010 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (05-620 , 72-00-01) (SIN 44012) that contacts the aft fan case.
Subtask 72-21-00-640-207
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-690
(c)Install the bolts (83525) on the forward side of the fan case forward ring on the bolts at boltholes No. 54 and 55, and 70 and 71.
(d)Install the bracket (44012) on the bolts on the aft side of the fan case forward ring at boltholes No. 54 and 55, 70 and 71.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(h)Install the bracket (05-600 , 72-00-01) (SIN 44011) on the bracket (05-620 , 72-00-01) (SIN 44012) with bolts (05-660 , 72-00-01) (SIN 44021). Torque the bolts to 106 to 124 lb in. (12.0 to 14.0 Nm).
Subtask 72-21-00-440-691
(15)Install the oil tube support bracket (bracket) (44012) to the forward ring where the fan case assembly and the fan aft case are connected, at boltholes No. 62 and 63, and the bracket (44010) as follows. Refer to Figure 1022.
Subtask 72-21-00-380-250
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-010 , 72-00-01) (SIN 83525), ID of boltholes, and surface of the bracket (05-620 , 72-00-01) (SIN 44012) that touches the aft fan case.
Subtask 72-21-00-640-208
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-692
(c)Install the bolts (83525) on the forward side of the fan case forward ring on the bolts at boltholes No. 62 and 63.
(d)Install the bracket (44012) on the aft side of the fan case forward ring.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(h)Install the bracket (05-580 , 72-00-01) (SIN 44010) on the bracket (05-620 , 72-00-01) (SIN 44012) with bolts (05-660 , 72-00-01) (SIN 44021). Torque the bolts to 106 to 124 lb in. (12.0 to 14.0 Nm).
Subtask 72-21-00-440-693
(16)Install the support bracket (bracket) (6711S) to the forward ring where the fan case assembly and the fan aft case are connected at bolt holes No. 72 and 73 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-251
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), ID of boltholes, the friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and surface of the bracket (07-530 , 72-00-01) (SIN 6711S) that touches the fan case.
Subtask 72-21-00-640-209
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-694
(c)Install the bolts (83525) and the bracket (6711S) on the forward side of the fan case forward ring at boltholes No. 72 and 73.
(d)Install the washers (83530) and the self-locking nuts (83540) on the aft side of the fan case forward ring.
(e)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(f)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-695
(17)Install the support brackets (brackets) (05-460 , 72-00-01) (SIN 6701H), (05-400 , 72-00-01) (SIN 6701F) or (05-401 , 72-00-01) (SIN 6701F) to the forward ring where the fan case assembly and fan aft case are connected at the boltholes No. 77 and 78. Refer to Figure 1022 and do as follows:
Subtask 72-21-00-380-252
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-010 , 72-00-01) (SIN 83525), ID of boltholes, the friction surfaces of the washers (05-380 , 72-00-01) (SIN 83530), and surface of the bracket (05-460 , 72-00-01) (SIN 6701H) that touches the fan case.
Subtask 72-21-00-640-210
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-696
(c)Install the bolts (83525) and the bracket (6701H) on the forward side of the fan case forward ring on the bolts at boltholes No. 77 and 78.
(d)Install the washers (83530) and the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(e)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(f)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(g)Install the support bracket (bracket) (05-400 , 72-00-01) (SIN 6701F) or (05-401 , 72-00-01) (SIN 6701F) on the bracket (05-460 , 72-00-01) (SIN 6701H) with bolts (05-240 , 72-00-01) (SIN 67021). Torque the bolts to 106-124 lb in. (12.0-14.0 N.m).
Subtask 72-21-00-440-697
(18)Install the wiring support bracket (bracket) (67016) at two locations in the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 83 and 84, and 87 and 88 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-253
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-050 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (01-370 , 72-00-01) (SIN 67016) that touches the fan case.
Subtask 72-21-00-640-211
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-698
(c)Install the bolts (83525) on the forward side of the fan case forward ring on the bolts at boltholes No. 83 and 84, and 87 and 88.
(d)Install the bracket (67016) on the bolts on the aft side of the fan case forward ring.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-699
(19)Install the cable/support bracket (bracket) (67015) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 91 and 92 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-254
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-050 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the bracket (01-350 , 72-00-01) (SIN 67015) that touches the fan case.
Subtask 72-21-00-640-212
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-700
(c)Install the bolts (83525) on the forward side of the fan case forward ring on the bolts at boltholes No. 91 and 92.
(d)Install the bracket (67015) on the bolts on the aft side of the fan case forward ring.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
  (h)Attach the bracket (01-300 , 72-00-01) (SIN 61419) to the bracket (01-350 , 72-00-01) (SIN 67015) with a washer (01-290 , 72-00-01) (SIN 67030) and a bolt (01-280 , 72-00-01) (SIN 67021). Torque the bolt (01-280 , 72-00-01) (SIN 67021) to 106 to 124 lb in. (12.0 to 14.0 Nm).
Subtask 72-21-00-440-701
(20)Install the electrical bracket (bracket) (6701Z) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 95 and 96 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-255
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), ID of boltholes, friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and surface of the bracket (07-470 , 72-00-01) (SIN 6701Z) that touches the fan case.
Subtask 72-21-00-640-213
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-702
(c)Install the bolts (83525) on the forward side of the fan case forward ring on the bolts at boltholes No. 95 and 96.
(d)Install the bracket (6701Z) on the bolts on the aft side of the fan case forward ring.
(e)Install the washers (83530) and the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-742
* * * PRE SB   72-0056( Old EMU Support Brackets )
(21)Install the EMU support bracket as follows:
(a)Install the wiring support bracket (bracket) (6701E) and the EMU mounting support bracket (bracket) (05-250) (SIN 65Z10) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 98, 99, and 100 as follows. Refer to Figure 1022.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
1Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolt (05-030 , 72-00-01) (SIN 83520) and bolt (05-010 , 72-00-01) (SIN 83525), the ID of boltholes, the friction surfaces of the washer (05-380 , 72-00-01) (SIN 83530), and the surface of the bracket (05-330 , 72-00-01) (SIN 6701E) that touches the fan case.
2Apply C02-058 lubricant to the threads of the bolts bolt (05-030) (SIN 83520) and bolt (05-010) (SIN 83525) and the self-locking nuts (83540).
3Install the bolt (05-010) (SIN 83525) and the bracket (6701E) on the forward side of the fan case forward ring at bolthole No. 98.
4Install the bolt (05-030) (SIN 83520) and the bracket (6701E) on the forward side of the fan case forward ring on the bolts at bolthole No. 99.
5Install the washer (83530) and the self-locking nut (83540) on the bolts (05-010) (SIN 83525) on the aft side of the fan case forward ring at bolthole No. 98.
6Install the bracket (05-250) (SIN 65Z10) and the self-locking nut on the aft side of the fan case forward ring at bolthole No. 99.
7Install the bolt (05-010) (SIN 83525) on the forward side of the fan case forward ring on the bolts at bolthole No. 100.
8Install the self-locking nut on the bolts (05-010) (SIN 83525) on the aft side of the fan case forward ring at bolthole No. 100.
9Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
10Torque the self-locking nuts (83540) again to 202-238 lb in. (22.8-27.0 N.m).
(b)Install the EMU support bracket (bracket) (05-730) (SIN 65Z14) at boltholes No. 101 and 102 to the forward ring where the fan case assembly and the fan aft case are connected as follows. Refer to Figure 1022.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
1Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-030 , 72-00-01) (SIN 83520), ID of spacers (05-120 , 72-00-01) (SIN 83570), ID of the boltholes, and surface of the bracket (05-730 , 72-00-01) (SIN 65Z14) that touches the fan case.
2Apply C02-058 lubricant to the threads of the bolts (05-030) (SIN 83520) and the self-locking nuts (83540).
3Install the bolts (05-030) (SIN 83520) on the forward side of the fan case forward ring on the bolts at boltholes No. 101 and 102.
4Install the bracket (05-730) (SIN 65Z14) on the bolts on the aft side of the fan case forward ring at boltholes No. 101 and 102.
5Put the spacers (83570) and self-locking nuts (83540) on the bracket (05-730) (SIN 65Z14) on the aft side of the fan case forward ring.
6Install the self-locking nuts on the bolts on the aft side of the fan case forward ring.
7Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
8Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(c)Install the wiring support bracket (6701S) and the EMU support bracket (bracket) (05-130) (SIN 65Z12) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 103 and 104 as follows. Refer to Figure 1022.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
1Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-030 , 72-00-01) (SIN 83520), ID of the boltholes, and surface of the bracket (05-300 , 72-00-01) (SIN 6701S) and bracket (05-130 , 72-00-01) (SIN 65Z12) that touches the fan case.
2Apply C02-058 lubricant to the threads of the bolts (83520) and the self-locking nuts (83540).
3Install the bolts (05-030) (SIN 83520) and the bracket (6701S) on the forward side of the fan case forward ring at boltholes No. 103 and 104.
4Install the bracket (05-130) (SIN 65Z12) on the bolts on the aft side of the fan case forward ring.
5Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
6Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
7Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(d)Install the safety cable (65Z80) on the bracket (05-250) (SIN 65Z10) and (05-130) (SIN 65Z12) to the forward ring where the fan case assembly and the fan aft case are connected as follows. Refer to Figure 1022.
1Put the safety cable through the loop on the bracket (05-730) (SIN 65Z14).
2Attach the safety cable to the bracket (05-250) (SIN 65Z10) and (05-130) (SIN 65Z12) with bolts (05-740) (SIN 65Z21).
3Torque the bolts to 207-243 lb in. (23.4-27.5 N.m).
* * * END PRE SB   72-0056
Subtask 72-21-00-440-703
* * * SB   72-0056( Introduction of new EMU Support Bracket )
(21).A.Install the EMU support bracket as follows:
(a)Install the wiring support bracket (bracket) (6701E) and the EMU mounting support bracket (bracket) (05-271 , 72-00-01) (SIN 65Z10) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 98, 99, and 100 as follows. Refer to Figure 1022.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
1Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolt (05-030B , 72-00-01) (SIN 83520), bolt (05-010B , 72-00-01) (SIN 83525), ID of boltholes, friction surfaces of the washer (05-380 , 72-00-01) (SIN 83530), and surface of the bracket (05-330 , 72-00-01) (SIN 6701E) that touches the fan case.
2Apply C02-058  lubricant to the threads of the bolt (05-030B , 72-00-01) (SIN 83520), bolt (05-010B , 72-00-01) (SIN 83525), and the self-locking nuts (83540).
3Install the bolt (05-010B , 72-00-01) (SIN 83525) and the bracket (6701E) on the forward side of the fan case forward ring at bolthole No. 98.
4Install the bolt (05-030B , 72-00-01) (SIN 83520) and the bracket (6701E) on the forward side of the fan case forward ring on the bolts at bolthole No. 99.
5Install the washer (83530) and the self-locking nut (83540) on the bolts (05-010B , 72-00-01) on the aft side of the fan case forward ring at bolthole No. 98.
6Install the bracket (05-271 , 72-00-01) (SIN 65Z10) and the self-locking nut on the aft side of the fan case forward ring at bolthole No. 99.
7Install the bolt (05-010B , 72-00-01) (SIN 83525) on the forward side of the fan case forward ring on the bolts at bolthole No. 100.
8Install the self-locking nut on the bolts (05-010B , 72-00-01) (SIN 83525) on the aft side of the fan case forward ring at bolthole No. 100.
9Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
10Torque the self-locking nuts (83540) again to 202-238 lb in. (22.8-27.0 N.m).
(b)Install the EMU support bracket (bracket) (01-040 , 77-32-10) (SIN 65Z16) as follows:
1Attach the bracket (01-040 , 77-32-10) (SIN 65Z16) to the bracket (05-271 , 72-00-01) (SIN 65Z10) with bolts (01-020 , 77-32-10) (SIN 65Z20).
2Torque the bolts (01-020 , 77-32-10) (SIN 65Z20) to 106-124 lb in. (12.0-14.0 N.m).
(c)Install the wiring support bracket (6701S) and the EMU support bracket (bracket) (05-156 , 72-00-01) (SIN 65Z12) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 103 and 104 as follows. Refer to Figure 1022.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
1Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-030B , 72-00-01) (SIN 83520), ID of the boltholes, and surface of the bracket (05-300 , 72-00-01) (SIN 6701S) and bracket (05-156 , 72-00-01) (SIN 65Z12) that touches the fan case.
2Apply C02-058  lubricant to the threads of the bolts (05-030B , 72-00-01) (SIN 83520) and the self-locking nuts (83540).
3Install the bolts (05-030B , 72-00-01) (SIN 83520) and the bracket (6701S) on the forward side of the fan case forward ring at boltholes No. 103 and 104.
4Install the bracket (05-156 , 72-00-01) (SIN 65Z12) on the bolts on the aft side of the fan case forward ring.
5Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
6Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
7Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(d)Install the EMU support bracket (bracket) (01-030 , 77-32-10) (SIN 65Z15) as follows:
1Attach the bracket (01-030 , 77-32-10) (SIN 65Z15) to the bracket (05-156 , 72-00-01) (SIN 65Z12) with bolts (01-020 , 77-32-10) (SIN 65Z20).
2Torque the bolts (01-020 , 77-32-10) (SIN 65Z20) to 106-124 lb in. (12.0-14.0 N.m).
* * * END SB   72-0056
Subtask 72-21-00-440-710
(22)Install the wiring support bracket (6701C) and the FADEC mounting support bracket (bracket) (65H12) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 107 and 108 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-259
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-030 , 72-00-01) (SIN 83520), ID of the boltholes, and surface of the brackets (05-550 , 72-00-01) (SIN 6701C), (05-070 , 72-00-01) (SIN 65H12) that touches the fan case.
Subtask 72-21-00-640-217
(b)Apply C02-058  lubricant to the threads of the bolts (83520) and the self-locking nuts (83540).
Subtask 72-21-00-440-711
(c)Install the bolts (83520) and the bracket (6701C) on the forward side of the fan case forward ring at boltholes No. 107 and 108.
(d)Install the bracket (65H12) on the bolts (83520) on the aft side of the fan case forward ring.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-712
(23)Install the electronic control unit (ECU) bracket (bracket) (65H16) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 111 and 112 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-260
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-030 , 72-00-01) (SIN 83520), the ID of the spacer (05-120 , 72-00-01) (SIN 83570), the ID of the boltholes, and the surface of the bracket (05-710 , 72-00-01) (SIN 65H16) that contacts the fan case.
Subtask 72-21-00-640-218
(b)Apply C02-058  lubricant to the threads of the bolts (83520) and the self-locking nuts (83540).
Subtask 72-21-00-440-713
(c)Install the bolts (83520) on the forward side of the fan case forward ring at boltholes No. 101 and 102.
(d)Install the bracket (65H16) on the bolts at boltholes No. 101 and 102 on the aft side of the fan case forward ring.
(e)Put the spacers (83570) and the self-locking nuts (83540) on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts (83540) to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts (83540) again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-714
(24)Install the wiring support bracket (6701D) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 113 and 114 and the FADEC mounting support bracket (bracket) (65H10) at bolt holes No. 115 and 116 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-261
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (05-030 , 72-00-01) (SIN 83520), (05-010 , 72-00-01) (SIN 83525), ID of the boltholes, friction surfaces of the washers (05-380 , 72-00-01) (SIN 83530), and surface of the brackets (05-070 , 72-00-01) (SIN 65H12), (05-100 , 72-00-01) (SIN 6701D) that touches the fan case.
Subtask 72-21-00-640-219
(b)Apply C02-058  lubricant to the threads of the bolts (83525, 83520) and the self-locking nuts (83540).
Subtask 72-21-00-440-715
(c)Install the bolts (83525) and the bracket (6701D) on the forward side of the fan case forward ring at boltholes No. 113 and 114.
(d)Install a self-locking nut (83540) and a washer (83530) on the bolts on the aft side of the fan case forward ring at bolthole No. 113 and 114.
(e)on the forward side of the fan case forward ring at boltholes No. 115 and 116.
(f)Install the bracket (65H10) and the self-locking nuts (83540) on the aft side of the fan case forward ring at boltholes No. 115 and 116.
(g)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(h)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-716
(25)Install the landyard (05-725 , 72-00-01) (SIN 65H80) or (05-726 , 72-00-01) (SIN 65H80) on the brackets (05-070 , 72-00-01) (SIN 65H12) and (05-040 , 72-00-01) (SIN 65H10) to the forward ring where the fan case assembly and the fan aft case are connected. Refer to Figure 1022 and do as follows:
(a)Put the landyard through the loop on the bracket (05-710 , 72-00-01) (SIN 65H16).
(b)Attach the landyard to the brackets (05-070 , 72-00-01) (SIN 65H12) and (05-040 , 72-00-01) (SIN 65H10) with bolts (05-720 , 72-00-01) (SIN 65H21).
(c)Torque the bolts to 207-243 lb in. (23.4-27.5 N.m).
Subtask 72-21-00-440-717
(26)Install the fan bracket (98215) and the support bracket (bracket) (6711M) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 117 thru 120 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-262
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (01-080 , 72-00-01) (SIN 83520), (01-050 , 72-00-01) (SIN 83525), ID of the boltholes, friction surfaces of the washers (01-090 , 72-00-01) (SIN 83530), and surface of the brackets (01-250 , 72-00-01) (SIN 6711M), (01-240 , 72-00-01) (SIN 98215) that contacts the fan case.
Subtask 72-21-00-640-220
(b)Apply C02-058  lubricant to the threads of the bolts (83520, 83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-718
(c)Install the bolts (83520) at boltholes No. 117 and 118 on the forward side of the fan case forward ring.
(d)Install the bolt and the bracket (6711M) on the forward side of the fan case forward ring at bolthole No. 119.
(e)Install the bracket (98215) on the bolts on the aft side of the fan case forward ring at boltholes No. 117, 118, and 119.
(f)Install the self-locking nuts (83540) and washers (83530) on the bolts on the aft side of the fan case forward ring at bolt holes No. 117, 118, and 119.
(g)Install a bolt (83525) on the bracket (6711M) on the forward side of the fan case forward ring at boltholes No. 120.
(h)Install a self-locking nut and a washer (83530) on the bolt on the aft side of the fan case forward ring at bolthole No. 120.
(i)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(j)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-719
(27)Install the support bracket (6711N) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 123 thru 124 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-263
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), ID of boltholes, friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and surface of the bracket (07-270 , 72-00-01) (SIN 6711N) that contacts the fan case.
Subtask 72-21-00-640-221
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-720
(c)Install the bolts (83525) and the bracket (6711N) on the forward side of the fan case forward ring at boltholes No. 123 and 124.
(d)Install the self-locking nuts (83540) and the washers (83530) on the bolts on the aft side of the fan case forward ring.
(e)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(f)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-721
(28)Install the harness bracket (6701P) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 127 and 128, and 130 and 131 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-264
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-010 , 72-00-01) (SIN 83525), ID of the boltholes, friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and surface of the bracket (07-140 , 72-00-01) (SIN 6701P) that touches the fan case.
Subtask 72-21-00-640-222
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-722
(c)Install the bolts (83525) and the bracket (6701P) on the forward side of the fan case forward ring at boltholes No. 127 and 128, and 130 and 131.
(d)Install the self-locking nuts (83540) and washers (83530) on the bolts on the aft side of the fan case forward ring.
(e)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(f)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-723
(29)Install the support bracket (6701R) and the tube bracket (53316) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 132 and 133 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-265
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (10-260 , 72-00-01) (SIN 83525), ID of the boltholes, and surface of the brackets (10-290 , 72-00-01) (SIN 53316), (10-360 , 72-00-01) (SIN 6701R) that touches the fan case.
Subtask 72-21-00-640-223
(b)Apply C02-058  lubricant to the threads of the bolts (83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-724
(c)Install the bolts (83525) and bracket (6701R) on the forward side of the fan case forward ring at boltholes No. 132 and 133.
(d)Install the bracket (53316) on the aft side of the forward ring at boltholes No. 132 and 133.
(e)Install the self-locking nuts (83540) on the bolts on the aft side of the fan case forward ring.
(f)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(g)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-725
(30)Install the support bracket (6101F) and tube bracket (bracket) (53317) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 135, 136, and 137 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-266
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (10-400 , 72-00-01) (SIN 83520), ID of the boltholes, friction surfaces of the washers (10-410 , 72-00-01) (SIN 83530), and surface of the brackets (10-300 , 72-00-01) (SIN 53317), (10-310 , 72-00-01) (SIN 6101F) that touches the fan case.
Subtask 72-21-00-640-224
(b)Apply C02-058  lubricant to the threads of the bolts (83520) and the self-locking nuts (83540).
Subtask 72-21-00-440-726
(c)Install the bolts (83520) and the bracket (6101F) on the forward side of the fan case forward ring at boltholes No. 135, 136, and 137.
(d)Install the bracket (53317) on the bolts on the aft side of the fan case forward ring at boltholes No. 135 and 136.
(e)Install a self-locking nut (83540) on the bolts on the aft side of the fan case forward ring at bolthole No. 135 and 136.
(f)Install a self-locking nut and a washer (83530) on the bolt on the aft side of the fan case forward ring at bolthole No. 137.
(g)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(h)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
Subtask 72-21-00-440-727
(31)Install the wiring support bracket (6701T) and the tube clamp bracket (bracket) (53310) to the forward ring where the fan case assembly and the fan aft case are connected at boltholes No. 139, 140, and 141 as follows. Refer to Figure 1022.
Subtask 72-21-00-380-267
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C03-001  primer or C03-100  primer to the friction surfaces of the bolts (07-040 , 72-00-01) (SIN 83520), (07-010 , 72-00-01) (SIN 83525), ID of the boltholes, friction surfaces of the washers (07-070 , 72-00-01) (SIN 83530), and surface of the brackets (07-180 , 72-00-01) (SIN 6701T), (07-510 , 72-00-01) (SIN 53310) that touches the fan case.
Subtask 72-21-00-640-225
(b)Apply C02-058  lubricant to the threads of the bolts (83520, 83525) and the self-locking nuts (83540).
Subtask 72-21-00-440-728
(c)Install a bolt (83525) and the bracket (6701T) on the forward side of the fan case forward ring at bolthole No. 139.
(d)Install a bolt (83520) and the bracket (6701T) on the forward side of the fan case forward ring at bolthole No. 140.
(e)Install a self-locking nut (83540) and a washer (83530) on the bolt (83525) on the aft side of the fan case forward ring at bolthole No. 139.
(f)Install the bracket (53310) and a self-locking nut on the aft side of the fan case forward ring on bolt (83520) at bolthole No. 140.
(g)Install a bolt (83520) on the forward side of the fan case forward ring at bolthole No. 141.
(h)Install a spacer (83570) and a self-locking nut (83540) on the bolt (83520) and the bracket (53310) at bolthole No. 141 on the aft side of the fan case forward ring.
(i)Torque the self-locking nuts to 202-238 lb in. (22.8-27.0 N.m).
(j)Torque the self-locking nuts again to 202-238 lb in. (22.8-27.0 N.m).
(32)Remove the protective tape from below the aft flange on the fan containment case assembly (01-010) (SIN 83500) or (01-011) (SIN 83500) or (01-012) (SIN 83500).
(33)After completion of all the stator-level assembly, do a secondary torquing of all fasteners in circumferential pattern to the specified torque.
(34)Do a final torque verification with a manual torque wrench on the B-flange hardware in a circumferential pattern.
Subtask 72-21-00-440-729
W.Install the mid-outer acoustic liner (acoustic liner) (01-500) (SIN 83503) or (01-501) (SIN 83503) on the fan containment case assembly (01-010) (SIN 83500) or (01-011) (SIN 83500) or (01-012) (SIN 83500). Refer to Figure 1023 and do as follows:
Subtask 72-21-00-110-068
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Clean the aft end of the acoustic liners (01-500) (SIN 83503) or (01-501) (SIN 83503) with C04-035  isopropyl alcohol approximately 1 inch (25.4 mm) in width. Refer to Figure 1024.
(2)Clean the forward end of the mid-outer acoustic liners with C04-035  isopropyl alcohol approximately 1 inch (25.4 mm) in width.
Subtask 72-21-00-440-730
(3)Put a 1 or 2 inch (25.4 or 50.8 mm) wide C10-021   tape on the inner aft end of the acoustic liners (01-500) (SIN 83503) or (01-501) (SIN 83503). The tape must be flush with the aft end of the liners.
(4)Put a 1 or 2 inch (25.4 or 50.8 mm) wide C10-021   tape on the inner forward of the OGVs. The tape must be flush with the forward end of the OGVs.
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1023   Installation of the Acoustic Liner on the Aft Fan Containment Case Assembly
* * * FOR 1B/P/G03.1B/P/G04.1B/P1/G01
Figure 1024   Acoustic Liner
Subtask 72-21-00-380-268
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(5)Apply C01-159  RTV primer to the OGVs surface where the C01-176  RTV will be applied as follows:
(a)Do not apply the C01-159  RTV primer to the acoustic liners (01-500) (SIN 83503) or (01-501) (SIN 83503).
(b)To the inner diameter of the fan containment case assembly (01-010) (SIN 83500), (01-011) (SIN 83500) or (01-012) (SIN 83500) and the aft fan case (01-035) (SIN 84100) where the mid-outer acoustic liners will be installed.
(c)To the forward end (lip) of each of the OGVs. Do not apply any primer past the radius of the OGVs.
(6)Apply C03-001  primer or C03-100  primer to the shank of the screws (83521, 83522). Dip the screws in the primer. Refer to Figure 1023.
Subtask 72-21-00-640-226
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(7)Apply C02-058  lubricant to the threads of the screws (83521, 83522).
Subtask 72-21-00-440-731
(8)Attach the acoustic liners (01-500) (SIN 83503) or (01-501) (SIN 83503) with the screws (01-540) (SIN 83521) and (01-550) (SIN 83522) as follows:
(a)Put the screws (83521) in the forward row of holes.
(b)Put the screws (83522) in the aft row of holes.
(c)Tighten the screws to prevent movement of the liner.
(9)Make sure there is a 0.010 inch (0.25 mm) minimum gap between the mid-outer acoustic liners. If necessary, adjust or chamfer the liners before torquing the screws (83521, 83522). If necessary, remove 0.050 inch (1.27 mm) maximum from the mid-outer acoustic liners.
Subtask 72-21-00-220-036
(10)Make sure that the mid-outer acoustic liners are installed flush.
Subtask 72-21-00-440-732
(11)If the attaching mid-outer acoustic liner does not fit, loosen adjacent mid-outer acoustic liners as necessary to adjust and let both mid-outer acoustic liners to stay flat.
Subtask 72-21-00-440-733
(12)Torque the screws (83521, 83522) that attach the mid-outer acoustic liners as follows:
(a)Torque the two center screws (forward and aft) to 106-124 lb in. (12.0-14.0 N.m).
(b)Torque the screws (forward and aft) that are adjacent to the center screws to 106-124 lb in. (12.0-14.0 N.m).
(c)Continue to torque two outer screws (forward and aft) to 106-124 lb in. (12.0-14.0 N.m) until all 14 screws are torqued.
(d)Torque the screws (forward and aft) again in the same sequence.
(e)After 15 minutes, torque the screws (83521, 83522) again to 106-124 lb in. (12.0-14.0 N.m), in the same sequence that the screws were torqued before.
(13)Apply C01-176  RTV between the mid-outer acoustic liners and the OGVs. Refer to Figure 1024.
(a)Caulk the gap between the mid-outer acoustic liners.
(b)Caulk between the mid-outer acoustic liners and the OGV fairings.
(c)Use a spatula, wooden depressor, or use a rubber glove, to manually smooth the C01-176  RTV. Remove all excess C01-176  RTV and make a smooth surface that is flush to the surface. The C01-176  RTV must not extend onto the OGVs more than the filled gap.
(d)Make sure the C01-176  RTV is smooth, flush, and equal after application.
(14)Remove all the C10-021  tape.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(15)Remove any high ridges of C01-176  RTV . Use C04-035  isopropyl alcohol to help remove the RTV.
Subtask 72-21-00-440-734
X.Apply C01-176  RTV to the inboard gap between the OGVs as follows:
Subtask 72-21-00-110-069
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(1)Clean the gap between the OGVs with C04-035  isopropyl alcohol. Let the area to dry.
Subtask 72-21-00-440-735
(2)Put C10-021  tape between the inboard side of the OGVs as follows:
(a)Put a 1 or 2 inch (25.4 or 50.8 mm) in width tape on both sides of the gap between the OGVs. The total width of the C01-176  RTV and the gap must be approximately 0.5 inch (12.7 mm). Make sure the gap width is the same for all locations.
(b)Put the tape between the OGVs to prevent the C01-176   RTV from moving the OGVs. This makes a barrier with the tape to contain the RTV.
Subtask 72-21-00-380-269
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(3)Apply C01-159  RTV primer to the area where the C01-176  RTV will be applied. Let the primer dry for 15 minutes.
Subtask 72-21-00-440-736
(4)Apply C01-176  RTV to the gap between the OGVs as follows:
(a)Immediately use a spatula or a wooden depressor to smooth the C01-176  RTV. Remove all excess C01-176  RTV and make a smooth surface that is flush to the surface. The C01-176   RTV must not extend onto the OGVs more than the filled gap.
(b)Make sure the C01-176  RTV is smooth, and without lines, bubbles, and voids.
(c)The C01-176  RTV should be thick enough to fill the gap and provide good coverage.
NOTE:
The grey color of the OGVs must not be visible when looking at the RTV.
(d)After you apply the C01-176  RTV to five gaps between the OGVs, remove the C10-021   tape from the inside diameter gap where the RTV was applied first. Carefully smooth any RTV that changed when removing the tape.
(e)Continue to apply the C01-176  RTV between the OGV gaps until you have filled the gap between the 48 OGVs.
(5)Let the C01-176  RTV to dry a minimum 2 hours.
(6)Remove the C10-021  tape from the backside of the OGVs gap.
(7)Keep removing the tape only if the C01-176   RTVRTV is not damaged when removing the tape.
Subtask 72-21-00-110-070
(8)Wipe off unwanted C01-159  RTV primer from the inboard and the outboard edges of the OGVs with a clean C10-182  cloth as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Remove unwanted C01-159  RTV primer that remains around the inboard and the outboard surfaces of the primer with C04-035  isopropyl alcohol or C04-003  acetone.
Subtask 72-21-00-160-012
Y.Clean the inside and outside diameter of the stator case assembly as follows:
WARNING:
USE EYE PROTECTION WHEN YOU USE COMPRESSED AIR TO CLEAN, COOL, OR DRY PARTS OR TOOLS. PARTICLES CAN CAUSE AN INJURY TO YOUR EYES. DO NOT USE MORE THAN 30 PSIG (207 KPA). DO NOT POINT COMPRESSED AIR AT YOURSELF OR OTHER PERSONS.
(1)Remove all loose debris with clean, dry compressed air.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(2)Use a C10-182  cloth moist with C04-035  isopropyl alcohol to clean the stator case assembly.
Subtask 72-21-00-210-005
Z.Inspect the stator case assembly. Refer to TASK 72-00-01-200-801 (72-00-01, INSPECTION 001) and do as follows:
(1)Look for tape that has not been removed, and remove all tape from the stator case assembly.
(2)Look at the aft acoustic panels (01-510) (SIN 83504), (01-520) (SIN 83505), (01-530) (SIN 83506), (01-660) (SIN 8350A), (01-670) (SIN 8350B), (SIN 8350C) and (SIN 8350D), and the acoustic liner (01-500) (SIN 83503) or (01-501) (SIN 83503) on the aft fan case (01-035) (SIN 84100) for chips, scratches, or poorly matched paint.
(3)Look at the RTV beads for voids and a smooth change from one surface to the next surface.
(4)Do an inspection of the abradable shroud on the fan containment case (01-010) (SIN 83500) or (01-011) (SIN 83500) or (01-012) (SIN 83500) for voids and damage.
(5)Look for scratched or nicked areas on the inner surfaces of the stator case assembly.
(6)Look at the trench filler areas on the abradable panels of the fan containment case for exposed fibers.
(7)Do random torque checks as follows:
(a)Check the torque on the aft fan case yoke (yoke) (84803) self-locking nuts (84141) as follows:
1Apply torque 69 to 81 lb ft. (94 to 110 Nm) to all the engine mount self-locking nuts on OGVs 1, 2, and 48.
2Check the torque again on all self-locking nuts (84841) on OGVs 1, 2, and 48, if there are self-locking nuts not sufficiently torqued.
(b)Check the torque on the aft fan case yoke self-locking nuts (84840) as follows:
1 Apply torque 125 to 145 lb ft. (169 to 197 Nm) to all the engine mount self-locking nuts on OGVs 1, 2, and 48.
2Check the torque again on all self-locking nuts (84841) on OGVs 1, 2, and 48, if there are self-locking nuts not sufficiently torqued.
(c)Check the torque on the OGVs 3-47 (8400A, 8400C, 8400D, 8400E, 8400F, 8400G, 8400H, 8400K) self-locking nuts (84143, 84144) as follows:
1Apply torque 368 to 432 lb in. (41.6 to 48.8 Nm) to all self-locking nuts (84143, 84144) on the OGVs 3-47.
2Check the torque again on all self-locking nuts (84843, 84144) on OGVs 3-47, if there are self-locking nuts not sufficiently torqued.
(d)Check the torque on the aft fan case to the fan containment case assembly (01-010) (SIN 83500) or (01-011) (SIN 83500) or (01-012) (SIN 83500) split line self-locking nuts (01-040) (SIN 83540) as follows:
1Apply torque 201.6 to 258.4 lb in. (22.78 to 29.22 Nm) to all the split line self-locking nuts.
2Check the torque again on all split line self-locking nuts (83540), if there are self-locking nuts not sufficiently torqued.
Subtask 72-21-00-440-737
AA.Continue to assemble the fan stator module assembly. Refer to TASK 72-00-01-430-803 (72-00-01, ASSEMBLY 001).
