* * * FOR ALL PIP 2
TASK 72-00-02-430-821
1 . General.
A.This procedure gives instructions to install the high pressure compressor (HPC) module assembly (33-012) (SIN 00108) to the fan hub module assembly of the propulsor module assembly (propulsor). Refer to Figure 1001.
Propulsor:
•
(30-021 , 72-00-00) (SIN 0010C) (SB 72-0161) (Propulsor Module - PIP2 Configuration)
•
(30-022 , 72-00-00) (SIN 0010C) (SB 72-0161) (Propulsor Module - PIP2 Configuration)
•
(30-023 , 72-00-00) (SIN 0010C).
Fan hub module assembly:
•
(25-011) (SIN 00102) (SB 72-0156)
•
(25-012) (SIN 00102) (SB 72-0156).
The fan hub module contains:
•
Fan hub frame (01-491 , 72-26-00) (SIN 840A0) (SB 72-0156)
•
Fan hub frame (01-492 , 72-26-00) (SIN 840A0) (SB 72-0156).
B.Use this procedure to install the HPC module assembly to the fan hub module assembly in the vertical position in the 9481M84   assembly stand or 11C4582   core module build-up fixture.

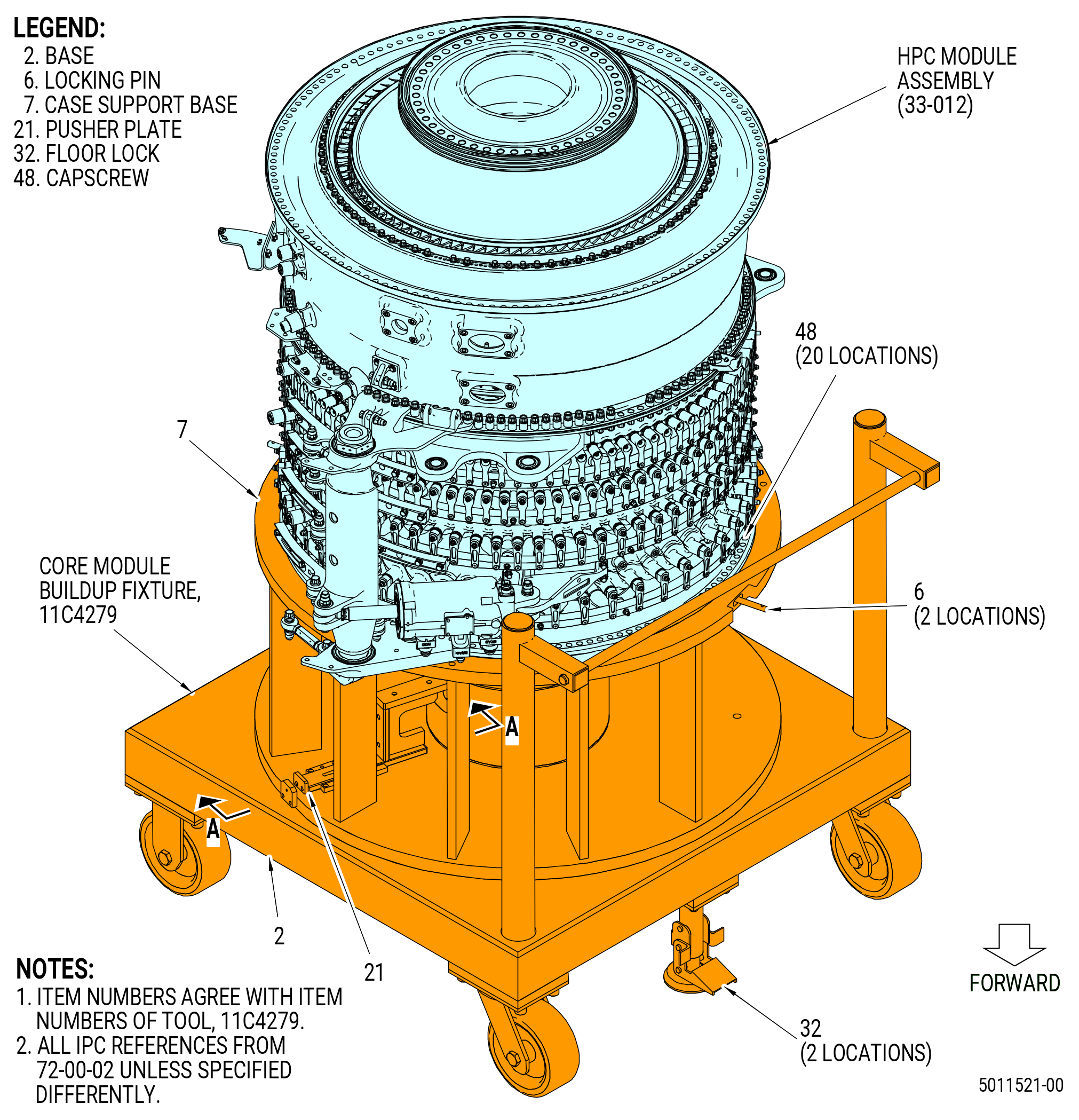

C.This procedure starts with the HPC module assembly installed in the 11C4279   core module build-up fixture or 11C3010   build-up fixture on the 9429M56   propulsor build stand in the vertical position, at the equivalent assembly status of TASK 72-30-00-440-804 (70-30-00, ASSEMBLY 002 CONFIGURATION 02) .
D.Before doing this procedure, read the assembly and disassembly techniques section. Refer to TASK 70-10-00-800-009 (ASSEMBLY AND DISASSEMBLY TECHNIQUES) .
E.Make sure to obey all site safety and environmental controls or personal injury can occur.
F.Make sure that there is no unwanted material in the assemblies and modules of the propulsor assembly.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THESE PRODUCTS.
G.Before installation make sure that all rabbet and flange mating surfaces are free of unwanted material and raised metal. Clean the rabbets, flanges, and threads of the studs with C04-002  Stoddard solvent, C04-003  acetone, or C04-035  isopropyl alcohol.
H.Make sure that the mating parts are serviceable and have no deterioration.

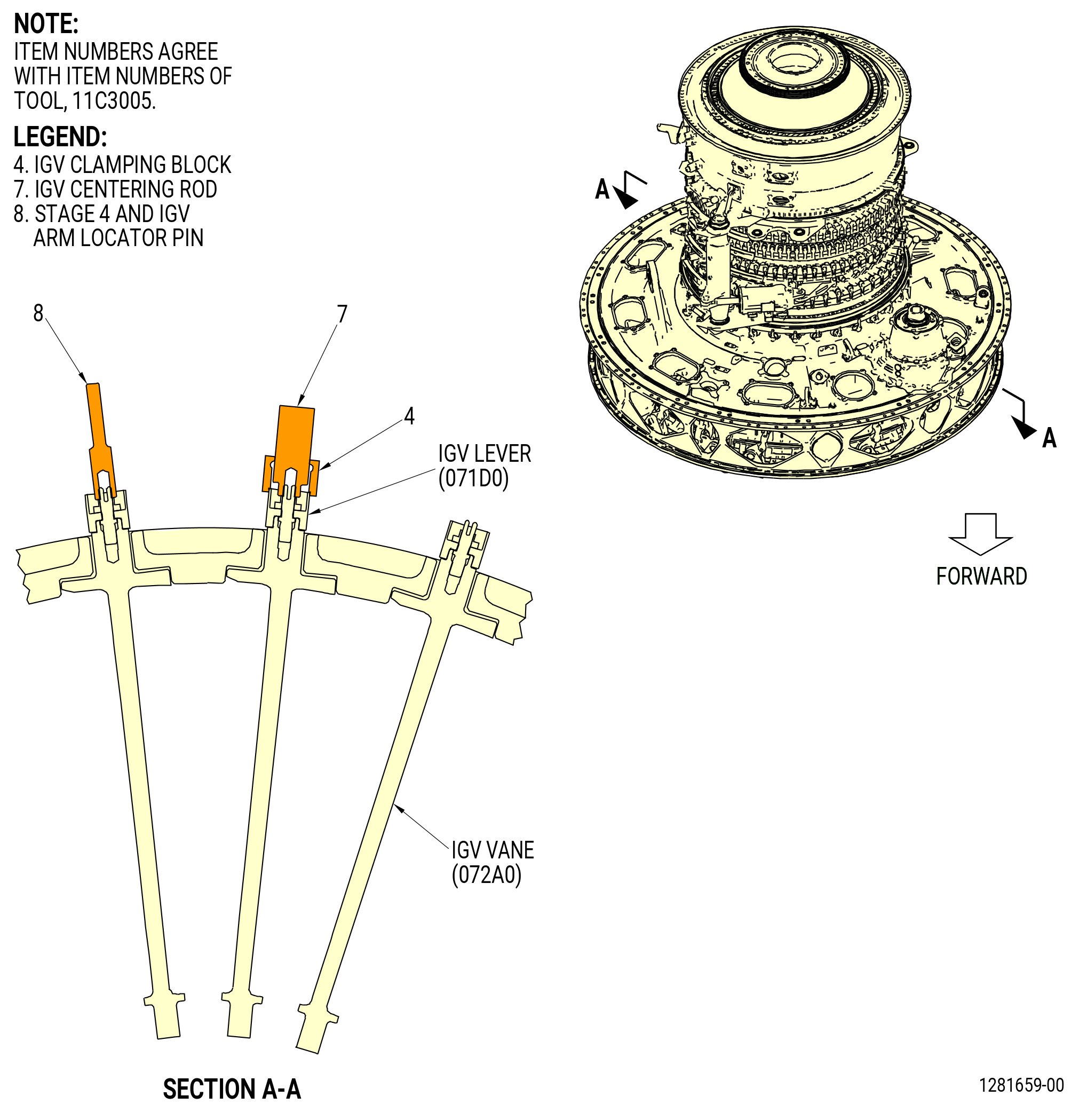

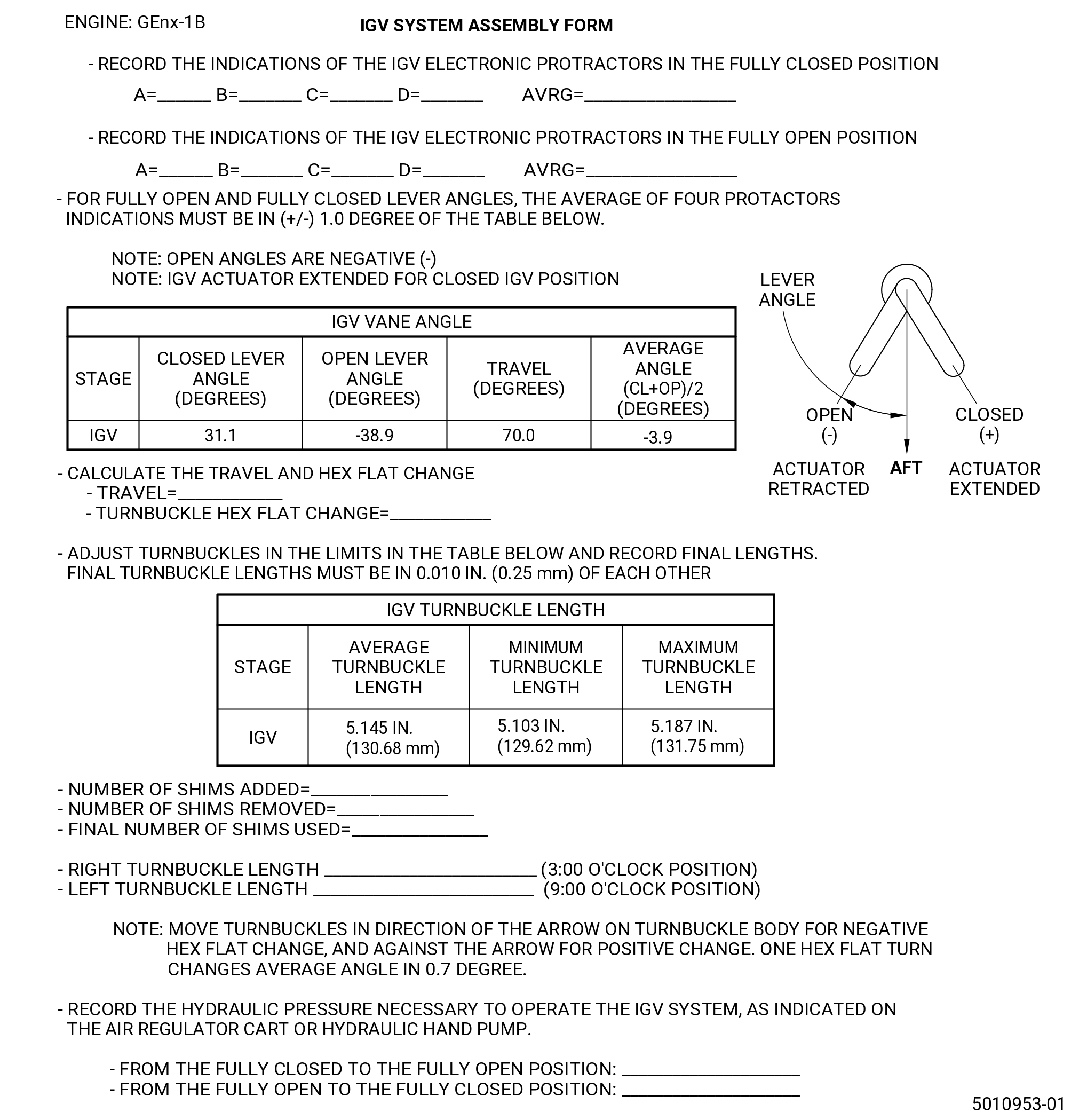

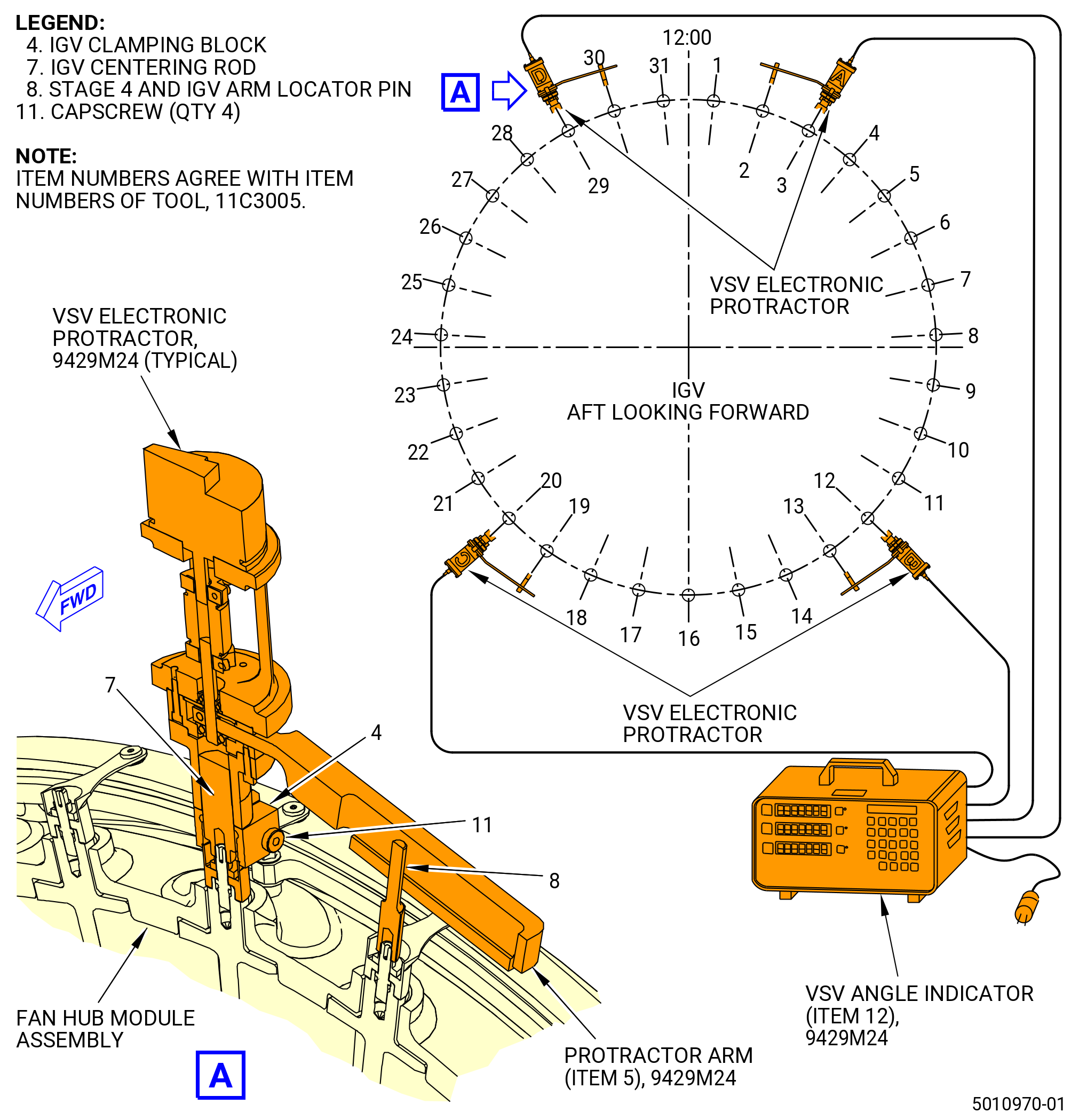

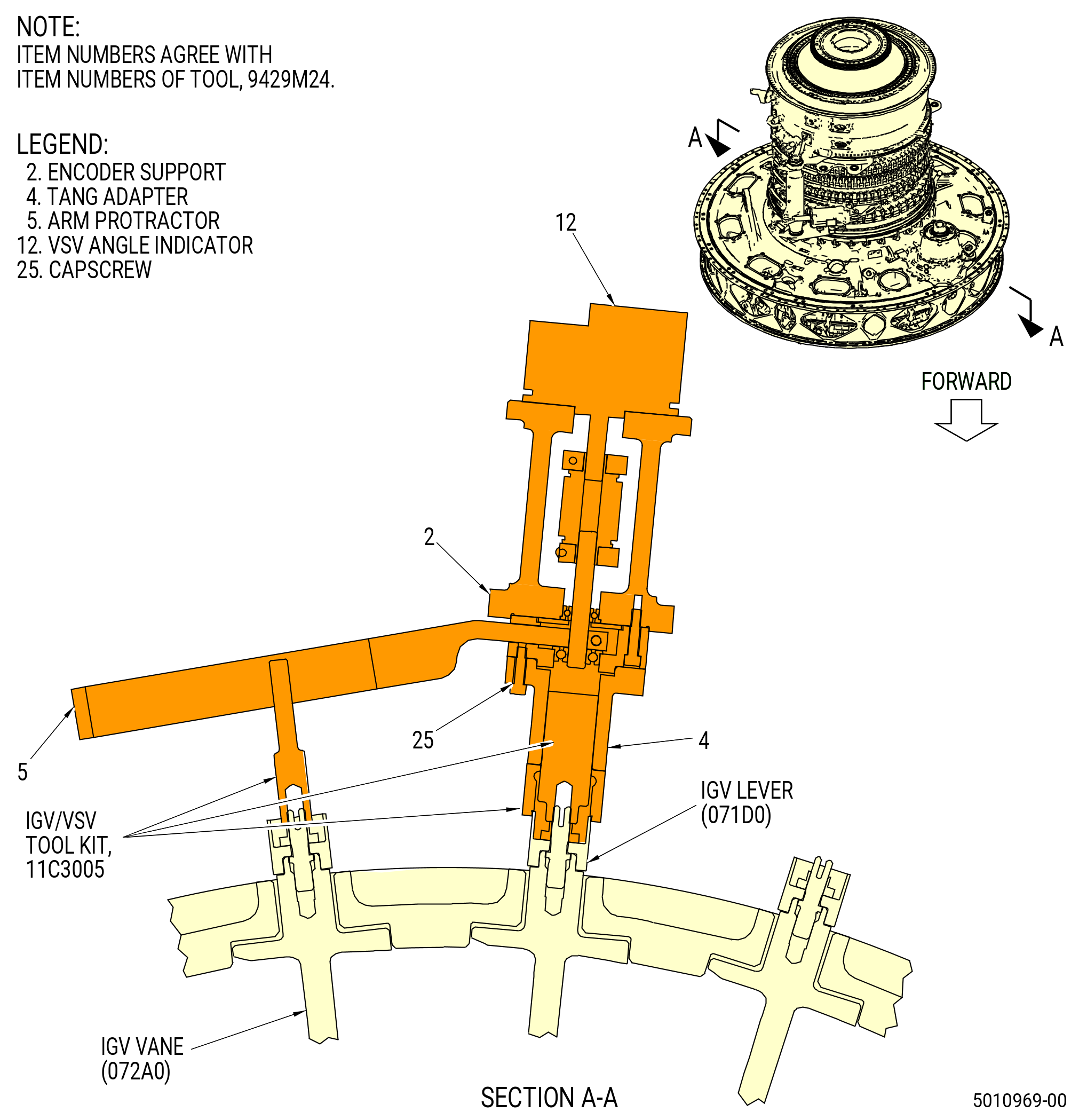

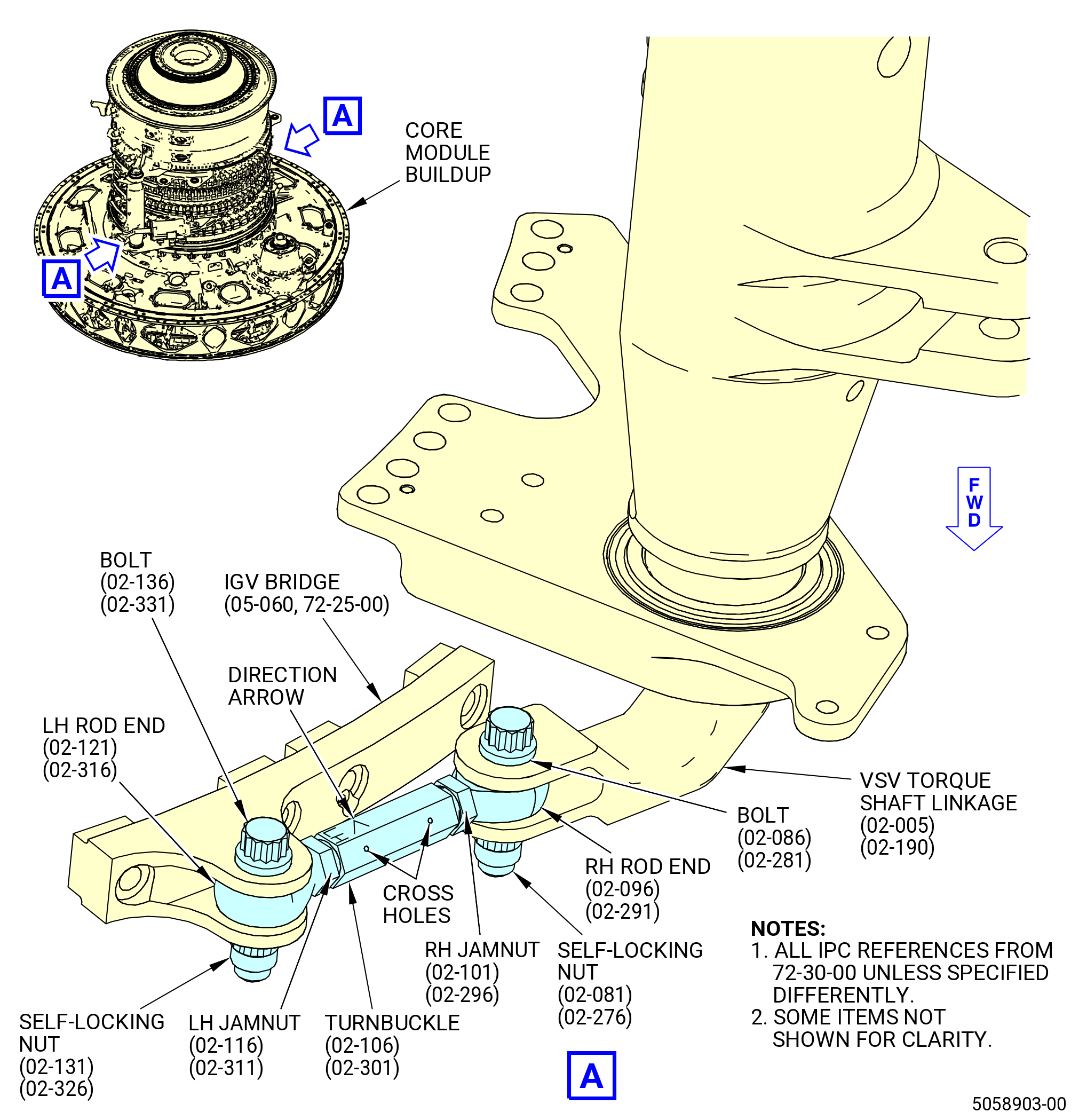

I.This procedure gives instructions to adjust and rig the IGV actuator system.
•
Shimmed, separable clevis torque shaft linkage:
(02-005 , 72-30-00) (SIN 07501) and (02-190 , 72-30-00) (SIN 07500).
(1)Do the applicable procedure assigned to the proper torque shaft linkage design installed on the engine. All rigging instructions are the same for Configuration 2 and Configuration 3.
J.Read this procedure and know the instructions and the tools before installing the HPC module assembly to the fan hub module assembly for the propulsor assembly.
K.Install all bolts with the heads up or forward, unless specified differently.
L.Clock positions are aft looking forward (ALF), unless specified differently.
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

9C1276G01

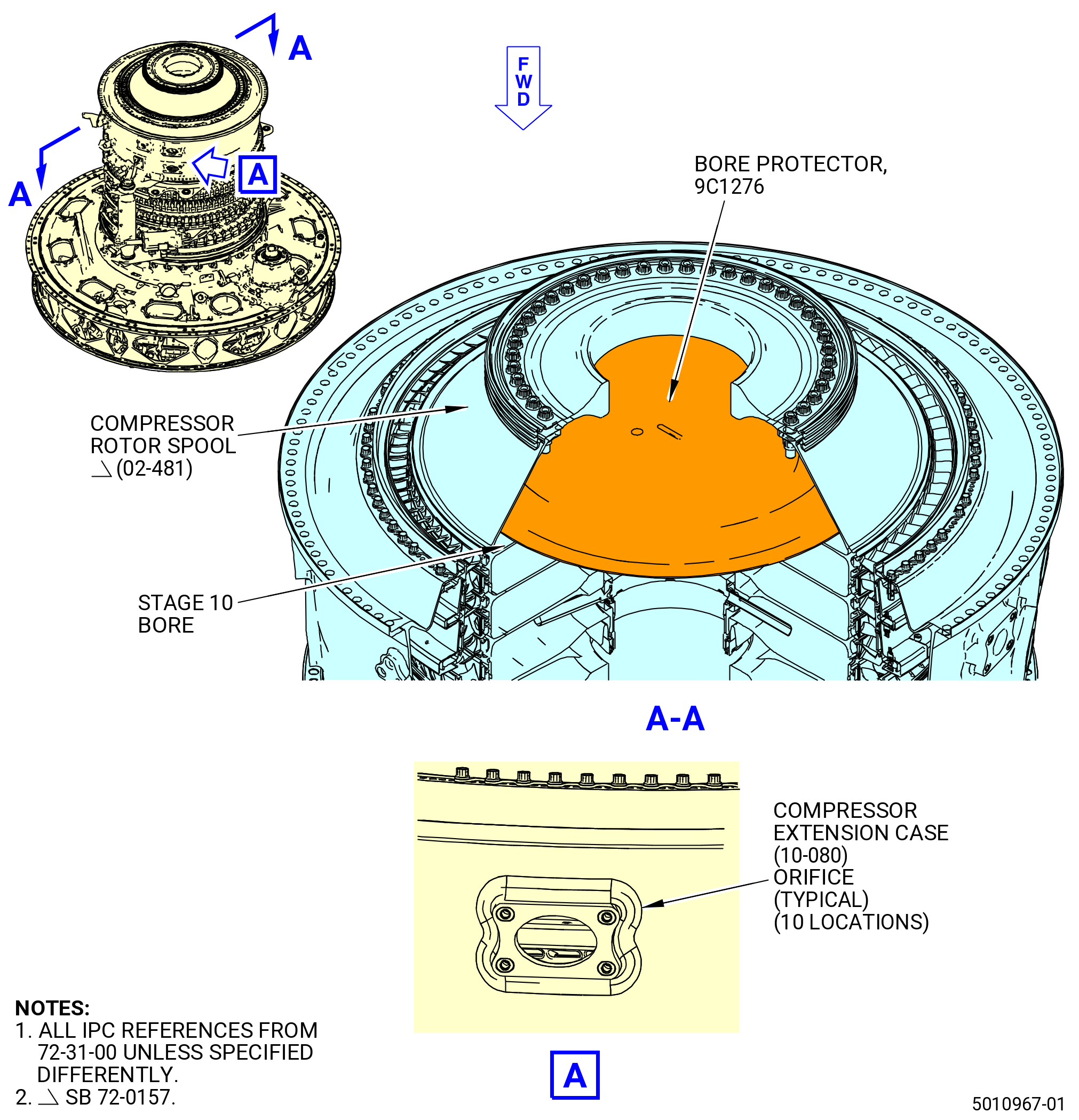

Protector, Compressor Rotor Stage 8-10 Bore (bore protector)

11C3005G02
Tool kit, Adapter - IGV and VSV (IGV/VSV tool kit)

11C3010G02
Fixture, Build-Up Core Module (build-up fixture)

11C3047G01
Bracket, Lift/Turn - Fan Hub Frame (lift/turn bracket)

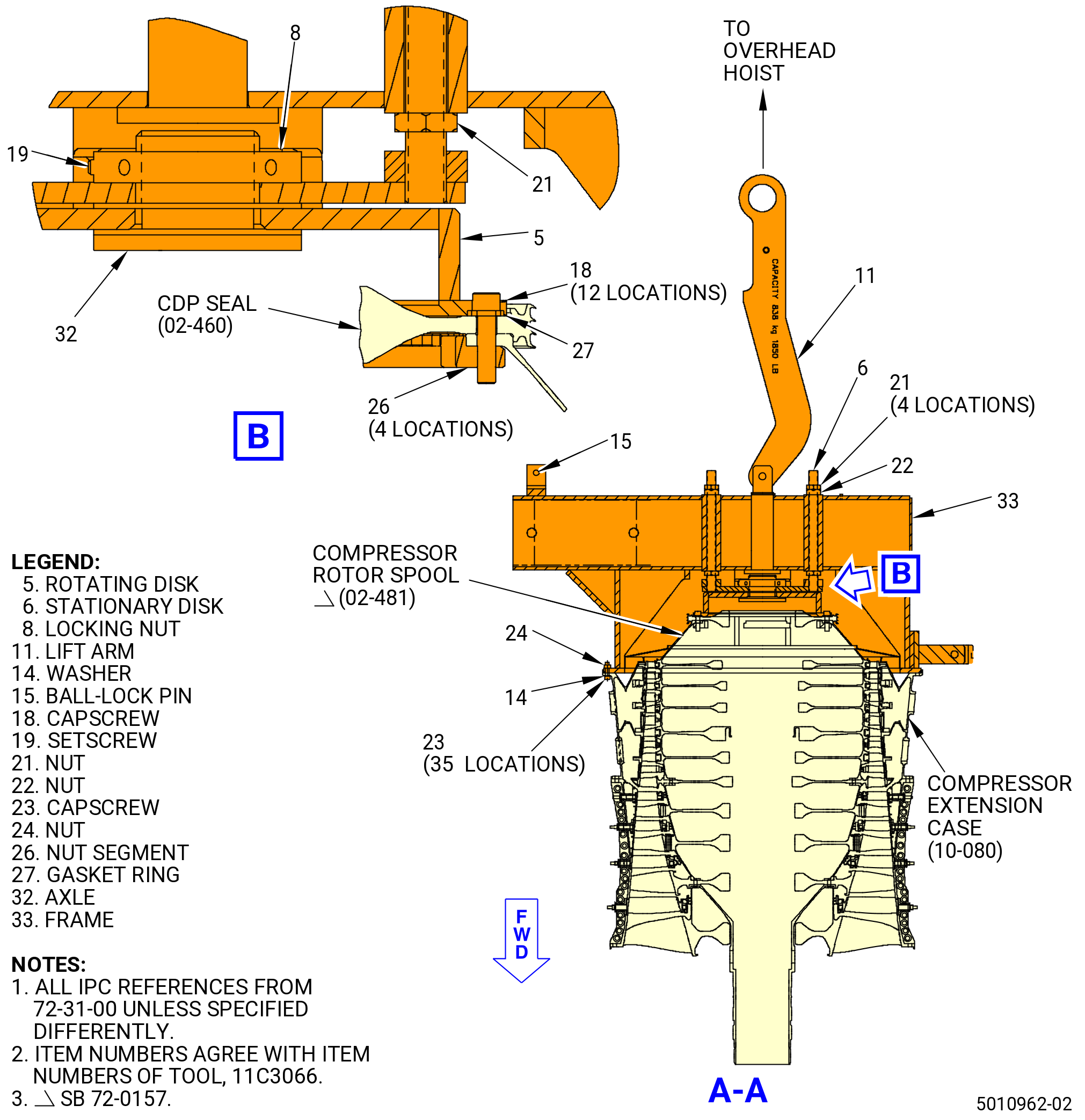

11C3066G05
Fixture, Lift and Turn - HPC Module, Aft (lift/turn fixture)
NOTE:
Tool 11C3066G05 is an alternative to 11C3066G06 for GEnx-1B engines.

11C3066G06
Fixture, Lift and Turn - HPC Module, AFT (lift/turn fixture)

11C3074G01
Tool Kit, Dummy Bolt - Compressor Discharge, Pressure Seal/SP, Stage 6-10 (tool kit)

11C3133G01
Fixture, Lock - HP Compressor Rotor (lock fixture)

11C3156G01

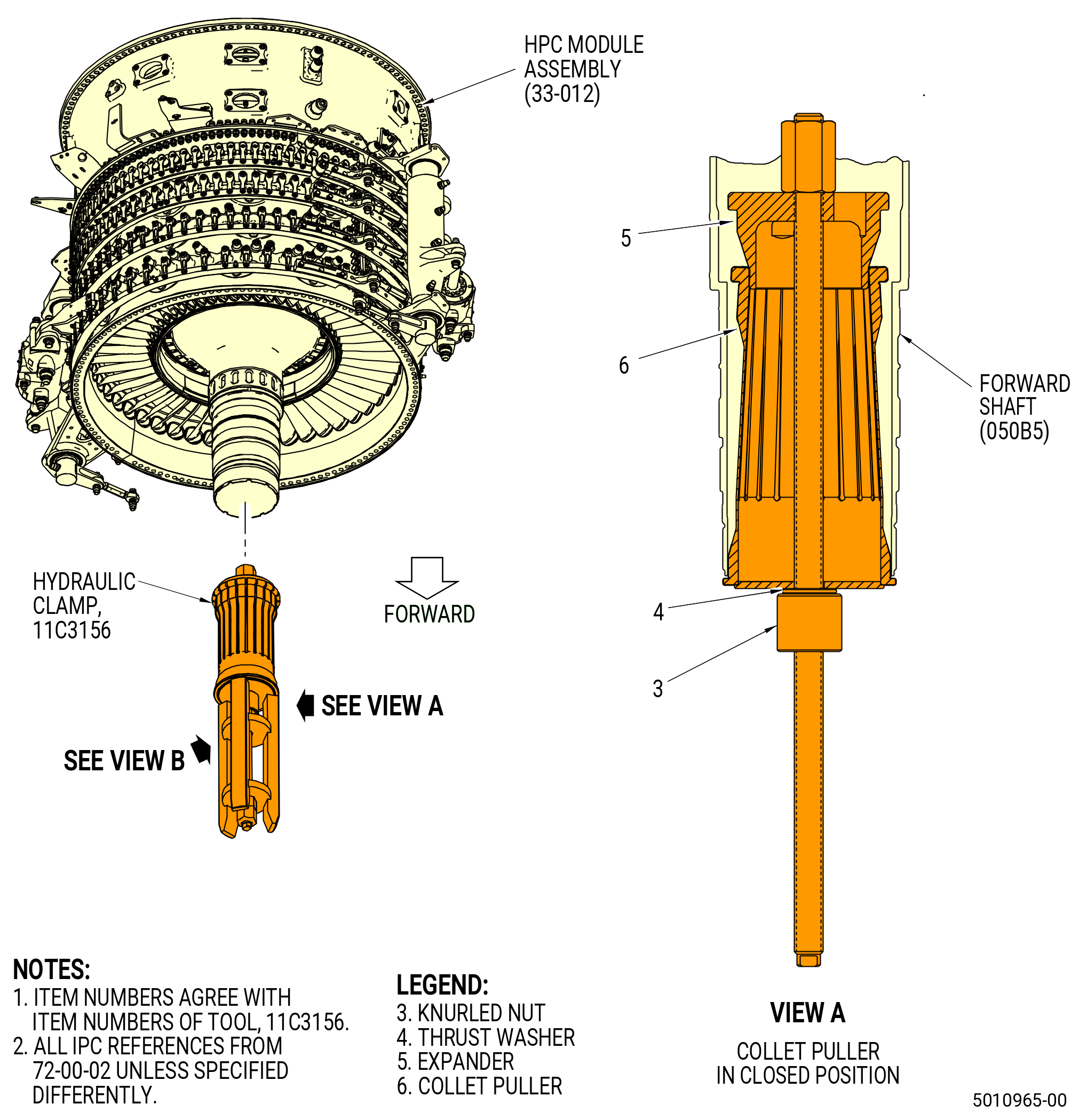

Clamp, Hydraulic - Gearshaft to Shaft, Compressor Rotor (hydraulic clamp)

11C3190G02

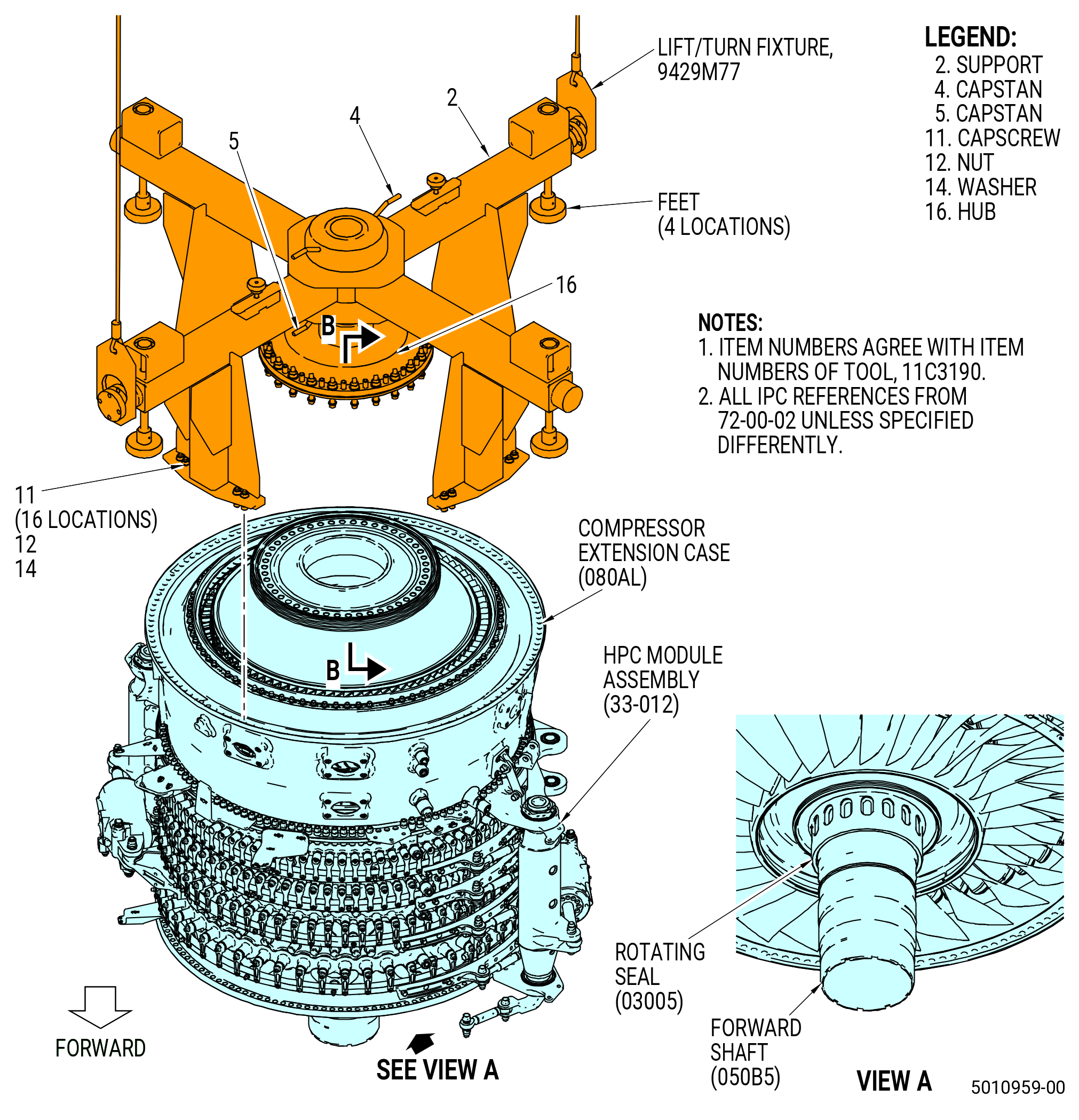

Bar, Lifting Extension Case - HPC (lifting bar)

11C3197G01
Bracket Set - Fan Hub Frame (bracket set)

11C3266G02

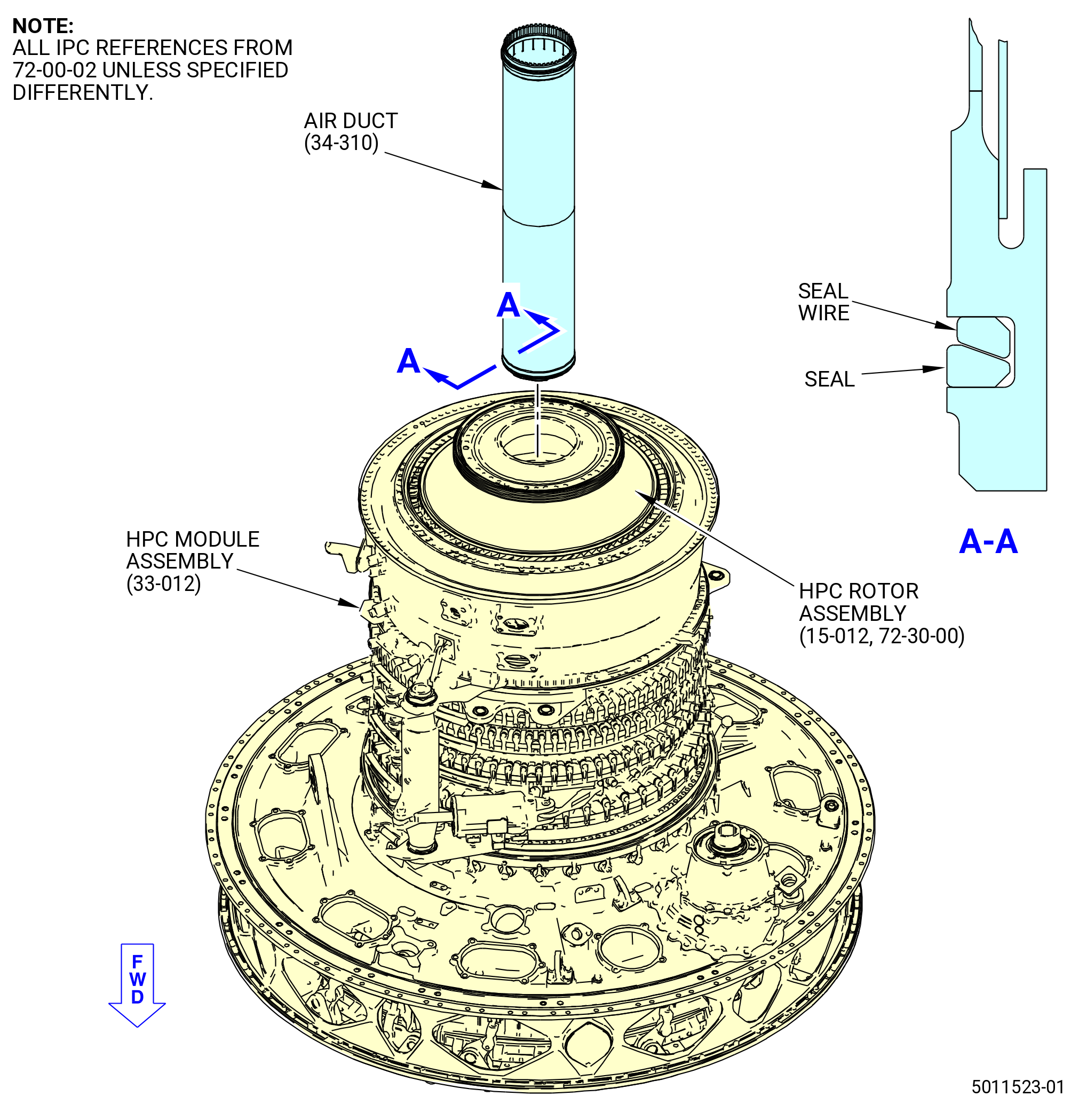

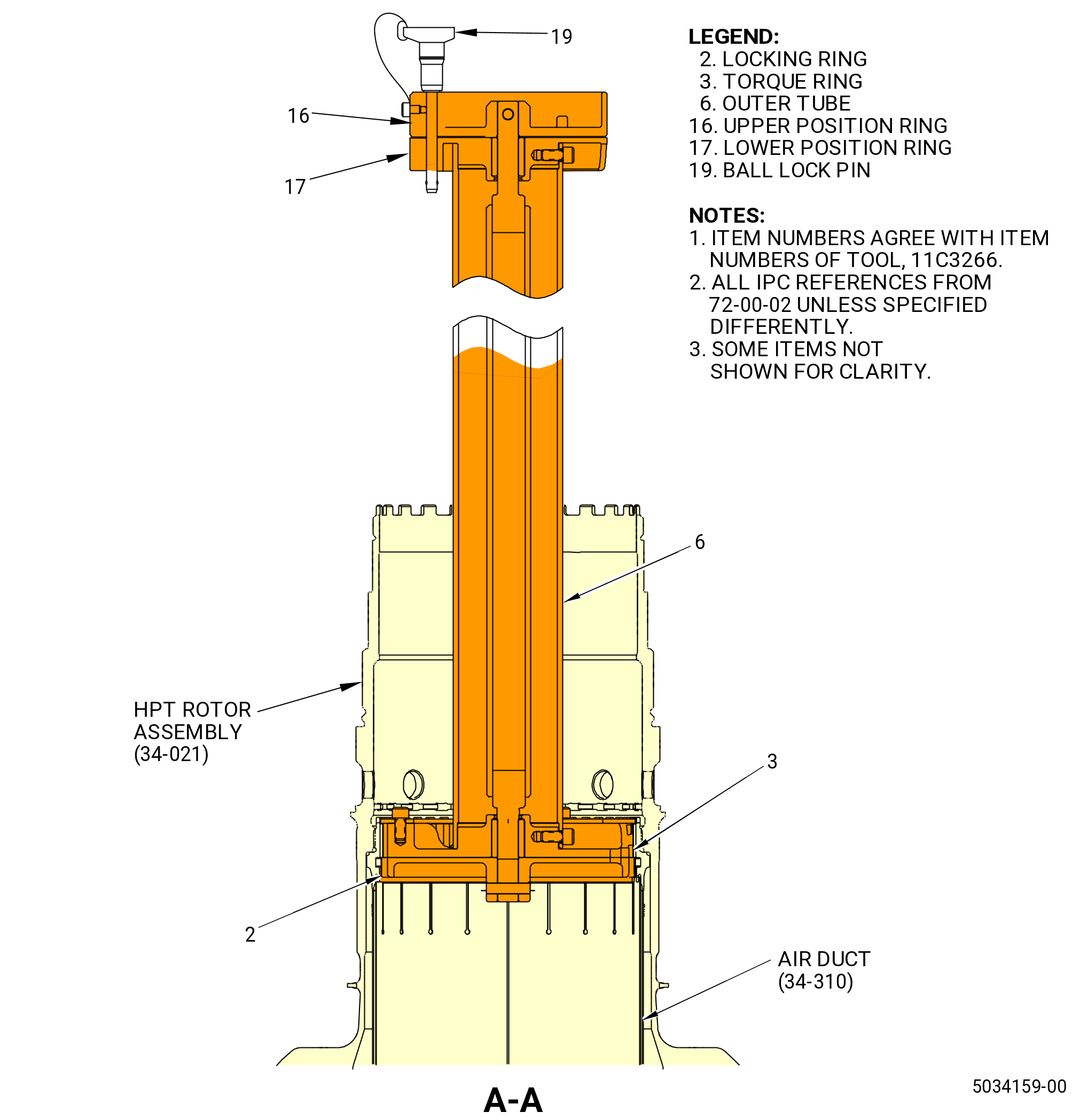

Fixture, Installation HPT Air Duct/HPT Rotor Disk (air duct installation fixture)

11C3266G03
Fixture, Installation HPT Air Duct/HPT Rotor Disk (air duct installation fixture)
NOTE:
Tool 11C3266G03 is an alternative to 11C3266G02.

11C4100G01
Stand, Adjustable, Roll-Over - Sub Assembly (roll-over stand) (Alternative to 9429M60)

11C4101G02
Bracket Set, Fan Hub Frame - Rollover Stand (FHF bracket set)
NOTE:
Tool is supplied as a single item, two brackets are required for its use. The 11C4101G01 tool drawing is in imperial and 11C4101G02 is metric. Tools are interchangeable.

11C4279G03
Fixture, Build-Up - Core Module (core module build-up fixture)

11C4279G04
Fixture, Build-Up - Core Module (core module build-up fixture)

11C4582G01
Fixture, Build-Up - Core Module (core module build-up fixture)

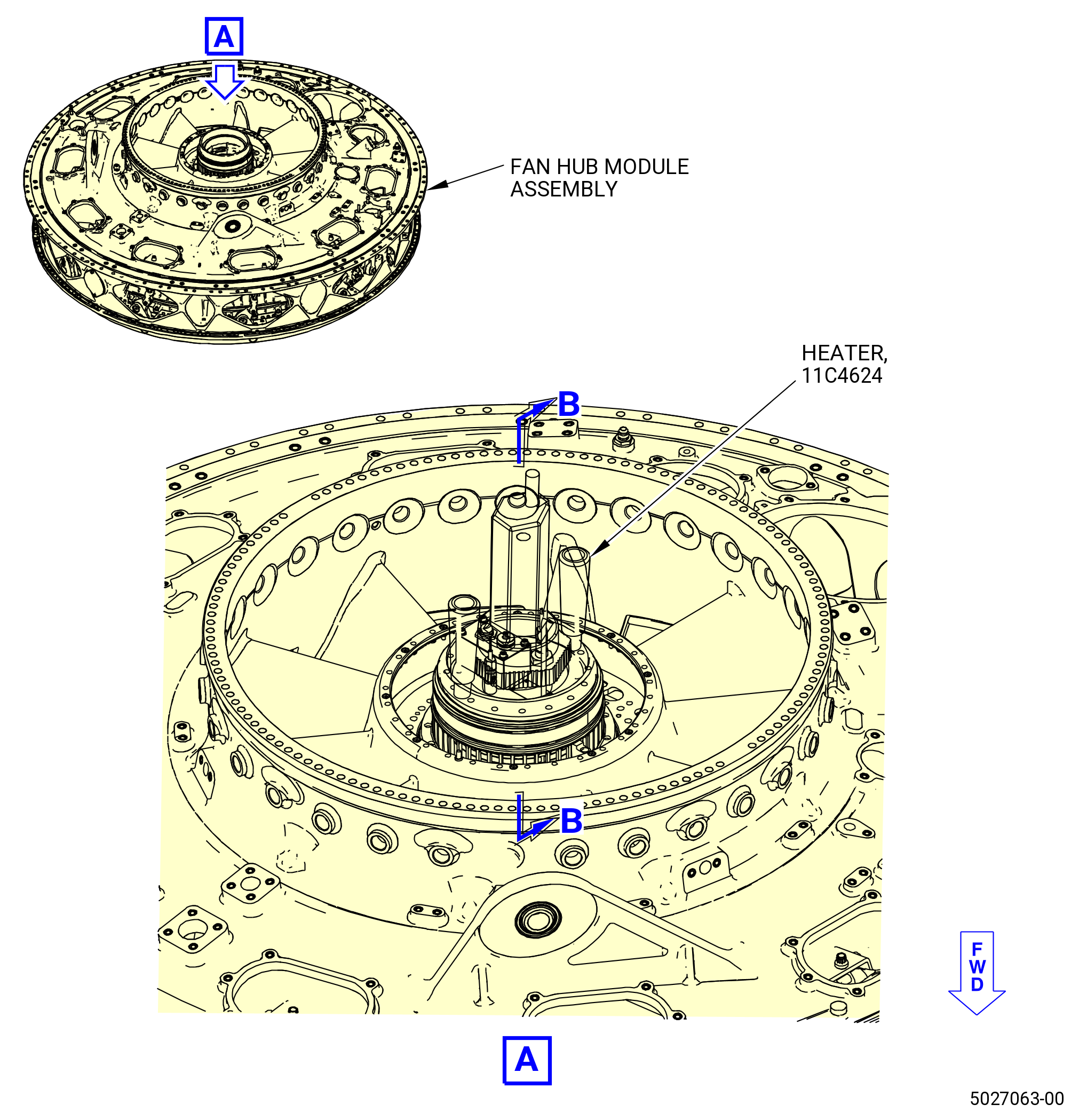

11C4624G01
Fixture, Heat Gun - IGB (heater)

11C4699G01
Fixture, Build Up - Core Module (assembly fixture)
NOTE:
Tool 11C4699 is alternative to 11C4582.
NOTE:
Tool 11C4699 was developed as a hinged stand to be used when the hook height is restricted.

11C4819P01
Supply, Power - Induction Heater, 15 KW
NOTE:
Use with 11C4820P01 as an alternative to 11C4624G01.

11C4820P01
Heater, Induction - Bevel Gear, IGB and No. 3 Bearing Assembly
NOTE:
Use with 11C4819P01 as an alternative to 11C4624G01.

11C4822G01
Fixture, Storage - Vertical Core
NOTE:
Tool 11C4822G01 is an alternative to 11C4582 and used to store engine cores without the fan booster installed.
NOTE:
Tool 11C4822G01 was developed for storage purpose only. Do not use it for assembly.

11C4822G02
Fixture, Storage - Vertical Core
NOTE:
Tool 11C4822G02 is an alternative to 11C4582.
NOTE:
Tool 11C4822G02 was developed for storage purpose only. Do not use it for assembly.

9429M19G01
Fixture, Lift - Vertical, 1500 lb (680 kg) (vertical lift fixture)

9429M24G01

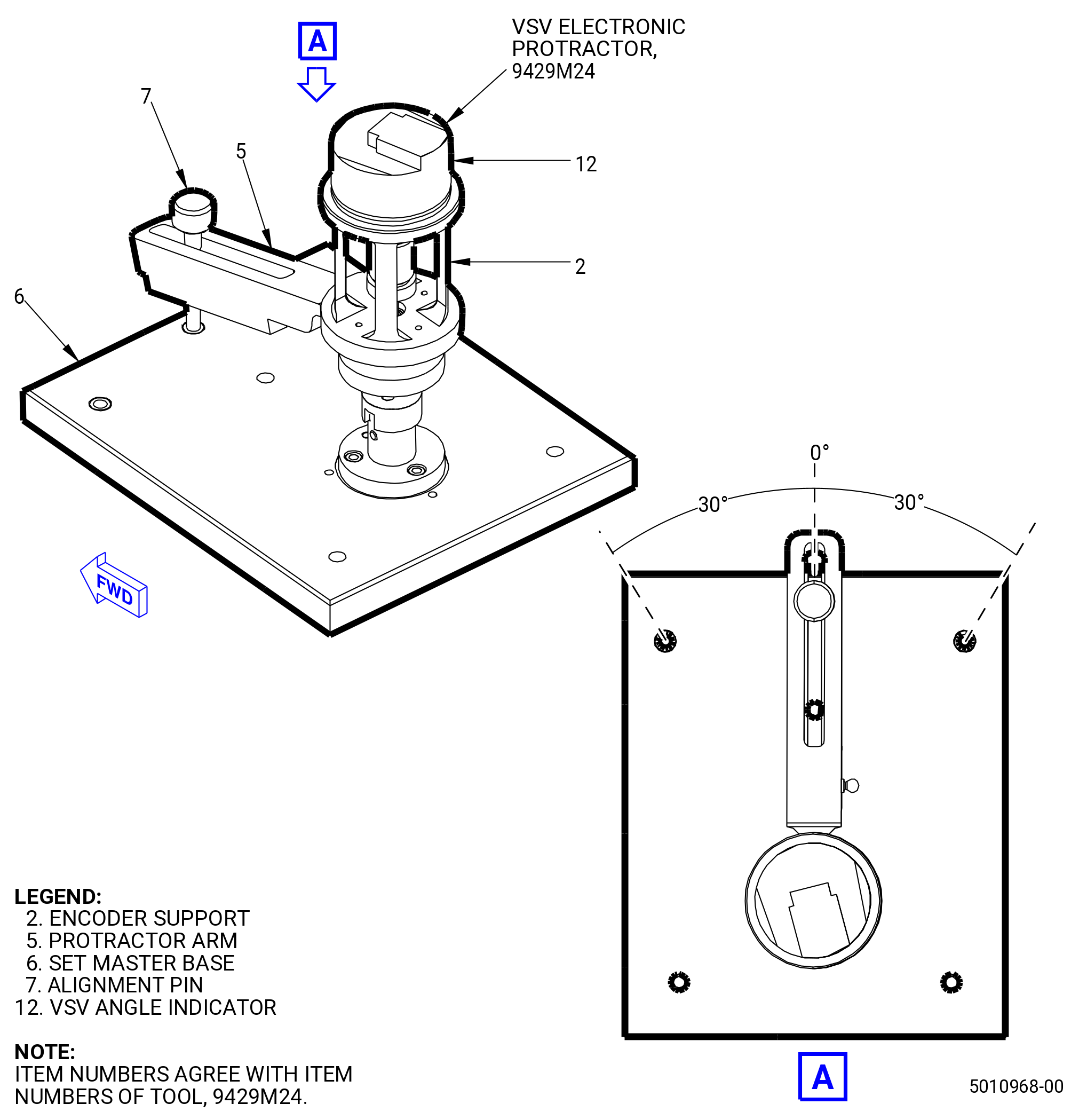

Protractor, Electronic Portable - Variable Stator Vane (VSV electronic protractor)

9429M53G02

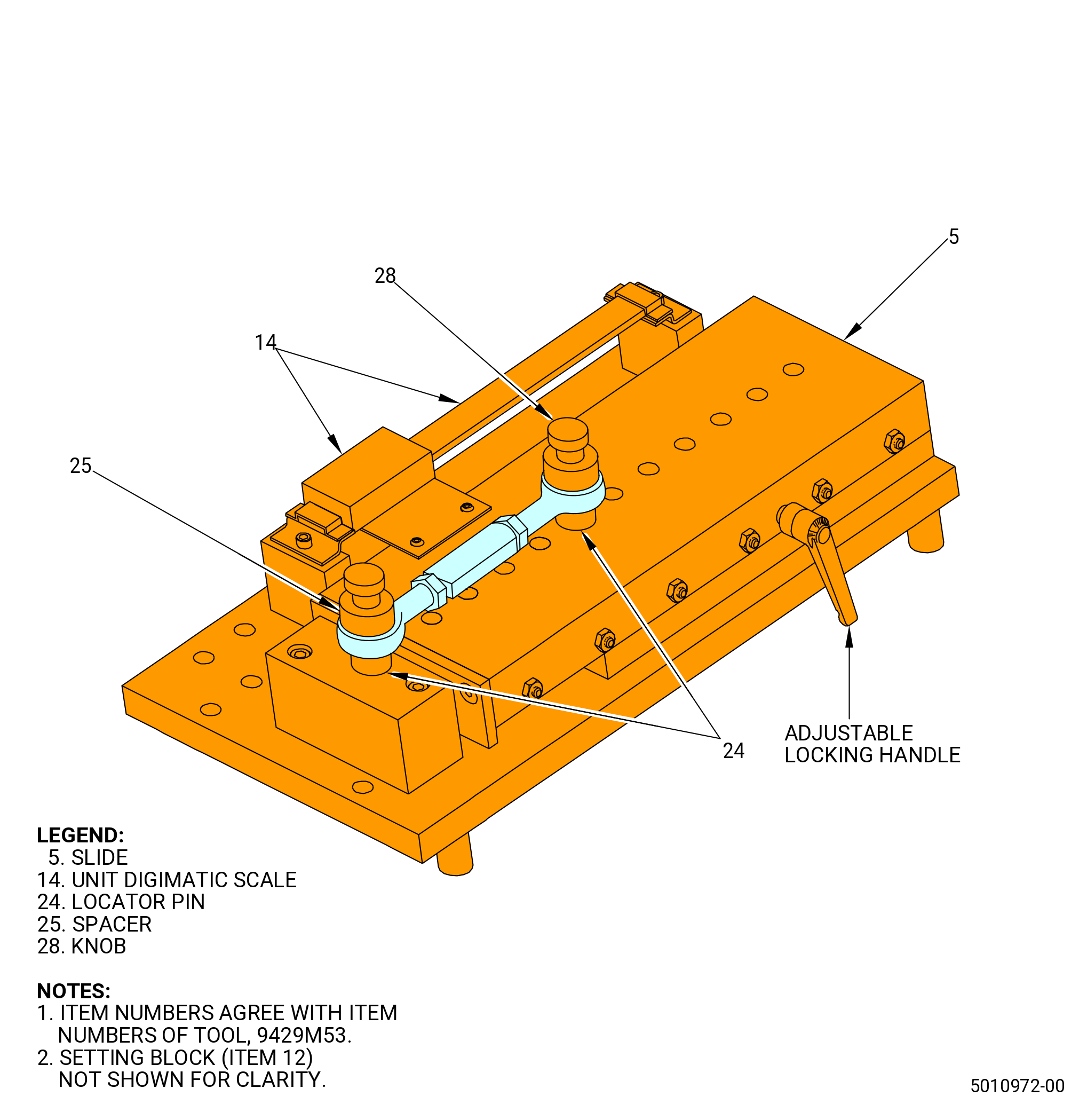

Fixture Gauging - Turnbuckle, VSV Actuator System (gauging fixture)

9429M56G01
Stand, Build - Core Module (propulsor build stand)

9429M60G02
Stand, Adjustable, Roll-Over - Sub Assembly (roll-over stand)

9429M60G03
Stand, Adjustable, Roll-Over - Sub Assembly (roll-over stand)
NOTE:
Tool 9429M60G03 is an alternative to 9429M60G02.

9429M77G04
Fixture, Lift and Turn - General Purpose (lift/turn fixture)

9446M71G01
Cart Assy, Air Regulator (air regulator cart assembly)

9461M39P02
Pump, Hand - Hydraulic Portable (hydraulic hand pump)

9481M84G01
Stand, Assembly - Super Core (assembly stand)
(2)Standard Tools and Equipment.

Description
Manufacturer

Pump, Hand - Hydraulic (Capacity: 20 Ton) (hydraulic hand pump)
Local Purchase
(3)Locally Manufactured Tools. None.
B.Consumable Materials.

Code No.
Description

C02-019
Oil, Engine Lubricating (engine oil)

C02-021
Oil, Grade 1010 (grade 1010 oil)

C02-023
Oil, Engine Lubricating (engine oil)

C02-058
Compound, Thread Lubricating (lubricant)

C02-097
Lubricant, Anti-Seize Compound (lubricant)

C04-002
Solvent, General (Stoddard solvent)

C04-003
Solvent, General (acetone)

C04-014
Solvent, General (denatured alcohol)

C04-035
Solvent, General (isopropyl alcohol)

C05-003
Marking Pens (pen)

C10-143
Safety Cable Assembly (safety cable)

C10-182
Cleaning Cloth (wipers)
C.Referenced Procedures.

ATA No.
Description

70-10-00
Assembly and Disassembly Techniques

72-00-02
Assembly 002

72-25-00
Assembly 001

72-30-00
Assembly 001
D.Expendable Parts.

CSN
Description

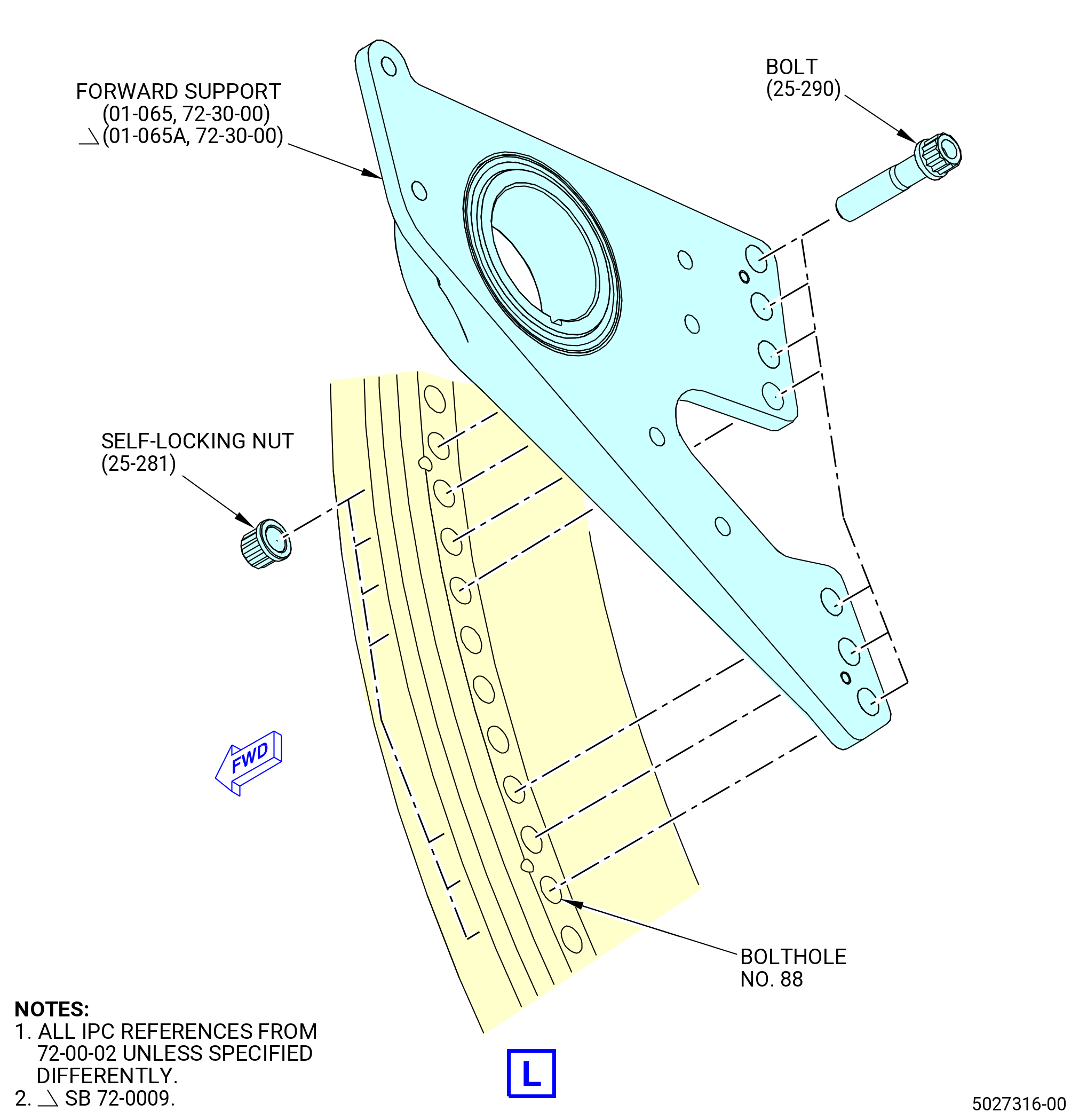

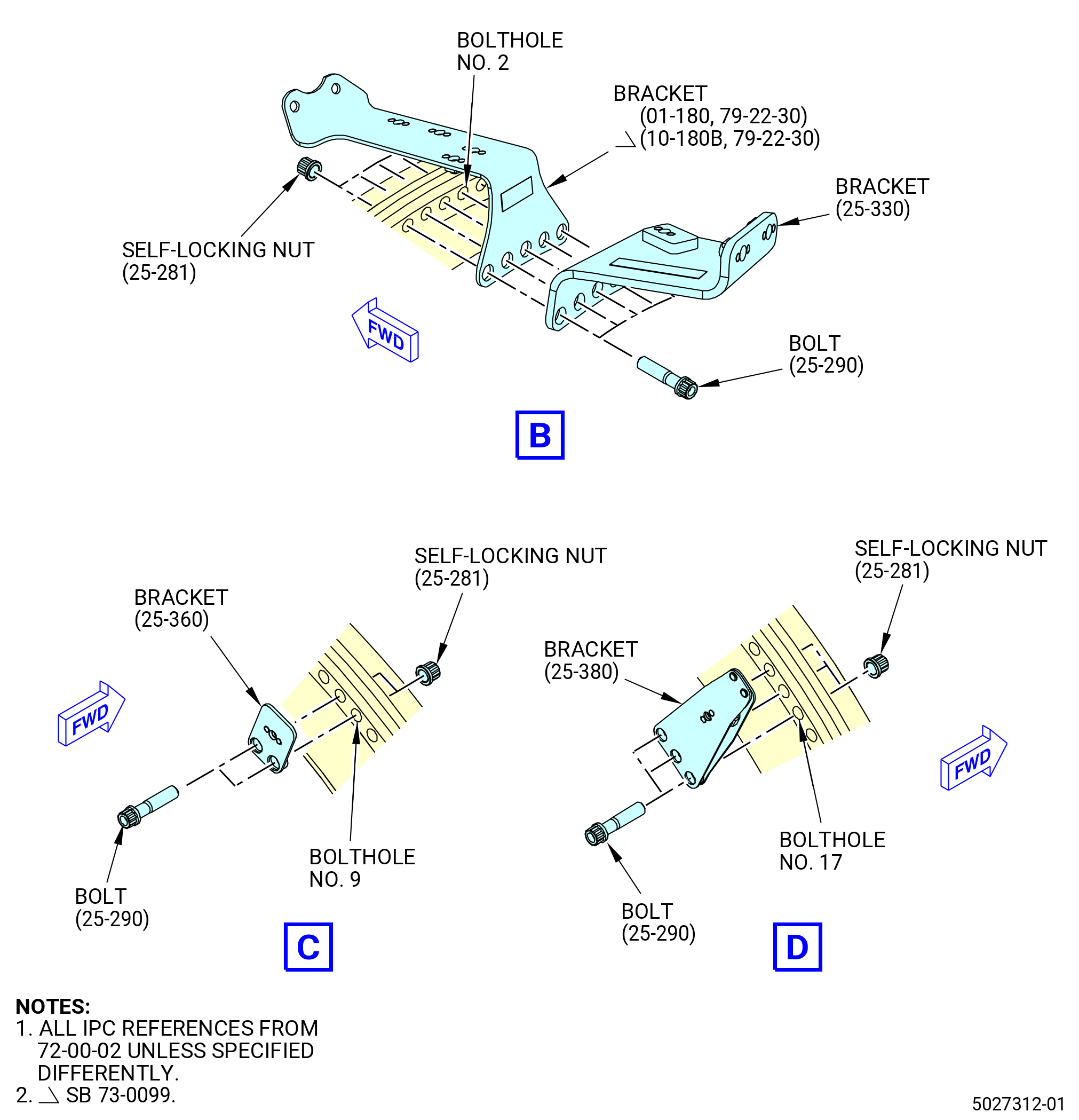

(25-281)
Self-Locking Nut
* * * FOR ALL PIP 2

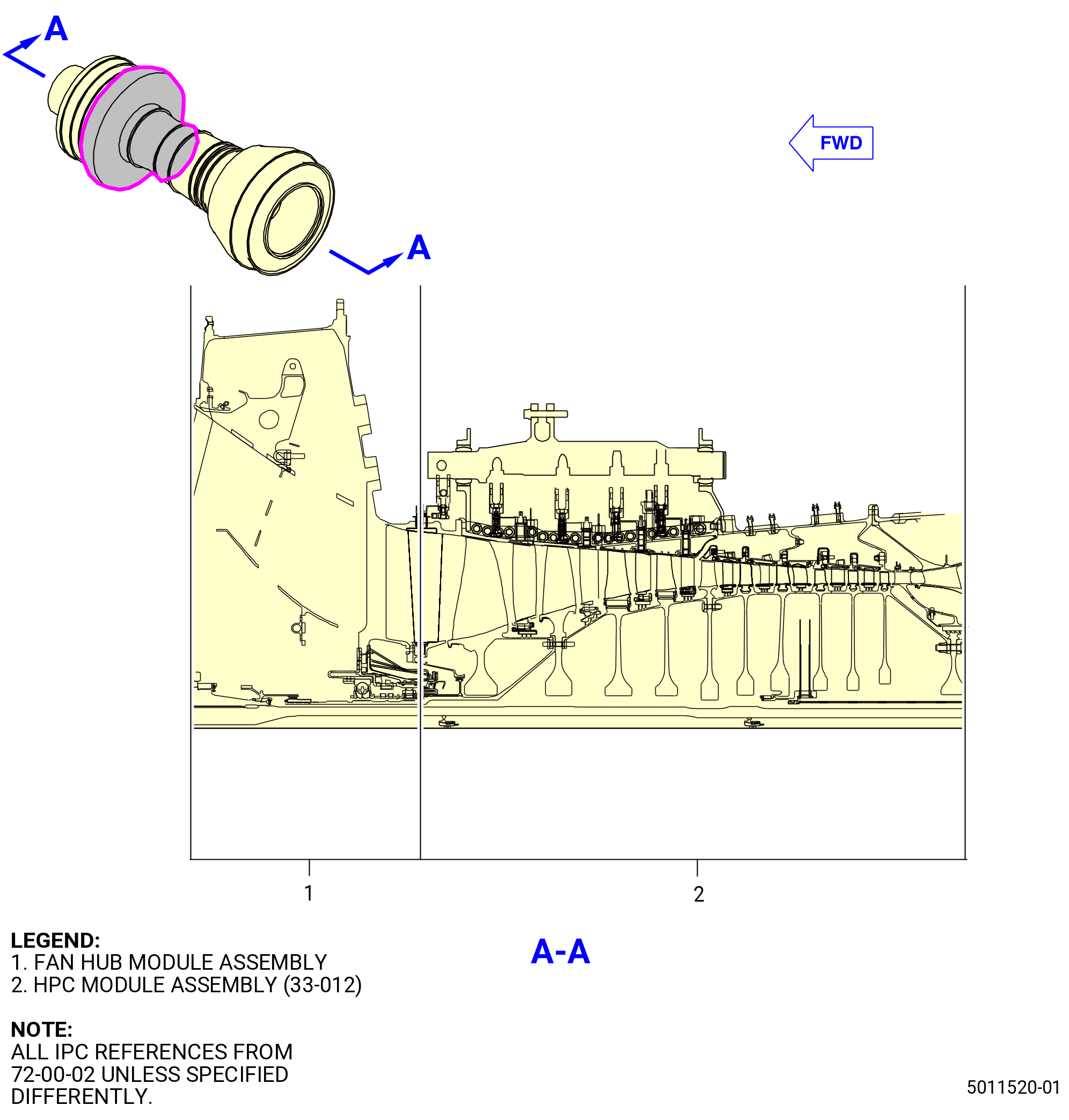

Figure 1001   Propulsor Assembly
3 . Procedure.
Subtask 72-00-02-430-923
A.Install the fan hub module assembly in the 9481M84   assembly stand or 11C4582   core module build-up fixture as follows:
(1)Attach the three slings of the 9429M19   vertical lift fixture to the fan hub module assembly aft inner flange. Refer to Figure 1002 and do as follows:
(a)Turn the pin (item 4) clockwise (CW) to retract from the hook block (item 2).
(b)Put the hook block (item 2) at three equally spaced locations on the aft inner flange of the fan hub module assembly.
(c)Turn the pin (item 4) CW to attach the hook block (item 2) to the aft flange. Make sure that the hook block (item 2) is captive to the fan hub module flange.
Subtask 72-00-02-430-924
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2)Alternative Procedure Available. Remove the fan hub module assembly from the 9429M60   roll over stand as follows. Refer to Figure 1003.
CAUTION:
FLOOR LOCKS MUST STAY IN CONTACT WITH THE FLOOR AT ALL TIMES EXCEPT WHEN REQUIRED TO MOVE THE STAND. THE STAND CASTERS DO NOT PROVIDE SUFFICIENT STABILITY TO PERMIT SAFE WORKING CONDITIONS.
(a)Lower the floor locks (item 69) of the 9429M60   roll over stand until they touch the floor. The floor locks must stay in contact with the floor to prevent movement of the 9429M60   roll over stand. Make sure that the roll over stand is level.
(b)Attach an overhead hoist to the 9429M19   vertical lift fixture.
(c)Apply a lift pressure to the fan hub module assembly to take the load off the 11C4101   FHF bracket set.
(d)Remove the 11C4101   FHF bracket set from the fan hub module assembly.
NOTE:
Store the capscrews and the nuts in the bolt storage locations on the brackets.
(e)Turn the adapter (item 10) on the 9429M60   roll over stand to move the 11C4101   FHF bracket set away from the fan hub module assembly.
(f)Lift the fan hub module assembly from the 9429M60   roll over stand.
Subtask 72-00-02-430-925
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2).A.Alternative Procedure. Remove the fan hub module assembly from the 11C4100   roll-over stand. Refer to Figure 1004 and do as follows:
CAUTION:
ARTICULATED FEET MUST STAY IN CONTACT WITH THE FLOOR AT ALL TIMES EXCEPT WHEN REQUIRED TO MOVE THE STAND. THE STAND CASTERS DO NOT PROVIDE SUFFICIENT STABILITY TO PERMIT SAFE WORKING CONDITIONS.
(a)Lower the articulated feet (item 29) of the 11C4100   roll-over stand until they touch the floor. The articulated feet (item 29) must stay in contact with the floor to prevent movement of the 11C4100   roll-over stand. Make sure that the 11C4100   roll-over stand is level.
(b)Attach an overhead hoist to the 9429M19   vertical lift fixture.
(c)Apply a lift pressure to the fan hub module assembly to take the load off from the 11C4101   FHF bracket set.
(d)Unlock the screws that attach the adjustable shaft assembly (item 4) along its axial direction.
(e)Remove the four nuts (item 26) and four screws (item 27) from the adjustable shaft assembly (item 4).
(f)Push back the adjustable shaft assembly (item 4) in the fully closed position to get the maximum gap.
(g)Remove the four nuts (item 26) and four screws (item 27) from the shaft assembly (item 3).
(h)Lift the fan hub module assembly from the 11C4100   roll-over stand.
* * * FOR ALL PIP 2

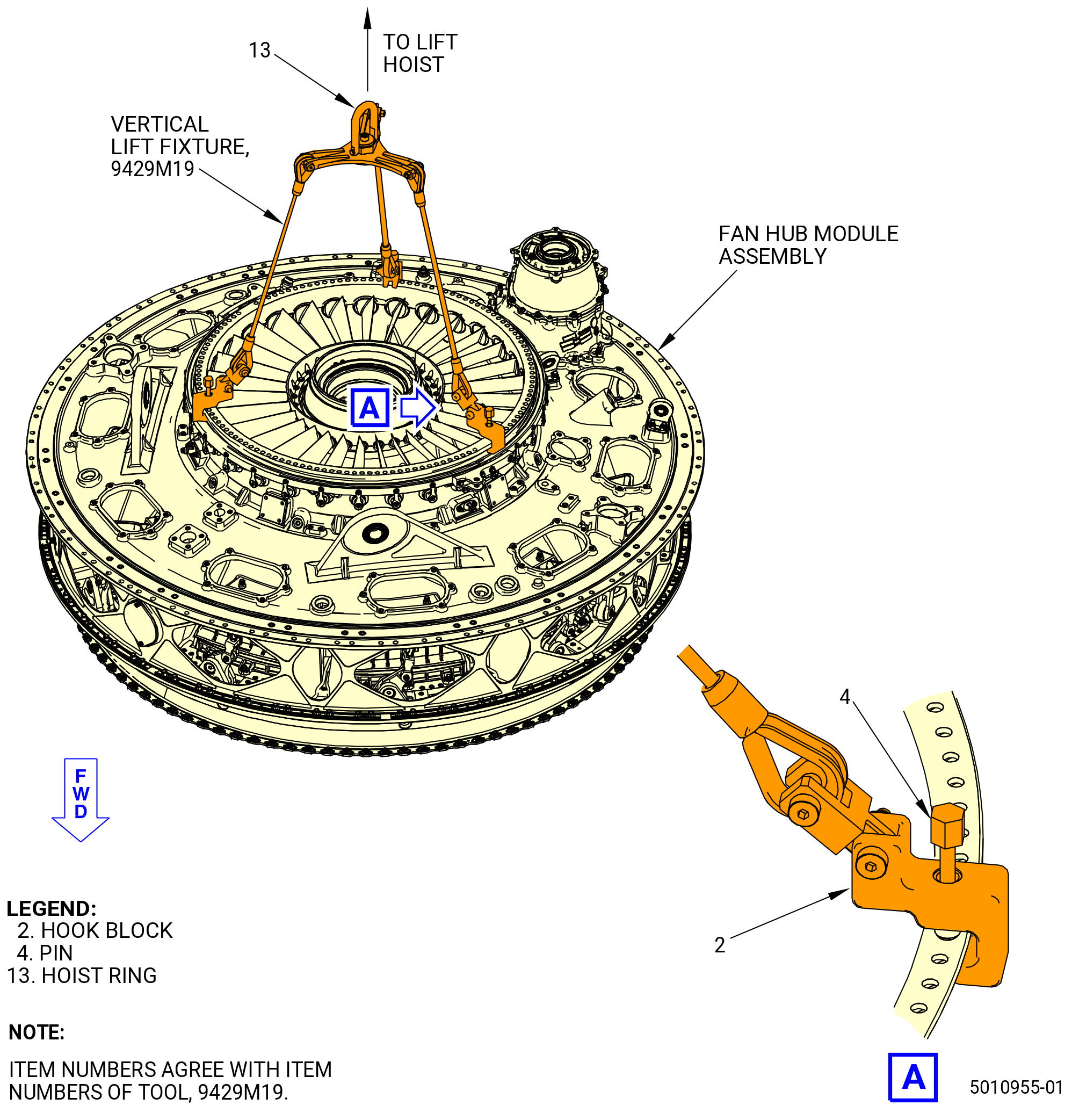

Figure 1002   Installation of the Vertical Lift Fixture, 9429M19, on the Fan Hub Module Assembly Aft Inner Flange
* * * FOR ALL PIP 2
Figure 1003   Removal of the Fan Hub Module Assembly from the Roll Over Stand, 9429M60
* * * FOR ALL PIP 2

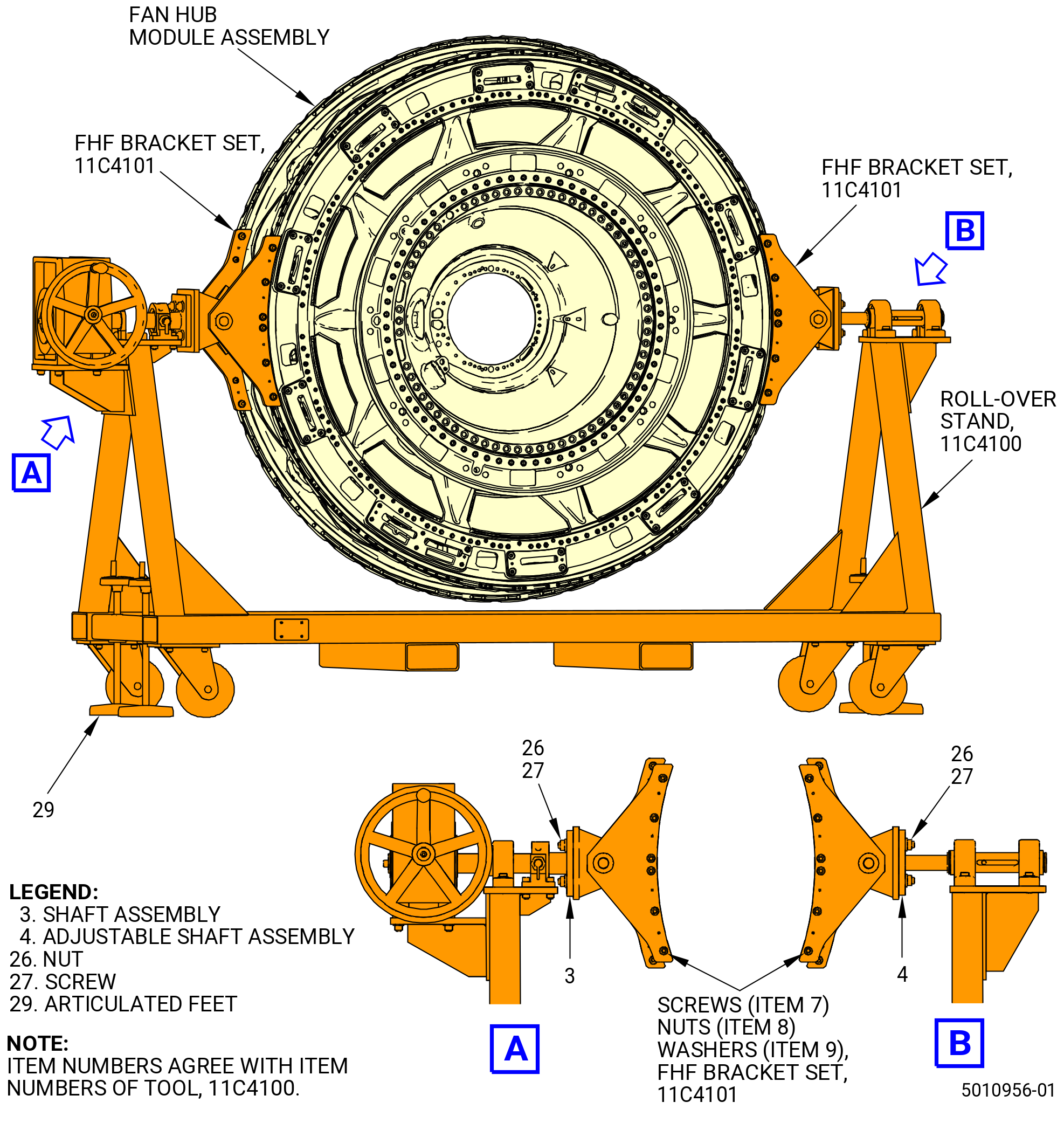

Figure 1004   Removal of Fan Hub Module Assembly on the Roll-Over Stand, 11C4100 with FHF Bracket Set, 11C4101
Subtask 72-00-02-430-926
B.Install the 11C3197   bracket set on the fan hub module assembly with the 9481M84   assembly stand. Refer to Figure 1005 and do as follows:
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(1)Attach an overhead hoist to the hoist ring (item 4) and lift the right bracket (item 2).
(2)Put the right bracket (item 2) at the 9:00 o'clock position ALF on the fan hub module assembly.
(3)Put the right bracket (item 2) on the inner side of the aft flange of the fan hub module assembly. Make sure that the boltholes are aligned.
(4)Remove the capscrews (item 6) and the washers (item 5) from the storage location.
(5)Install the capscrews (item 6) and the washers (item 5) in the right bracket (item 2) and the flange of the fun hub module assembly.
(6)Torque the capscrews (item 6) to 190-230 lb in. (21.5-26.0 N.m).
Subtask 72-00-02-430-927
(7)Install the left bracket (item 3) on the FHF at the 3:00 o'clock position ALF. Refer to Subtask 72-00-02-430-926 (paragraph 3.B.).
* * * FOR ALL PIP 2

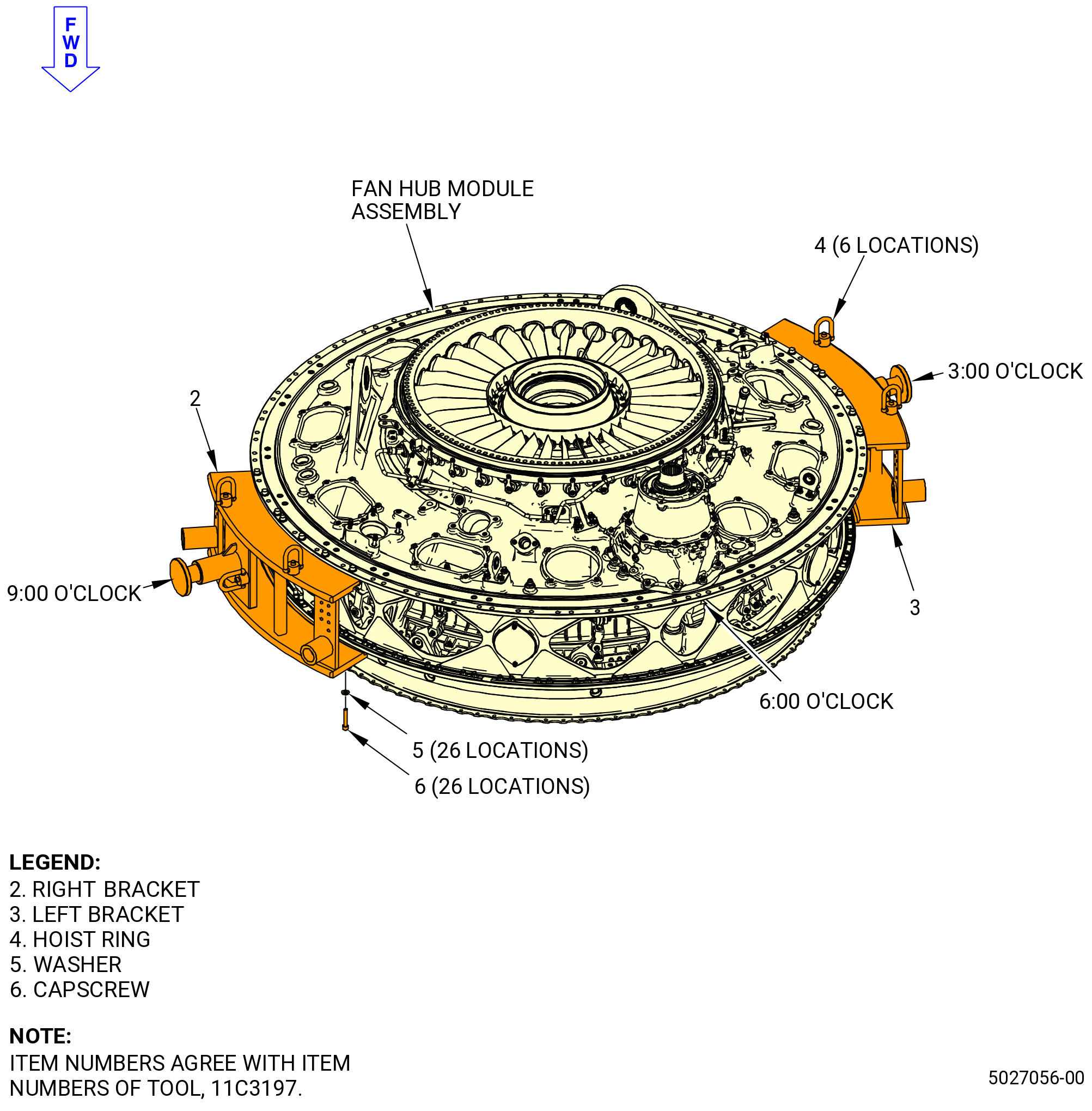

Figure 1005   Installation of the Bracket Set, 11C3197, on the Fan Hub Module Assembly
Subtask 72-00-02-430-928
C.Install the 11C3047   lift/turn bracket on the fan hub module assembly with the 9481M84   assembly stand at the 6:00 o'clock position. Refer to Figure 1006 and do as follows:
(1)Put the bracket (item 2) at the 6:00 o'clock position ALF on the FHF.
(2)Move the bracket (item 2) in with the bracket flanges on the forward side of the fan hub frame assembly. Make sure that the boltholes are aligned.
(3)Remove the capscrews (item 3) and the nut (item 4) from the bolt storage location.
(4)Install the capscrews and the nuts in the bracket and the flange of the FHF.
(5)Torque the nuts to 190-230 lb in. (21.5-26.0 N.m).
* * * FOR ALL PIP 2

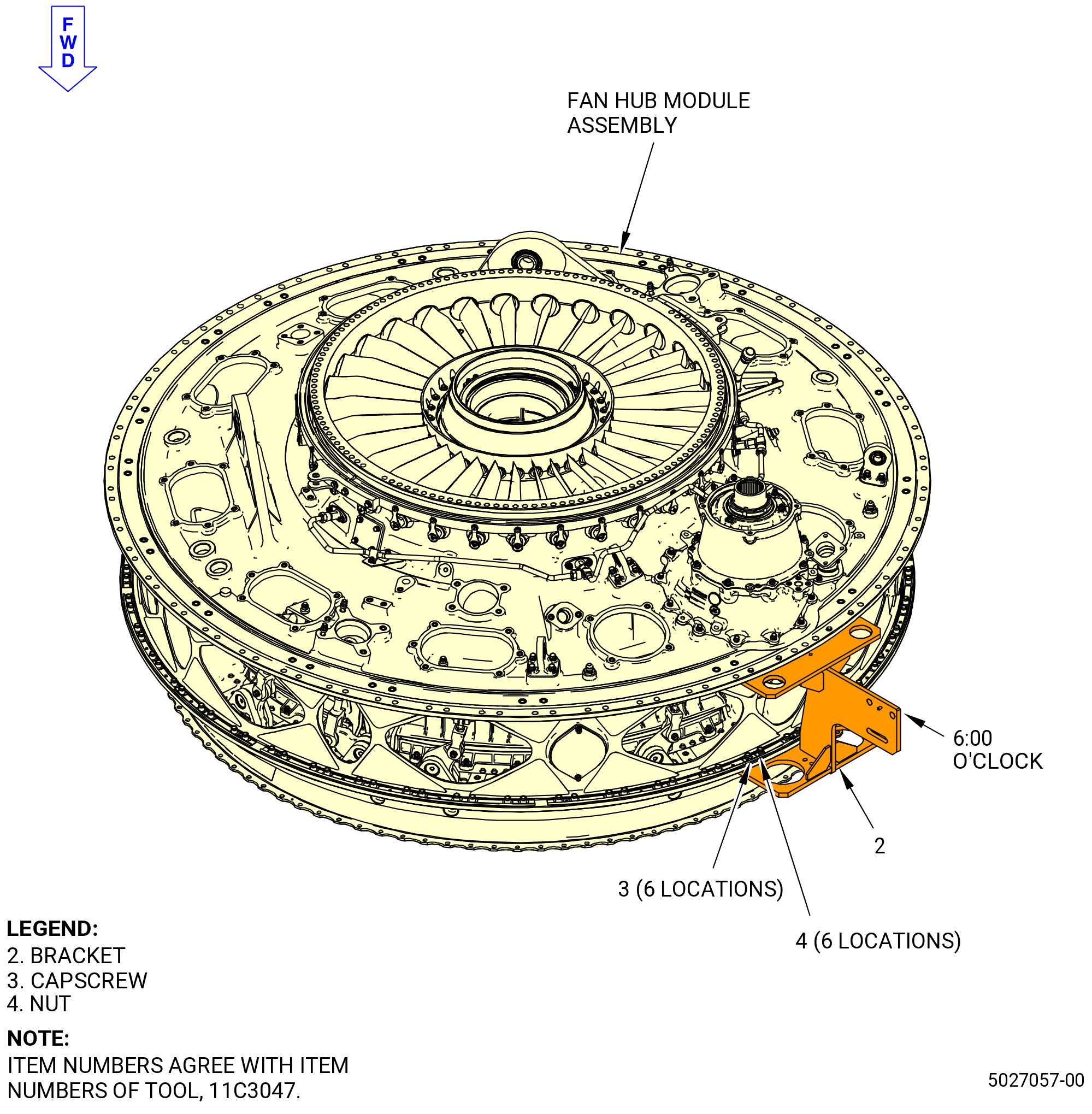

Figure 1006   Installation of the Lift/Turn Bracket, 11C3047, on the Fan Hub Module Assembly
Subtask 72-00-02-430-929
D.Alternative Procedure Available. Install the fan hub module assembly in the 9481M84   assembly stand. Refer to Figure 1007 and do as follows:
(1)Prepare the 9481M84   assembly stand to install the propulsor system as follows:
CAUTION:
FLOOR LOCKS MUST STAY IN CONTACT WITH THE FLOOR AT ALL TIMES EXCEPT WHEN REQUIRED TO MOVE THE STAND. THE STAND CASTERS DO NOT PROVIDE SUFFICIENT STABILITY TO PERMIT SAFE WORKING CONDITIONS.
(a)Make sure that the floor locks (item 4) are against the floor to prevent movement of the 9481M84   assembly stand.
(b)Remove one end of the shock cords (items 25, 26, and 27) at two locations each.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2)Lift the fan hub module assembly to a position above the 9481M84   assembly stand and lower on the assembly stand.
(3)Align the trunnions on the left and right brackets (items 3 and 4) of the 11C3197   bracket set with the cradle supports on the frame (item 2) of the 9481M84   assembly stand and install in the frame (item 2).
(4)Secure the fan hub module assembly in the horizontal position as follows:
(a)Install the ball lock pins (items 12 and 17) to secure the 11C3197   bracket set to the 9481M84   assembly stand.
(b)Install the locking arms (item 15) and secure with the ball lock pins (item 18) at four locations.
(5)Attach the shock cords (items 25, 26, and 27).
* * * FOR ALL PIP 2

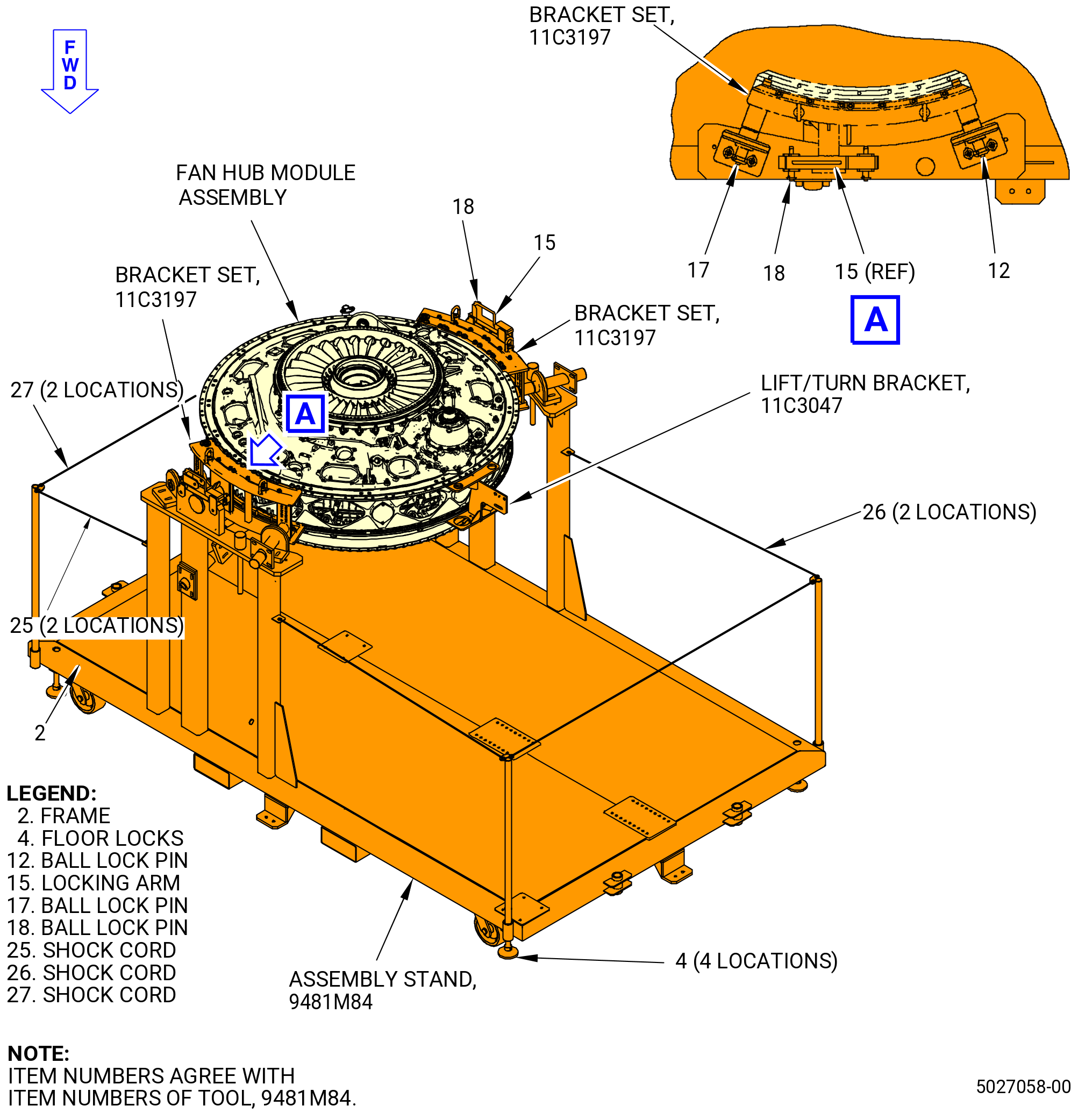

Figure 1007   Installation of the Fan Hub Module Assembly in the Assembly Stand, 9481M84
Subtask 72-00-02-430-930
D.A.Alternative Procedure. Install the fan hub module assembly in the 11C4582   core module build-up fixture. Refer to Figure 1007A and do as follows:
(1)Make sure that the 11C4582   core module build-up fixture is installed on a flat surface and secured.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(2)Use the 9429M19   vertical lift fixture to lift the fan hub module assembly.
(3)Lower the fan hub module assembly into the 11C4582   core module build-up fixture.
(4)Attach the 11C4582   core module build-up fixture with 12 screws (item 3) and washers (item 4) to the fan hub module assembly QEC flange.
(5)Remove the 9429M19   vertical lift fixture.
* * * FOR ALL PIP 2

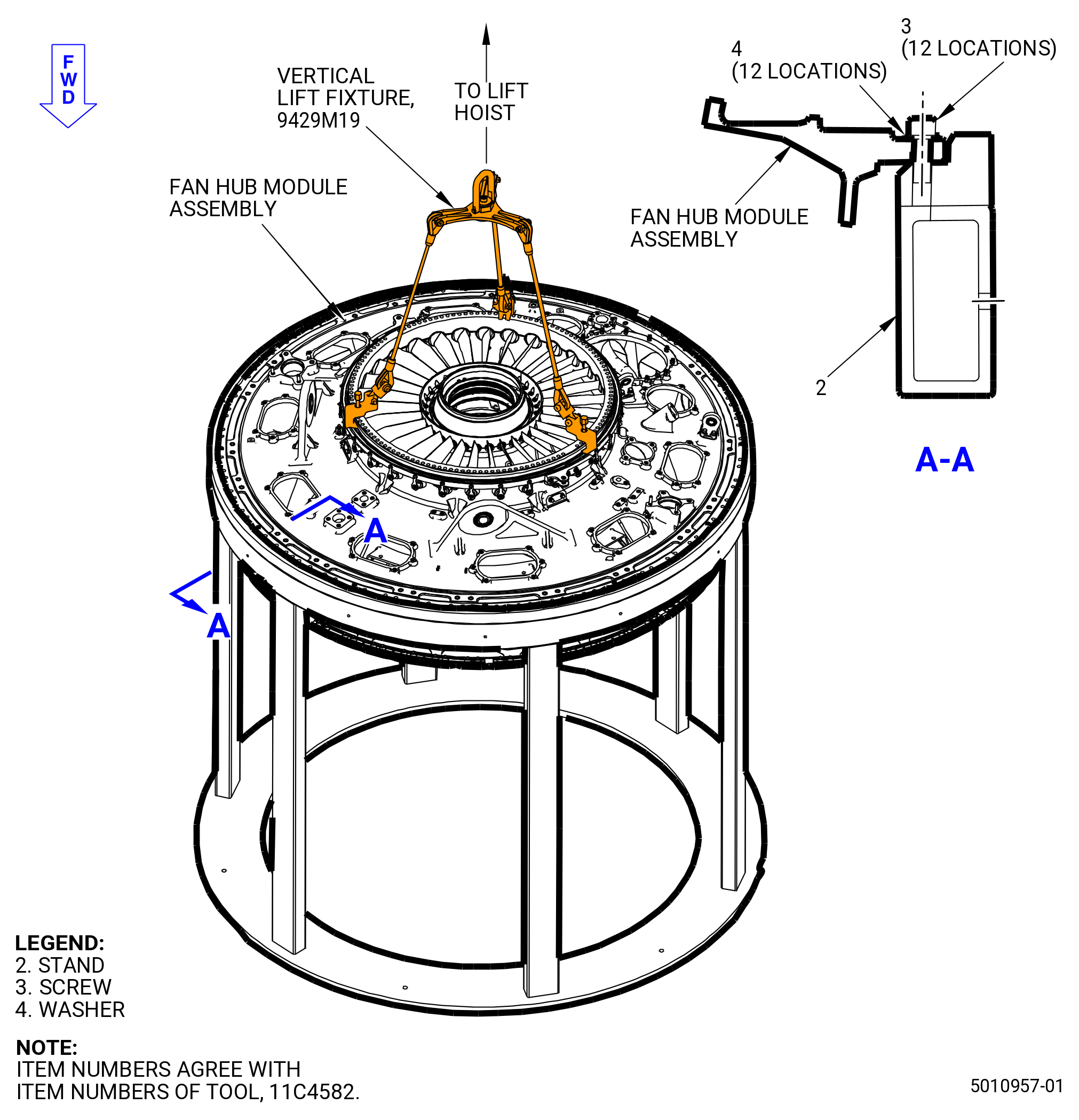

Figure 1007A   Installation of the Fan Hub Module Assembly on the Core Module Build-Up Fixture, 11C4582
Subtask 72-00-02-430-931

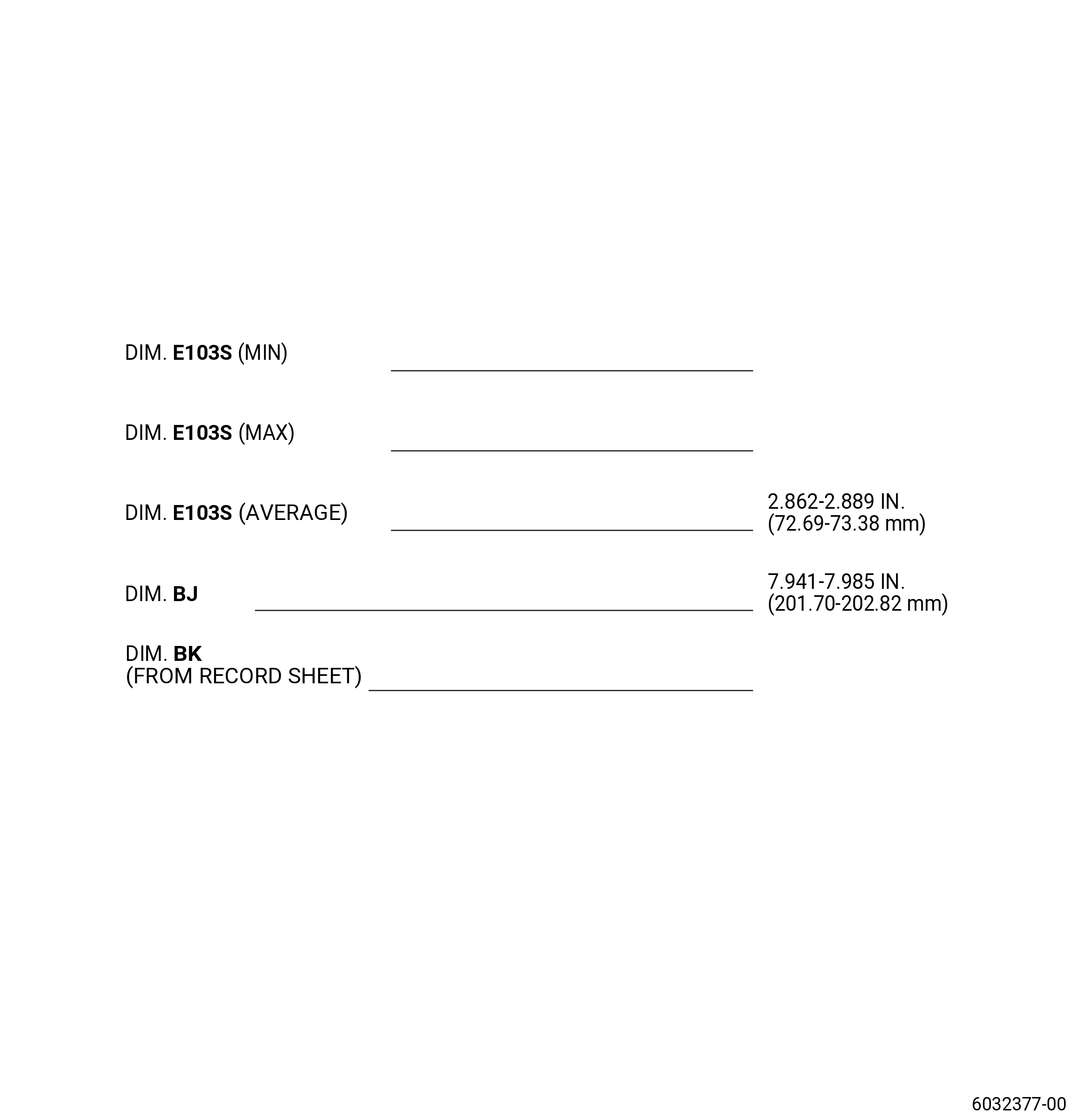

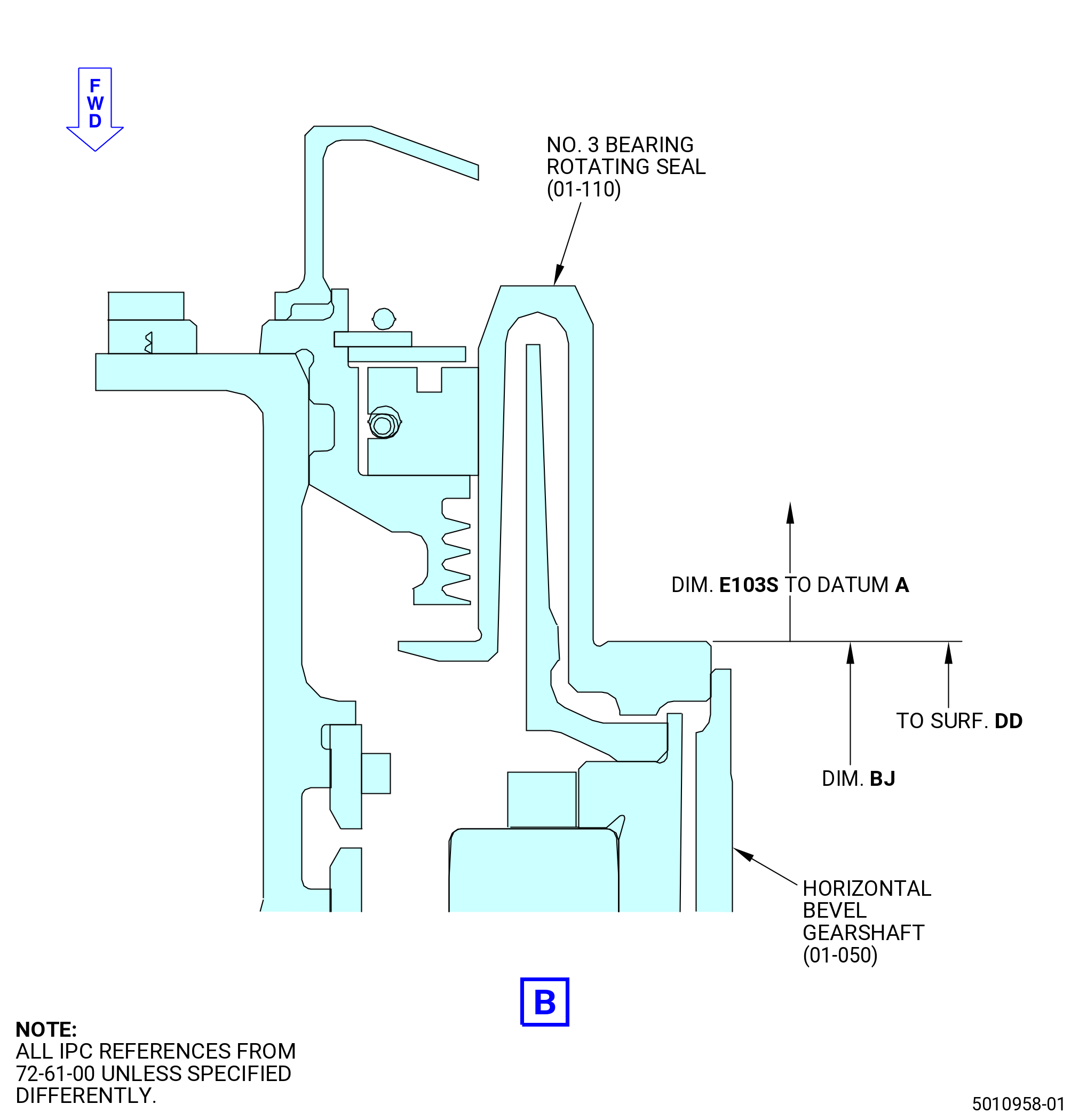

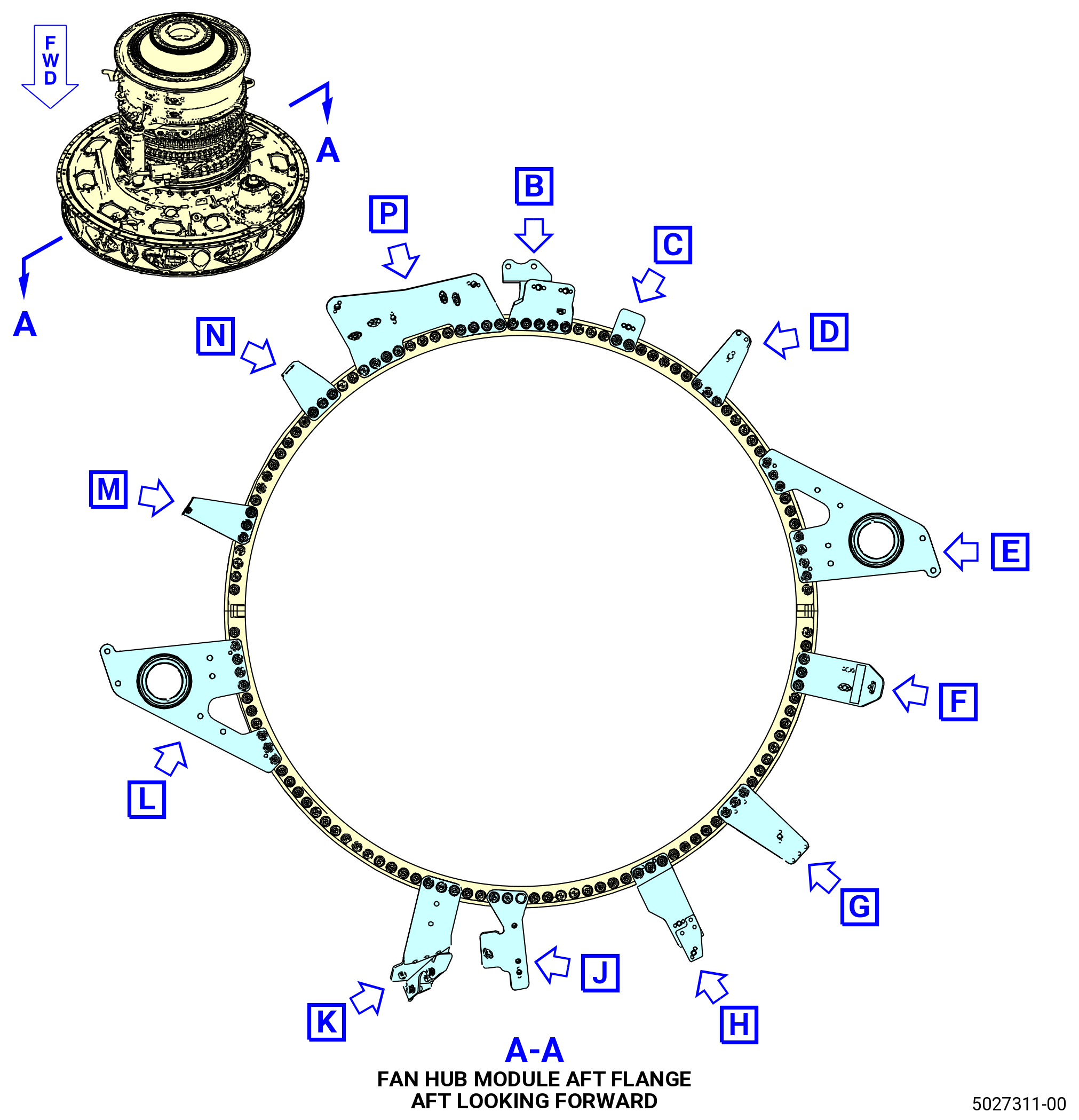

E.Measure and record the fan hub module assembly dimensions E103S and BJ. Refer to Figure 1008 and do as follows:
CAUTION:
DO NOT ASSEMBLE THE PROPULSOR ASSEMBLY UNLESS YOU KNOW DIMENSION BJ. YOU CANNOT ASSEMBLE THE PROPULSOR ASSEMBLY WITHOUT DIMENSION BJ.
(1)Measure and record dimension E103S and dimension BJ which will be used for calculation of engine clearances at higher levels of assembly.
NOTE:
Dimensional inspection records will be kept with the engine records.
(2)Measure the dimension E103S as follows:
(a)Measure the dimension E103S at four equally spaced locations.
(b)Record the minimum and the maximum value for dimension E103S on the record sheet. Refer to Figure 1009.
(c)The tolerance for dimension E103S is 2.862-2.889 inches (72.69-73.38 mm).
(3)Record the value for dimension BJ, 7.941-7.985 inches (201.70-202.82 mm), on the record sheet. Refer to TASK 72-61-00-440-801 (72-61-00, ASSEMBLY 001) for the record of dimension BJ.
(a)If there is no record for dimension BJ, refer to Figure 1008 and measure dimension BJ as follows:
1Measure dimension BJ at four equally spaced locations.
2Calculate the average for dimension BJ and record on the record sheet. Refer to Figure 1009.
(4)Find the stamp with the thickness dimension on the FHF forward flange (No. 1 bearing support flange) at the 12:00 o'clock position. Refer to Figure 1009. Make a record of dimension BK and record on the record sheet. For dimension BK, refer to Subtask 72-25-00-440-003 (72-25-00, ASSEMBLY 001).
* * * FOR ALL PIP 2
Figure 1008   (Sheet 1 ) Fan Hub Module Assembly Dimensions
* * * FOR ALL PIP 2
Figure 1008   (Sheet 2 ) Fan Hub Module Assembly Dimensions
* * * FOR ALL PIP 2

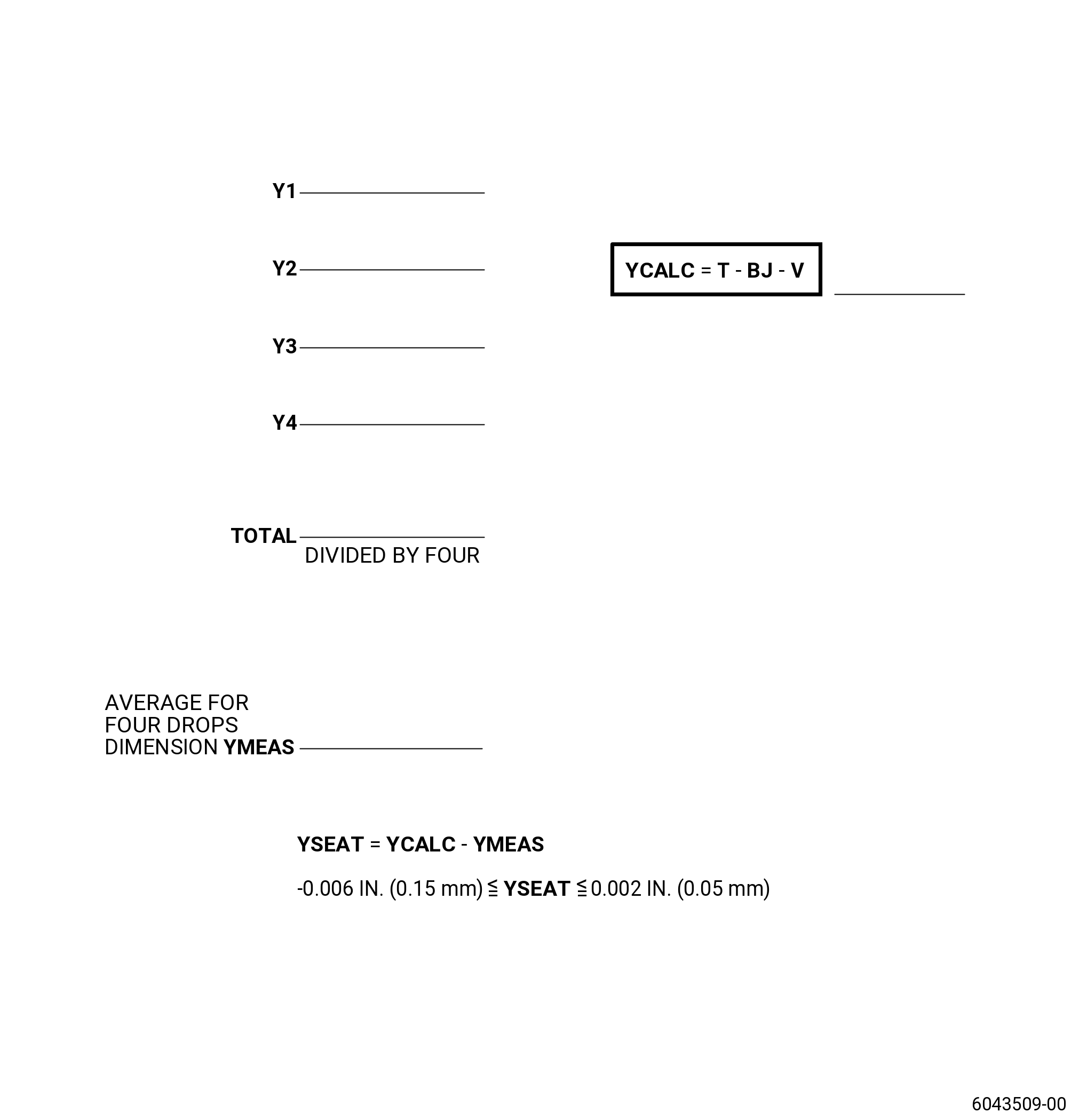

Figure 1009   Fan Hub Module Record Sheet
Subtask 72-00-02-140-012
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THESE PRODUCTS.
F.Clean the HPC module assembly (33-012) (SIN 00108) forward flange mating surface with C04-002   Stoddard solvent, C04-003   acetone, or C04-035   isopropyl alcohol.
Subtask 72-00-02-430-932
G.Mark the forward flange of the HPC module assembly (33-012) (SIN 00108) with the bolthole numbers as follows:
(1)Start at bolthole No. 1, right of the top vertical centerline (TVCL) ALF, and mark in increments of ten, the bolthole location with a C05-003   pen.
(2)Put the mark on the aft side of the forward flange on the HPC module assembly.
Subtask 72-00-02-430-933
H.Remove the HPC module assembly (33-012) (SIN 00108) from the 11C4279   core module build-up fixture or 11C3010   build-up fixture installed on the 9429M56   propulsor build stand as follows:
Subtask 72-00-02-430-934
(1)Alternative Procedure Available. Install the 11C3190   lifting bar to the HPC module assembly (33-012) (SIN 00108). Refer to Figure 1010 and do as follows:
(a)Install the dummy bolts (item 2), the washers (item 6), and the nuts (item 4) of the 11C3074   tool kit to the stage 6-10 compressor rotor spool (compressor rotor spool) (02-481 , 72-31-00) (SIN 050AR) aft end.
(b)Attach the 9429M77   lift/turn fixture to the support (item 2) of the 11C3190   lifting bar.
(c)Adjust the hub (item 3) of the 11C3190   lifting bar up with the capstans (items 4 and 5).
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(d)Lift the 11C3190   lifting bar on the HPC module assembly (33-012) (SIN 00108) and lower the support (item 2) on the compressor extension case (080AL).
(e)Put the capscrew (item 11) of the 11C3190   lifting bar and the washer (item 14) on the forward side of the compressor extension case (080AL) flange.
(f)Attach the support (item 2) of the 11C3190   lifting bar to the capscrew (item 11) with the nut (item 12). Tighten the nut.
(g)Turn the capstans (items 4 and 5) to carefully lower and align the hub (item 16) of the 11C3190   lifting bar on the 11C3074   tool kit and the CDP seal (02-460 , 72-31-00) (SIN 050NC). Remove all gaps between the hub (item 16) and the CDP seal.
(h)Attach the hub (item 16) to the CDP seal with the flange nut (item 5) of the 11C3074   tool kit.
* * * FOR ALL PIP 2

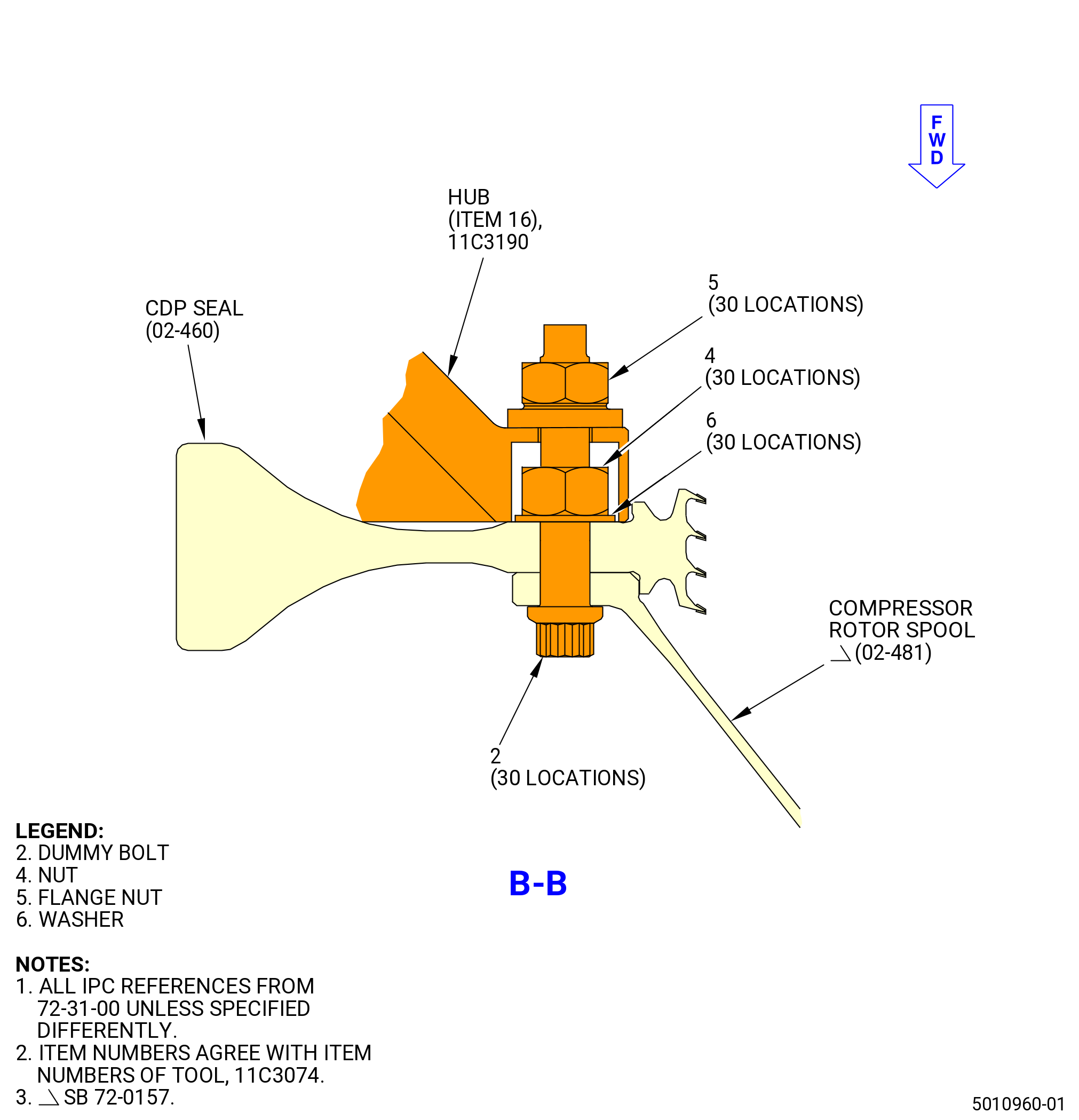

Figure 1010   (Sheet 1 ) Installation of the Lifting Bar, 11C3190, on the HPC Module Assembly
* * * FOR ALL PIP 2
Figure 1010   (Sheet 2 ) Installation of the Lifting Bar, 11C3190, on the HPC Module Assembly
Subtask 72-00-02-430-935
(1).A.Alternative Procedure. Install the 11C3066   lift/turn fixture on the aft end of the HPC module assembly (33-012) (SIN 00108). Refer to Figure 1011 and do as follows:
(a)Remove the capscrews (item 18), nut segment (item 26), and gasket ring (item 27) from the storage location on the rotating disk (item 5).
CAUTION:
THE GASKET RING (ITEM 27) MUST BE INSTALLED TO PREVENT DAMAGE TO THE CDP SEAL.
(b)Put the gasket ring (item 27) on the aft flange of the CDP seal (02-460 , 72-31-00) (SIN 050NC).
(c)Install a nut segment (item 26) at 12:00 o’clock on the forward flange of the compressor rotor spool (02-481 , 72-31-00) (SIN 050AR) with one capscrew (item 18).
NOTE:
The capscrew will attach the gasket ring (item 27) and rotating disk (item 5) to the spool and will be installed into the middle hole of the nut segment.
(d)Install the last three nut segments (item 26) at the 3:00, 6:00, and 9:00 o’clock positions with one capscrew (item 18) each.
(e)Remove the nuts (items 21 and 22) to let the stationary disk move up and down.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(f)Lift the frame (item 33) and carefully lower on the aft end of the HPC module assembly.
(g)Loosen the setscrew (item 19) to let the rotating disk (item 5) turn.
(h)Turn the rotating disk (item 5) to align the holes with the nut segments (item 26).
(i)Attach the rotating disk (item 5) to the gasket ring (item 27), rotating disk (item 5), and nut segments (item 26) at 12:00, 3:00, 6:00, and 9:00 o'clock positions with two capscrews (item 18) at each nut segment.
NOTE:
This will attach the CDP seal (02-460 , 72-31-00) (SIN 050NC) and the compressor rotor spool (02-481 , 72-31-00) (SIN 050AR) to the 11C3066   lift/turn fixture.
(j)Turn the frame (item 33) to align the holes with the compressor extension case (10-080 , 72-30-00) (SIN 080AL) aft flange.
(k)Attach the frame (item 33) to the compressor extension case with the capscrews (item 23), washers (item 14), and nuts (item 24) at 35 locations. Install the capscrews and washers on the forward side of the compressor extension case flange.
(l)Tighten the capscrews (items 18 and 23).
(m)Attach the stationary disk (item 6) of the 11C3066   lift/turn fixture to the rotating disk (item 5) as follows:
CAUTION:
MAKE SURE THAT ALL NUTS ARE TIGHT TO PREVENT MOVEMENT OF THE ROTOR.
1Tighten the locking nut (item 8) on the axle (item 32) and lock in position with the setscrew (item 19).
2Tighten the nuts (item 21) on the threaded rod of the stationary disk (item 6).
NOTE:
The nuts are on the underside of the frame (item 33).
3Tighten the nuts (item 22) on the threaded rod of the stationary disk (item 6).
NOTE:
The nuts are on the top side of the frame (item 33).
4Tighten the nuts (item 21) on the threaded rod of the stationary disk (item 6).
NOTE:
The nuts are on the top side of the frame (item 33) and they do the function of jamnuts.
* * * FOR ALL PIP 2
Figure 1011   (Sheet 1 ) Installation of the Lift/Turn Fixture, 11C3066, on the HPC Module Assembly
* * * FOR ALL PIP 2
Figure 1011   (Sheet 2 ) Installation of the Lift/Turn Fixture, 11C3066, on the HPC Module Assembly
Subtask 72-00-02-430-936
(2)Alternative Procedure Available. Remove the HPC module assembly (33-012) (SIN 00108) from the 11C4279   core module build-up fixture. Refer to Figure 1012 and do as follows:
NOTE:
The 11C3066   lift/turn fixture or the 11C3190   lifting bar will be attached to the HPC module assembly.
CAUTION:
FLOOR LOCKS MUST STAY IN CONTACT WITH THE FLOOR AT ALL TIMES EXCEPT WHEN REQUIRED TO MOVE THE STAND. THE STAND CASTERS DO NOT PROVIDE SUFFICIENT STABILITY TO PERMIT SAFE WORKING CONDITIONS.
(a)Make sure that the floor locks (item 32) touch the floor and stay locked to prevent movement of the 11C4279   core module build-up fixture.
(b)Loosen the knurled knob (item 23) that secures the pusher plate (item 21).
(c)Turn the thumbscrew (item 33) counterclockwise (CCW) to remove the thumbscrew (item 33) from the pusher plate (item 21).
(d)Move the pusher plate (item 21) and the head gage (item 25) outward and away from the forward shaft on the HPC module assembly.
(e)Pull the locking pin (item 6) out at two locations and turn CW or CCW to secure in the unlocked position. This will let the adjustment locking ring block shaft (item 57) and the locking ring (item 27) turn.
(f)Remove the capscrews (item 48) that attach the HPC module assembly to the case support base (item 7) at 20 locations.
* * * FOR ALL PIP 2

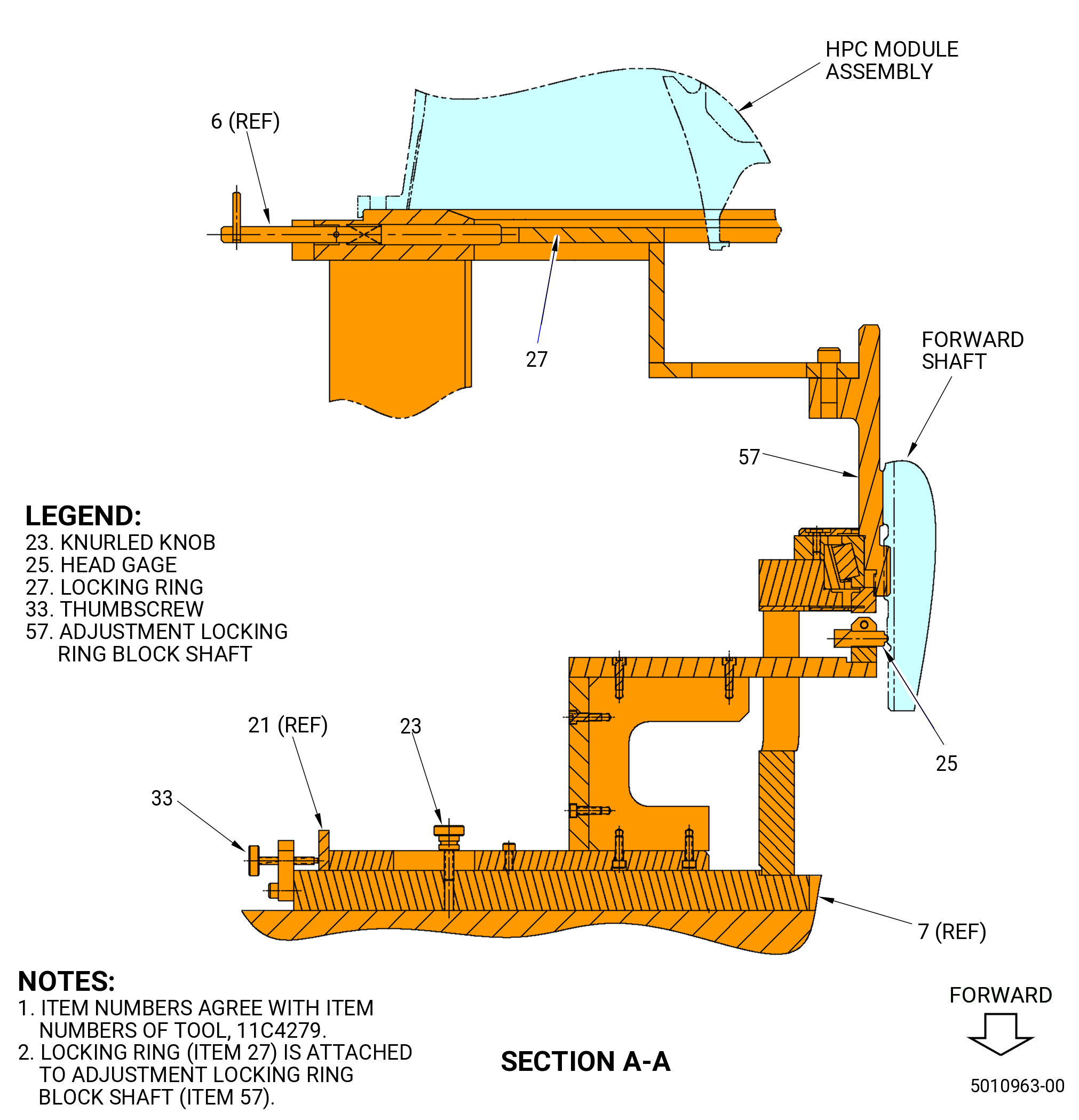

Figure 1012   (Sheet 1 ) Removal of the HPC Module Assembly from the Core Module Build-Up Fixture, 11C4279
* * * FOR ALL PIP 2
Figure 1012   (Sheet 2 ) Removal of the HPC Module Assembly from the Core Module Build-Up Fixture, 11C4279
Subtask 72-00-02-430-937

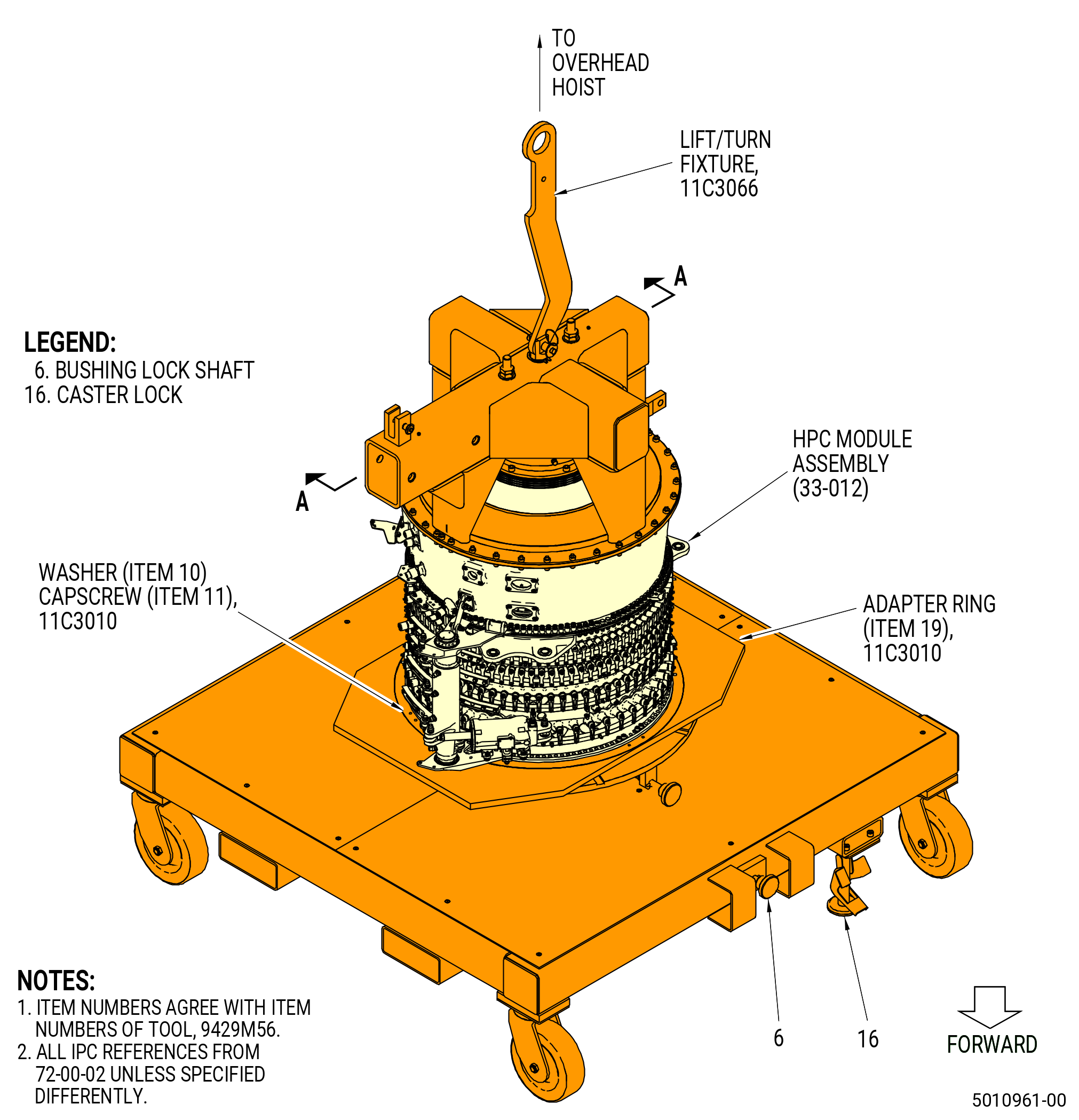

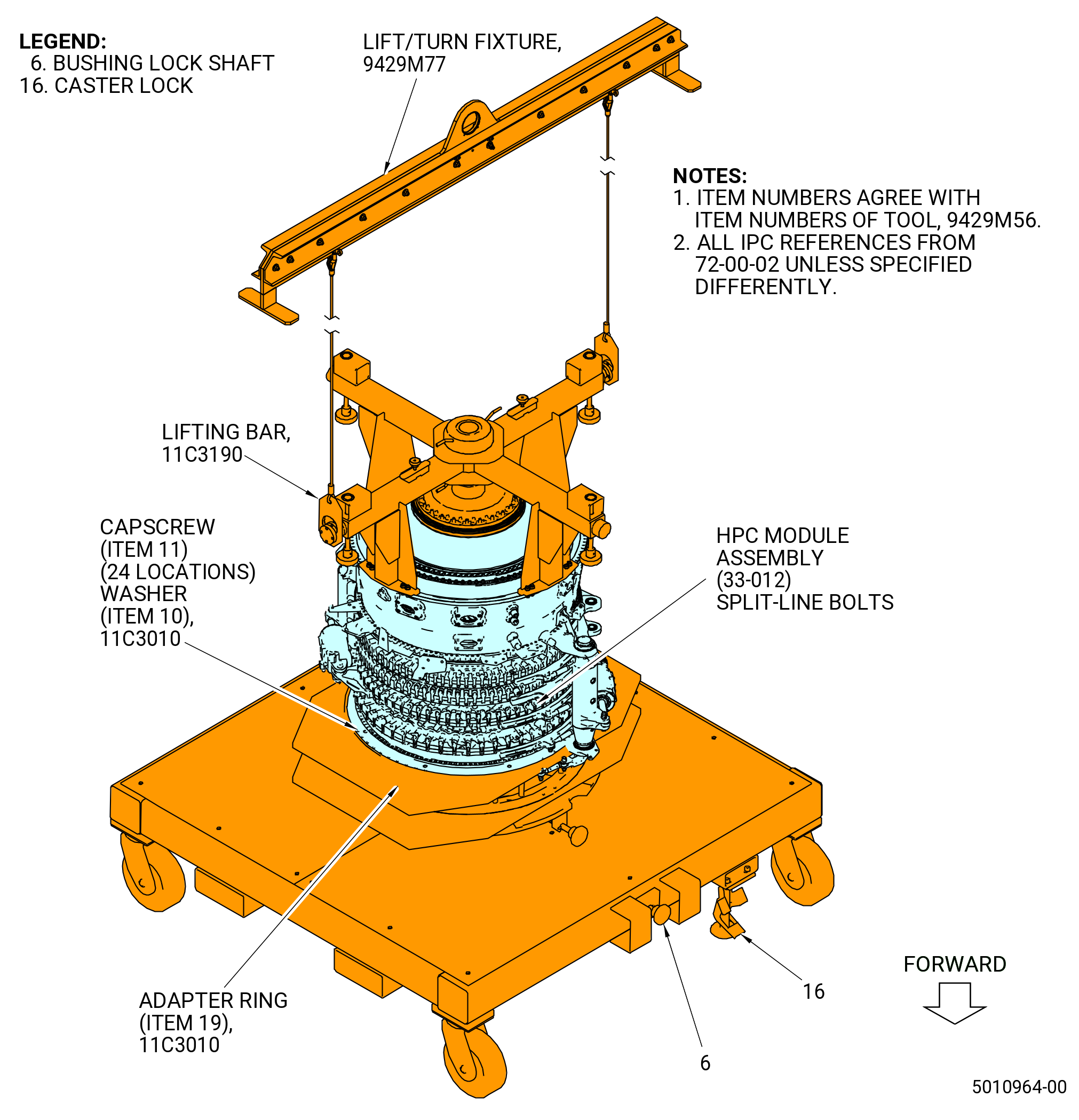

(2).A.Alternative Procedure. Remove the HPC module assembly (33-012) (SIN 00108) from the 9429M56   propulsor build stand. Refer to Figure 1013 and do as follows:
CAUTION:
UNLESS YOU MUST MOVE THE 9429M56   PROPULSOR BUILD STAND, THE CASTER LOCKS MUST TOUCH THE FLOOR AT ALL TIMES. THE CASTER LOCKS KEEP THE BUILD STAND STABLE AND PREVENT DAMAGE TO THE CASTERS.
(a)Lower the caster locks (item 16) of the 9429M56   propulsor build stand until they touch the floor. Make sure that the build stand does not move.
(b)Pull to remove the bushing lock shaft (item 6) to the disengaged position.
(c)Remove the capscrews (item 11) and washers (item 10) of the 11C3010   build-up fixture from the HPC module assembly upper/lower forward stator assembly (15-011 , 72-32-00) (SIN 073A0).
(d)Remove two split-line bolts at the 3:00 o'clock and two split-line bolts at the 9:00 o'clock positions.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(e)Carefully lift the HPC module assembly from the 11C3010   build-up fixture on the 9429M56   propulsor build stand.
(f)Put the HPC module assembly on a safety stand.
(g)Make sure that the rotating seal (03005) is installed on the forward shaft (050B5). Refer to Figure 1010. If not installed, refer to TASK 72-30-00-440-801 (70-30-00, ASSEMBLY 001 Config 02) to install the rotating seal (03005).
Subtask 72-00-02-430-938
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(3)Lift the HPC module assembly from the 11C4279   core module build-up fixture.
(4)Install the HPC module assembly on a safety stand.
* * * FOR ALL PIP 2
Figure 1013   Removal of the HPC Module Assembly from the Build-Up Fixture, 11C3010
Subtask 72-00-02-160-005
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF CONSUMABLE PRODUCTS.
I.Before the installation of the shaft guide (item 11) of the 11C3156 hydraulic clamp, clean the OD and ID of the forward compressor rotor shaft, and clean the surfaces of the shaft guide with new C10-182  wipers and an approved solvent, such as a 50-50 blend of C04-014  denatured alcohol and C04-035  isopropyl alcohol, C04-002  Stoddard solvent, or C04-035  isopropyl alcohol.
Subtask 72-00-02-430-939
J.Install the shaft guide (item 11) of the 11C3156 hydraulic clamp on the forward shaft (050B5). Refer to Figure 1014 and do as follows:
(1)Put the collet puller (item 6) on the threaded rod of the expander (item 5) and attach with the thrust washer (item 4) and the knurled nut (item 3).
(2)Turn the knurled nut (item 3) on the expander (item 5) rod until the expander touches the collet puller (item 6).
(3)Put the collet puller (item 6) and the expander (item 5) up into the forward shaft.
CAUTION:
DO NOT TIGHTEN THE COLLET PULLER (ITEM 6) WHEN THERE IS TORQUE RESISTANCE. TOO MUCH FORCE CAN DAMAGE ENGINE PARTS.
(4)Tighten the knurled nut (item 3) until the finger on the collet puller (item 6) expands and touches the forward shaft.
NOTE:
This will keep the hydraulic clamp against the forward shaft inner flange and the forward end.
(5)Put the shaft guide (item 11) on the threaded rod of the expander (item 5) and attach with the coupling nut (item 9).
* * * FOR ALL PIP 2

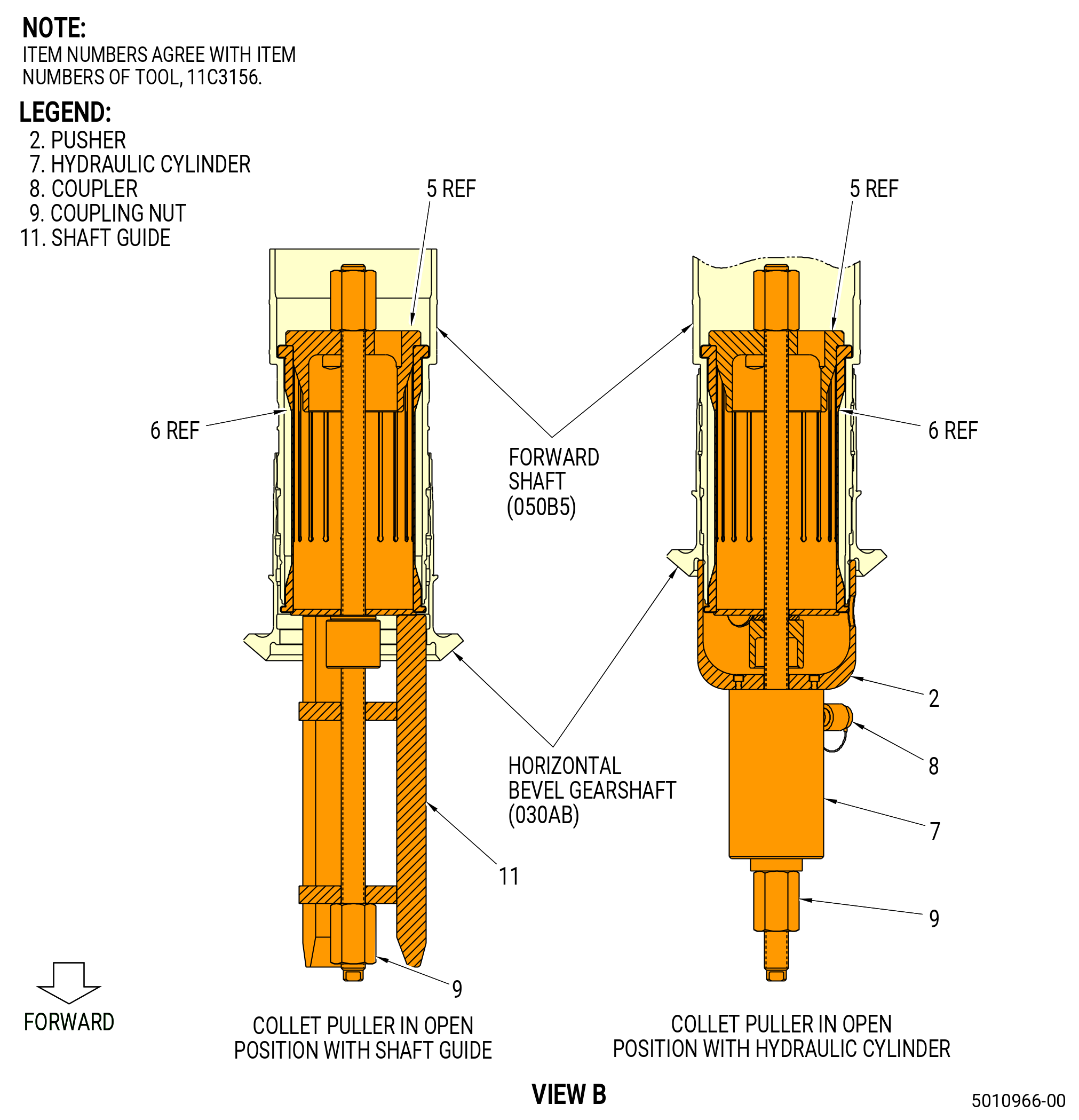

Figure 1014   (Sheet 1 ) Installation of the Hydraulic Clamp, 11C3156, into the Forward Shaft
* * * FOR ALL PIP 2
Figure 1014   (Sheet 2 ) Installation of the Hydraulic Clamp, 11C3156, into the Forward Shaft
Subtask 72-00-02-430-940
K.Install the HPC module assembly (33-012) (SIN 00108) on the fan hub module assembly as follows:
Subtask 72-00-02-160-006
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF CONSUMABLE PRODUCTS.
(1)Before joining the modules, the ID and OD surfaces of the shaft require a last chance wipe from the front of the shaft, back to the cone, using new C10-182  wipers with clean C02-019  engine oil.
Subtask 72-00-02-431-039
(2)Match mark the TVCL of the HPC module assembly and the fan hub module assembly to identify the TVCL after the horizontal bevel gearshaft (030AB) is heated.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(3)Apply C02-097  lubricant to the bolts (25-290) (SIN 07020), (25-410) (SIN 07021), and (25-390) (SIN 07023) and to the threads and friction surfaces of the self-locking nuts (25-281) (SIN 07040).
(4)Install the 11C3133   lock fixture on the transfer gearbox (TGB) (SIN 03200). Refer to Figure 1015.
(a)Put the spline (item 2) of the 11C3133   lock fixture on the TGB output shaft. Make sure that the spline (item 2) is correctly aligned with the TGB drive shaft.
(b)Put the assembly plate (item 3) on the TGB and engage the spline (item 2).
(c)Attach the assembly plate (item 3) to the TGB with the capscrews (item 5).
(d)Torque the capscrews (item 5) to a maximum 55-70 lb in. (6.215-7.910 N·m) to secure the 11C3133   lock fixture to the TGB.
* * * FOR ALL PIP 2
Figure 1015   Installation of the Lock Fixture, 11C3133, on the TGB Drive Shaft
Subtask 72-00-02-430-941
WARNING:
USE THERMAL GLOVES WHEN YOU MOVE OR TOUCH HOT OR COLD PARTS. HOT OR COLD PARTS CAN CAUSE INJURY.
(5)Apply heat to the horizontal bevel gearshaft (030AB) and the inlet gearbox (IGB) (03000) with the 11C4624   heater. Refer to Figure 1016 and do as follows:
(a)Put the manifold (item 2) into the horizontal bevel gearshaft.
(b)Assemble the heat gun (item 5) into the manifold (item 2).
(c)Make sure that the switch is turned off before the heat gun (item 5) is connected.
(d)Connect the heat gun (item 5) into a 220-240 VAC single phase outlet.
(e)Set the temperature of the heat gun (item 5) to the maximum level permitted and turn it on.
Subtask 72-00-02-430-969
(f)Measure the temperature of the horizontal bevel gearshaft with a temperature probe or infrared sensor every 5 minutes until the horizontal bevel gearshaft temperature is 300°F (149°C) as follows:
1Turn off the heat gun (item 5).
2Make sure that the heat gun (item 5) is disconnected from the power source and the power cord is gathered and properly secured.
3Remove the heat gun (item 5) from the manifold (item 2).
4Remove the manifold (item 2) from the horizontal bevel gearshaft.
5Measure the temperature of the horizontal bevel gearshaft and make sure that it is 300°F (149°C).
6If necessary, do Subtask 72-00-02-430-941 (paragraph 3.J.(4)(a)) thru Subtask 72-00-02-430-969 (paragraph 3.J.(4)(f)) again.
(g)Put the 11C4624   heater in the storage fixture.
* * * FOR ALL PIP 2
Figure 1016   (Sheet 1 ) Installation of the Heater, 11C4624, in the Fan Hub Module Assembly
* * * FOR ALL PIP 2
Figure 1016   (Sheet 2 ) Installation of the Heater, 11C4624, in the Fan Hub Module Assembly
Subtask 72-00-02-430-942
(6)Install the HPC module assembly (33-012) (SIN 00108) into the fan hub module assembly. Refer to Figure 1017 and do as follows:
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
NOTE:
To help with the installation process of the HPC module assembly into the fan hub module assembly, the C02-023   engine oil can be used on the mating surfaces of the forward shaft (050B5).
(a)Align the TVCL of the HPC module assembly and the fan hub module assembly.
(b)Carefully lower the shaft guide (item 11) of the 11C3156 hydraulic clamp into the fan hub module assembly.

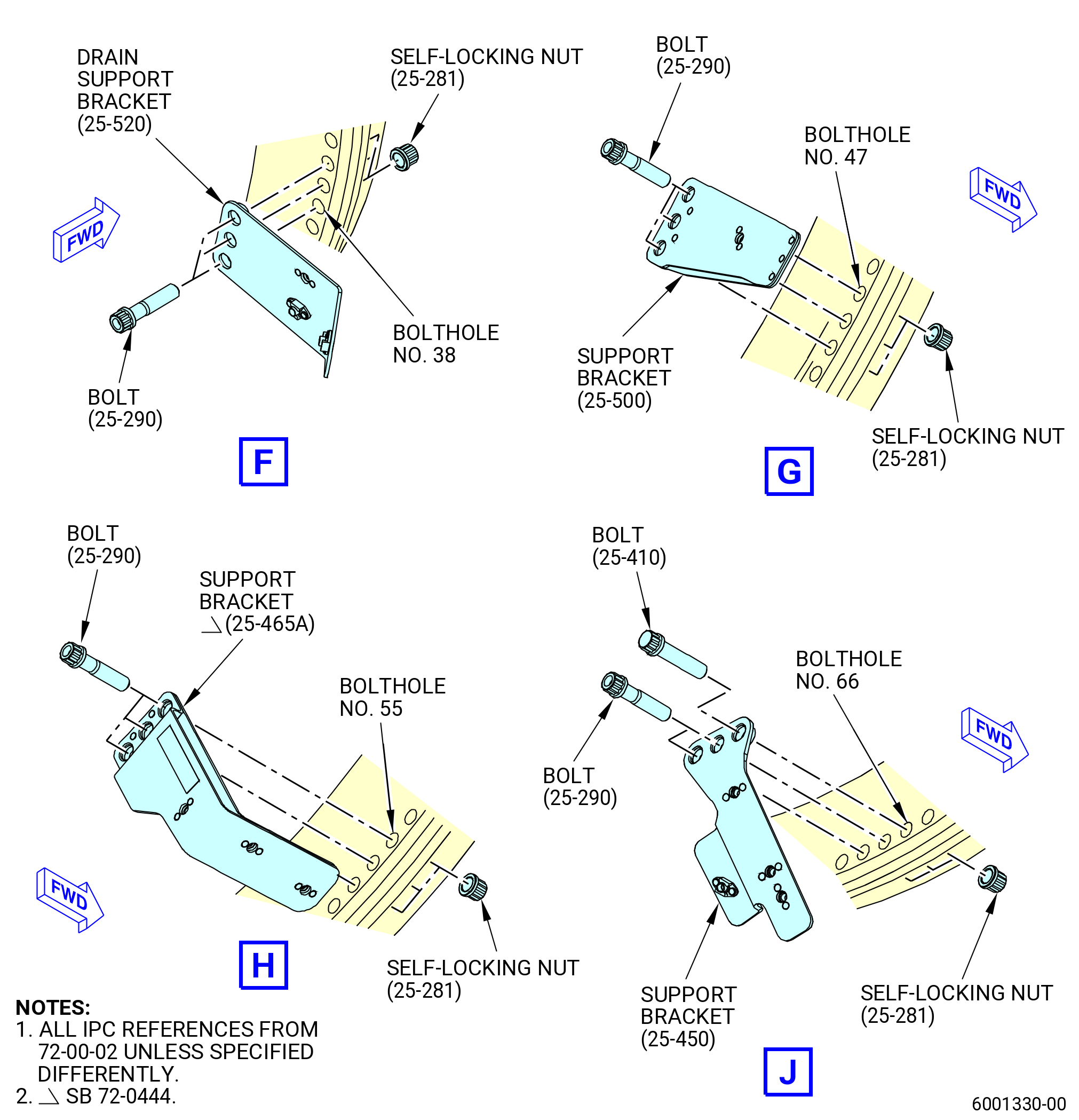

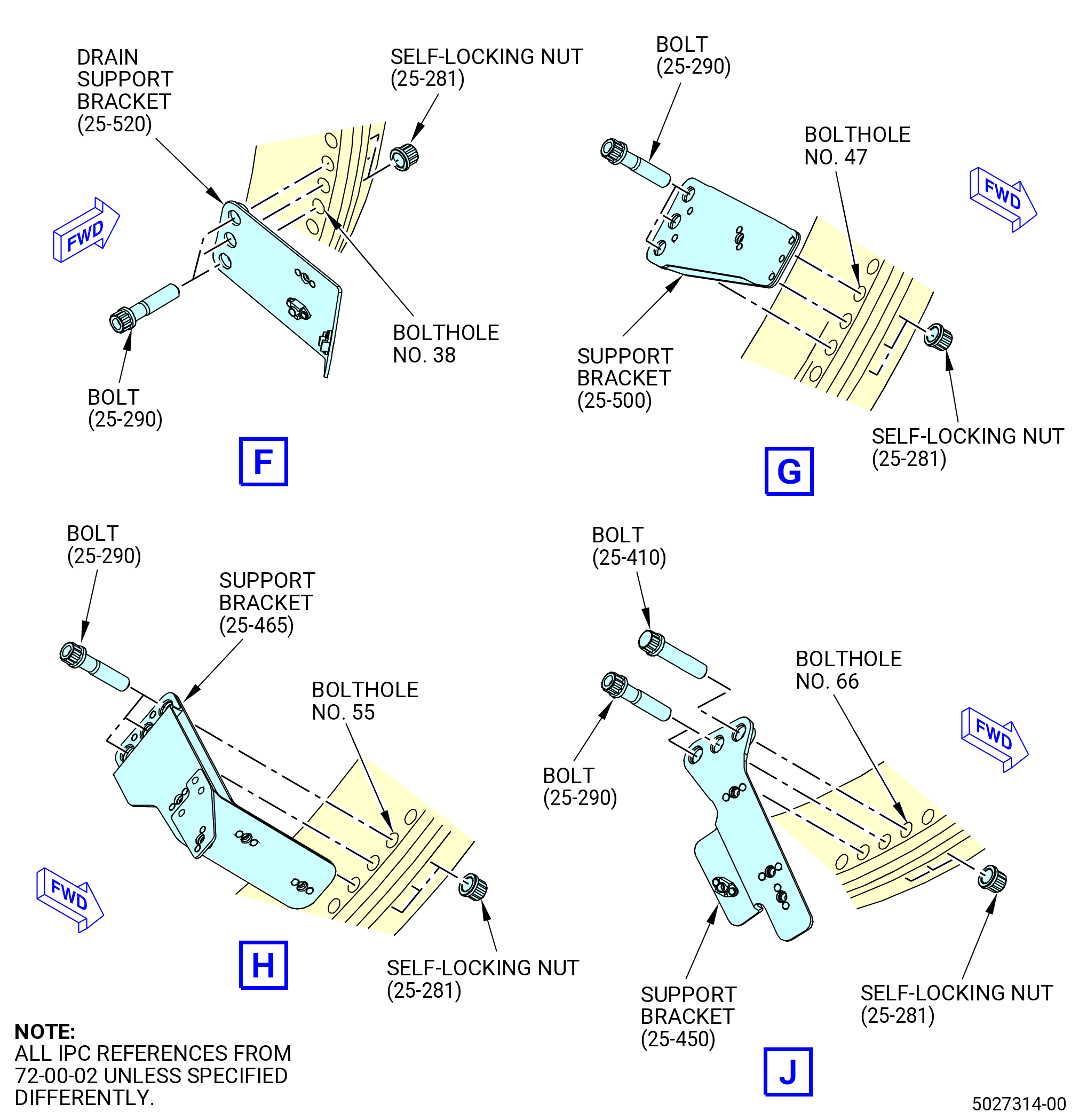

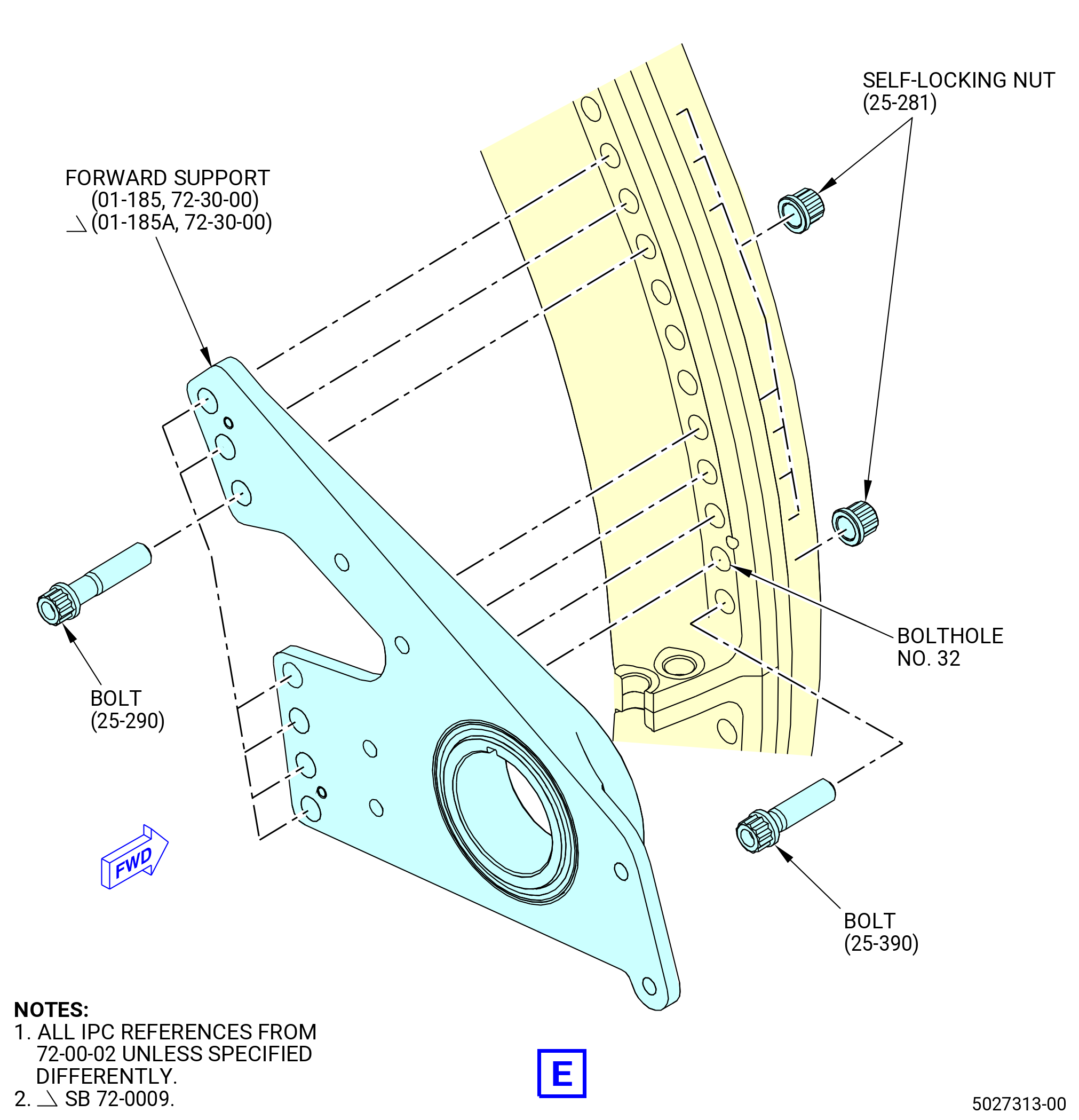

(c)Put a bolt (25-410) (SIN 07021), a spacer (25-301) (SIN 07070), and a self-locking nut (25-281) (SIN 07040) in bolthole No. 66 as a guide. All boltheads are aft with a spacer below the bolthead.
(d)Slowly lower the HPC module assembly on the fan hub module assembly.
(e)Install a bolt (25-290) (SIN 07020), a spacer (25-301) (SIN 07070), and a self-locking nut (25-281) (SIN 07040) in boltholes No. 18 and 101. Put the boltheads on the aft side of the flange.
WARNING:
USE THERMAL GLOVES WHEN YOU MOVE OR TOUCH HOT OR COLD PARTS. HOT OR COLD PARTS CAN CAUSE INJURY.
(f)Change the 11C3156 hydraulic clamp from a guide fixture to install the HPC module assembly (33-012) (SIN 00108) on the fan hub module assembly. Refer to Figure 1014 and do as follows:
1Remove the coupling nut (item 9) and the shaft guide (item 11) from the threaded rod of the expander (item 5).
2Put the pusher (item 2) and the hydraulic cylinder (item 7) on the threaded rod of the expander (item 5).
3Connect the hydraulic cylinder (item 7) to the hydraulic hand pump.
(g)Loosen the 11C3133   lock fixture on the TGB (03200). Refer to Figure 1015.
(h)Apply pressure to the 11C3156 hydraulic clamp and pull the HPC module assembly forward until the flanges start to seat.
(i)There can be a 0.040 inch (1.02 mm) clearance between the flanges when the rotor is seated.
(j)When the horizontal bevel gearshaft (030AB) and the forward shaft (050B5) splines engage, tighten the 11C3133   lock fixture.
CAUTION:
DO NOT USE MORE THAN 3000 PSIG (20685 KPA GAUGE) OF PRESSURE OR DAMAGE TO THE ENGINE PARTS CAN OCCUR.
(k)Apply 3000 psig (20685 kPa gauge) to the hydraulic cylinder (item 7) of the 11C3156 hydraulic clamp.
CAUTION:
DO NOT USE MORE THAN 5000 PSIG (34475 KPA GAUGE) OF PRESSURE OR DAMAGE TO THE ENGINE PARTS CAN OCCUR.
(l)Increase the pressure to 5000 psig (34475 kPa gauge).
(m)Make sure there is no clearance between the flanges of the HPC module assembly and the fan hub module assembly.
* * * FOR ALL PIP 2
Figure 1017   Installation of the HPC Module Assembly on the Fan Hub Module Assembly
Subtask 72-00-02-430-943
(7)Before the assembly normalizes, attach the HPC module assembly (33-012) (SIN 00108) forward flange to the fan hub module assembly. Refer to Figure 1018 and do as follows:
(a)Install the bolts (25-290) (SIN 07020), spacers (25-301) (SIN 07070), and self-locking nuts (25-281) (SIN 07040) in boltholes No. 5, 28, 35, 45, 60, 69, 81, 93, 113, and 124 with the boltheads aft and the spacer under the boltheads.
(b)Deleted.
(c)Torque the self-locking nuts (25-281) (SIN 07040) in a criss-cross pattern to 276 to 324 lb in. (31.2 to 36.6 Nm).
(d)Let the assembly normalize and release the pressure applied by the 11C3156 hydraulic clamp.
(e)Remove the 11C3156 hydraulic clamp from the HPC module assembly and the fan hub module assembly.
* * * FOR ALL PIP 2
Figure 1018   (Sheet 1 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
* * * FOR ALL PIP 2
Figure 1018   (Sheet 2 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
* * * FOR ALL PIP 2
Figure 1018   (Sheet 3 ) DELETED
* * * FOR ALL PIP 2
Figure 1018   (Sheet 4 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
* * * FOR ALL PIP 2
* * * PRE SB   72-0444( with PS25 Sense Line )
Figure 1018   (Sheet 5 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
* * * FOR ALL PIP 2
* * * SB   72-0444( without PS25 Sense Line )
Figure 1018   (Sheet 6 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
* * * FOR ALL PIP 2
Figure 1018   (Sheet 7 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
* * * FOR ALL PIP 2
Figure 1018   (Sheet 8 ) DELETED
* * * FOR ALL PIP 2

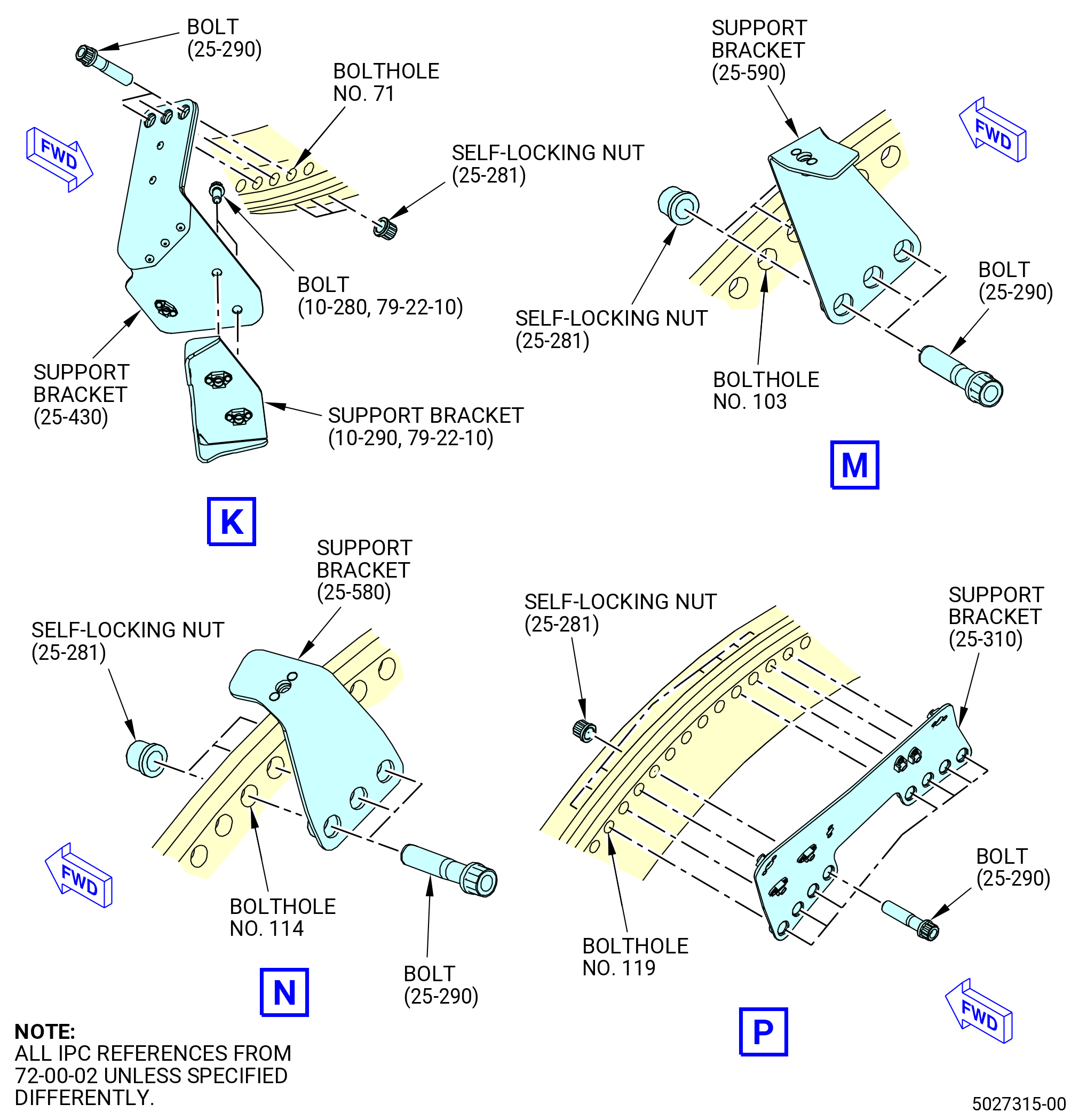

Figure 1018   (Sheet 9 ) Installation of the Brackets on the Fan Hub Module Assembly to the HPC Module Assembly Flange
Subtask 72-00-02-430-944
(8)Measure dimension Y. Refer to Figure 1019 and do as follows:
(a)Calculate the preliminary seating for YCALC (YCALC = T - BJ - V) and record.
1Refer to TASK 72-30-00-440-805 (72-30-00, ASSEMBLY 001 CONFIGURATION 02) for dimension T and dimension V.
2Refer to Subtask 72-00-02-430-931 (paragraph 3.E.) for dimension BJ.
(b)Measure the distance from the forward flange of the forward shaft (050B5) to the forward flange of the horizontal bevel gearshaft (030AB) and record as Y1. Refer to Figure 1020.
(c)Measure the distance from the forward flange of the forward shaft to the forward flange of the horizontal bevel gearshaft at an equally spaced location 90 degrees apart from Y1 and record as Y2.
(d)Measure the distance from the forward flange of the forward shaft to the forward flange of the horizontal bevel gearshaft at an equally spaced location 90 degrees apart from Y2 and record as Y3.
(e)Measure the distance from the forward flange of the forward shaft to the forward flange of the horizontal bevel gearshaft at an equally spaced location 90 degrees apart from Y3 and record as Y4.
(f)Calculate the average for Y1, Y2, Y3, and Y4 and record as dimension YMEAS.
(g)Compare the calculated seating dimension YCALC to the measured seating dimension YMEAS.
(h)YSEAT must be equal to YCALC minus YMEAS. YSEAT must be more than minus 0.006 inch (0.15 mm) and less than 0.002 (0.05 mm).
* * * FOR ALL PIP 2
Figure 1019   Measurement of Dimension Y from the Forward Shaft to the Horizontal Bevel Gearshaft
* * * FOR ALL PIP 2
Figure 1020   Record Sheet for Dimension Y
Subtask 72-00-02-430-945
(9)Install the brackets on the fan hub module assembly and the HPC module assembly (33-012) (SIN 00108) flange as follows. If necessary, remove the bolts that were installed to install the HPC module assembly in Subtask 72-00-02-430-943 (paragraph 3.J.(6)). Refer to Figure 1018.
NOTE:
Bolthole No. 1 is at the 12:00 o'clock position ALF.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(a)Apply C02-097   lubricant to the threads and friction surfaces of the self-locking nuts (25-281) (SIN 07040).
(b)Install the bolts (25-390) (SIN 07023) and the self-locking nuts (25-281) (SIN 07040) as follows:
1Install the bolts (25-390) (SIN 07023) and the self-locking nuts (25-281) (SIN 07040) in bolthole No.33, 34, 98, and 99 with the boltheads aft.
2If necessary, remove the bolts (073G3) and nuts (073L2) from the split-line at the 3:00 o'clock and 9:00 o'clock position ALF. Hand tighten the self-locking nuts.
3If removed, install the bolts (073G3) and nuts (073L2) in the split-line.
4Torque the four nuts (05-160 , 72-30-00) (SIN 073L2) that were loosened to seat the fan hub module assembly to 552 to 648 lb in. (62.4 to 73.2 Nm).
(c)Install the bolts (25-290) (SIN 07020), spacers (25-301) (SIN 07070), and self-locking nuts (25-281) (SIN 07040) in the boltholes No. 6, 7, 10 thru 14, 19 thru 22, 26, 28, 39 thru 44, 46, 50 thru 54, 58, 59, 61 thru 65, 70, 74 thru 80, 82 thru 87, 91, 92, 100, 102, 106 thru 112, 113, 117, 118, 123, 125, and 126 with the boltheads aft and the spacer under the boltheads. Hand tighten the self-locking nuts.
* * * PRE SB   73-0099( )
(d)Install the bracket (01-180 , 79-22-30) (SIN 38117) on the aft side of the flange and install the bracket (25-330) (SIN 63711) and the bracket aft (01-180 , 79-22-30) (SIN 38117) in bolthole No. 131 and 1 thru 4 with the bolts (25-290) (SIN 07020) and the self-locking nuts (25-280) (SIN 07040) or (25-281) (SIN 07040) and the bolthead aft. Hand-tighten the self-locking nuts.
* * * END PRE SB   73-0099( )
* * * SB   73-0099( )
(d).A.Install the bracket (01-180B , 79-22-30) (SIN 38117) on the aft side of the flange and install the bracket (25-330) (SIN 63711) aft the bracket (01-180B , 79-22-30) (SIN 38117) in bolthole No. 131 and 1 thru 4 with the bolts (25-290) (SIN 07020) and the self-locking nuts (25-280) (SIN 07040) or (25-281) (SIN 07040) and the bolthead aft. Hand-tighten the self-locking nuts.
* * * END SB   73-0099( )
(e)Install the bracket (25-360) (SIN 38510) in boltholes No. 8 and 9 on the aft side of the flange with the bolts (25-290) (SIN 07020) and self-locking nuts (25-281) (SIN 07040) and the bolthead aft. Hand-tighten the self-locking nuts.
(f)Install the pylon drain support bracket (bracket) (25-380) (SIN 59014) in boltholes No. 15 thru 17 on the aft side of the flange with the bolts (25-290) (SIN 07020) and self-locking nuts (25-281) (SIN 07040) and the bolthead aft. Hand tighten the self-locking nuts.
Subtask 72-00-02-430-946
(g)Install the forward support (02-025 , 72-30-00) (SIN 07500-3) of the VSV torque shaft linkage in boltholes No. 23 thru 25 and 29 thru 32 on the aft side of the flange with bolts (25-290) (SIN 07020), boltheads aft, and self-locking nuts (25-281) (SIN 07040). Hand-tighten the self-locking nuts.
Subtask 72-00-02-430-947
(g).A.Deleted.
Subtask 72-00-02-430-948
(h)Install the drain support bracket (25-520) (SIN 37310) in boltholes No. 36 thru 38 on the AFT side of the flange with the bolts (25-290) (SIN 07020) and the self-locking nuts (25-281) (SIN 07040) and the bolthead aft. Hand tighten the self-locking nuts.
(i)Install the support bracket (25-500) (SIN 44410) in boltholes No. 47 thru 49 on the aft side of the flange with bolts (25-290) (SIN 07020) and the self-locking nuts (25-281) (SIN 07040) and the boltheads aft. Hand tighten the self-locking nuts.
(j)Install the support bracket (25-465) (SIN 44811) in boltholes No. 55 thru 57 on the AFT side of the flange with the bolts (25-290) (SIN 07020) and the self-locking nuts (25-281) (SIN 07040) and the boltheads aft. Hand-tighten the self-locking nuts.
(k)Install the support bracket (44411) in boltholes No. 66 thru 68 on the aft side of the flange as follows:
1Remove the bolt (25-410) (SIN 07021), spacer (25-301) (SIN 07070), and self-locking nut (25-281) (SIN 07040) from bolthole No. 66 used previously as a guide.
2Install the bolts (25-290) (SIN 07020) and self-locking nuts (25-281) (SIN 07040) and the boltheads aft in boltholes No. 67 and 68. Hand tighten the self-locking nuts.
3Install the bolt (25-410) (SIN 07021) and self-locking nut (25-281) (SIN 07040) and the boltheads aft in bolthole No. 66. Hand tighten the self-locking nut.
(l)Install the support brackets (44413, 44414) in boltholes No. 71 thru 73 on the aft side of the flange as follows:
1Attach the support bracket (25-430) (SIN 44413) with the bolts (25-290) (SIN 07020) and self-locking nuts (25-281) (SIN 07040) and the boltheads aft. Hand tighten the self-locking nuts.
2Attach the support bracket (44413) to the support bracket (44414) with the bolts (44421).
3Torque the bolts (44421) to 106-124 lb in. (12.0-14.0 N.m).
Subtask 72-00-02-430-949
(m)Deleted.
Subtask 72-00-02-430-950
(n)Install the forward support (01-065 , 72-30-00) (SIN 07501-3) or (01-065A , 72-30-00) (SIN 07501-3) of the VSV torque shaft linkage in boltholes No. 88 thru 90 and 94 thru 97 on the aft side of the flange with bolts (25-290) (SIN 07020), boltheads aft, and self-locking nuts (25-281) (SIN 07040). Hand tighten the self-locking nuts.
Subtask 72-00-02-430-951
(n).A.Deleted.
Subtask 72-00-02-430-952
(o)Install the bracket (25-590) (SIN 610E2) in boltholes 103 thru 105 in the aft fan hub to the compressor case flange with bolts (25-290) (SIN 07020) and nuts (25-281) (SIN 07040). Hand-tighten the self-locking nuts.
(p)Install the bracket (25-580) (SIN 6101Y) in boltholes 114 thru 116 in the aft fan hub to compressor case flange with bolts (25-290) (SIN 07020) and nuts (25-281) (SIN 07040). Hand-tighten the self-locking nuts.
(q)Install the support bracket (25-310) (SIN 63111) in boltholes No. 119 thru 122 and 127 thru 130 on the aft side of the flange with the bolts (25-290) (SIN 07020) and self-locking nuts (25-281) (SIN 07040) and boltheads aft. Hand tighten the self-locking nuts.
(r)Torque the self-locking nuts as follows:
1Torque the self-locking nut (25-281) (SIN 07040) in bolthole No. 66 to 368 to 432 lb in. (41.6 to 48.8 Nm).
2Torque 14 self-locking nuts (25-281) (SIN 07040) in an equally spaced criss-cross pattern to 276 to 324 lb in. (31.2 to 36.6 Nm).
3Make sure there is no clearance between the flanges. Use a 0.001 inch (0.03 mm) gauge to check the clearance between the flanges.
4Torque all the self-locking nuts (25-281) (SIN 07040) in a circular pattern to 368 to 432 lb in. (41.6 to 48.8 Nm).
Subtask 72-00-02-430-953
L.Install the 9C1276   bore protector on the stage 10 bore of the compressor rotor spool (02-481 , 72-31-00) (SIN 050AR). Refer to Figure 1021.
M.Mark to identify that the No. 4 and 7 stage HPC case holes are not installed on the compressor extension case (080AL). Use a non-conformance tag on the bolthole or put tape on the orifice hole. Refer to Figure 1021.
* * * FOR ALL PIP 2
Figure 1021   Bore Protector, 9C1276
Subtask 72-00-02-430-954
N.If necessary, install the 11C3066   lift/turn fixture on the compressor extension case (10-080 , 72-30-00) (SIN 080AL) of the propulsor assembly aft end. Refer to Subtask 72-00-02-430-934 (paragraph 3.H.(1)A.) and Figure 1011.
Subtask 72-00-02-430-955
O.Remove the 11C3133   lock fixture from the TGB (03200). Refer to Figure 1015.
Subtask 72-00-02-430-956
P.Do the IGV system adjustment and rigging for shimmed and separable clevis torque shaft linkage as follows:
(1)Install the assembled left/right side IGV turnbuckles of the VSV torque shaft linkages (02-005 , 72-30-00) (SIN 07501) and (02-190 , 72-30-00) (SIN 07500) with the RH rod end, LH rod end, RH self-locking nut (RH jamnut), and the LH self-locking nut (LH jamnut) on the VSV torque shaft linkages and the IGV bridge at the 3:00 and the 9:00 o'clock positions. Refer to Figure 1022 and do as follows:
(a)Put the RH rod end (01-090 , 72-30-00) (SIN 07501-10) or (01-225 , 72-30-00) (SIN 07500-10) in the IGV shaft clevis.
(b)Make sure that the direction arrow of the turnbuckle (01-095 , 72-30-00) (SIN 07501-12) or (01-215 , 72-30-00) (SIN 07500-12) is away from the VSV torque shaft linkages. The direction arrow will be on the turnbuckle end with the LH rod end (01-105 , 72-30-00) (SIN 07501-14) or (01-210 , 72-30-00) (SIN 07500-14).
NOTE:
The direction arrow identifies the direction to increase the IGV average angle.
(c)Connect the RH rod end to the IGV shaft clevis with a bolt (01-075 , 72-30-00) (SIN 07501-9) or (01-195 , 72-30-00) (SIN 07500-9) and a self-locking nut (01-070 , 72-30-00) (SIN 07501-8) or (01-190 , 72-30-00) (SIN 07500-8). Put the bolthead aft.
(d)Torque the self-locking nuts (01-070 , 72-30-00) (SIN 07501-8) or (01-190 , 72-30-00) (SIN 07500-8) to 460-540 lb in. (52.0-61.0 N.m).
(e)Connect the LH rod end to the IGV bridge (05-060 , 72-25-00) (SIN 071E0) with a bolt (01-020 , 72-30-00) (SIN 07501-16) or (01-150 , 72-30-00) (SIN 07500-16) and a self-locking nut (01-015 , 72-30-00) (SIN 07501-15) or (01-145 , 72-30-00) (SIN 07500-15). Put the bolthead aft.
(f)Torque the self-locking nuts (01-015 , 72-30-00) (SIN 07501-15) or (01-145 , 72-30-00) (SIN 07500-15) to 460-540 lb in. (52.0-61.0 N.m).
* * * FOR ALL PIP 2
Figure 1022   Installation of the Left/Right Side IGV Turnbuckle
Subtask 72-00-02-430-957
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(2)Alternative Procedure Available. Connect the rod end hose (item 4) and head end hose (item 3) of the 9446M71   air regulator cart assembly to the head and rod fittings on the VSV actuators (30400, 30401). Use nitrogen gas with the 9446M71   air regulator cart assembly. Refer to Figure 1023.
Subtask 72-00-02-430-958
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER'S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THESE PRODUCTS.
(2).A.Alternative Procedure. Connect the hoses between the head and rod fittings on the VSV actuators (30400, 30401) and the head and rod fittings on the 9461M39   hydraulic hand pump. Use C02-019   engine oil or C02-021   grade 1010 oil with the pump. Refer to Figure 1024.
* * * FOR ALL PIP 2
Figure 1023   Connection of the Air Regulator Cart Assembly, 9446M71
* * * FOR ALL PIP 2
Figure 1024   Connection of the Hydraulic Hand Pump, 9461M39
Subtask 72-00-02-820-009
(3)Adjust the VSV actuation system for the IGV vanes as follows:
(a)Calibrate the VSV angle indicator (item 12) encoders A, B, C, and D of the 9429M24   VSV electronic protractor on the set master base (item 6). Refer to Figure 1025 and do as follows:
NOTE:
The VSV angle indicator encoders A, B, C, and D must be calibrated if a cable is disconnected.
NOTE:
The VSV angle indicator has an encoder (four locations), cable assembly (four locations), and an angle indicator.
1Install the VSV angle indicator encoder A of the 9429M24   VSV electronic protractor on the set master base (item 6).
2Connect the VSV angle indicator encoder A to the channel A connector on the back of the VSV angle indicator. Refer to Figure 1026.
Subtask 72-00-02-430-959
3Turn on the power of the VSV angle indicator (item 12) digital readout of the 9429M24   VSV electronic protractor.
4Press the F button on the front of the VSV angle indicator (item 12) digital readout to select channel A.
5Move the protractor arm (item 5) to align with the zero mark on the set master base (item 6). Refer to Figure 1025.
6Install the alignment pin (item 7) through the protractor arm (item 5) and into the set base master (item 6) to keep the alignment arm in place.
7Press the zero button on the front of the VSV angle indicator (item 12) digital readout to zero the sensor. Read an angle of 00.0 degrees on the display.
8Remove the alignment pin (item 7), turn the protractor arm (item 5) CW to the right and stop at the angle +30 degrees marked on the set master base (item 6).
9Make sure that the digital indicator shows a positive number.
10Install the alignment pin (item 7) through the protractor arm (item 5) and into the set master base (item 6) to keep the alignment arm in position.
11Read the angle on the digital readout. Make sure that the reading is in the range of 29.8 to 30.2 degrees.
NOTE:
Readings outside of this range indicate damaged equipment.
12Remove the alignment pin (item 7), turn the protractor arm (item 5) CCW to the left and stop at the zero mark on the set master base (item 6).
13Install the alignment pin (item 7) through the protractor arm (item 5) and into the set master base (item 6) to keep the alignment arm in place.
14Read the angle of 00.0 degrees on the digital readout.
15Remove the alignment pin (item 7) and turn the protractor arm (item 5) CCW to the left and stop at the angle -30 degrees mark on the set master base (item 6).
16Install the alignment pin (item 7) through the protractor arm (item 5) and into the set master base (item 6) to keep the alignment arm in position.
17Make sure that the digital indicator shows a negative number.
18Read the angle on the VSV angle indicator (item 12) digital readout. Make sure that the reading is in the range of -29.8 to -30.2 degrees.
NOTE:
Readings outside of this range indicate damaged equipment.
19Remove the 9429M24   VSV electronic protractor from the set master base (item 6).
Subtask 72-00-02-430-960
20Do this procedure again for the remaining VSV electronic protractors B, C, and D on the digital readout channels B, C, and D. Refer to Subtask 72-00-02-820-009 (paragraph 3.P.(3)).
* * * FOR ALL PIP 2
Figure 1025   Calibration of the VSV Electronic Protractor, 9429M24
* * * FOR ALL PIP 2
Figure 1026   Digital Readout, MCP-854-10-01-02-Q1080CE
Subtask 72-00-02-430-961
(b)Install the 11C3005   IGV/VSV tool kit on the IGV stator vane (IGV vane) (072A0) at positions No. 3, 12, 20, and 29. Refer to Figure 1027 and do as follows:
NOTE:
If the engine hardware blocks access to the IGV vane use an alternate IGV vane position. Use the first clear vane nearest the listed positions in order to keep the VSV angle indicators as evenly separated as possible.
1Put the four IGV centering rods (item 7) of the 11C3005   IGV/VSV tool kit on the IGV vanes (072A0) at positions No. 3, 12, 20, and 29 in a CW direction alf.
NOTE:
Position No. 1 is at the 12:00 o'clock position alf.
2Put the IGV clamping block (item 4) at four locations on the IGV centering rod (item 7). Push to snap in position and tighten the setscrews.
3Put the stage 4 and IGV arm locator pin (item 8) on the IGV vane (072A0) at positions No. 2, 13, 19, and 30.
* * * FOR ALL PIP 2
Figure 1027   Installation of the IGV/VSV Tool Kit, 11C3005, on the IGV Vane
Subtask 72-00-02-430-962
(c)Install the 9429M24   VSV electronic protractor on the 11C3005   IGV/VSV tool kit at the IGV vane (072A0) positions No. 3, 12, 20, and 29. Refer to Figure 1028 and do as follows:
1If necessary, put the tang adapter (item 4) of the 9429M24   VSV electronic protractor on the IGV centering rod (item 7) of the 11C3005   IGV/VSV tool kit. Make sure that the tang adapter (item 4) engages the vane spindle flats.
2Carefully align the arm protractor (item 5) of the 9429M24   VSV electronic protractor to the IGV and the arm locator pin (item 8) of the 11C3005   IGV/VSV tool kit.
3Move the arm protractor (item 5) of the 9429M24   VSV electronic protractor on the IGV arm locator pin (item 8) of the 11C3005   IGV/VSV tool kit and align the notch on the tang adapter (item 4) of the 9429M24   VSV electronic protractor to the IGV clamping block (item 4) of the 11C3005   IGV/VSV tool kit.
* * * FOR ALL PIP 2
Figure 1028   Installation of the VSV Electronic Protractor, 9429M24, on the IGV/VSV Tool Kit, 11C3005
Subtask 72-00-02-430-963
(d)Install the VSV angle indicator (item 12) calibrated encoders A, B, C, and D of the 9429M24   VSV electronic protractor on the fan hub module assembly IGV's. Refer to Figure 1029 and do as follows:
1Make sure that the side of the IGV clamping blocks (item 4) and the channel are aligned with the IGV arms. Install them on the IGV centering rods (item 7) of the 11C3005   IGV/VSV tool kit. Do not tighten the capscrews (item 11) of the clamping blocks.
2Install the stage 4 and IGV arm locator pin (item 8) on the IGV's at positions No. 2, 13, 19, and 30 in a CW direction alf. Protractor arms must extend to positions No. 12 at top and No. 6 at bottom.
3Put the VSV angle indicator (item 12) encoder A, B, C, and D of the 9429M24   VSV electronic protractor, the encoder support (item 2), and the arm support (item 5) on the IGV vanes No. 3, 12, 20, and 29.
* * * FOR ALL PIP 2
Figure 1029   Installation of the VSV Electronic Protractors on the Fan Hub Module Assembly IGV
Subtask 72-00-02-430-964
CAUTION:
DO NOT USE MORE THAN 125 PSIG (862 KPA GAGE) PRESSURE OR DAMAGE TO THE IGV/VSV SYSTEM CAN OCCUR.
(e)Slowly apply a pressure of 75.0-125.0 psig (517.1-861.8 kPa gage) maximum to the system with the 9446M71   air regulator cart assembly or 9461M39   hydraulic hand pump.
(f)Carefully actuate the VSV linkage system through a full range of motion. Make sure the movement is smooth with no binding of the turnbuckles against their mating clevises and no interference or binding of other components.
Subtask 72-00-02-430-965
(g)Operate the system to the fully closed position (actuator rods extended) and the fully open position (actuator rods retracted) four times.
NOTE:
Closed angles (CL) are positive. When a CL positive numbers is increased, the closed angle is increased. Open angles (OP) are negative. When a OP negative number is increased, the open angle is increased.
(h)Record the indications on the IGV assembly form. Refer to Figure 1030.
(i)Calculate the average of two checks as follows:
1Make sure the average closed and open values of the IGV electronic protractors A, B, C, and D on the IGV vanes No. 3, 12, 19, and 29 of the 9429M24   VSV electronic protractor are plus or minus 1.0 degree of the values shown in the table in Figure 1030.
2Make sure to calculate the travel by adding the open and closed angles. Ignore the sign of the open angle.
3Make sure that the average travel of the four electronic protractors A, B, C, and D are plus or minus 1.0 degree of the value in the table in Figure 1030.
Subtask 72-00-02-430-966
(j)If the fully open and fully closed average readings are not in 0.5 degree of the values shown in the table of Figure 1030, correct the IGV system as follows:
1Deleted.
NOTE:
Deleted.
aDeleted.
bDeleted.
cDeleted.
dDeleted.
eDeleted.
fDeleted.
gDeleted.
2If necessary, calculate the two hex flat changes for the IGV turnbuckle to help determining the amount of adjustment necessary as follows:
aAdd the average measured open angle to the average measured closed angle and divide by 2. Do not ignore the negative sign of the average open angle.
bAdd the average design open angle to the average design closed angle and divide by 2. Do not ignore the negative sign of the average open angle.
cFind the difference between the two values calculated above (Average measured - Average design) and divide by 0.7. This will give the number of hex flats to turn the turnbuckle.
dRecord the turnbuckle hex flat change on the IGV assembly form. Refer to Figure 1030.
NOTE:
Turning turnbuckle bodies in the direction of the arrow increases the average angle. Rotation of the turnbuckle bodies in the direction opposite the arrow decreases the average angle. Average angle change is 0.7 degree for each hex flat rotation.
3If necessary, adjust the turnbuckle length to change the open and closed angles as follows:
aRemove the bolt and self-locking nut that attach the turnbuckle to the IGV bridge (05-060 , 72-25-00) (SIN 071E0).
bRemove the bolt and the self-locking nut that attaches the turnbuckle to the VSV torque shaft linkage (02-005 , 72-30-00) (SIN 07501) and (02-190 , 72-30-00) (SIN 07500) clevis. Remove the turnbuckle from the IGV system.
cAdjust the length of the turnbuckle with the 9429M53   gauging fixture. Refer to Figure 1031 and do as follows:
dCheck the accuracy of the 9429M53   gauging fixture as follows:
(1)Unlock the slide (item 5) of the 9429M53   gauging fixture with the adjustable locking handle.
(2)Adjust the slide (item 5) and install the setting block (item 12) on the locator pins (item 24). The slotted open end of the setting block must engage with the locator pin (item 24) on the slide (item 5).
(3)The unit digimatic scale (item 14) must read 5.000 plus or minus 0.001 inch (127.00 plus or minus 0.03 mm). If not, send the unit digimatic scale (item 14) to be calibrated.
(4)With the setting block (item 12) still installed on the two locator pins (item 24), lock the slide (item 5) and reset the digital scale unit (item 14) to zero to establish the reference point.
(5)Remove the setting block (item 12).
eUnlock the slide (item 5) of the 9429M53   gauging fixture with the adjustable locking handle.
fPut the turnbuckle in the 9429M53   gauging fixture as follows:
(1)Put the holes of both turnbuckle rod ends on the protruded bosses on the locator pins (item 24) and install the rod ends on the pins until they seat on the top of the two flat planes of the locator pins (item 24) of the 9429M53   gauging fixture.
(2)Install the two spacers (item 25) on the two protruded bosses of the locator pins (item 24), one on each boss until they are installed on the flat surfaces of the rod ends of the turnbuckles.
(3)Install the two knobs (item 28) into the threaded holes on protruded bosses of the locator pins (item 24). Hand-tighten the knobs to keep the assembly without movement.
(4)Loosen the self-locking nuts on the turnbuckle and turn the turnbuckle the number of hex flats recorded on the IGV assembly form. Refer to Figure 1030.
(5)Follow the direction arrow for a positive hex flat change and turn against the arrow for a negative hex flat change.
(6)Make sure the turnbuckle body is centered between the each rod end bearing.
NOTE:
The turnbuckle body is marked with a direction arrow at the end that has the rod bearing with left hand thread.
(7)Lock the slide (item 5) with the adjustable locking handle to restrain any slip movement of the slide (item 5).
(8)Make sure that the slide (item 5) is locked and torque the jamnuts on each end of the turnbuckle to 235-275 lb in. (26.6-31.1 N.m).
(9)Record the length of the turnbuckle. Refer to Figure 1030.
(10)Remove the two knobs (item 28), two spacers (item 25), and turnbuckle from the 9429M53   gauging fixture.
gPut the rod end bearings into the clevises on the IGV bridge (05-060 , 72-25-00) (SIN 071E0) and VSV torque shaft linkage so the direction arrow is away from the torque shaft.
NOTE:
The direction arrow identifies the direction to increase the IGV average angle.
hAttach the rod end bearing to the IGV bridge and torque shaft with the bolts and self-locking nuts previously removed. Put the boltheads aft.
iTorque the self-locking nuts to 460-540 lb in. (52.0-61.0 N.m).
(k)Install the left/right IGV turnbuckles on the propulsor as follows:
1Connect the RH rod end (01-090 , 72-30-00) (SIN 07501-10) or (01-225 , 72-30-00) (SIN 07500-10) to the IGV shaft clevis with a bolt (01-075 , 72-30-00) (SIN 07501-9) or (01-195 , 72-30-00) (SIN 07500-9) and a self-locking nut (01-070 , 72-30-00) (SIN 07501-8) or (01-190 , 72-30-00) (SIN 07500-8). Put the bolthead aft.
2Connect the LH rod end (01-105 , 72-30-00) (SIN 07501-14) or (01-210 , 72-30-00) (SIN 07500-14) to the IGV bridge (05-060 , 72-25-00) (SIN 071E0) with a bolt (01-020 , 72-30-00) (SIN 07501-16) or (01-150 , 72-30-00) (SIN 07500-14) and a self-locking nut (01-015 , 72-30-00) (SIN 07501-15) or (01-145 , 72-30-00) (SIN 07500-15). Put the bolthead aft.
3Torque the self-locking nuts (01-015 , 72-30-00) (SIN 07501-15) or (01-070 , 72-30-00) (SIN 07501-8) or (01-145 , 72-30-00) (SIN 07500-15) or (01-190 , 72-30-00) (SIN 07500-8) to 460-540 lb in. (52.0-61.0 N.m).
(l)Deleted.
(m)Do Subtask 72-00-02-430-964 (paragraph 3.P.(3)(f)) and Subtask 72-00-02-430-965 (paragraph 3.P.(3)(g) again to make sure that the system is in limits. Do this each time the IGV turnbuckles are adjusted.
(n)Remove the VSV angle indicators (item 12), arm protractor (item 5), and tang adapter (item 4) of the 9429M24   VSV electronic protractor from the 11C3005   IGV/VSV tool kit. Refer to Figure 1028.
(o)Remove the stage 4 and IGV arm locator pin (item 8), IGV centering rod (item 7), and IGV clamping block (item 4) of the 11C3005   IGV/VSV tool kit from the IGV lever (SIN 071D0). Refer to Figure 1027.
(p)Carefully operate the system from full open (actuator rods retracted) to full closed (actuator rods extended) four times to make sure that there is no binding or interference.
(q)Disconnect the 9446M71   air regulator cart assembly or 9461M39   hydraulic hand pump from the VSV actuators (30400, 30401).
(r)Remove and store the 9429M24   VSV electronic protractor and the 11C3005   IGV/VSV tool kit in applicable containers.
* * * FOR ALL PIP 2
Figure 1030   IGV System Assembly Form
* * * FOR ALL PIP 2
Figure 1031   Gauging Fixture, 9429M53
Subtask 72-00-02-430-967
Q.Install the HPT rotor air duct (air duct) (05002) in the HPC module assembly (33-012) (SIN 00108) as follows:
(1)Remove the 9C1276   bore protector from the stage 10 bore of the compressor rotor spool (02-481 , 72-31-00) (SIN 050AR). Refer to Figure 1021.
(2)Measure dimension J on the air duct (05002). Refer to Figure 1032 and do as follows:
(a)Measure dimension J from the aft end to the location where the air duct will seat against the HPT rotor assembly (34-021) (SIN 15000) at four equally spaced locations. Record on the record sheet. Refer to Figure 1033.
(b)Calculate the average for dimension J and record on the record sheet as JAVG.
(3)Make sure that the seal wire and seal are installed on the forward end of the air duct (05002) with the end gaps 180 degrees apart. Refer to Figure 1034.
(4)Install the air duct (34-310) (SIN 05002) in the HPT rotor assembly (15-012 , 72-30-00) (SIN 05000) as follows:
(a)Turn the lower position ring (item 17), in relation to the upper position ring (item 16), until the teeth in the locking ring (item 2) and the torque ring (item 3) are aligned. The ball lock pin (item 19) must be in the slot of the unlocked position.
CAUTION:
THE 11C3266   AIR DUCT INSTALLATION FIXTURE MUST BE HELD VERY TIGHTLY TO PREVENT MOVEMENT THAT CAN CAUSE DAMAGE TO THE PROPULSOR.
(b)Put the fixture in the center so the teeth of the fixture are in the teeth of the air duct. Hold the 11C3266   air duct installation fixture very tightly at all times to prevent movement that can cause damage to the propulsor assembly.
NOTE:
An overhead hoist with an approved lift sling can be used to hold the fixture.
(c)Remove the ball lock pin (item 19) and turn the lower position ring (item 17), in relation to the upper position ring (item 16), until the locking ring (item 2) is in the locked position. The ball lock pin (item 19) must be in the slot of the locked position. Move the air duct aft with the fixture.
(d)Hold the 11C3266   air duct installation fixture very tightly and move the outer tube (item 6) to align the outer threads on the air duct with the inner threads of the HPT rotor stage 1 disk (02-280 , 72-53-00) (SIN 150A1) aft shaft.
(e)Turn the fixture in a CCW direction to thread the air duct into the HPT rotor stage 1 disk. Turn the air duct until it bottoms out in the disk. The air duct must be turned a minimum of two turns.
(f)Remove the ball lock pin (item 19).
(g)Turn the lower position ring (item 17) to disengage the splines from the air duct.
(h)Remove the 11C3266   air duct installation fixture.
(5)Put a protective cover on the bore area.
Subtask 72-00-02-430-968
R.Continue to assemble the propulsor assembly. Refer to TASK 72-00-02-430-820 (72-00-02, ASSEMBLY 002 CONFIGURATION 02).
* * * FOR ALL PIP 2
Figure 1032   Measurement of the Dimension J on the Air Duct
* * * FOR ALL PIP 2
Figure 1033   Record Sheet for Dimension J on the Air Duct
* * * FOR ALL PIP 2
Figure 1034   Installation of the Air Duct with the Seal in the HPC Module Assembly
* * * FOR ALL PIP 2
Figure 1035   (Sheet 1 ) Installation of the Air Duct with the Air Duct Installation Fixture, 11C3266
* * * FOR ALL PIP 2
Figure 1035   (Sheet 2 ) Installation of the Air Duct with the Air Duct Installation Fixture, 11C3266
