* * * FOR ALL
TASK 72-00-02-030-801
1 . General.
A.This procedure gives instructions to disassemble the GEnx™ series engine propulsor. This procedure includes the variable frequency starter generator (VFSG), the quick attach-detach (QAD) rings from the aft side of the accessory gearbox (AGB), and removal of the electrical harnesses from the propulsor.
B.This procedure starts with the propulsor module assembly (propulsor) in the horizontal position. The propulsor can be installed in the 11C3443   shipping stand, the 11C3044   overhead support, attached to the customer overhead rail system, or supported by the 11C3281   pedestals.
•
Propulsor (30-020 , 72-00-00) (SIN 0010C)
•
Propulsor (30-021 , 72-00-00) (SIN 0010C) (SB 72-0161) (Propulsor Module - PIP2 Configuration)
•
Propulsor (30-022 , 72-00-00) (SIN 0010C) (SB 72-0161) (Propulsor Module - PIP2 Configuration)
•
Propulsor (30-023 , 72-00-00) (SIN 0010C) (SB 79-0018).
C.Before you do this procedure, read the assembly and disassembly techniques section. Refer to TASK 70-10-00-800-009 (70-10-00, assembly and disassembly techniques).
D.Make sure that the assembly has the correct support at all times to prevent injury to personnel or damage to engine parts.
E.Make sure that personnel read this procedure and know the step-by-step instructions and special tool usage before they disassemble the engine propulsor.
F.Install protective covers/plugs on electrical connectors to prevent damage and contamination.
G.Make sure that you obey all site safety and environmental controls or personal injury can occur.
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

11C3039G02
Bracket Set - Forward Propulsor Ground Handling and Shipping (bracket set)

11C3044G01
Adapter Assembly, Overhead Support - Engine Modules (overhead support)

11C3057G02
Fixture - Lift and Turn, Forward, Fan Hub Frame (lift fixture)

11C3279G01
Dolly, Separation - Fan Case (fan case dolly)

11C3281G02
Bracket Set, Support - Main Engine (pedestals)
NOTE:
To use with the fan hub frame (FHF)

11C3281G03
Bracket Set, Support - Main Engine (pedestals)
NOTE:
To use with the turbine center frame (TCF)

11C3443P03
Stand, Shipping (shipping stand)

11C4412G02

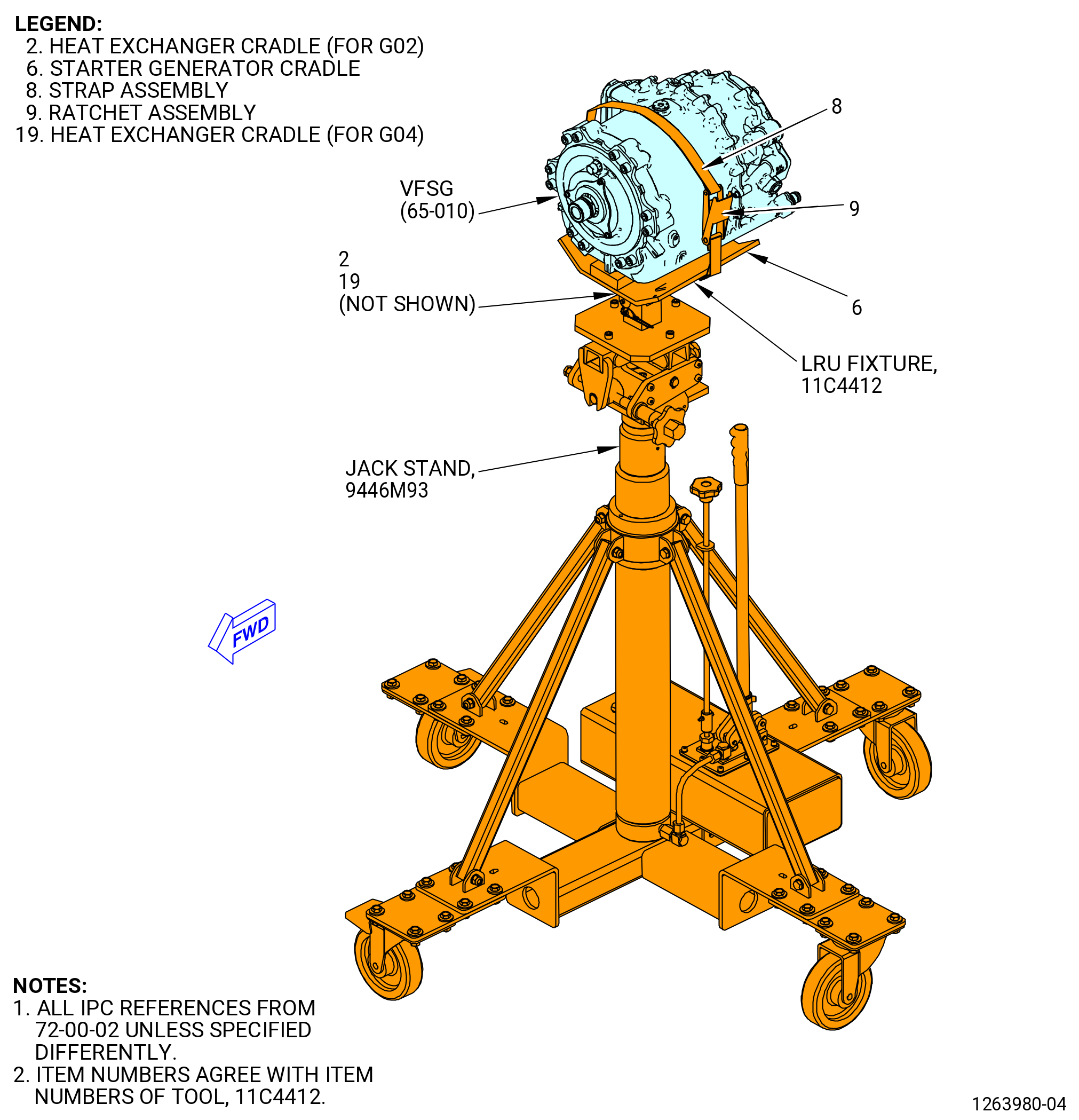

Fixture, Install/Remove - Line Replaceable Units (LRU fixture)
NOTE:
Tool 11C4412G02 is alternative to 11C4412G04

11C4412G04
Fixture, Install/Remove - Line Replaceable Units (LRU fixture)

11C4430G02
Bracket Set - Forward Propulsor, Ground Handling and Shipping (bracket set)
NOTE:
Tool 11C4430G02 is alternative to 11C3039G02

11C4480G01
Bracket Set, FHF Aft Flange (FHF brackets)

NOTE:
Tool 11C4480 is alternative to 11C3057

9429M43G01
Adapter, Overhead Support - Fan Hub Frame (fan hub frame overhead support adapter)

9429M47G01
Adapter, Overhead Support - LPT (LPT overhead support adapter)

9429M48G01
Adapter, Overhead Support - Bridge Beam (bridge beam overhead adapter)

9446M42G02
Stand, Jack - LRU Installation/Removal (jack stand)

NOTE:
Tool 9446M42 is alternative to 9446M93

9446M93P01
Stand, Jack - LRU Install/Remove (jack stand)

9471M12P01
Stand, Jack - LRU Install/Remove (jack stand)
NOTE:
Tool 9471M12P01 is an alternative to 9446M93P01
(2)Standard Tools and Equipment.

Description
Manufacturer

Customer Overhead Rail System
Locally Used

Container, 5 gallon (19 liter) capacity
Local Purchase

Pliers, Soft-Jaw
Local Purchase
(3)Locally Manufactured Tools. None.
B.Consumable Materials.

Code No.
Description

C01-006
RTV, Silicone Elastomer (RTV 103)

C01-007
RTV, Silicone Elastomer (RTV 106)
C.Referenced Procedures.

ATA No.
Description

70-10-00
Assembly And Disassembly Techniques

72-00-02
Disassembly 002
D.Expendable Parts.

CSN No.
Description

C00N0
Preformed Packing

C00N1
Preformed Packing

C00N2
Preformed Packing

C00N3
Preformed Packing

C00N4
Preformed Packing
* * * FOR ALL

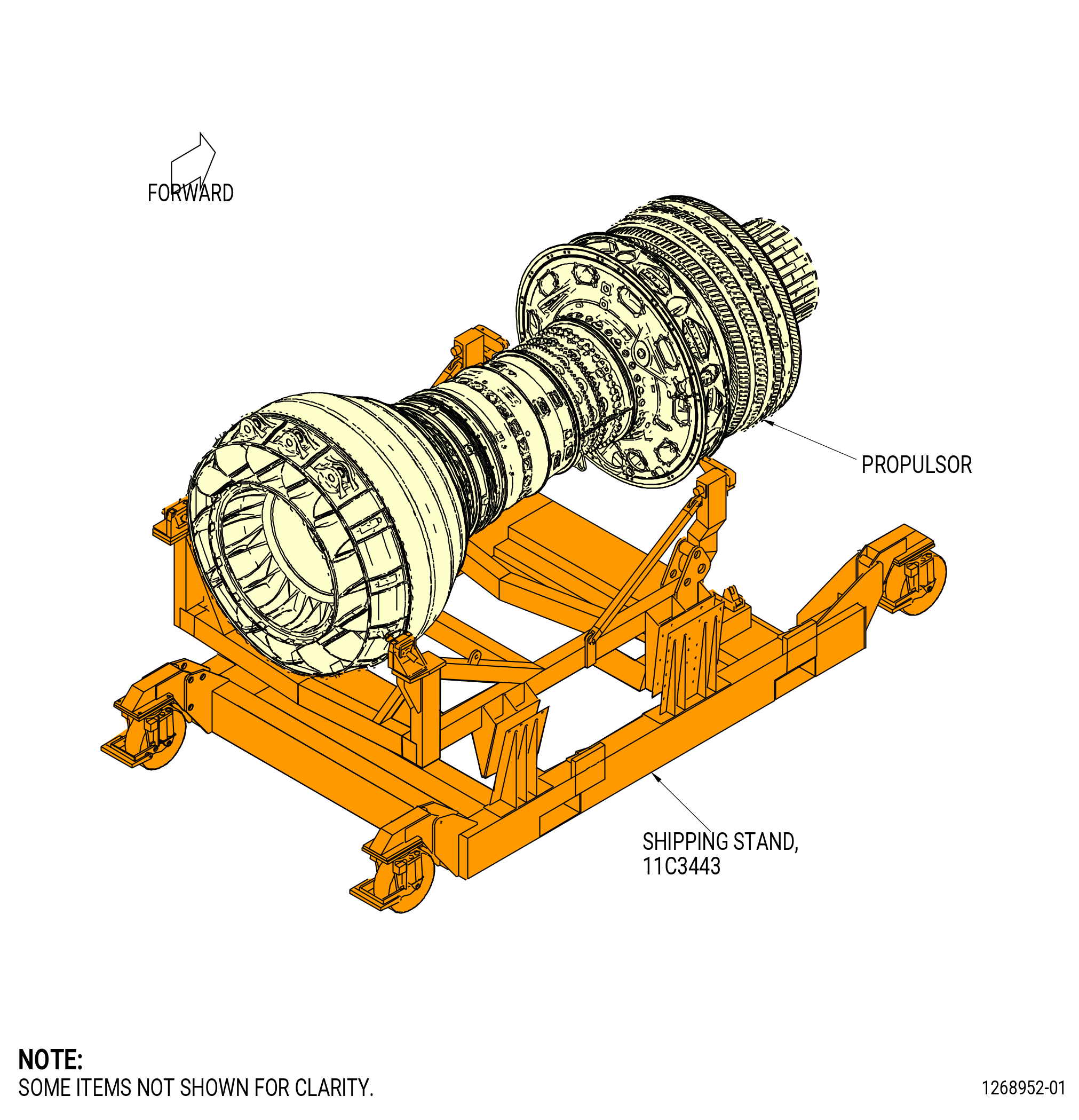

Figure 501   Propulsor in Shipping Stand, 11C3443
3 . Procedure.
Subtask 72-00-02-040-001
A.Remove the propulsor from the 11C3443   shipping stand and install it in the 11C3044   overhead support as follows:
NOTE:
The 11C3044   overhead support tool includes the 9429M43   fan hub frame overhead support adapter, 9429M47   LPT overhead support adapter, and 9429M48   bridge beam overhead support adapter.
(1)Attach the 11C3057   lift fixture to the fan hub frame as follows. Refer to Figure 502.
(a)Attach a hoist to the pivot hoist ring (item 8) of the 11C3057   lift fixture.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(b)Lift the 11C3057   lift fixture above and just forward of the fan hub frame (10-400 , 72-25-00) (SIN 84000) or (10-401 , 72-25-00) (SIN 84000) or (10-402 , 72-25-00) (SIN 84000).
(c)Align the bracket (item 7) with the fan hub frame top centerline and lower the 11C3057   lift fixture until the boltholes align.
(d)Move the bracket (item 7) of the 11C3057   lift fixture aft and put the capscrews (item 6) in the boltholes in the forward flange of the fan hub frame.
(e)Install the capscrews (item 6) through the aft flange of the fan hub frame and into the aft leg of the bracket (item 7) of the 11C3057   lift fixture. Tighten the capscrews (item 6).
(f)Remove the hoist from the 11C3057   lift fixture.
* * * FOR ALL

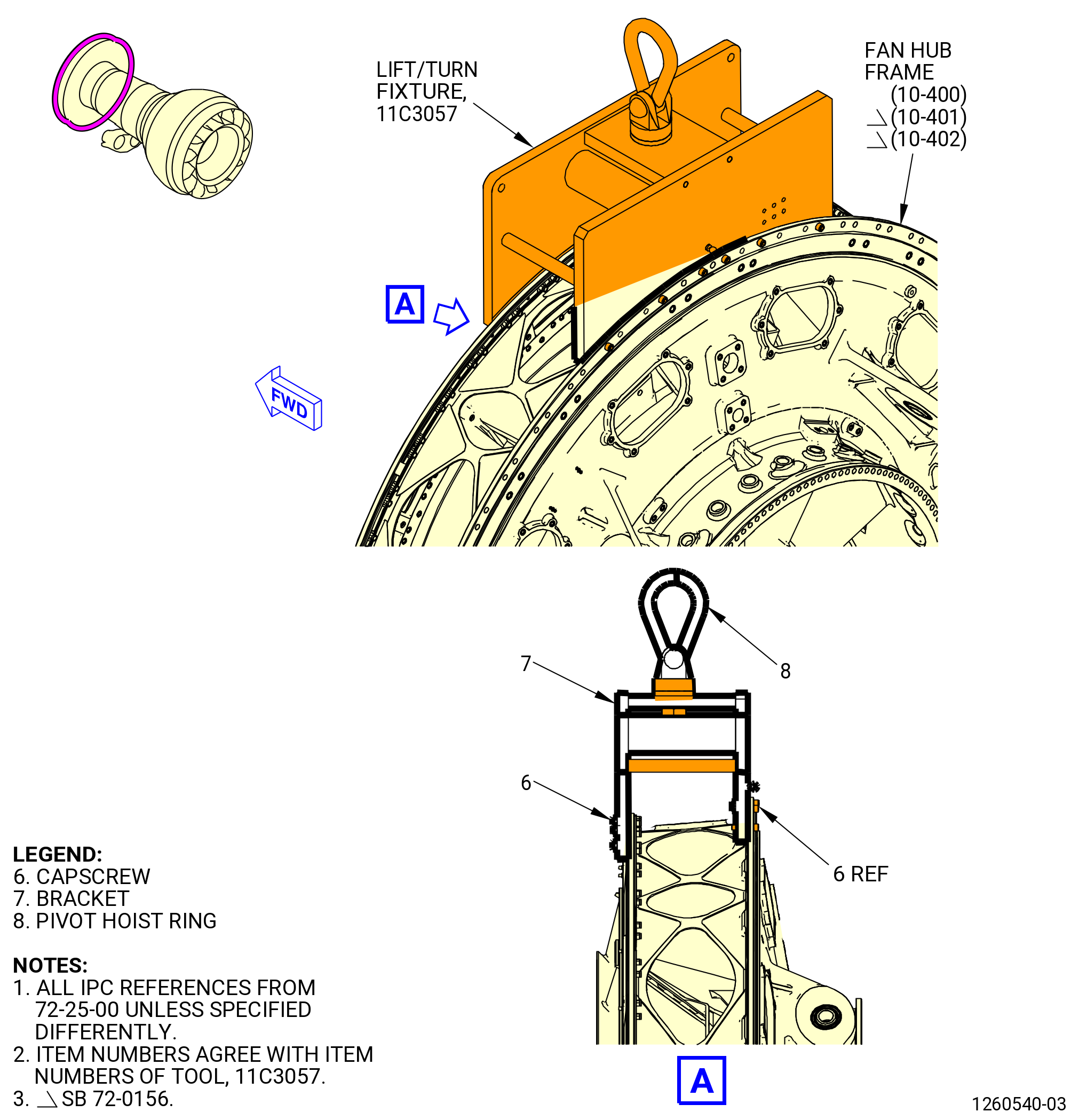

Figure 502   Attach Lift/Turn Fixture, 11C3057, to Fan Hub Frame
Subtask 72-00-02-040-193

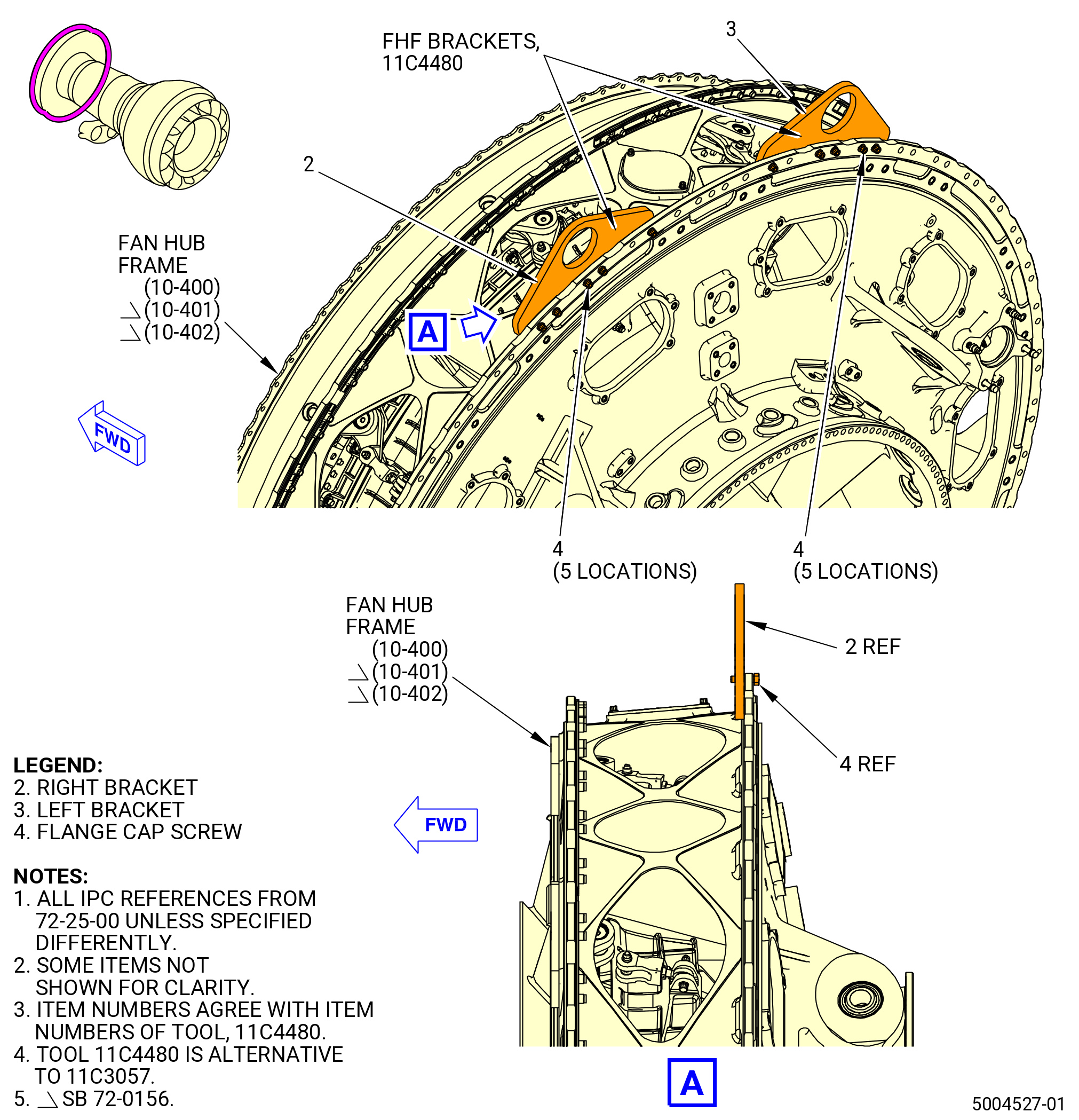

(1).A.Attach the 11C4480   FHF brackets to the fan hub frame (10-400 , 72-25-00) (SIN 84000) or (10-401 , 72-25-00) (SIN 84000) or (10-402 , 72-25-00) (SIN 84000). Refer to Figure 503 and do as follows:
(a)Remove the flange cap screw (item 4) from the storage locations on the brackets (item 2 and 3).
(b)Put the left bracket (item 3) on fan hub frame flange at the 11 o’clock position, from the aft end of the fan hub frame looking forward, and attach the left bracket (item 3) with five flange cap screws (item 4).
(c)Tighten the flange cap screws (item 4) to secure the left bracket (item 3).
(d)Put the right bracket (item 2) on fan hub frame flange at the 1 o’clock position, from the aft end of the fan hub frame looking forward, and attach the right bracket (item 2) with five flange cap screws (item 4).
(e)Tighten the flange cap screws (item 4) to secure the right bracket (item 2).
* * * FOR ALL
Figure 503   Installation of the FHF Brackets, 11C4480, on the Fan Hub Frame
Subtask 72-00-02-040-003
(2)Attach the 9429M48   bridge beam overhead support adapter to the customer overhead rail system. Refer to Figure 504.
(a)Put the clevis (item 3) through the hole in the beam (item 2).
(b)Attach the retaining ring (item 4) around the groove in the clevis (item 3) to attach the clevis to the beam.
(c)Align the holes in the clevis (item 3) with the holes in the customer overhead rail system.
(d)Attach the clevis to the customer overhead rail system with the shoulder screws (item 5) and nuts (item 6). Tighten the nuts.
* * * FOR ALL

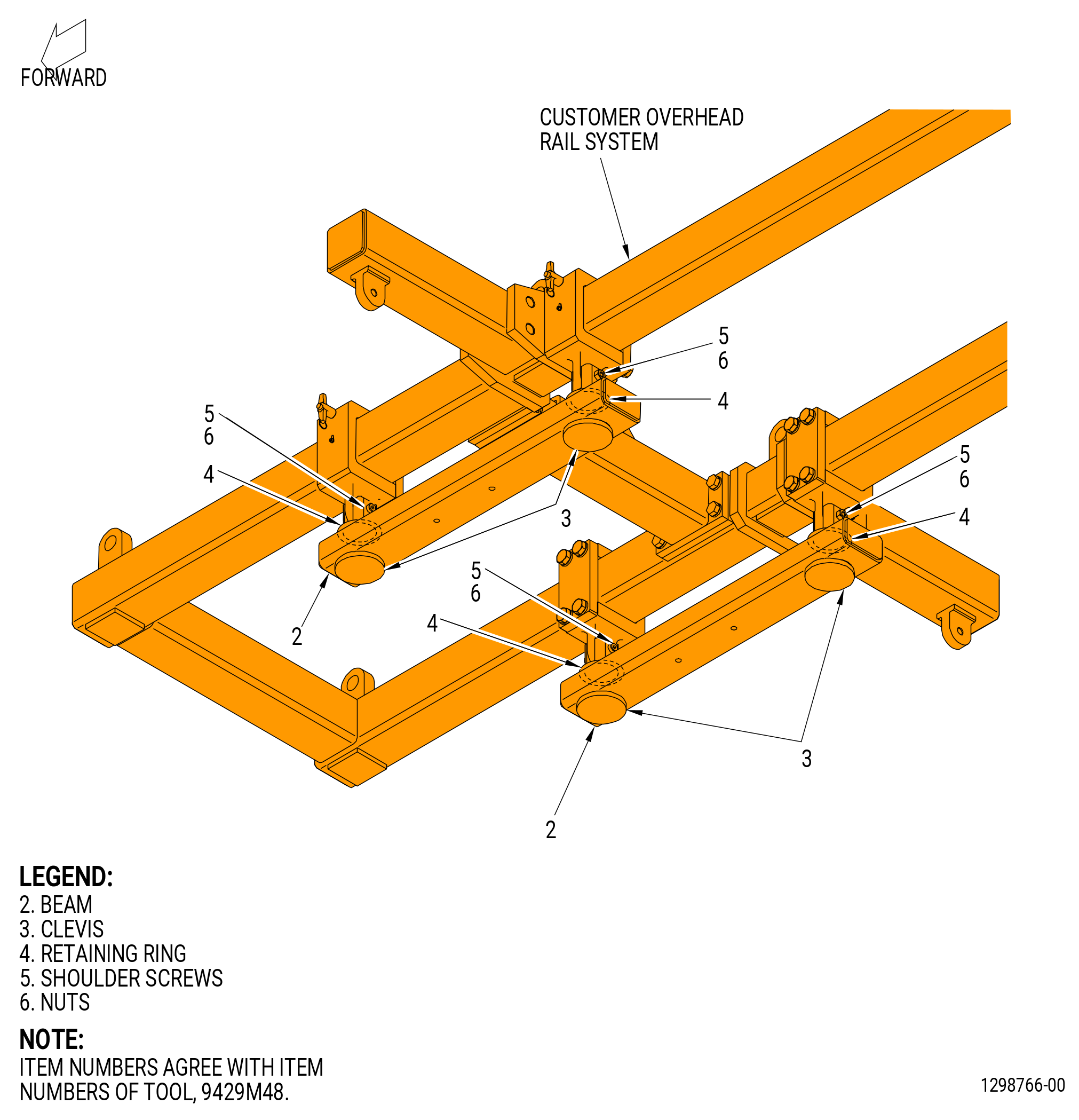

Figure 504   Attach the Bridge Beam Overhead Support Adapter, 9429M48, to the Customer Overhead Rail System
Subtask 72-00-02-040-007
(3)Attach the 9429M47   LPT overhead support adapter to the customer overhead rail system. Refer to Figure 505.
(a)Attach the hooks (item 3) to the customer overhead rail system.
* * * FOR ALL

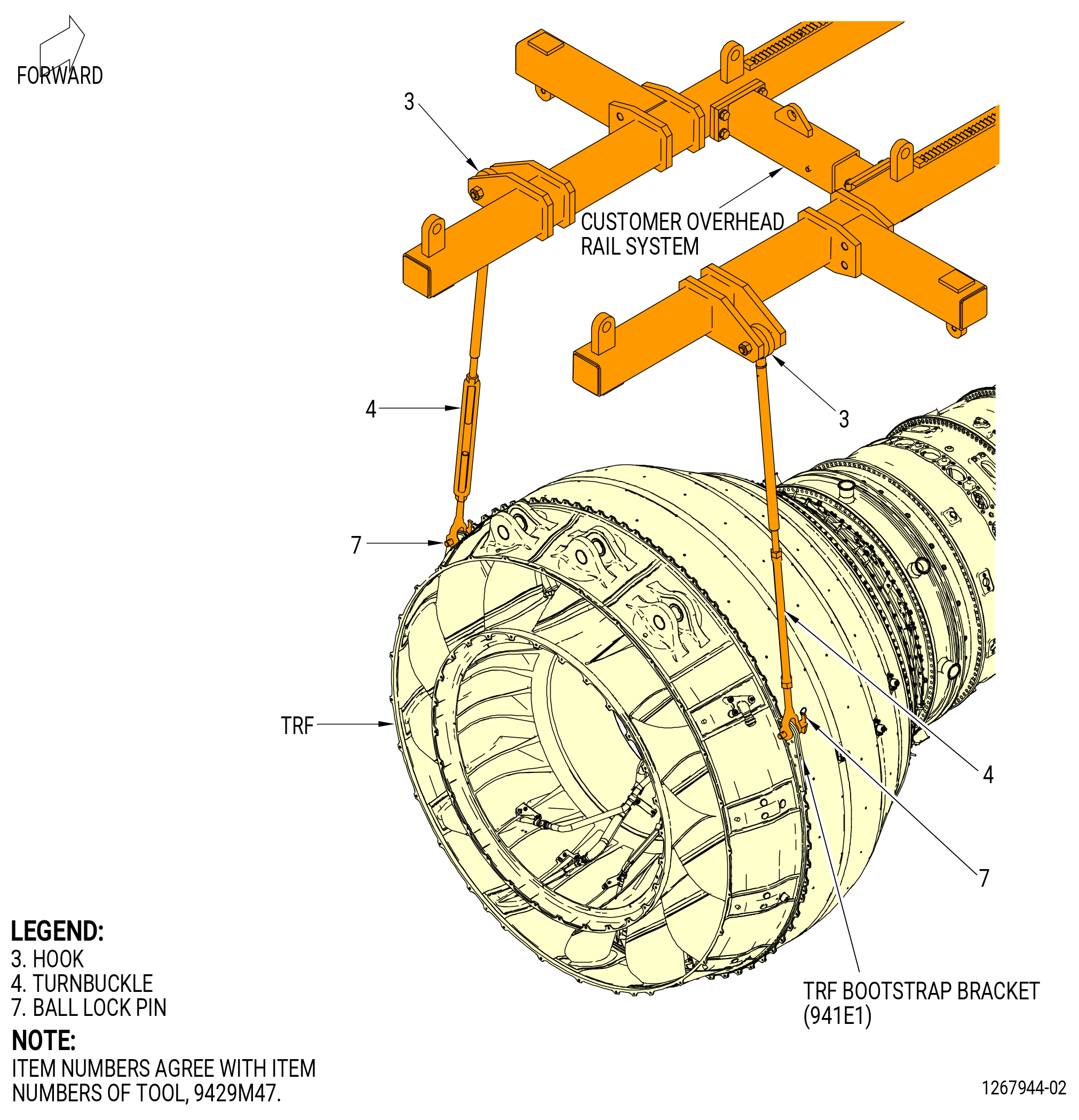

Figure 505   Attach the LPT Overhead Support Adapter, 9429M47, to the Customer Overhead Rail System
Subtask 72-00-02-040-165
(4)Attach the 9429M43   fan hub frame overhead support adapter to the 9429M48   bridge beam overhead support adapter. Refer to Figure 506.
(a)Attach the hangers (item 2) to the 9429M48   bridge beam overhead support adapter with the retainers (item 3) and shoulder screws (item 5). Attach shoulder screws loosely.
(b)Adjust hangers (item 2) horizontally forward and rearward, as necessary.
(c)Tighten the shoulder screws (item 5).
(5)Move the propulsor and 11C3443   shipping stand under the customer overhead rail system.
* * * FOR ALL

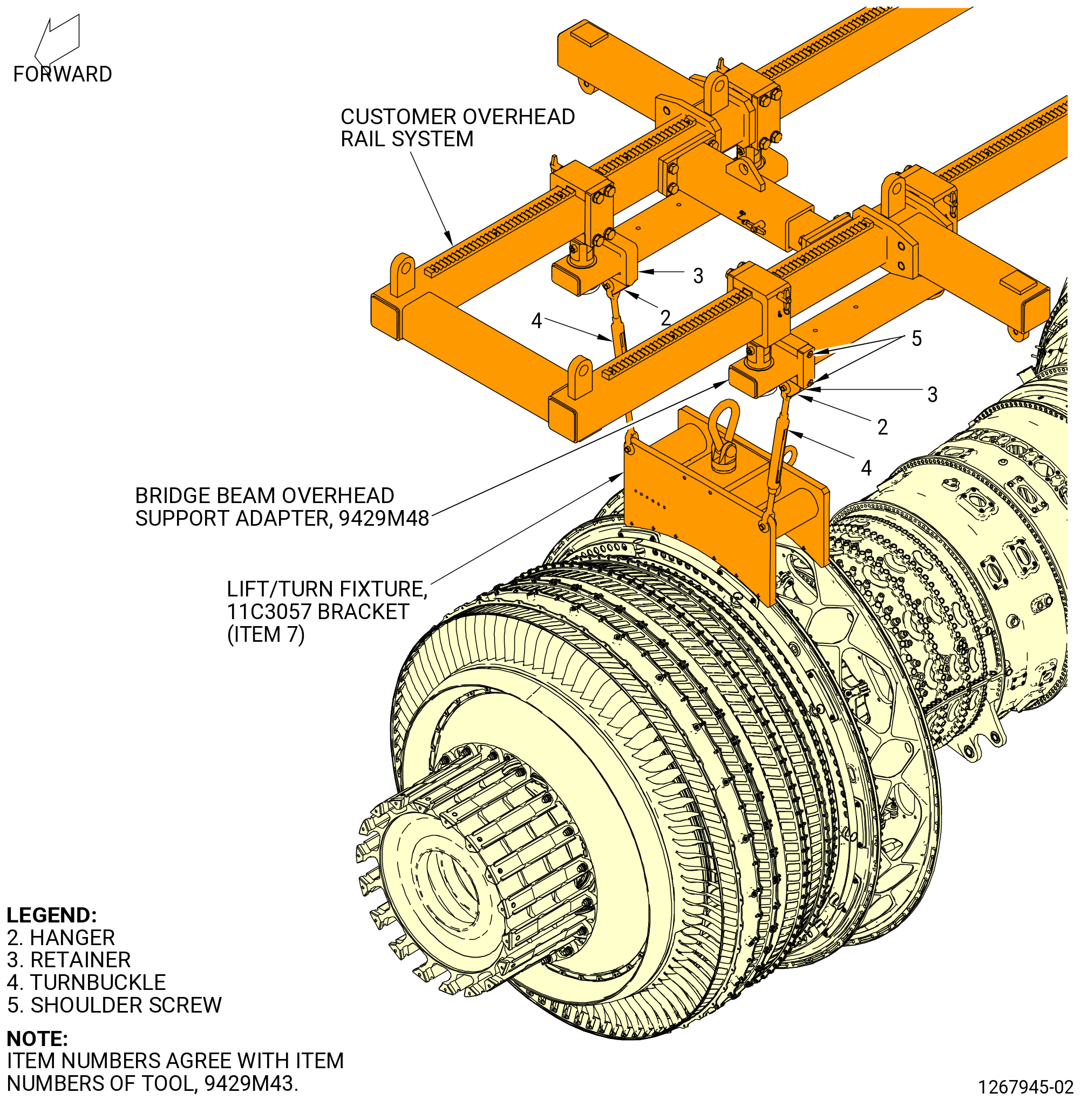

Figure 506   (Sheet 1 ) Attach the 9429M43, Fan Hub Frame Overhead Support Adapter, to the 9429M48, Bridge Beam Overhead Support Adapter
* * * FOR ALL
Figure 506   (Sheet 2 ) Attach the 9429M43, Fan Hub Frame Overhead Support Adapter, to the 9429M48, Bridge Beam Overhead Support Adapter
Subtask 72-00-02-040-166
(6)Attach the 9429M47   LPT overhead support adapter to the turbine rear frame (TRF) on the propulsor. Refer to Figure 505.
(a)Adjust the turnbuckles (item 4) up and down until the holes in the clevis (item 7) are aligned with the holes in the TRF bootstrap brackets (941E1).
(b)Insert the ball lock pins (item 7) through the clevis holes to lock the 9429M47   LPT overhead support adapter to the TRF bootstrap brackets (941E1).
Subtask 72-00-02-040-167
(7)Attach the 9429M43   fan hub frame overhead support adapter to the 11C3057   lift fixture or 11C4480   FHF brackets. Refer to Figure 506 and do as follows:
(a)Adjust the turnbuckles (item 4) to align the holes in the turnbuckle jaws of the 9429M43   fan hub frame overhead support adapter with the holes on each end of the forward plate of the bracket (item 7) of the 11C3057   lift fixture or 11C4480   FHF brackets.
(b)Insert the turnbuckle jaw pins through the 9429M43   fan hub frame overhead support adapter and 11C3057   lift fixture or 11C4480   FHF brackets.
Subtask 72-00-02-040-136
(8)Remove the propulsor from the 11C3443   shipping stand as follows. Refer to Figure 501.
(a)Make sure that the stand is level and stable, with the caster brakes set.
(b)If necessary, adjust the turnbuckles (item 4) of the 11C3044   overhead support until the propulsor is in a horizontal position. Refer to Figure 505 and Figure 506.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(c)Use the customer overhead rail system to lift the propulsor until the propulsor weight is off of the 11C3443   shipping stand.
(d)Remove the pins from the fan frame mounts and the 11C3039   bracket set.
(e)Remove the aft mount adapters and spacers from the aft supports of the 11C3443   shipping stand.
(f)Continue to lift the propulsor to a sufficient height so it does not touch the stand.
(g)Move the propulsor away from the stand, or move the stand away from the propulsor.
(h)Remove the aft mount adapters from the TRF ground handling mounts. Store the aft mount adapters on the stand.
Subtask 72-00-02-030-457
B.Disconnect the electrical connections from the VFSG as follows. Refer to Figure 507 and Figure 507A.
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. YOU CAN DAMAGE THE CONNECTORS IF YOU USE METAL-JAWED PLIERS.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN YOU DISCONNECT THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
NOTE:
The two VFSG are identical. The VFSG installed on the AGB No. 1 mount pad is the left hand (LH) VFSG, and the VFSG installed on the No. 2 pad is the right hand (RH) VFSG. The procedure to remove the LH VFSG or RH VFSG is the same, unless specified differently.
(1)Disconnect the W32 or W33 electrical harnesses as follows:
Subtask 72-00-02-030-548

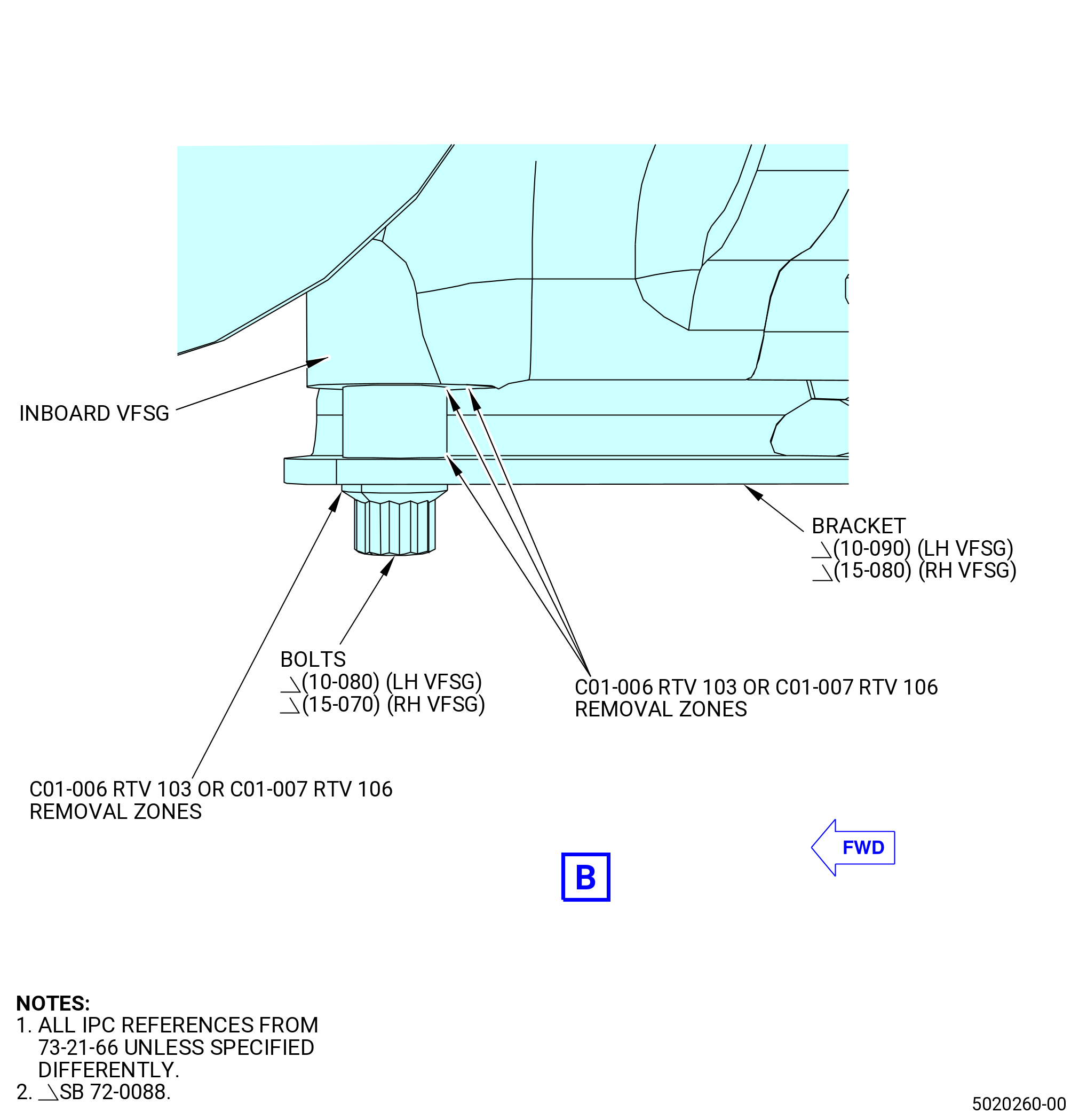

* * * PRE SB   72-0088( Removal of the VFSG Power Feeder Harnesses from the VFSG )

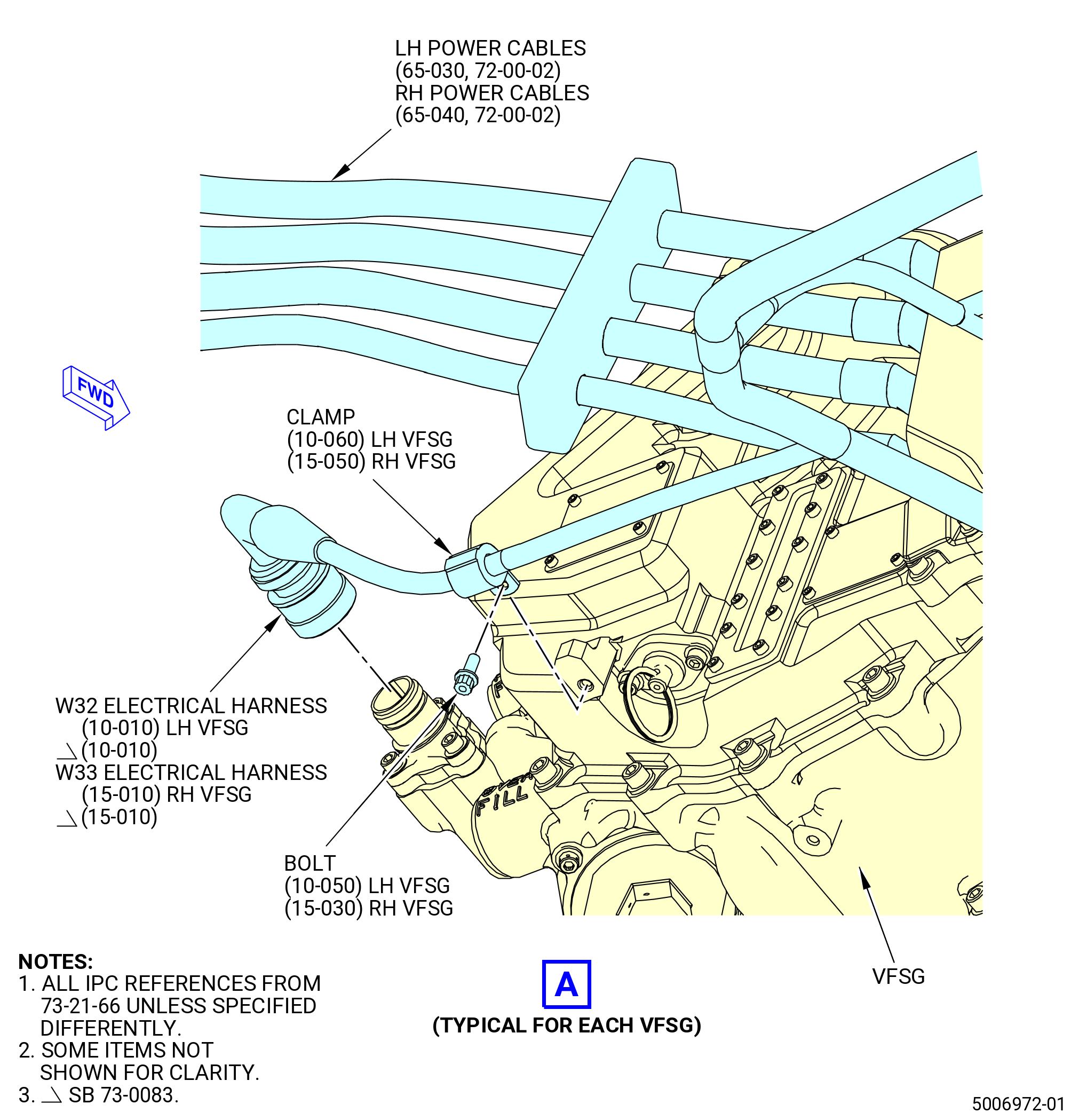

(a)Remove the W32 electrical harness (10-010 , 73-21-66) (SIN 68802) and W33 electrical harness (15-010 , 73-21-66) (SIN 68803) from the VFSG as follows:
1Remove the machine bolts (bolts) (10-050 , 73-21-66) (SIN 68824) and (15-030 , 73-21-66) (SIN 68824) and cushioned loop clamp (clamps) (10-060 , 73-21-66) (SIN 68885) and (15-050 , 73-21-66) (SIN 68885) that attach the W32 electrical harness and W33 electrical harness to the VFSG.
* * * END PRE SB   72-0088
Subtask 72-00-02-030-549
* * * SB   72-0088( Removal of the VFSG Power Feeder Harnesses and Brackets from the VFSG )
(a).A.Remove the W32 electrical harness (10-010 , 73-21-66) (SIN 68802) and W33 electrical harness (15-010 , 73-21-66) (SIN 68803) and LH VFSG1 power feeder harness (LH power cables) (65-031) (SIN 68000) or RH VFSG2 power feeder harness (RH power cables) (65-041) (SIN 68001) from the VFSG as follows:
1Remove the machine bolts (bolts) (65-055) (SIN 69922) that attach the end ground lugs of the LH power cables and RH power cables to the brackets (10-090 , 73-21-66) (SIN 69911) and (15-080 , 73-21-66) (SIN 69911).
2Remove the machine bolts (bolts) (10-070 , 73-21-66) (SIN 69923) and (15-060 , 73-21-66) (SIN 69923) and clamps (10-060 , 73-21-66) (SIN 68885) and (15-050 , 73-21-66) (SIN 68885) that attach the W32 electrical harness or W33 electrical harnesses to the brackets.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF CONSUMABLE PRODUCTS.
3Remove the C01-006  RTV 103 or the C01-007  RTV 106 as necessary from the joints between the brackets (10-090 , 73-21-66) (SIN 69911) and (15-080 , 73-21-66) (SIN 69911), bolts (10-070 , 73-21-66) (SIN 69923) and (15-060 , 73-21-66) (SIN 69923), and clamps (10-060 , 73-21-66) (SIN 68885) and (15-050 , 73-21-66) (SIN 68885) that attach the W32 electrical harness or the W33 electrical harness to the VFSG through the brackets (10-090 , 73-21-66) (SIN 69911) and (15-080 , 73-21-66) (SIN 69911).
4Remove the bolts (10-070 , 73-21-66) (SIN 69923) and (15-060 , 73-21-66) (SIN 69923), and clamps (10-060 , 73-21-66) (SIN 68885) and (15-050 , 73-21-66) (SIN 68885) that attach the W32 electrical harness or the W33 electrical harness to the VFSG through the brackets (10-090 , 73-21-66) (SIN 69911) and (15-080 , 73-21-66) (SIN 69911).
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF CONSUMABLE PRODUCTS.
5Remove the C01-006   RTV 103 or the C01-007   RTV 106 as necessary from the joints between the brackets (10-090 , 73-21-66) (SIN 69911) and (15-080 , 73-21-66) (SIN 69911) and bolts (10-080 , 73-21-66) (SIN 69921) and (15-070 , 73-21-66) (SIN 69921) that attach the brackets (10-090 , 73-21-66) (SIN 69911) and (15-080 , 73-21-66) (SIN 69911) to the VFSG.
6Remove the machine bolts (bolts) (10-080 , 73-21-66) (SIN 69921) and (15-070 , 73-21-66) (SIN 69921) that attach the brackets to the VFSG. Remove the brackets.
* * * END SB   72-0088
Subtask 72-00-02-030-550
(b)Use soft-jaw pliers to disconnect the W32 electrical harness from the LH VFSG. There are three connectors on the inboard side and one connector on the aft side of the VFSG.
(c)Use soft-jaw pliers to disconnect the W33 electrical harness from the RH VFSG. There are three connectors on the inboard side and one connector on the aft side of the VFSG.
(d)Install protective caps or covers on the electrical connectors.

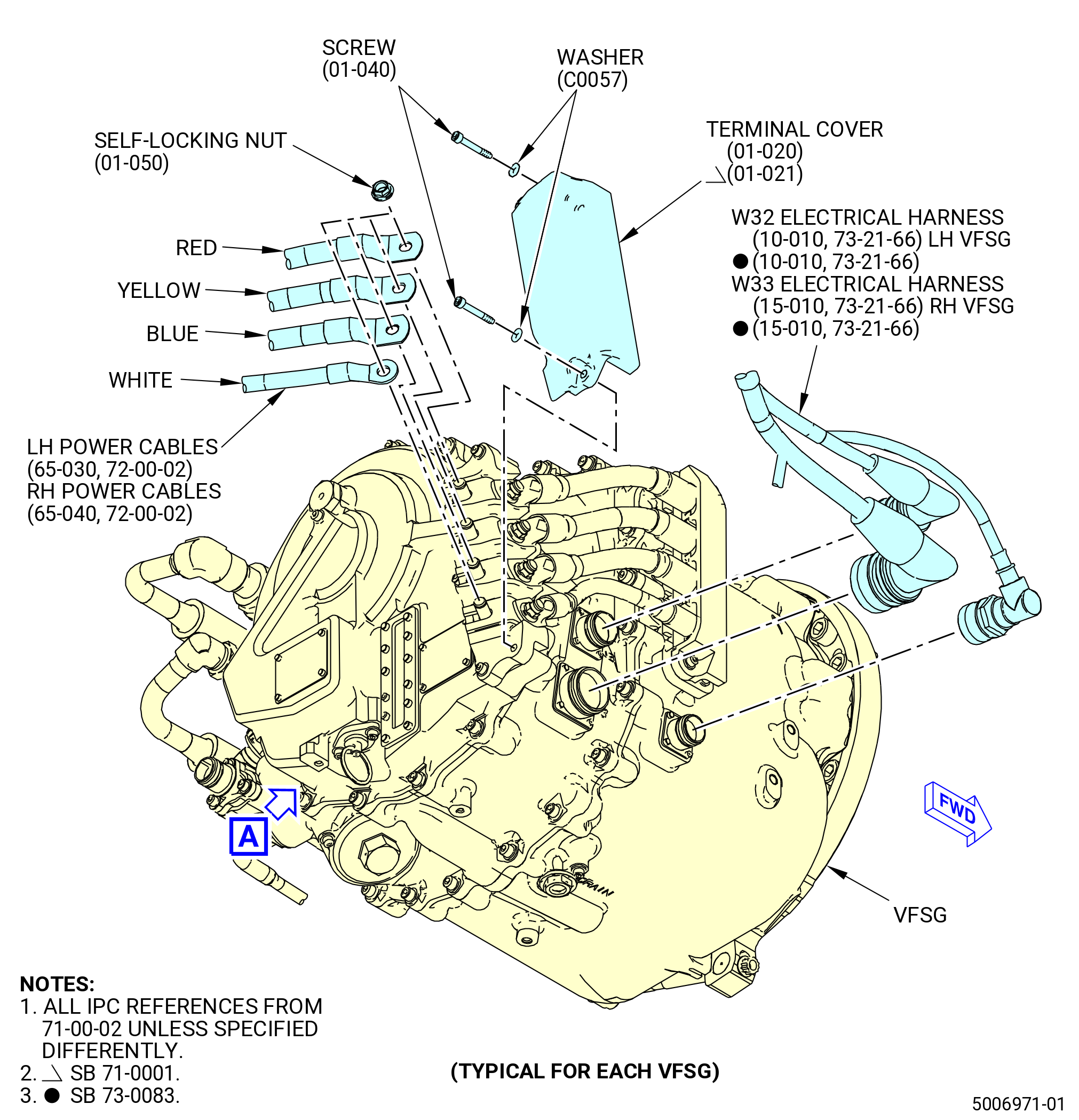

(2)Remove the two capscrews and two washers from the terminal cover (01-020 , 71-00-02) (SIN C00A1) or (01-021 , 71-00-02) (SIN C00A1).
(3)Remove the terminal cover (01-020 , 71-00-02) (SIN C00A1) or (01-021 , 71-00-02) (SIN C00A1) from electrical terminal block.
(4)Remove the four nuts that attach the four LH power cables or RH power cables to the electrical terminal block.
(5)Disconnect the ends of the electrical harness and LH power cables or RH power cables away from the VFSGs so they do not interfere with VFSG removal.

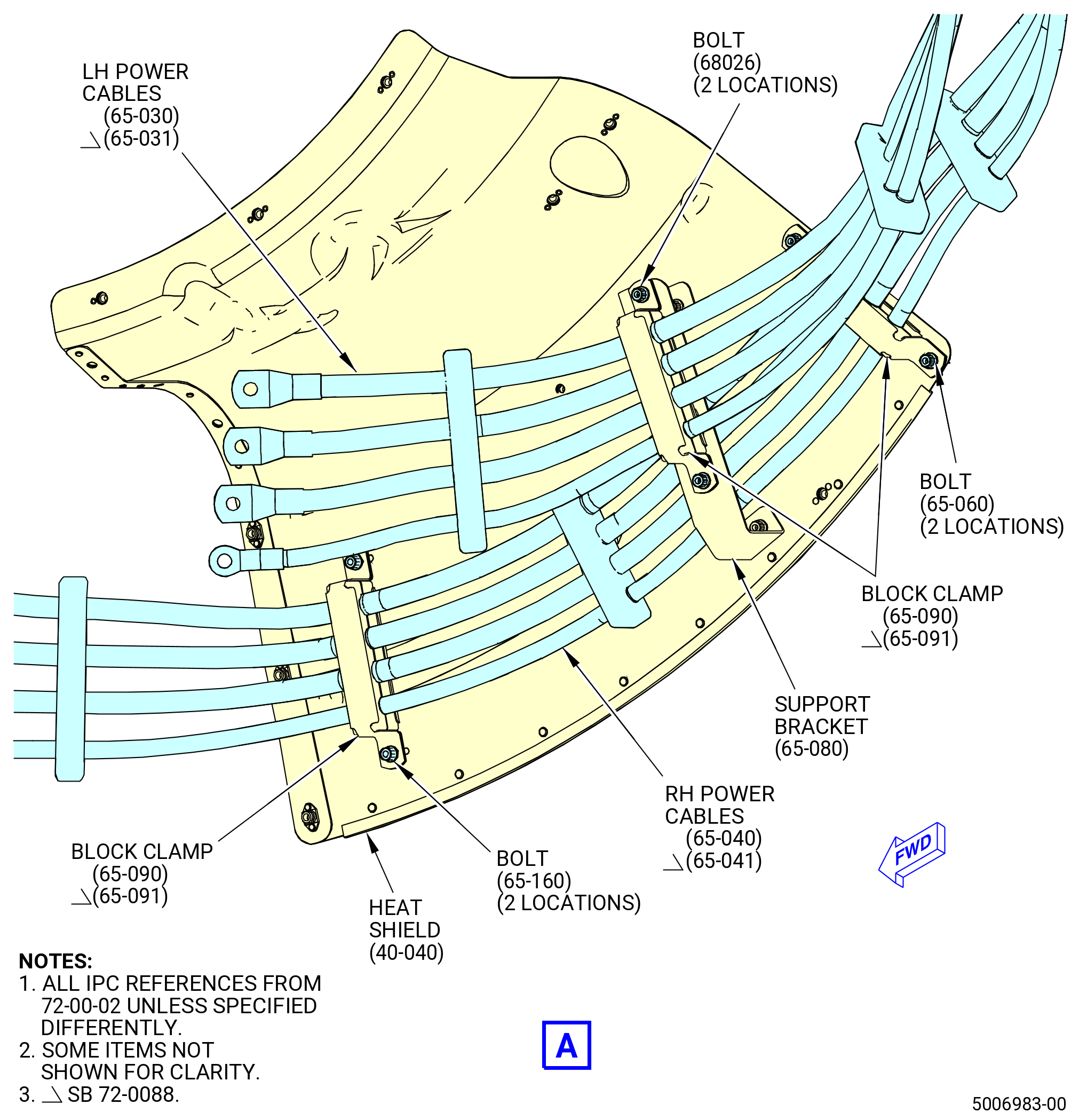

* * * FOR ALL
* * * PRE SB   72-0088( Removal of the VFSG Power Feeder Harnesses from the VFSG )

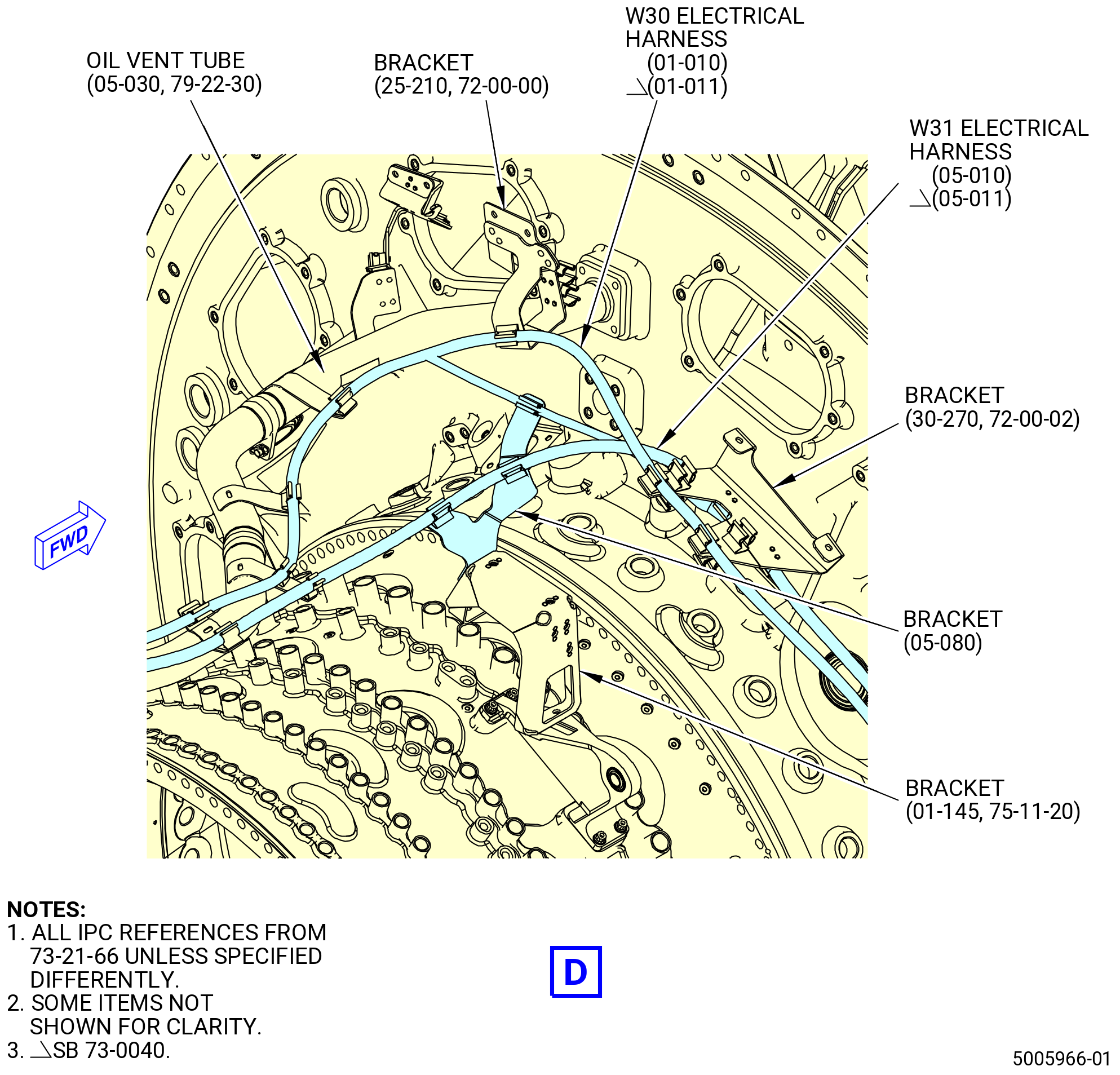

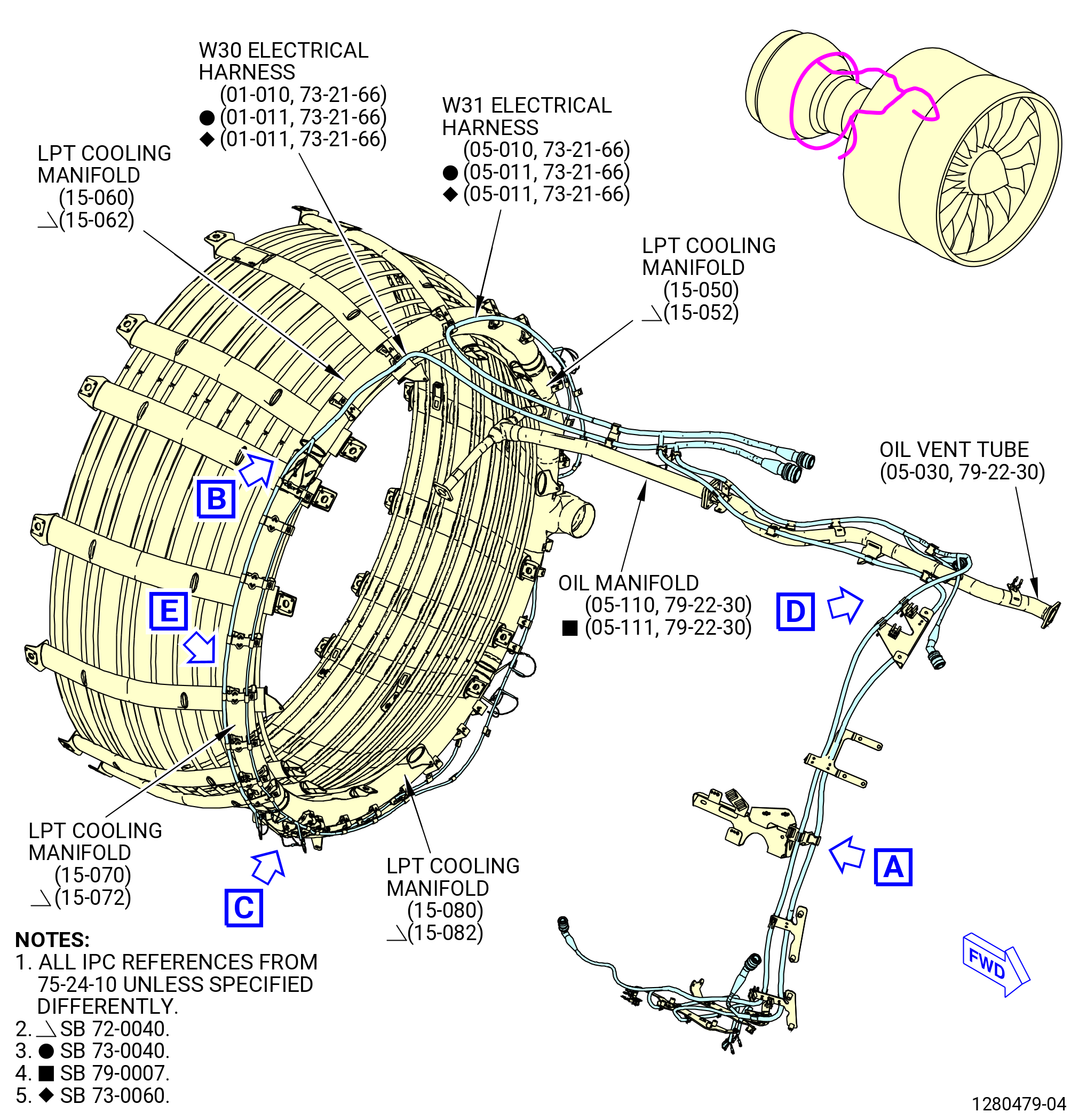

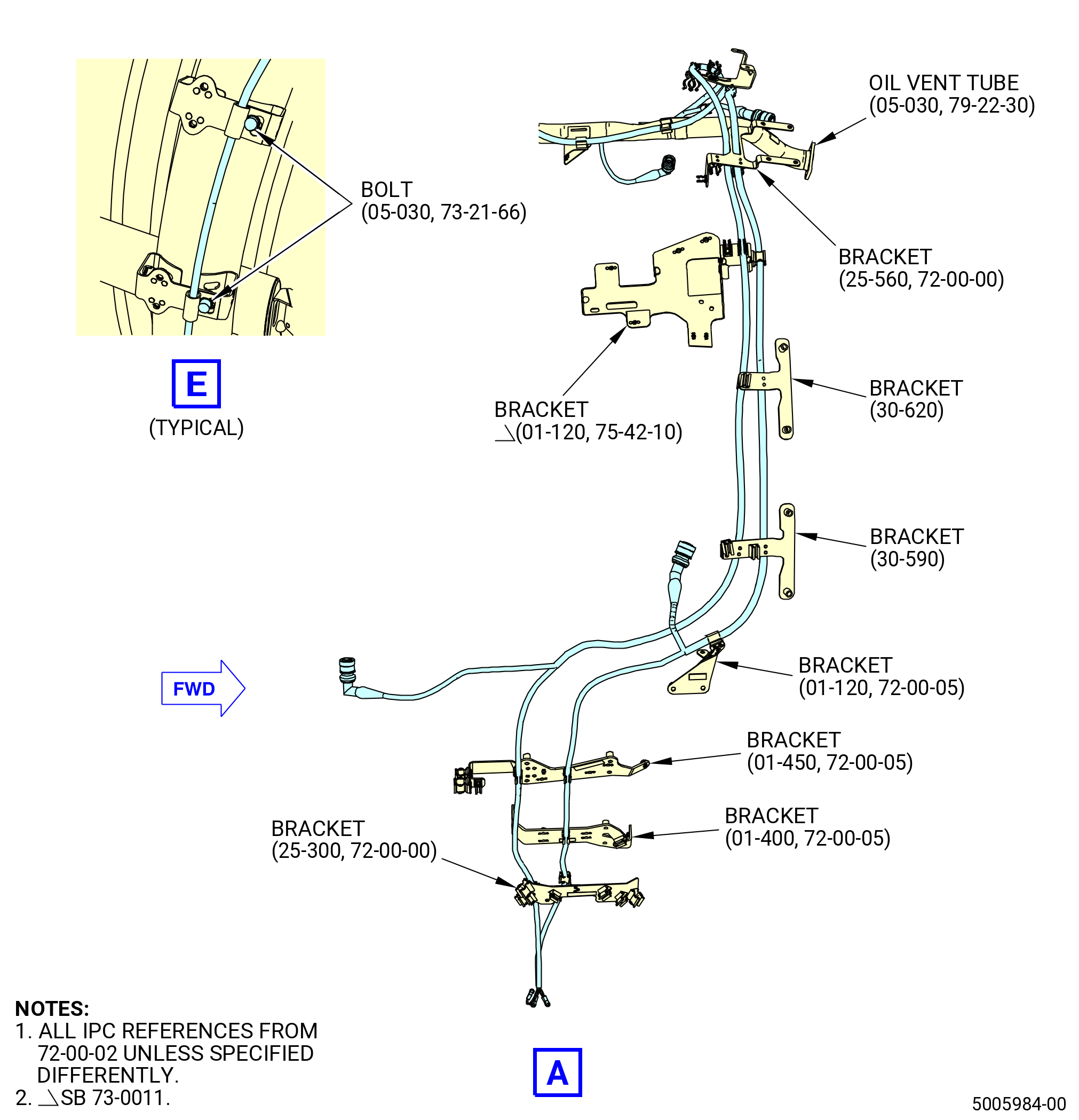

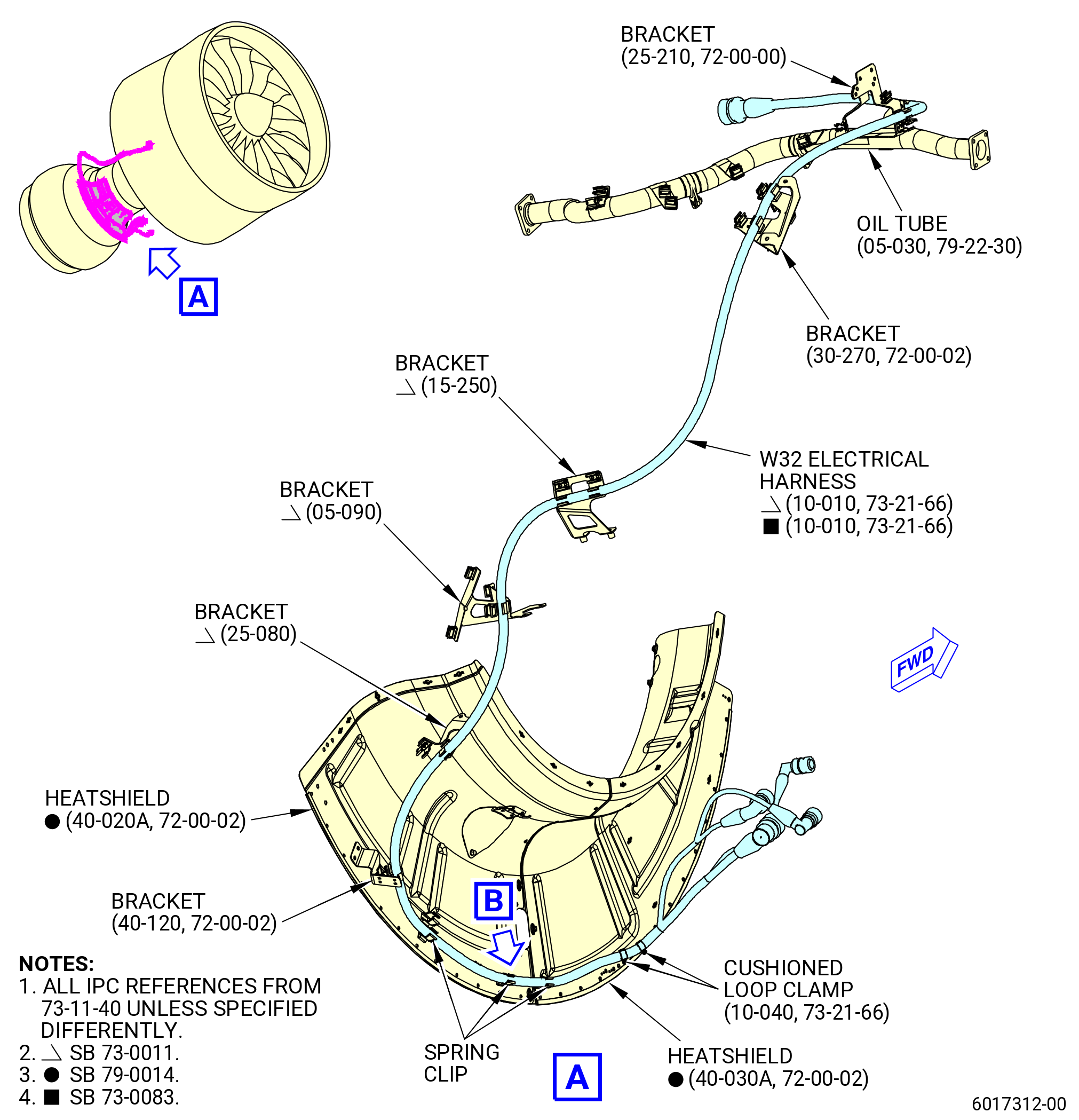

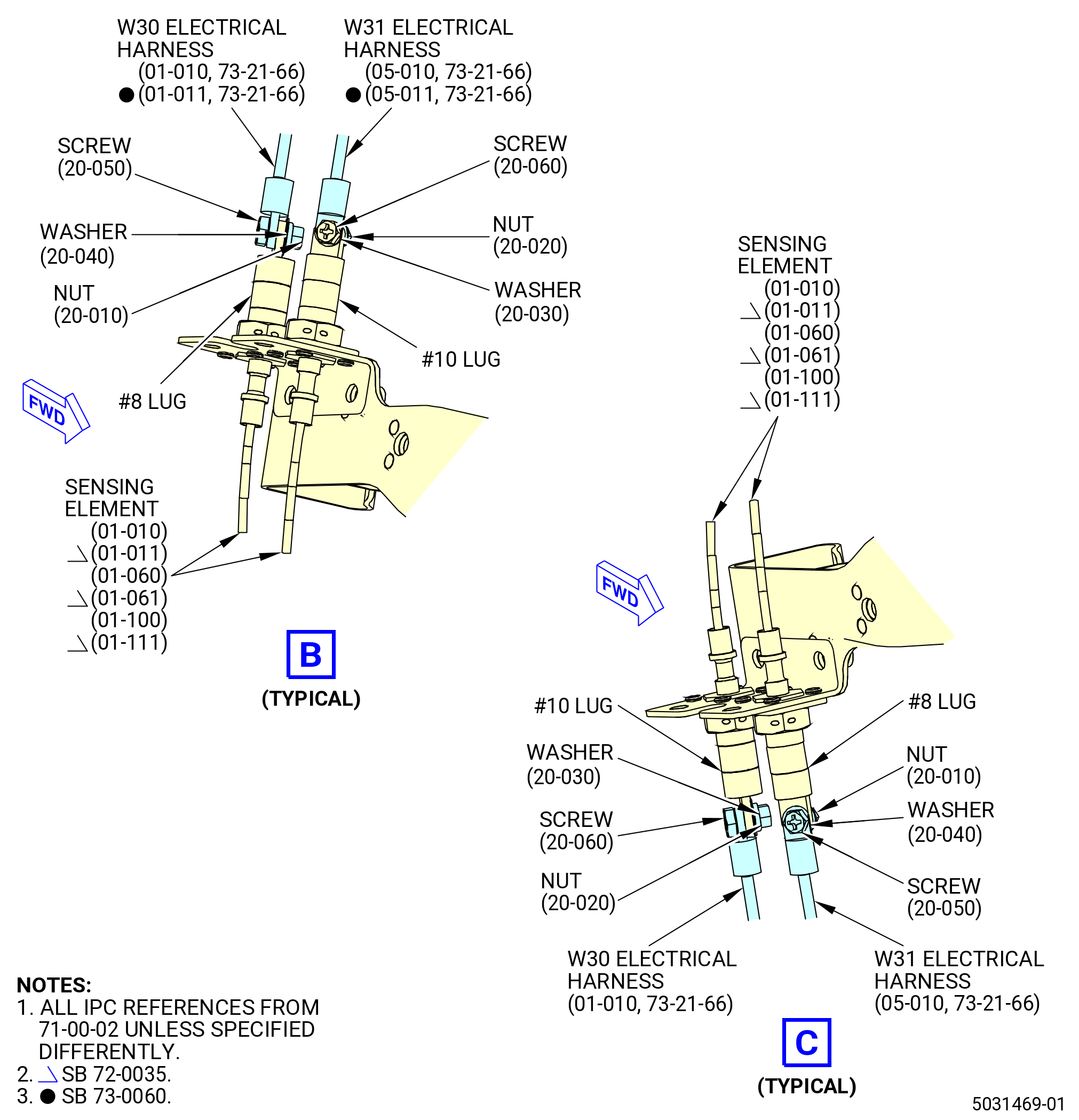

Figure 507   (Sheet 1 ) Removal of the Electrical Connections from the VFSG
* * * FOR ALL
* * * PRE SB   72-0088( Removal of the VFSG Power Feeder Harnesses from the VFSG )
Figure 507   (Sheet 2 ) Removal of the Electrical Connections from the VFSG
* * * FOR ALL
* * * SB   72-0088( Removal of the VFSG Power Feeder Harnesses and Brackets from the VFSG )

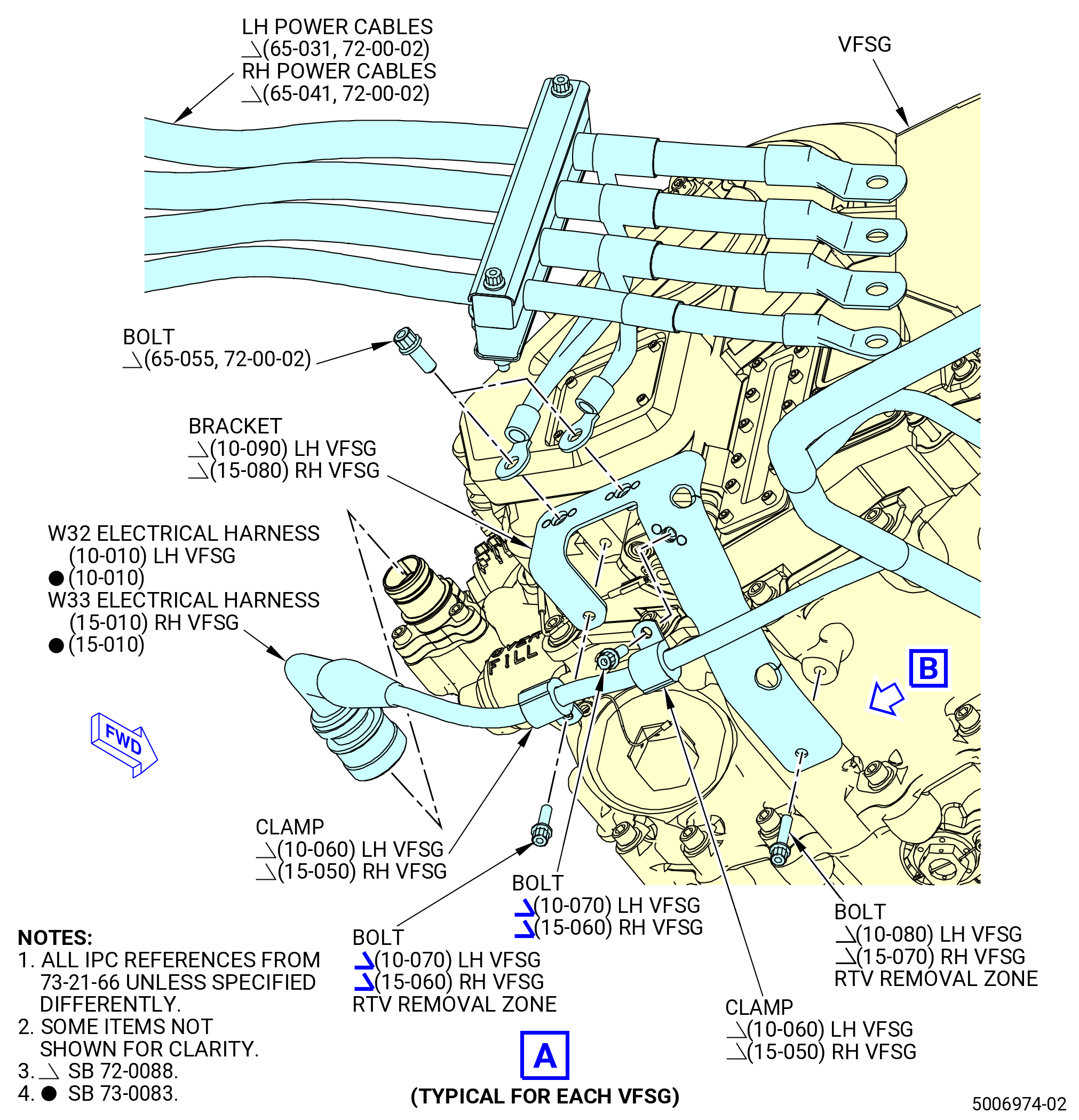

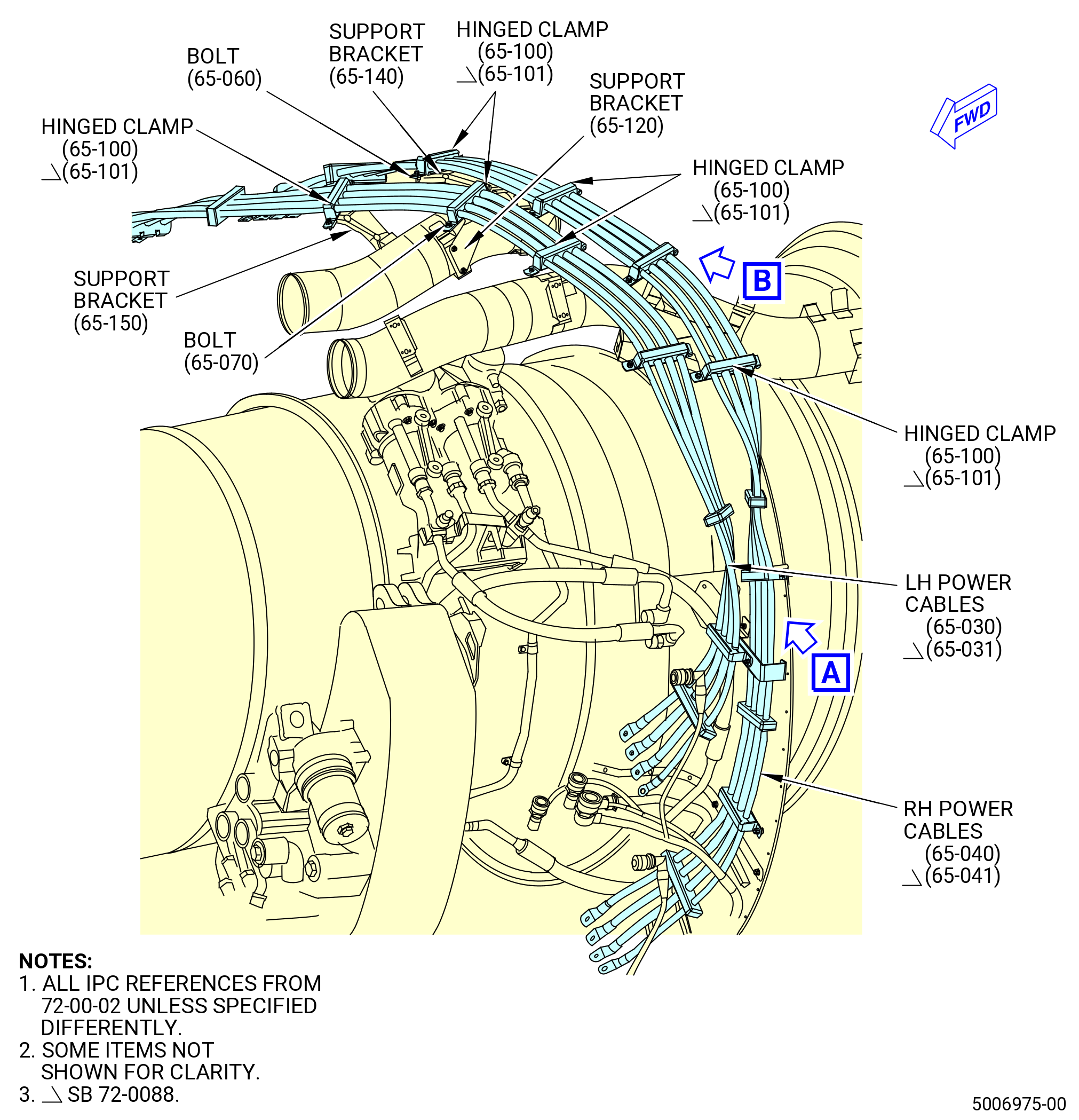

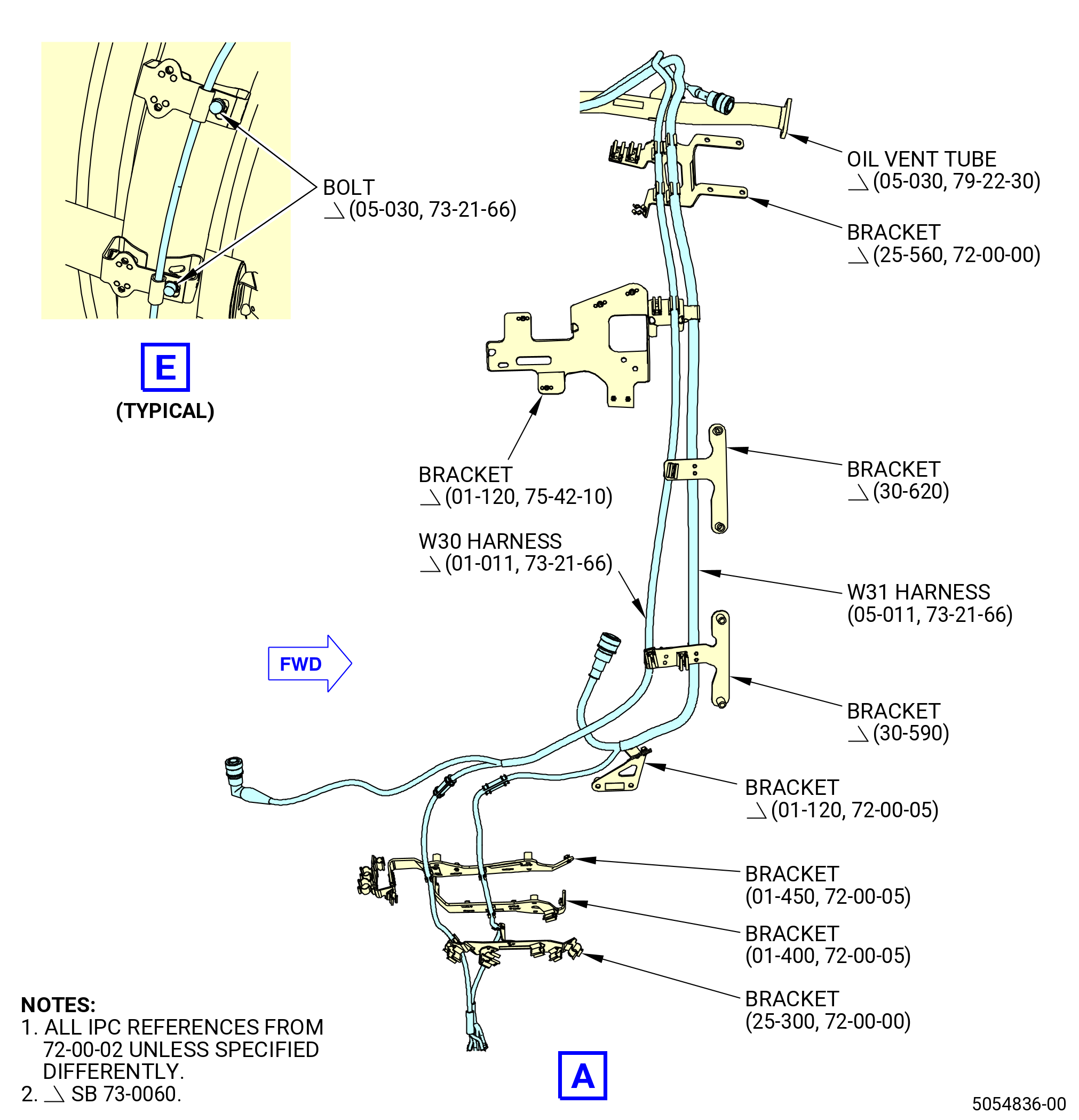

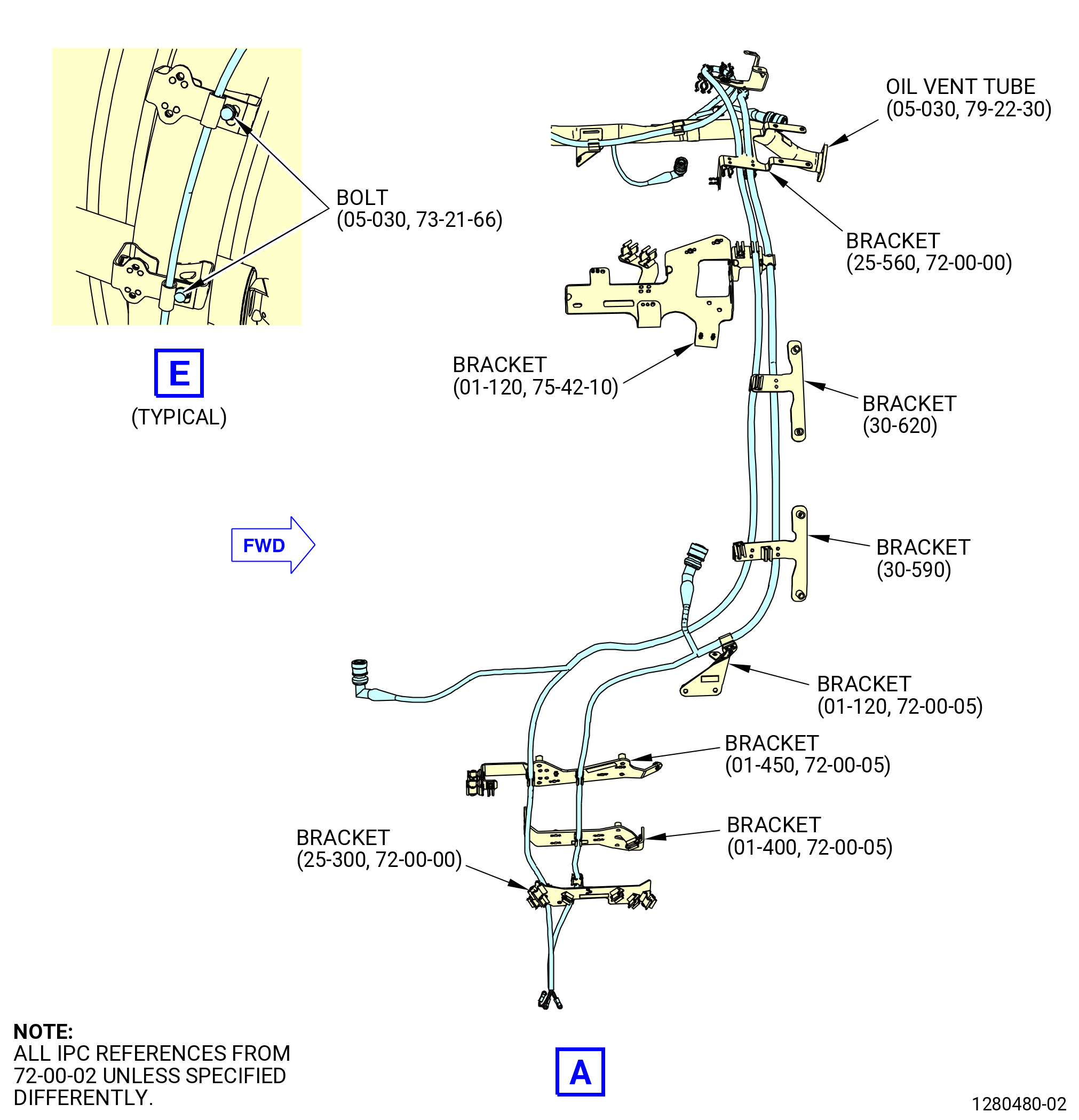

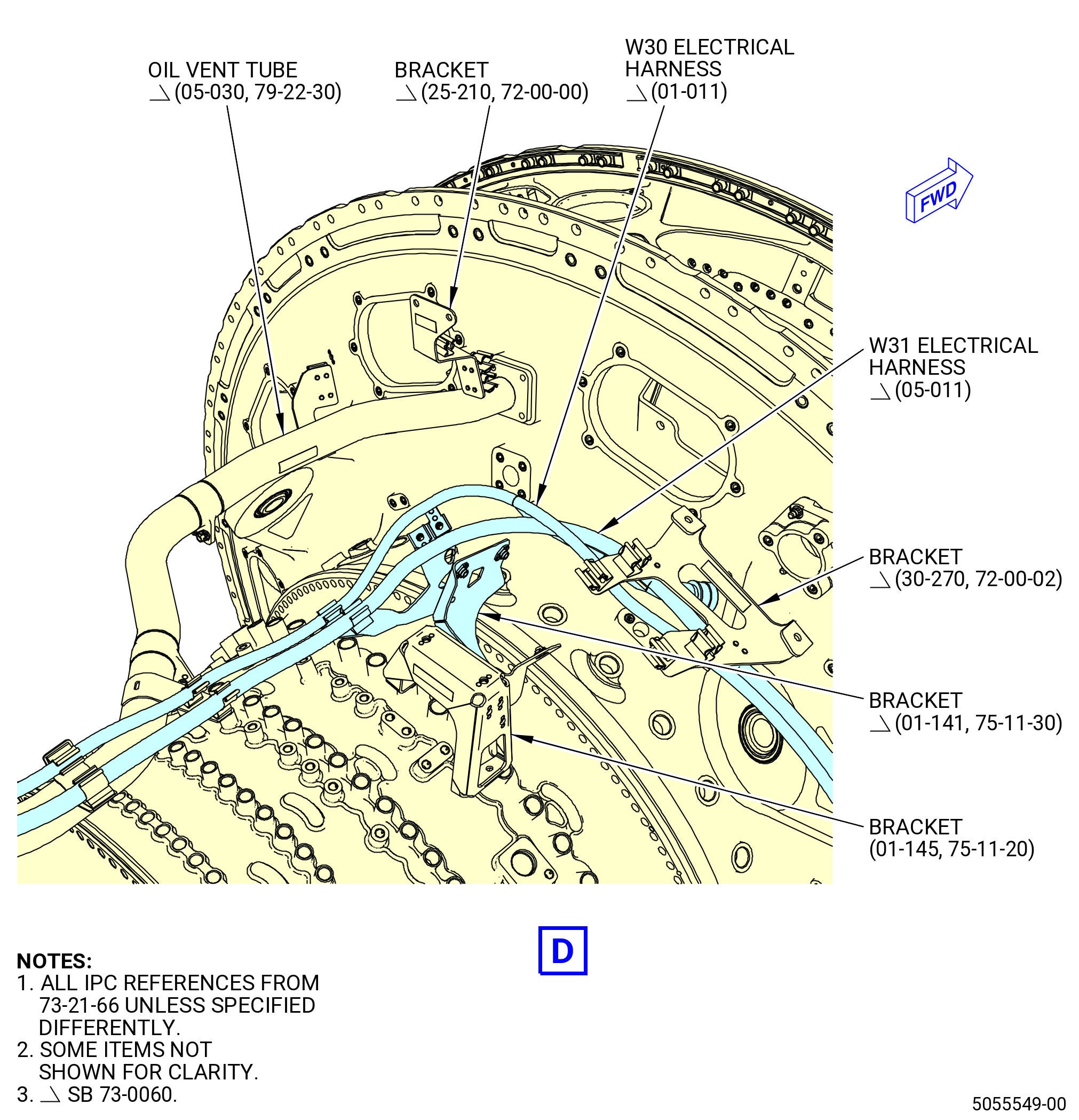

Figure 507A   (Sheet 1 ) Removal of the Electrical Connections from the VFSG
* * * FOR ALL
* * * SB   72-0088( Removal of the VFSG Power Feeder Harnesses and Brackets from the VFSG )
Figure 507A   (Sheet 2 ) Removal of the Electrical Connections from the VFSG
* * * FOR ALL
* * * SB   72-0088( Removal of the VFSG Power Feeder and Brackets from the VFSG )
Figure 507A   (Sheet 3 ) Removal of the Electrical Connections from the VFSG
Subtask 72-00-02-030-458
C.Drain the oil from the VFSGs and remove the oil tube/hoses as follows. Refer to Figure 508.
NOTE:
The two VFSG are identical. The procedure for the LH VFSG or RH VFSG is the same, unless specified differently.
(1)Find the VFSG drain plug on the bottom of the VFSG and put a 5-gallon (19 liter) container below it.
WARNING:
DO NOT LET HOT OIL TOUCH YOU WHEN YOU REMOVE OIL PLUGS. THE HOT OIL CAN CAUSE BURNS OR DAMAGE TO YOUR SKIN.
CAUTION:
TO PREVENT BURNS, DO NOT OPEN THE OIL SYSTEM UNTIL THE PRESSURE IS ZERO (APPROXIMATELY FIVE MINUTES AFTER SHUTDOWN). A PRESSURIZED OIL SYSTEM CAN RELEASE A SPRAY OF HOT OIL.
(2)Loosen and remove the drain plug and the preformed packing from the VFSG housing.
(3)Let the oil drain into the 5-gallon (19 liter) container.
(4)After all the oil is drained, reinstall the drain plug and preformed packing.
Subtask 72-00-02-030-471
CAUTION:
THE VFSG HOUSING IS MADE OF ALUMINUM AND CAN BE EASILY DAMAGED. USE TWO WRENCHES WHEN YOU REMOVE THE OIL TUBE/HOSES AND CONNECTORS. IF NOT, DAMAGE TO THE VFSG HOUSING CAN OCCUR.
CAUTION:
OIL SYSTEM COMPONENTS, HOSES, AND TUBES CAN CONTAIN RESIDUAL OIL. ENGINE OIL CAN SPRAY AND DRAIN FROM COMPONENTS AS YOU DISCONNECT THEM. LET ENGINE OIL DRAIN INTO AN APPLICABLE CONTAINER WHEN YOU DISCONNECT AND REMOVE COMPONENTS.

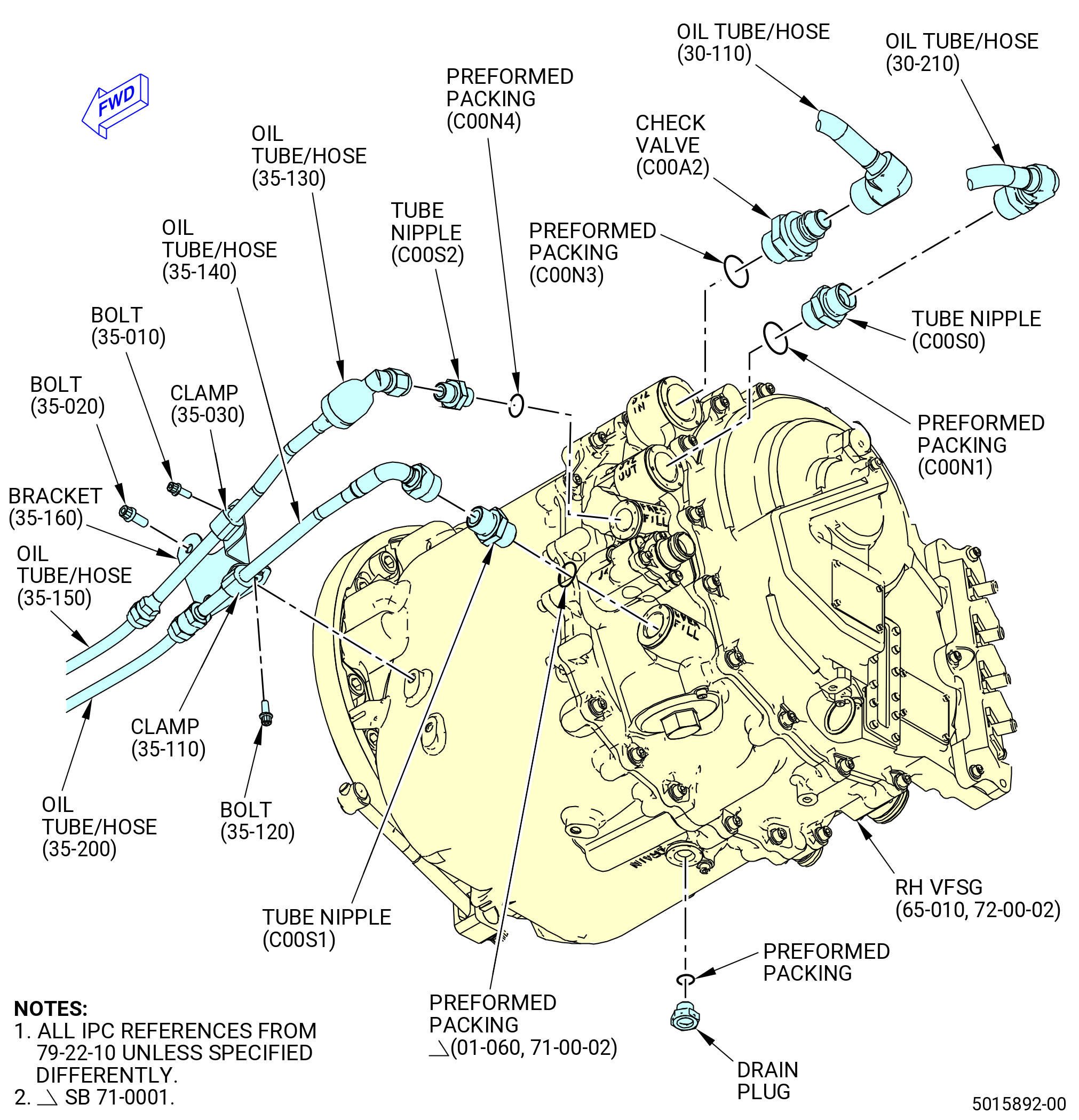

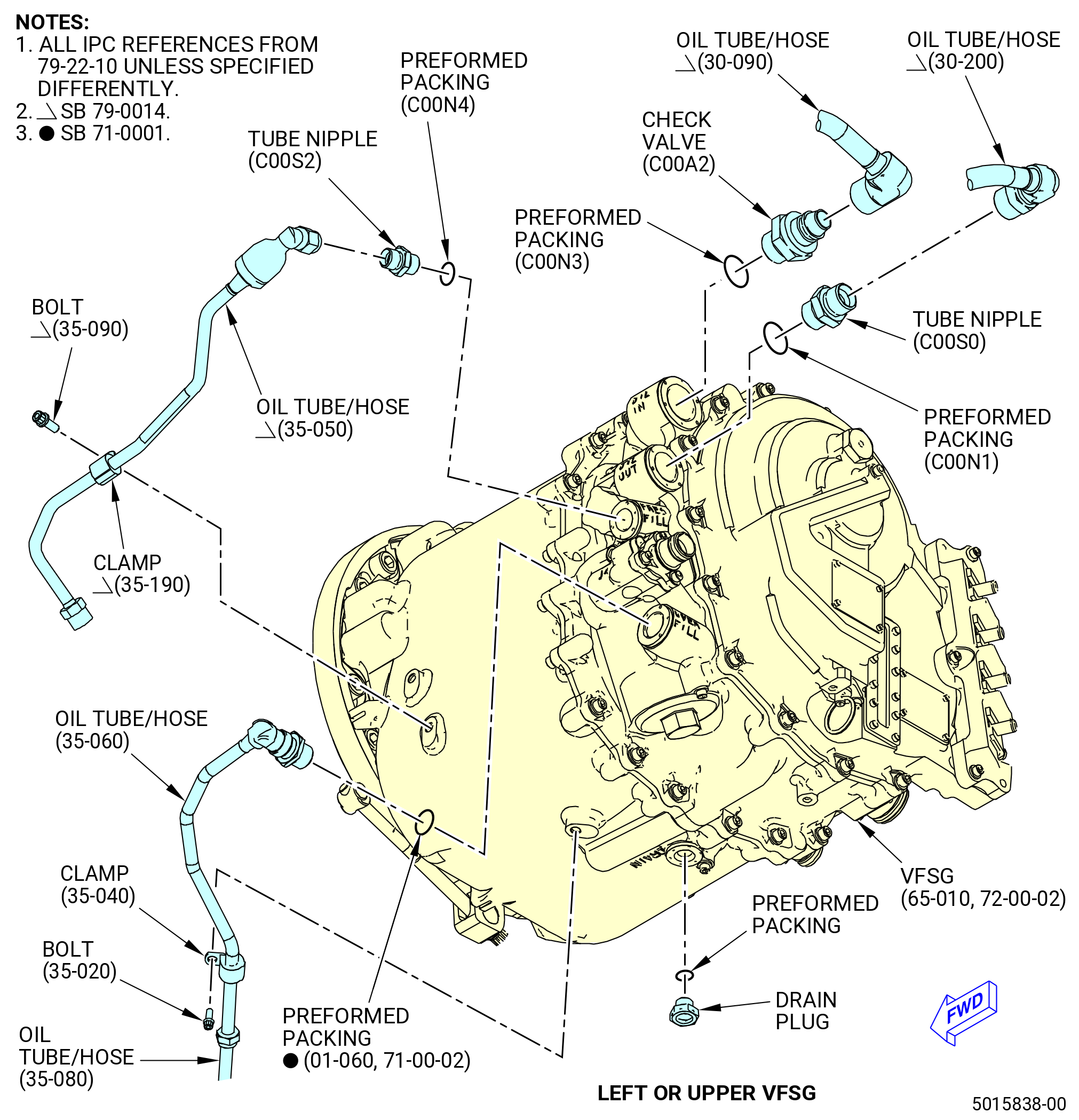

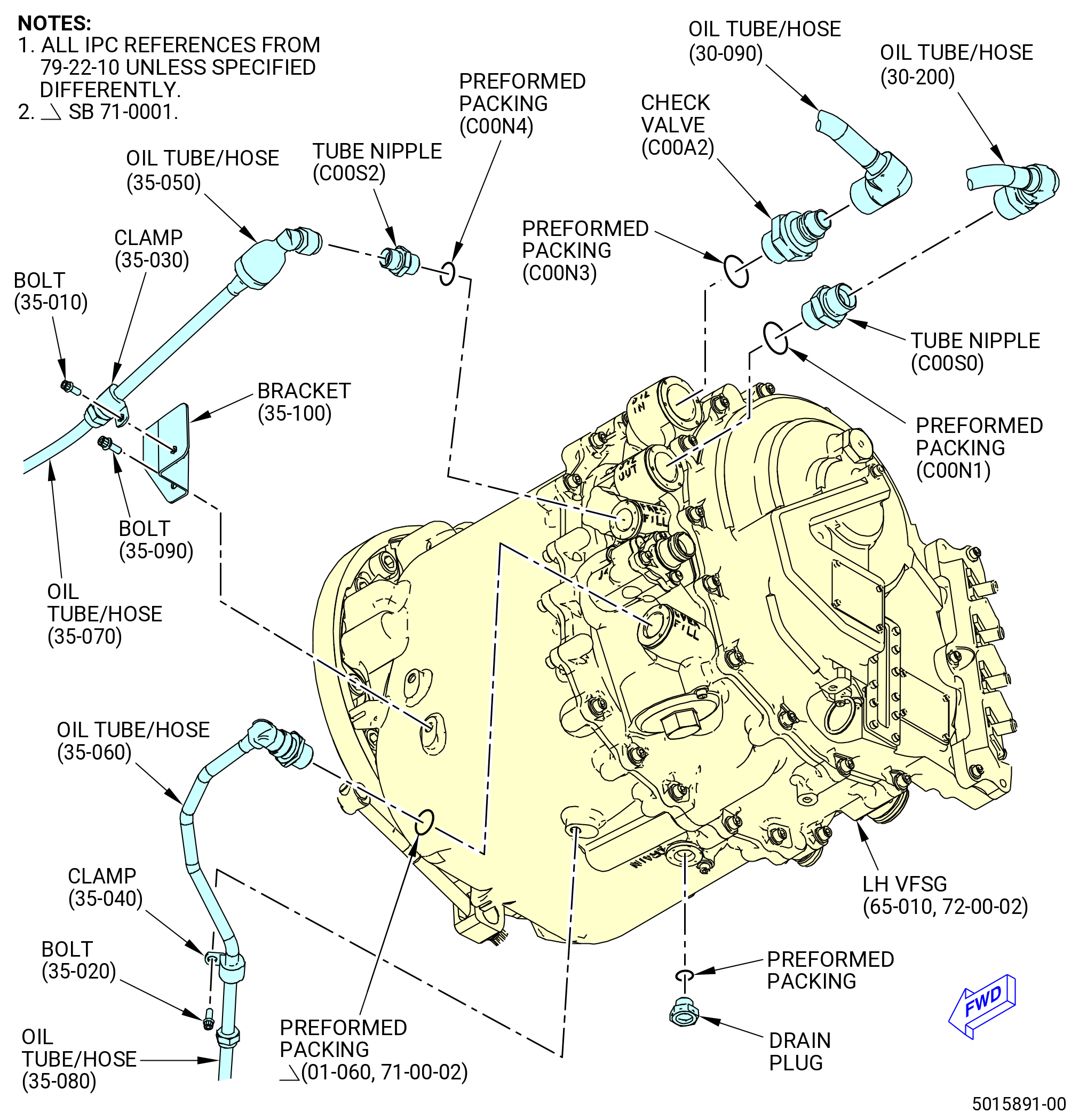

(5)Disconnect the oil tube/hose at the OVER-FILL port as follows:
(a)Use two wrenches to loosen and remove the oil tube/hose from the connector at the OVER-FILL port.
(b)On the RH VFSG, loosen and remove the tube nipple and keep it for installation.
NOTE:
The LH VFSG has an integral tube nipple as part of the oil tube/hose.
(c)Remove and discard the preformed packing (01-060 , 71-00-02) (SIN C00N2).
(d)Install protective caps or plugs on the oil tube/hose and VFSG port.
(e)Remove the bolt and clamp from around the oil tube/hose.
(6)Disconnect the oil tube/hose at the PRES-FILL port as follows. Refer to Figure 508.
(a)Use two wrenches to loosen and remove the oil tube/hose from the connector at the PRES-FILL port.
(b)Loosen and remove the tube nipple and keep it for installation.
(c)Remove and discard the preformed packing.
(d)Install protective caps or plugs on the oil tube/hose and VFSG port.
(e)Remove the bolt and clamp from the oil tube/hose.
Subtask 72-00-02-030-619
* * * PRE SB   79-0014( Non-Optimized VFSG Cooling System )
(f)Remove the two bolts (35-090 , 79-22-10) (SIN 44A23) and bracket (35-100 , 79-22-10) (SIN 44A10) that attach the oil tube/hose to the VFSG housing.
NOTE:
SB 79-0014 does not use this step. SB 79-0014 deletes the bracket (35-100 , 79-22-10) (SIN 44A10).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-618
(7)Disconnect the oil tube/hose at the OIL-OUT port as follows:
(a)Use two wrenches to loosen and remove the oil tube/hose from the connector at the OIL-OUT port.
(b)Loosen and remove the tube nipple and keep it for installation.
(c)Remove and discard the preformed packing.
(d)Install protective caps or plugs on the oil tube and VFSG port.
(8)Disconnect the oil tube/hose at the OIL-IN port as follows:
(a)Use two wrenches to loosen and remove the oil tube/hose from the connector at the OIL-IN port.
(b)Loosen and remove the check valve and save it for installation.
(c)Remove and discard the preformed packing.
(d)Install protective caps or plugs on the oil tube and VFSG port.
* * * FOR ALL
* * * PRE SB   79-0014( Non-Optimized VFSG Cooling System )
Figure 508   (Sheet 1 ) Removal of the Oil Tube/Hoses Connections from the VFSG
* * * FOR ALL
* * * SB   79-0014( Optimized VFSG Cooling System )
Figure 508   (Sheet 2 ) Removal of Oil Tube/Hoses Connections from the VFSG
* * * FOR ALL
Figure 508   (Sheet 3 ) Removal of the Oil Tube/Hoses Connections from the VFSG
Subtask 72-00-02-030-459
D.Alternative Procedure Available. Remove the VFSGs (65-010) (SIN C00A0) from the AGB (01-010 , 72-00-05) (SIN 03800) as follows:
(1)If not assembled, install the starter generator cradle (item 6) of the 11C4412   LRU fixture on the 9446M93   jack stand and attach it to the adjustment screw. Tighten the adjustment screw hand-tight. Refer to Figure 509.
CAUTION:
THE VFSG WEIGHS APPROXIMATELY 250 LBS (113 KG). USE APPLICABLE SUPPORT/LIFTING EQUIPMENT TO AVOID INJURY.
CAUTION:
DO NOT LET THE WEIGHT OF THE VFSG TO REST ON THE AGB DRIVESHAFT. THE VFSG MUST BE FULLY SUPPORTED WITH THE 11C4412 LRU FIXTURE UNTIL THE TENSION BOLT IS LOOSENED AND THE QAD RING IS DISENGAGED.
(2)Slowly push the 11C4412   LRU fixture forward underneath the engine and aft of the AGB, and align it underneath the center of the VFSG.
(3)Adjust the 9446M93   jack stand as necessary to support the VFSG.
(4)Attach the starter generator cradle (item 6) around the VFSG and push it into the heat exchanger cradle (item 2) or (item 19) of the 11C4412   LRU fixture.
(5)Loosen the tension bolt to turn the QAD ring counterclockwise (CCW) until the VFSG is disengaged. Refer to Figure 511.
CAUTION:
MAKE SURE THAT YOU DO NOT DAMAGE THE SPLINES OF THE VFSG OR AGB WITH EXCESSIVE SIDE-TO-SIDE MOTION.
(6)Carefully push the 11C4412   LRU fixture aft and away from the AGB.
(7)Lower the 9446M93   jack stand.
(8)Insert a lift eye into the threaded boss on the top of the VFSG. Refer to Figure 512. Attach a lift strap and hoist to the VFSG.
CAUTION:
MAKE SURE THAT THERE IS A SMALL QUANTITY OF TENSION ON THE HOIST BEFORE YOU LOOSEN AND REMOVE THE STARTER GENERATOR CRADLE (ITEM 6).
(9)Loosen and remove the starter generator cradle (item 6) of the 11C4412   LRU fixture from around the VFSG.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(10)Operate the hoist and move the VFSG away from the 11C4412   LRU fixture and on a table or another work area.
(11)Remove and discard the preformed packing (01-010 , 71-00-02) (SIN C00N0) from the packing groove on the splined shaft at the front of the VFSG.
(12)Do Subtask 72-00-02-030-459 (paragraph 3.D.) again to remove the other VFSG from the AGB.
* * * FOR ALL
Figure 509   Removal of the VFSG with the LRU Fixture, 11C4412, and Jack Stand, 9446M93
Subtask 72-00-02-030-754
D.A.Alternative Procedure. Remove the VFSGs (65-010) (SIN C00A0) from the AGB (01-010 , 72-00-05) (SIN 03800) as follows:
(1)If not assembled, install the starter generator cradle (item 6) of the 11C4412   LRU fixture on the 9471M12   jack stand and attach it to the adjustment screw. Hand-tighten the adjustment screw. Refer to Figure 510.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
CAUTION:
DO NOT LET THE WEIGHT OF THE VFSG TO REST ON THE AGB DRIVESHAFT. THE VFSG MUST BE FULLY SUPPORTED WITH THE 11C4412 LRU FIXTURE UNTIL THE TENSION BOLT IS LOOSENED AND THE QAD RING IS DISENGAGED. DAMAGE TO THE AGB DRIVESHAFT CAN OCCUR.
(2)Slowly push the 11C4412   LRU fixture forward below the engine and aft of the AGB, and align it below the center of the VFSG.
(3)Adjust the 9471M12   jack stand as necessary to support the VFSG.
(4)Attach the starter generator cradle (item 6) around the VFSG and push it into the heat exchanger cradle (item 2) or (item 19) of the 11C4412   LRU fixture.
(5)Loosen the tension bolt to turn the QAD ring counterclockwise (CCW) until the VFSG is disengaged. Refer to Figure 511.
CAUTION:
MAKE SURE THAT YOU DO NOT DAMAGE THE SPLINES OF THE VFSG OR THE AGB WITH EXCESSIVE SIDE-TO-SIDE MOTION.
(6)Carefully push the 11C4412   LRU fixture aft and away from the AGB.
(7)Lower the 9471M12   jack stand.
(8)Insert a lift eye into the threaded boss on the top of the VFSG. Refer to Figure 512. Attach a lift strap and hoist to the VFSG.
CAUTION:
MAKE SURE THAT YOU DO NOT MOVE THE VFSG FORWARD AND AFT, WHEN THE VFSG IS IN CONTACT WITH THE ENGINE GEARBOX. EXCESS SIDE-TO-SIDE MOVEMENT CAN CAUSE DAMAGE TO THE INPUT SEAL.
(9)Loosen and remove the starter generator cradle (item 6) of the 11C4412   LRU fixture from around the VFSG.
WARNING:
ALWAYS USE APPROVED EQUIPMENT AND PROCEDURES TO LIFT PARTS. STAY OUT FROM BELOW LOADS. IF THE PARTS ACCIDENTALLY MOVE OR FALL, THEY CAN CAUSE AN INJURY OR KILL YOU.
(10)Operate the hoist and move the VFSG away from the 11C4412   LRU fixture and on a table or another work area.
(11)Remove and discard the performed packing (01-010 , 71-00-02) (SIN C00N0) from the packing groove on the splined shaft at the front of the VFSG.
(12)Do Subtask 72-00-02-030-754 (paragraph 3.D.A.) again to remove the other VFSG from the AGB.
* * * FOR ALL
Figure 510   Removal of the VFSG with the LRU Fixture, 11C4412, and Jack Stand, 9471M12
* * * FOR ALL

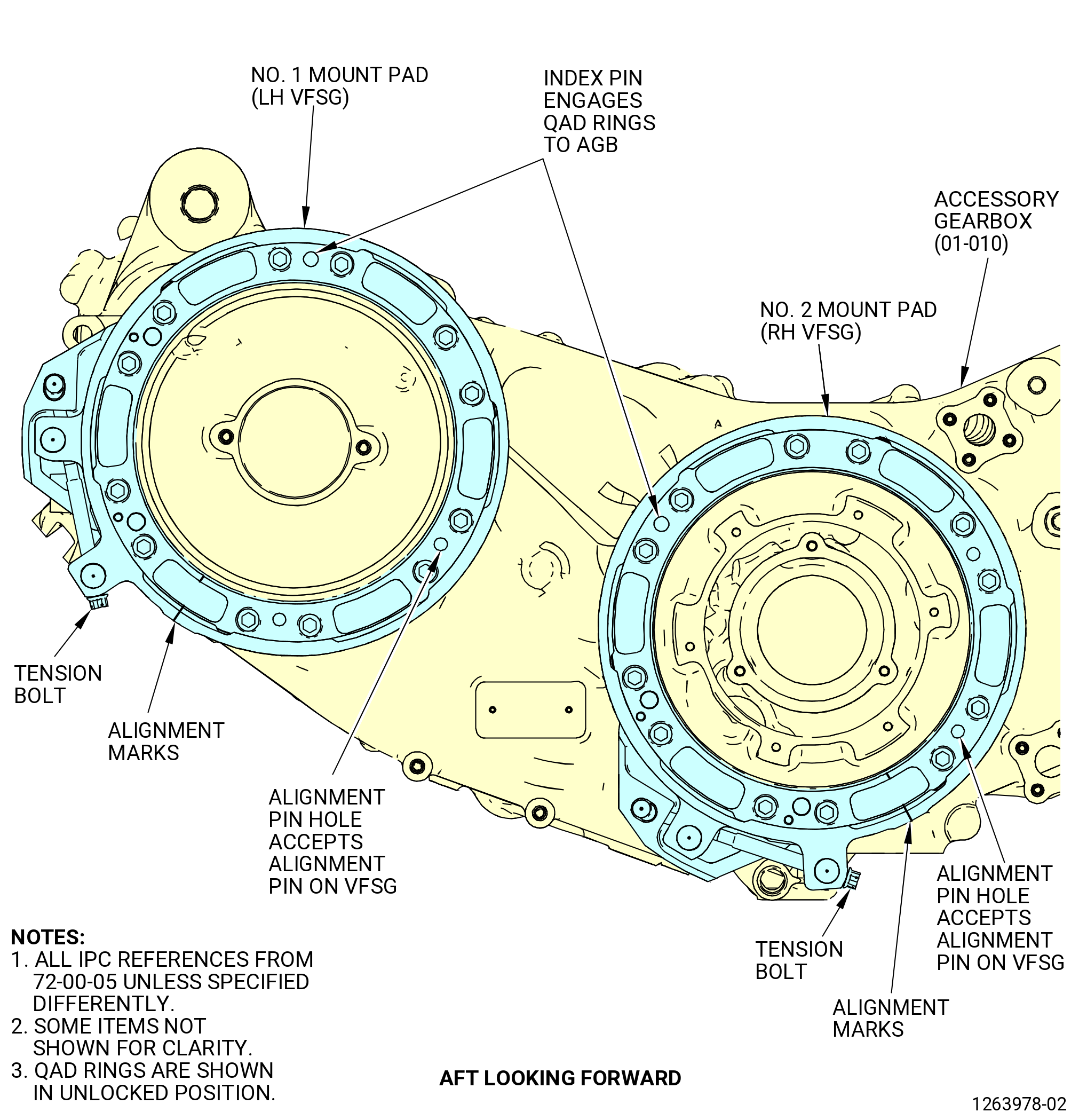

Figure 511   Rotation of the QAD Rings to the Unlocked Position
* * * FOR ALL
Figure 512   Variable Frequency Starter Generator (VFSG)
Subtask 72-00-02-030-460
E.Remove the QAD rings (15-010 , 71-00-02) (SIN C00V0) or (15-011 , 71-00-02) (SIN C00V0) from the AGB as follows:
(1)Loosen and remove the 24 bolts that attach the QAD rings (15-010 , 71-00-02) (SIN C00V0) or (15-011 , 71-00-02) (SIN C00V0) to the AGB. Refer to Figure 513.
(2)Remove the QAD rings (15-010 , 71-00-02) (SIN C00V0) or (15-011 , 71-00-02) (SIN C00V0) and QAD gaskets (15-025 , 71-00-02) (SIN C00V7) from the AGB.
NOTE:
Do not remove the QAD gasket from the QAD ring. The QAD gasket is stuck with an adhesive to the forward surface of the QAD ring. If it is damaged (unserviceable) it will need to be replaced before reinstallation of the QAD rings.
* * * FOR ALL
Figure 513   Removal of the VFSGs and QAD Rings
Subtask 72-00-02-030-353
* * * PRE SB   73-0011( Engines without Fuel Vapor Accumulator )
F.Remove the W32 electrical harness (10-010 , 73-21-66) (SIN 68802) and W33 electrical harness (15-010 , 73-21-66) (SIN 68803) as follows:
Subtask 72-00-02-030-514
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. IF METAL-JAWED PLIERS ARE USED, DAMAGE TO THE CONNECTORS CAN OCCUR.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN DISCONNECTING THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
(1)Remove the W32 electrical harness (10-010 , 73-21-66) (SIN 68802). Refer to Figure 514 and do as follows:
(a)Remove the W32 electrical harness from the spring clip of the control cables bridge bracket (bracket) (25-210 , 72-00-00) (SIN 68812).
(b)Remove the W32 electrical harness from the spring clip attached to the oil tube (05-030 , 79-22-30) (SIN 46100).
(c)Remove the W32 electrical harness from the spring clip of the control cables support bracket (bracket) (30-270) (SIN 68816).
(d)Remove the W32 electrical harness from the spring clip of the support bracket (bracket) (01-120 , 75-42-10) (SIN 53012).
(e)Remove the W32 electrical harness from the spring clip of the bracket (05-090 , 73-11-40) (SIN 6881A).
(f)Remove the W32 electrical harness from the spring clip of the support bracket (bracket) (25-080 , 73-11-40) (SIN 6881C).
Subtask 72-00-02-030-632
* * * PRE SB   79-0014
(g)Remove the W32 electrical harness from the spring clip of the support bracket (bracket) (40-120) (SIN 6881B) attached to aft skirt segment heat shield (heat shield) (40-020) (SIN 29901).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-633
* * * SB   79-0014
(g).A.Remove the W32 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
Subtask 72-00-02-030-634
* * * PRE SB   79-0014
(h)Remove the W32 electrical harness from the spring clips of the aft skirt segment heat shield (heat shield) (40-050) (SIN 29904) at two positions.
* * * END PRE SB   79-0014
Subtask 72-00-02-030-635
* * * SB   79-0014
(h).A.Remove the W32 electrical harness from the spring clips of the heat shield (40-020A) (SIN 29901) at two positions.
* * * END SB   79-0014
Subtask 72-00-02-030-636
* * * PRE SB   79-0014
(i)Remove the W32 electrical harness from the spring clip of the heat shield (40-030) (SIN 29902) at one position.
* * * END PRE SB   79-0014
Subtask 72-00-02-030-637
* * * SB   79-0014
(i).A.Remove the W32 electrical harness from the spring clip of the heat shield (40-030A) (SIN 29902) at one position.
* * * END SB   79-0014
Subtask 72-00-02-030-638
* * * PRE SB   79-0014
(j)Remove two machine bolts (bolts) (10-030 , 73-21-66) (SIN 6882G) and two cushioned loop clamps (10-040 , 73-21-66) (SIN 68881) that attach the W32 electrical harness to the heat shield (40-030) (SIN 29902).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-639
* * * SB   79-0014
(j).A.Remove two bolts (10-030 , 73-21-66) (SIN 6882G) and two cushioned loop clamps (10-040 , 73-21-66) (SIN 68881) that attach the W32 electrical harness to the heat shield (40-030A) (SIN 29902).
* * * END SB   79-0014
Subtask 72-00-02-030-640
(k)Remove the W32 electrical harness, wind each harness lead into coils, and attach the coils of the harness together.
(l)Install protective covers on the W32 harness connectors.
Subtask 72-00-02-030-516
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. IF METAL-JAWED PLIERS ARE USED, DAMAGE TO THE CONNECTORS CAN OCCUR.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN DISCONNECTING THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
(2)Remove the W33 electrical harness (15-010 , 73-21-66) (SIN 68803). Refer to Figure 514 and do as follows:
(a)Remove the W33 electrical harness from the spring clip of the bracket (25-210 , 72-00-00) (SIN 68812).
(b)Remove the W33 electrical harness from the spring clip attached to the oil tube (05-030 , 79-22-30) (SIN 46100).
(c)Remove the W33 electrical harness from the spring clip of the bracket (30-270) (SIN 68816).
(d)Remove the W33 electrical harness from the spring clip of the bracket (01-120 , 75-42-10) (SIN 53012).
(e)Remove the W33 electrical harness from the spring clip of the bracket (05-090 , 73-11-40) (SIN 6881A).
(f)Remove the W33 electrical harness from the spring clip of the bracket (25-080 , 73-11-40) (SIN 6881C).
Subtask 72-00-02-030-641
* * * PRE SB   79-0014
(g)Remove the W33 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield (40-020) (SIN 29901).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-642
* * * SB   79-0014
(g).A.Remove the W33 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
Subtask 72-00-02-030-643
* * * PRE SB   79-0014
(h)Remove the W33 electrical harness from the spring clips of the heat shield (40-050) (SIN 29904) at one position.
* * * END PRE SB   79-0014
Subtask 72-00-02-030-644
* * * SB   79-0014
(h).A.Remove the W33 electrical harness from the spring clip of the heat shield (40-020A) (SIN 29901) at one position.
* * * END SB   79-0014
Subtask 72-00-02-030-626
* * * PRE SB   79-0014
(i)Remove the bolt (15-030 , 73-21-66) (SIN 68824) and cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 electrical harness to the heat shield (40-050) (SIN 29904).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-627
* * * PRE SB   73-0074( Harness Support Spring Clips with Clip Inserts )
* * * SB   79-0014
(i).A.Remove the bolt (15-030 , 73-21-66) (SIN 68824) and cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 electrical harness to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
* * * END PRE SB   73-0074
Subtask 72-00-02-030-775
* * * SB   73-0074( Harness Support Spring Clips without Clip Inserts )
(i).B.Remove the bolt (15-030 , 73-21-66) (SIN 68824), cushioned loop clamp (10-045 , 73-21-66) (SIN 68883) that attaches the W32 electrical harness to the heatshield (40-020) (SIN 29901), and the cushioned loop clamp (15-045 , 73-21-66) (SIN 68883) that attaches the W33 electrical harness to the heatshield (40-020) (SIN 29901).
* * * END SB   73-0074
Subtask 72-00-02-030-645
* * * PRE SB   79-0014
(j)Remove one bolt (15-030 , 73-21-66) (SIN 68824) and one cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 harness to the heat shield (40-020) (SIN 29901).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-646
* * * PRE SB   73-0074( Harness Support Spring Clips with Clip Inserts )
* * * SB   79-0014
(j).A.Remove one bolt (15-030 , 73-21-66) (SIN 68824) and one cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 harness to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
* * * END PRE SB   73-0074
Subtask 72-00-02-030-776
* * * SB   73-0074( Harness Support Spring Clips without Clip Inserts )
(j).B.Remove the bolt (15-030 , 73-21-66) (SIN 68824), cushioned loop clamp (10-045 , 73-21-66) (SIN 68883) that attaches the W32 electrical harness to the heatshield (40-020) (SIN 29901), and the cushioned loop clamp (15-045 , 73-21-66) (SIN 68883) that attaches the W33 electrical harness to the heatshield (40-020) (SIN 29901).
* * * END SB   73-0074
Subtask 72-00-02-030-628
(k)Remove the W33 electrical harnesses, wind each harness lead into coils, and attach the coils of the harness together.
(l)Install protective covers on the harness connectors.
* * * END PRE SB   73-0011
Subtask 72-00-02-030-625
* * * SB   73-0011( Engines with Fuel Vapor Accumulator )
F.A.Remove the W32 electrical harness (10-010 , 73-21-66) (SIN 68802) and W33 electrical harness (15-010 , 73-21-66) (SIN 68803) as follows:
Subtask 72-00-02-030-515
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. IF METAL-JAWED PLIERS ARE USED, DAMAGE TO THE CONNECTORS CAN OCCUR.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN DISCONNECTING THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
(1)Remove the W32 electrical harness (10-010 , 73-21-66) (SIN 68802). Refer to Figure 514 and do as follows:
(a)Remove the W32 electrical harness from the spring clip of the bracket (25-210 , 72-00-00) (SIN 68812).
(b)Remove the W32 electrical harness from the spring clip attached to the oil tube (05-030 , 79-22-30) (SIN 46100).
(c)Remove the W32 electrical harness from the spring clip of the bracket (30-270) (SIN 68816).
(d)Remove the W32 electrical harness from the spring clip of the support bracket (bracket) (15-250 , 73-11-40) (SIN 6881Y).
(e)Remove the W32 electrical harness from the spring clip of the bracket (05-090 , 73-11-40) (SIN 6881A).
(f)Remove the W32 electrical harness from the spring clip the bracket (25-080 , 73-11-40) (SIN 6881C).
Subtask 72-00-02-030-647
* * * PRE SB   79-0014
(g)Remove the W32 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield (40-020) (SIN 29901).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-648
* * * SB   79-0014
(g).A.Remove the W32 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield 40-020A) (SIN 29901).
* * * END SB   79-0014
Subtask 72-00-02-030-649
* * * PRE SB   79-0014
(h)Remove the W32 electrical harness from the spring clips of the heat shield (40-050) (SIN 29904) at two positions.
* * * END PRE SB   79-0014
Subtask 72-00-02-030-650
* * * SB   79-0014
(h).A.Remove the W32 electrical harness from the spring clips of the heat shield (40-020A) (SIN 29901) at two positions.
* * * END SB   79-0014
Subtask 72-00-02-030-651
* * * PRE SB   79-0014
(i)Remove the W32 electrical harness from the spring clip of the heat shield (40-030) (SIN 29902) at one position.
* * * END PRE SB   79-0014
Subtask 72-00-02-030-652
* * * SB   79-0014
(i).A.Remove the W32 electrical harness from the spring clip of the heat shield (40-030A) (SIN 29902) at one position.
* * * END SB   79-0014
Subtask 72-00-02-030-653
* * * PRE SB   79-0014
(j)Remove two bolts (10-030 , 73-21-66) (SIN 6882G) and two cushioned loop clamps (10-040 , 73-21-66) (SIN 68881) that attach the W32 harness to the heat shield (40-030) (SIN 29902).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-654
* * * SB   79-0014
(j).A.Remove two bolts (10-030 , 73-21-66) (SIN 6882G) and two cushioned loop clamps (10-040 , 73-21-66) (SIN 68881) that attach the W32 harness to the heat shield (40-030A) (SIN 29902).
* * * END SB   79-0014
Subtask 72-00-02-030-655
(k)Remove the W32 electrical harnesses, wind each harness lead into coils, and attach the coils of the harness together.
(l)Install protective covers on the harness connectors.
Subtask 72-00-02-030-517
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. IF METAL-JAWED PLIERS ARE USED, DAMAGE TO THE CONNECTORS CAN OCCUR.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN DISCONNECTING THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
(2)Remove the W33 electrical harness (15-010 , 73-21-66) (SIN 68803). Refer to Figure 514 and do as follows:
(a)Remove the W33 electrical harness from the spring clip of the bracket (25-210 , 72-00-00) (SIN 68812).
(b)Remove the W33 electrical harness from the spring clip attached to the oil tube (05-030 , 79-22-30) (SIN 46100).
(c)Remove the W33 electrical harness from the spring clip of the bracket (30-270) (SIN 68816).
(d)Remove the W33 electrical harness from the spring clip of the bracket (15-250 , 73-11-40) (SIN 6881Y).
(e)Remove the W33 electrical harness from the spring clip of the bracket (05-090 , 73-11-40) (SIN 6881A).
(f)Remove the W33 electrical harness from the spring clip of the bracket (25-080 , 73-11-40) (SIN 6881C).
Subtask 72-00-02-030-656
* * * PRE SB   79-0014
(g)Remove the W33 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield (40-020) (SIN 29901).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-657
* * * SB   79-0014
(g).A.Remove the W33 electrical harness from the spring clip of the bracket (40-120) (SIN 6881B) attached to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
Subtask 72-00-02-030-658
* * * PRE SB   79-0014
(h)Remove the W33 electrical harness from the spring clips of the heat shield (40-050) (SIN 29904) at one position.
* * * END PRE SB   79-0014
Subtask 72-00-02-030-659
* * * SB   79-0014
(h).A.Remove the W33 electrical harness from the spring clip of the heat shield (40-020A) (SIN 29901) at one position.
* * * END SB   79-0014
Subtask 72-00-02-030-629
* * * PRE SB   79-0014
(i)Remove the bolt (15-030 , 73-21-66) (SIN 68824) and cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 electrical harness to the heat shield (40-050) (SIN 29904).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-630
* * * PRE SB   73-0074( Harness Support Spring Clips with Clip Inserts )
* * * SB   79-0014
(i).A.Remove the bolt (15-030 , 73-21-66) (SIN 68824) and cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 electrical harness to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
* * * END PRE SB   73-0074
Subtask 72-00-02-030-777
* * * SB   73-0074( Harness Support Spring Clips without Clip Inserts )
(i).B.Remove the bolt (15-030 , 73-21-66) (SIN 68824), cushioned loop clamp (10-045 , 73-21-66) (SIN 68883) that attaches the W32 electrical harness to the heatshield (40-020) (SIN 29901), and the cushioned loop clamp (15-045 , 73-21-66) (SIN 68883) that attaches the W33 electrical harness to the heatshield (40-020) (SIN 29901).
* * * END SB   73-0074
Subtask 72-00-02-030-660
* * * PRE SB   79-0014
(j)Remove one bolt (15-030 , 73-21-66) (SIN 68824) and one cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 harness to the heat shield (40-020) (SIN 29901).
* * * END PRE SB   79-0014
Subtask 72-00-02-030-661
* * * PRE SB   73-0074( Harness Support Spring Clips with Clip Inserts )
* * * SB   79-0014
(j).A.Remove one bolt (15-030 , 73-21-66) (SIN 68824) and one cushioned loop clamp (15-040 , 73-21-66) (SIN 68881) that attach the W33 harness to the heat shield (40-020A) (SIN 29901).
* * * END SB   79-0014
* * * END PRE SB   73-0074
Subtask 72-00-02-030-778
* * * SB   73-0074( Harness Support Spring Clips without Clip Inserts )
(j).B.Remove the bolt (15-030 , 73-21-66) (SIN 68824), cushioned loop clamp (10-045 , 73-21-66) (SIN 68883) that attaches the W32 electrical harness to the heatshield (40-020) (SIN 29901), and the cushioned loop clamp (15-045 , 73-21-66) (SIN 68883) that attaches the W33 electrical harness to the heatshield (40-020) (SIN 29901).
* * * END SB   73-0074
Subtask 72-00-02-030-631
(k)Remove the W33 electrical harnesses, wind each harness lead into coils, and attach the coils of the harness together.
(l)Install protective covers on the harness connectors.
* * * END SB   73-0011
* * * FOR ALL
* * * PRE SB   73-0011( Engines without Fuel Vapor Accumulator )

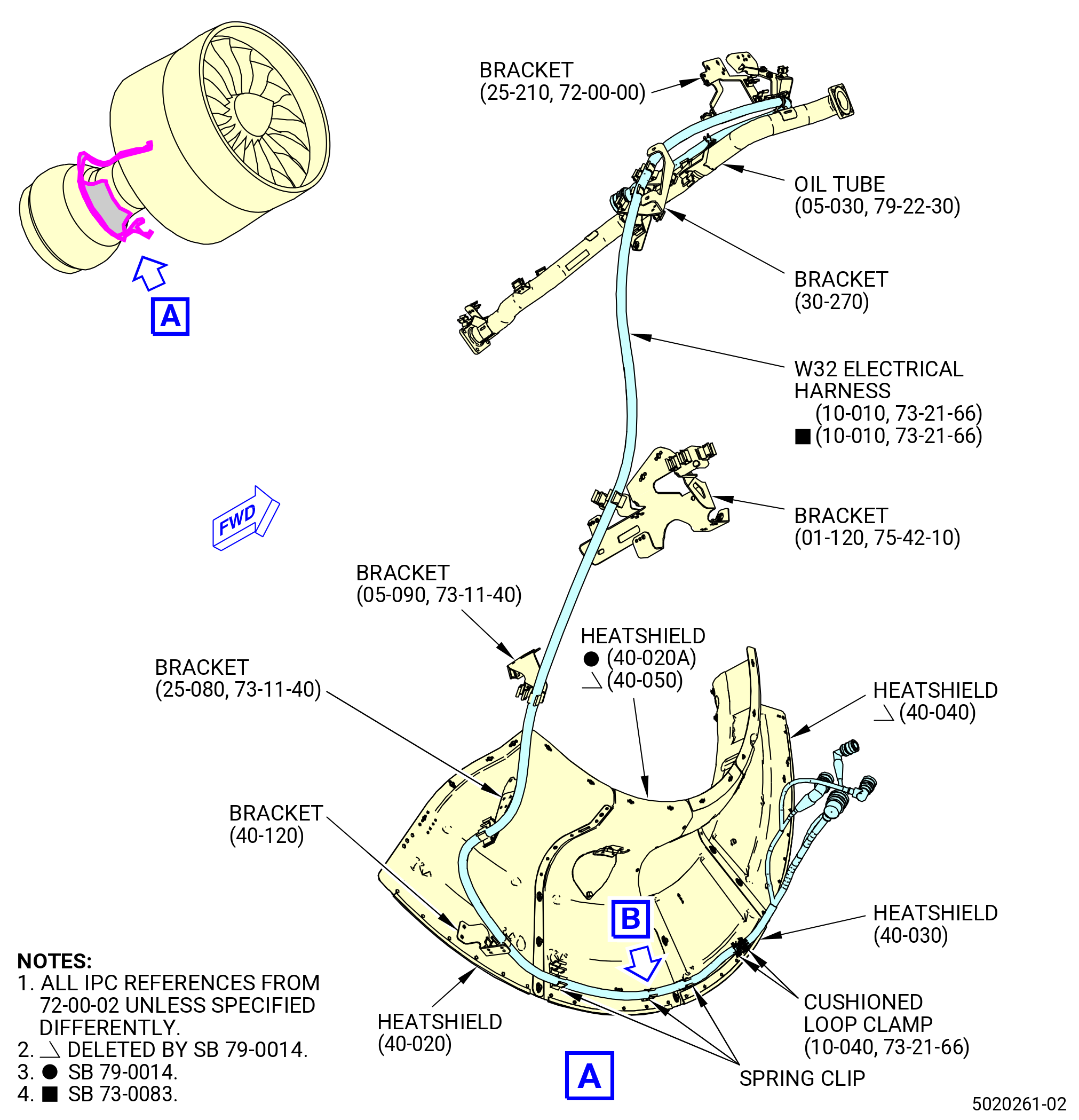

Figure 514   (Sheet 1 ) Removal of the W32 Electrical Harness and W33 Electrical Harness
* * * FOR ALL
* * * SB   73-0011( Engines with Fuel Vapor Accumulator )
Figure 514   (Sheet 2 ) Removal of the W32 Electrical Harness and W33 Electrical Harness
* * * FOR ALL
* * * PRE SB   73-0011( Engines without Fuel Vapor Accumulator )
Figure 514   (Sheet 3 ) Removal of the W32 Electrical Harness and W33 Electrical Harness
* * * FOR ALL
* * * SB   73-0011( Engines with Fuel Vapor Accumulator )
Figure 514   (Sheet 4 ) Removal of the W32 Electrical Harness and W33 Electrical Harness
* * * FOR ALL
* * * SB   73-0074( Harness Support Spring Clips without Clip Inserts )
Figure 514   (Sheet 5 ) Removal of the W32 Electrical Harness and W33 Electrical Harness
Subtask 72-00-02-030-354
G.Remove the W30 and the W31 electrical harnesses as follows:
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. YOU CAN DAMAGE THE CONNECTORS IF YOU USE METAL-JAWED PLIERS.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN YOU DISCONNECT THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
(1)Remove the W30 electrical harness (harness) (01-010 , 73-21-66) (SIN 68800) or (01-011 , 73-21-66) (SIN 68800) as follows. Refer to Figure 515.
(a)Disconnect the W30 electrical harness connector from the fuel metering unit (01-010 , 73-21-40) (SIN 30000) or (01-011 , 73-21-40) (SIN 30000) receptacle.
(b)Disconnect the W30 electrical harness connector from the controller EAI (C00AD).
(c)Deleted.
(d)Loosen and remove the bolts, washers, and nuts that attach the W30 electrical harness to the sensing element (20-020 , 71-00-00) (SIN C00A9) on the fill and overfill lower bifurcation manifold. Keep the bolts and nuts for future use.
(e)Loosen and remove the bolt and clamp that attach the W30 electrical harness to the fill and overfill lower bifurcation manifold (99004). Keep the bolt and nut for future use.
Subtask 72-00-02-030-748
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
(f)Remove the W30 electrical harness from the spring clips on the brackets (01-450 , 72-00-05) (SIN 37010), (05-090 , 73-11-41) (SIN 37610), (05-380 , 79-22-30) (SIN 4611C), (25-040 , 73-11-43) (SIN 59001), (01-120 , 75-42-10) (SIN 53012), (30-620) (SIN 6711B), (30-590) (SIN 6711C), (01-310 , 72-00-05) (SIN 6711G), (25-210 , 72-00-00) (SIN 68812), (30-270) (SIN 68816), (25-560 , 72-00-00) (SIN 6881U), and (05-080 , 73-21-66) (SIN 6881V) or (01-141 , 75-11-30) (SIN 63717), MFP and TBV drain manifold (05-030 , 73-11-43) (SIN 37000), oil vent tube (05-030 , 79-22-30) (SIN 46100), and oil manifold (05-110 , 79-22-30) (SIN 46101) or (05-111 , 79-22-30) (SIN 46101).
* * * END PRE SB   73-0060
Subtask 72-00-02-030-749
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
(f).A.Remove the W30 electrical harness (01-011 , 73-21-66) (SIN 68800) as follows:
1Remove the W30 electrical harness from the brackets (01-090 , 73-21-66) (SIN 9901U), (01-110 , 73-21-26) (SIN 6881J), (05-090 , 73-11-41) (SIN 37610), (01-141 , 75-11-30) (SIN 63717), (15-031 , 75-24-10) (SIN 9801K), (15-270 , 75-24-10) (SIN 9801N), (15-171 , 75-24-10) (SIN 9801D), (15-160 , 75-24-10) (SIN 9801E), (15-031 , 75-24-10) (SIN 9801K), (15-041 , 75-24-10) (SIN 9801J), (15-250 , 75-24-10) (SIN 9801L), (15-182 , 75-24-10) (SIN 9801F), (15-250 , 75-24-10) (SIN 9801L), (15-021 , 75-24-10) (SIN 9801G), (15-041 , 75-24-10) (SIN 9801J), and (05-080 , 79-22-30) (SIN 6881D), oil tube (05-030 , 79-22-30) (SIN 46100), oil vent manifold (05-111 , 79-22-30) (SIN 46101), and air manifolds (15-052 , 75-24-10) (SIN 6220D), (15-082 , 75-24-10) (SIN 6220C), (15-072 , 75-24-10) (SIN 6220B), and (15-062 , 75-24-10) (SIN 6220A).
2Remove the W30 electrical harness from the spring clips of brackets (01-310 , 72-00-05) (SIN 6711G), (01-450 , 72-00-05) (SIN 37010), (01-110 , 73-21-66) (SIN 6881J), (30-620) (SIN 6711B), (30-590) (SIN 6711C), (01-120 , 75-42-10) (SIN 53012), (01-141 , 75-11-30) (SIN 63717), (30-270) (SIN 68816), (25-560 , 72-00-00) (SIN 6881U), and (05-380 , 79-22-30) (SIN 4611C), tube (05-030 , 73-11-43) (SIN 37000), drain tube (25-041 , 73-11-43) (SIN 59001), and oil tube (05-030 , 79-22-30) (SIN 46100).
3Disconnect the P301 harness from the fuel metering unit (FMU).
4Disconnect the P303 harness connector from the engine anti-ice (EAI) controller (10-030 , 71-00-02) (SIN C00AD).
5Remove the W30 electrical harness from the engine.
* * * END SB   73-0060
Subtask 72-00-02-030-750
(g)Loosen and remove the screws, washers, and nuts that attach the W30 electrical harness to the six sensing elements (05-010 , 71-00-02) (SIN C00A7) or (05-011 , 71-00-02) (SIN C00A7), (05-060 , 71-00-02) (SIN C00A7) or (05-061 , 71-00-02) (SIN C00A7), and (05-110 , 71-00-02) (SIN C00A7) or (05-111 , 71-00-02) (SIN C00A7) on the LPT cooling manifold. Keep the screws and nuts for future use.
(h)Loosen and remove the bolts that attach the W30 electrical harness to the LPT cooling manifold. Keep the screws and nuts for future use.
(i)Wind the harness leads into coils and attach the coils together.
(j)Install protective covers on the harness connectors and component receptacles.
(2)Remove the W31 electrical harness (harness) (05-010 , 73-21-66) (SIN 68800) or (05-011 , 73-21-66) (SIN 68800) as follows. Refer to Figure 515.
(a)Disconnect the W31 electrical harness connector from the hydraulic pump (35-010 , 72-00-00) (SIN C00A6).
(b)Loosen and remove the bolts, washers, and nuts that attach the W31 electrical harness to the sensing element (20-010 , 71-00-00) (SIN C00A8) on the fill and overfill lower bifurcation manifold. Keep the bolts and nuts for future use.
(c)Loosen and remove the bolt and clamp that attach the W31 electrical harness to the fill and overfill lower bifurcation manifold (99004). Keep the bolt and nut for future use.
Subtask 72-00-02-030-751
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
(d)Remove the W31 electrical harness from the spring clips on the brackets (01-450 , 72-00-05) (SIN 37010), 01-400 , 72-00-05) (SIN 37011), 15-030 , 73-11-43) (SIN 37302), (01-120 , 72-00-05) (SIN 37312), (05-380 , 79-22-30) (SIN 4611C), (01-120 , 75-42-10) (SIN 53012), (30-620) (SIN 6711B), (30-590) (SIN 6711C), (01-310 , 72-00-05) (SIN 6711G), (25-560 , 72-00-00) (SIN 6881U), (30-270) (SIN 68816), and (05-080 , 73-21-66) (SIN 6881V) or (01-141 , 75-11-30) (SIN 63717), oil vent tube (05-030 , 79-22-30) (SIN 46100), and oil manifold (05-110 , 79-22-30) (SIN 46101) or (05-111 , 79-22-30) (SIN 46101).
* * * END PRE SB   73-0060( )
Subtask 72-00-02-030-752
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
(d).A.Remove the W31 electrical harness (05-011 , 73-21-66) (SIN 68801) as follows:
1Remove the W31 electrical harness from the brackets (05-100 , 73-21-66) (SIN 9901T), (01-171 , 72-00-05) (SIN 5901C), (01-141 , 75-11-30) (SIN 63717), (15-041 , 75-24-10) (SIN 9801J), (15-021 , 75-24-10) (SIN 9801G), (15-250 , 75-24-10) (SIN 9801L), (15-182 , 75-24-10) (SIN 9801F), (15-270 , 75-24-10) (SIN 9801N), (15-031 , 75-24-10) (SIN 9801K), (15-171 , 75-24-10) (SIN 9801D), (15-160 , 75-24-10) (SIN 9801E), and (05-080 , 79-22-30) (SIN 6881D), tube (15-030 , 73-11-43) (SIN 37302), oil tube (05-030 , 79-22-30) (SIN 46100), oil vent manifold (05-111 , 79-22-30) (SIN 46101), and air manifols (15-052 , 75-24-10) (SIN 6220D), and (15-062 , 75-24-10) (SIN 6220A).
2Remove the W31 electrical harness from the spring clips on the brackets (30-250 , 72-00-00) (SIN 0971J), (01-310 , 72-00-05) (SIN 6711G), (01-450 , 72-00-05) (SIN 37010), (01-400 , 72-00-05) (SIN 37011), (30-270) (SIN 68816), (25-560 , 72-00-00) (SIN 6881U), (01-120 , 75-24-10) (SIN 53012), (30-620) (SIN 6711B), (30-590) (SIN 6711C), (01-141 , 75-11-30) (SIN 63717), and (05-380 , 79-22-30) (SIN 4611C), drain tube (25-041 , 73-11-43) (SIN 59001), tube (15-030 , 73-11-43) (SIN 37302), and oil tube (05-030 , 79-22-30) (SIN 46100).
3Disconnect the P311 harness connector from the hydraulic pump (35-010 , 72-00-00) (SIN C00A6).
4Remove the W31 harness from the engine.
* * * END SB   73-0060
Subtask 72-00-02-030-753
(e)Loosen and remove the screws, washers, and nuts that attach the W31 electrical harness to the six sensing elements (05-010 , 71-00-02) (SIN C00A7) or (05-011 , 71-00-02) (SIN C00A7), (05-060 , 71-00-02) (SIN C00A7) or (05-061 , 71-00-02) (SIN C00A7), and (05-110 , 71-00-02) (SIN C00A7) or (05-111 , 71-00-02) (SIN C00A7) on the LPT cooling manifold. Keep the screws and nuts for future use.
(f)Loosen and remove the bolts that attach the W31 electrical harness to the LPT cooling manifold. Keep the screws and nuts for future use.
(g)Wind the harness leads into coils and attach the coils together.
(h)Install protective covers on the harness connectors and component receptacles.
* * * FOR ALL

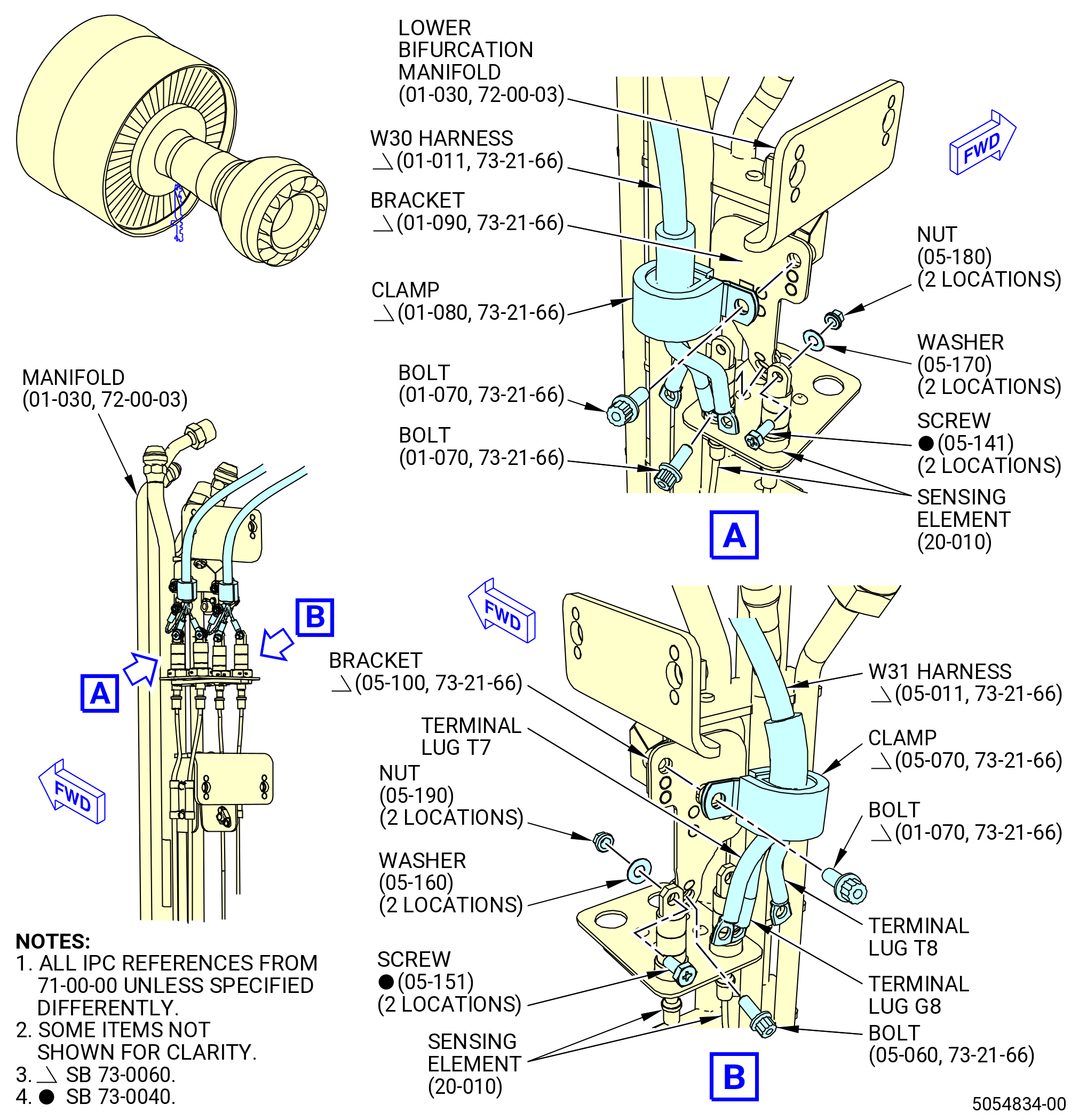

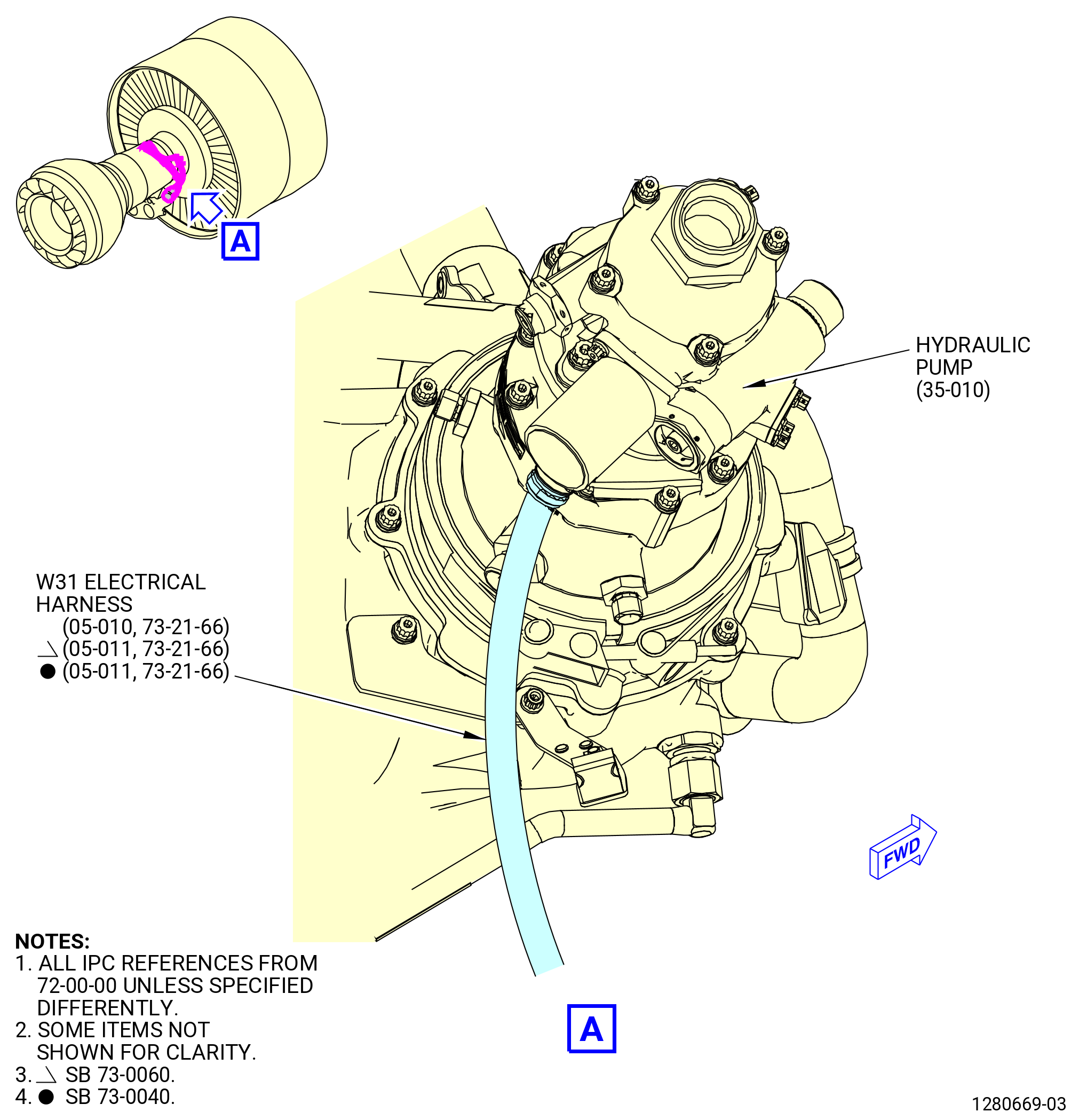

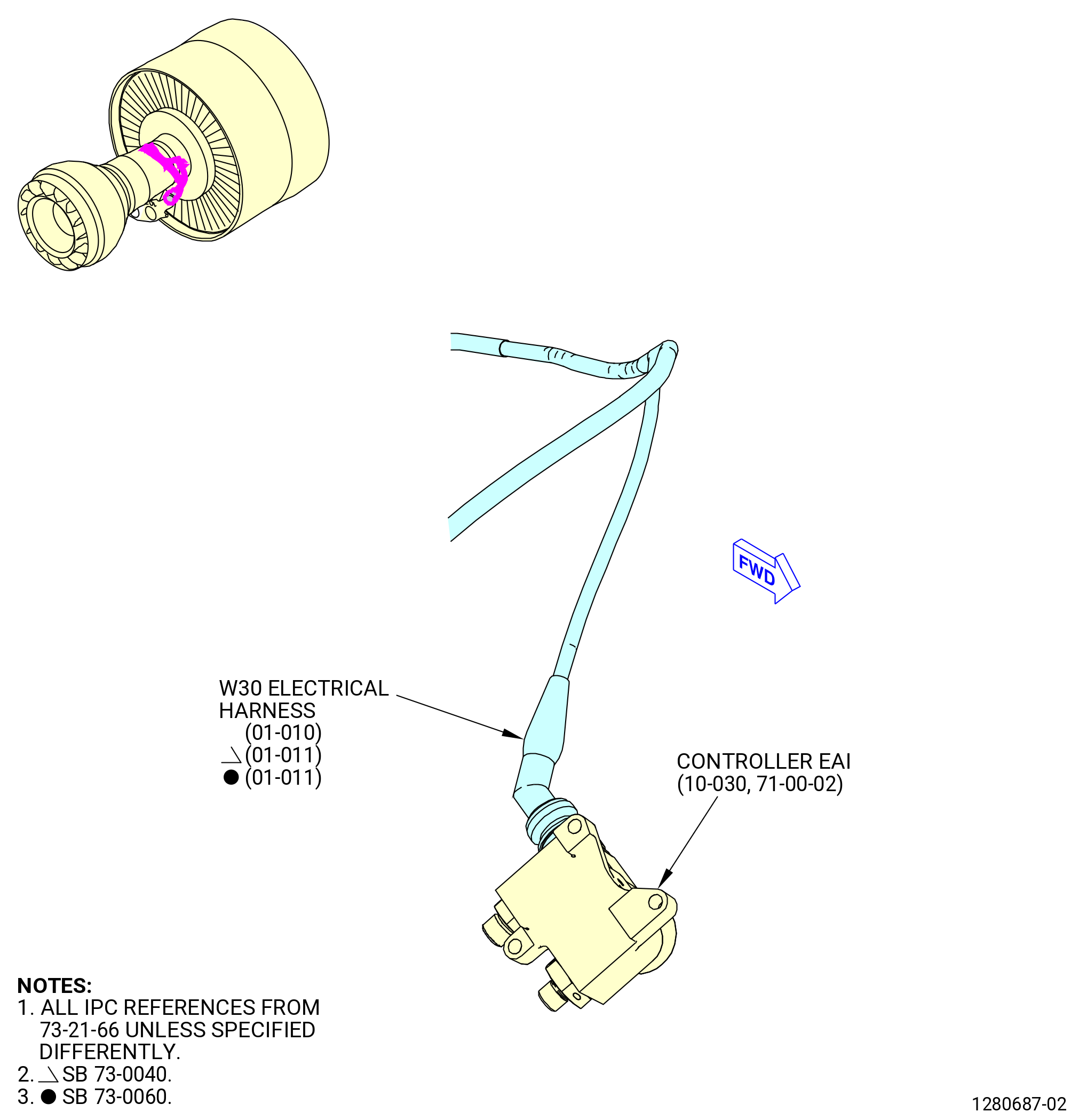

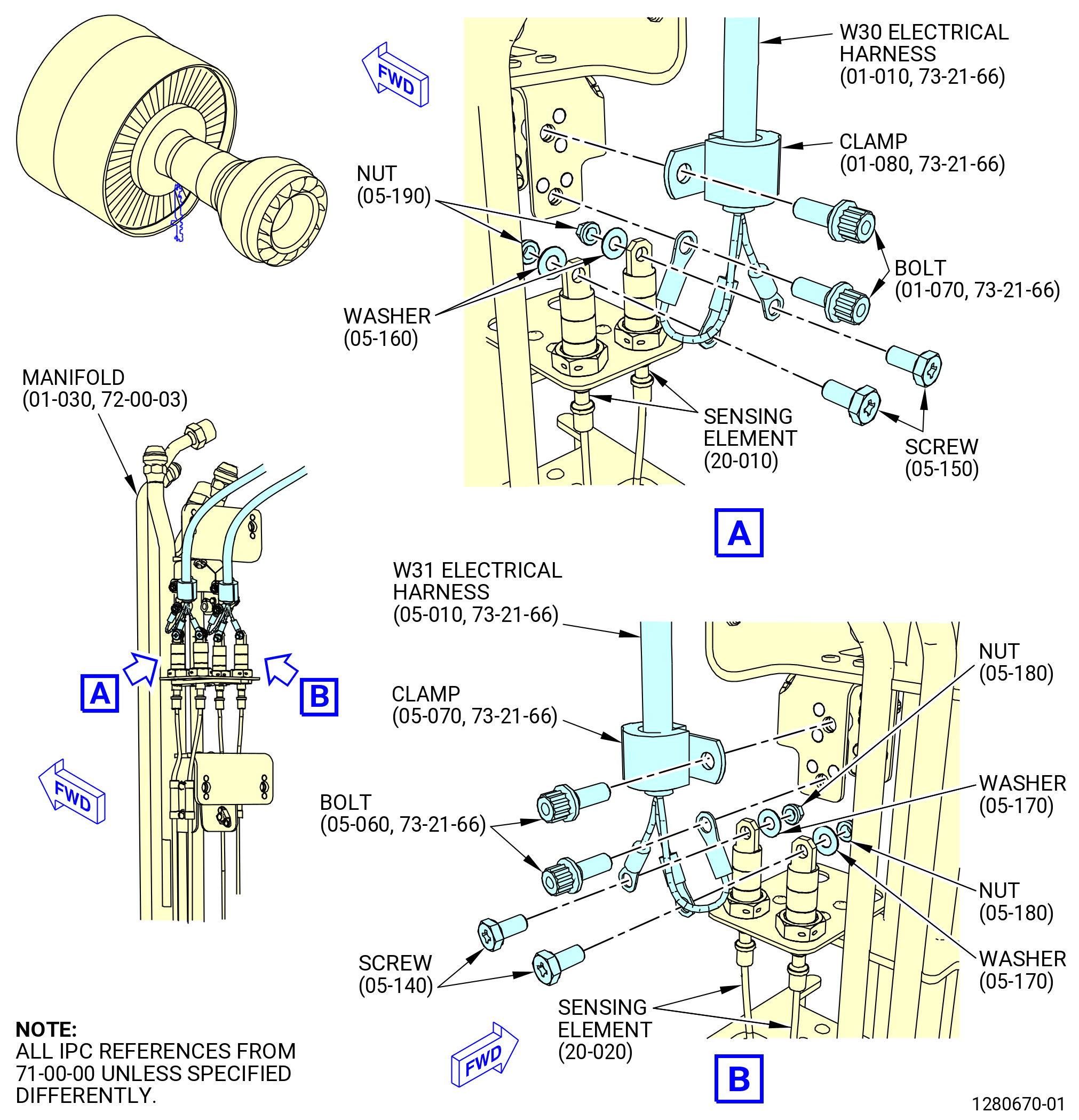

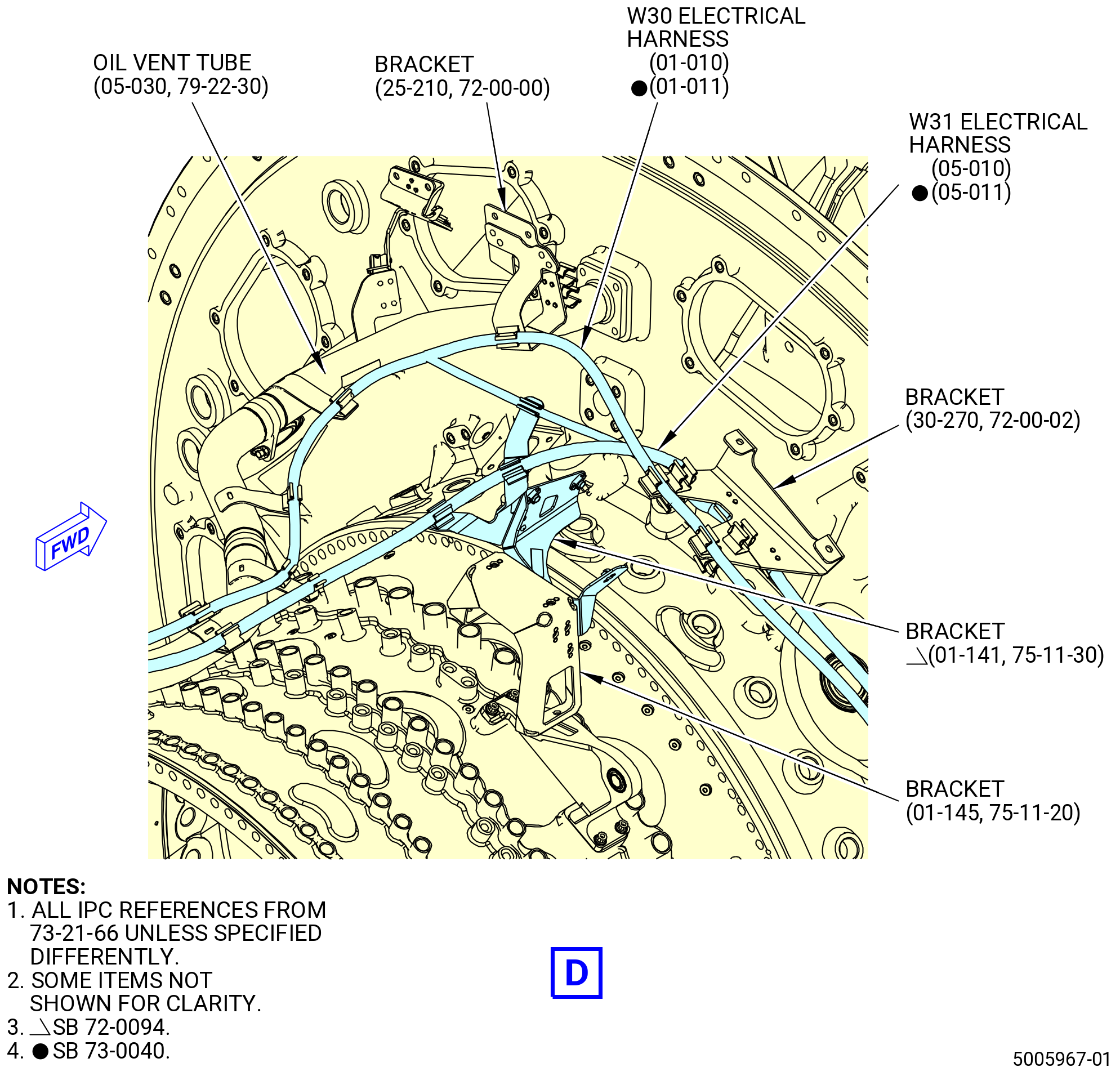

Figure 515   (Sheet 1 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
Figure 515   (Sheet 2 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
Figure 515   (Sheet 3 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
* * * FOR ALL
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
Figure 515   (Sheet 4 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL.ALL
* * * FOR ALL
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
Figure 515   (Sheet 5 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
Figure 515   (Sheet 6 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
* * * PRE SB   73-0011( Engines without Fuel Vapor Accumulator )
Figure 515   (Sheet 7 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
* * * SB   73-0011( Engines with Fuel Vapor Accumulator )
Figure 515   (Sheet 8 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL.ALL
* * * FOR ALL
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
* * * SB   73-0011( Engines with Fuel Vapor Accumulator )
Figure 515   (Sheet 9 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
Figure 515   (Sheet 10 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
* * * PRE SB   72-0094( Engines without Anti-Ice Brackets )
Figure 515   (Sheet 11 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
* * * SB   72-0094( Engines with Anti-Ice Brackets )
Figure 515   (Sheet 12 ) Removal of W30 and W31 Electrical Harnesses
* * * FOR ALL.ALL
* * * FOR ALL
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
Figure 515   (Sheet 13 ) Removal of W30 and W31 Electrical Harnesses.
Subtask 72-00-02-030-438
H.Remove the LH power cables and RH power cables from the left side of the propulsor ALF. Refer to Figure 516 and do as follows:
CAUTION:
ALWAYS USE TEFLON-JAWED PLIERS TO LOOSEN THE ELECTRICAL CONNECTORS. YOU CAN DAMAGE THE CONNECTORS IF YOU USE METAL-JAWED PLIERS.
CAUTION:
MAKE SURE THAT THE ELECTRICAL CONNECTORS ARE CLEAN WHEN YOU DISCONNECT THEM. CONNECTOR CONTAMINATION CAN CAUSE DAMAGE TO THE EQUIPMENT.
(1)Remove the LH power cables as follows:
(a)Remove the bolts and two hinged clamps from the brackets that attach the LH power cables to the HPT supply air duct.
(b)Remove the bolts and the hinged clamp that attach the LH power cables to the LPT supply air duct.
(c)Remove the bolts and the hinged clamp that attach the LH power cables to the bracket support.
(d)Remove the bolts and the clamp block that attach the LH power cables to the support bracket.
(2)Remove the RH power cables as follows:
(a)Remove the bolts and two hinged clamps from the brackets that attach the RH power cables to the HPT supply air duct.
(b)Remove the bolts and the hinged clamp that attach the RH power cables to the LPT supply air duct.
(c)Remove the bolts and the hinged clamp that attach the RH power cables to the bracket support.
(d)Remove the bolts and the two clamp blocks that attach the RH power cables to the heat shield.
* * * FOR ALL
Figure 516   (Sheet 1 ) Removal of the LH Power Cables and RH Power Cables
* * * FOR ALL
Figure 516   (Sheet 2 ) Removal of the LH Power Cables and RH Power Cables
* * * FOR ALL
Figure 516   (Sheet 3 ) Removal of the LH power cables and RH Power Cables
Subtask 72-00-02-030-365
I.Continue the disassembly of the external configuration hardware. Refer to TASK 72-00-02-030-802 (72-00-02, DISASSEMBLY 002 - CONFIG 01) or TASK 72-00-02-030-808 (72-00-02, DISASSEMBLY 002 - CONFIG 02).
