TASK 72-00-02-030-808
1 . General.
A.This procedure gives instructions to continue the disassembly of the propulsor module assembly (propulsor). This procedure removes the external configuration hardware. Refer to Figure 501.
•
Propulsor (30-021 , 72-00-00) (SIN 0010C)
•
Propulsor (30-022 , 72-00-00) (SIN 0010C) SB 72-0161
•
Propulsor (30-023 , 72-00-00) (SIN 0010C) SB 79-0018.
B.This procedure starts with the propulsor in the horizontal position. The propulsor can be installed in the 11C3044   engine module adapter assembly, attached to the customer overhead rail system, or supported by the 11C3281   pedestals, at the equivalent disassembly status of TASK 72-00-02-030-801 (72-00-02, DISASSEMBLY 001) .
C.Modules that you remove can have external hardware that you will remove at the module disassembly level.
D.Before you do this procedure, read the Assembly and Disassembly Techniques section. Refer to TASK 70-10-00-800-009 (ASSEMBLY AND DISASSEMBLY TECHNIQUES) .
E.Install protective covers/plugs on tubes and hoses to prevent damage and contamination.
F.Make sure that you obey all site safety and environmental controls or personal injury can occur.
2 . Tools, Equipment, and Materials.
NOTE:
You can use equivalent alternatives for tools, equipment, and consumable materials.
A.Tools and Equipment.
(1)Special Tools.

Tool No.
Description

11C3039G02
Bracket Set - Forward Propulsor, Ground Handling and Shipping (bracket set)

11C3044G01
Adapter Assembly, Overhead Support - Engine Modules (engine module adapter assembly)

11C3281G02
Bracket Set, Support - Main Engine (pedestals)
NOTE:
To use with the fan hub frame (FHF).

11C3281G03
Bracket Set, Support - Main Engine (pedestals)
NOTE:
To use with the turbine center frame (TCF).

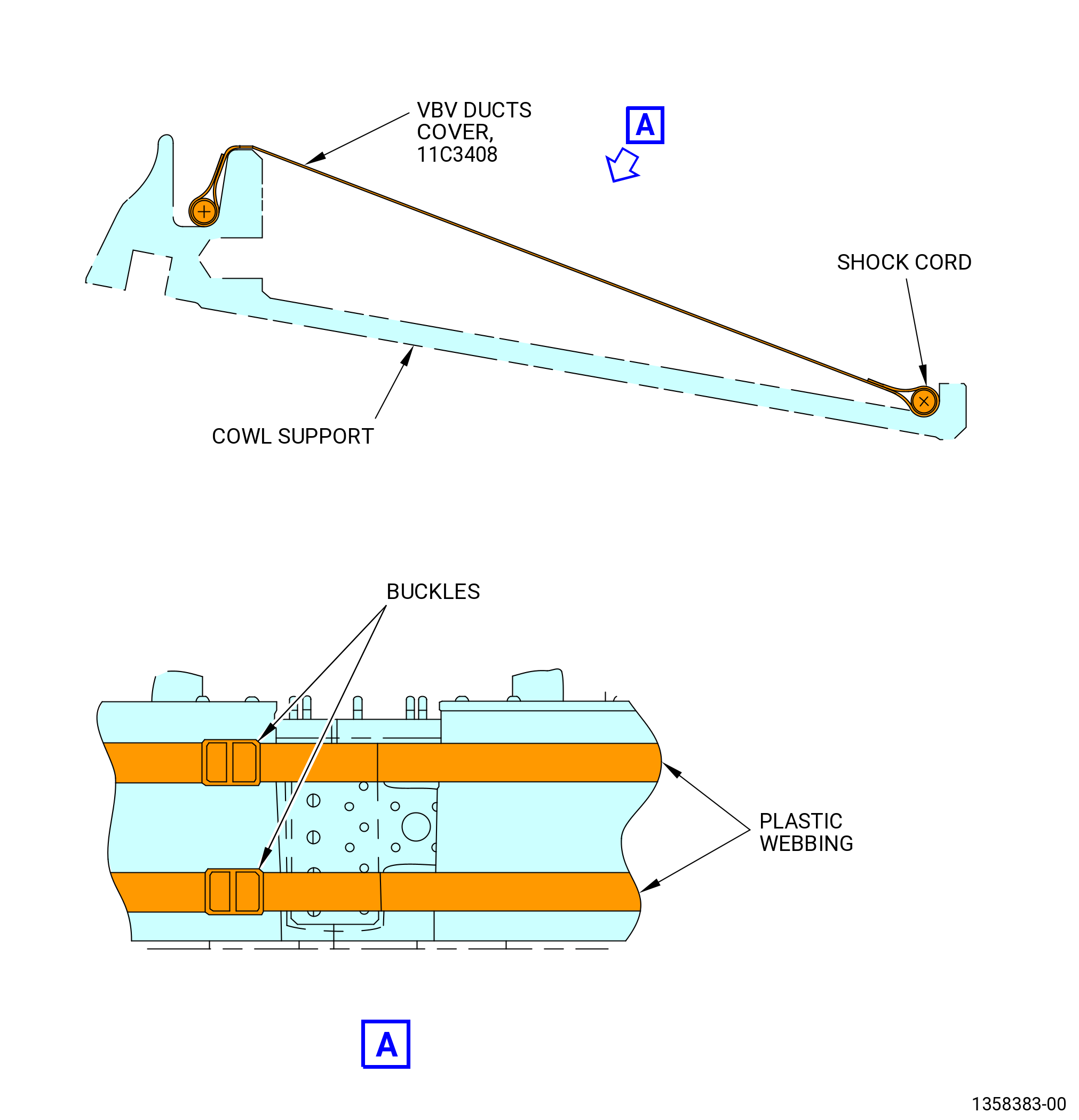

11C3408P01
Cover, VBV Ducts

11C4430G02
Bracket Set - Forward Propulsor, Ground Handling and Shipping (bracket set)
NOTE:
Tool 11C4430G02 is alternative to 11C3039G02.
(2)Standard Tools and Equipment.

Description
Manufacturer

Customer Overhead Rail System
Locally Used
(3)Locally Manufactured Tools. None.
B.Consumable Materials.

Code No.
Description

C02-053
Oil, Penetrating

C04-035
Solvent General (isopropyl alcohol)
C.Referenced Procedures.

ATA No.
Description

70-10-00
Assembly and Disassembly Techniques

72-00-02
Disassembly 001

72-00-02
Disassembly 003

72-00-05
Removal 001
D.Expendable Parts. None.
* * * FOR ALL PIP 2

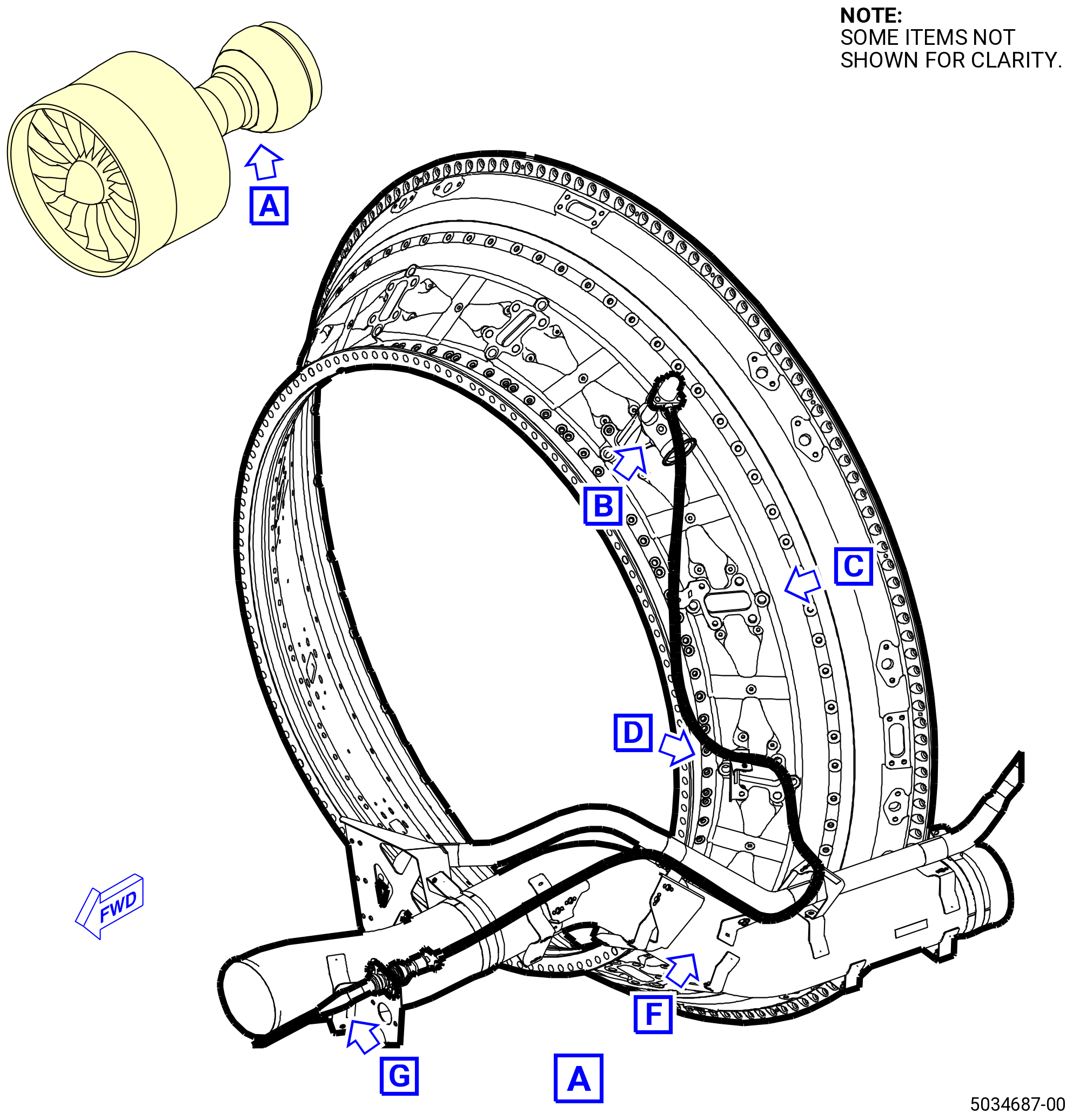

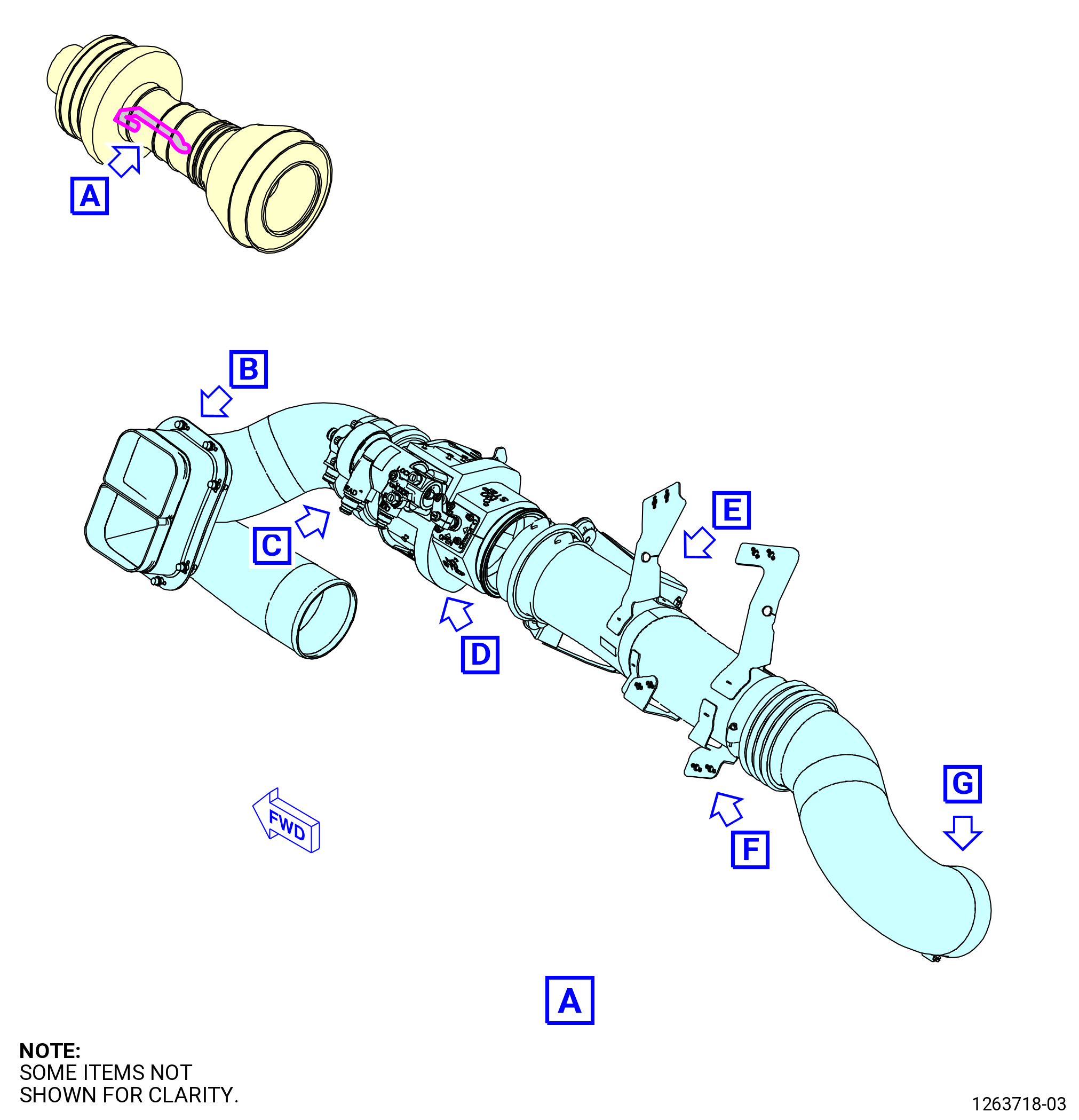

Figure 501   Propulsor
3 . Procedure.
Subtask 72-00-02-030-553
* * * PRE SB   75-0032( Two Separate Single-Channel Sensors )
A.Remove the booster anti-ice (BAI) system. Refer to Figure 502 and do as follows:
(1)Remove the manifold (01-150 , 75-11-30) (SIN 63709) as follows:
(a)Remove the manifold (01-150 , 75-11-30) (SIN 63709) from the sensors (01-170 , 75-11-30) (SIN 63701) at two locations.
(b)Remove the manifold (01-150 , 75-11-30) (SIN 63709) from the tube (01-030A , 75-11-30) (SIN 63703).
* * * END PRE SB   75-0032
Subtask 72-00-02-030-760
* * * SB   75-0032( One Dual-Channel Sensor )
(1).A.Remove the manifold (01-150 , 75-11-30) (SIN 63709) as follows:
(a)Remove the manifold (01-150 , 75-11-30) (SIN 63709) from the sensor (01-170 , 75-11-30) (SIN 63701) at one location.
(b)Remove the manifold (01-150 , 75-11-30) (SIN 63709) from the tube (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703).
* * * END SB   75-0032
Subtask 72-00-02-030-761
* * * PRE SB   75-0032( Two Separate Single-Channel Sensors )
(2)Remove the sensors (01-170 , 75-11-30) (SIN 63701) as follows:
(a)Remove the four bolts (01-190 , 75-11-30) (SIN 63725) that attach the sensors (01-170 , 75-11-30) (SIN 63701) to the bracket (30-220) (SIN 63715).
* * * END PRE SB   75-0032
Subtask 72-00-02-030-762
* * * SB   75-0032( One Dual-Channel Sensor )
(1).A.Remove the sensor (01-170 , 75-11-30) (SIN 63701) as follows:
(a)Remove the two bolts (01-190 , 75-11-30) (SIN 63725) that attach the sensor (01-170 , 75-11-30) (SIN 63701) to the bracket (30-220) (SIN 63715).
* * * END SB   75-0032
Subtask 72-00-02-030-706
* * * PRE SB   75-0020( Two Tubes Configuration )
(2)Remove the BAI air tube (tube) (01-180 , 75-11-30) (SIN 63704) as follows:
NOTE:
SB 75-0020 does not use this step and sub steps. SB 75-0020 uses the tube (01-030C , 75-11-30) (SIN 63703), which combines the current length of tube (01-030 , 75-11-30) (SIN 63703) or (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) with length of BAI air tube (01-180 , 75-11-30) (SIN 63704).
(a)Remove the coupling clamp (clamp) (01-110 , 75-11-30) (SIN 63780) that connects the tube (01-180 , 75-11-30) (SIN 63704) to the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703).
(b)Remove the tube (01-180 , 75-11-30) (SIN 63704) from the fan hub frame (10-401 , 72-25-00) (SIN 84000) or (10-402 , 72-25-00) (SIN 84000).
(c)Remove the ring seal (01-100 , 75-11-30) (SIN 63750).
(d)Put protective caps or protective covers on the tube (01-180 , 75-11-30) (SIN 63704).
* * * END PRE SB   75-0020
Subtask 72-00-02-030-623
* * * PRE SB   75-0020( Two Tubes Configuration )
* * * PRE SB   75-0011( Nacelle Valve with Manual Lock Open Feature )
* * * PRE SB   75-0027( BAI Configuration with BAI Air Sense Tube )
(3)Remove the BAI air sense tube (tube) (01-040 , 75-11-30) (SIN 63708) as follows:
NOTE:
SB 75-0011 does not use this step. SB 75-0011 deletes the tube (01-040 , 75-11-30) (SIN 63708) and tube (01-030B , 75-11-30) (SIN 63703) does not have the connection to the tube (01-040 , 75-11-30) (SIN 63708).
NOTE:
SB 75-0020 does not use this step. Tube (01-030C , 75-11-30) (SIN 63703) does not have the connection to the tube (01-040 , 75-11-30) (SIN 63708).
(a)Disconnect the tube (01-040 , 75-11-30) (SIN 63708) from the nacelle valve (valve) (01-010 , 75-11-30) (SIN 63700).
(b)Disconnect the tube (01-040 , 75-11-30) (SIN 63708) from the tube (01-030A , 75-11-30) (SIN 63703).
(c)Remove the tube (01-040 , 75-11-30) (SIN 63708).
* * * END PRE SB   75-0027
* * * END PRE SB   75-0011
Subtask 72-00-02-030-740
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
* * * SB   75-0027( BAI Configuration without BAI Air Sense Tube )
(3).A.Remove the cap assembly tube (cap) (01-045 , 75-11-30) (SIN 63762) from the tube (01-030A , 75-11-30) (SIN 63703) that attaches to the valve (01-010A , 75-11-30) (SIN 63700).
NOTE:
For field configuration only. SB 75-0011 removes the tube (01-040, 75-11-30) (SIN 63708) but keeps the connection with the tube (01-030A, 75-11-30) (SIN 63703) open. SB 75-0027 repairs this with the installation of the cap. This procedure removes this cap.
NOTE:
SB 75-0011 uses valve (01-010A, 75-11-30) (SIN 63700) that does not have the connection to the tube (01-030A, 75-11-30) (SIN 63703).
NOTE:
SB 75-0020 does not use this step. Tube (01-030C, 75-11-30) (SIN 63703) does not have the connection to the tube (01-040, 75-11-30) (SIN 63708).
* * * END SB   75-0027
* * * END SB   75-0011
* * * END PRE SB   75-0020
Subtask 72-00-02-030-624
(4)Remove the tube (01-020 , 75-11-30) (SIN 63702) as follows:
(a)Remove the V-band (01-210 , 75-11-30) (SIN 63784) from the tube (01-020 , 75-11-30) (SIN 63702).
(b)Remove the machine bolts (bolt) (01-070 , 75-11-30) (SIN 63722) from the bracket (01-050 , 75-11-30) (SIN 63710).
(c)Remove the two machine bolts (bolts) (01-090 , 75-11-30) (SIN 63724) that attach the tube (01-020 , 75-11-30) (SIN 63702) to the support bracket (01-240 , 75-11-30) (SIN 63718).
(d)Remove the tube (01-020 , 75-11-30) (SIN 63702).
(e)Remove the seal (01-160 , 75-11-30) (SIN 63753).
(f)Put protective caps or protective covers on the tube (01-020 , 75-11-30) (SIN 63702).
(5)Remove the valve (01-010 , 75-11-30) (SIN 63700) or (01-010A , 75-11-30) (SIN 63700) as follows:
(a)Remove the V-band (01-210 , 75-11-30) (SIN 63784) from the valve and tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703).
(b)Remove the valve.
(c)Remove the seal (01-160 , 75-11-30) (SIN 63753).
(6)Remove the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703) as follows:
(a)Remove the bolts (01-080 , 75-11-30) (SIN 63723) that attach the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703) to the support brackets (bracket) (25-330) (SIN 63711) and (01-060 , 75-11-30) (SIN 63712).
(b)Remove the bolts (01-090 , 75-11-30) (SIN 63724) or (01-093 , 75-11-30) (SIN 6372C) and the retaining strap (strap) (01-230 , 75-11-30) (SIN 6378B) that attach the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703) to the bracket (01-141 , 75-11-30) (SIN 63717).
(c)Remove the bolts (01-090 , 75-11-30) (SIN 63724) that attach the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703) and support bracket (02-080 , 75-11-25) (SIN 61019) to the fan hub frame.
(d)Remove the support bracket (02-080 , 75-11-25).
(e)Remove the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703).
(f)Put protective caps or protective covers on the tube (01-030A , 75-11-30) (SIN 63703) or (01-030B , 75-11-30) (SIN 63703) or (01-030C , 75-11-30) (SIN 63703).
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0011( Nacelle Valve with Manual Lock Open Feature )
* * * PRE SB   75-0020( Two Tubes Configuration )
* * * PRE SB   75-0027( BAI Configuration with BAI Air Sense Tube )

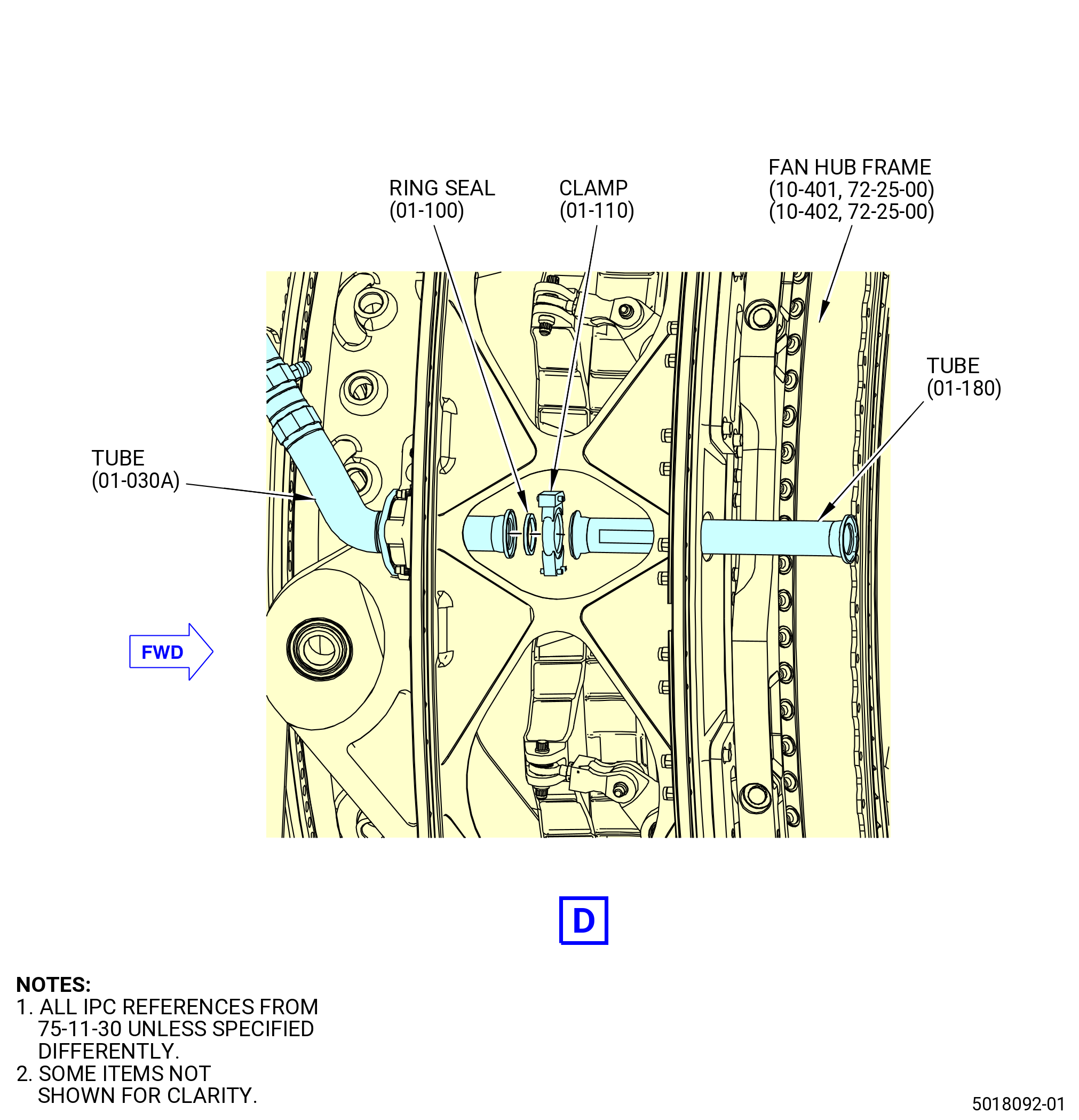

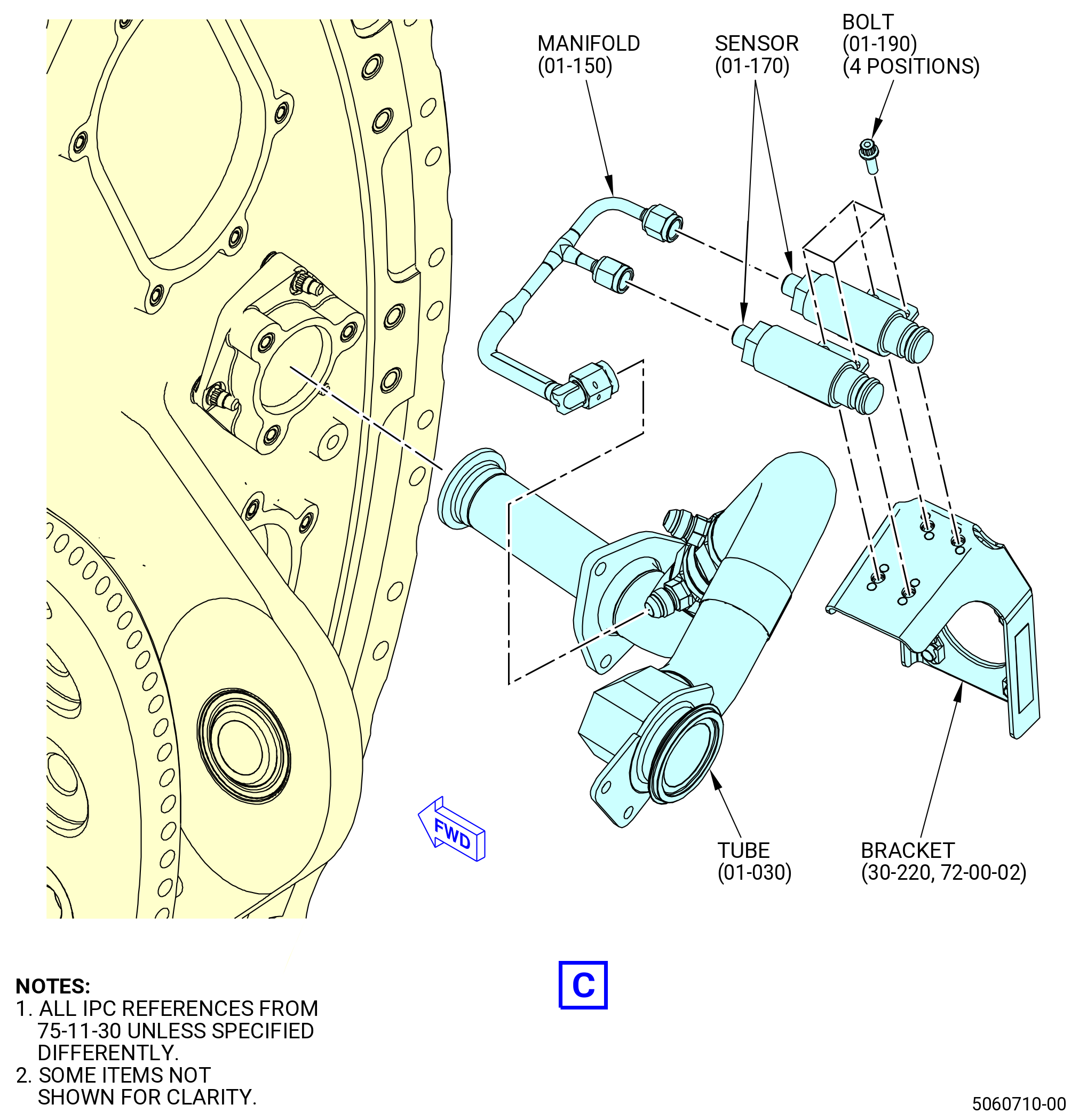

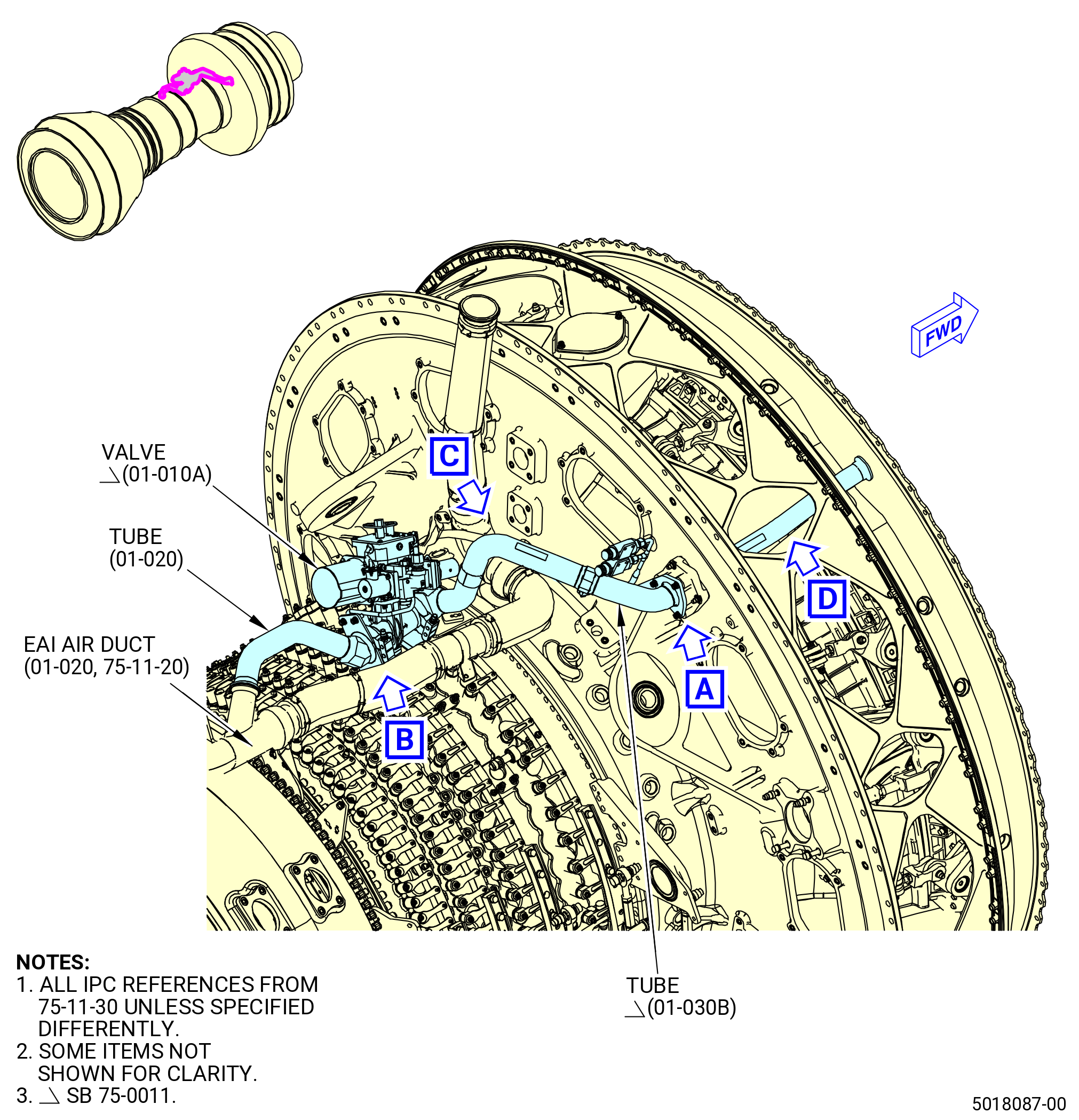

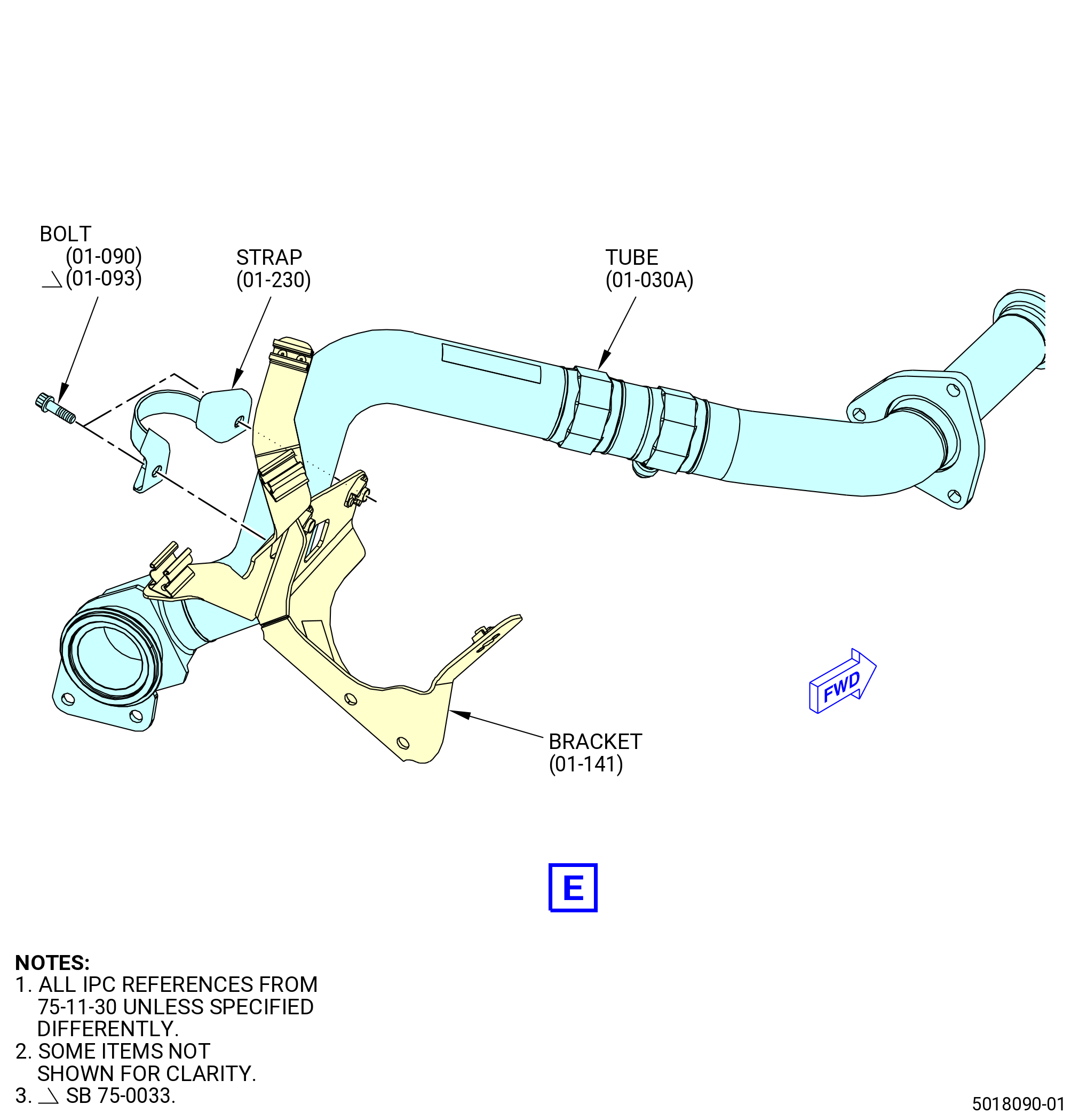

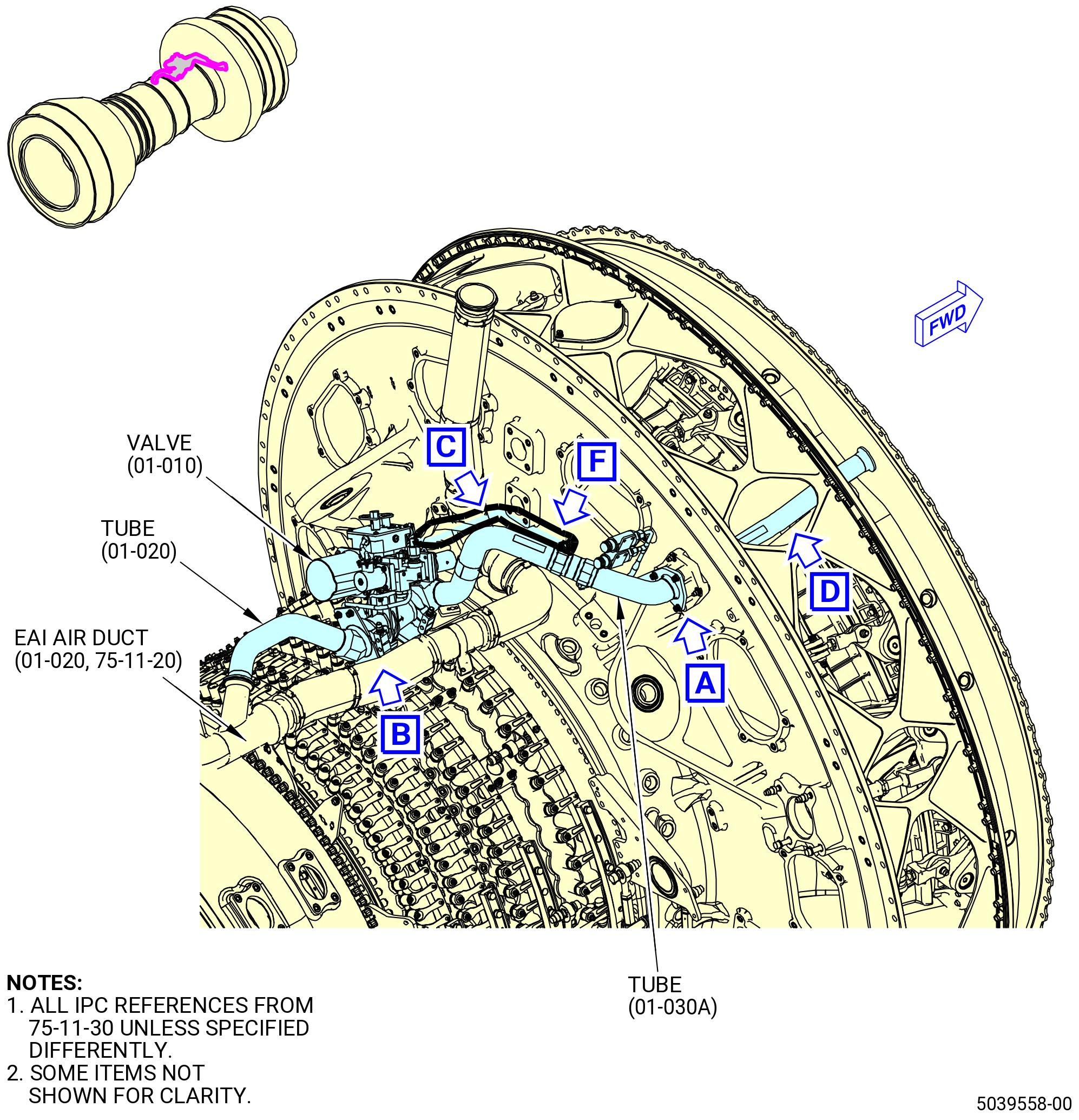

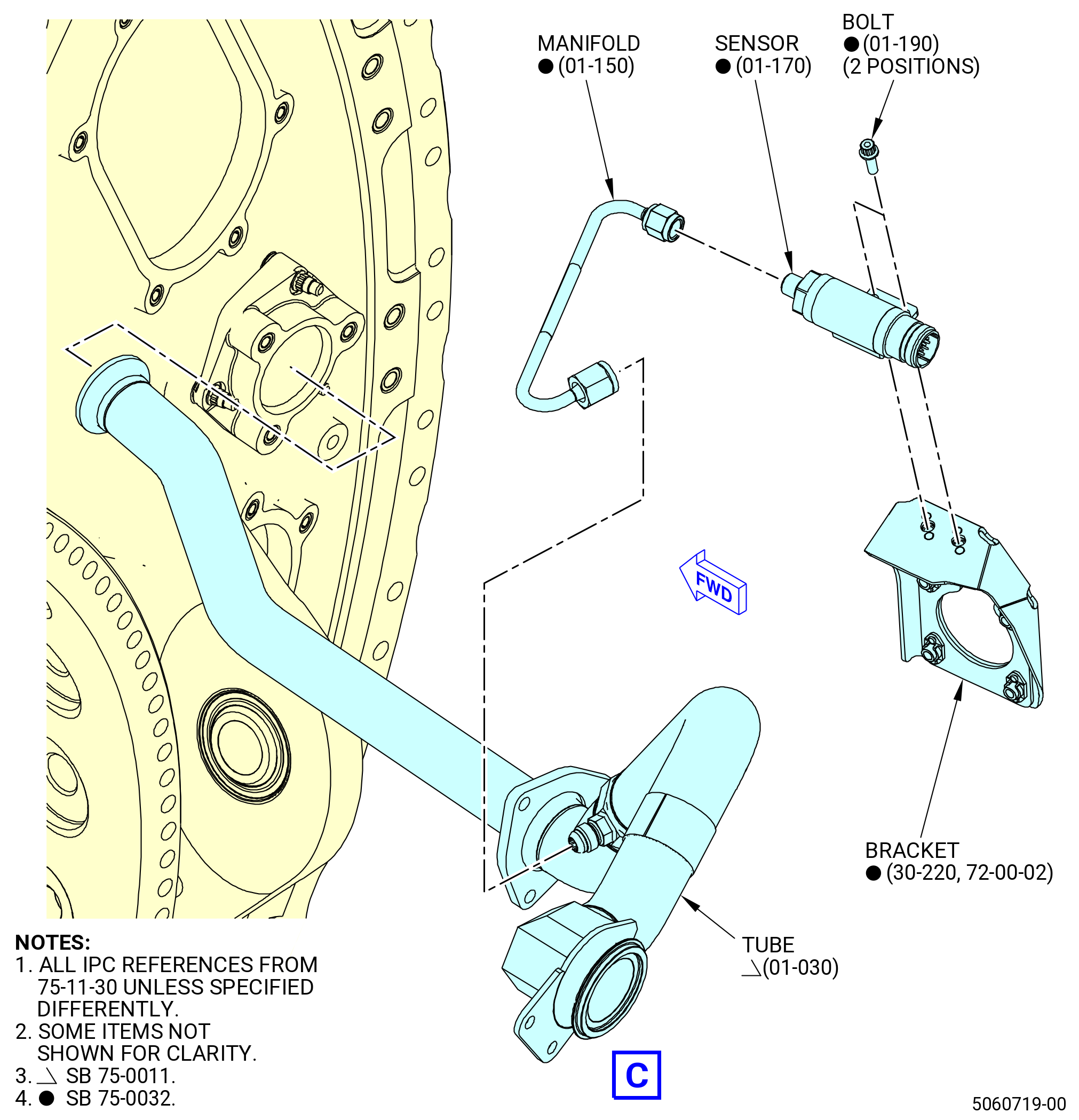

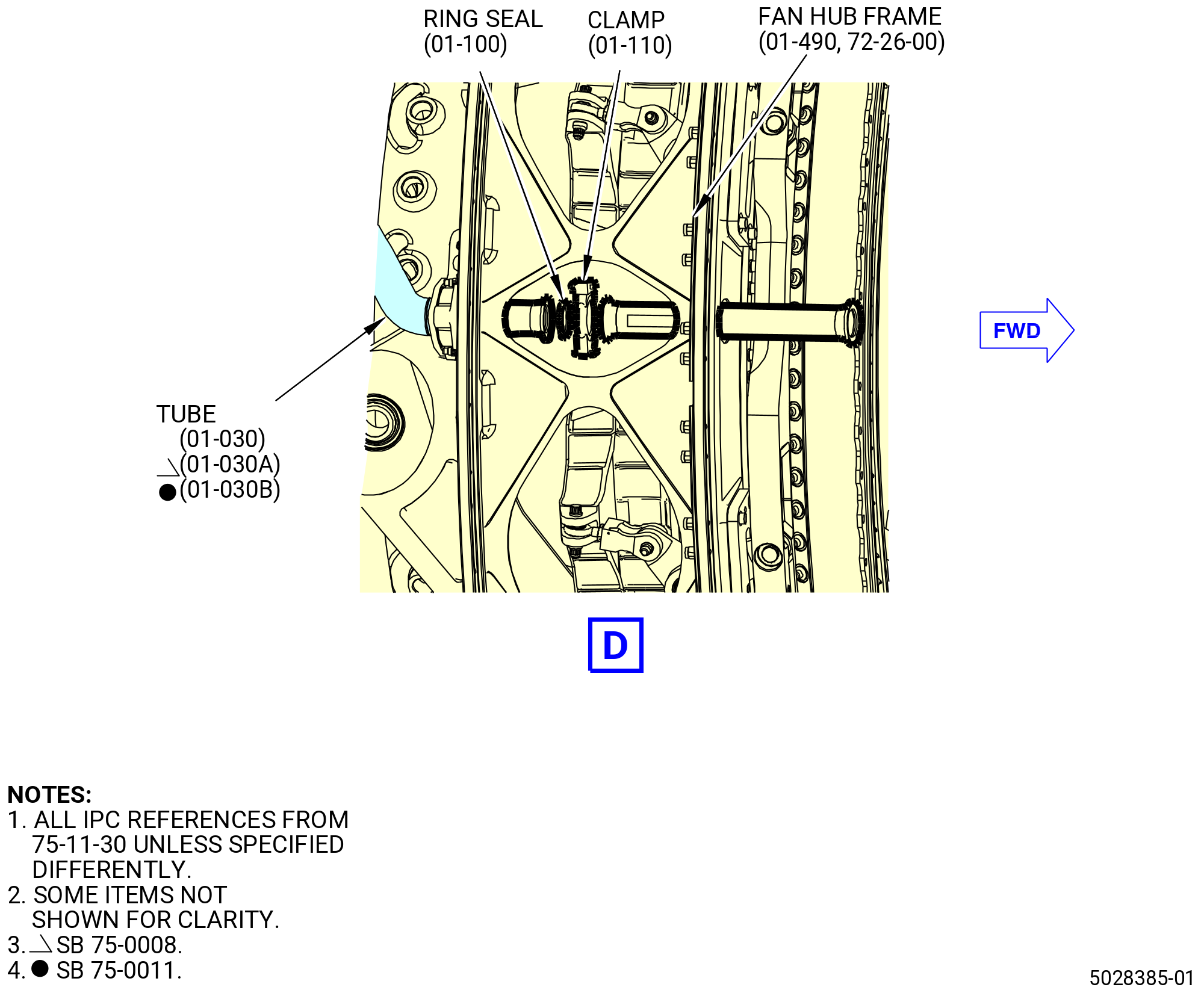

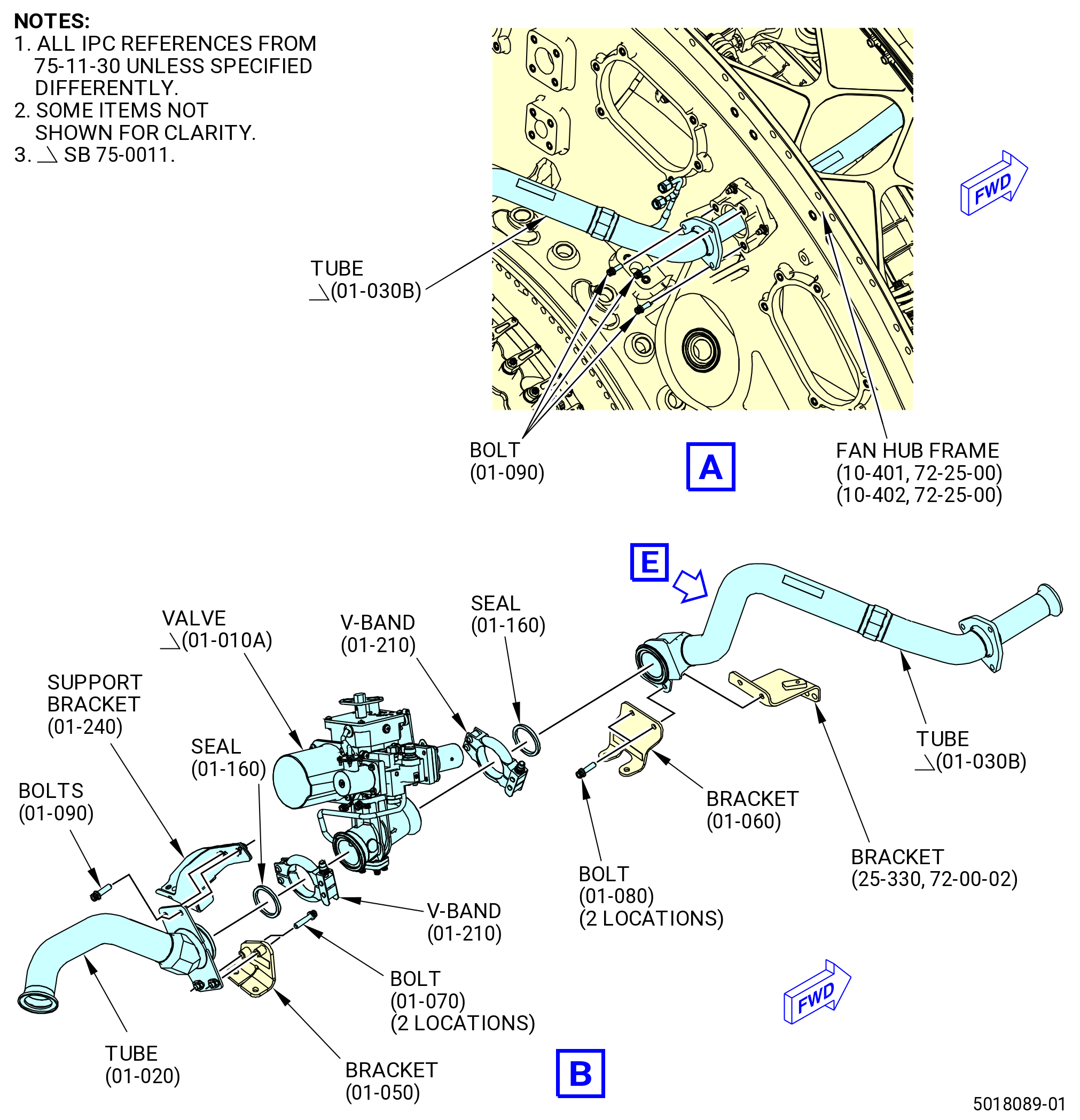

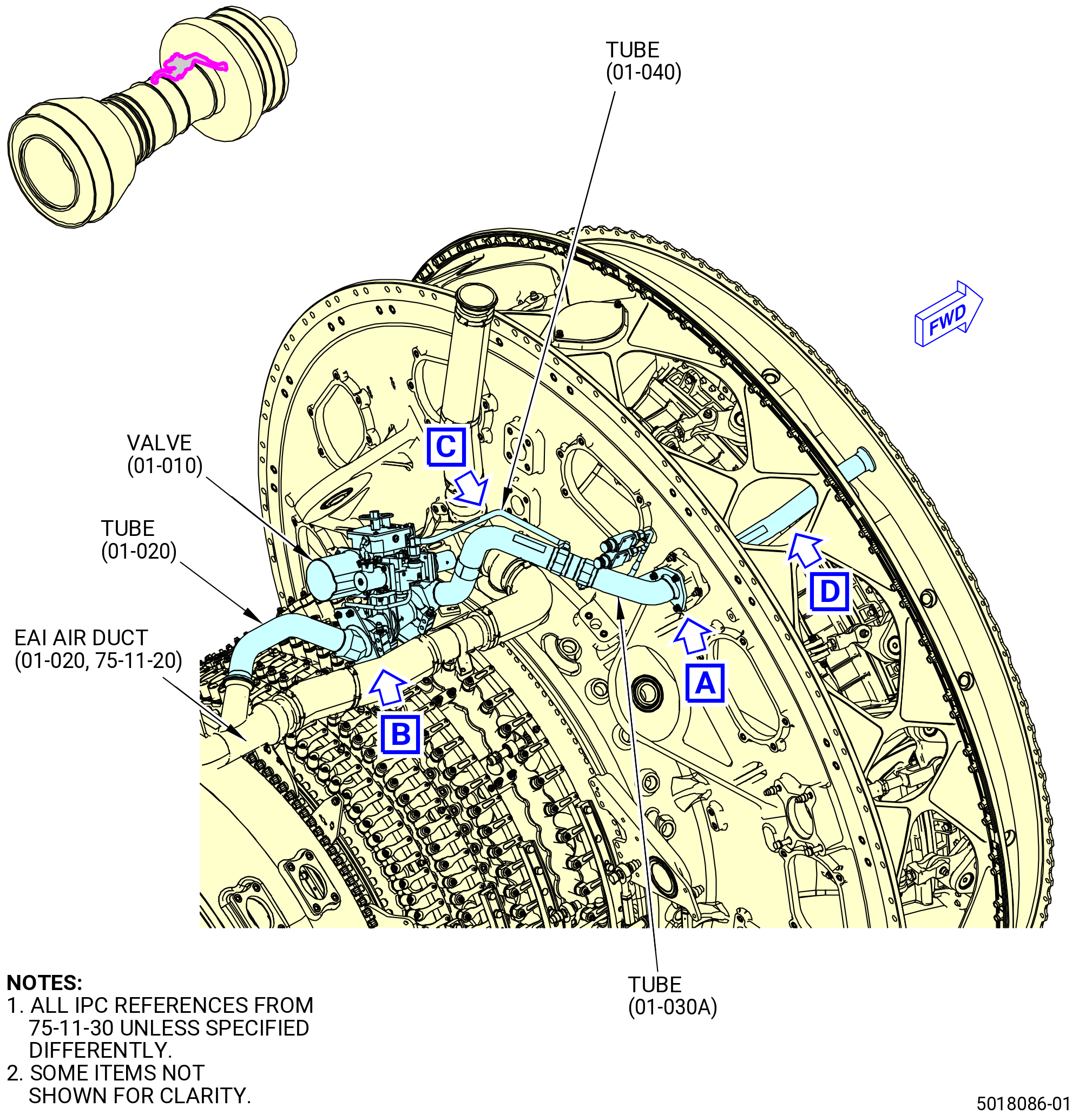

Figure 502   (Sheet 1 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
Figure 502   (Sheet 2 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
* * * SB   75-0027( BAI Configuration without BAI Air Sense Tube )
Figure 502   (Sheet 3 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
* * * SB   75-0027( BAI Configuration without BAI Air Sense Tube )
Figure 502   (Sheet 4 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0011( Nacelle Valve with Manual Lock Open Feature )
Figure 502   (Sheet 5 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
Figure 502   (Sheet 6 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0011( Nacelle Valve with Manual Lock Open Feature )
Figure 502   (Sheet 7 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
Figure 502   (Sheet 8 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0011( Nacelle Valve with Manual Lock Open Feature )
* * * PRE SB   75-0032( Two Separate Single-Channel Sensors )
Figure 502   (Sheet 9 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0011( Nacelle Valve with Manual Lock Open Feature )
* * * PRE SB   75-0020( Two Tubes Configuration )
Figure 502   (Sheet 10 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
* * * SB   75-0032( One Dual-Channel Sensor )
Figure 502   (Sheet 11 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0011( Nacelle Valve without Manual Lock Open Feature )
Figure 502   (Sheet 12 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0020( Two Tubes Configuration )
Figure 502   (Sheet 13 ) Removal of the Booster Anti-Ice System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0020( One Tube Configuration )

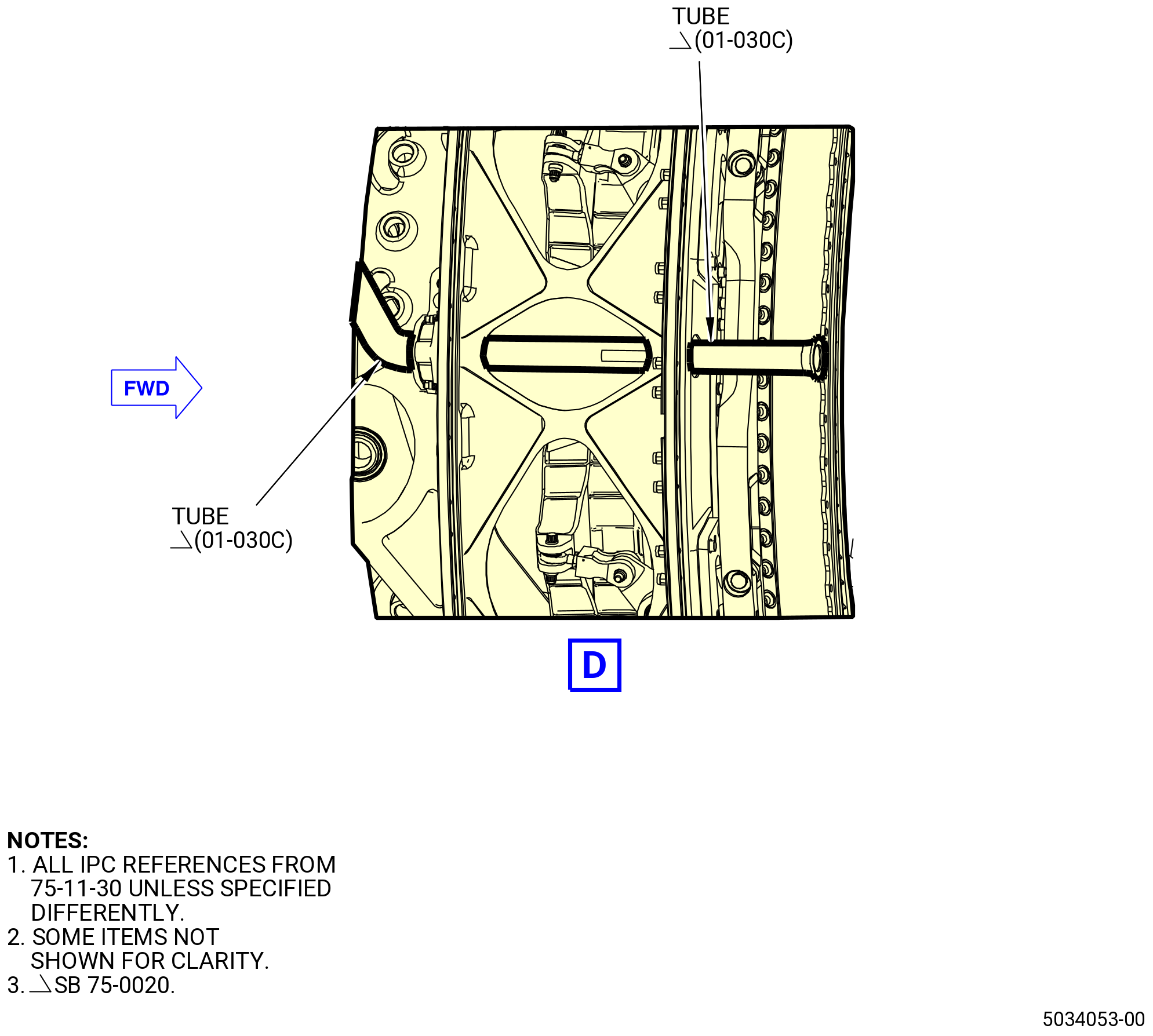

Figure 502   (Sheet 14 ) Removal of the Booster Anti-Ice System
Subtask 72-00-02-030-554
B.Remove the engine anti-icing (EAI) controller (10-030 , 71-00-02) (SIN C00AD). Refer to Figure 503 and do as follows:
(1)Disconnect the B-nut of the EAI controller air tube (EAI air tube) (02-020 , 75-11-25) (SIN 6100C) from the port on the forward side of the EAI controller.
(2)Disconnect the B-nut of the EAI controller air tube (EAI air tube) (02-010 , 75-11-25) (SIN 61007) from the port on the aft side of the EAI controller.
(3)Remove the three bolts (30-260) (SIN 6102E), and the EAI controller from the support bracket (30-190) (SIN 6101T).
(4)Put protective caps or protective covers on the air tubes, the harness connector, and EAI controller fittings.
* * * FOR ALL PIP 2

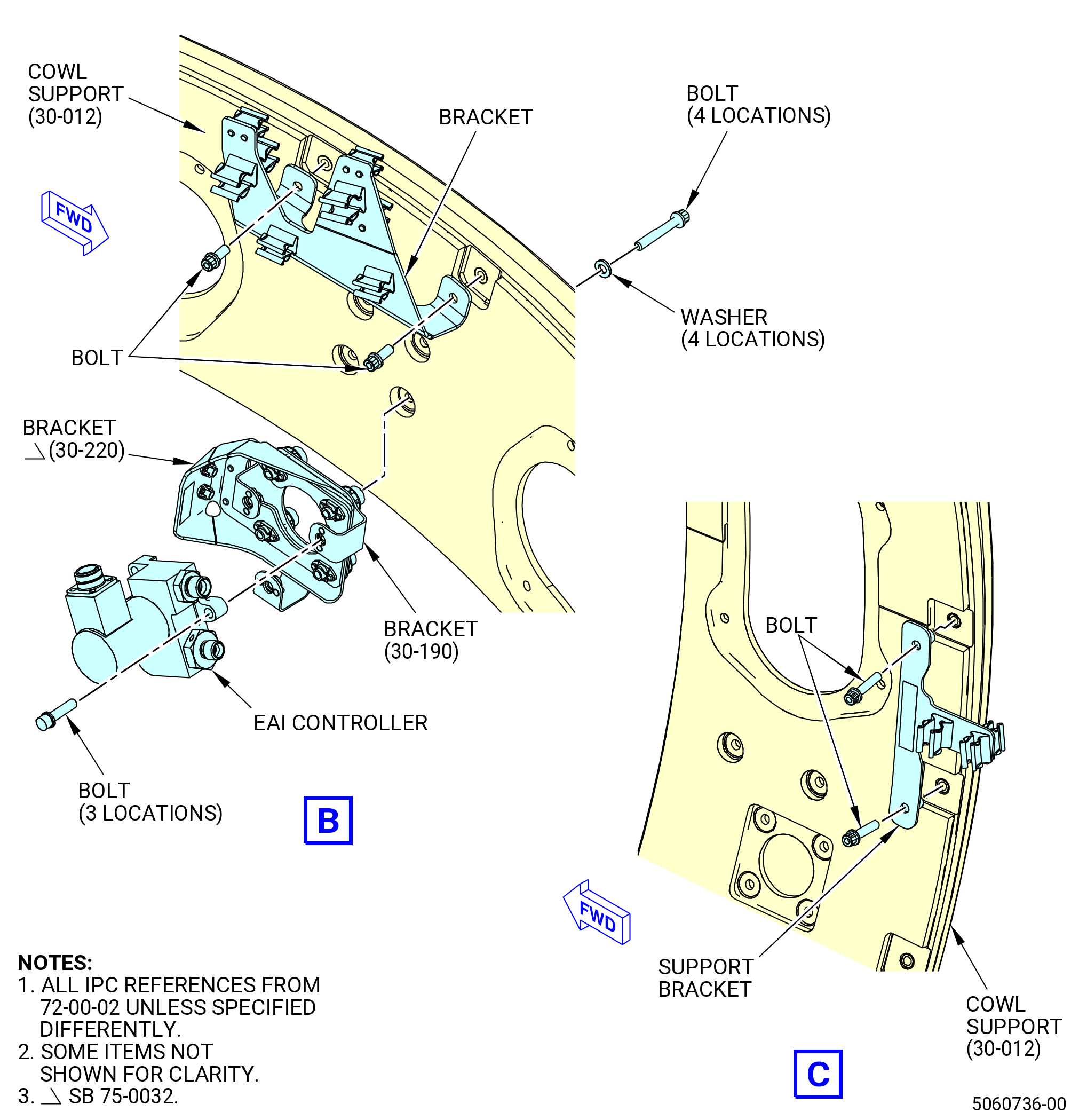

Figure 503   (Sheet 1 ) Engine Anti-Ice System
* * * FOR ALL PIP 2

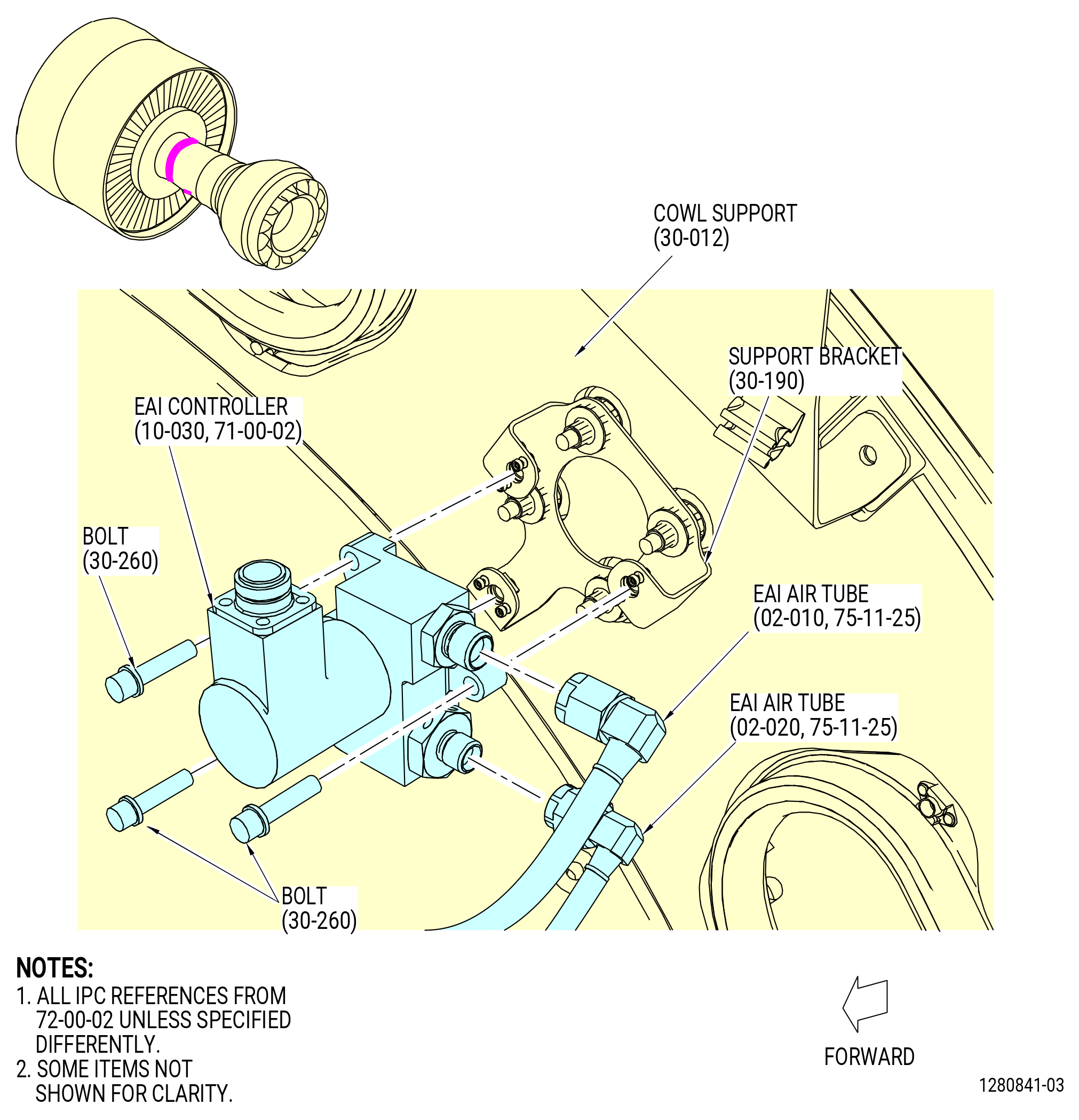

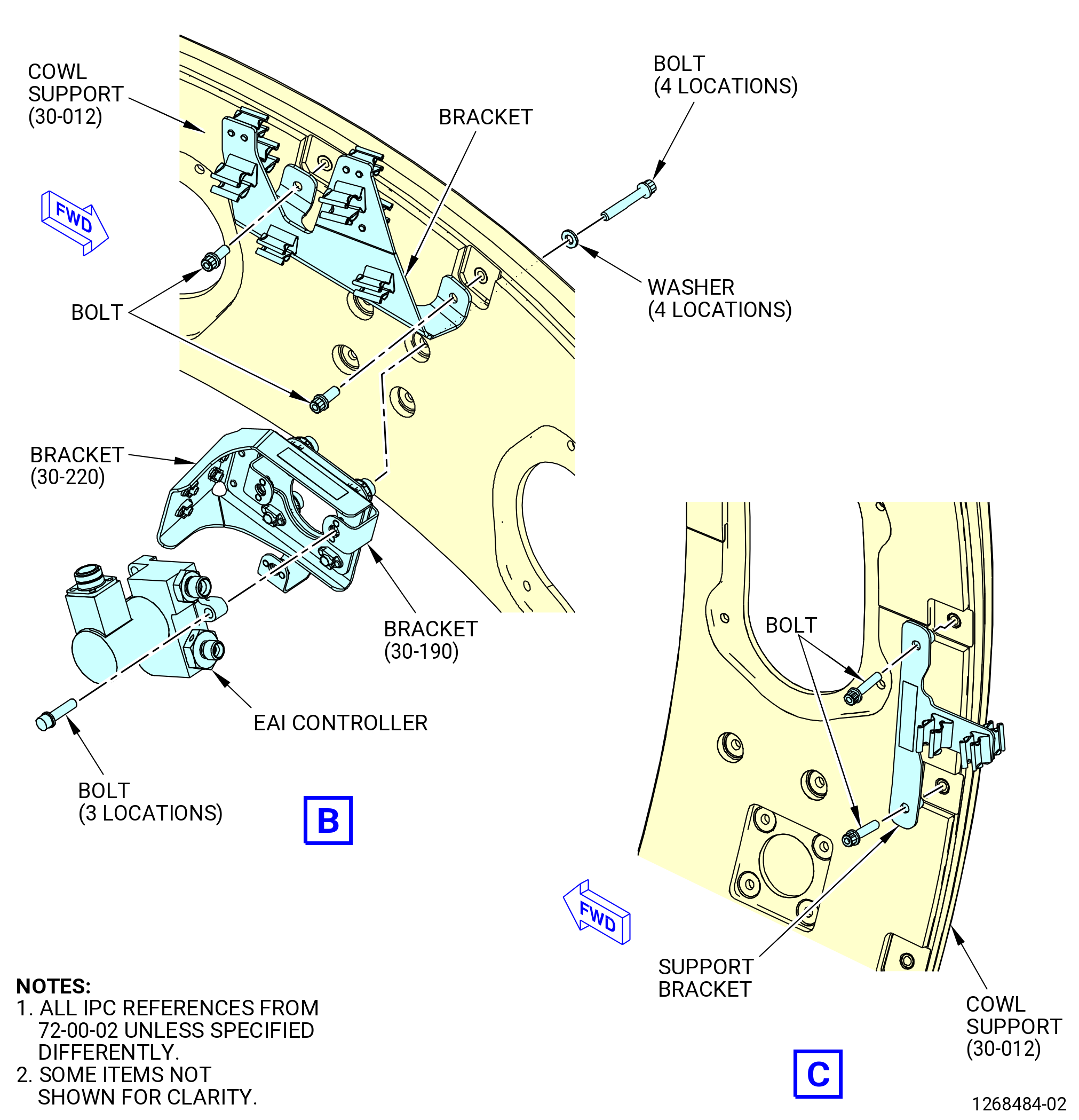

Figure 503   (Sheet 2 ) Removal of the EAI Controller
Subtask 72-00-02-030-555

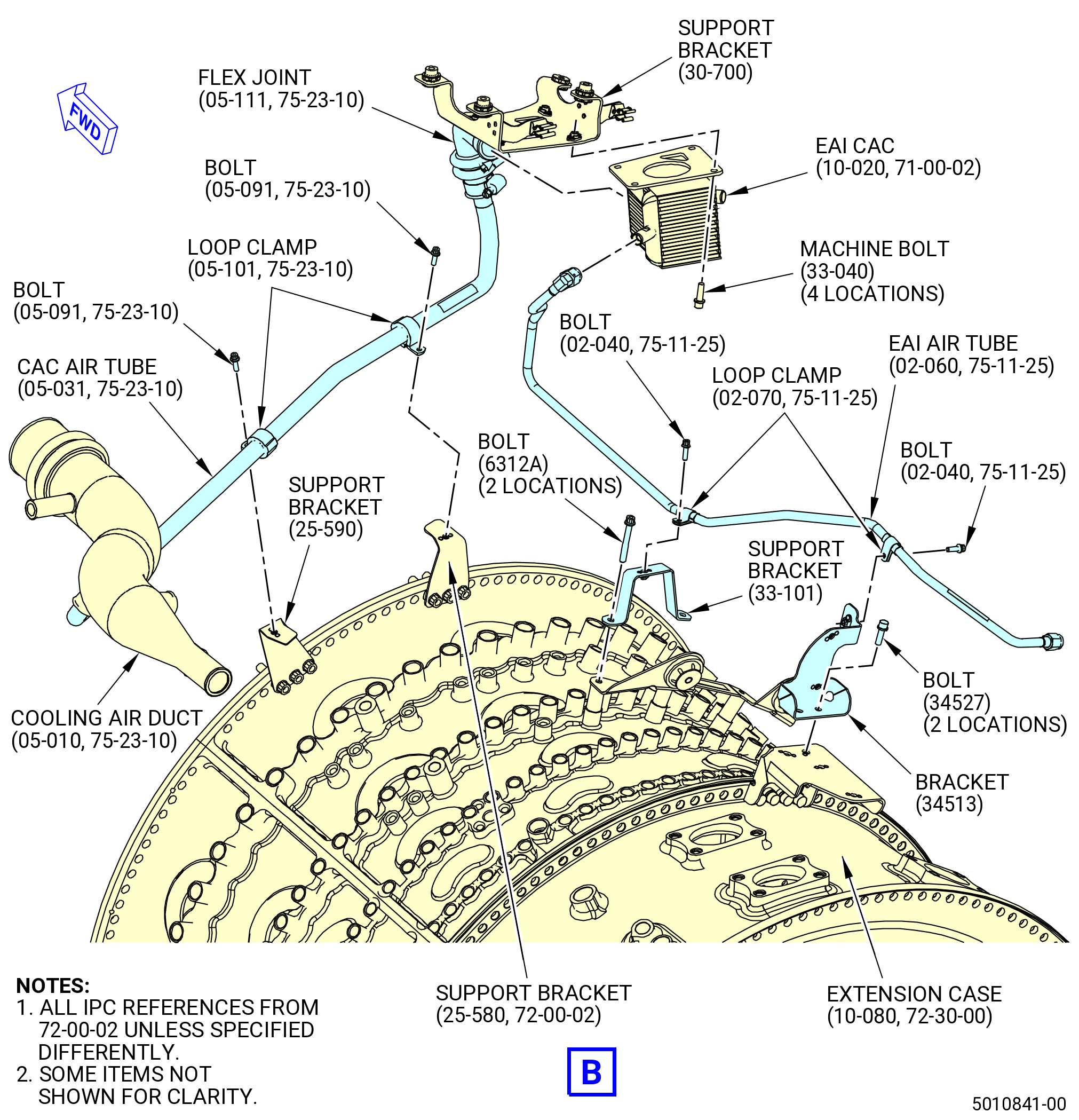

C.Remove the controller air cooler (CAC) air tube (05-031 , 75-23-10) (SIN 6100A). Refer to Figure 504 and do as follows:
(1)Remove bolts (05-091 , 75-23-10) (SIN 6102H) and loop clamps (05-101 , 75-23-10) (SIN 61088) from the support brackets (25-580) (SIN 6101Y) and (25-590) (SIN 610E2).
(2)Remove hose clamps (05-120 , 75-23-10) (SIN 61089) and flex joint (05-110 , 75-23-10) (SIN 6109E), from the CAC.
(3)Remove hose clamp (05-075 , 75-23-10) (SIN 62587) and CAC air tube (05-031 , 75-23-10) (SIN 6100A) from the cooling air duct (05-010 , 75-23-10) (SIN 62504).
(4)Put protective caps or protective covers on the cooling air tube, the flex joint, and the EAI CAC (10-020 , 71-00-02) (SIN C00AC).
* * * FOR ALL PIP 2

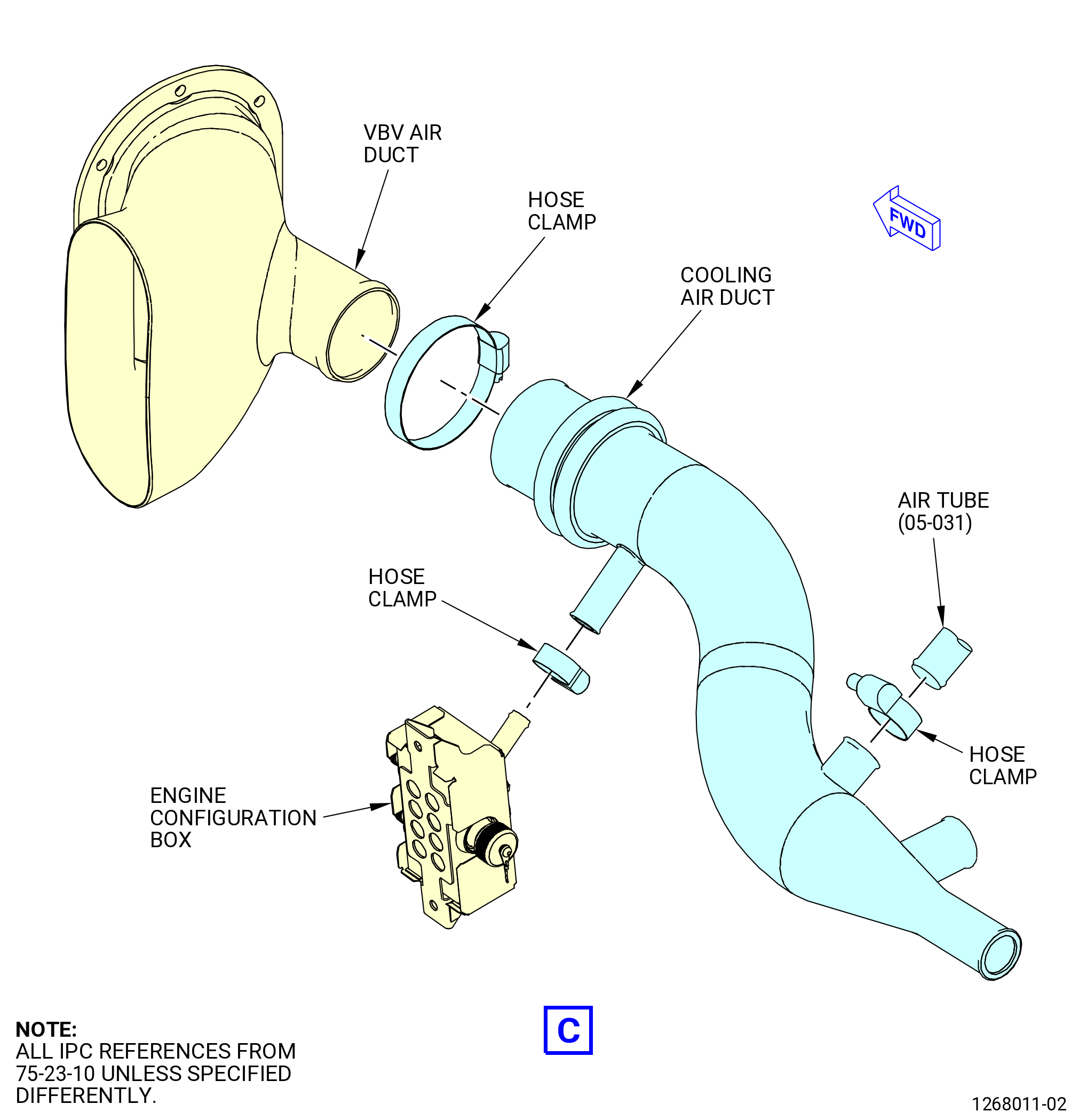

Figure 504   Removal of the CAC Air Tube
Subtask 72-00-02-030-556
D.Remove the EAI core forward valve insulated air duct (EAI air duct) (01-020 , 75-11-20) (SIN 61002). Refer to Figure 505 and do as follows:
(1)Remove the four bolts (01-080 , 75-11-20) (SIN 6102G) from the support brackets (01-090 , 75-11-20) (SIN 6101N) and (33-291) (SIN 6101K).
(2)Remove the two bolts (01-120 , 75-11-20) (SIN 6102J) and retaining strap (01-130 , 75-11-20) (SIN 6108C) from the support bracket (01-145 , 75-11-20) (SIN 6101B).
(3)Remove the coupling clamp (01-100 , 75-11-20) (SIN 6108H) and one seal ring (01-110 , 75-11-20) (SIN 61059) from the EAI air duct.
(4)Remove the EAI air duct from the air tube (01-030 , 75-11-20) (SIN 61004).
(5)Put protective caps or protective covers on the EAI air duct.
* * * FOR ALL PIP 2
Figure 505   Removal of the EAI Air Duct
Subtask 72-00-02-030-557
E.Remove the EAI valve (10-010 , 71-00-02) (SIN C00AB). Refer to Figure 506 and do as follows:
(1)Disconnect the B-nut of the EAI air tube (02-010 , 75-11-25) (SIN 61007) from the EAI valve.
(2)Disconnect the B-nut of the EAI controller air tube (EAI air tube) (02-060 , 75-11-25) (SIN 61005) from the EAI valve.
(3)Remove the bolt (02-040 , 75-11-25) (SIN 6102H) that attaches the loop clamp (02-070 , 75-11-25) (SIN 6108J) into the fuel bracket (01-170 , 73-11-41) (SIN 34513).
(4)Remove the coupling clamp (01-100 , 75-11-20) (SIN 6108H) and one seal ring (01-110 , 75-11-20) (SIN 61059) from the EAI valve.
(5)Remove the EAI valve from the EAI duct (01-010 , 75-11-20) (SIN 61001).
(6)Install protective caps or protective covers on the EAI valve and the EAI duct.
* * * FOR ALL PIP 2

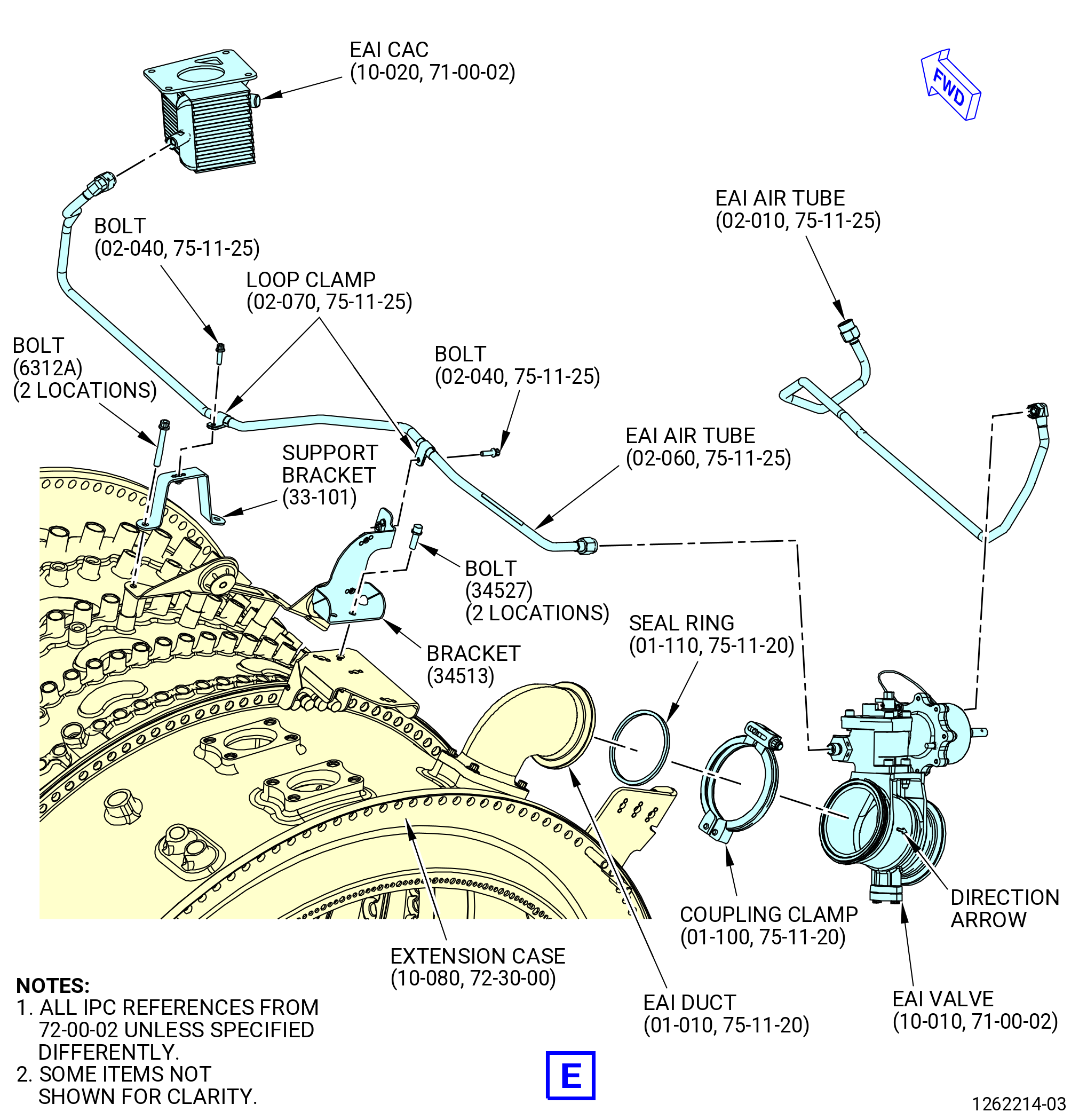

Figure 506   Removal of the EAI Valve
Subtask 72-00-02-030-558

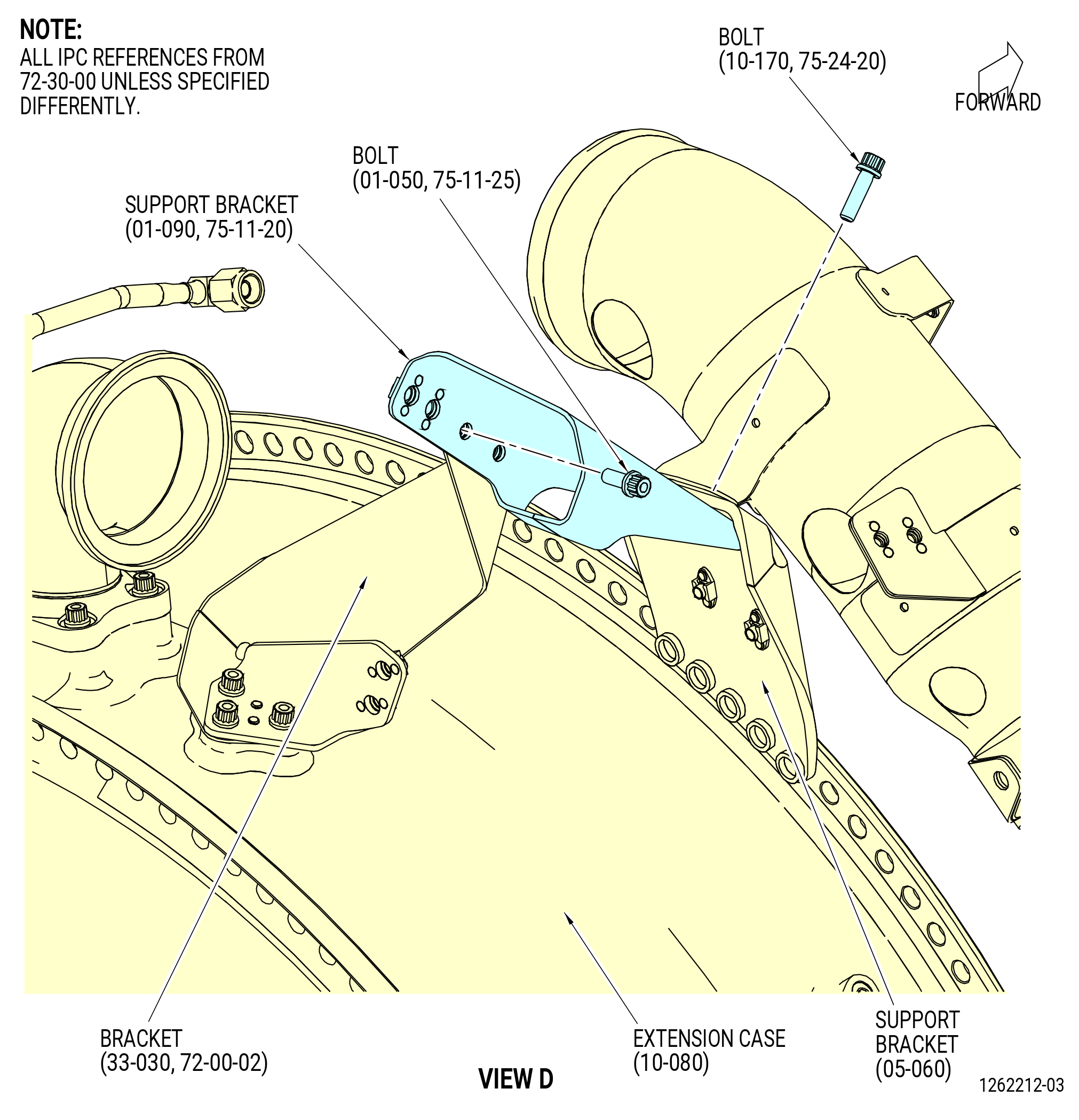

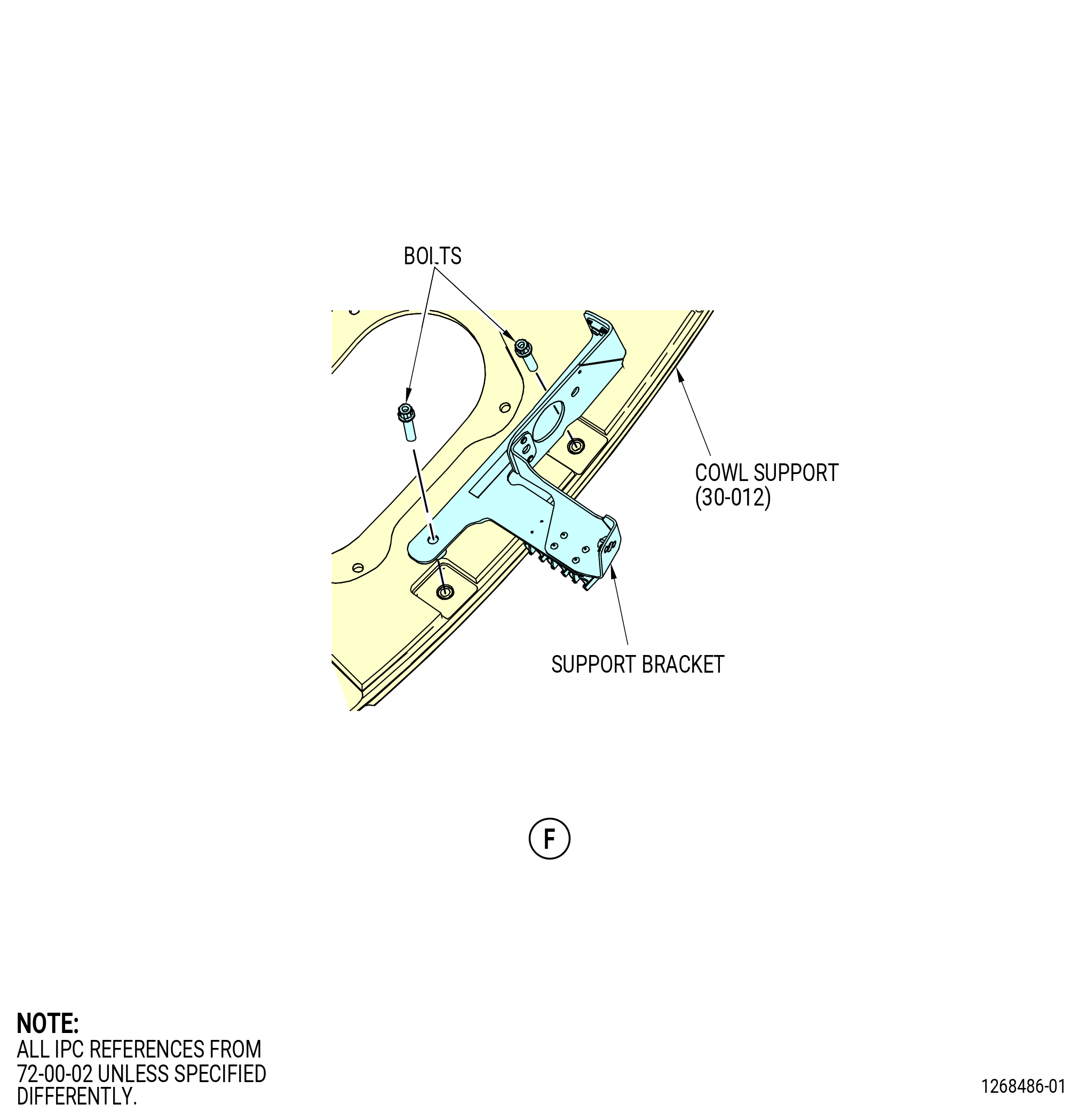

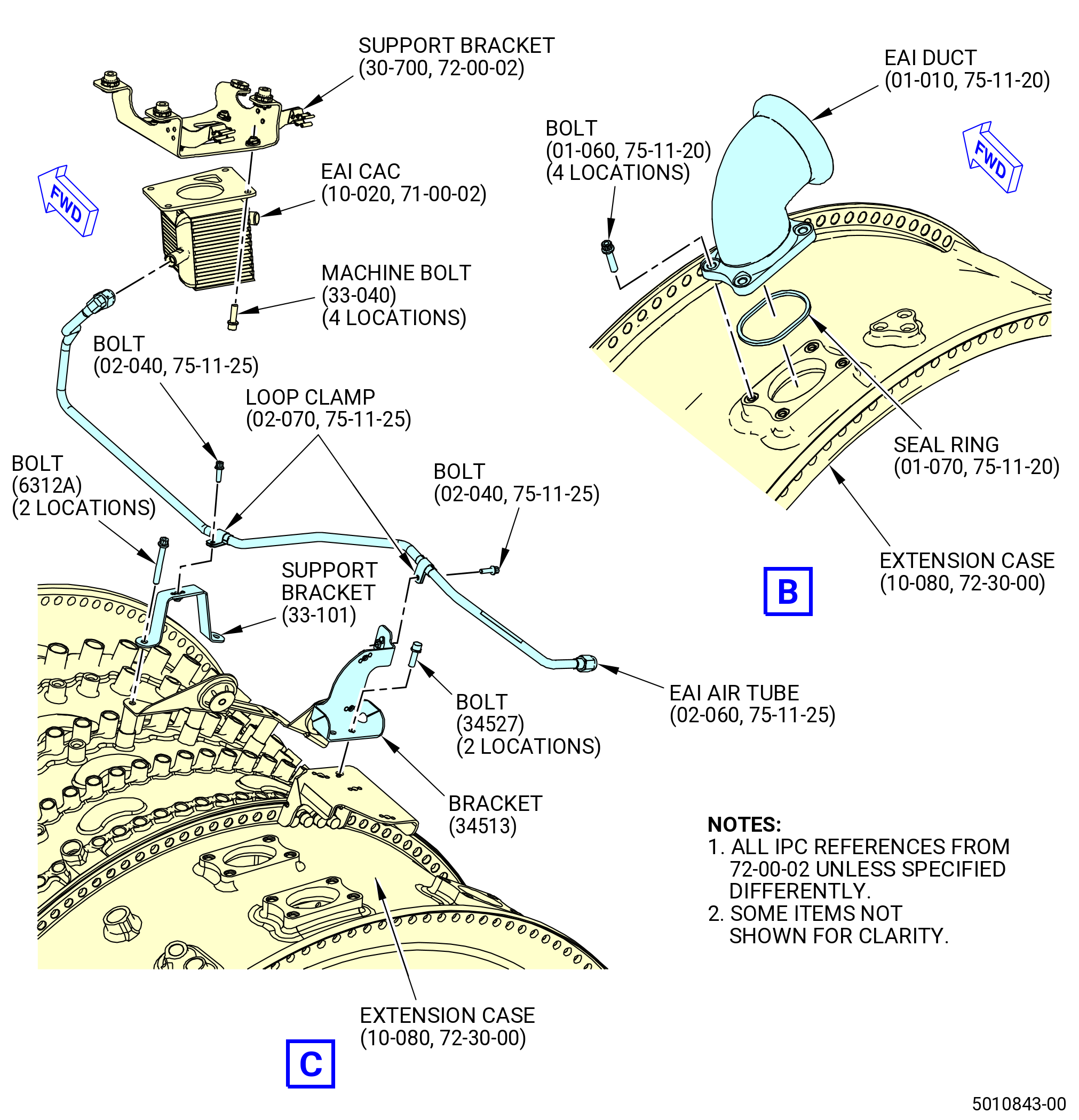

F.Remove the support bracket (01-090 , 75-11-20) (SIN 6101N) and two EAI air tubes (02-010 , 75-11-25) (SIN 61007) and (02-020 , 75-11-25) (SIN 6100C). Refer to Figure 507, Figure 508, and do as follows:
(1)Remove bolts (02-040 , 75-11-25) (SIN 6102H) and loop clamps (02-030 , 75-11-25) (SIN 61082) from the brackets (01-090 , 75-11-20) (SIN 6101N), (01-145 , 75-11-20) (SIN 6101B), (02-080 , 75-11-25) (SIN 61019) and (02-090 , 75-11-25) (SIN 610E1) and the EAI air tubes.
(2)Remove the EAI air tube (02-010 , 75-11-25) (SIN 61007) and the EAI air tube (02-020 , 75-11-25) (SIN 6100C).
(3)Remove the bolts (01-050 , 75-11-25) (SIN 6102J) and (10-170 , 75-24-20) (SIN 6102G) and the bracket (01-090 , 75-11-20) (SIN 6101N) from the brackets (33-030) (SIN 6101A) and (05-060 , 72-30-00) (SIN 6101J).
(4)Put protective caps or protective covers on the EAI valve and the EAI duct (01-010 , 75-11-20) (SIN 61001).
* * * FOR ALL PIP 2

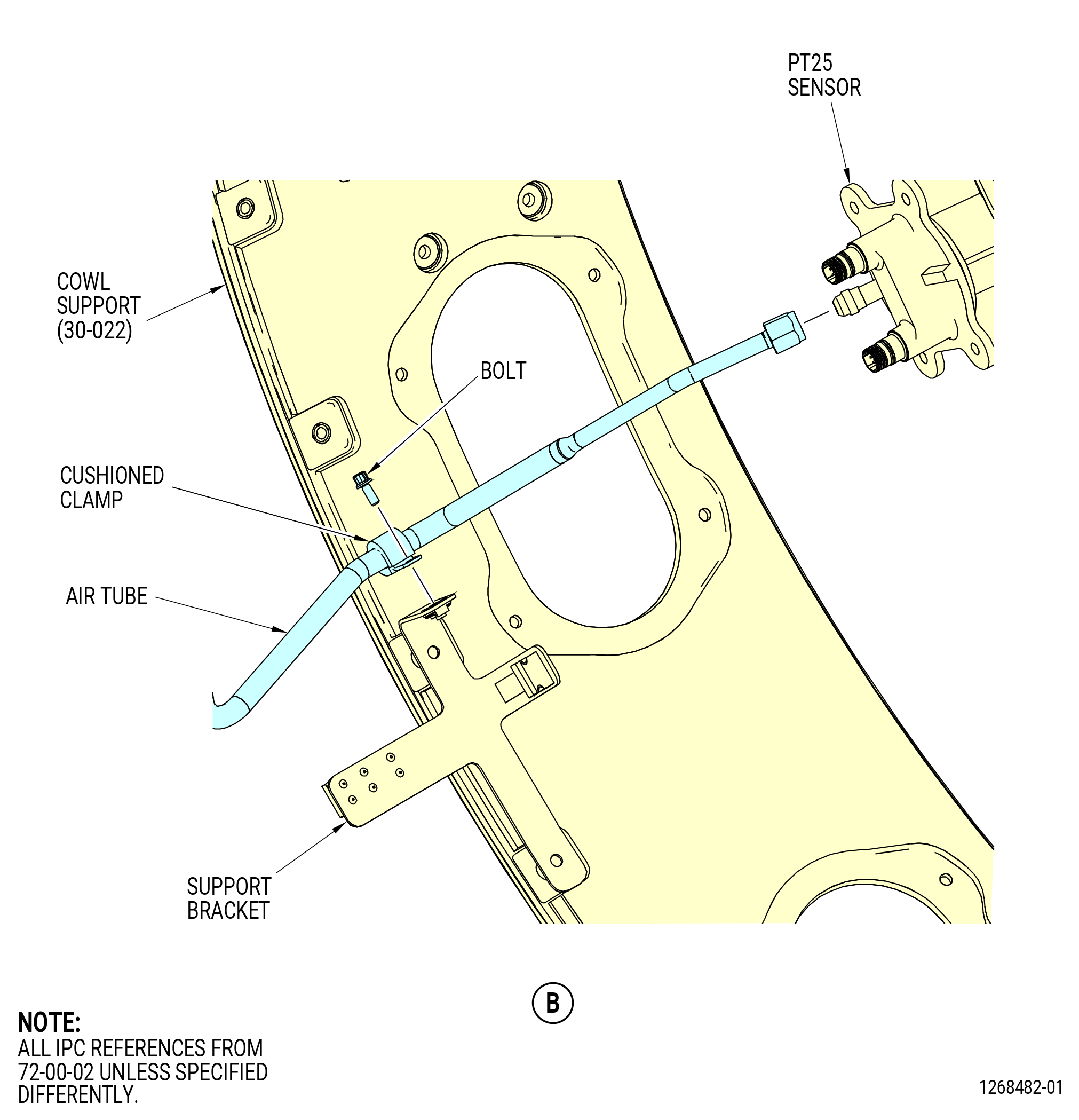

Figure 507   Removal the Bracket of EAI Air Tubes
* * * FOR ALL PIP 2
Figure 508   Removal of the EAI Air Tubes
Subtask 72-00-02-030-559
G.Remove the engine anti-ice duct (01-010 , 75-11-20) (SIN 61001) and the EAI CAC (10-020 , 71-00-02) (SIN C00AC). Refer to Figure 509 and do as follows:
(1)Remove the bolts (02-040 , 75-11-25) (SIN 6102H), loop clamps (02-070 , 75-11-25) (SIN 6108J), and EAI air tube (02-060 , 75-11-25) (SIN 61005) from the support brackets (33-101) (SIN 61010) and (01-170 , 73-11-41) (SIN 34513).
(2)Remove the four bolts (33-040) (SIN 61022) and EAI CAC (10-020 , 71-00-02) (SIN C00AC) from the bracket (30-700) (SIN 6101V).
(3)Remove the four bolts (01-060 , 75-11-20) (SIN 6102E), EAI duct (01-010 , 75-11-20) (SIN 61001), and seal ring (01-070 , 75-11-20) (SIN 61055) from the extension case (10-080 , 72-30-00) (SIN 080AL).
(4)Put protective caps or protective covers on the extension case, EAI CAC, and EAI duct.
* * * FOR ALL PIP 2

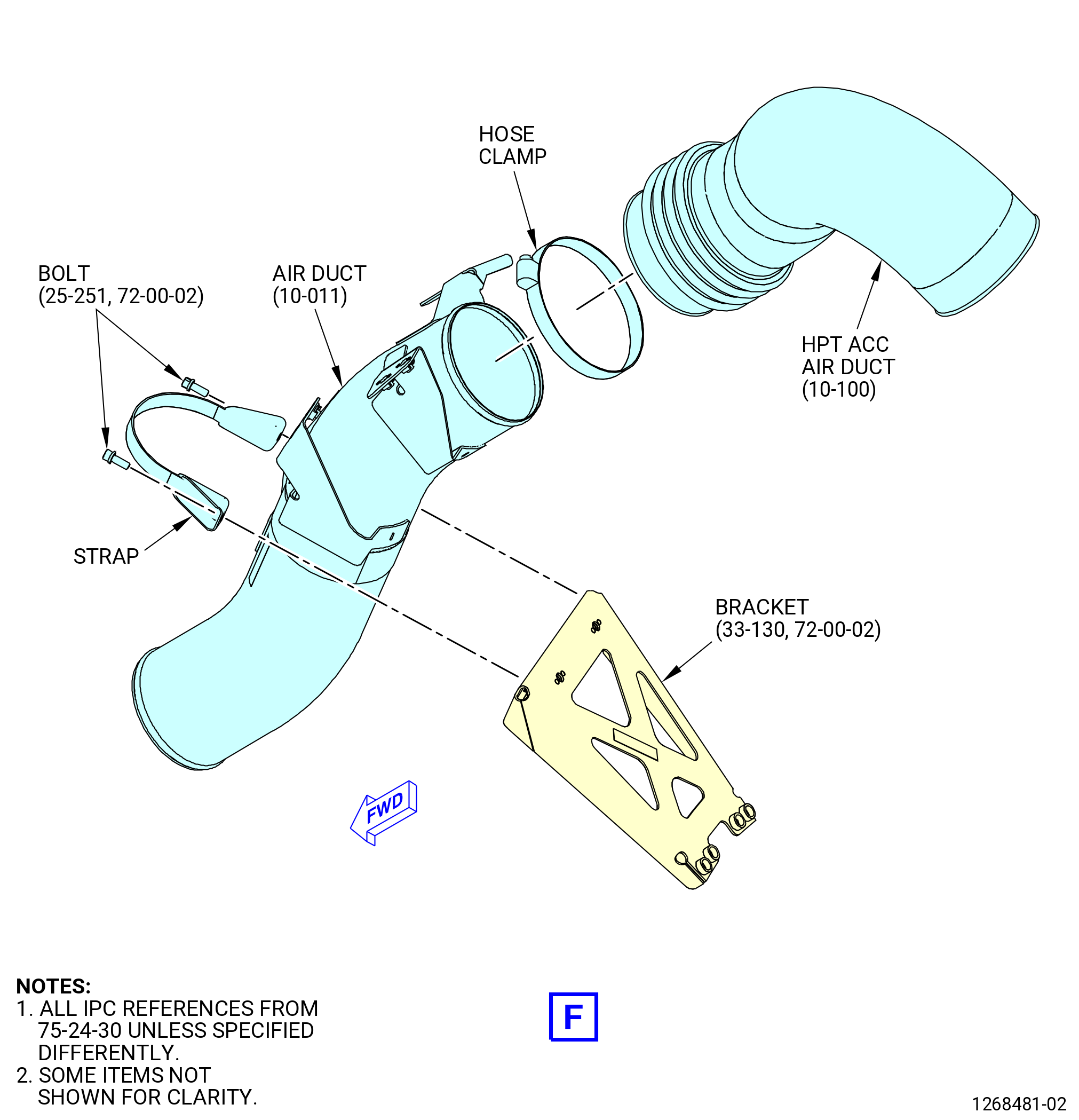

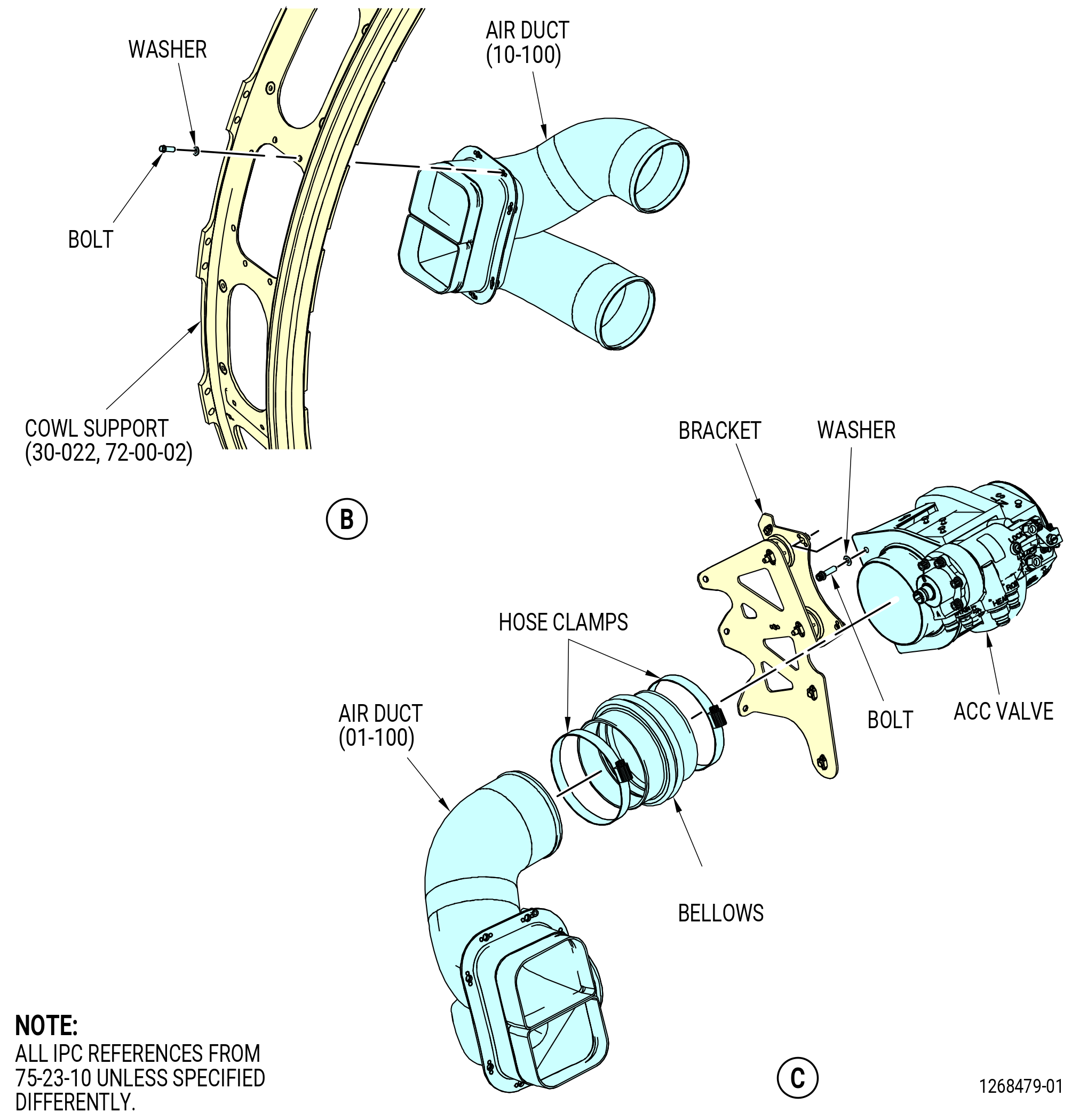

Figure 509   Removal of the EAI Duct and the EAI CAC
Subtask 72-00-02-030-560

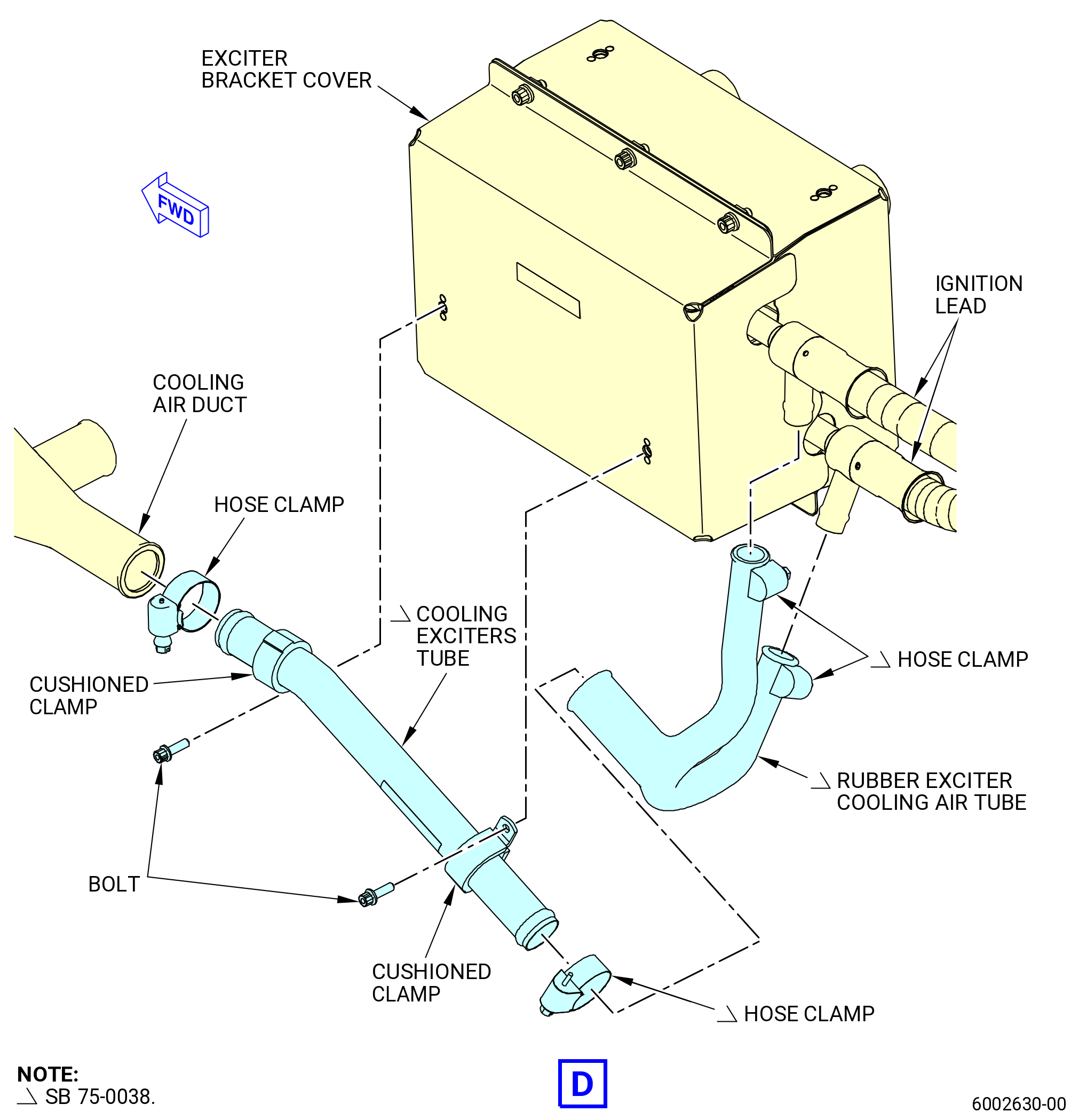

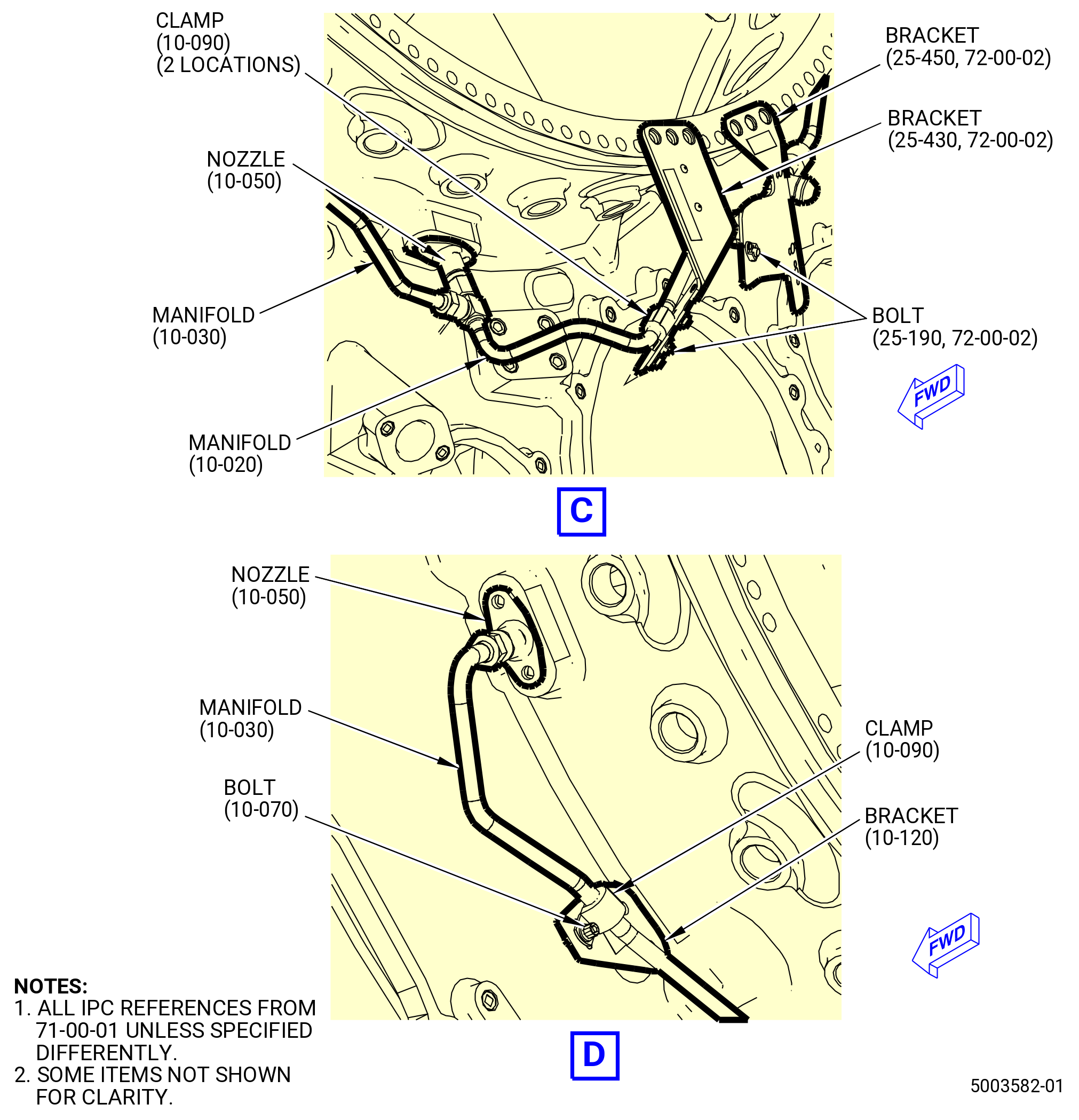

H.Remove the ignition cooling system. Refer to Figure 510 and do as follows:
Subtask 72-00-02-030-772
* * * PRE SB   75-0038( Exciter Cooling System without Improvement )
(1)Remove the exciter cooling manifold as follows:
(a)Remove the bolts and the cushioned clamps that attach the exciter cooling manifold to the exciter bracket cover.
(b)Remove the hose clamps that attach the exciter cooling manifold to the cooling air duct and the flexible joints.
(c)Remove the exciter cooling manifold from the cooling air duct and flexible joints.
(d)Remove the hose clamps on each end of the flexible joints on the ignition lead air tubes.
(e)Remove the flexible joints from the ignition lead air tubes.
* * * END PRE SB   75-0038
Subtask 72-00-02-030-773
* * * SB   75-0038( Exciter Cooling System with Improvement )
(1).A.Remove the cooling exciters tube as follows:
(a)Remove the bolts and cushioned clamps that attach the cooling exciters tube to the exciter bracket cover.
(b)Remove the hose clamps that attach the cooling exciters tube to the cooling air duct and the rubber exciter cooling air tube.
(c)Remove the cooling exciters tube from the cooling air duct and the rubber exciter cooling air tube.
(d)Remove the hose clamps on each end of the rubber exciter cooling air tube.
(e)Remove the rubber exciter cooling air tube from the ignition lead air tubes.
* * * END SB   75-0038
Subtask 72-00-02-030-774
(2)Remove the cooling air duct as follows:
(a)Remove the hose clamps from the cooling air duct at the variable bypass valve (VBV) air duct, the engine configuration box, the air tube, and the exciters cooling tube.
(b)Remove the cooling air duct from the air tube and the exciters cooling tube.
(c)Remove the cooling air duct from the engine configuration box.
(d)Remove the cooling air duct from the VBV air duct.
(e)Remove the hose clamp and the core compartment cooling air plug from the cooling air duct.
Subtask 72-00-02-030-682
* * * PRE SB   74-0003( Exciter Bracket with Nutplates )
(3)Remove the bolts that attach the exciters cooling tube to the exciter bracket and remove the exciters cooling tube.
* * * END PRE SB   74-0003
Subtask 72-00-02-030-683
* * * SB   74-0003( Exciter Bracket without Nutplates )
* * * PRE SB   74-0004( Exciter Bracket without Nutplates )
(3).A.Remove the bolts, the washer, and the self-locking nuts that attach the exciters cooling tube to the exciter bracket and remove the exciters cooling tube.
* * * END SB   74-0003
* * * END PRE SB   74-0004
Subtask 72-00-02-030-684
* * * SB   74-0004( Exciter Bracket with Nutplates )
(3).B.Remove the bolts that attach the exciters cooling tube to the exciter bracket and remove the exciters cooling tube.
* * * END SB   74-0004
Subtask 72-00-02-030-685
(4)Remove the bolts that attach the configuration box to the support bracket on the left side of the cowl support at the 9:30 o'clock position.
* * * FOR ALL PIP 2

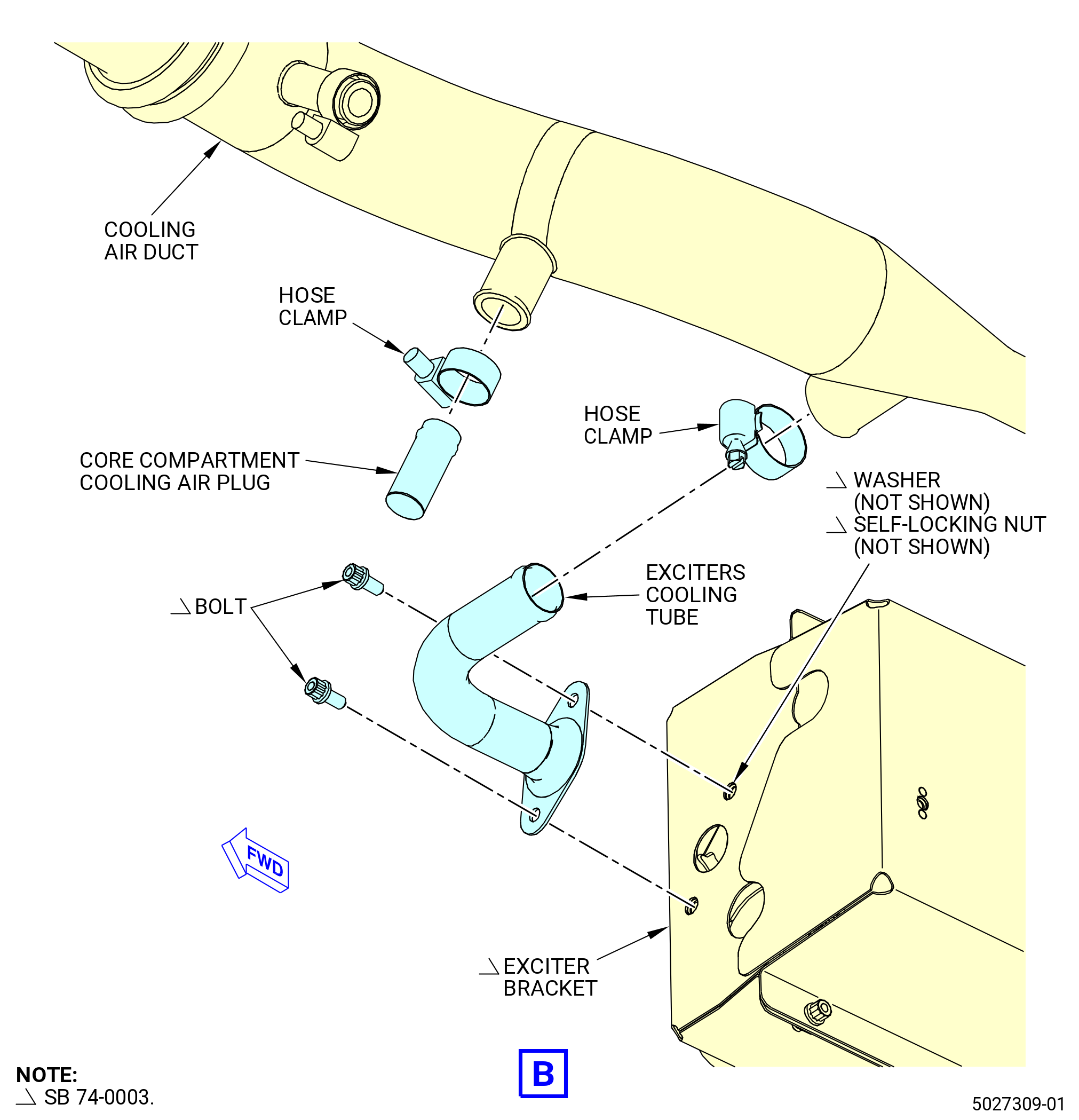

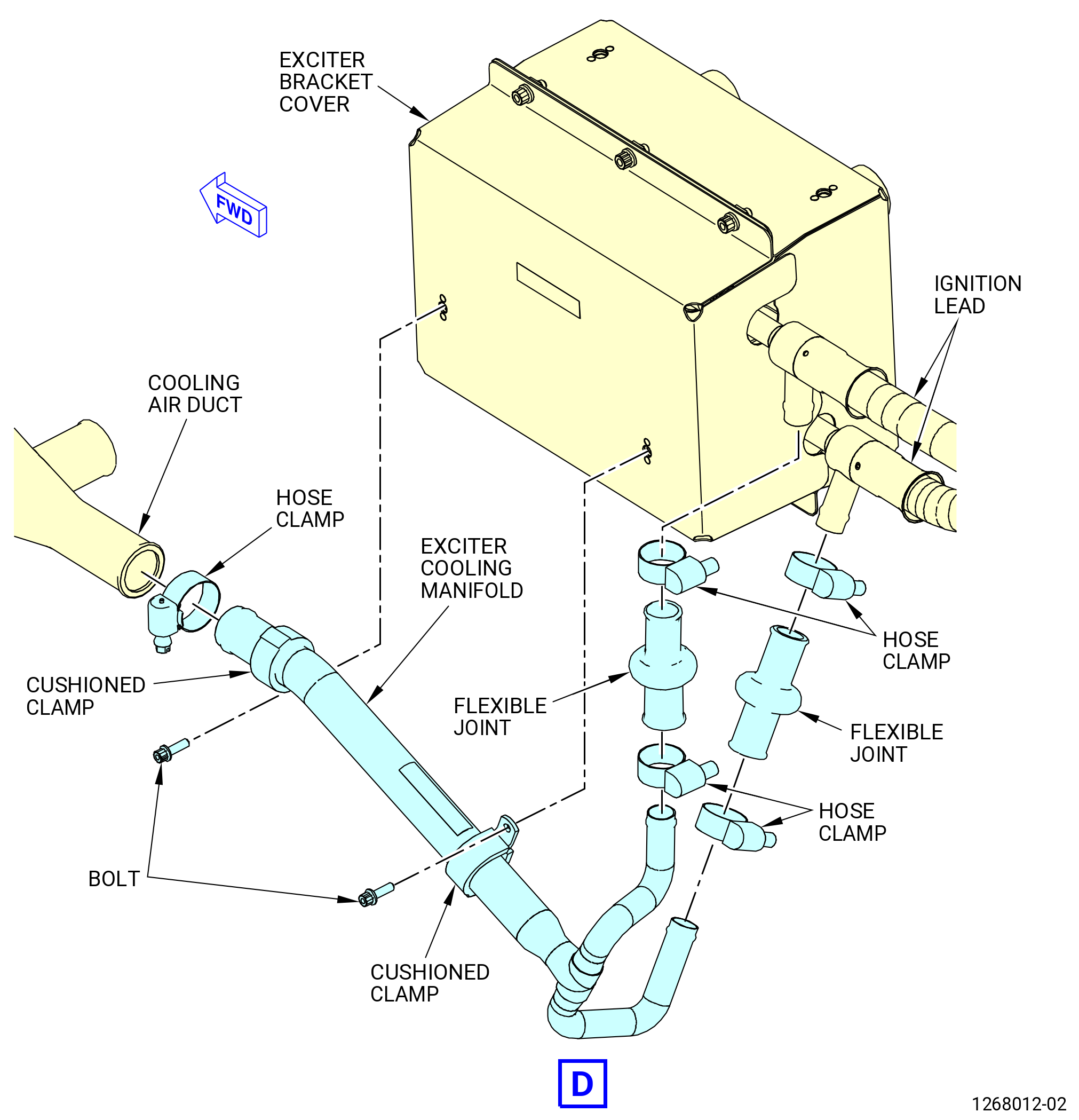

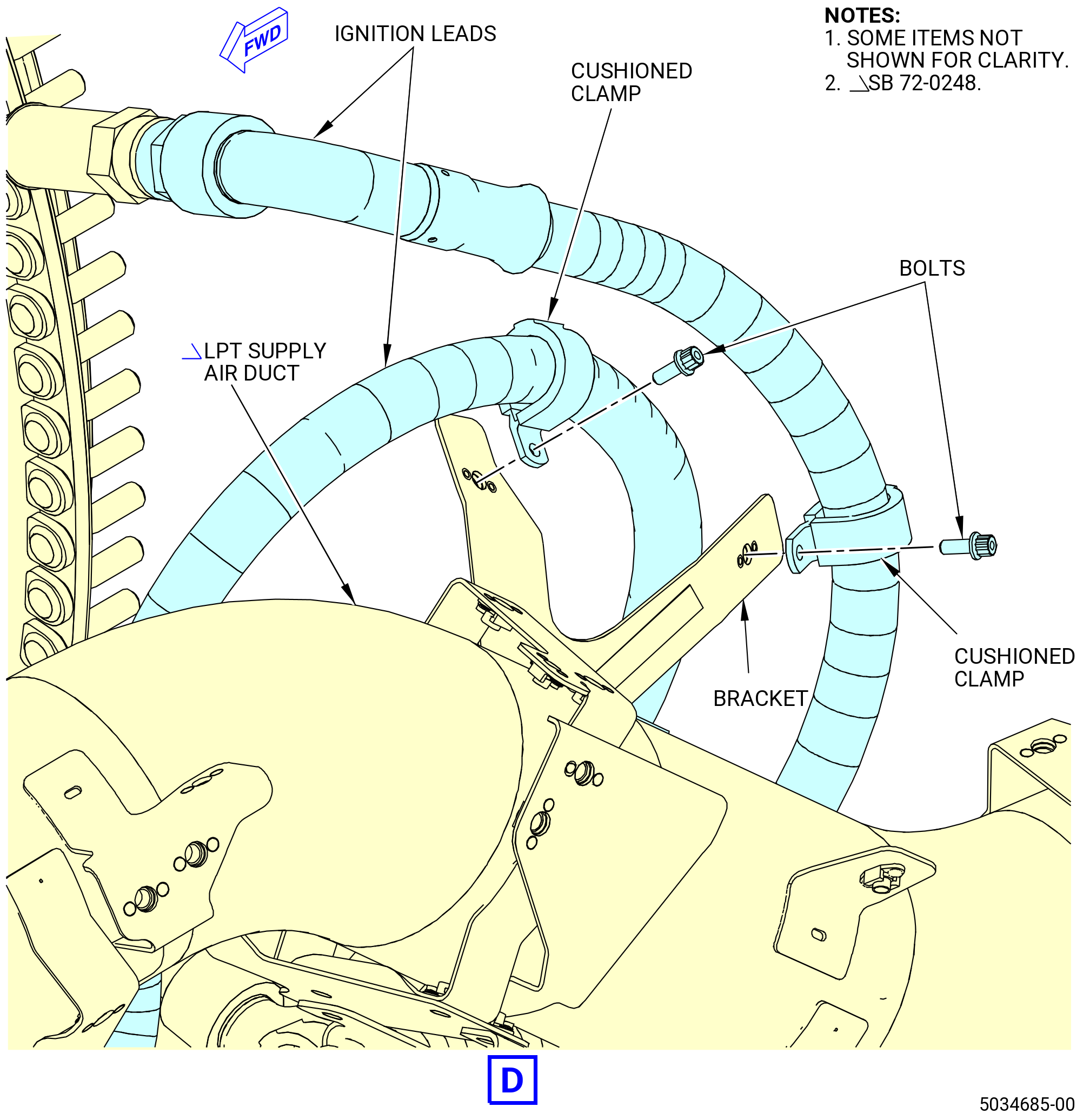

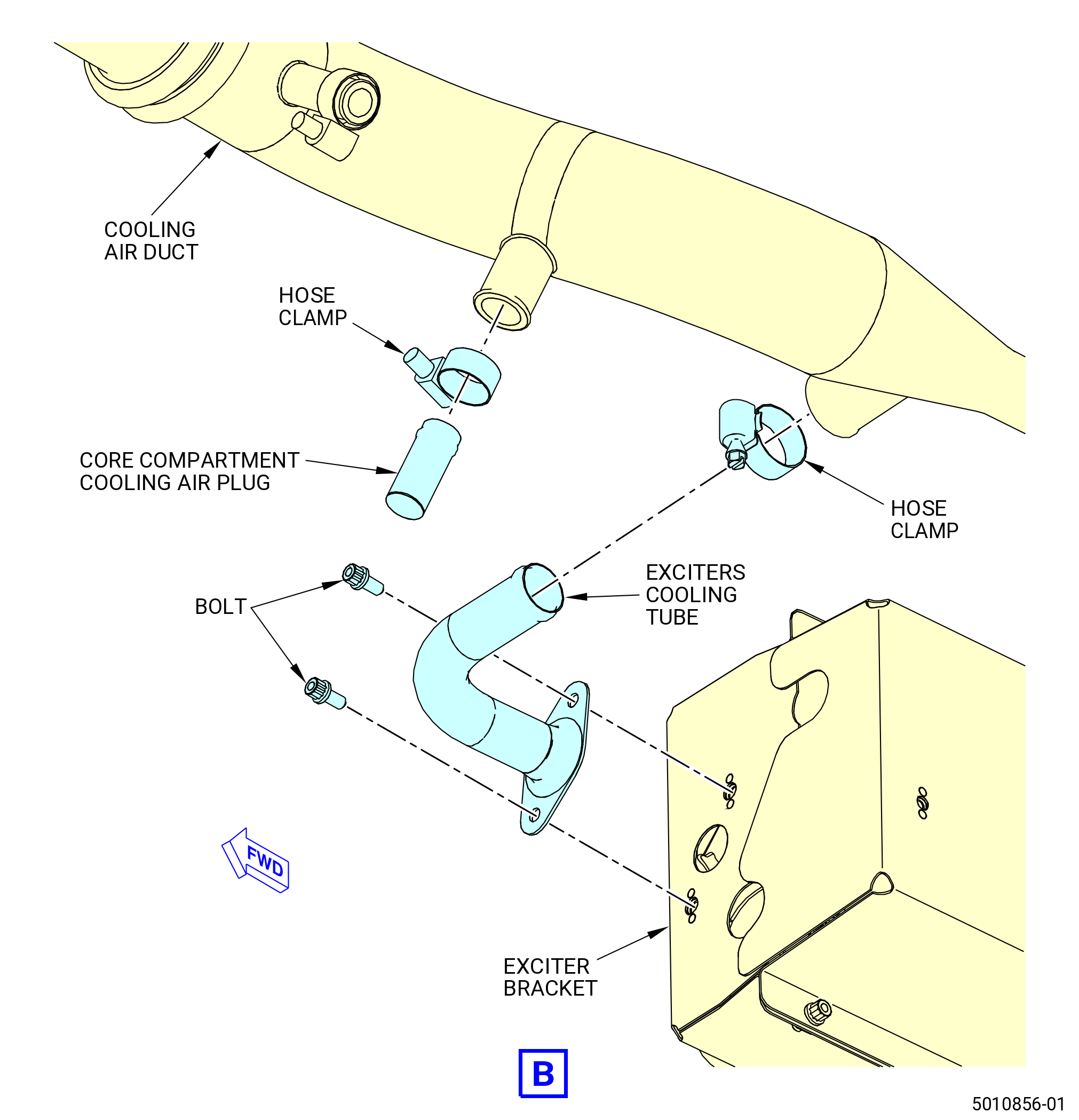

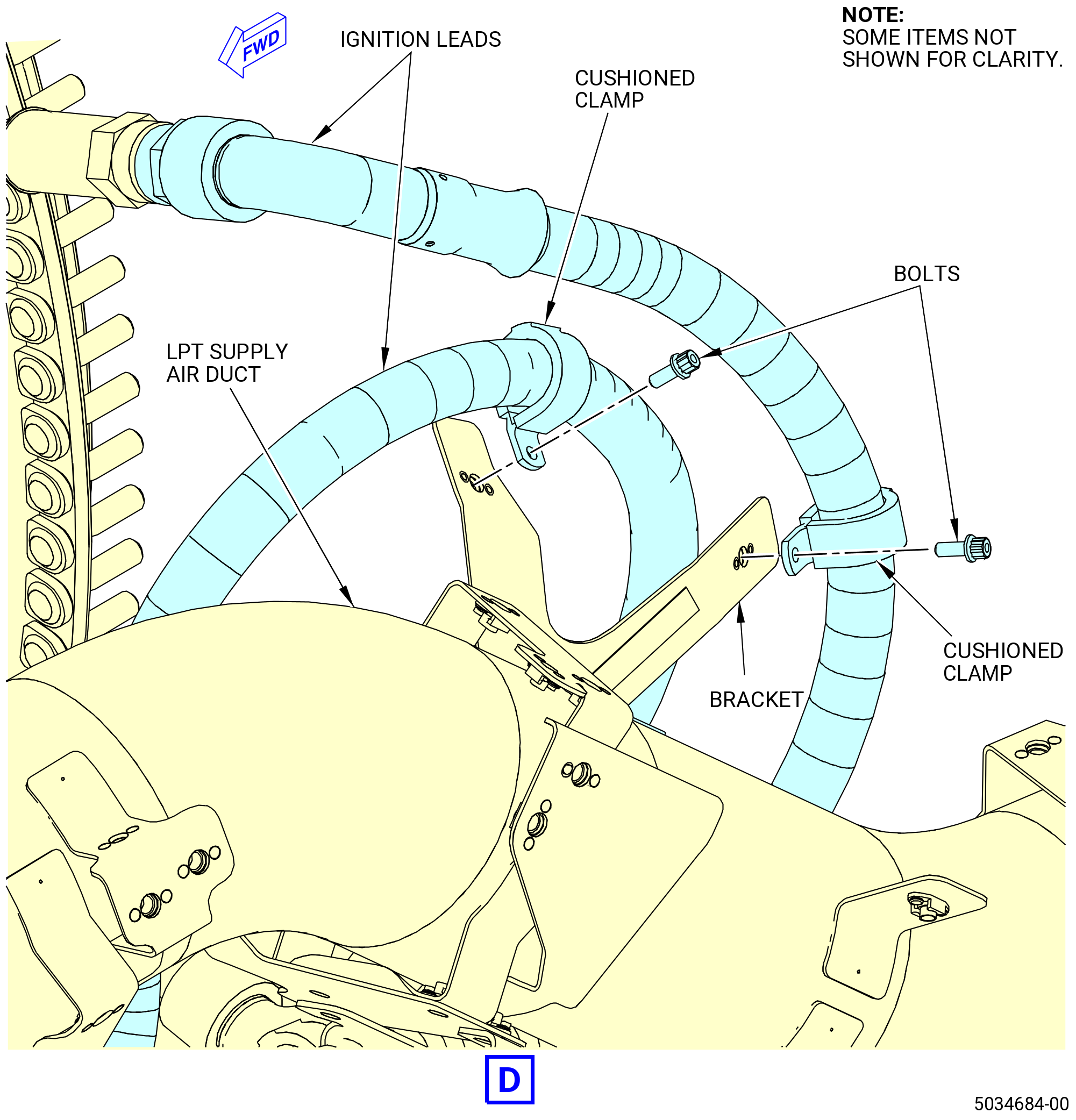

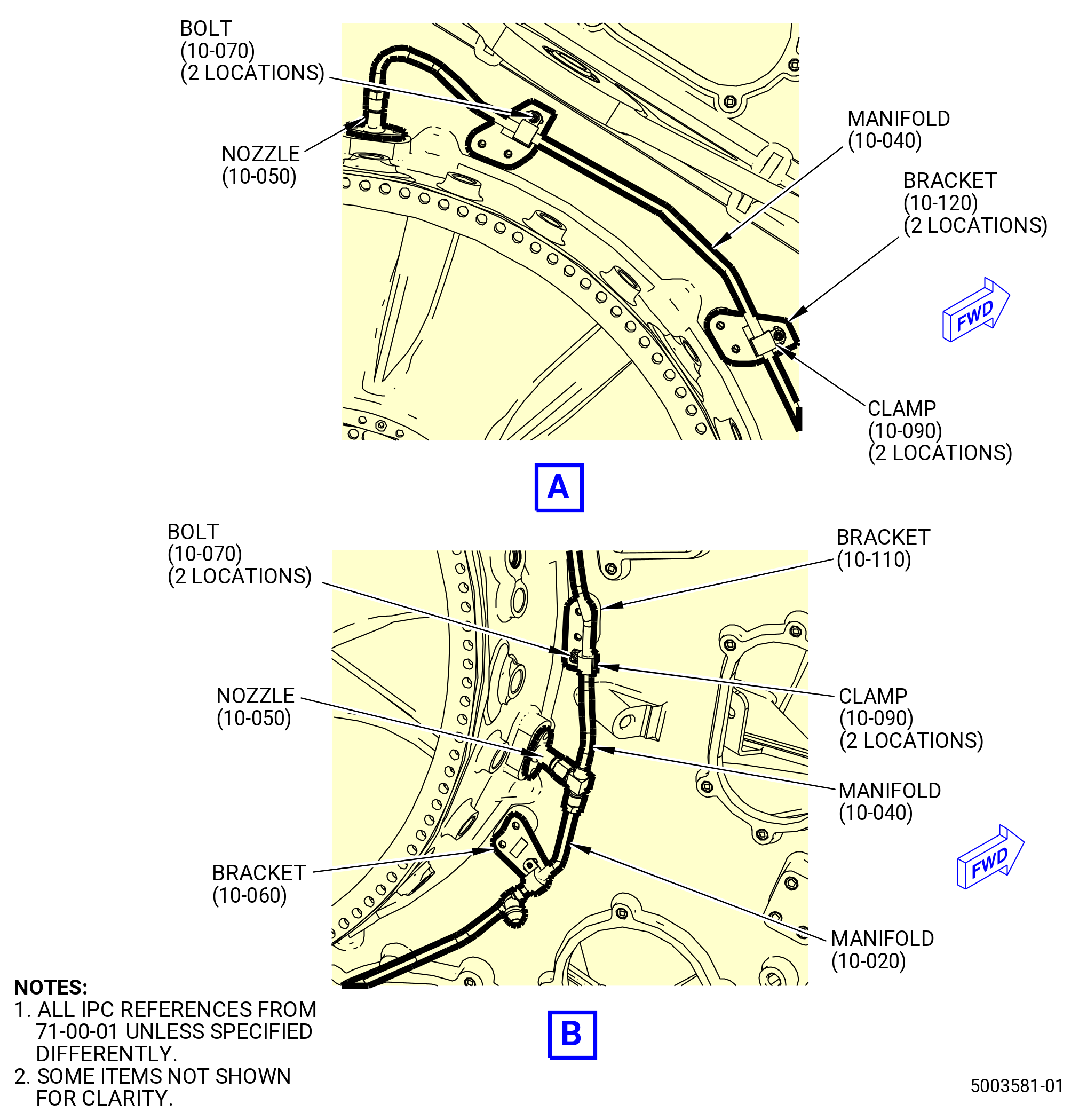

Figure 510   (Sheet 1 ) Removal of the Ignition Cooling System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   74-0003( Exciter Bracket with Nutplates )
Figure 510   (Sheet 2 ) Removal of the Ignition Cooling System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   74-0003( Exciter Bracket without Nutplates )
* * * PRE SB   74-0004( Exciter Bracket without Nutplates )
Figure 510   (Sheet 3 ) Removal of the Ignition Cooling System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   74-0004( Exciter Bracket without Nutplates )

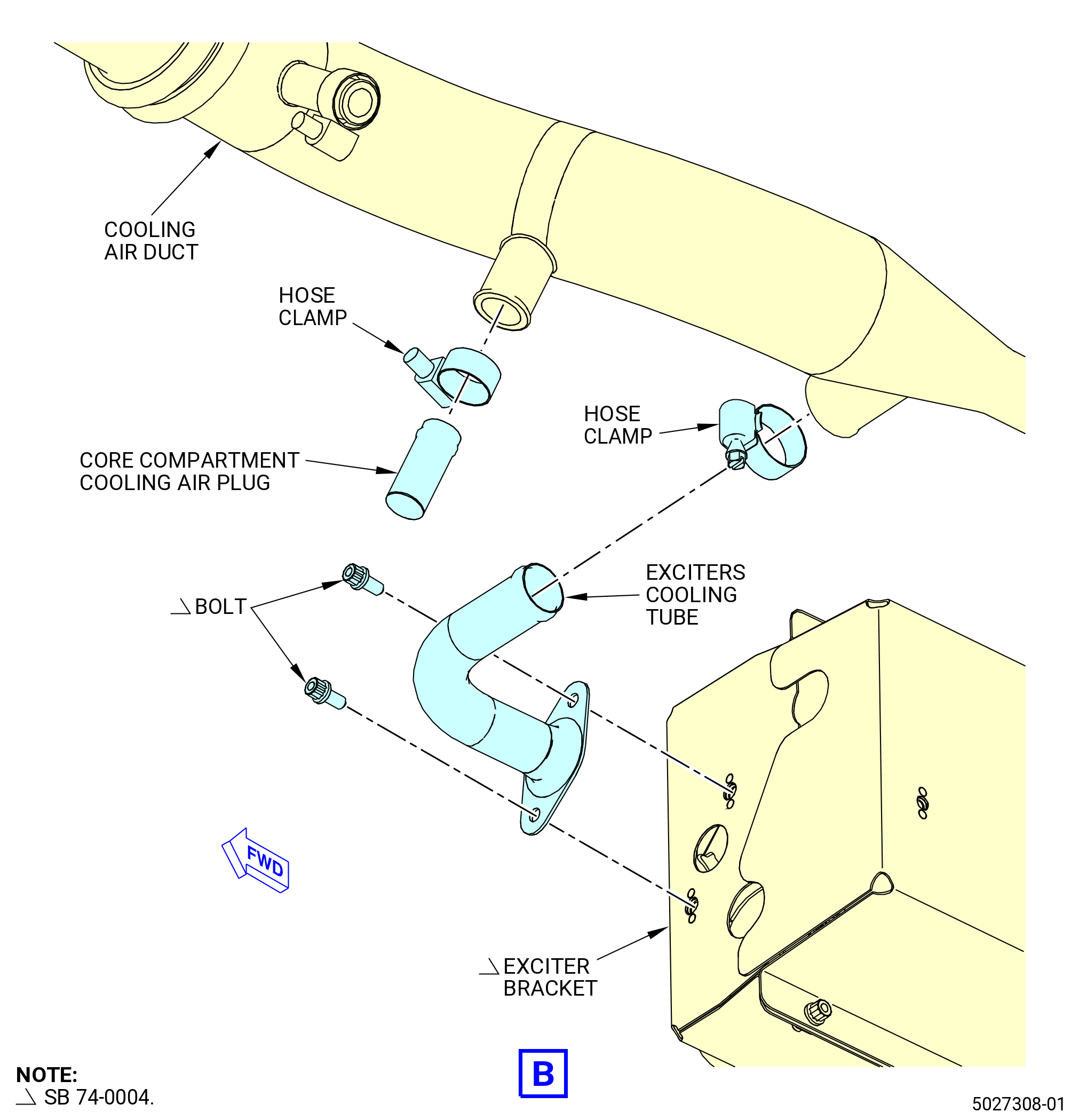

Figure 510   (Sheet 4 ) Removal of the Ignition Cooling System
* * * FOR ALL PIP 2
Figure 510   (Sheet 5 ) Removal of the Ignition Cooling System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0038( Exciter Cooling System without Improvement )
Figure 510   (Sheet 6 ) Removal of the Ignition Cooling System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0038( Exciter Cooling System with Improvement )
Figure 510   (Sheet 7 ) Removal of the Ignition Cooling System
Subtask 72-00-02-030-561
I.Remove the cable brackets as follows:
(1)Remove the brackets from the heat shield. Refer to Figure 511 and do as follows:
(a)Remove the bolts and brackets from the forward side of the aft skirt segment at the 7:30 o'clock position.
(b)Remove the bolts and brackets from the forward side of the aft skirt segment at the 4:00 o'clock position.
* * * FOR ALL PIP 2

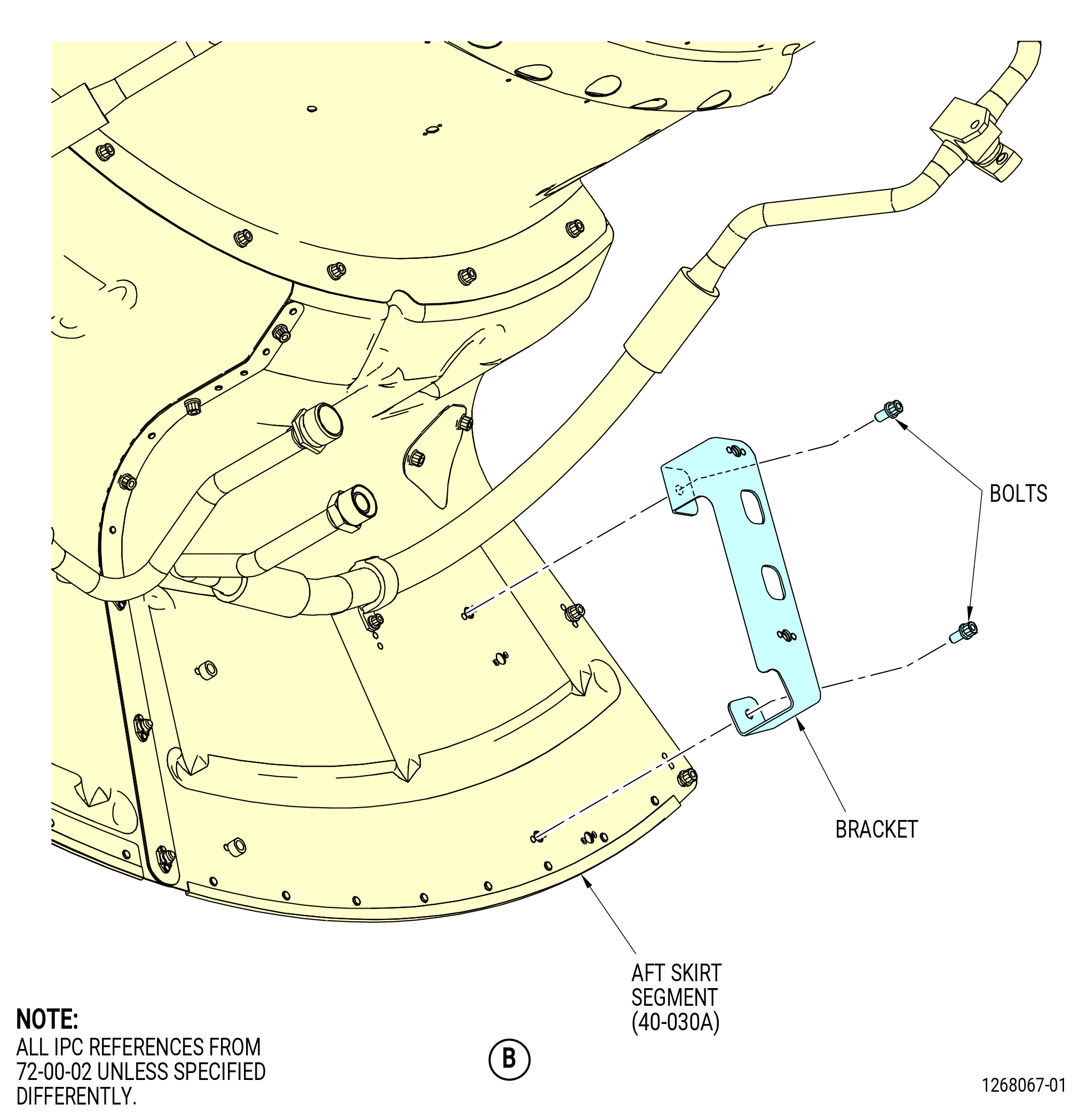

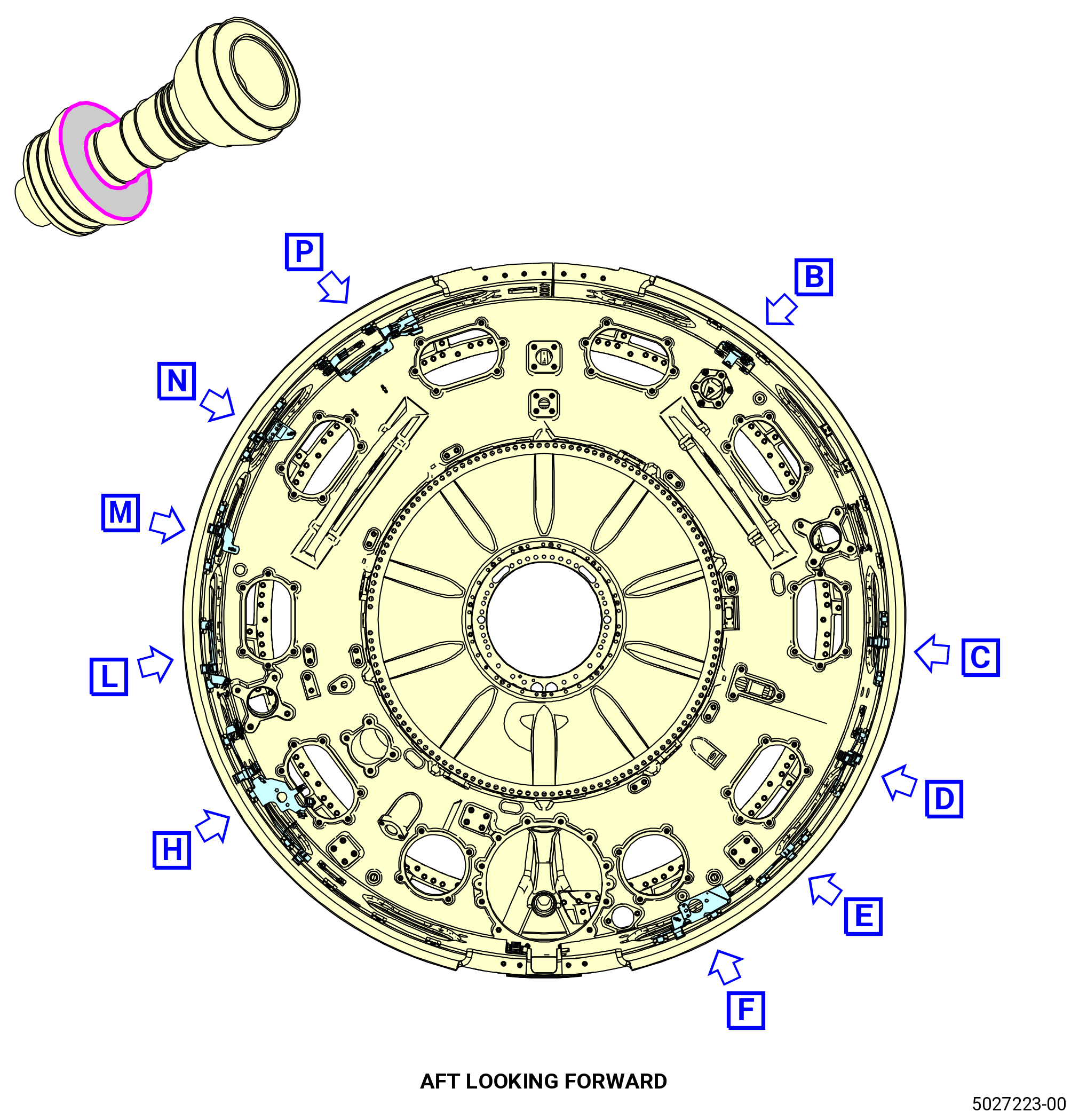

Figure 511   (Sheet 1 ) Removal of the Heat Shield Brackets
* * * FOR ALL PIP 2
Figure 511   (Sheet 2 ) Removal of the Heat Shield Brackets
* * * FOR ALL PIP 2
Figure 511   (Sheet 3 ) Removal of the Heat Shield Brackets
Subtask 72-00-02-030-562

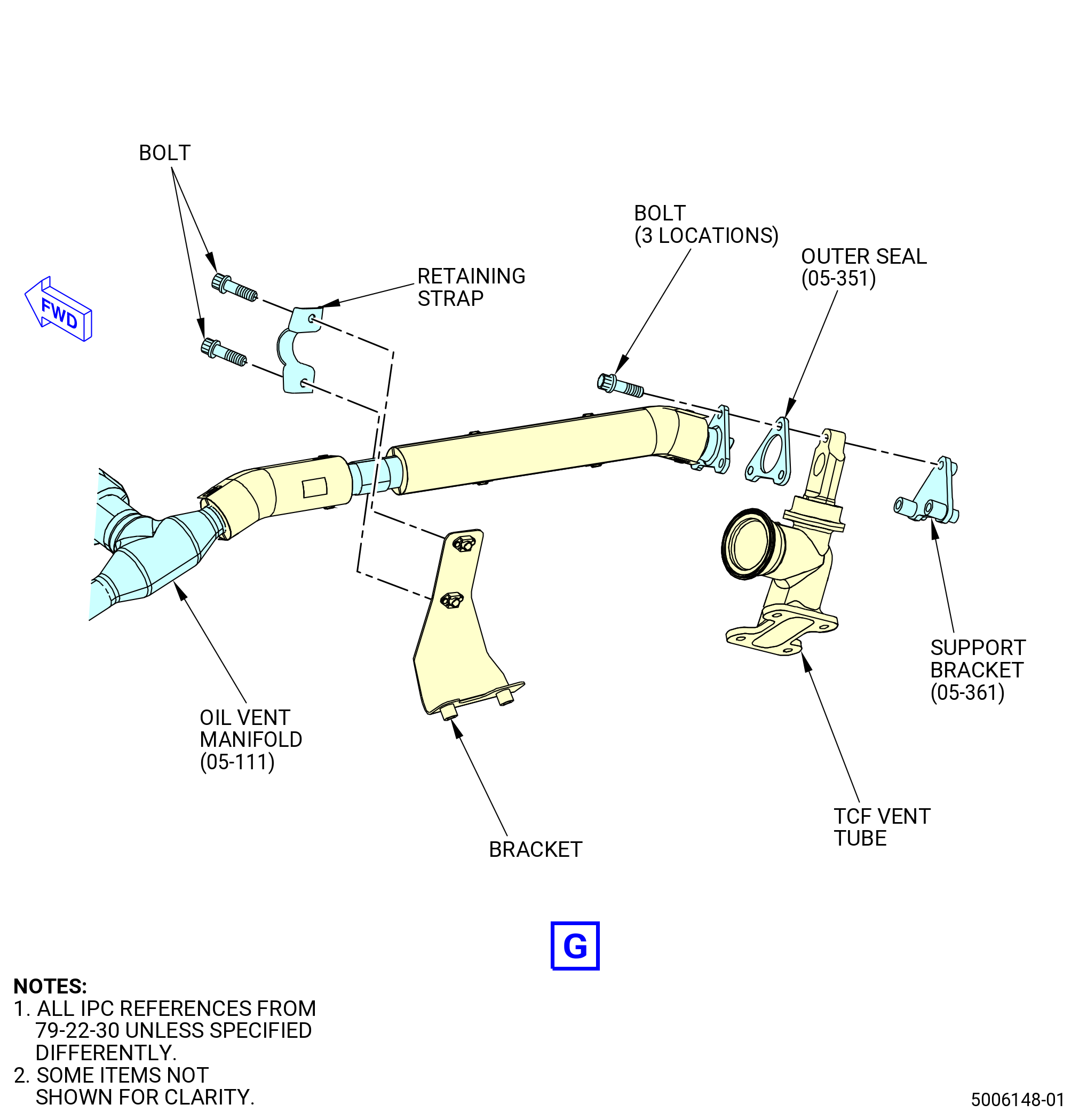

J.Remove the B-sump vent system. Refer to Figure 512 and do as follows:
(1)Remove the bolts and retaining straps that attach the oil vent tube (05-150 , 79-22-30) (SIN 46102) and the oil vent manifold (05-111 , 79-22-30) (SIN 46101) to the brackets.
Subtask 72-00-02-030-563
(a)Deleted.
Subtask 72-00-02-030-564
(b)Deleted.
Subtask 72-00-02-030-565
(2)Remove the oil vent tube (05-150 , 79-22-30) (SIN 46102) from the oil vent manifold (05-111 , 79-22-30) (SIN 46101) as follows:
Subtask 72-00-02-030-566
(a)Remove the bolts and support bracket (05-361 , 79-22-30) (SIN 46183) that attach the oil vent tube (05-150 , 79-22-30) (SIN 46102) and oil vent manifold (05-111 , 79-22-30) (SIN 46101) to the TCF vent tubes.
Subtask 72-00-02-030-567
(b)Remove and discard the outer seals (05-351 , 79-22-30) (SIN 46153).
(c)Remove the bolts and nuts that attach the oil vent tube (05-150 , 79-22-30) (SIN 46102) to the oil vent manifold (05-111 , 79-22-30) (SIN 46101).
(d)Remove and discard the gaskets (05-140 , 79-22-30) (SIN 46151).
Subtask 72-00-02-030-568
(3)Remove the insulation blankets as follows:
(a)Remove the straps that attach the insulation blankets to the oil vent tube (05-150 , 79-22-30) (SIN 46102) and oil vent manifold (05-111 , 79-22-30) (SIN 46101).
(b)Remove the insulation blankets.
Subtask 72-00-02-030-569
(4)Remove the oil vent manifold (05-111 , 79-22-30) (SIN 46101) from the oil tube (oil vent tube) (05-030 , 79-22-30) (SIN 46100) as follows:
(a)Remove the bolts, nuts, and bracket that attach the oil vent manifold (05-111 , 79-22-30) (SIN 46101) to the oil vent tube (05-030 , 79-22-30) (SIN 46100).
(b)Remove and discard the gasket (05-140 , 79-22-30) (SIN 46151).
(5)Remove the ground straps (05-430 , 71-00-00) (SIN C00B1) and (05-440 , 71-00-00) (SIN C00B2) from the tube oil bracket (bracket) (05-101 , 79-22-30) (SIN 46110) as follows:
(a)Remove the machine bolts (bolts) (05-420 , 71-00-00) (SIN C00F5).
(b)Remove the ground straps (05-430 , 71-00-00) (SIN C00B1) and (05-440 , 71-00-00) (SIN C00B2).
Subtask 72-00-02-030-570
(6)Remove the oil vent tube (05-030 , 79-22-30) (SIN 46100) as follows:
(a)Remove the bolts that attach the oil vent tube (05-030 , 79-22-30) (SIN 46100) to the fan hub frame at the 12:00 o'clock position.
(b)Remove the bolts that attach the oil vent tube (05-030 , 79-22-30) (SIN 46100) to the tube oil brackets (brackets) (05-070 , 79-22-30) (SIN 4611A) and (05-430 , 79-22-30) (SIN 4611E).
(c)Remove the bolts and clamp that attach the oil vent tube (05-030 , 79-22-30) (SIN 46100) to the bracket (05-101 , 79-22-30) (SIN 46110).
(d)Remove the oil vent tube (05-030 , 79-22-30) (SIN 46100).
(e)Remove and discard the gasket (05-020 , 79-22-30) (SIN 46150).
(f)Remove the bolts and bracket (05-101 , 79-22-30) (SIN 46110) from the bracket (33-290) (SIN 6101K).
* * * FOR ALL PIP 2

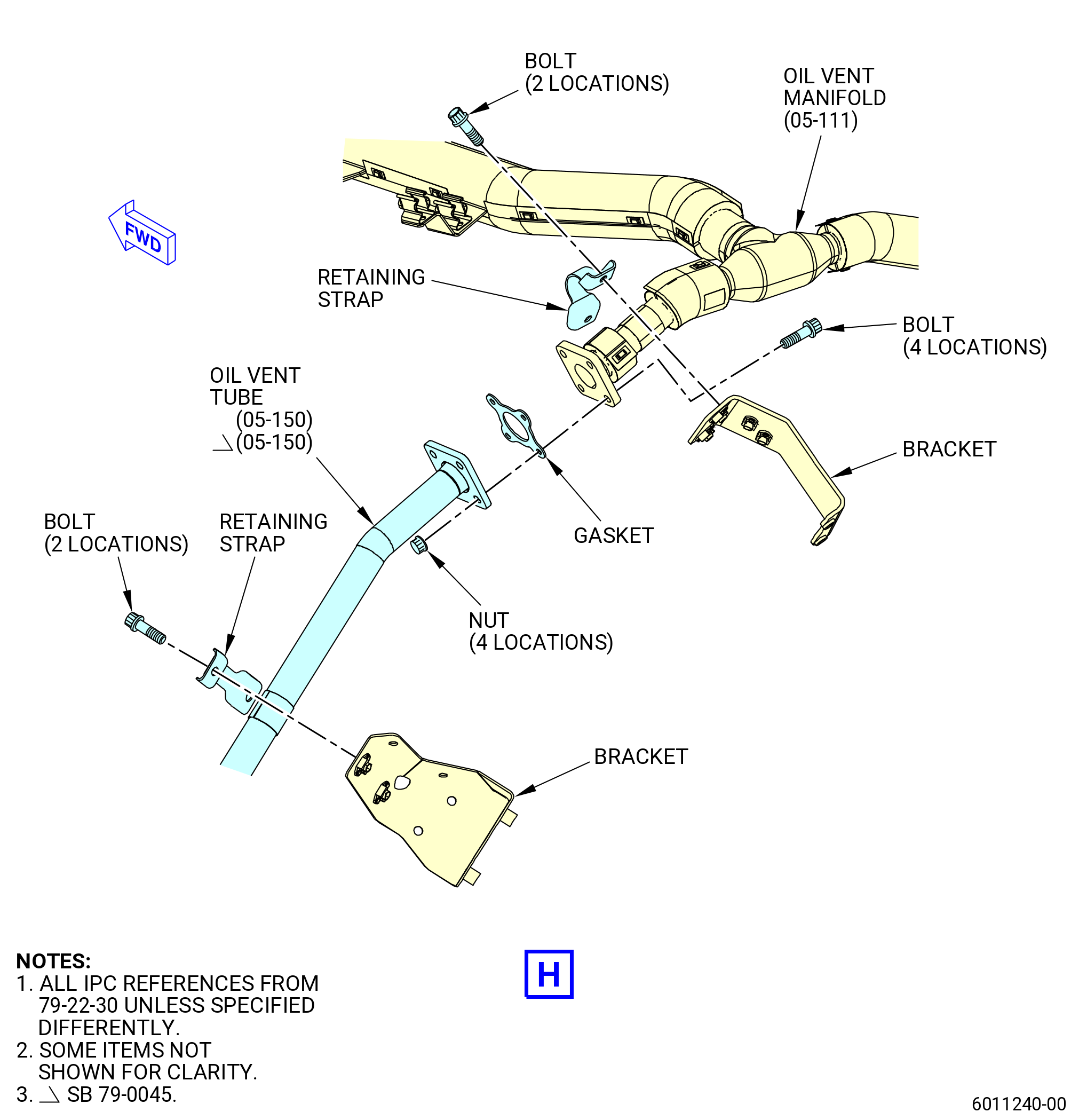

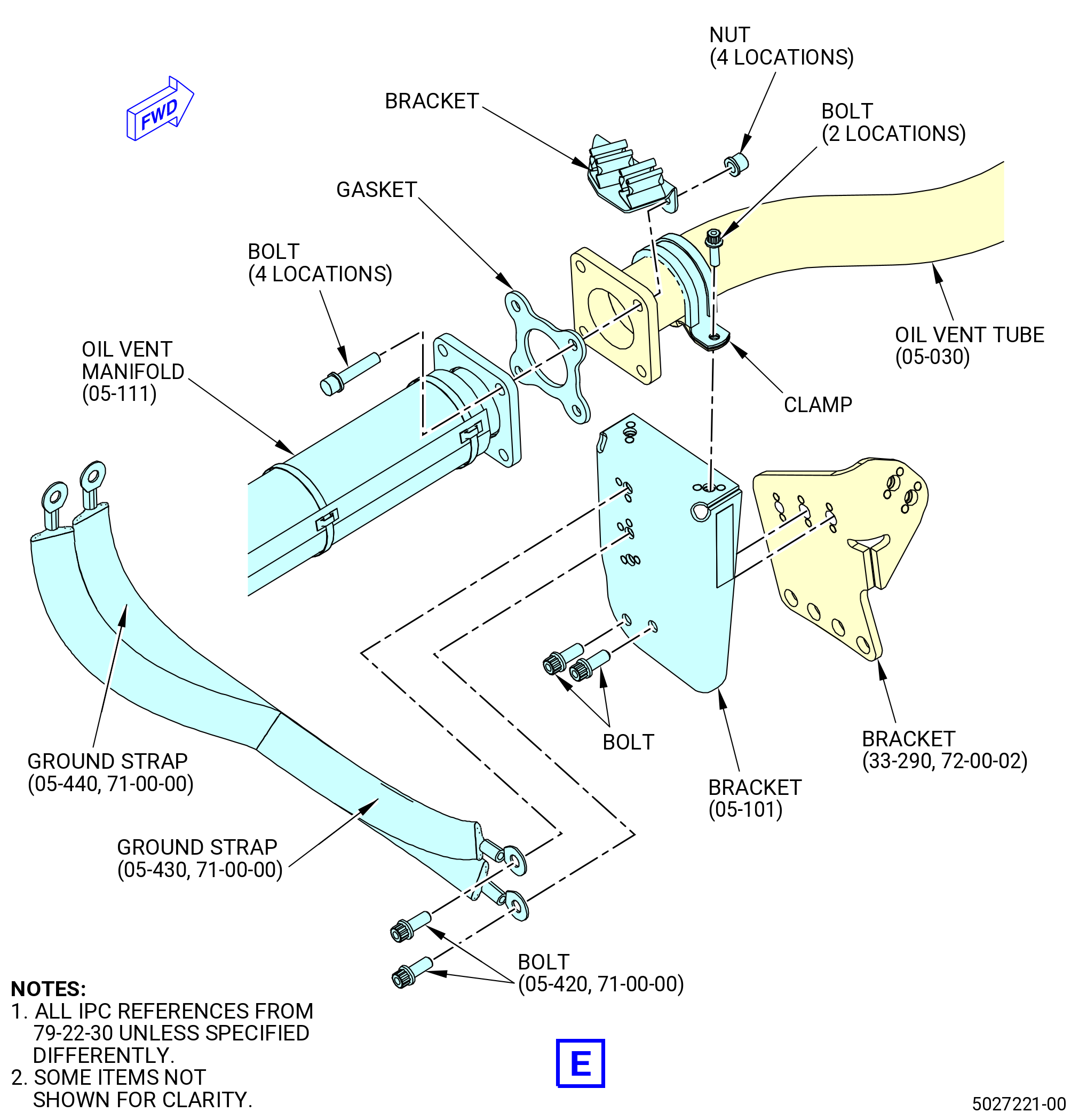

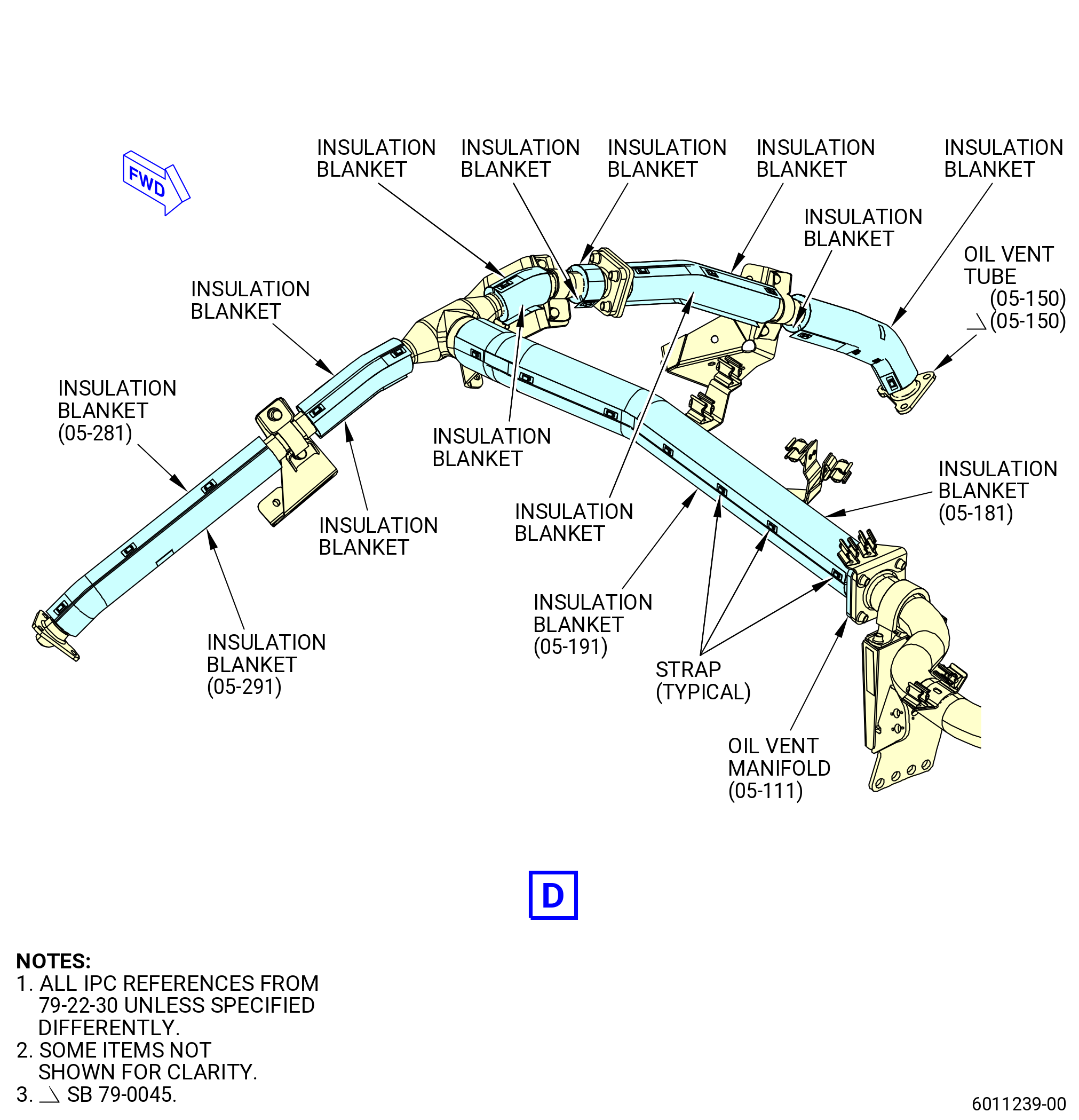

Figure 512   (Sheet 1 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
Figure 512   (Sheet 2 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
Figure 512   (Sheet 3 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
Figure 512   (Sheet 4 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
Figure 512   (Sheet 5 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
Figure 512   (Sheet 6 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   79-0045( Oil Vent Tube with Short Protrusion at the Flange )
Figure 512   (Sheet 7 ) Removal of the B-Sump Vent System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   79-0045( Oil Vent Tube with Longer Protrusion at the Flange )
Figure 512   (Sheet 8 ) Removal of the B-Sump Vent System
Subtask 72-00-02-030-571
K.Remove the turbine center frame/turbine rear frame (TCF/TRF) drain system. Refer to Figure 513 and do as follows:
(1)Remove bolt (30-180 , 72-00-00) (SIN 48721) that attach the drain manifold (30-210 , 72-00-00) (SIN 48700) to the support bracket (01-420 , 72-00-04) (SIN 48713).
(2)Remove the bolts (30-170 , 72-00-00) (SIN 48720) and cushioned clamps (30-200 , 72-00-00) (SIN 48780) that attach the oil drain manifold to the brackets (30-220 , 72-00-00) (SIN 48710), (30-230 , 72-00-00) (SIN 48711), and (30-240 , 72-00-00) (SIN 48712).
(3)Disconnect the C-sump drain manifold (30-210 , 72-00-00) (SIN 48700) from the B-sump drain tube (10-011 , 79-22-40) (SIN 48900) and the B-sump drain manifold (10-021 , 79-22-40) (SIN 48901).
(4)Disconnect the C-sump drain manifold (30-210 , 72-00-00) (SIN 48700) from the TRF vent drain tube (01-530 , 72-57-00) (SIN 458A1) at the 4:00 o'clock position.
Subtask 72-00-02-030-612

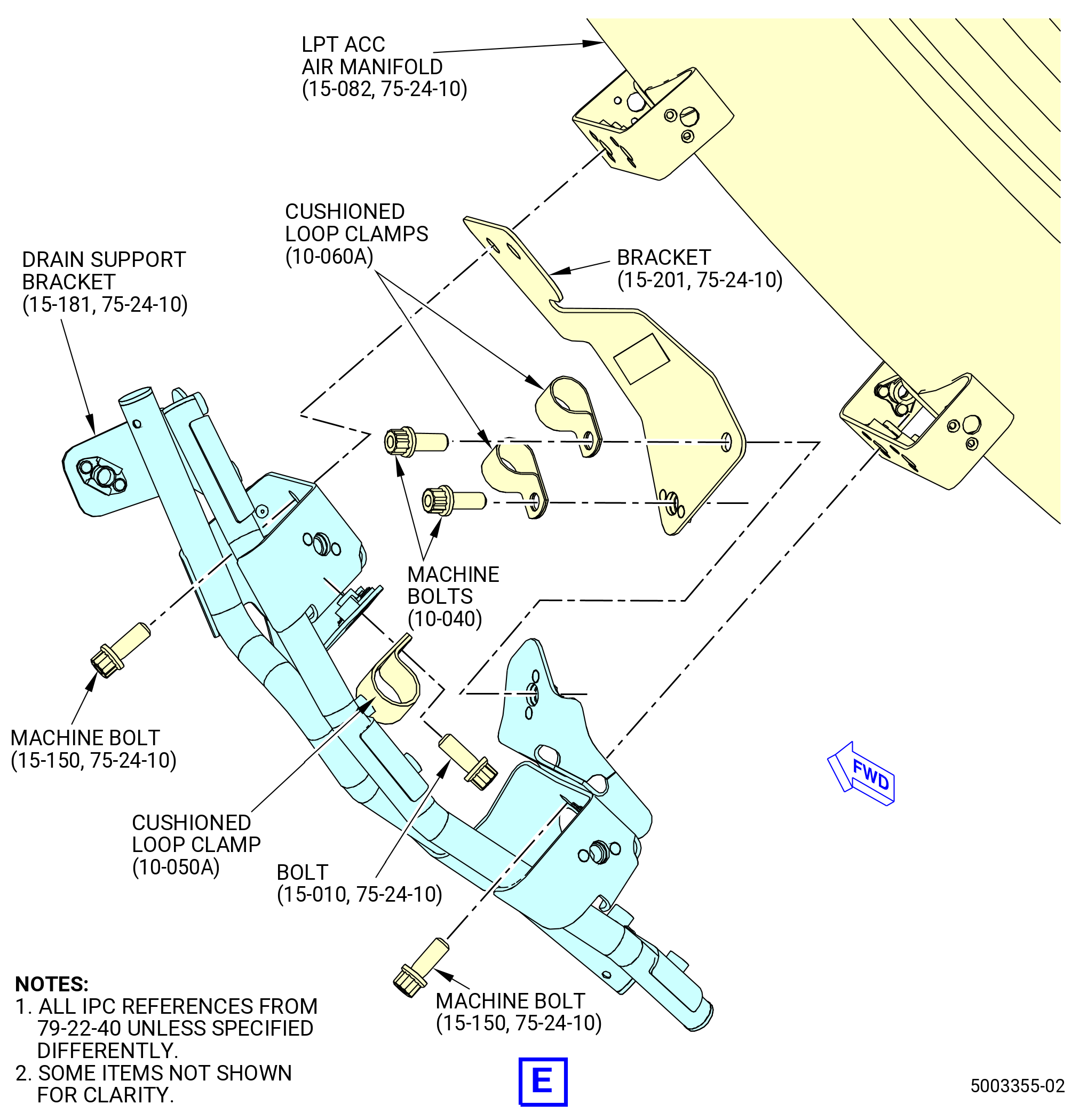

(5)Remove the drain support bracket (15-181 , 75-24-10) (SIN 9801F) and the bracket (15-201 , 75-24-10) (SIN 48911) at the 5:30 o'clock position as follows:
(a)Remove machine bolts (10-040 , 79-22-40) (SIN 48920) and the cushioned loop clamps (10-060A , 79-22-40) (SIN 48981) that attach the drain manifold (10-021 , 79-22-40) (SIN 48901) to the bracket (15-201 , 75-24-10) (SIN 48911).
(b)Remove machine bolt (10-040 , 79-22-40) (SIN 48920) and the cushioned loop clamp (10-050A , 79-22-40) (SIN 48980) that attach the drain tube (10-011 , 79-22-40) (SIN 48900) to the drain support bracket (15-181 , 75-24-10) (SIN 9801F).
(c)Remove machine bolts (15-150 , 75-24-10) (SIN 98021) that attach the drain support bracket (15-181 , 75-24-10) (SIN 9801F) to the LPT ACC air manifold (15-082 , 75-24-10) (SIN 6220C).
(d)Remove the lower tab of bracket (15-201 , 75-24-10) (SIN 48911).
(e)Remove the drain support bracket (15-181 , 75-24-10) (SIN 9801F).
(6)Remove the adapter cap deflectors (deflectors) (10-140 , 79-22-40) (SIN 9259A) and (10-150 , 79-22-40) (SIN 9259C) at the strut No. 7 as follows:
(a)Remove the hose clamp (10-160 , 79-22-40) (SIN 9258A) that attaches the two deflectors.
(b)Remove the two deflectors from the swivel nut and drain adapter.
Subtask 72-00-02-030-613
(7)Remove the machine bolt (10-140 , 79-22-40) (SIN 48920) and the cushioned loop clamp (10-050A , 79-22-40) (SIN 48980) that attach the oil drain manifold (10-011 , 79-22-40) (SIN 48900) and oil drain manifold (10-021 , 79-22-40) (SIN 48901) to the LPT ACC air manifold (15-082 , 75-24-10) (SIN 6220C).
(8)Remove machine bolts (10-040 , 79-22-40) (SIN 48920), cushioned loop clamp (10-060 , 79-22-40) (SIN 48981) and (10-050A , 79-22-40) (SIN 48980) that attach the drain manifold (10-021 , 79-22-40) (SIN 48901) and (10-011 , 79-22-40) (SIN 48900) to support bracket (35-211) (SIN 48910). Remove bracket.
(9)Disconnect the B-sump tube (10-021 , 79-22-40) (SIN 48901) from the TCF drain tube (01A-370 , 72-54-00) (SIN 489A1).
(10)Disconnect the B-sump drain tube (10-011 , 79-22-40) (SIN 48900) from the swivel nut (10-030 , 79-22-40) (SIN 489K1).
* * * FOR ALL PIP 2

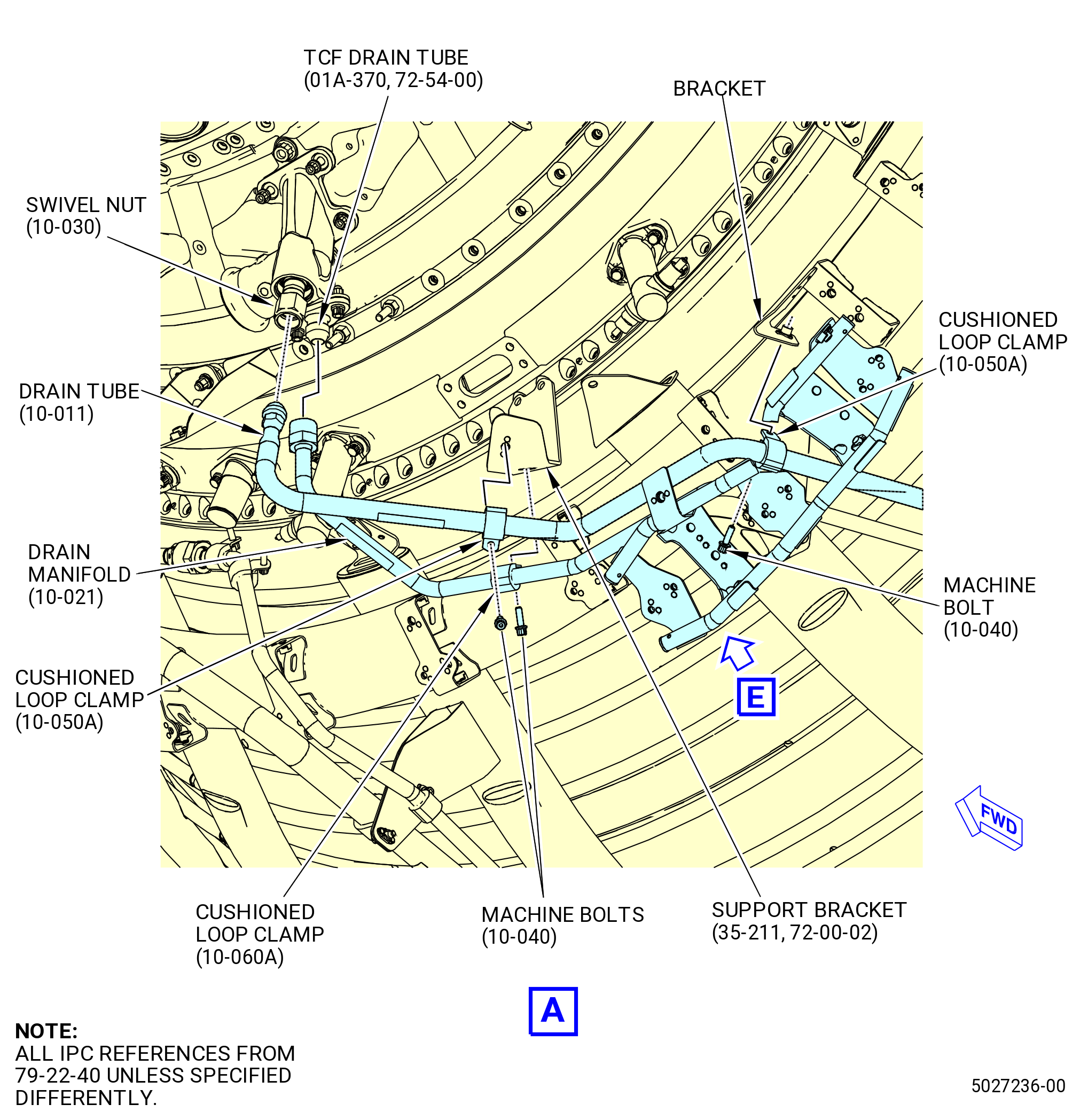

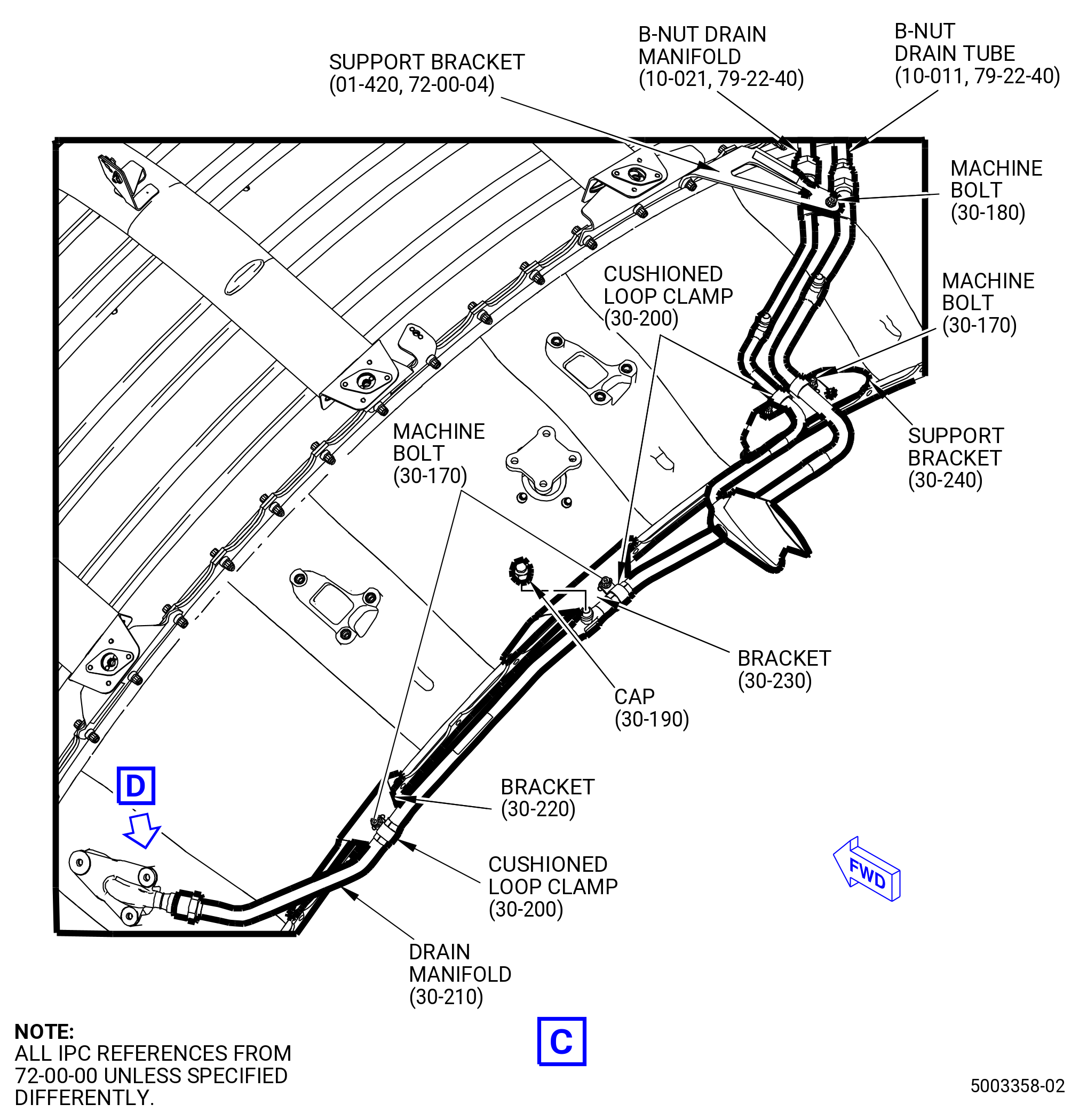

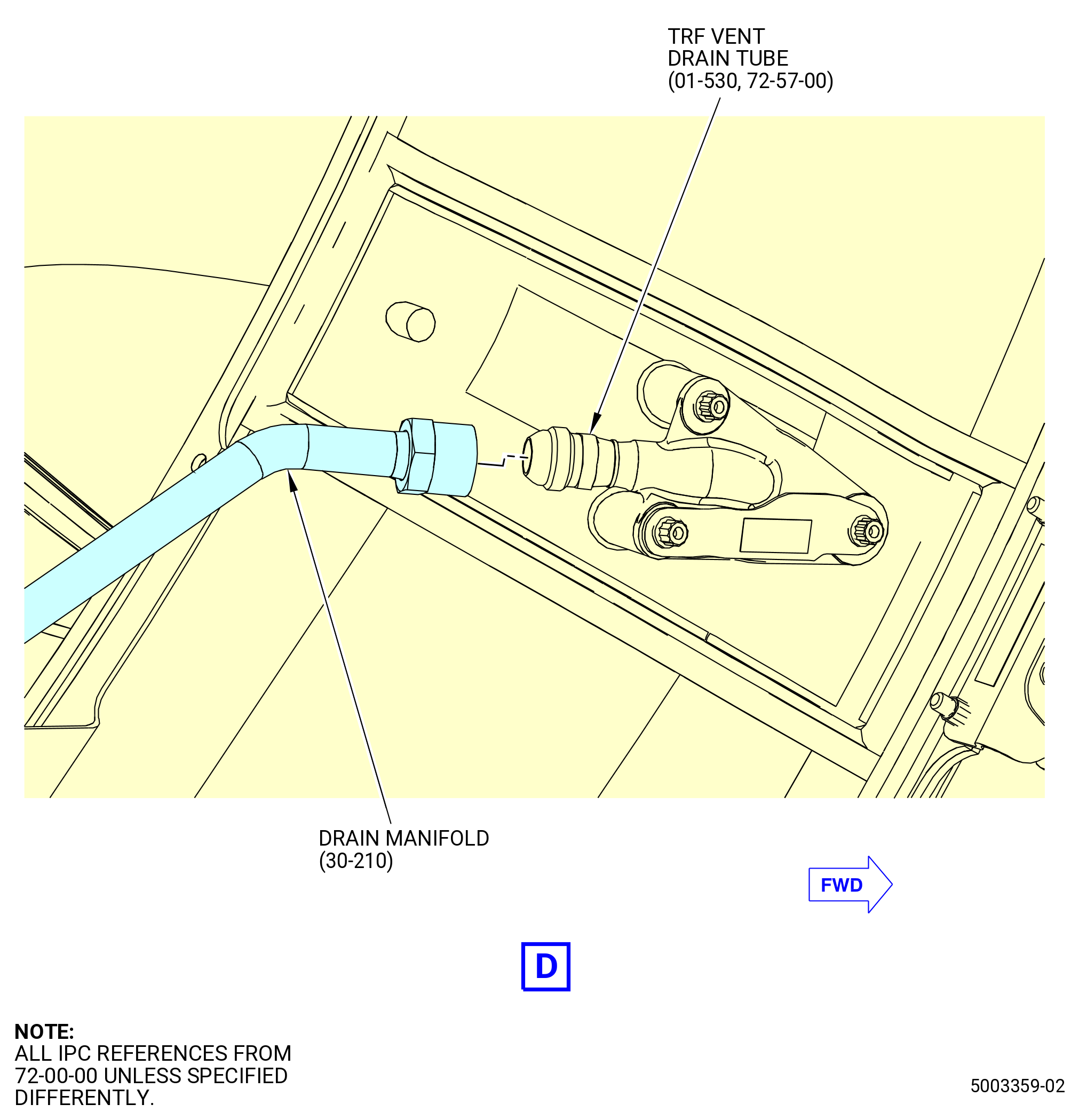

Figure 513   (Sheet 1 ) Removal of the TCF/TRF Drain System
* * * FOR ALL PIP 2
Figure 513   (Sheet 2 ) Removal of the TCF/TRF Drain System
* * * FOR ALL PIP 2
Figure 513   (Sheet 3 ) Removal of the TCF/TRF Drain System
* * * FOR ALL PIP 2
Figure 513   (Sheet 4 ) Removal of the TCF/TRF Drain System
* * * FOR ALL PIP 2
Figure 513   (Sheet 5 ) Removal of the TCF/TRF Drain System
Subtask 72-00-02-030-572
L.Remove the TRF scavenge system. Refer to Figure 514 and do as follows:
(1)Remove the nuts and bolts that connect the scavenge oil tube (tube) to the scavenge oil tube/hose (tube/hose).
(2)Remove and discard the flange gasket (10-080 , 79-22-20) (SIN 45250).
(3)Disconnect the tube from the TRF oil scavenge tube at the 5:30 o'clock position.
(4)Remove the bolts and cushioned clamps that attach the tube to the brackets.
Subtask 72-00-02-030-737
* * * PRE SB   72-0308( Removal of the Tube/Hose without Support Bracket )
(5)Remove the bolts and the seals from the aft skirt of the heat shield.
* * * END PRE SB   72-0308
Subtask 72-00-02-030-738
* * * SB   72-0308( Removal of the Tube/Hose with Support Bracket )
(5).A.Remove the bolts, seals, and support scavenge tube bracket (support bracket) from the aft skirt of the heat shield.
* * * END SB   72-0308
Subtask 72-00-02-030-739
(6)Remove the bolts that attach the tube/hose to the accessory gearbox (AGB).
(7)Remove and discard the flange gasket (10-040 , 79-22-20) (SIN 45251).
(8)Remove bolt from the bottom of the aft skirt.
(9)Remove the tube/hose from the aft skirt.
* * * FOR ALL PIP 2
Figure 514   (Sheet 1 ) Removal of the TRF Scavenge System
* * * FOR ALL PIP 2
Figure 514   (Sheet 2 ) Removal of the TRF Scavenge System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0308( Removal of the Tube/Hose without Support Bracket )
Figure 514   (Sheet 3 ) Removal of the TRF Scavenge System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0308( Removal of the Tube/Hose with Support Bracket )
Figure 514   (Sheet 4 ) Removal of the TRF Scavenge System
* * * FOR ALL PIP 2
Figure 514   (Sheet 5 ) Removal of the TRF Scavenge System
Subtask 72-00-02-030-573
M.Remove the TCF/TRF lube system. Refer to Figure 515 and do as follows:
(1)Disconnect the oil supply tube from the TRF oil supply tube at the 6:00 o'clock position.
(2)Disconnect the oil supply tube from the oil supply manifold at the 5:00 o'clock position. Remove and discard the preformed packing (20-140 , 79-22-10) (SIN 44351).
(3)Remove the bolts and cushioned clamps that attach the oil supply tube to the brackets.
Subtask 72-00-02-030-574

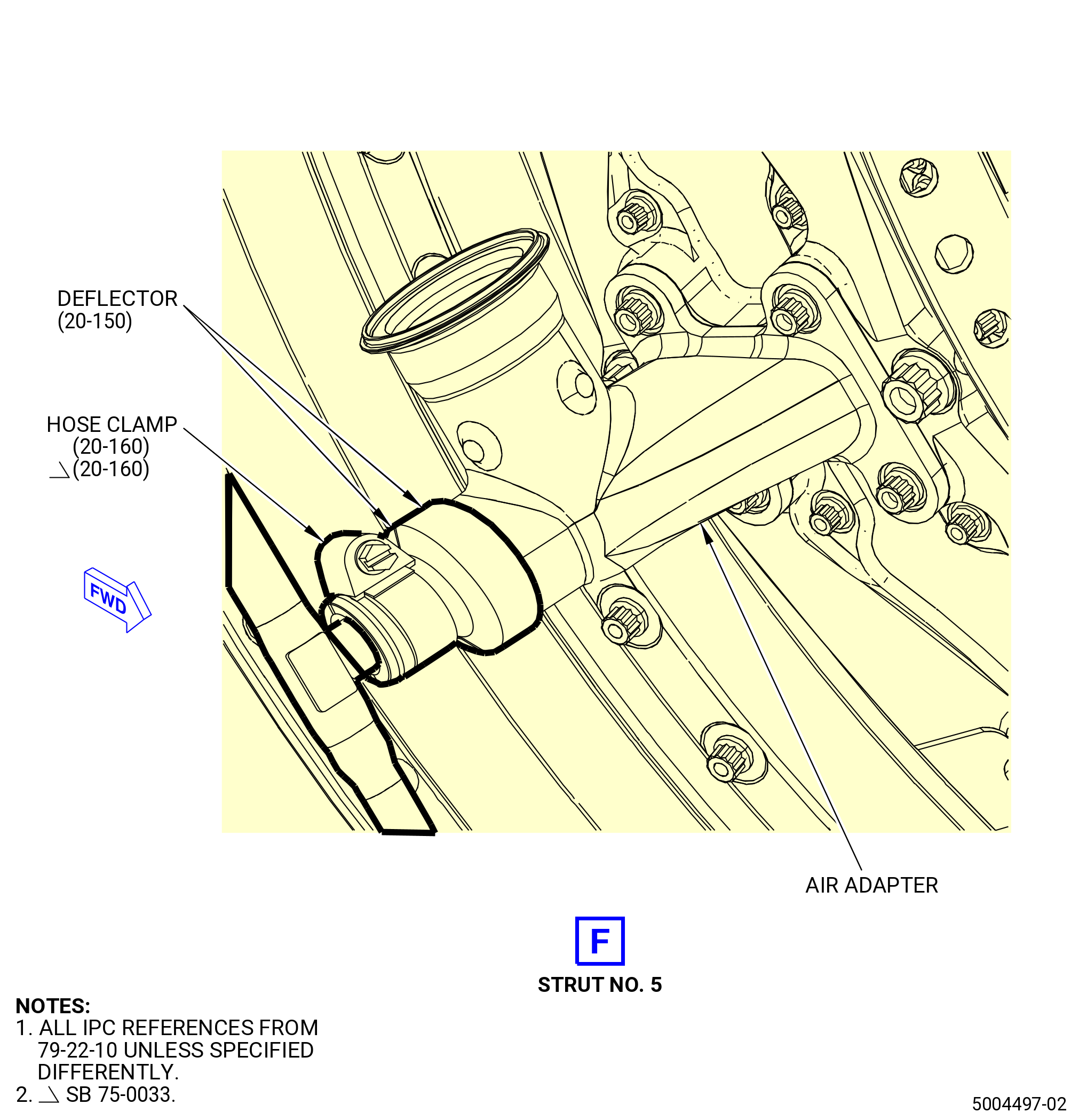

(4)Remove the adapter cap deflectors (deflectors) (20-150 , 79-22-10) (SIN 9259A) at the strut No. 5 as follows:
(a)Remove the hose clamp (20-160 , 79-22-10) (SIN 9258A) that attaches the two deflectors.
(b)Remove the two deflectors from the swivel nut and air adapter.
Subtask 72-00-02-030-575
(5)Disconnect the oil supply manifold from the TCF oil tube at the 4:00 o'clock position.
(6)Disconnect the oil supply manifold from the oil supply tube at the 3:30 o'clock position. Remove and discard the preformed packing (20-090 , 79-22-10) (SIN 44350).
(7)Remove the bolt and cushioned clamp that attach the oil supply manifold to the bracket.
* * * FOR ALL PIP 2

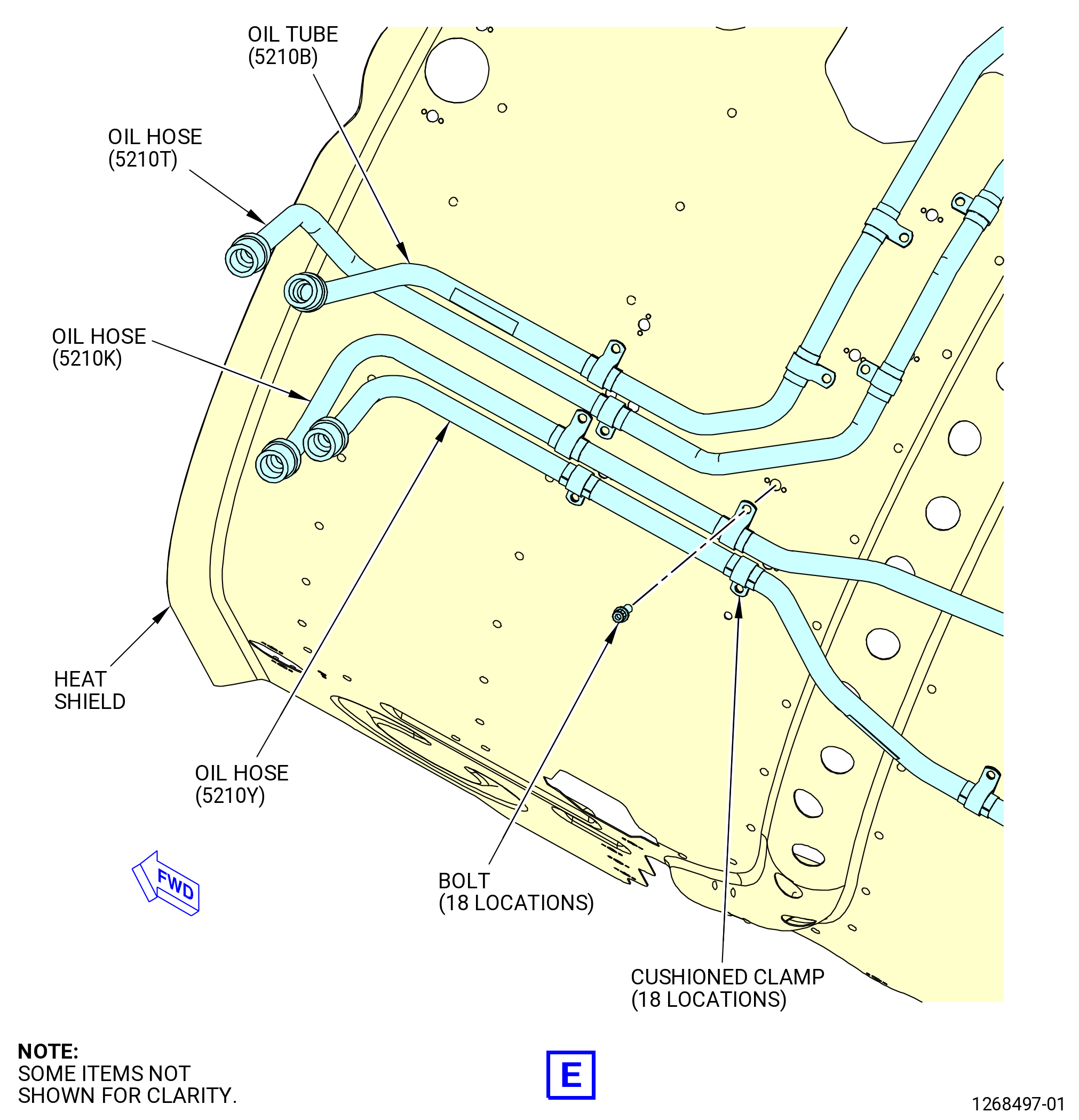

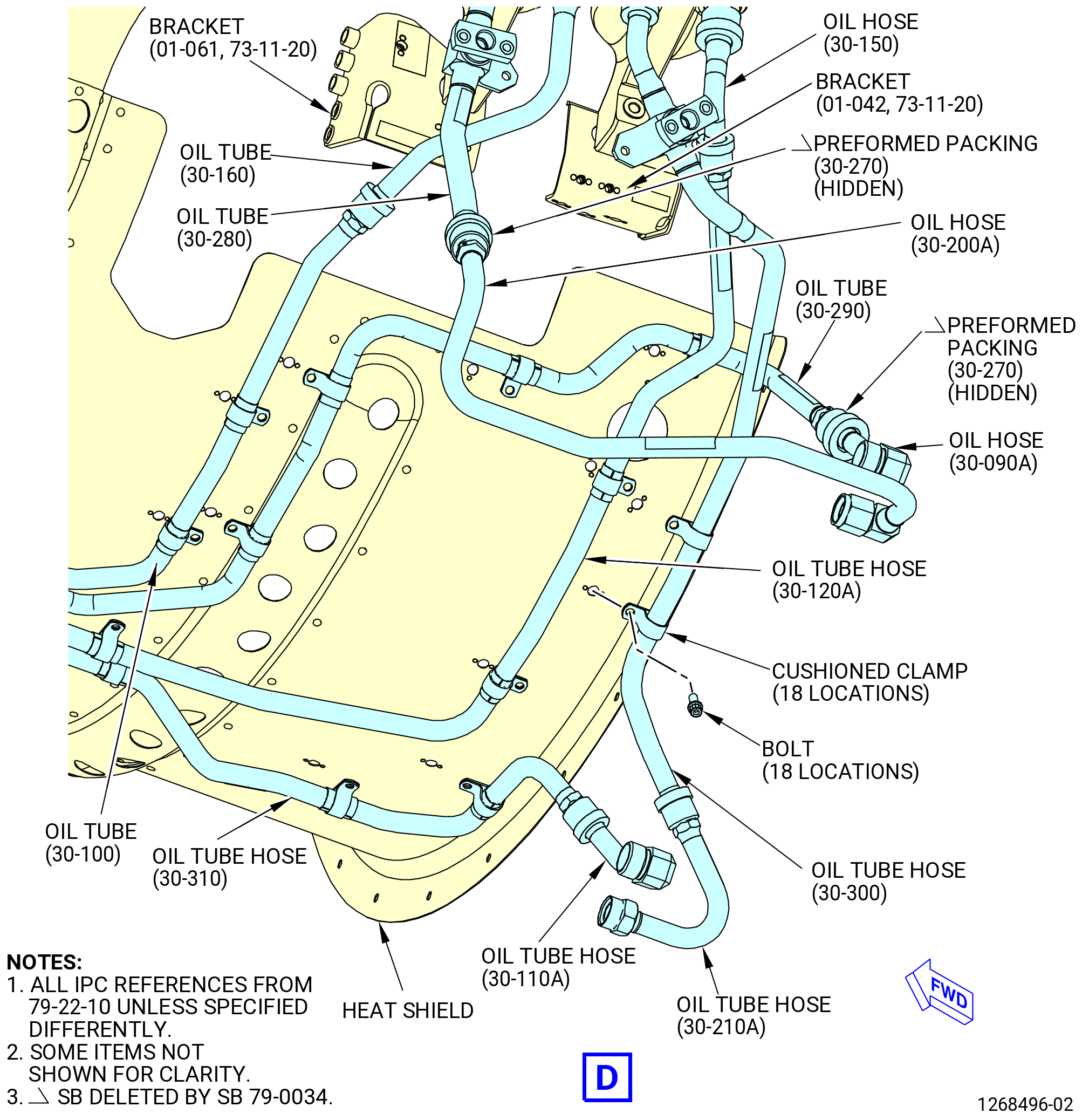

Figure 515   (Sheet 1 ) Removal of the TCF/TRF Lube System
* * * FOR ALL PIP 2
Figure 515   (Sheet 2 ) Removal of the TCF/TRF Lube System
* * * FOR ALL PIP 2
Figure 515   (Sheet 3 ) Removal of the TCF/TRF Lube System
* * * FOR ALL PIP 2
Figure 515   (Sheet 4 ) Removal of the TCF/TRF Lube System
* * * FOR ALL PIP 2
Figure 515   (Sheet 5 ) Removal of the TCF/TRF Lube System
Subtask 72-00-02-030-576
N.Remove the ignition system from the left side of the compressor case as follows:
(1)Remove the hose clamps and the cooling shrouds from the igniters at the 8:30 and 9:30 o'clock positions. Refer to Figure 516.
(2)Remove the bolts that attach the exciter bracket cover to the exciter bracket. Remove the exciter bracket cover. Refer to Figure 517.
(3)Disconnect the ignition leads from the igniters.
(4)Disconnect the ignition leads from the exciter boxes.
(5)Remove the bolts and the cushioned clamps that attach the ignition leads to the brackets. Remove the ignition leads.
(6)Remove the igniters from the igniter plug bushings.
(7)Remove the bolts that attach the ignition exciter boxes to the exciter bracket. Remove the exciter boxes.
(8)Remove the bolts that attach the exciter bracket to the variable frequency starter generators (VFSG) heat exchanger. Remove the exciter bracket.
(9)Remove the bonding jumpers from the exciter bracket. Refer to Figure 518.
(10)Remove the bolts that attach the brackets to the low pressure turbine (LPT) supply air duct. Remove the brackets.
* * * FOR ALL PIP 2
Figure 516   Removal of the Igniter Cooling Shrouds
* * * FOR ALL PIP 2
Figure 517   (Sheet 1 ) Removal of the Ignition System
* * * FOR ALL PIP 2
Figure 517   (Sheet 2 ) Removal of the Ignition System
* * * FOR ALL PIP 2
Figure 517   (Sheet 3 ) Removal of the Ignition System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0248( Old LPT Supply Air Duct Configuration )
Figure 517   (Sheet 4 ) Removal of the Ignition System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0248( New LPT Supply Air Duct Configuration )
Figure 517   (Sheet 5 ) Removal of the Ignition System
* * * FOR ALL PIP 2
Figure 517   (Sheet 6 ) Removal of the Ignition System
* * * FOR ALL PIP 2
Figure 517   (Sheet 7 ) Removal of the Ignition System
* * * FOR ALL PIP 2

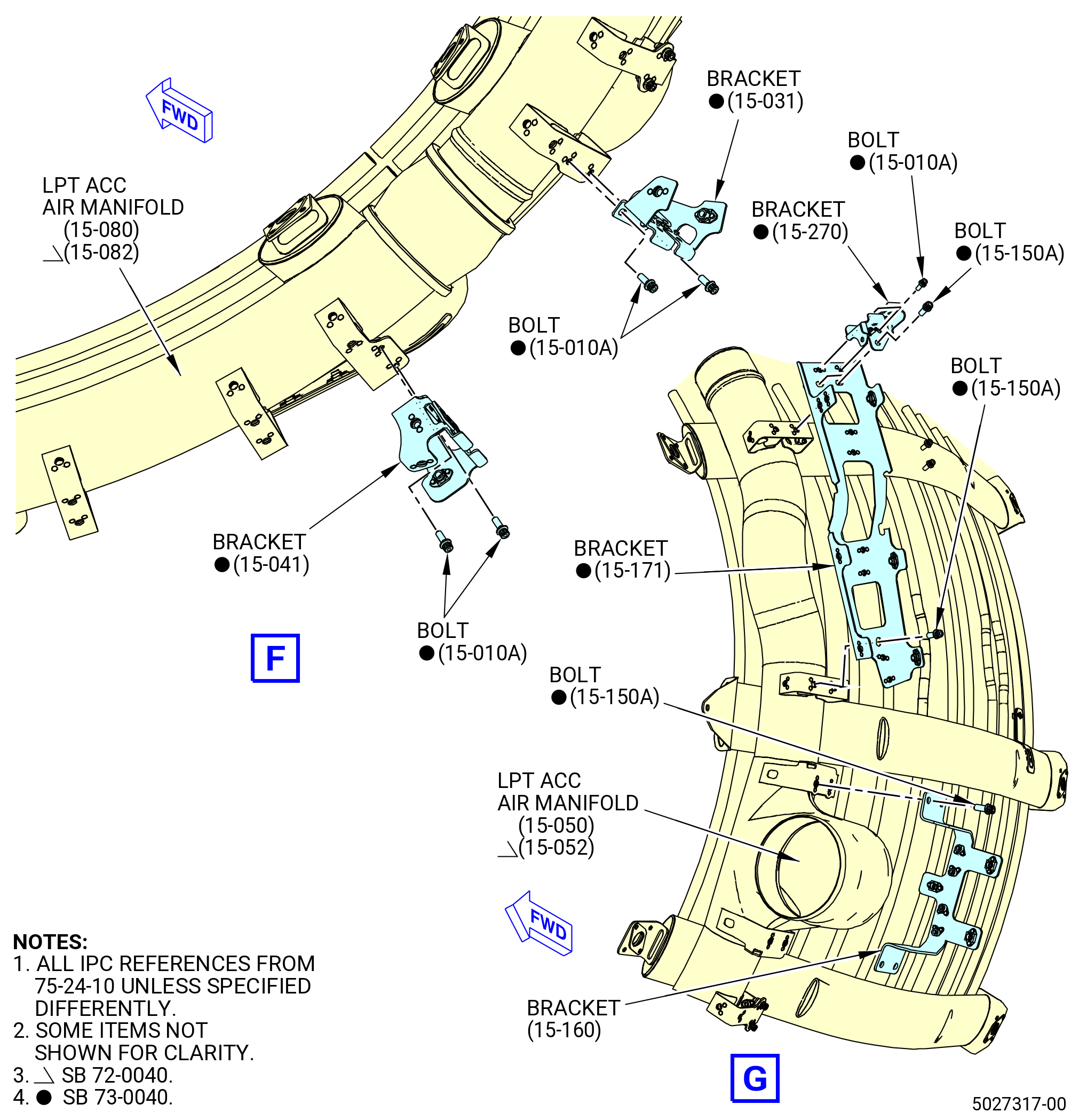

Figure 518   (Sheet 1 ) Removal of the Igniter System Brackets
* * * FOR ALL PIP 2
Figure 518   (Sheet 2 ) Removal of the Igniter System Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0248( Old LPT Supply Air Duct Configuration )
Figure 518   (Sheet 3 ) Removal of the Igniter System Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0248( New LPT Supply Air Duct Configuration )
Figure 518   (Sheet 4 ) Removal of the Igniter System Brackets
* * * FOR ALL PIP 2
Figure 518   (Sheet 5 ) Removal of the Igniter System Brackets
Subtask 72-00-02-030-577

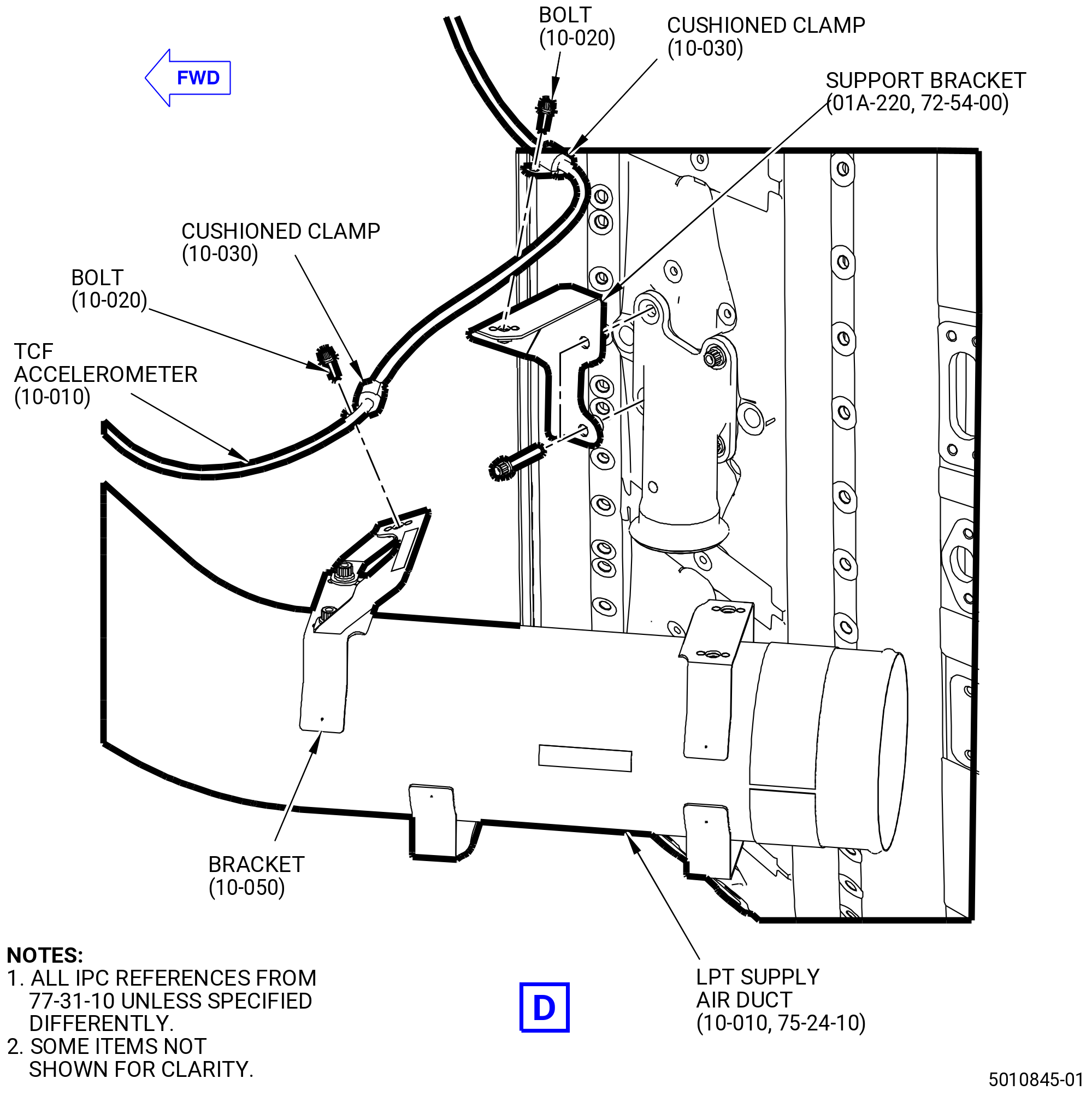

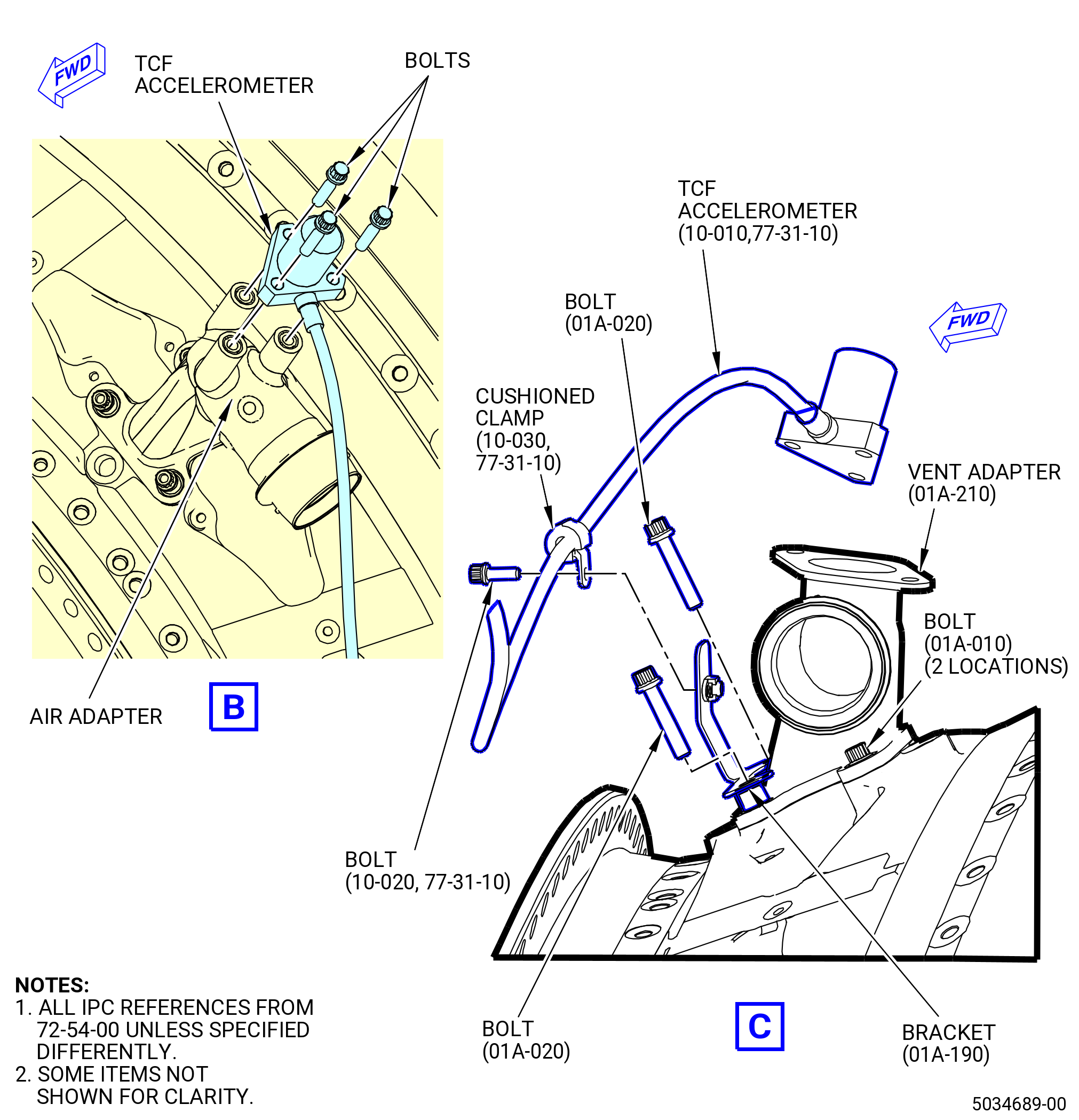

O.Remove the TCF accelerometer (10-010 , 77-31-10) (SIN 65500). Refer to Figure 519 and do as follows:
(1)Remove bolts (10-020 , 77-31-10) (SIN 65520) and cushioned clamps (10-030 , 77-31-10) (SIN 65580) that attach the TCF accelerometer (10-010 , 77-31-10) (SIN 65500) to the LPT supply air duct (10-010 , 75-24-10) (SIN 62201), bracket (10-050 , 77-31-10) (SIN 65511), support bracket (01A-220 , 72-54-00) (SIN 65512) and bracket (01A-190 , 72-54-00) (SIN 65513).
(2)Disconnect the TCF accelerometer (10-010 , 77-31-10) (SIN 65500) from the W17 Harness (75-010 , 73-21-65) (SIN 6710B).
(3)Remove the double hexagonal head bolts (10-041 , 77-31-10) (SIN 65527) that attach the TCF accelerometer (10-010 , 77-31-10) (SIN 65500) to the air adapter (01-120 , 72-54-00) (SIN 9250A) at the 11:00 o'clock position (ALF) on the turbine center frame.
(4)Remove the TCF accelerometer.
* * * FOR ALL PIP 2

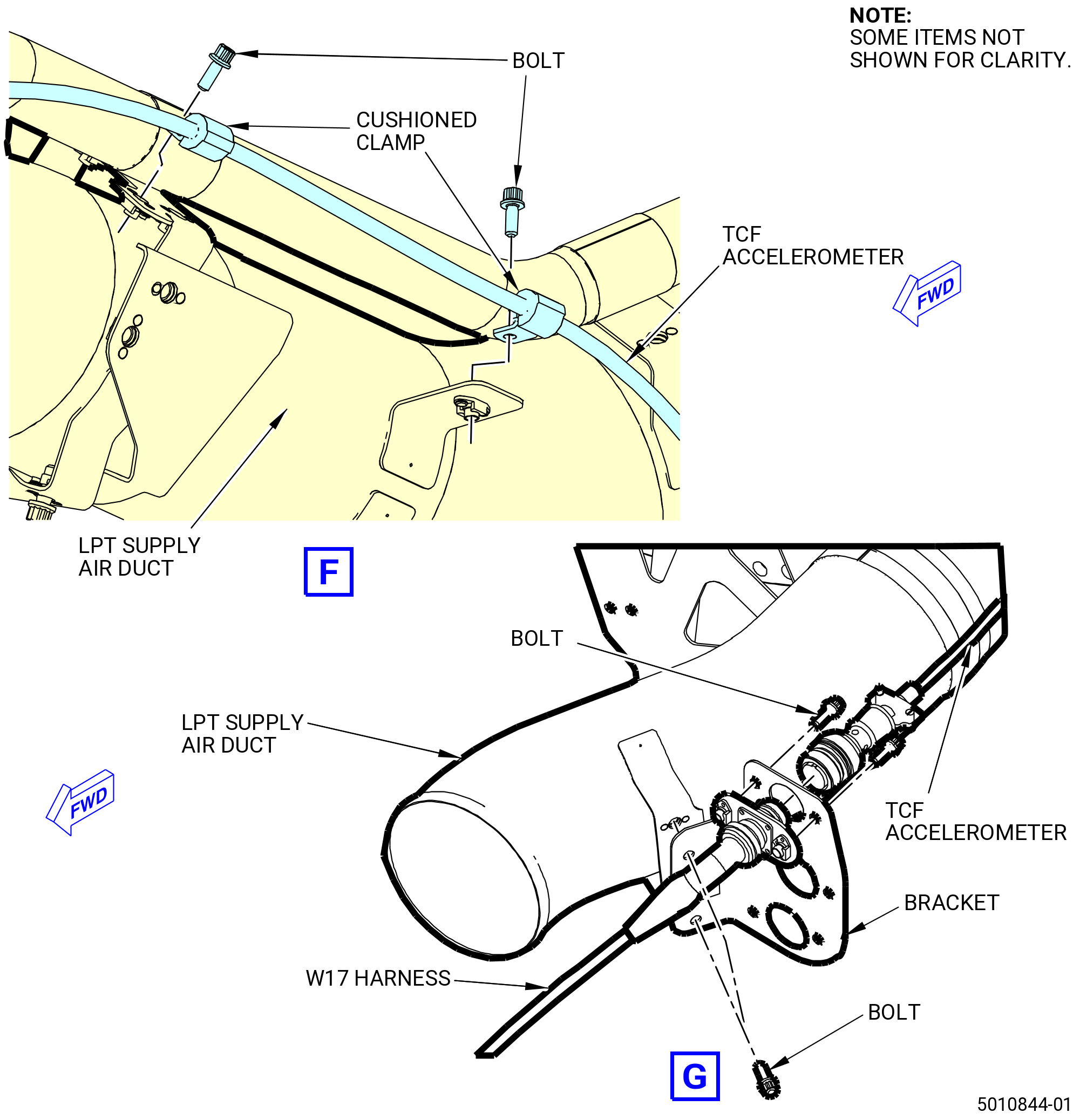

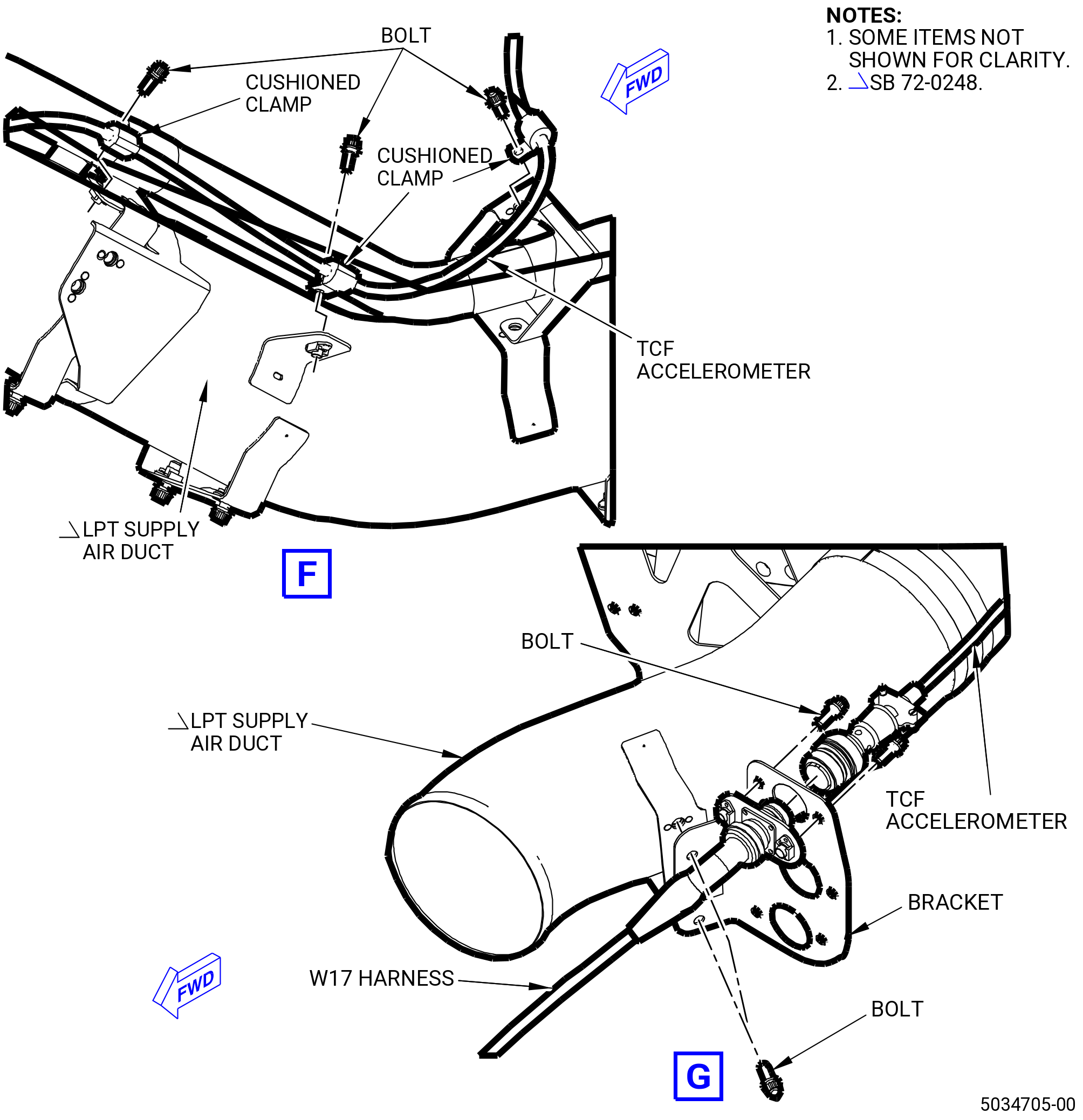

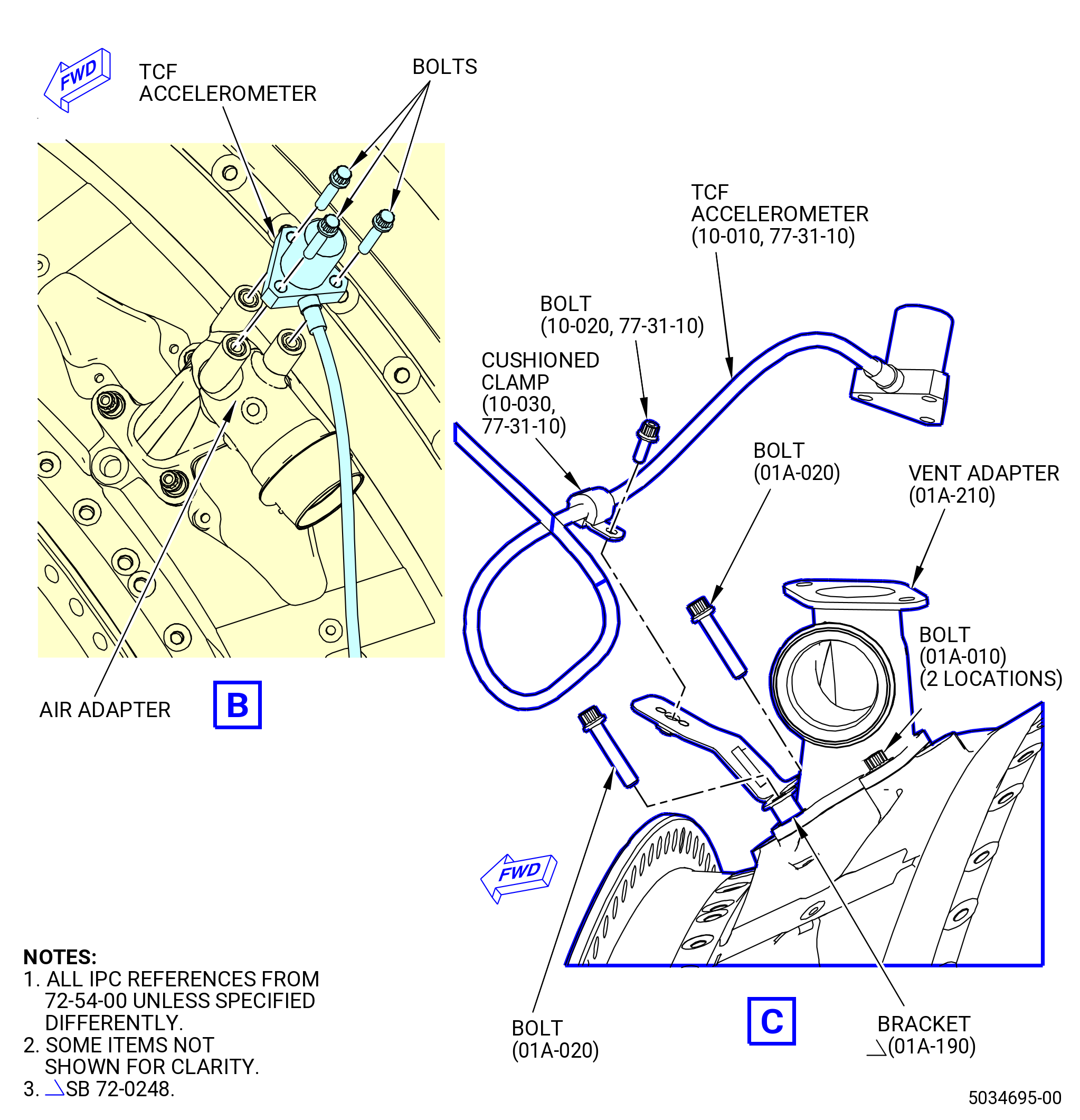

Figure 519   (Sheet 1 ) Removal of the TCF Accelerometer
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0248( Old Brackets Design )
Figure 519   (Sheet 2 ) Removal of the TCF Accelerometer
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0248( New Brackets Design )
Figure 519   (Sheet 3 ) Removal of the TCF Accelerometer
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0248( Old LPT Supply Air Duct Configuration )

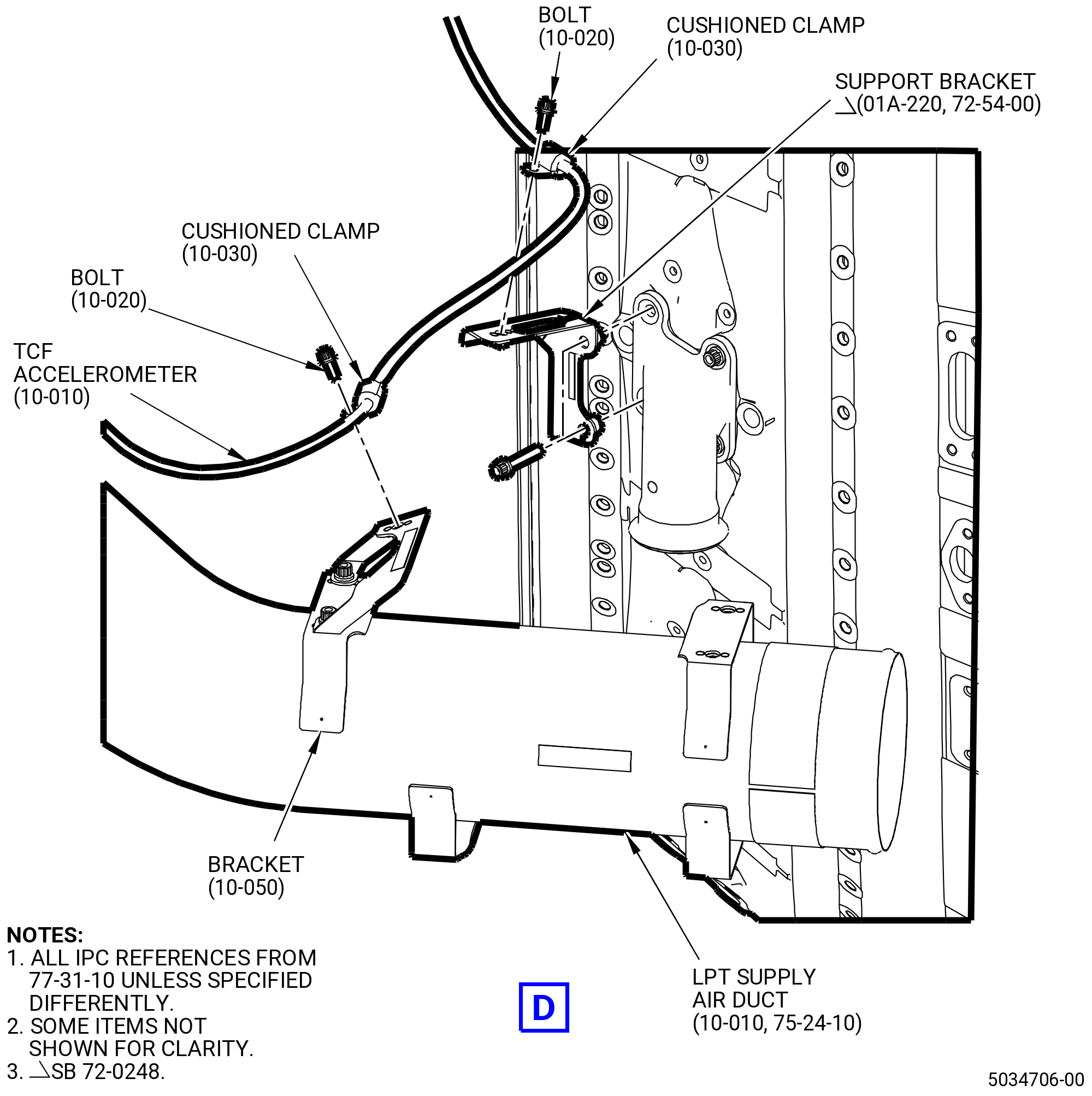

Figure 519   (Sheet 4 ) Removal of the TCF Accelerometer
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0248( New LPT Supply Air Duct Configuration )
Figure 519   (Sheet 5 ) Removal of the TCF Accelerometer
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0248( Old Brackets Design )
Figure 519   (Sheet 6 ) Removal of the TCF Accelerometer
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0248( New Brackets Design )
Figure 519   (Sheet 7 ) Removal of the TCF Accelerometer
Subtask 72-00-02-030-578
P.Remove the upper and lower exhaust gas temperature (EGT) harnesses from the propulsor. Refer to Figure 520 and do as follows:
CAUTION:
DO NOT APPLY SIDE-LOADS TO THE THERMOCOUPLE CABLE PIGTAIL LEADS WHEN YOU REMOVE THEM. THE EGT THERMOCOUPLE PROBE STUDS CAN RESULT IN DAMAGE.
CAUTION:
BEFORE YOU REMOVE THE THERMOCOUPLE HARNESS CONNECTOR NUTS FROM THE EGT PROBE, PUT A SMALL AMOUNT OF PENETRATING OIL ON THE ENDS OF THE EGT PROBE STUDS AND ON THE THREADS OF THE HARNESS CONNECTOR NUTS, OR THE EGT PROBE STUDS CAN RESULT IN DAMAGE.
(1)Apply a small amount of C02-053  penetrating oil at the ends of the EGT probe studs and on the threads of the harness connector nut.
(2)Remove the upper EGT harness (upper harness) as follows:
(a)Remove the upper harness nuts from the EGT probes.
(b)Remove the bolts that attach the upper harness to the support bracket on the LPT supply air duct.
(c)Remove the bolts that attach the tabs on the upper harness to the support brackets.
(d)Remove the upper harness.
WARNING:
REFER TO THE PRODUCT LABEL AND THE MANUFACTURER’S (MATERIAL) SAFETY DATA SHEET (SDS) FOR INSTRUCTIONS ON THE HAZARDS, STORAGE, SAFE HANDLING AND PROPER USE OF THIS PRODUCT.
(3)Clean the threaded surfaces that received penetrating oil with a cotton swab or brush soaked with C04-035  isopropyl alcohol and let them air-dry before re-assembly.
NOTE:
The EGT probe has two different stud diameters for the thermocouple lead connectors. The thermocouple cable lead connector nuts are captive nuts and part of the thermocouple cable leads.
(4)Do Subtask 72-00-02-030-578 (paragraph 3.Q.(1) thru paragraph 3.Q.(3)) again for the lower EGT harness (lower harness).
(5)Remove the bolts that attach the support bracket to the LPT supply air duct. Remove the support bracket.
(6)Remove the bolts that attach the support bracket to the LPT ACC manifold. Remove the support bracket.
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   77-0014( Old EGT Harness Configuration )

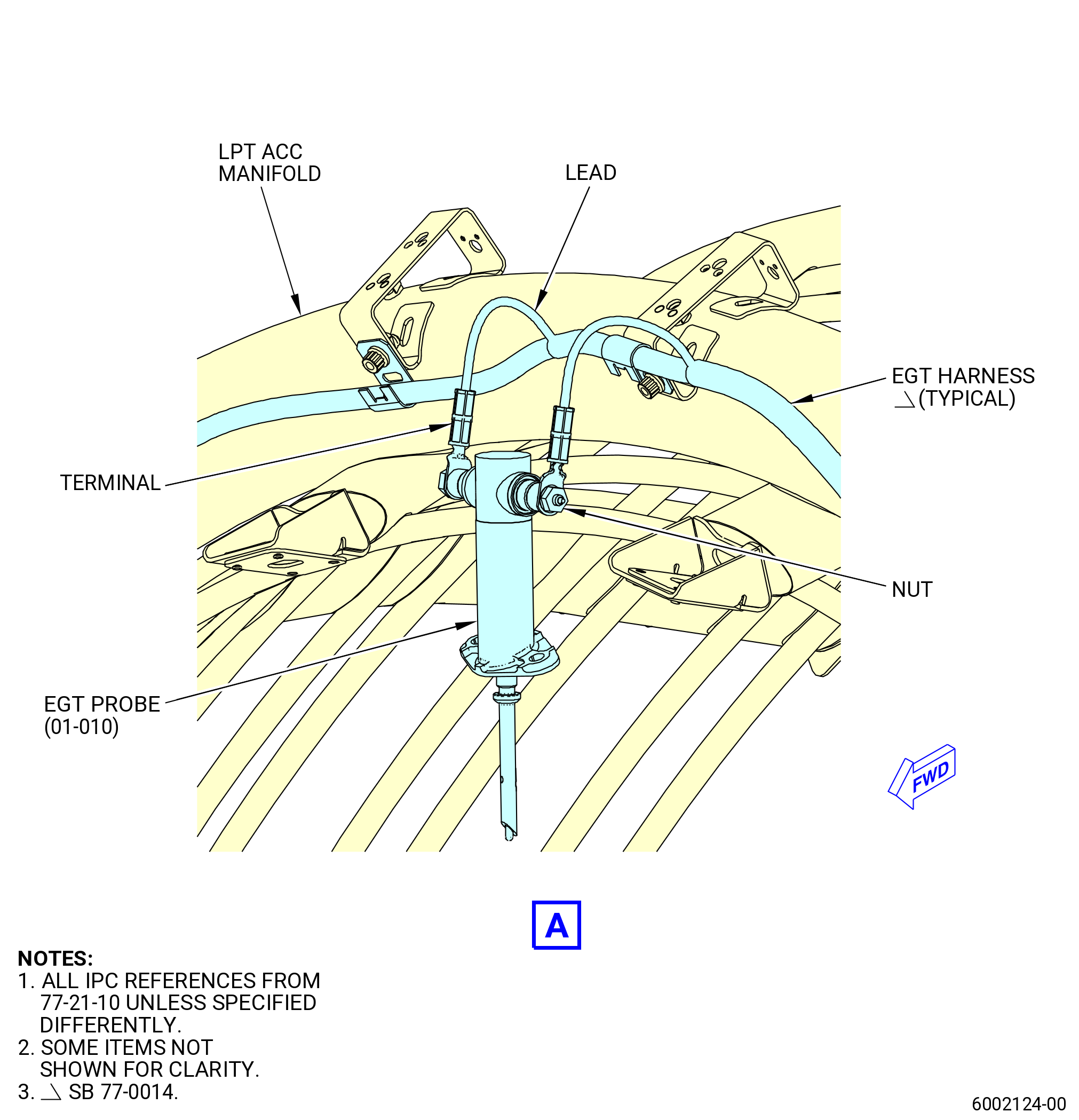

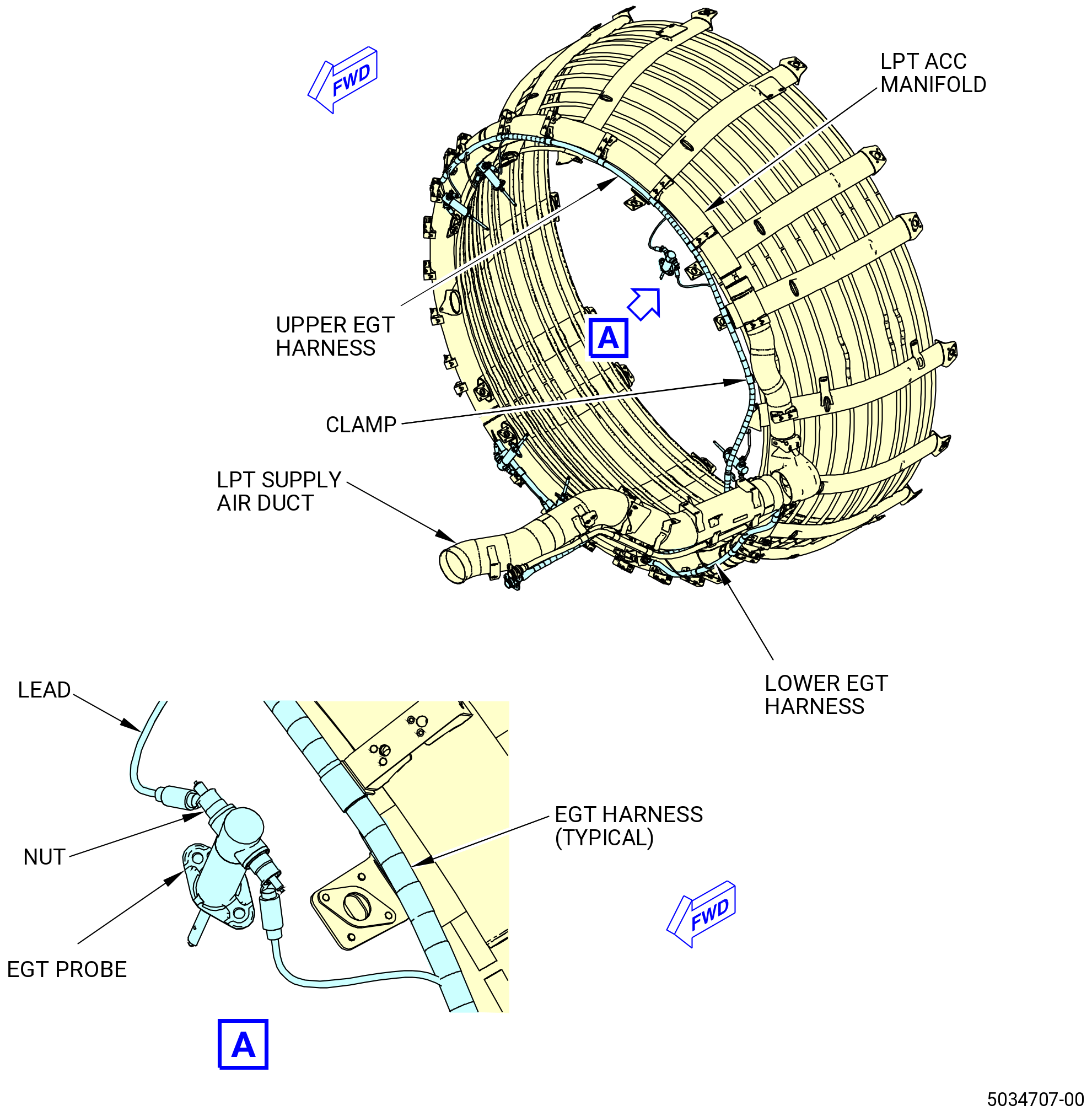

Figure 520   (Sheet 1 ) Removal of the EGT Harness
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   77-0014( New EGT Harness Configuration )
Figure 520   (Sheet 2 ) Removal of the EGT Harness
Subtask 72-00-02-030-579

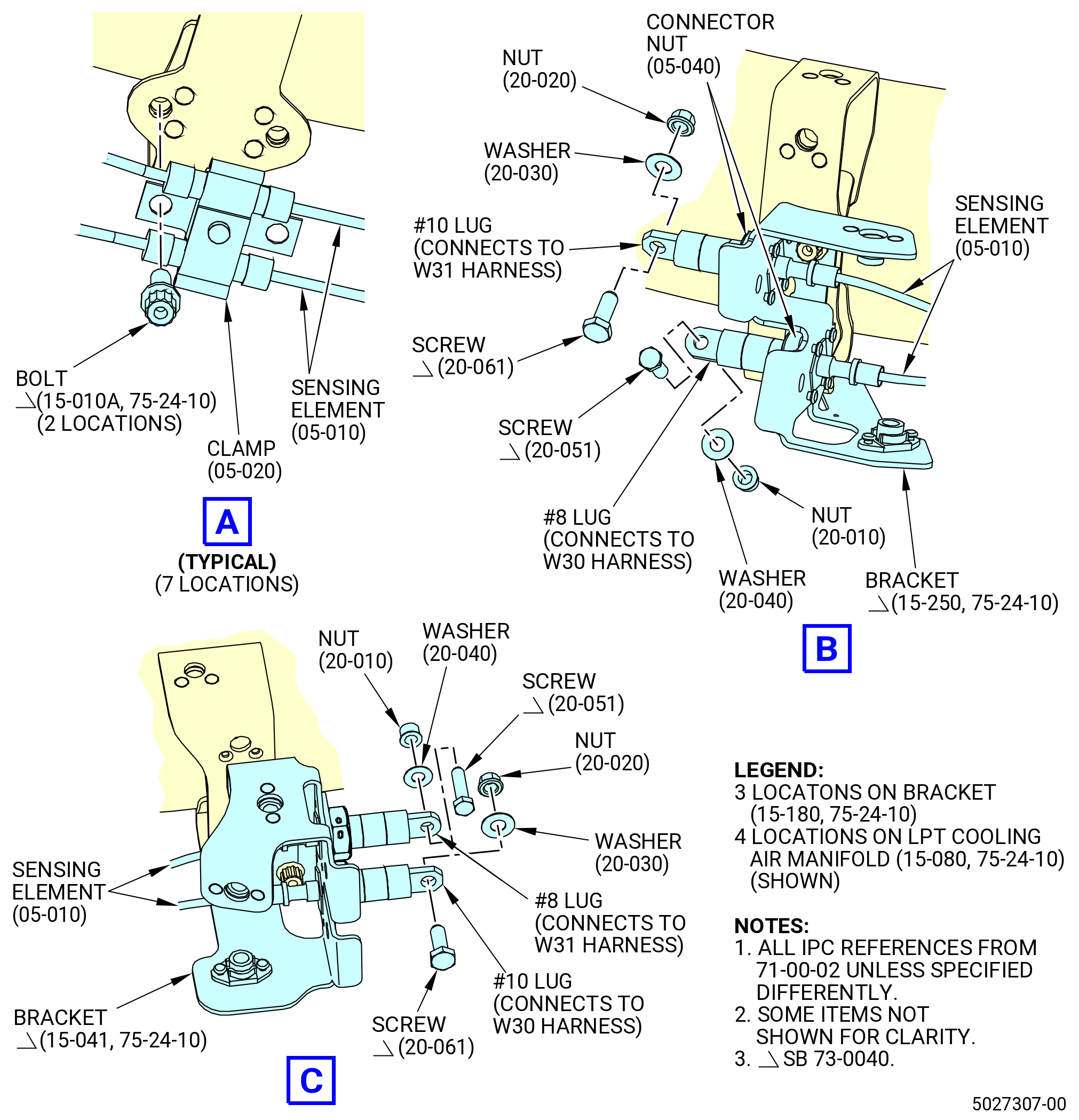

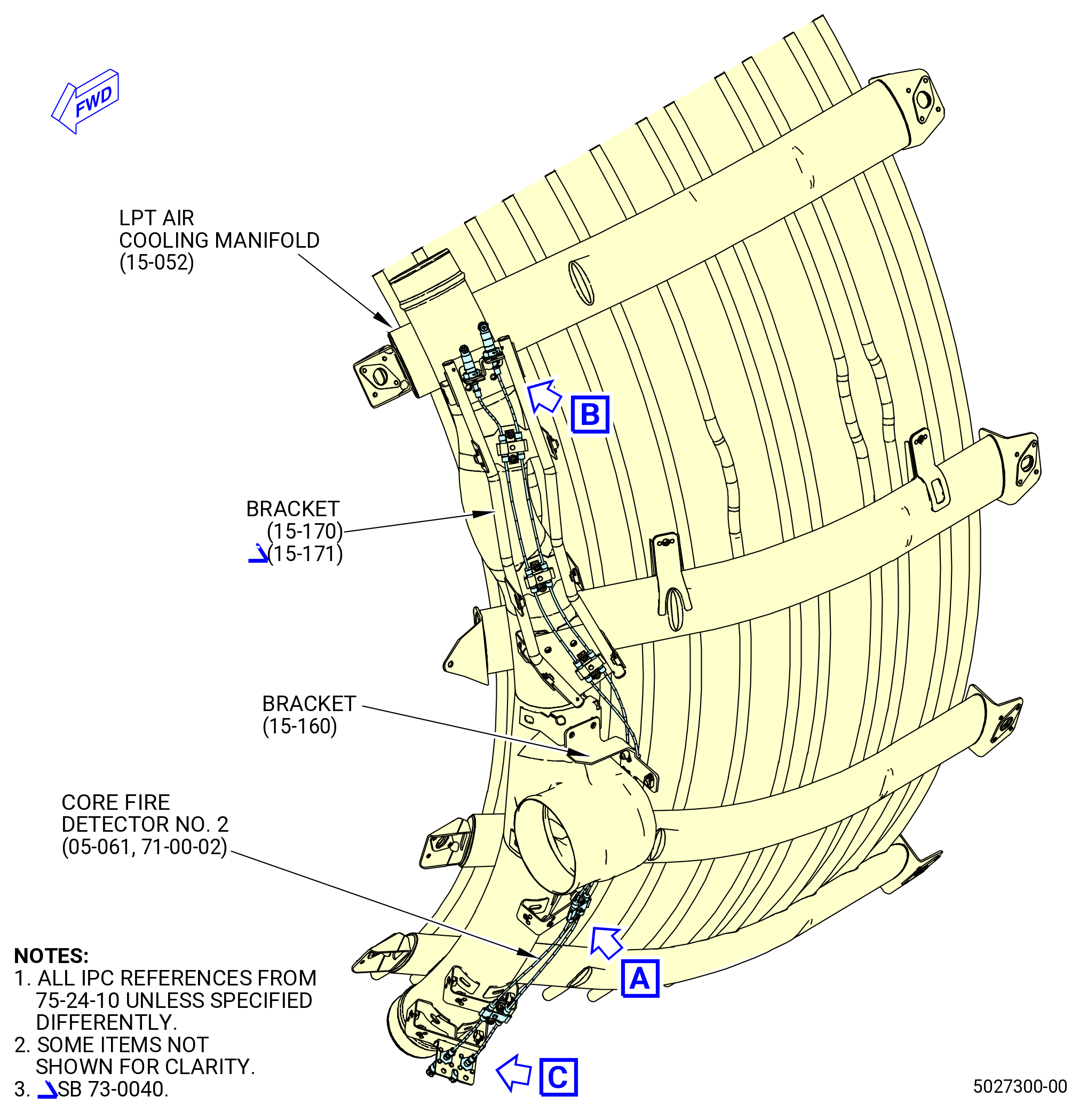

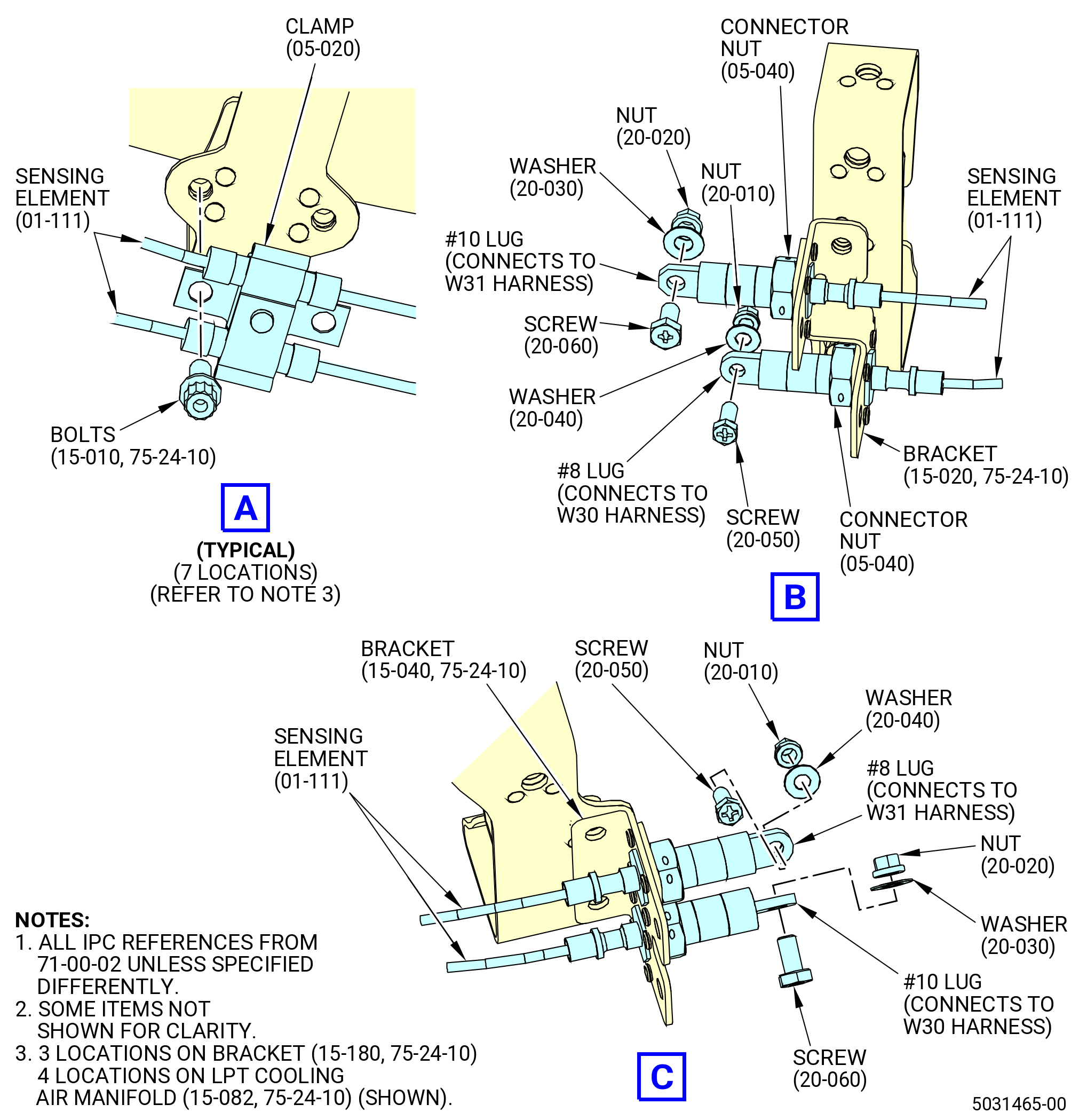

Q.Remove the three core fire detectors (05-011 , 71-00-02) (SIN C00A7), (05-061 , 71-00-02) (SIN C00A7), and (05-111 , 71-00-02) (SIN C00A7). Refer to Figure 521 and do as follows:
(1)Remove the core fire detector No. 1 (05-011 , 71-00-02) (SIN C00A7) from the LPT ACC air manifold (15-072 , 75-24-10) (SIN 6220B). Refer to Figure 522 and do as follows:
(a)Disassemble the sensing elements (05-011 , 71-00-02) (SIN C00A7) as follows:
1Remove the safety cable from the nut connectors (C00K2).
2Loosen all the fasteners of No. 8 lug and No. 10 lug.
Subtask 72-00-02-030-690
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
3Remove the bolts (98020), clamps (C00V3), and grommets (C00N7) from the sensing elements.
* * * END PRE SB   73-0040
Subtask 72-00-02-030-691
* * * SB   73-0040( Engines with improved W30 and W31 harness )
3.A.Remove the bolts (15-010A , 72-24-10) (SIN 98020), the clamps (05-020 , 71-00-02) (SIN C00V3), the bracket (12-260 , 75-24-10) (SIN 9801M), and the grommets (05-030 , 71-00-02) (SIN C00N7) from the sensing elements.
* * * END SB   73-0040
Subtask 72-00-02-030-692
4Remove nut connectors (C00K2) from the lugs.
5Remove the No. 10 nut (C00K4), No. 10 washer (C00J1), and No. 10 screw (C00F4) from the No. 10 lug.
6Remove the No. 8 nut (C00K3), the No. 8 washer (C00J0), and the No. 8 screw (C00F3) from the No. 8 lug.
7Remove the sensing elements from the LPT ACC air manifold (6220B).
* * * FOR ALL PIP 2

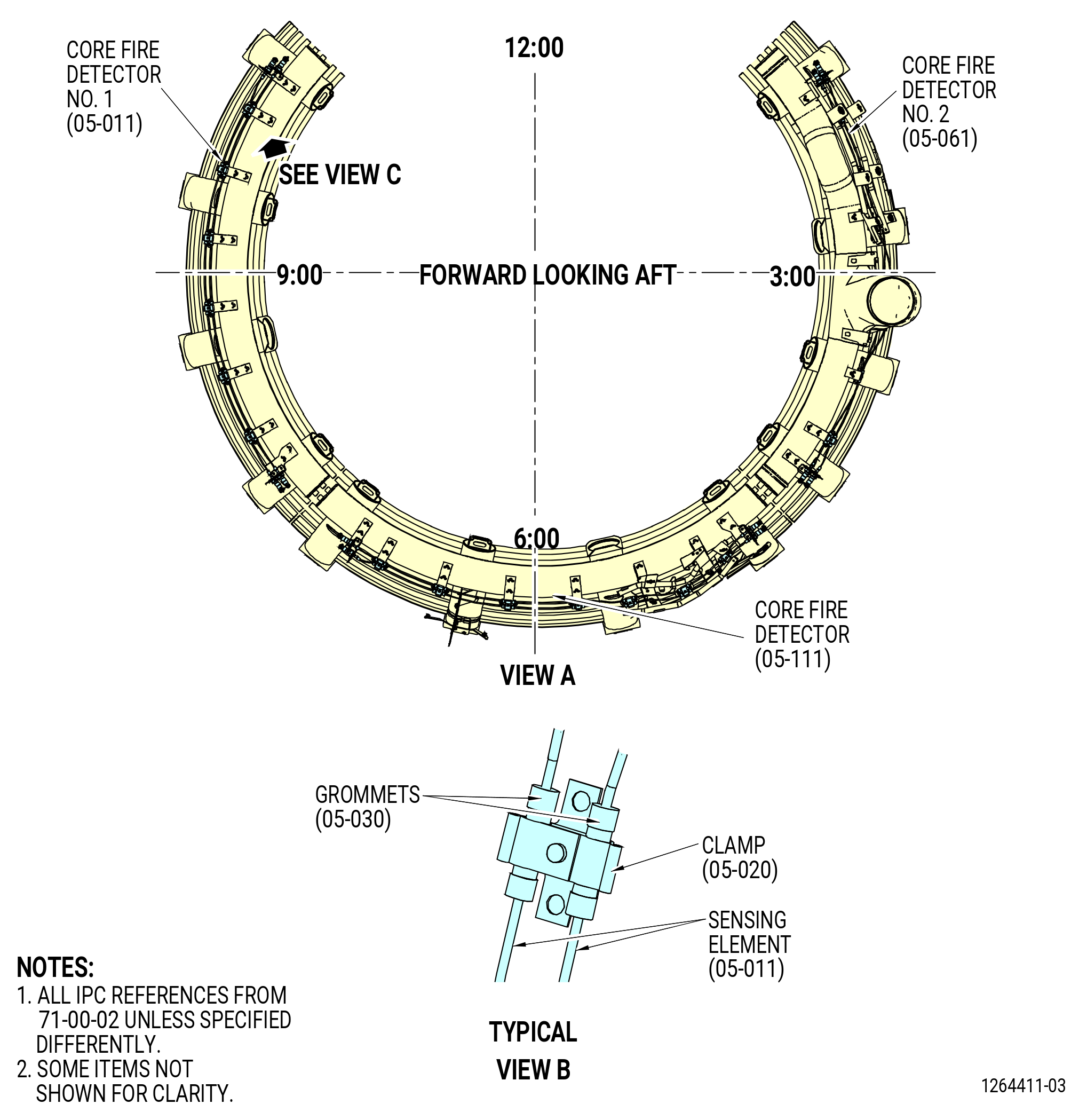

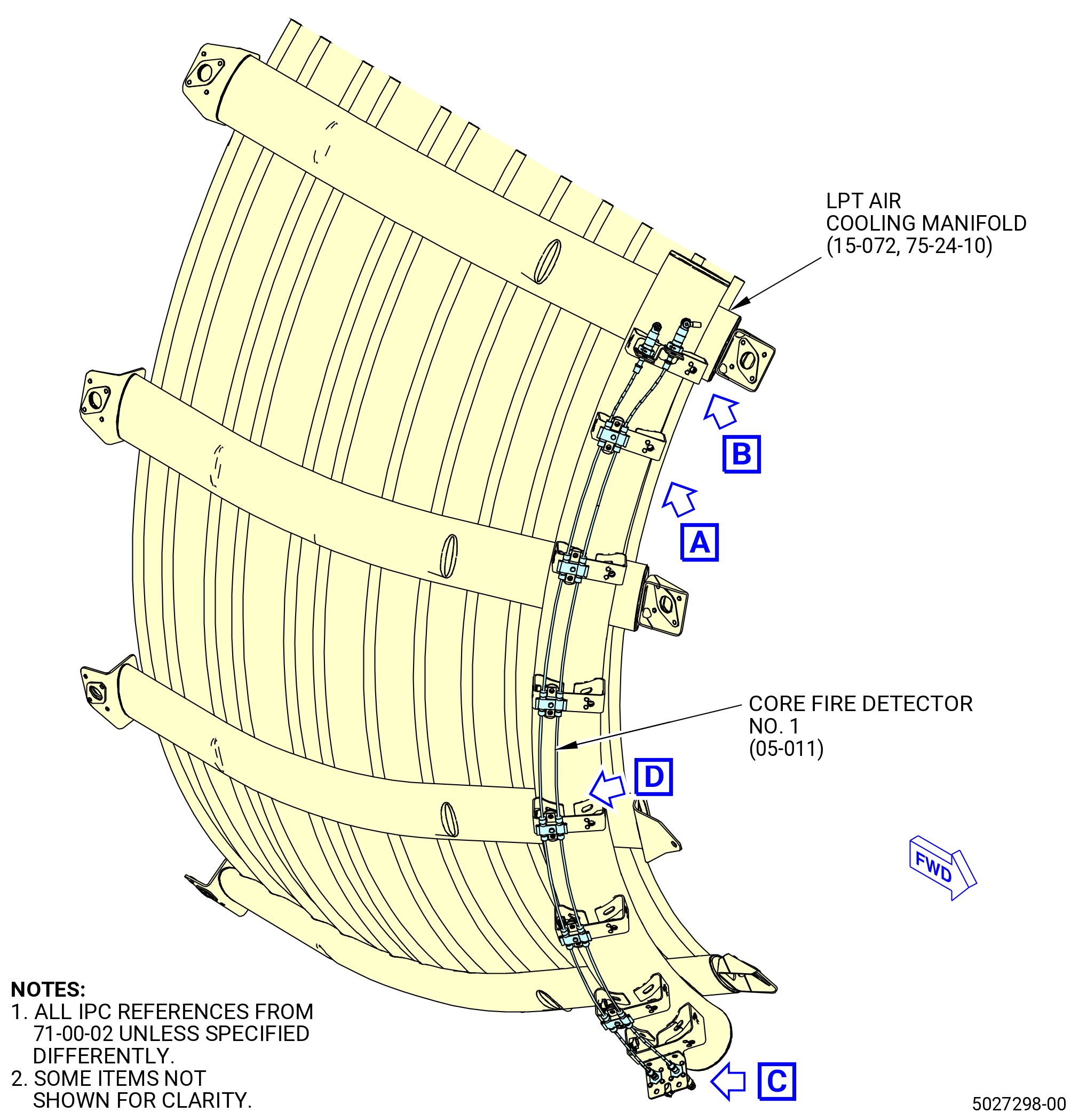

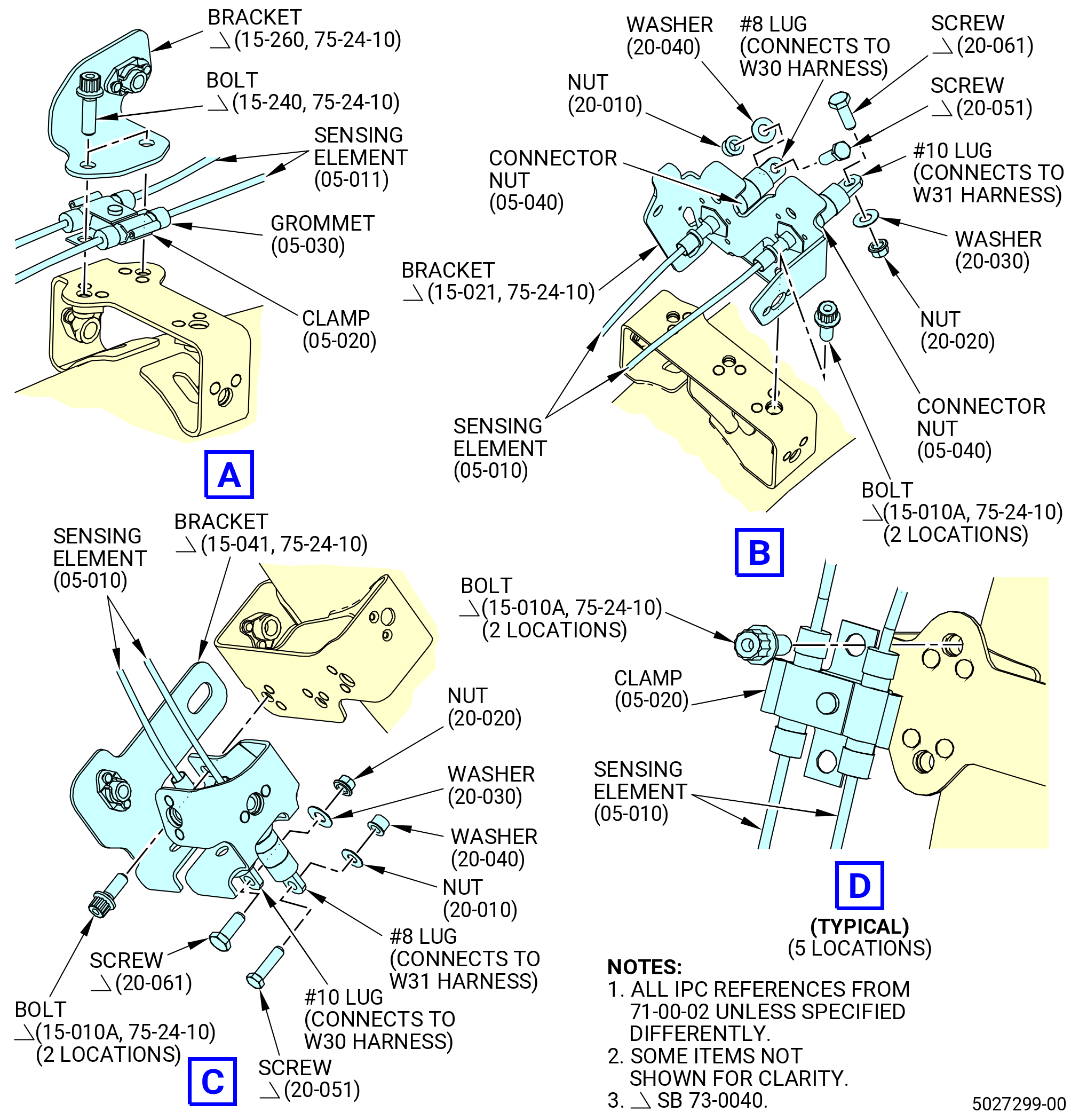

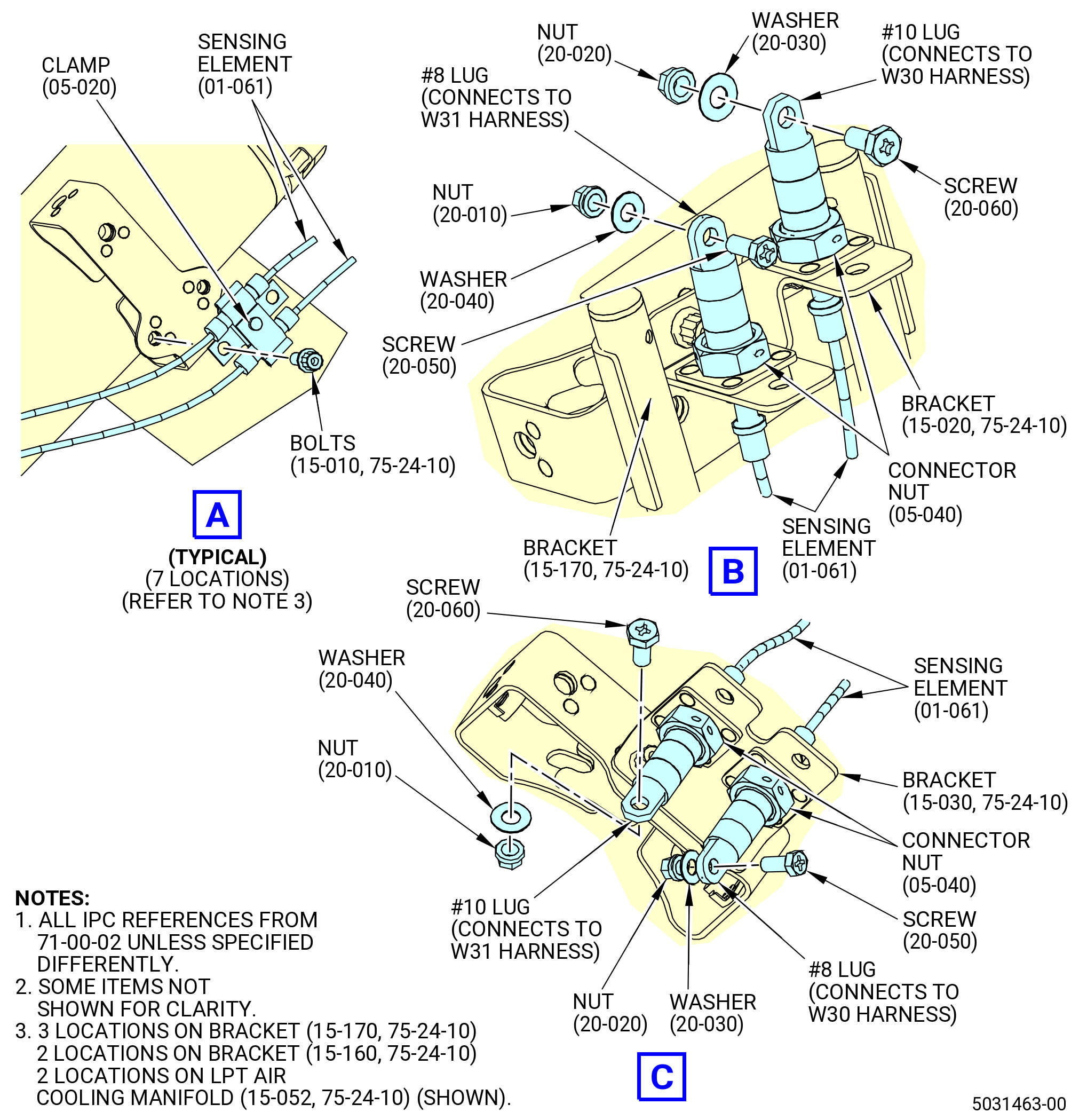

Figure 521   (Sheet 1 ) Removal of the Core Fire Detectors
* * * FOR ALL PIP 2
Figure 521   (Sheet 2 ) Removal of the Core Fire Detectors
* * * FOR ALL PIP 2
Figure 522   (Sheet 1 ) Removal of the Core Fire Detector No. 1
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
Figure 522   (Sheet 2 ) Removal of the Core Fire Detector No. 1
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
* * * SB   73-0040( Engines with Improved W30 and W31 Harnesses )
Figure 522   (Sheet 3 ) Removal of the Core Fire Detector No. 1
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
Figure 522   (Sheet 4 ) Removal of the Core Fire Detector No. 1
Subtask 72-00-02-030-580
(5)Remove core fire detector No. 2 (05-061 , 71-00-02) (SIN C00A7) from the LPT ACC air manifold (15-052 , 75-24-10) (SIN 6220D). Refer to Figure 523 and do as follows:
(a)Disassemble the sensing elements (05-061 , 71-00-02) (SIN C00A7) as follows:
1Remove the safety cable from nut connectors (C00K2).
2Loosen all the fasteners of No. 8 lug and the No. 10 lug.
3Remove the bolts (98020), clamps (C00V3), and grommets (C00N7) from the sensing elements.
4Remove nut connectors (C00K2) from the lugs.
5Remove the No. 10 nut (C00K4), No. 10 washer (C00J1), and No. 10 screw (C00F4) from the No. 10 lug.
6Remove the No. 8 nut (C00K3), No. 8 washer (C00J0), and No. 8 screw (C00F3) from the No. 8 lug.
7Remove the sensing elements from the LPT ACC air manifold (6220D).
* * * FOR ALL PIP 2
Figure 523   (Sheet 1 ) Removal of the Core Fire Detector No. 2
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
Figure 523   (Sheet 2 ) Removal of the Core Fire Detector No. 2
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
* * * SB   73-0040( Engines with Improved W30 and W31 Harnesses )
Figure 523   (Sheet 3 ) Removal of the Core Fire Detector No. 2
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   73-0040( Engines with Improved W30 and W31 Harnesses )
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
Figure 523   (Sheet 4 ) Removal of the Core Fire Detector No. 2
Subtask 72-00-02-030-581
(6)Remove core fire detector No. 3 (05-111 , 71-00-02) (SIN C00A7) from the LPT ACC air manifold (15-082 , 75-24-10) (SIN 6220C). Refer to Figure 524 and do as follows:
(a)Disassemble the sensing elements (05-111 , 71-00-02) (SIN C00A7) as follows:
1Remove safety cable from the nut connectors (C00K2).
2Loosen all the fasteners of the No. 8 lug and the No. 10 lug.
3Remove the bolts (98020), clamps (C00V3), and grommets (C00N7) from the sensing elements.
4Remove nut connectors (C00K2) from the lugs.
5Remove the No. 10 nut (C00K4), No. 10 washer (C00J1), and No. 10 screw (C00F4) from the No. 10 lug.
6Remove the No. 8 nut (C00K3), No. 8 washer (C00J0), and No. 8 screw (C00F3) from the No. 8 lug.
7Remove the sensing elements from the LPT ACC air manifold (6220C).
* * * FOR ALL PIP 2

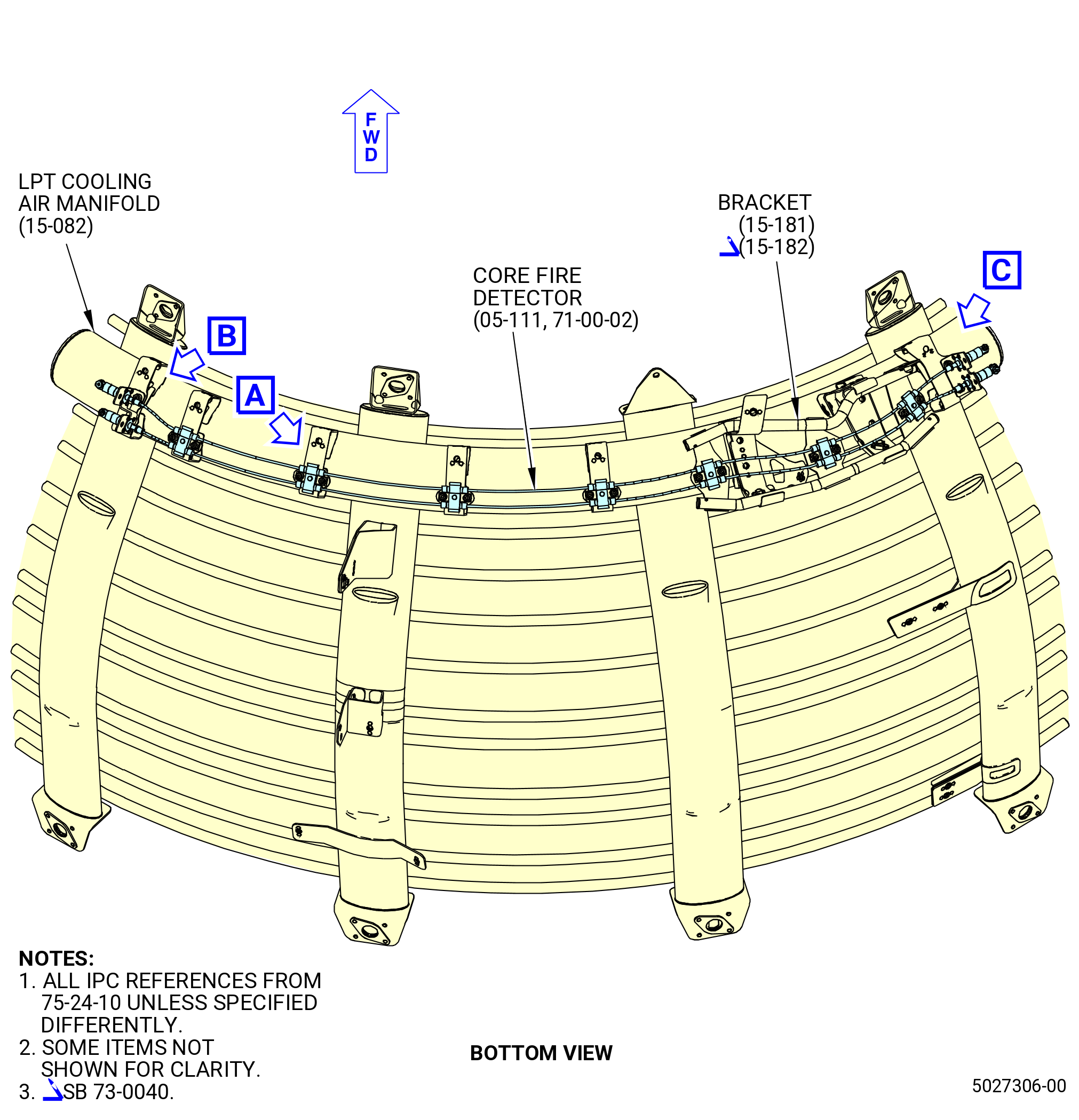

Figure 524   (Sheet 1 ) Removal of the Core Fire Detector No. 3
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
Figure 524   (Sheet 2 ) Removal of the Core Fire Detector No. 3
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0060( Old Design for W30 and W31 Harnesses )
* * * SB   73-0040( Engines with Improved W30 and W31 Harnesses )
Figure 524   (Sheet 3 ) Removal of the Core Fire Detector No. 3
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   73-0060( W30 and W31 Redesigned Harnesses )
Figure 524   (Sheet 4 ) Removal of the Core Fire Detector No. 3
Subtask 72-00-02-030-582

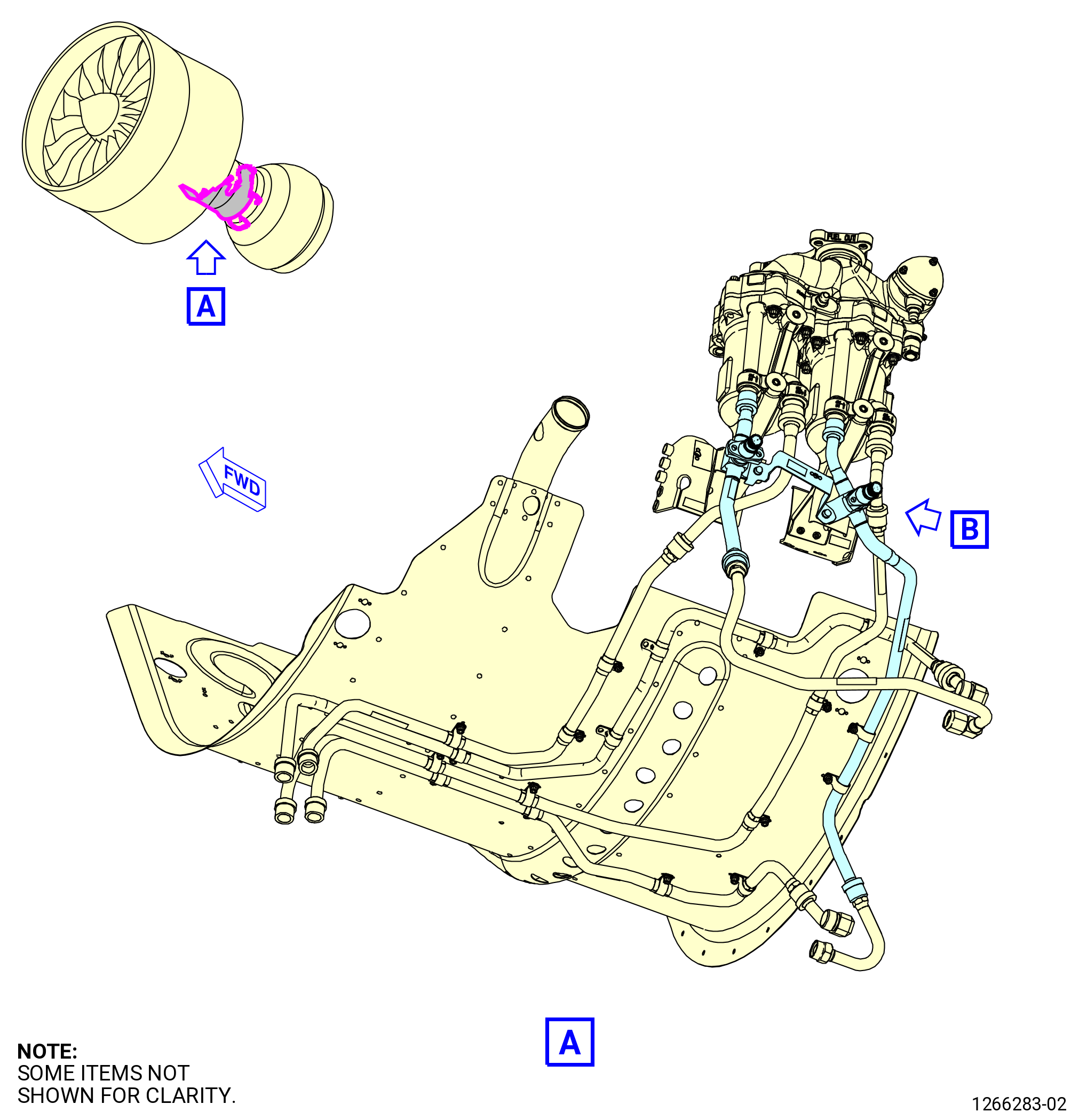

R.Remove the fuel system. Refer to Figure 525 and do as follows:
(1)Remove the main inlet fuel tube hose (fuel hose) as follows:
Subtask 72-00-02-030-665
* * * PRE SB   73-0031( Fuel System without W13 Harness Electrical Bracket )
(a)Remove the bolts that attach the fuel hose to the fuel pump.
* * * END PRE SB   73-0031
Subtask 72-00-02-030-666
* * * SB   73-0031( Fuel System with W13 Harness Electrical Bracket )
(a).A.Remove the bolts that attach the W13 harness electrical bracket (bracket) and fuel hose to the fuel pump. Remove the bracket.
* * * END SB   73-0031
Subtask 72-00-02-030-667
(b)Remove the bolts and P-clamps that attach the fuel hose to the brackets.
(c)Remove the fuel hose. Remove and discard the gasket (01-100 , 73-11-40) (SIN 34050).
(d)Remove the bolts that attach the bracket to the aft skirt segment. Remove the bracket.
* * * FOR ALL PIP 2

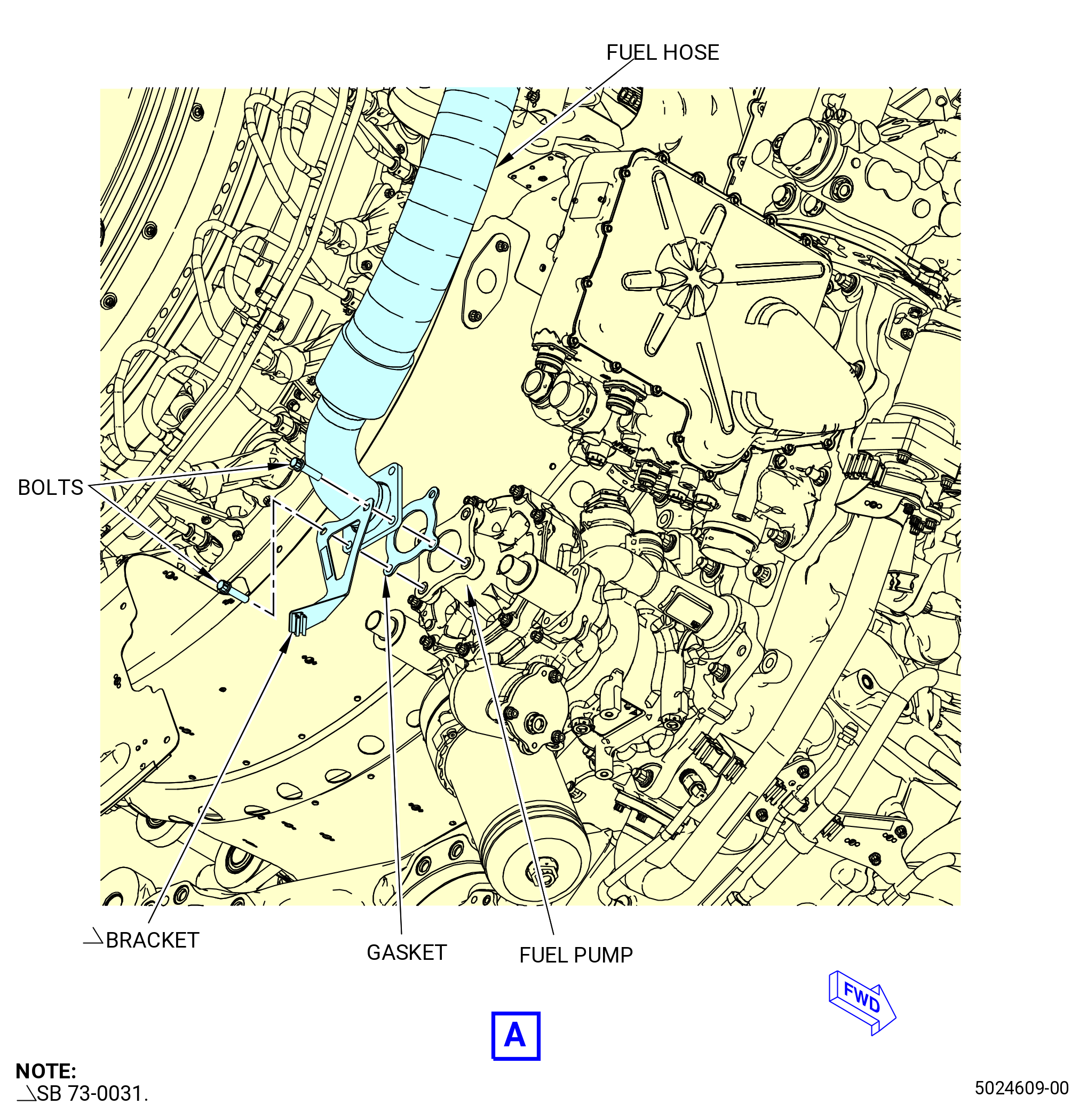

Figure 525   (Sheet 1 ) Removal of the Fuel System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0031( Fuel System without W13 Harness Electrical Bracket )
Figure 525   (Sheet 2 ) Removal of the Fuel System
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   73-0031( Fuel System with W13 Harness Electrical Bracket )
Figure 525   (Sheet 3 ) Removal of the Fuel System
* * * FOR ALL PIP 2
Figure 525   (Sheet 4 ) Removal of the Fuel System
* * * FOR ALL PIP 2
Figure 525   (Sheet 5 ) Removal of the Fuel System
Subtask 72-00-02-030-583

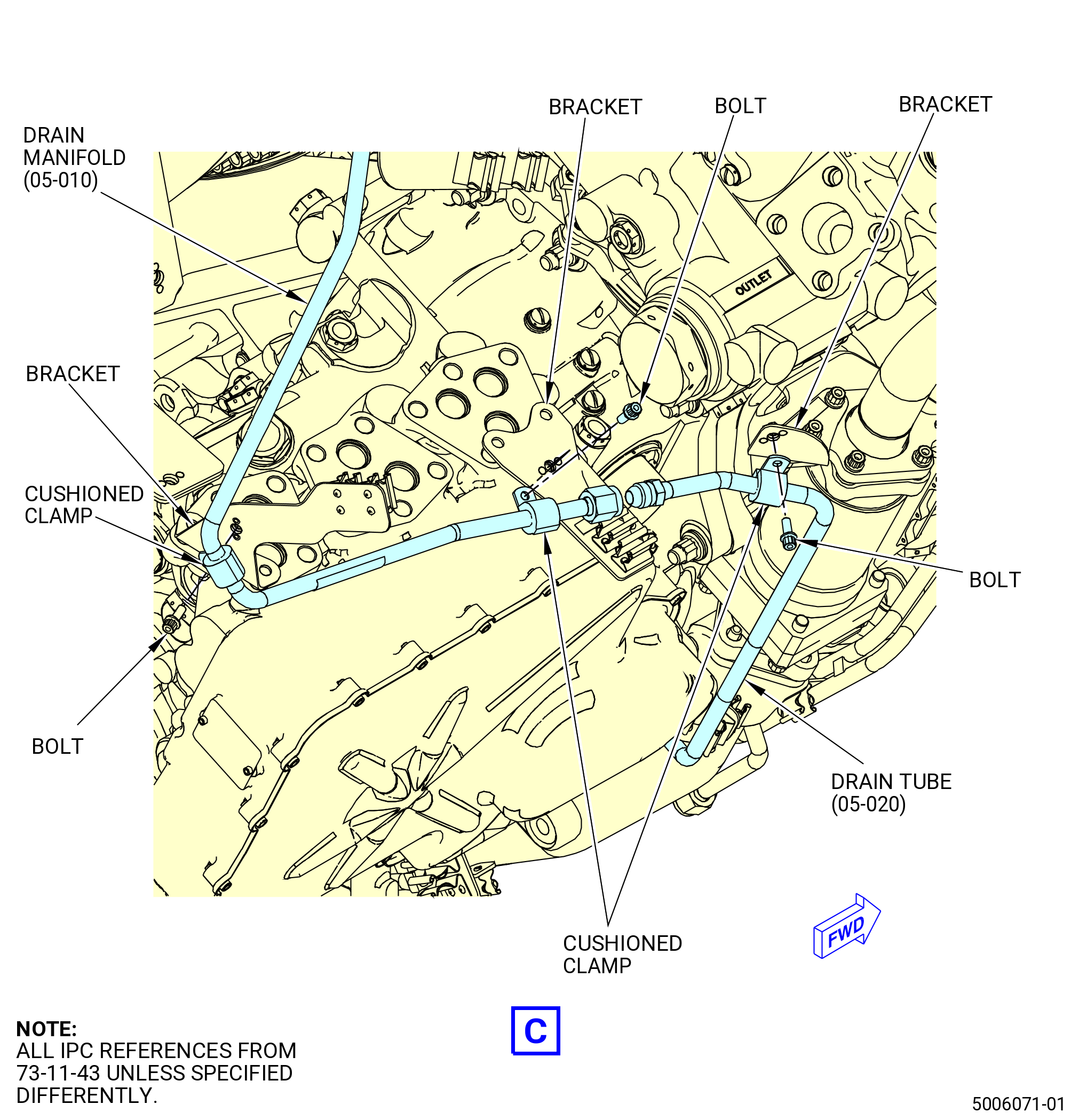

S.Remove the aft pylon drain system as follows:

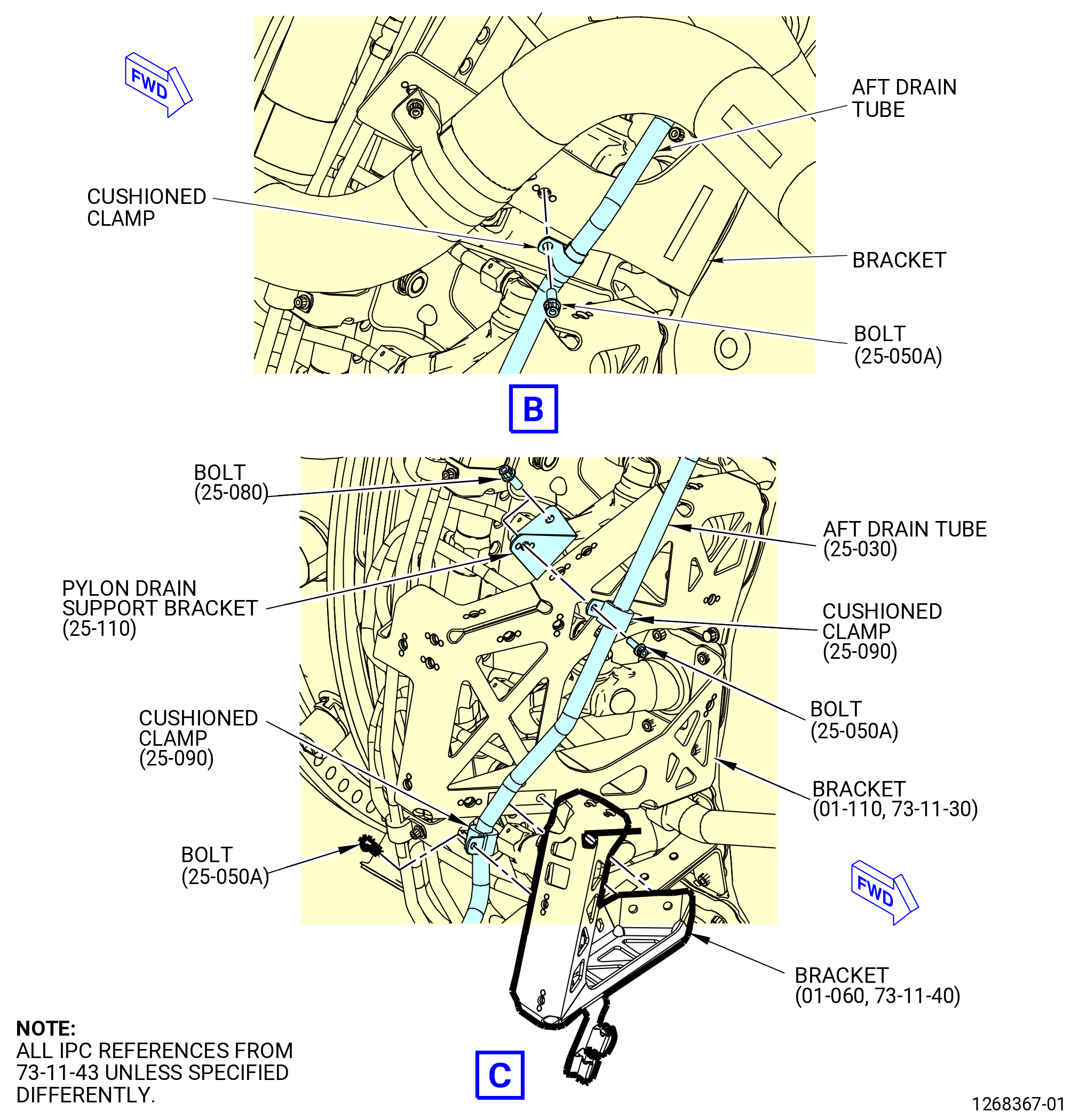

(1)Remove the strut drain hose tube (hose tube). Refer to Figure 526 and do as follows:
(a)Disconnect the hose tube from the drain to lower BIFI air tube (drain tube).
(b)Remove the bolts and cushioned clamps that attach the hose tube to the brackets.
(c)Remove the hose tube.

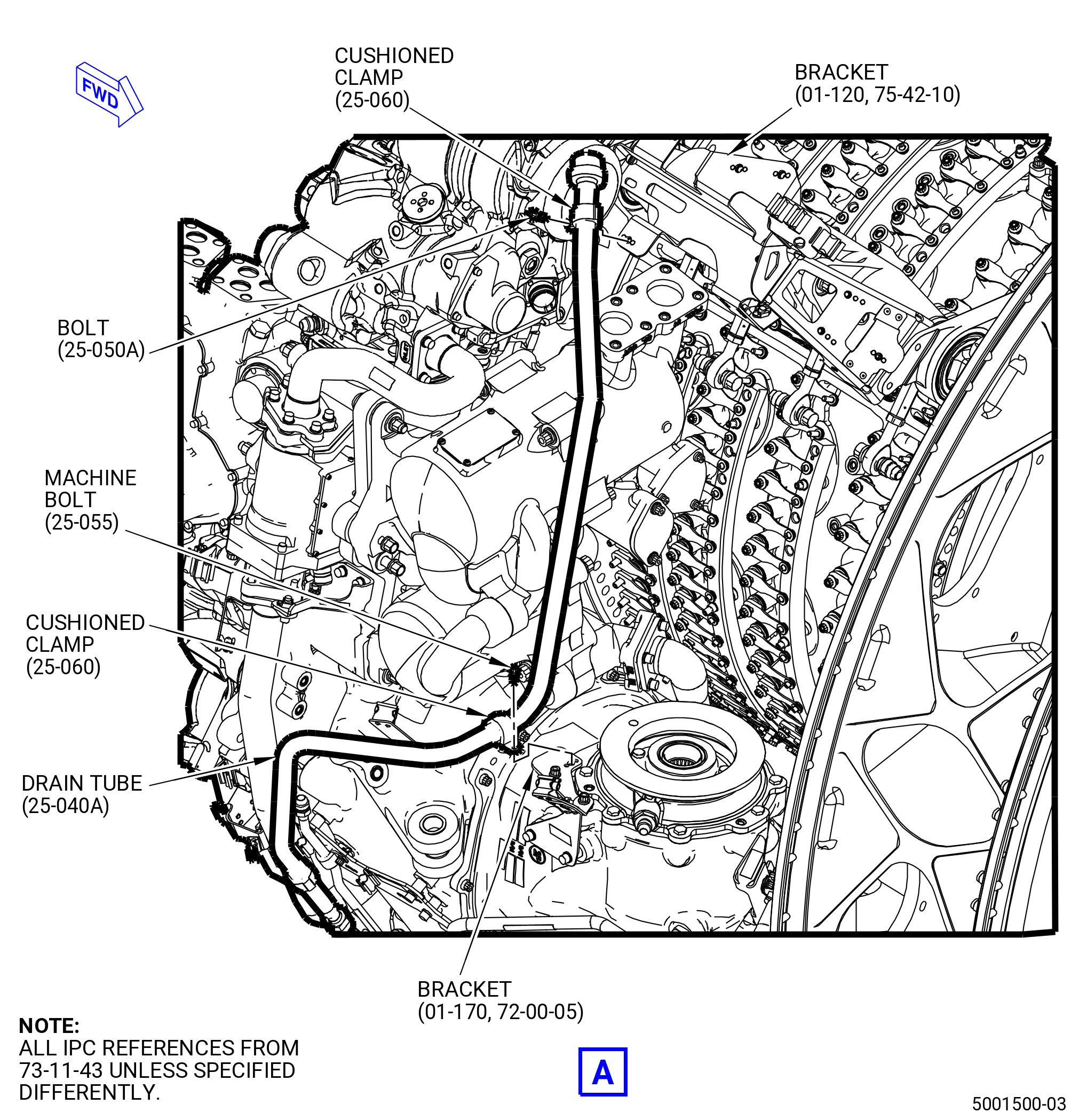

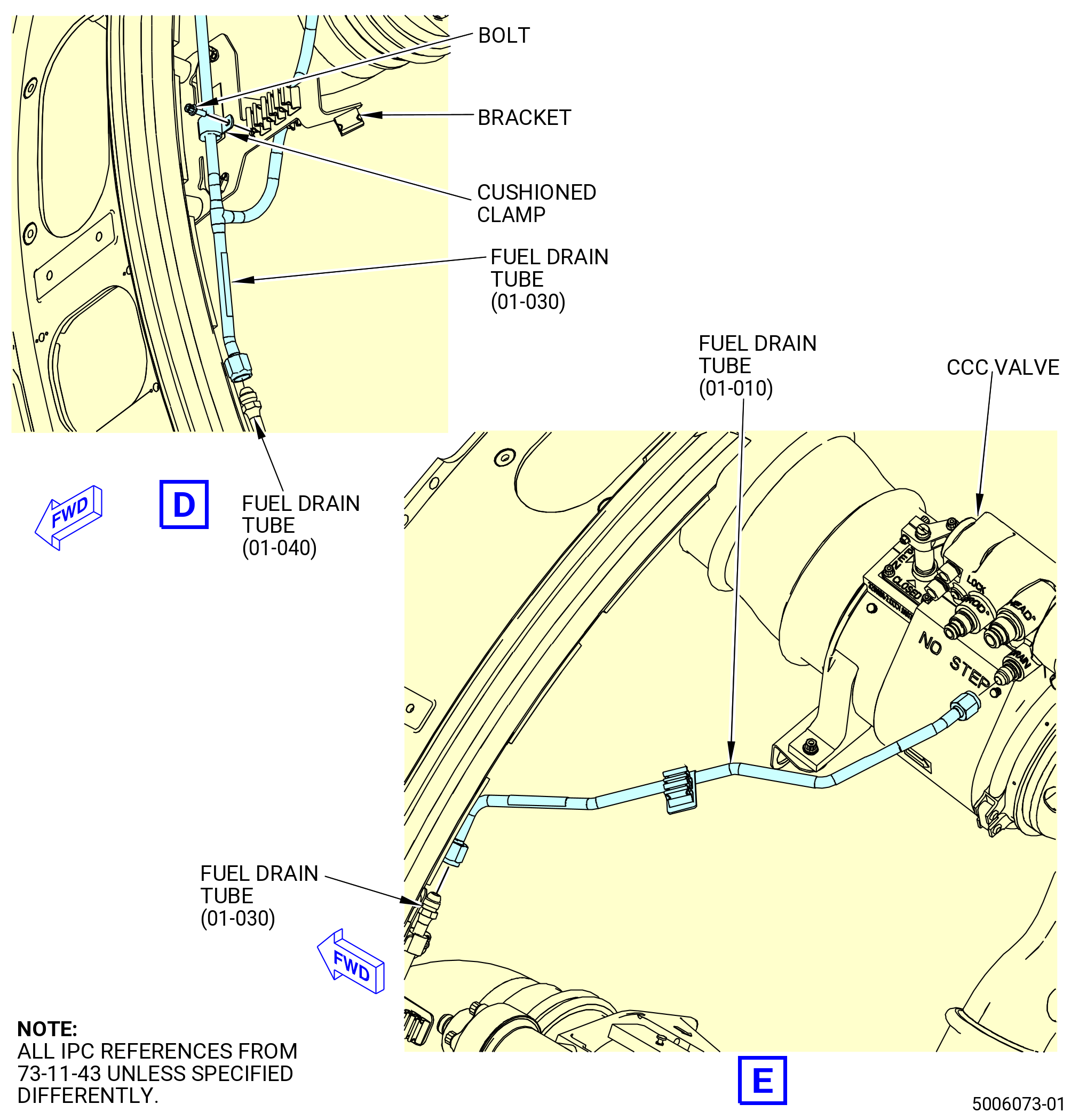

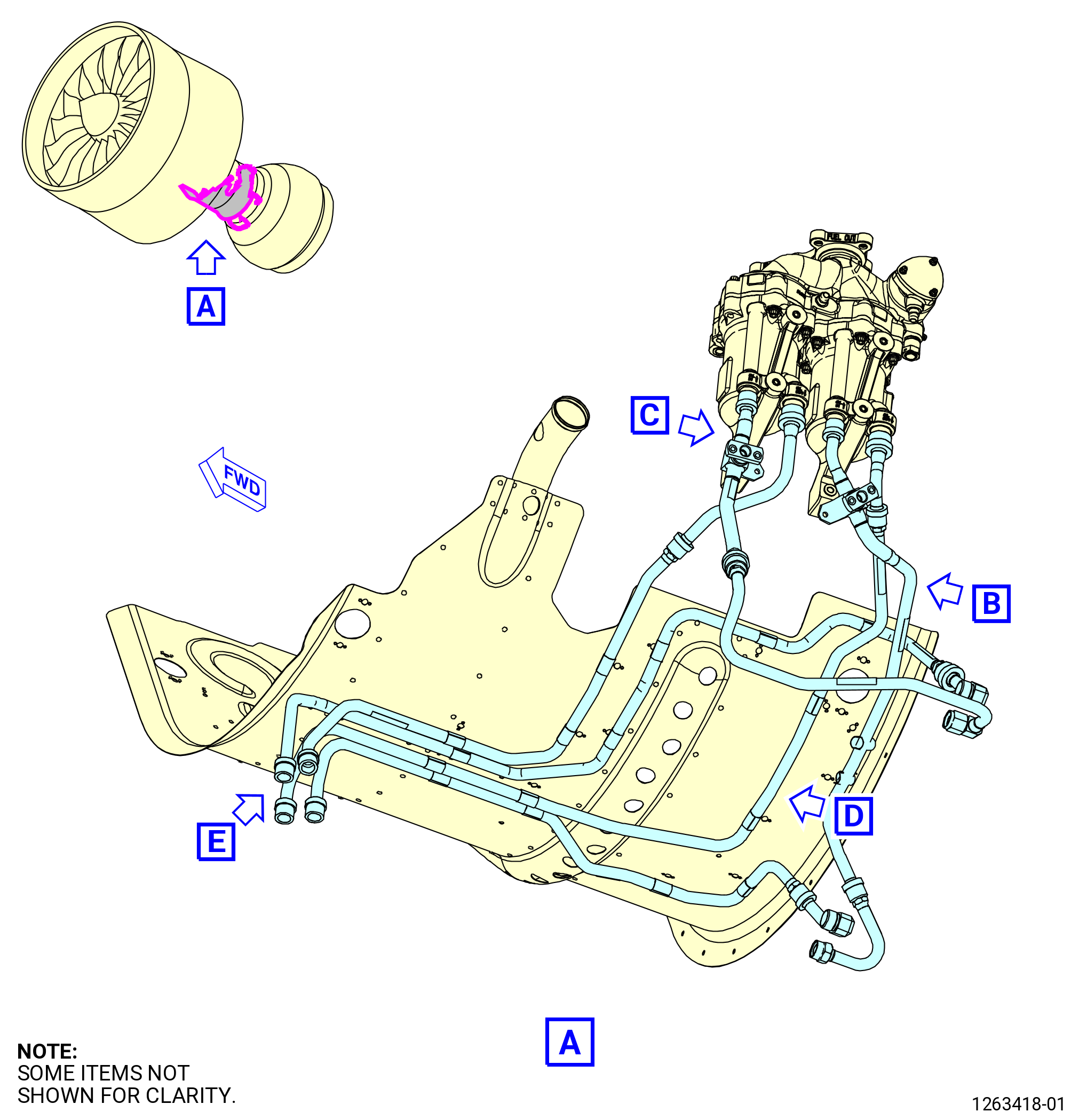

(2)Remove the drain to lower BIFI air tube (drain tube). Refer to Figure 527 and do as follows:
(a)Disconnect the drain tube from the upper drain manifold on the AGB.
(b)Remove the bolts and cushioned clamps that attach the drain tube to the brackets.
(c)Remove the drain tube.
(3)Remove the aft drain assembly hose tube (aft drain tube). Refer to Figure 528 and do as follows:
(a)Remove the bolts and cushioned clamps that attach the aft drain tube to the brackets.
(b)Remove the aft drain tube.

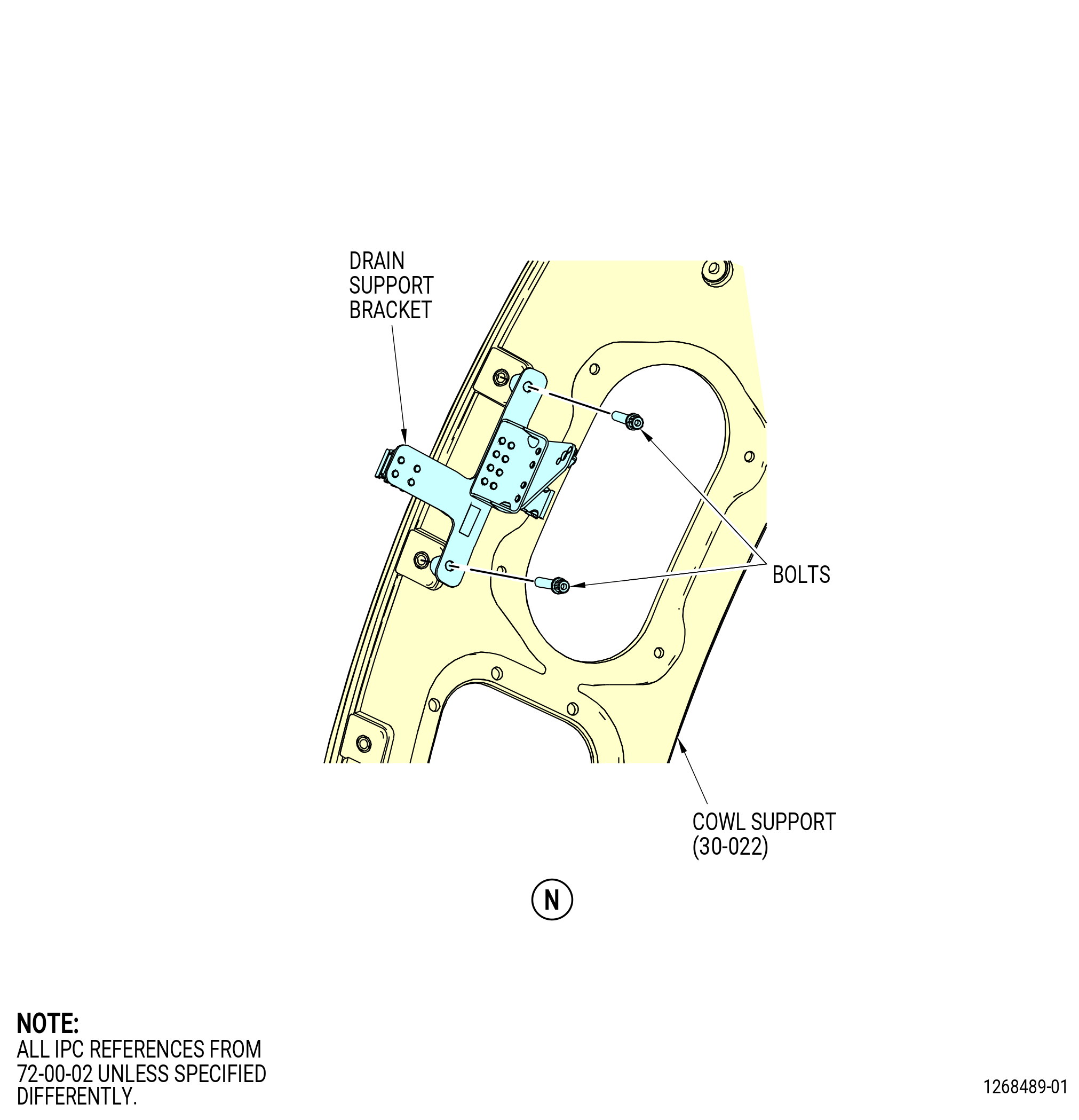

(c)Remove the bolts that attach the pylon drain support bracket to the bracket. Remove the pylon drain support bracket.
* * * FOR ALL PIP 2

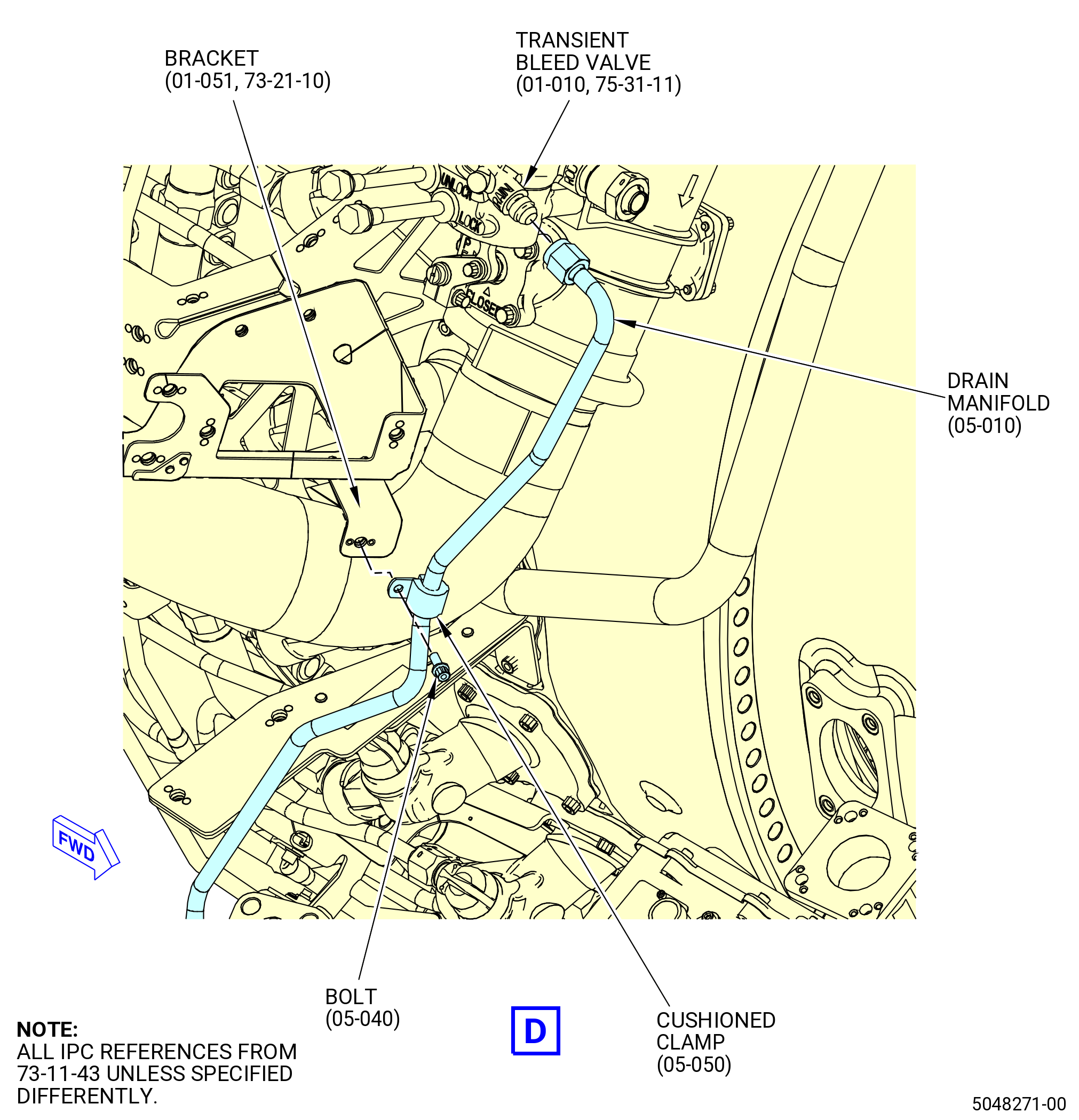

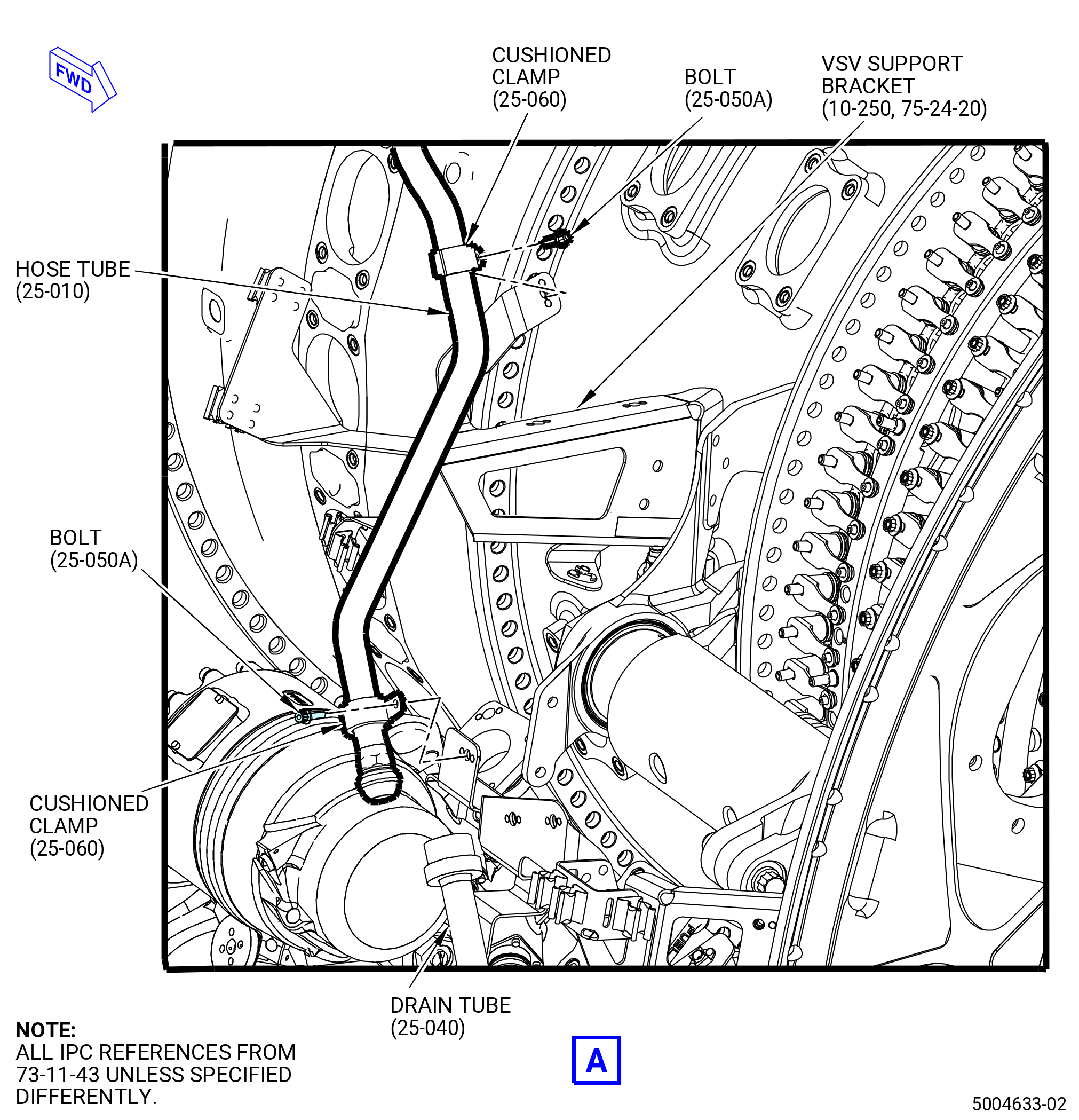

Figure 526   (Sheet 1 ) Removal of the Hose Tube
* * * FOR ALL PIP 2
Figure 526   (Sheet 2 ) Removal of the Hose Tube
* * * FOR ALL PIP 2

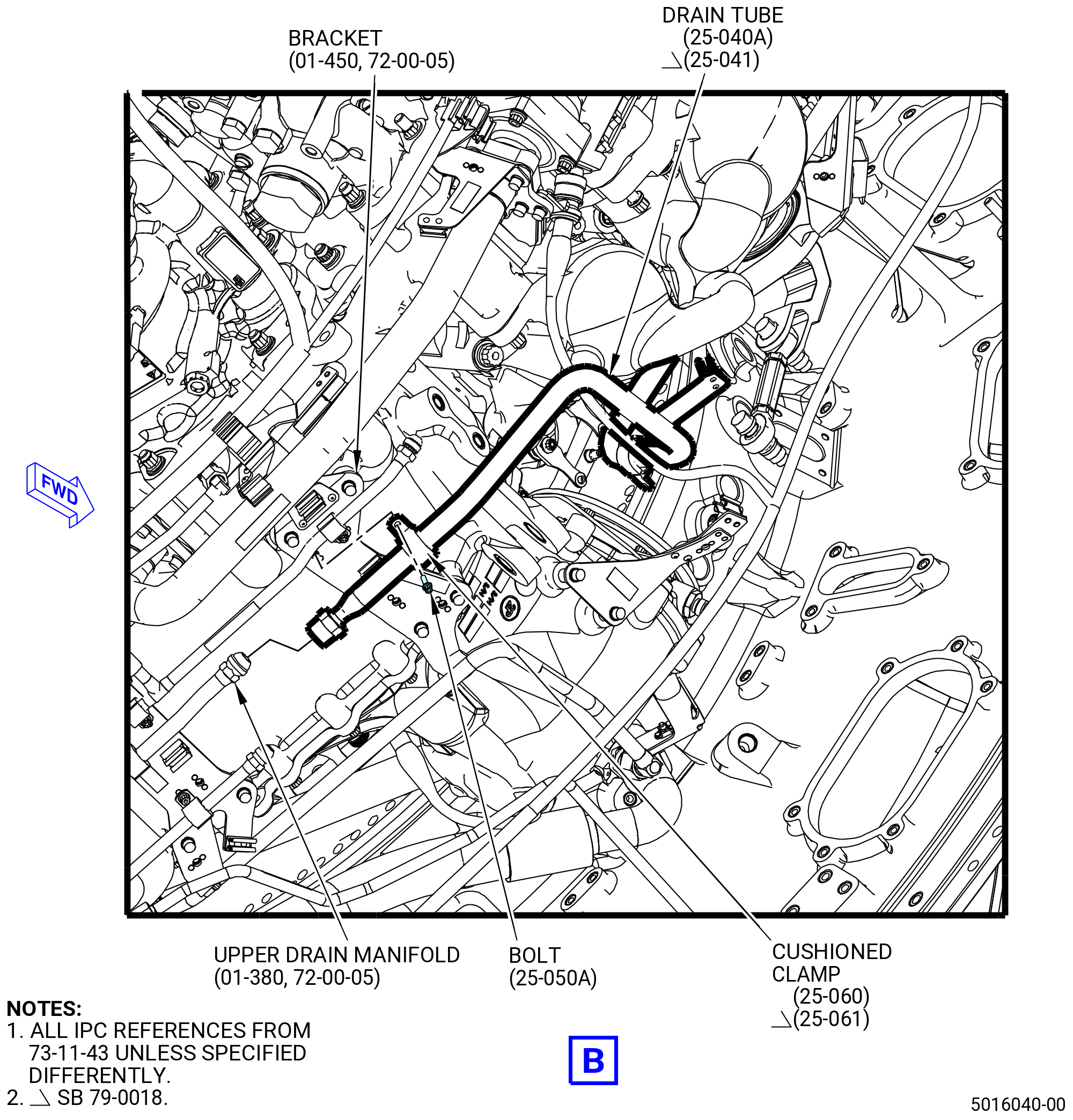

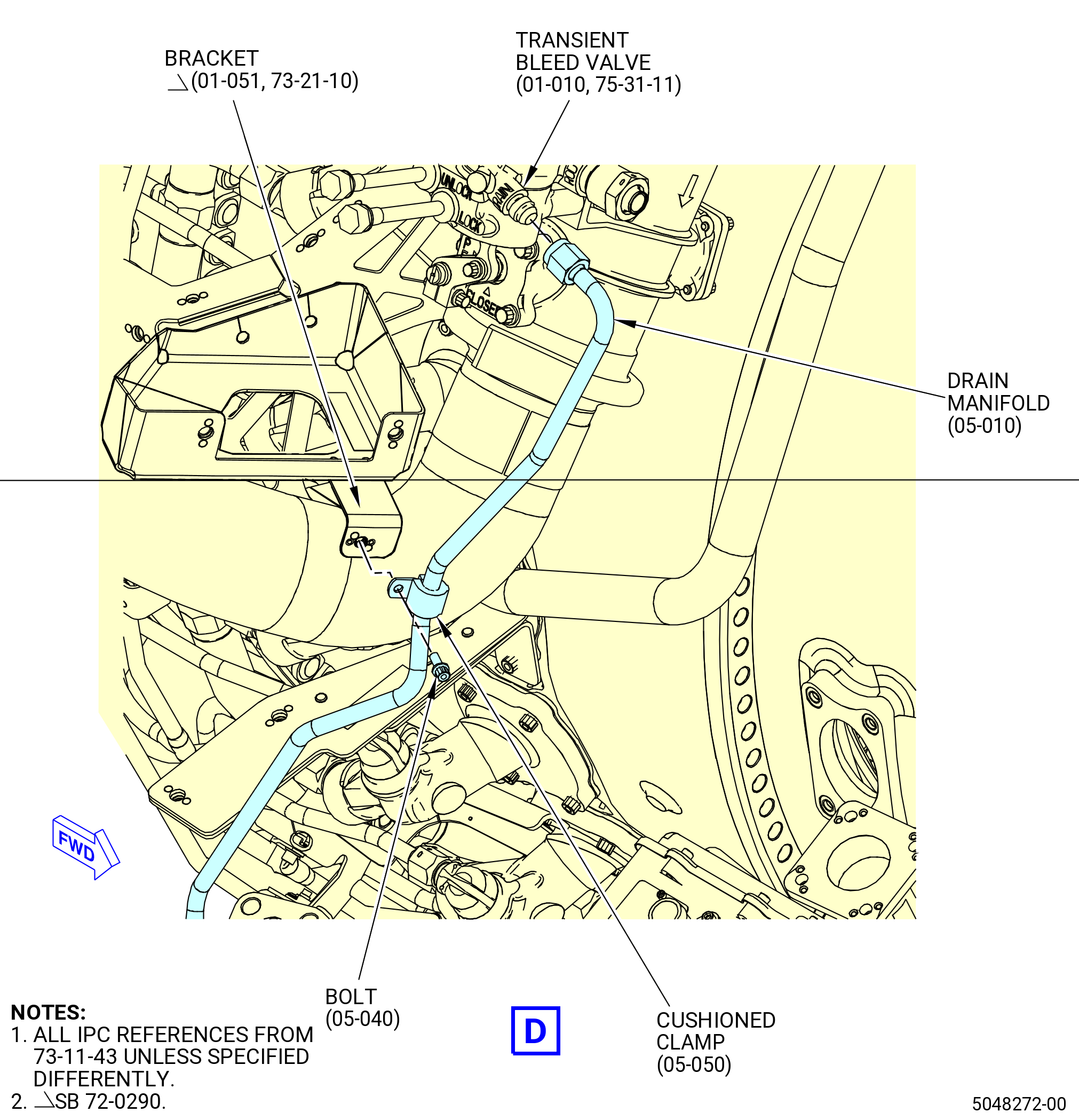

Figure 527   (Sheet 1 ) Removal of the Drain Tube
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   79-0018( MFOHX without Indicating Capability )
Figure 527   (Sheet 2 ) Removal of the Drain Tube
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   79-0018( MFOHX with Indicating Capability )
Figure 527   (Sheet 3 ) Removal of the Drain Tube
* * * FOR ALL PIP 2
Figure 527   (Sheet 4 ) Removal of the Drain Tube
* * * FOR ALL PIP 2

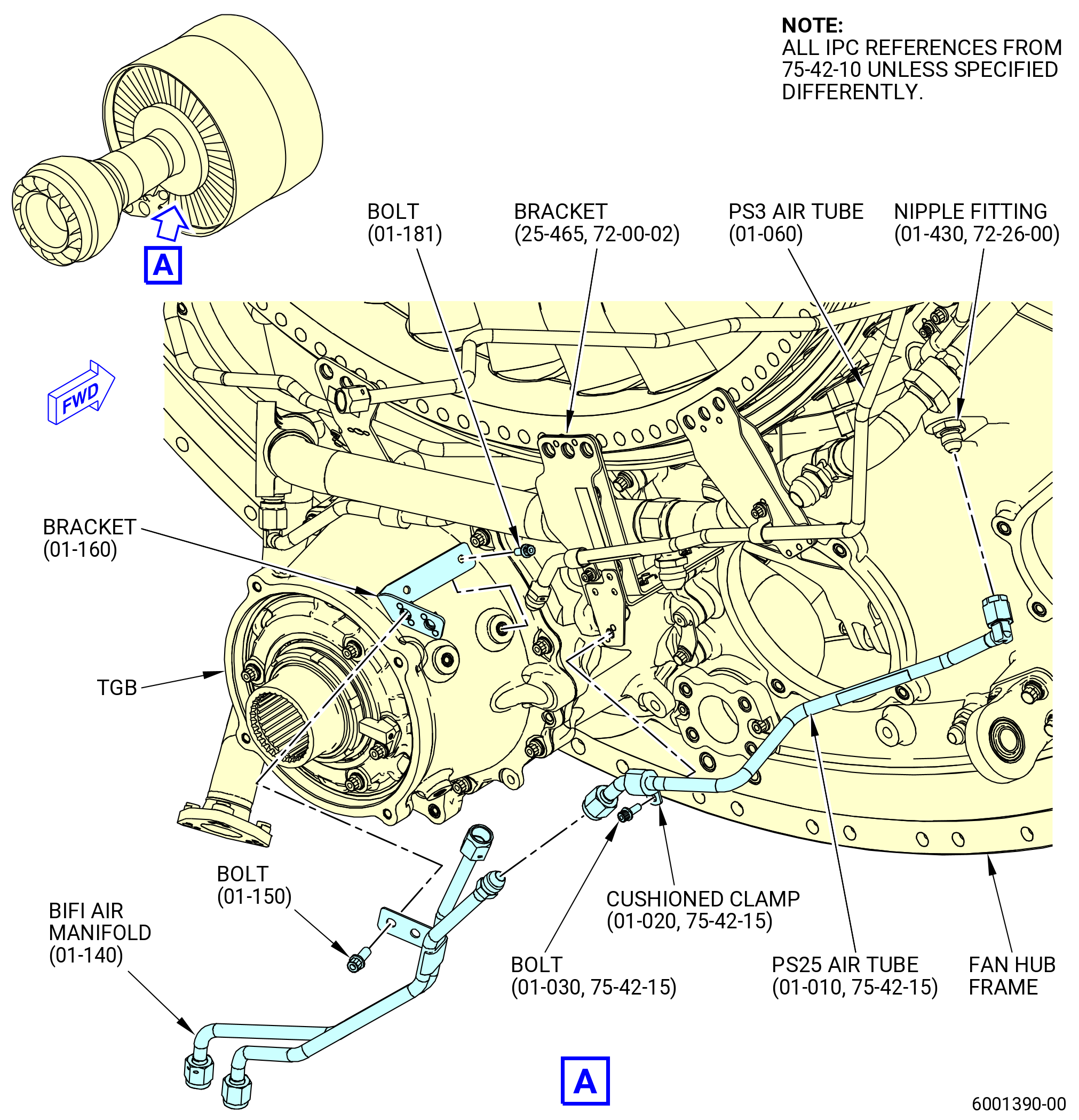

Figure 528   (Sheet 1 ) Removal of the Aft Drain Tube
* * * FOR ALL PIP 2
Figure 528   (Sheet 2 ) Removal of the Aft Drain Tube
* * * FOR ALL PIP 2
Figure 528   (Sheet 3 ) Removal of the Aft Drain Tube
Subtask 72-00-02-030-584

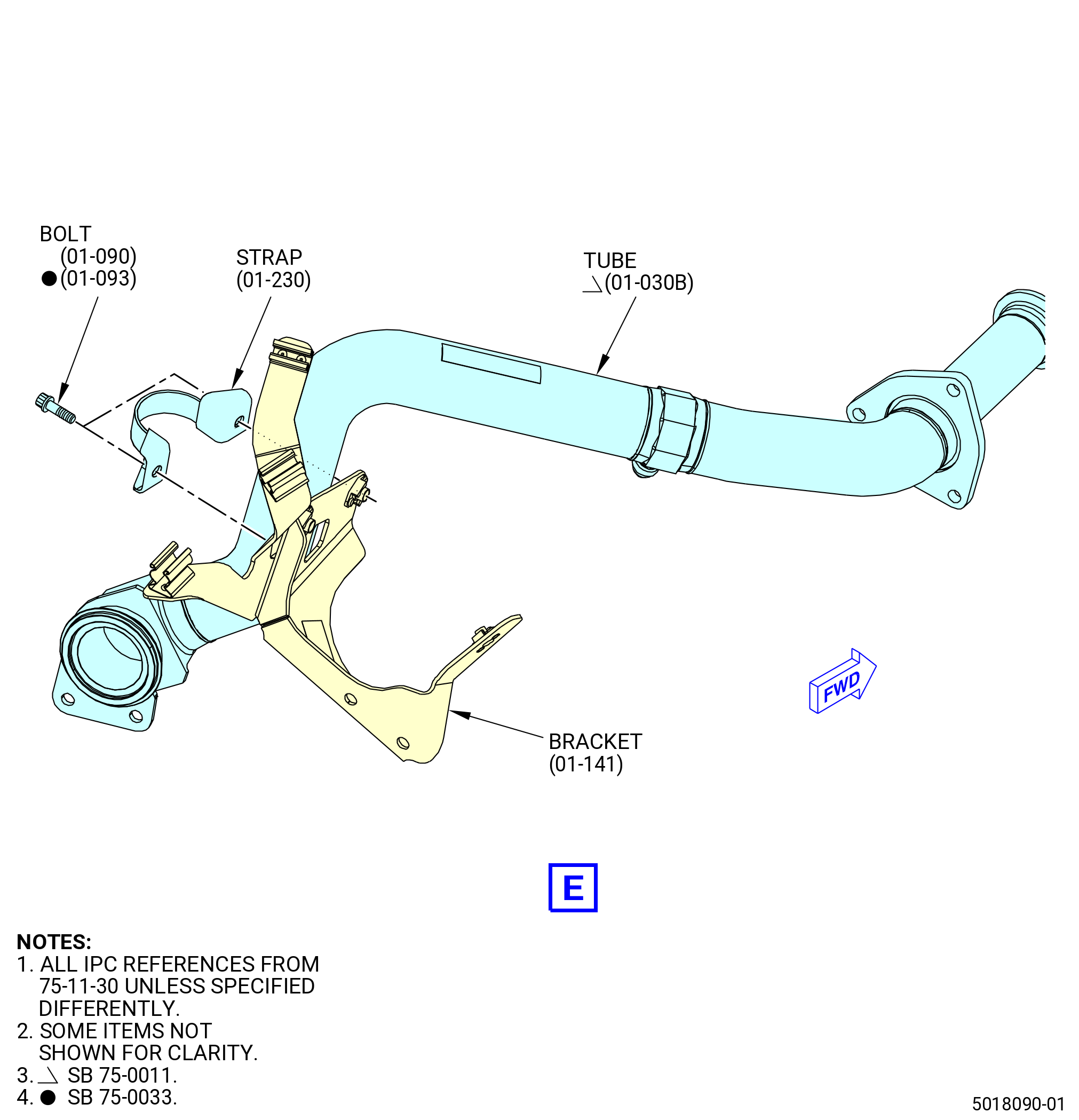

T.Remove the LPT supply air duct and valve. Refer to Figure 529 and do as follows:
(1)Remove the LPT supply air duct (10-010 , 75-24-10) (SIN 62201) as follows:
(a)Remove the straps that attach the LPT supply air duct to the brackets.
(b)Loosen the hose clamps on the bellows.
(c)Remove the LPT supply air duct from the bellows.
(d)Remove the hose clamps and bellows from the V-band mount flange and the LPT ACC manifold.
(e)Remove the bolts that attach the V-band mount flange to the bracket.
(f)Remove the V-band clamp from the V-band mount flange and the ACC valve.
(g)Remove the V-band mount flange and the seal ring from the aft side of the ACC valve.
(h)Remove V-band and seal at the top of the eductor valve.
(i)Remove four clamps.
(j)Remove the B-nut at aft end of tube.
(k)Remove the tube.
(2)Disconnect the fuel lines from the ACC valve as follows:
(a)Disconnect the LPT and HPT ACC valve fuel manifold from the ACC valve.
(b)Disconnect the LPT-ACC valve fuel tube from the ACC valve.
(c)Remove the preformed packings (25-310 , 73-11-40) (SIN 38550) and (20-210 , 73-11-40) (SIN 34751) from the ROD end and HEAD end nipples of the ACC valve.
(3)Remove the ACC valve as follows:
(a)Loosen the hose clamps on the bellows.
(b)Remove the bolts and washers that attach the ACC valve to the bracket.
(c)Remove the ACC valve from the bellows and the bracket.
(d)Remove the bellows and the hose clamps.

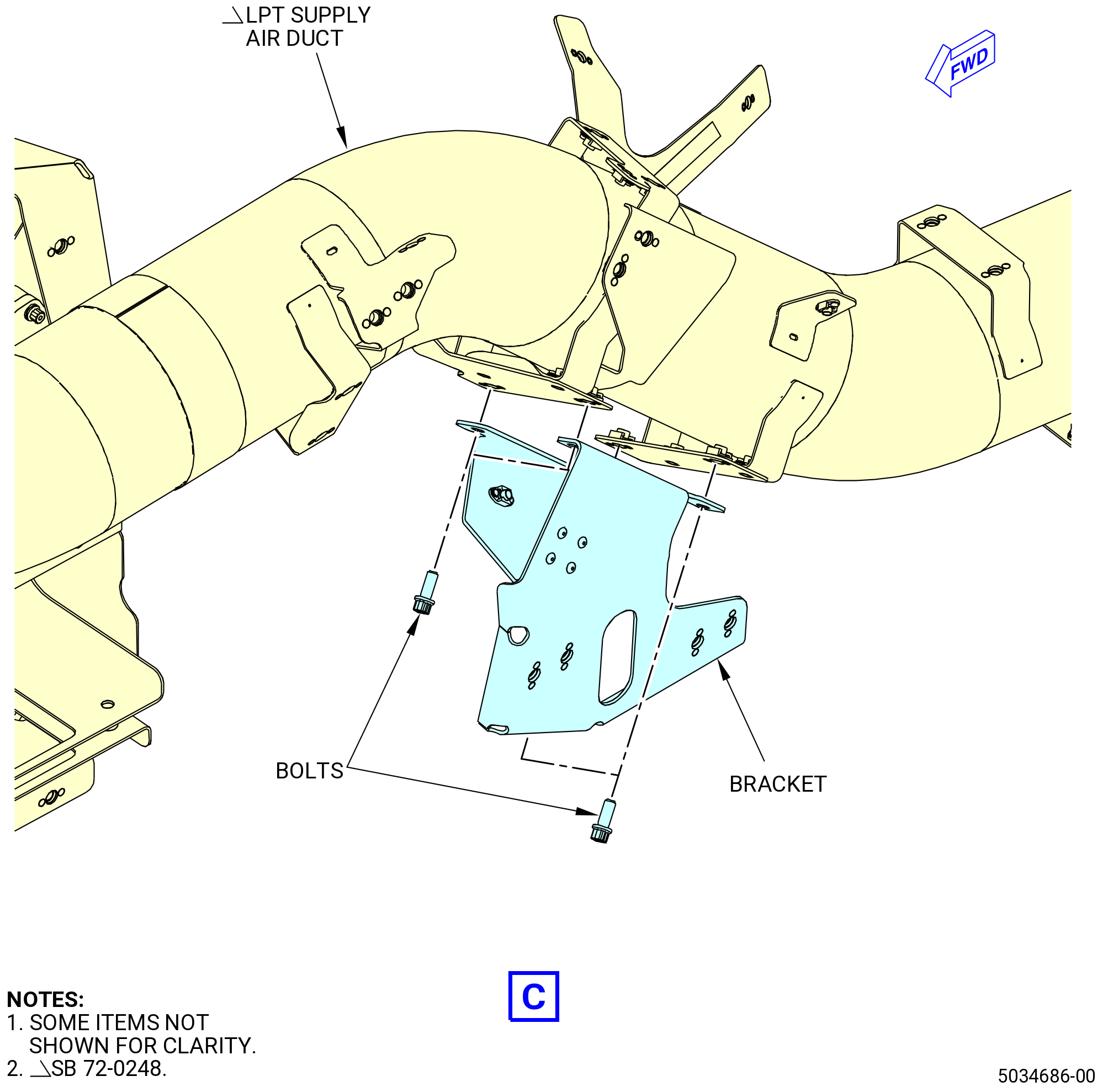

(4)Remove bracket (10-051 , 75-24-10) (SIN 6221C) as follows:
(a)Remove the bolt that attaches the electric cable to bracket (10-051 , 75-24-10) (SIN 6221C).
(b)Remove the bolts that attach bracket (10-051 , 75-24-10) (SIN 6221C) to bracket (01-190 , 73-11-30) (SIN 6221B) and bracket (33-170) (SIN 6221D).
(c)Remove the bracket (10-051 , 75-24-10) (SIN 6221C) from between bracket (01-190 , 73-11-30) (SIN 6221B) and bracket (33-170) (SIN 6221D).
* * * FOR ALL PIP 2

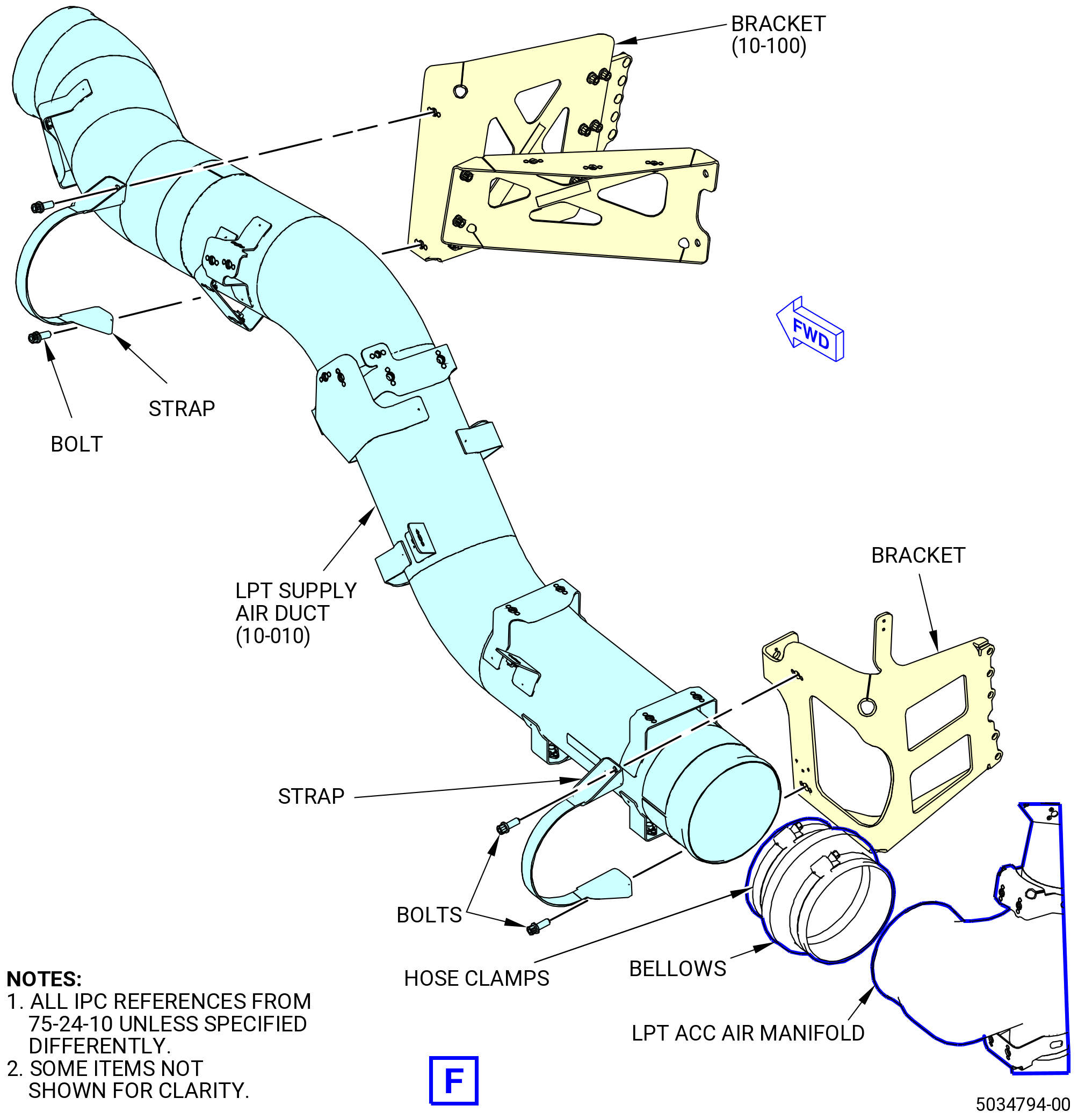

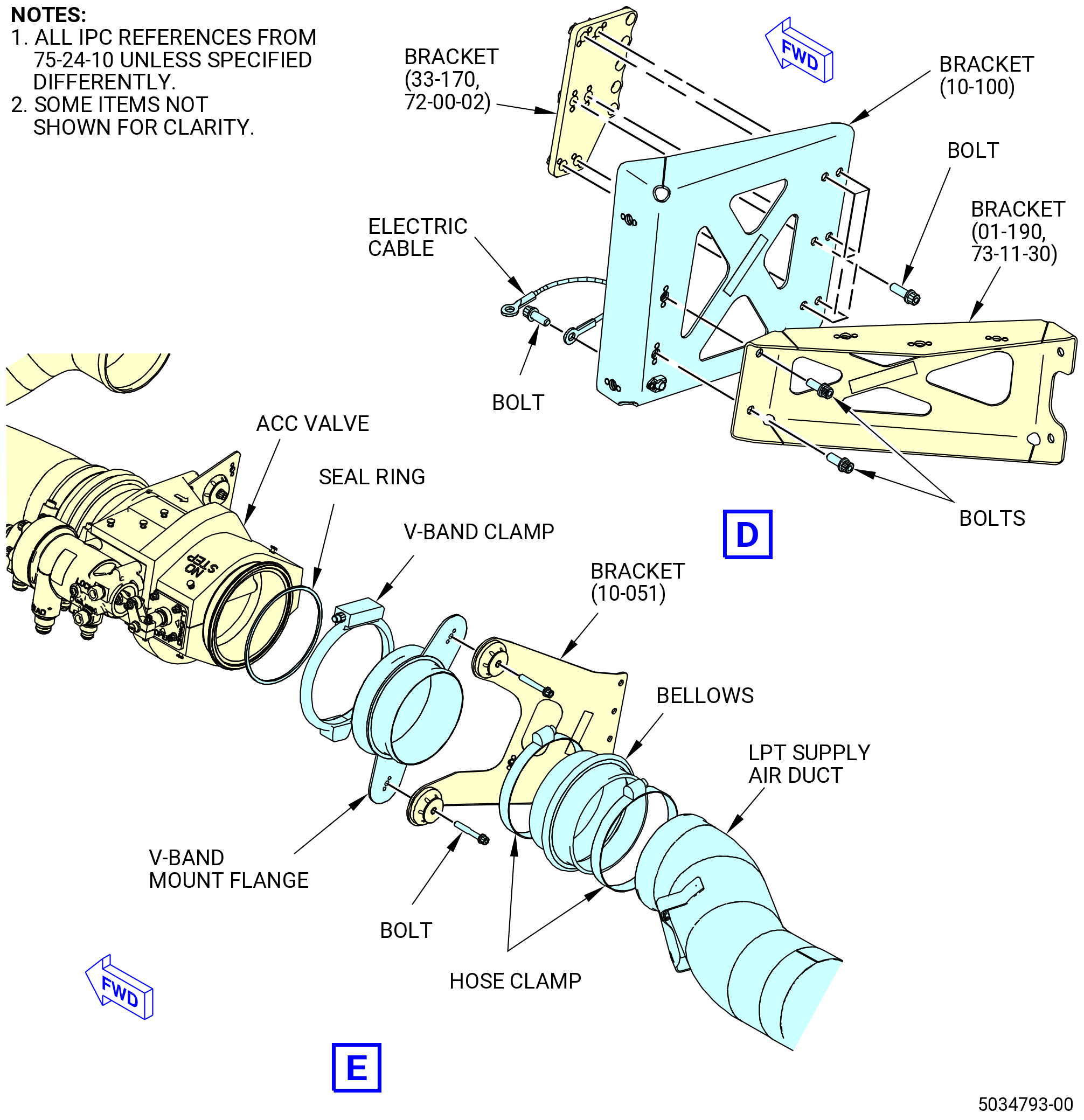

Figure 529   (Sheet 1 ) Removal of the LPT Active Clearance Control Valve, Fuel Tubes, and Air Duct
* * * FOR ALL PIP 2
Figure 529   (Sheet 2 ) Removal of the LPT Active Clearance Control Valve, Fuel Tubes, and Air Duct
* * * FOR ALL PIP 2
Figure 529   (Sheet 3 ) Removal of the LPT Active Clearance Control Valve, Fuel Tubes, and Air Duct
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0248( Old LPT Supply Air Duct Configuration )
Figure 529   (Sheet 4 ) Removal of the LPT Active Clearance Control Valve, Fuel Tubes, and Air Duct
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0248( New LPT Supply Air Duct Configuration )
Figure 529   (Sheet 5 ) Removal of the LPT Active Clearance Control Valve, Fuel Tubes, and Air Duct
Subtask 72-00-02-030-585

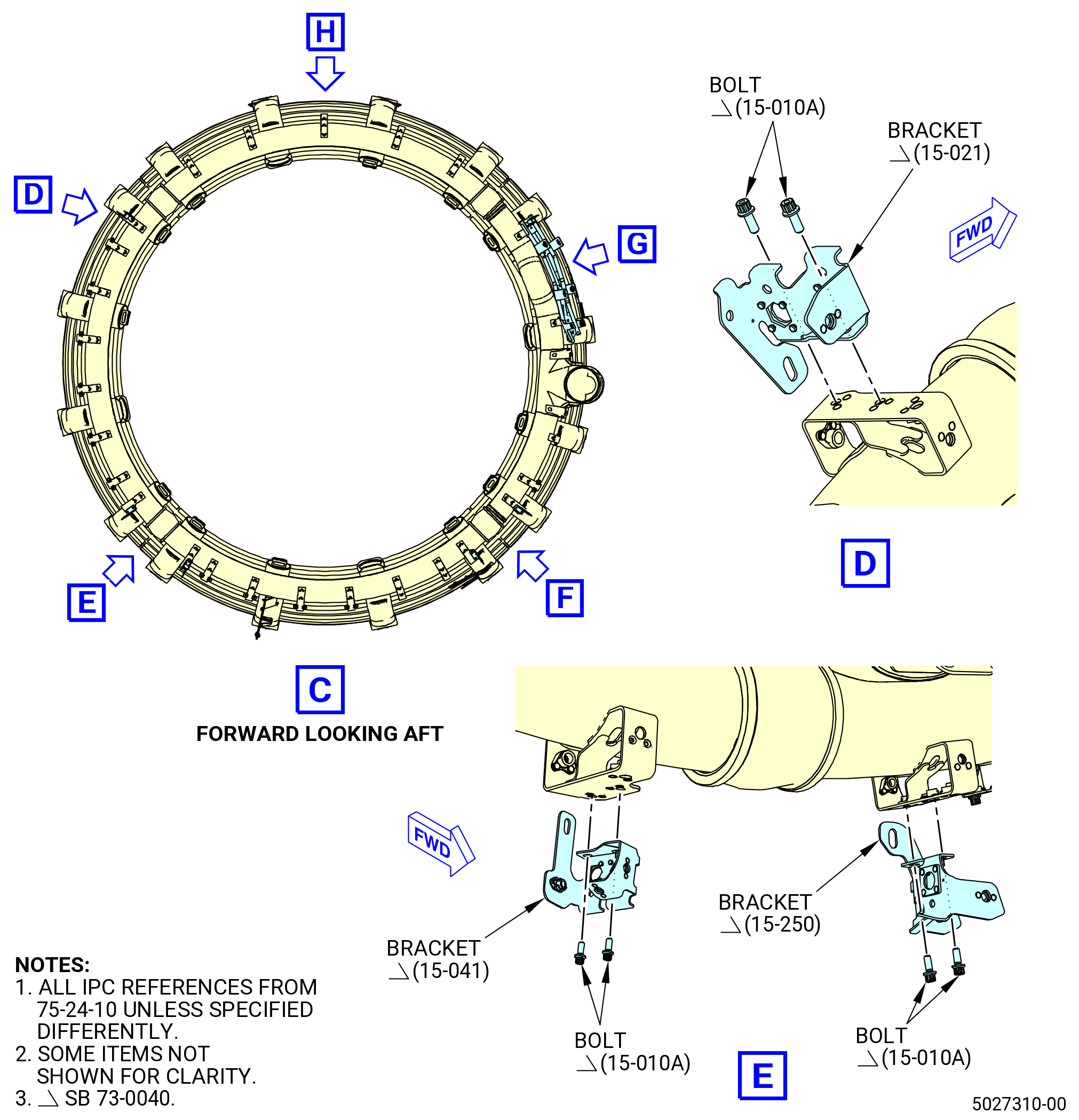

U.Remove the LPT ACC manifolds. Refer to Figure 530 and do as follows:
(1)Remove the brackets from the LPT ACC manifold as follows:
Subtask 72-00-02-030-693
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
(a)Remove the bolts that attach the bracket (15-020 , 75-24-10) (SIN 9801G) to the bracket (15-170 , 75-24-10) (SIN 9801D) at the 10:00 o'clock position.
* * * END PRE SB   73-0040
Subtask 72-00-02-030-694
* * * SB   73-0040( Engines with improved W30 and W31 harness )
(a).A.Remove the bolts that attach the bracket (15-270 , 75-24-10) (SIN 9801N) to the bracket (15-171 , 75-24-10) (SIN 9801D) at the 10:00 o'clock position.
* * * END SB   73-0040
Subtask 72-00-02-030-695
(b)Remove the bolts that attach the bracket (15-170 , 75-24-10) (SIN 9801D) or (15-171 , 75-24-10) (SIN 9801D) at the 9:30 o'clock position.
(c)Remove the bolts that attach the bracket (15-160 , 75-24-10) (SIN 9801E) at the 8:30 o'clock position.
(d)Remove the bolts that attach the bracket (15-030 , 75-24-10) (SIN 9801K) or (15-031 , 75-24-10) (SIN 9801K) at the 7:30 o'clock position.
(e)Remove the bolts that attach the bracket (15-040 , 75-24-10) (SIN 9801J) or (15-041 , 75-24-10) (SIN 9801J) at the 7:00 o'clock position.
(f)Remove the bolts that attach the bracket (15-180 , 75-24-10) (SIN 9801F), (15-181 , 75-24-10) (SIN 9801F) or (15-182 , 75-24-10) (SIN 9801F) at the 6:30 o'clock position.
Subtask 72-00-02-030-696
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
(g)Remove the bolts that attach the bracket (15-020 , 75-24-10) (SIN 9801G) at the 5:00 o'clock position.
* * * END PRE SB   73-0040
Subtask 72-00-02-030-697
* * * SB   73-0040( Engines with improved W30 and W31 harness )
(g).A.Remove the bolts that attach the bracket (15-250 , 75-24-10) (SIN 9801L) at the 5:00 o'clock position.
* * * END SB   73-0040
Subtask 72-00-02-030-698
(h)Remove the bolts that attach the bracket (15-040 , 75-24-10) (SIN 9801J) or (15-041 , 75-24-10) (SIN 9801J) at the 4:30 o'clock position.
(i)Remove the bolts that attach the bracket (15-020 , 75-24-10) (SIN 9801G) or (15-021 , 75-24-10) (SIN 9801G) at the 2:00 o'clock position.

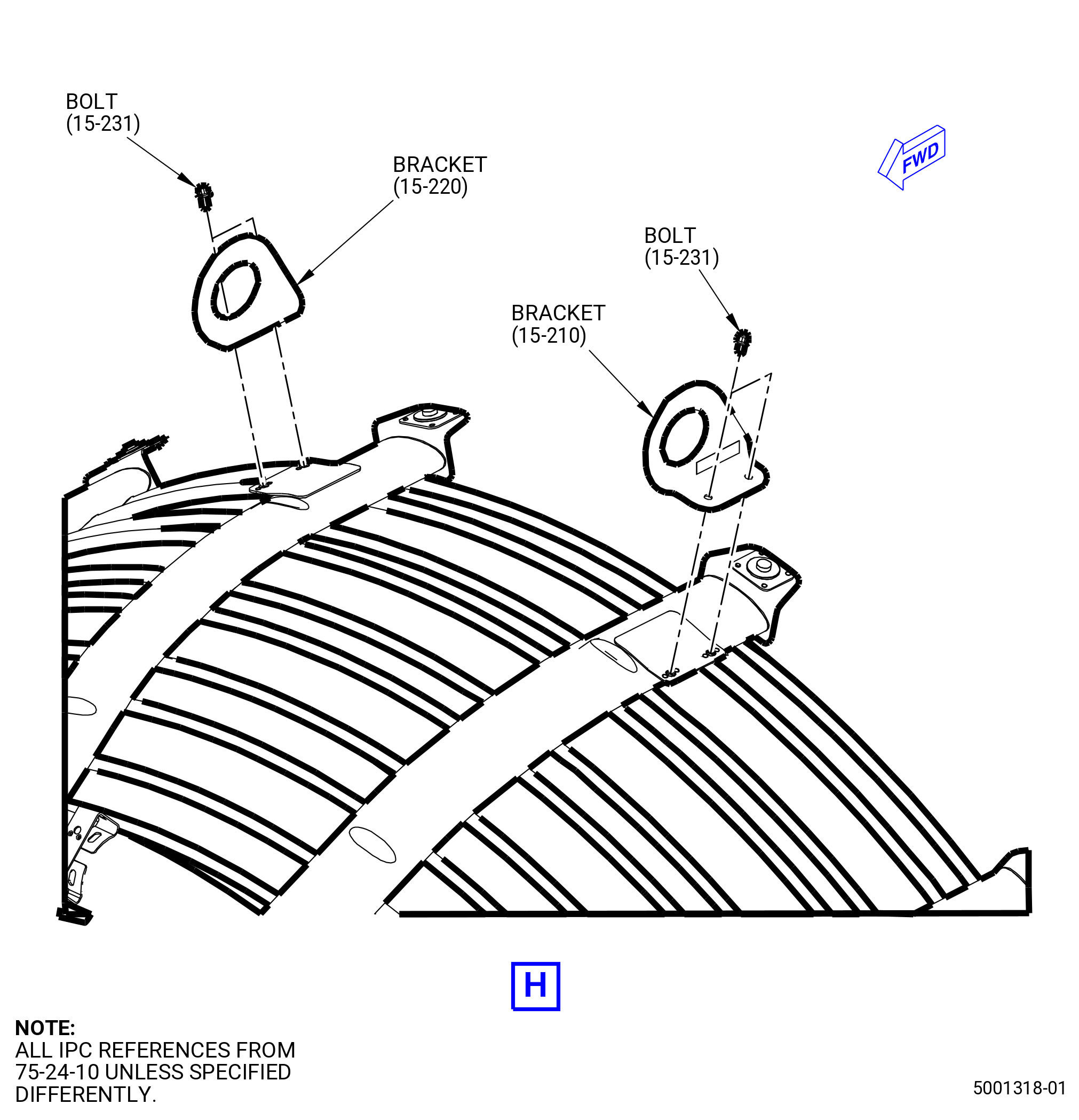

(j)Remove the bolts that attach the bracket (15-210 , 75-24-10) (SIN 62318) at the 12:30 o'clock position.
(k)Remove the bolts that attach the bracket (15-220 , 75-24-10) (SIN 62319) at the 11:30 o'clock position.
Subtask 72-00-02-030-587

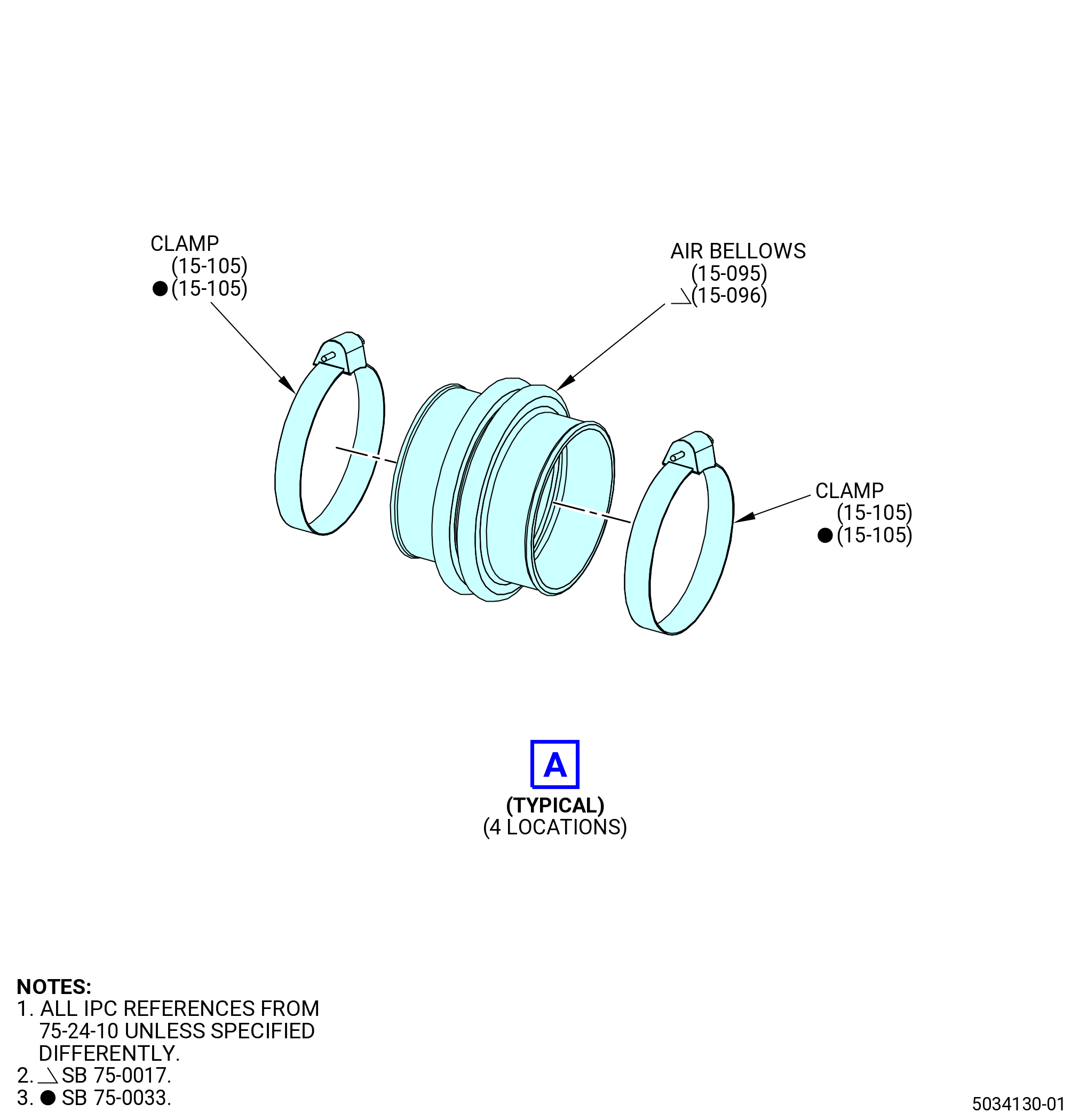

(8)Remove the clamps (15-105 , 75-24-10) (SIN 62280) from the air bellows (15-095 , 75-24-10) (SIN 62205) or (15-096 , 75-24-10) (SIN 62205) and push the air bellows that connect the LPT ACC air manifolds together on one of the manifolds.
(9)Remove the bolts and washers from the forward side of the LPT ACC air manifolds.
(10)Remove the screws and washers from the aft side of the LPT ACC air manifolds.
(11)Remove the LPT ACC air manifolds from the propulsor.
(12)Remove the air bellows (15-095 , 75-24-10) (SIN 62205) or (15-096 , 75-24-10) (SIN 62205) from the LPT ACC air manifolds.
* * * FOR ALL PIP 2
Figure 530   (Sheet 1 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
Figure 530   (Sheet 2 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
Figure 530   (Sheet 3 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
Figure 530   (Sheet 4 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   73-0040( Engines with improved W30 and W31 harness )
Figure 530   (Sheet 5 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   73-0040( Engines without improved W30 and W31 harness )
Figure 530   (Sheet 6 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   73-0040( Engines with improved W30 and W31 harness )
Figure 530   (Sheet 7 ) Removal of the LPT Active Clearance Control Manifold
* * * FOR ALL PIP 2
Figure 530   (Sheet 8 ) Removal of the LPT Active Clearance Control Manifold
Subtask 72-00-02-030-591

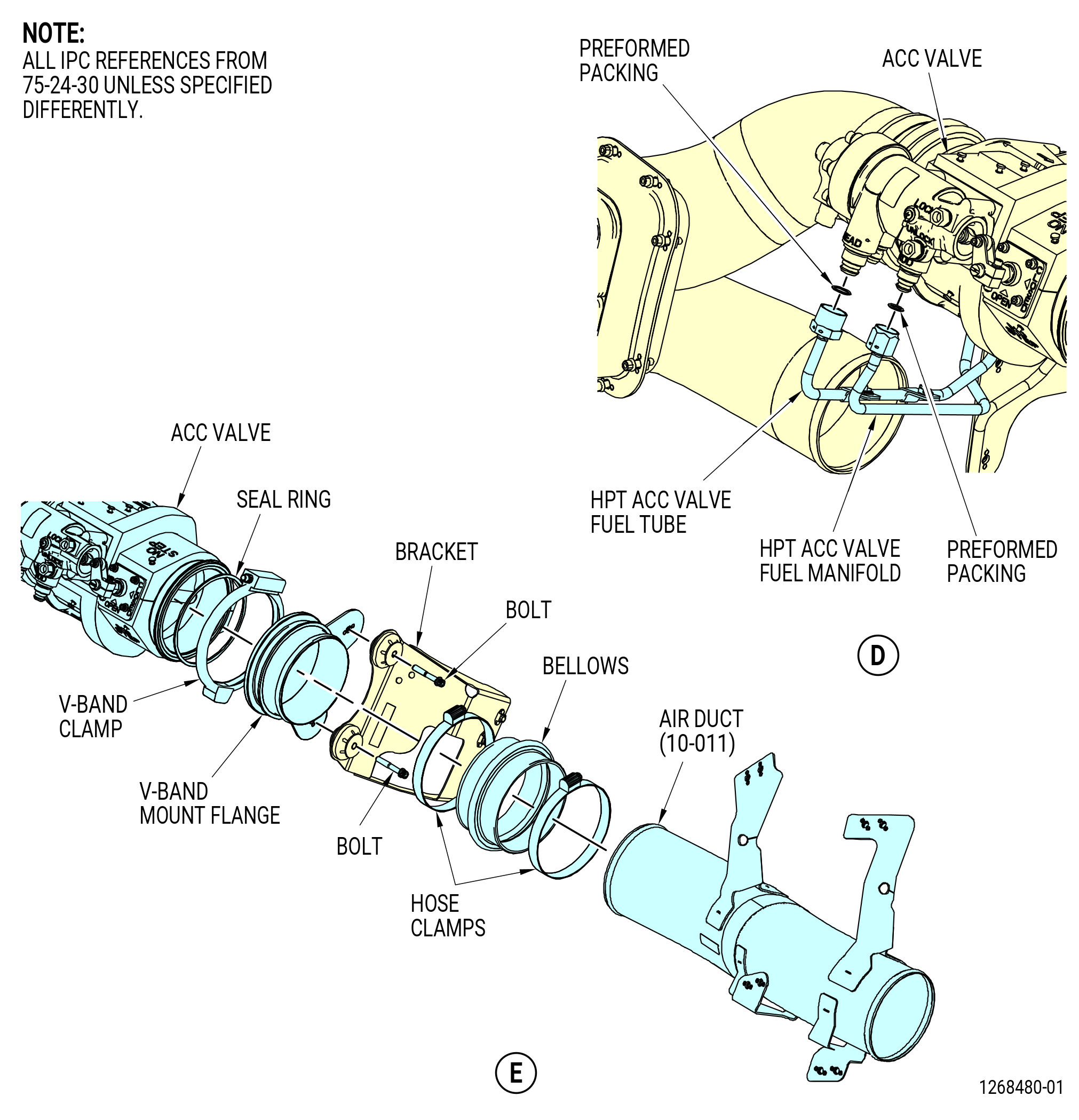

V.Remove the HPT ACC valve and duct. Refer to Figure 531 and do as follows:
(1)Remove the HPT ACC air duct (10-100 , 75-24-30) (SIN 62108) as follows:
(a)Remove the hose clamps from the HPT ACC air duct (10-100 , 75-24-30) (SIN 62108).
(b)Remove the HPT ACC air duct (10-100 , 75-24-30) (SIN 62108) from the HPT supply air duct (10-011 , 75-24-30) (SIN 62101) and the HPT air manifold.
(2)Remove the HPT supply air duct (air duct) (10-011 , 75-24-30) (SIN 62101) as follows:
(a)Loosen the hose clamps on the bellows.
(b)Remove the bolts and straps that attach the air duct to bracket.
(c)Remove the air duct (10-011 , 75-24-30) (SIN 62101) from the bellows.
(d)Remove the hose clamps and the bellows from the V-band mount flange.
(e)Remove the bolts that attach the V-band mount flange to the bracket.
(f)Remove the V-band clamp that attaches the V-band mount flange to the ACC valve.
(g)Remove the V-band mount flange and the seal ring (01-020 , 75-24-30) (SIN 62150) from the ACC valve.
(3)Disconnect the fuel lines to the ACC valve as follows:
(a)Disconnect the LPT and HPT ACC valve fuel manifold from the ACC valve.
(b)Disconnect the HPT ACC valve fuel tube from the ACC valve.
(c)Remove the preformed packings (20-210 , 73-11-40) (SIN 34751) and (30-200 , 73-11-40) (SIN 38050) from the ROD end and HEAD end nipples of the ACC valve.
(4)Remove the ACC valve as follows:
(a)Loosen the hose clamps on the bellows.
(b)Remove the bolts and washers that attach the ACC valve to the bracket.
(c)Remove the ACC valve from the bellows and the bracket.
(d)Remove the bellows and the hose clamps.
(5)Remove the bolts and washers that attach the HPT and LPT air duct (air duct) (01-100 , 75-23-10) (SIN 62107) to the cowl support. Remove the air duct.
* * * FOR ALL PIP 2

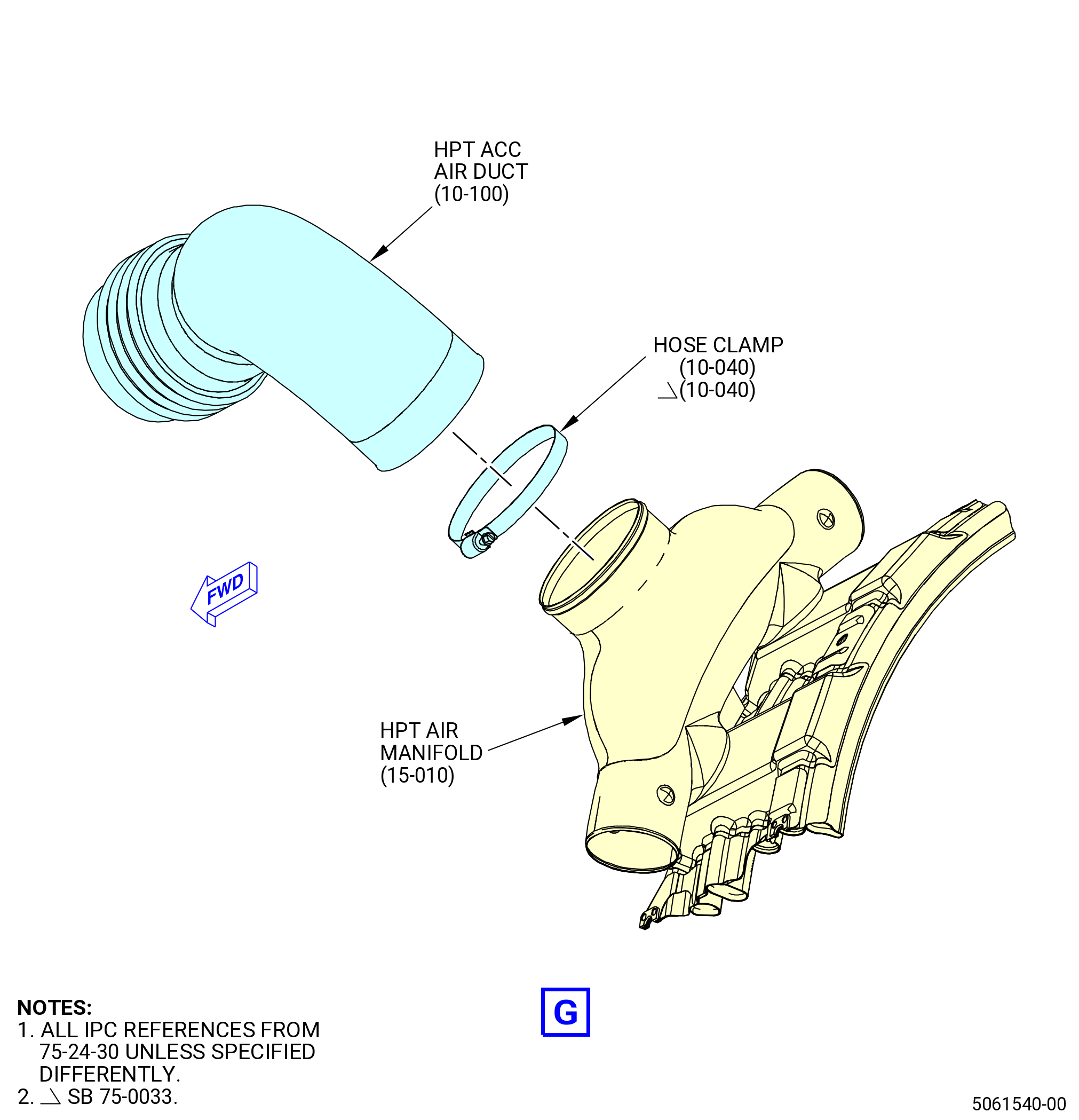

Figure 531   (Sheet 1 ) Removal of the HPT ACC Valve and Tube
* * * FOR ALL PIP 2
Figure 531   (Sheet 2 ) Removal of the HPT ACC Valve and Tube
* * * FOR ALL PIP 2
Figure 531   (Sheet 3 ) Removal of the HPT ACC Valve and Tube
* * * FOR ALL PIP 2
Figure 531   (Sheet 4 ) Removal of the HPT ACC Valve and Tube
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
Figure 531   (Sheet 5 ) Removal of the HPT ACC Valve and Tube
Subtask 72-00-02-030-592
W.Remove the PT25 sensor heating air tube (air tube). Refer to Figure 532 and do as follows:
(1)Disconnect the coupling nut from the PT25 sensor.
(2)Disconnect the coupling nut from the 4th stage air tube.
(3)Remove the bolts and the cushioned clamps that attach the tube to the brackets.
(4)Remove the tube.
* * * FOR ALL PIP 2
Figure 532   (Sheet 1 ) Removal of the PT25 Signal Air Tube/Hose
* * * FOR ALL PIP 2
Figure 532   (Sheet 2 ) Removal of the PT25 Signal Air Tube/Hose
* * * FOR ALL PIP 2
Figure 532   (Sheet 3 ) Removal of the PT25 Signal Air Tube/Hose
Subtask 72-00-02-030-593

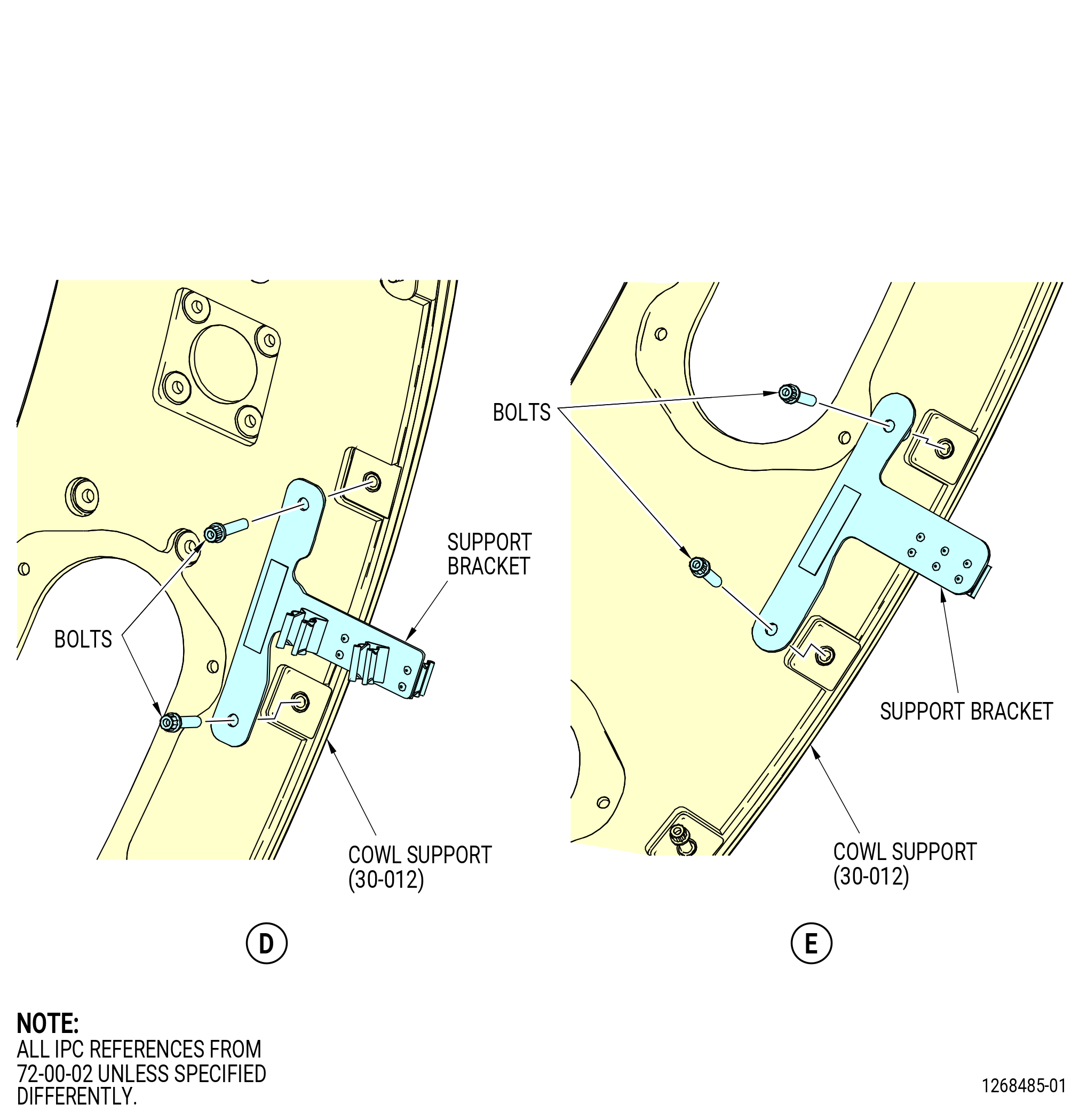

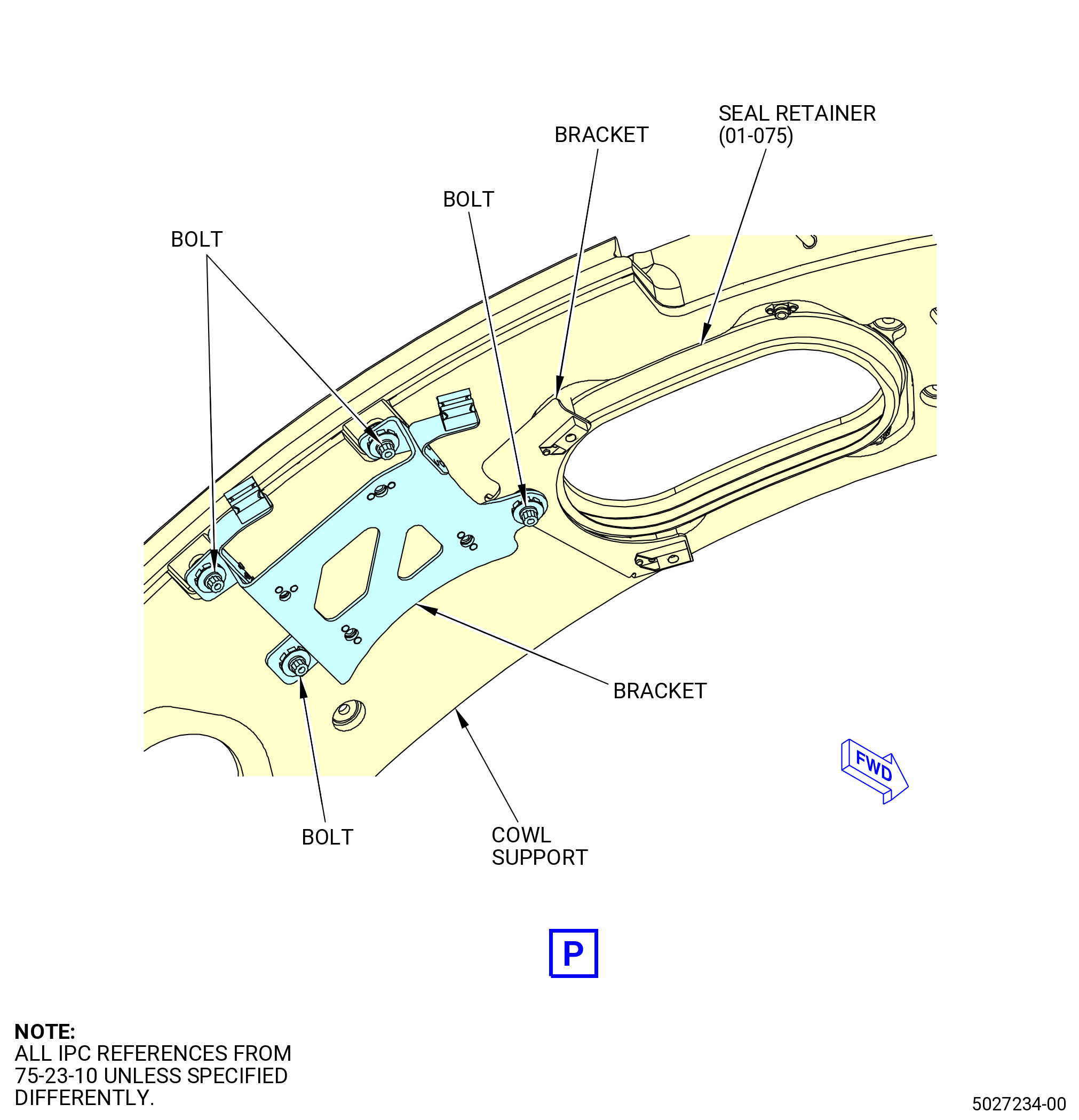

X.Remove the cowl support ring brackets. Refer to Figure 533 and do as follows:
(1)Remove the machine bolts (bolts) (30-200) (SIN 6102T) and washers (30-250) (SIN 61033) that attach the EAI controller support bracket (bracket) (30-190) (SIN 6101T) and transducer support bracket (bracket) (30-220) (SIN 63715) on the cowl support at the 1:00 o'clock position.
(2)Remove the support bracket (30-190) (SIN 6101T).
(3)Remove the bracket (30-220) (SIN 63715).
(4)Remove the bolts that attach the engine configuration box to the support bracket on the cowl support at the 9:00 o'clock position.
(5)Remove the engine configuration box.
(6)Remove the remaining bolts and support brackets from the cowl support.
* * * FOR ALL PIP 2

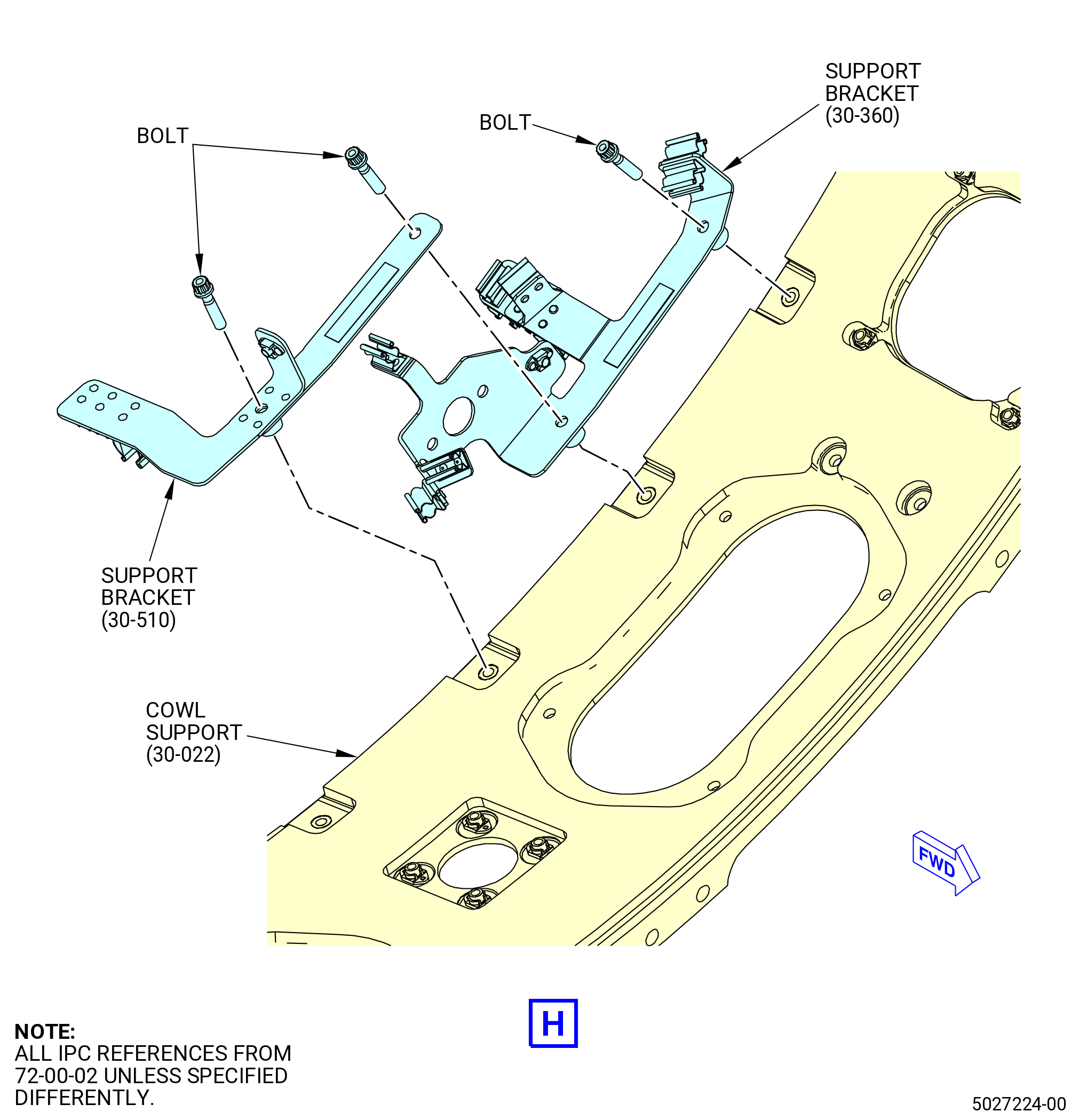

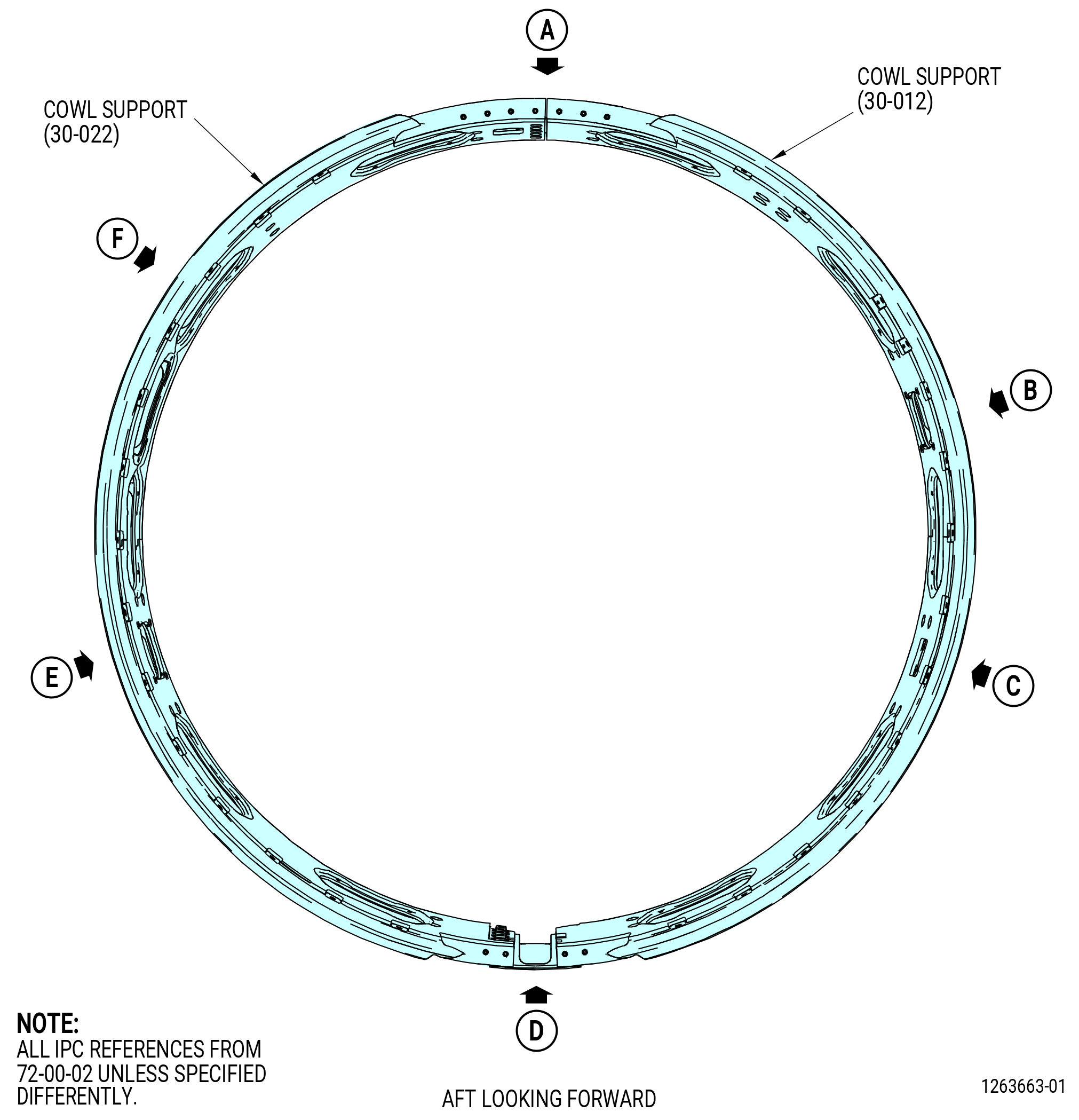

Figure 533   (Sheet 1 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   75-0032( Two Separate Single-Channel Sensors )

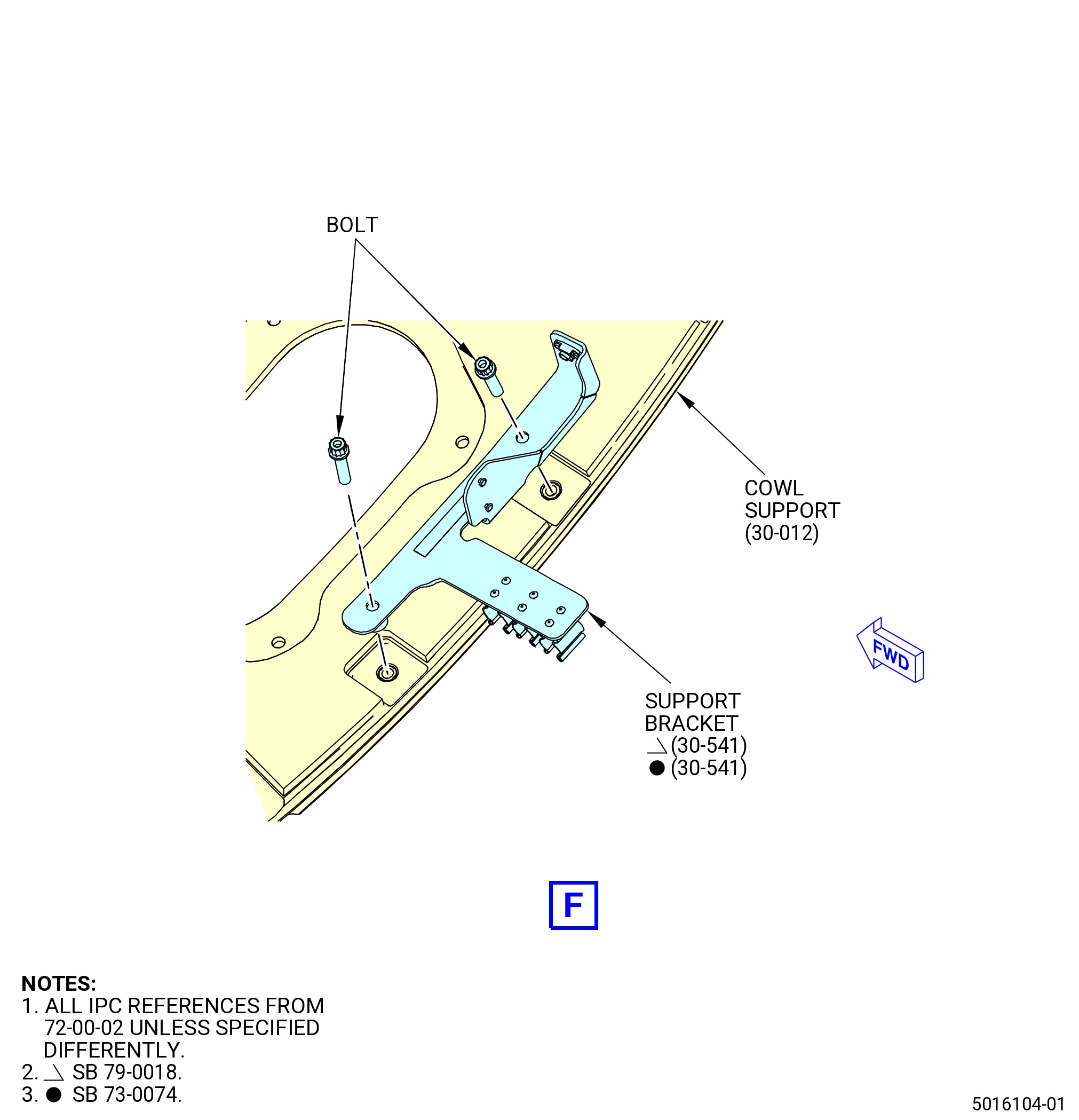

Figure 533   (Sheet 2 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   75-0032( One Dual-Channel Sensor )
Figure 533   (Sheet 3 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
Figure 533   (Sheet 4 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   79-0018( MFOHX without Indicating Capability )
Figure 533   (Sheet 5 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   79-0018( MFOHX with Indicating Capability )
Figure 533   (Sheet 6 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
Figure 533   (Sheet 7 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
Figure 533   (Sheet 8 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
Figure 533   (Sheet 9 ) Removal of the Cowl Support Ring Brackets
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
Figure 533   (Sheet 10 ) Removal of the Cowl Support Ring Brackets
Subtask 72-00-02-030-594

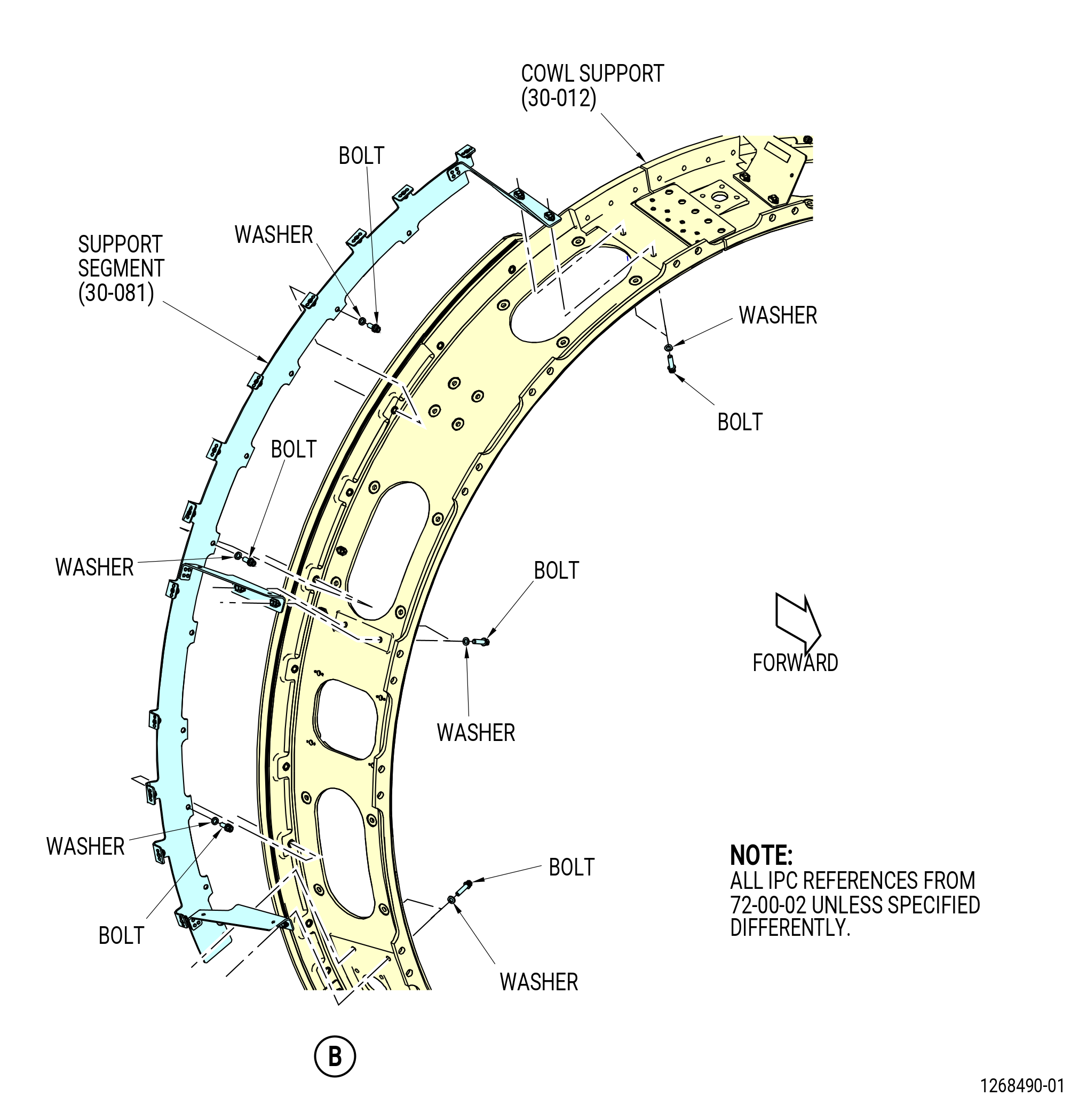

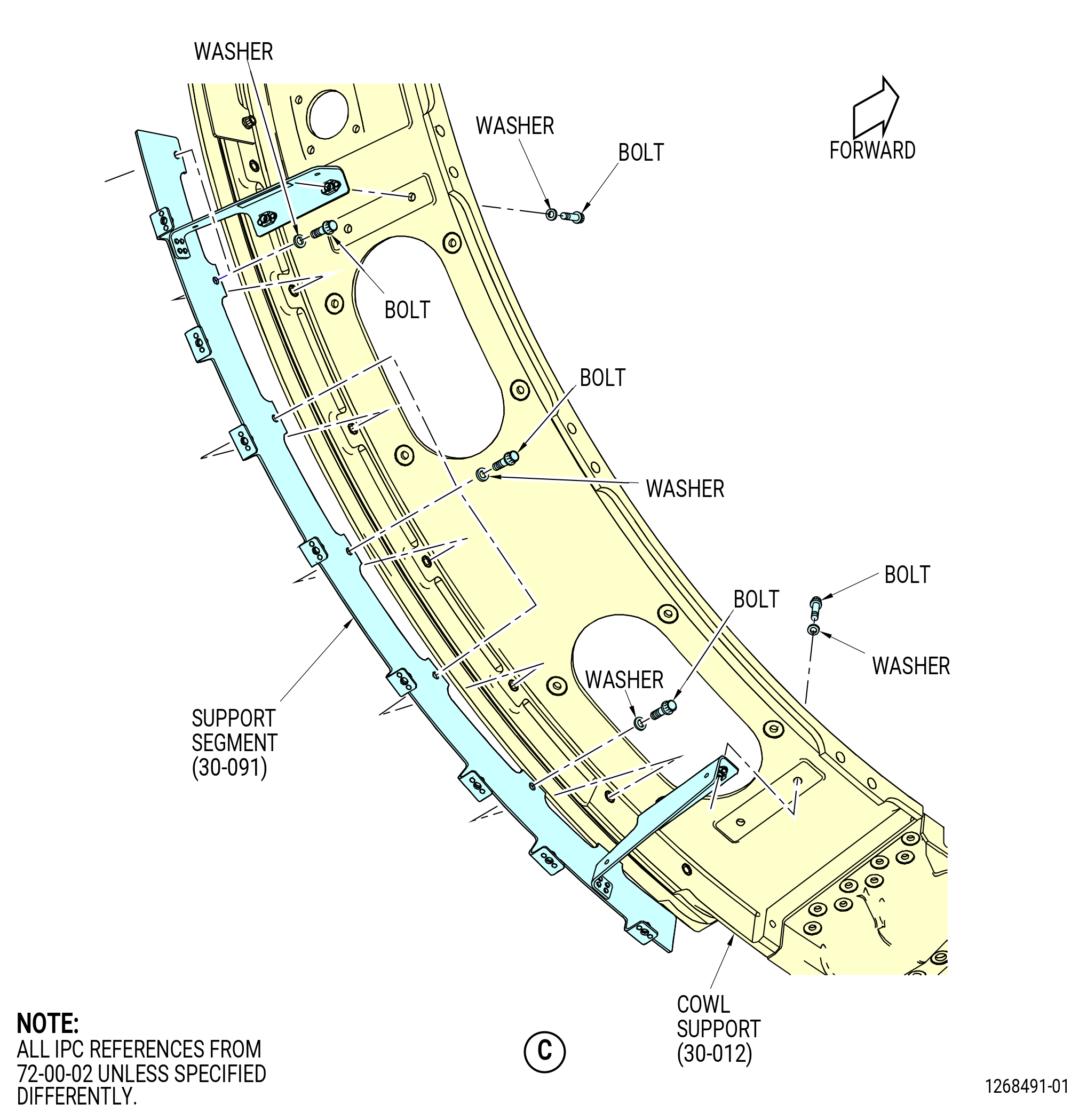

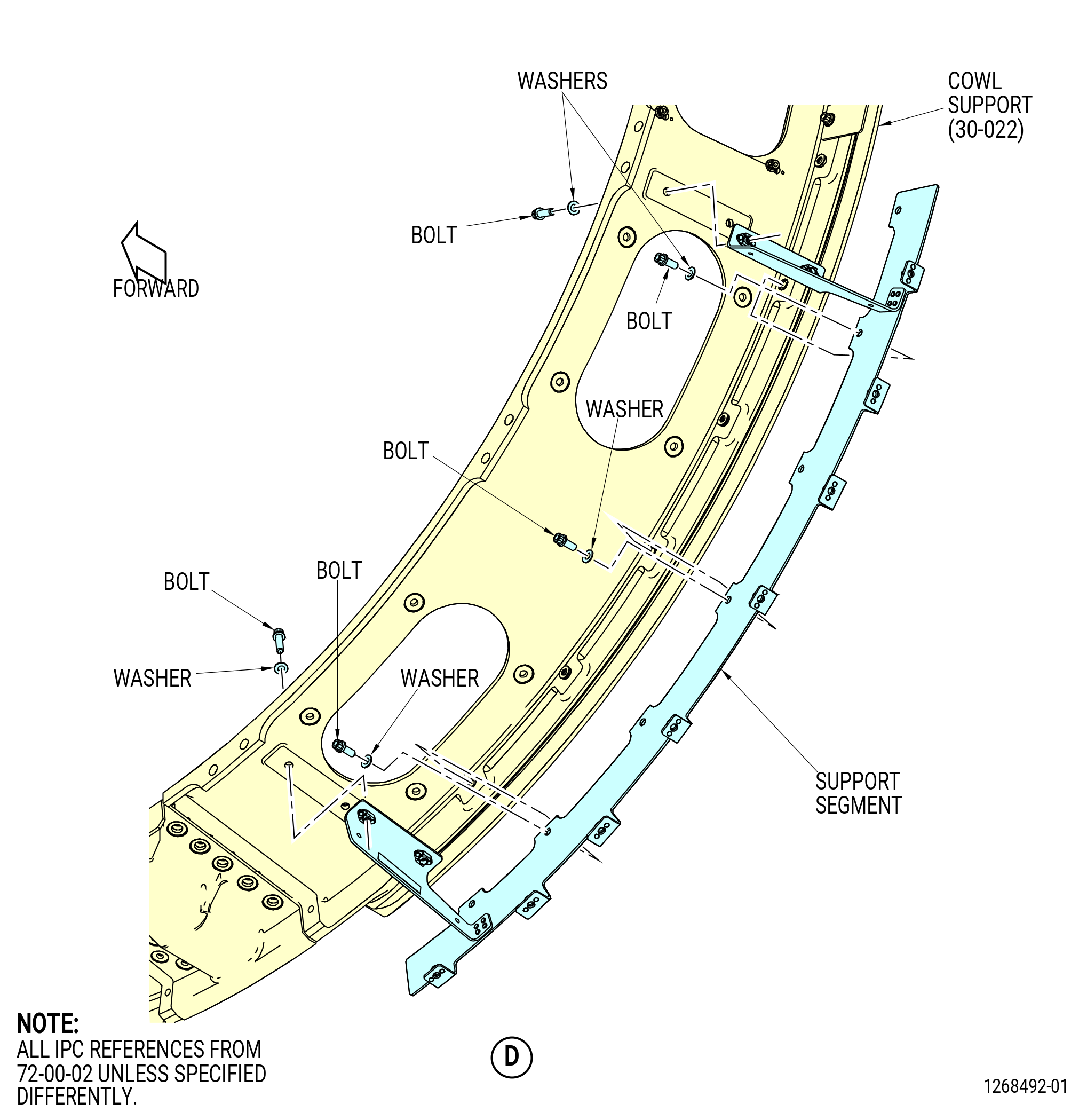

Y.Remove the deflector panel support segments (support segments) from the cowl supports. Refer to Figure Figure 534 and do as follows:
(1)Remove the upper right support segment as follows:
(a)Remove the bolts and washers that attach the support segment to the cowl support.
(b)Remove the bolts and washers that attach the support segment to the forward flange of the cowl support.
(c)Remove the support segment from the right-side cowl support.
(2)Remove the lower right support segment (30-091) (SIN 95012) as follows:
(a)Remove the bolts and washers that attach the support segment to the cowl support.
(b)Remove the bolts and washers that attach the support segment to the forward flange of the cowl support.
(c)Remove the support segment from the right-side cowl support.
(3)Remove the upper left support segment (30-071) (SIN 95010) as follows:
(a)Remove the bolts and washers that attach the support segment to the cowl support.
(b)Remove the bolts and washers that attach the support segment to the forward flange of the cowl support.
(c)Remove the support segment from the left-side cowl support.
(4)Remove the lower left support segment (30-101) (SIN 95013) as follows:
(a)Remove the bolts and washers that attach the support segment to the cowl support.
(b)Remove the bolts and washers that attach the support segment to the forward flange of the cowl support.
(c)Remove the support segment from the left-side cowl support.
* * * FOR ALL PIP 2

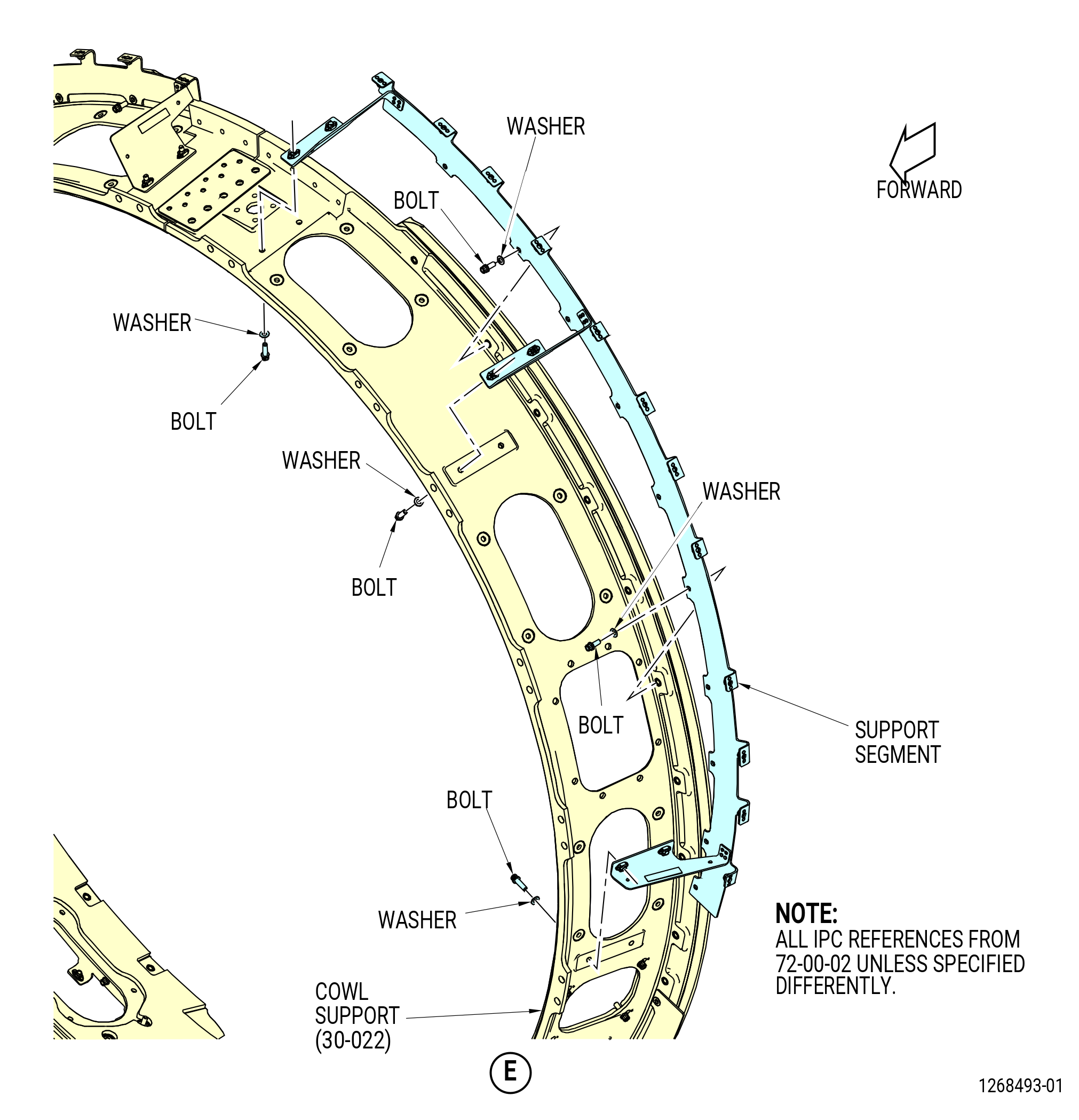

Figure 534   (Sheet 1 ) Removal of the Support Segments
* * * FOR ALL PIP 2
Figure 534   (Sheet 2 ) Removal of the Support Segments
* * * FOR ALL PIP 2
Figure 534   (Sheet 3 ) Removal of the Support Segments
* * * FOR ALL PIP 2
Figure 534   (Sheet 4 ) Removal of the Support Segments
* * * FOR ALL PIP 2
Figure 534   (Sheet 5 ) Removal of the Support Segments
Subtask 72-00-02-030-595
Z.Remove the cowl supports from the fan hub frame. Refer to Figure 535 and do as follows:
(1)Remove the sealant from between the ends of the cowl supports at the 6:00 and 12:00 o'clock positions.
(2)Remove the CAC support brackets.
(3)Remove the VBV air ducts from the cowl supports as follows:
(a)Remove the bolts and washers that attach the seal retainers to the cowl supports.
(b)Remove the support bracket from the VBV air duct at the 11:30 o'clock position.
(c)Move the seal retainers radially inward, away from the cowl supports.
(4)Remove the bolts that attach the left-side and right-side cowl supports together at the 6:00 o'clock position.
(5)Remove the bolts, washers, spacers, retainer plate, and nuts that attach the left-side and right-side cowl supports together at the 12:00 o'clock position.
(6)Remove the bolts and spacers that attach the right-side cowl support to the fan hub frame.
(7)Remove the right-side cowl support from the fan hub frame.
(8)Remove the bolts and spacers that attach the left-side cowl support to the fan hub frame.
(9)Remove the left-side cowl support from the fan hub frame.
(10)Remove the bolts and washers that attach the cover plate at the 8:30 o'clock position on the left-side cowl support.
(11)Remove the bolts and washers that attach the cover plate at the 2:30 o'clock position on the right-side cowl support.
(12)Remove the bolts that attach the cover plate at the 3:30 o'clock position on the right-side cowl support.
Subtask 72-00-02-030-598
(13)Put the 11C3408   VBV ducts cover on the cowl support. Refer to Figure 536 and do as follows:
(a)Put the internal shock cord around both edges of cowl support.
(b)Use plastic webbing and buckles to attach the cover.
* * * FOR ALL PIP 2

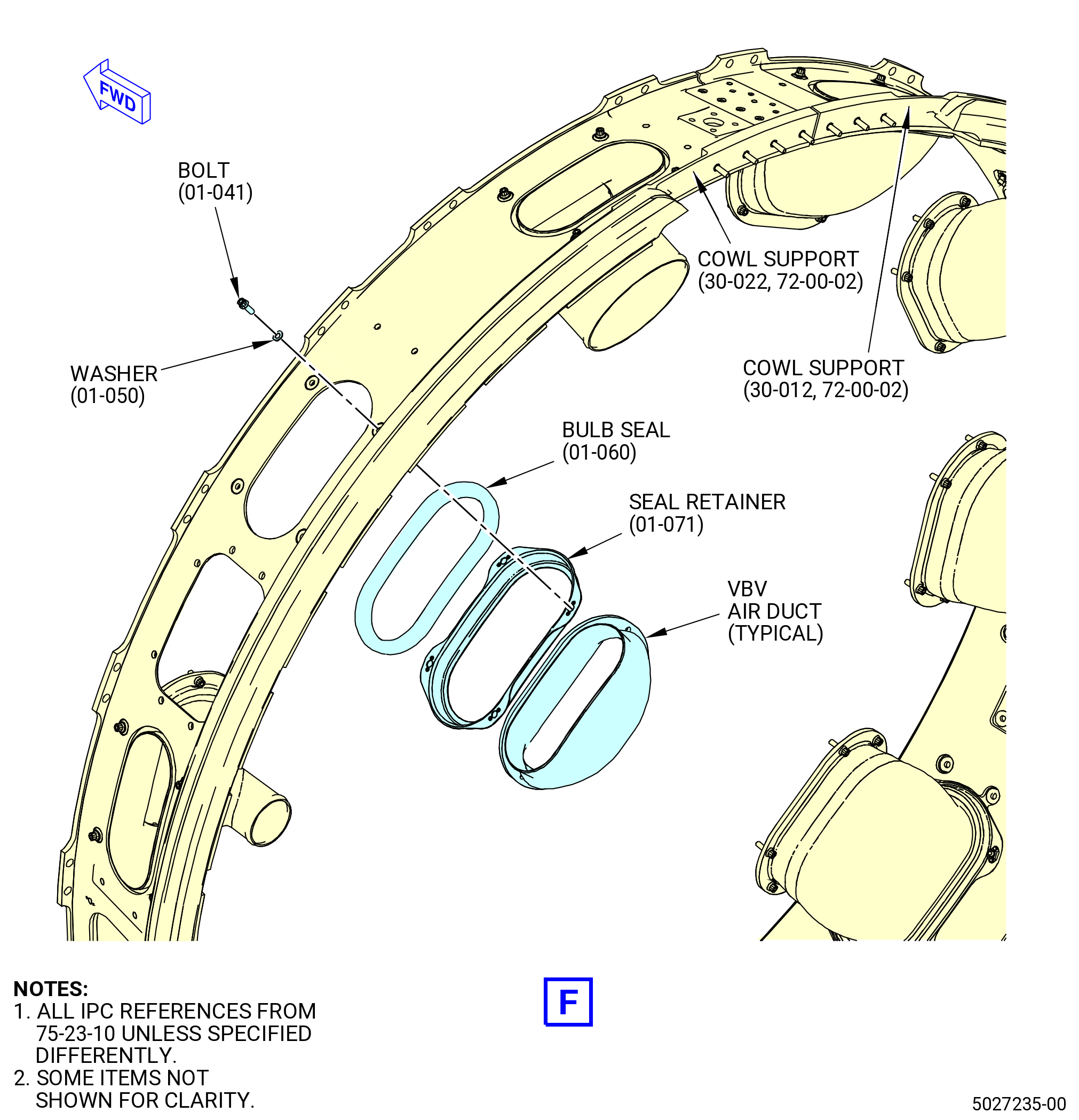

Figure 535   (Sheet 1 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2

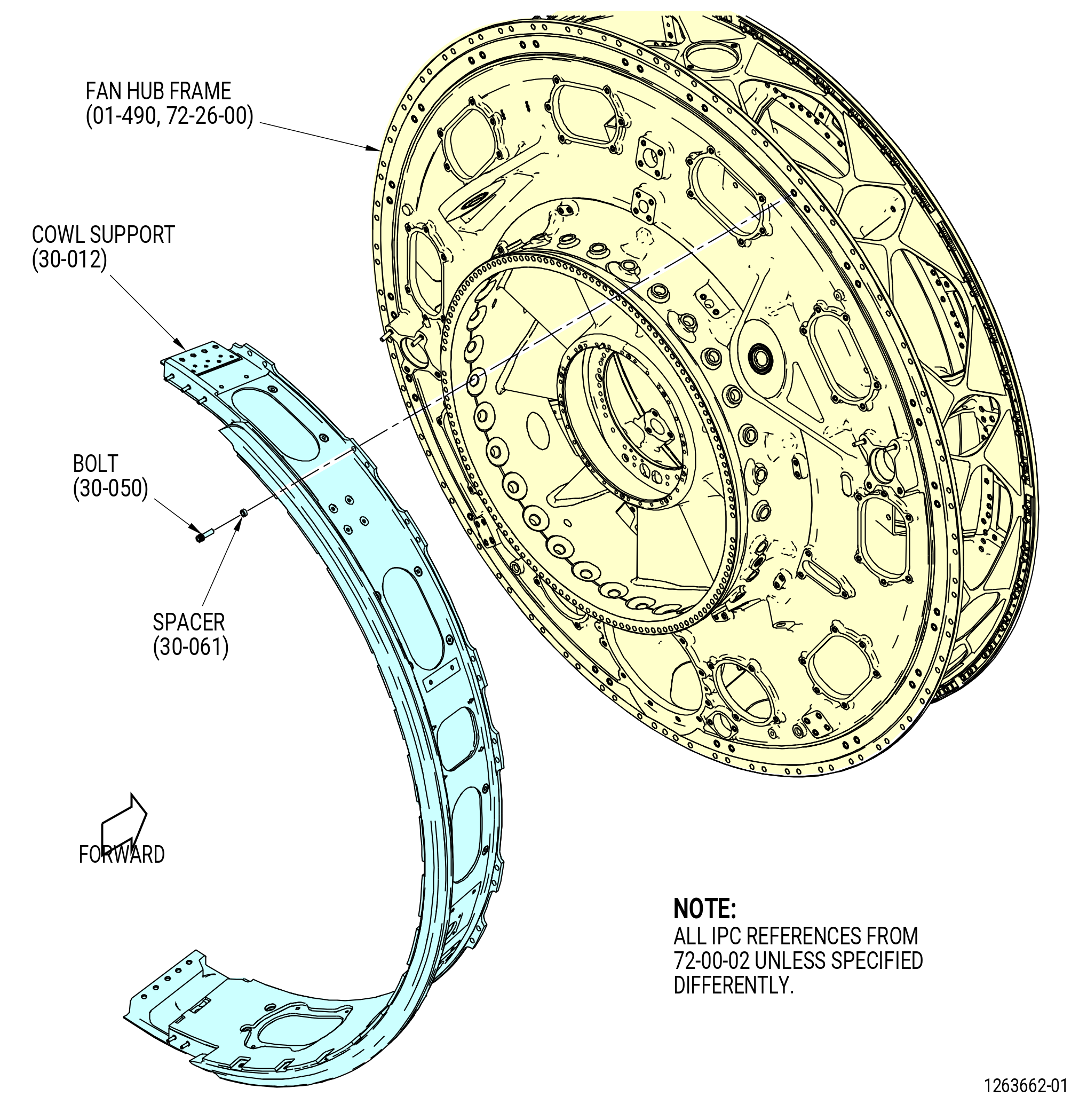

Figure 535   (Sheet 2 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2
Figure 535   (Sheet 3 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2
Figure 535   (Sheet 4 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2
Figure 535   (Sheet 5 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2
Figure 535   (Sheet 6 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2
Figure 535   (Sheet 7 ) Removal of the Cowl Supports
* * * FOR ALL PIP 2
Figure 536   Installation of 11C3408 VBV Ducts Cover on the Cowl Supports
Subtask 72-00-02-040-195
AA.Remove the VBV air ducts (air ducts) from the fan hub frame. Refer to Figure 537 and do as follows:
(1)Remove the seal retainers and bulb seals from the air ducts.
(2)Remove the bulb seals from the seal retainers.
(3)Remove the bolts and the nuts that attach the air ducts to the fan hub frame.
(4)Remove the air ducts.
* * * FOR ALL PIP 2

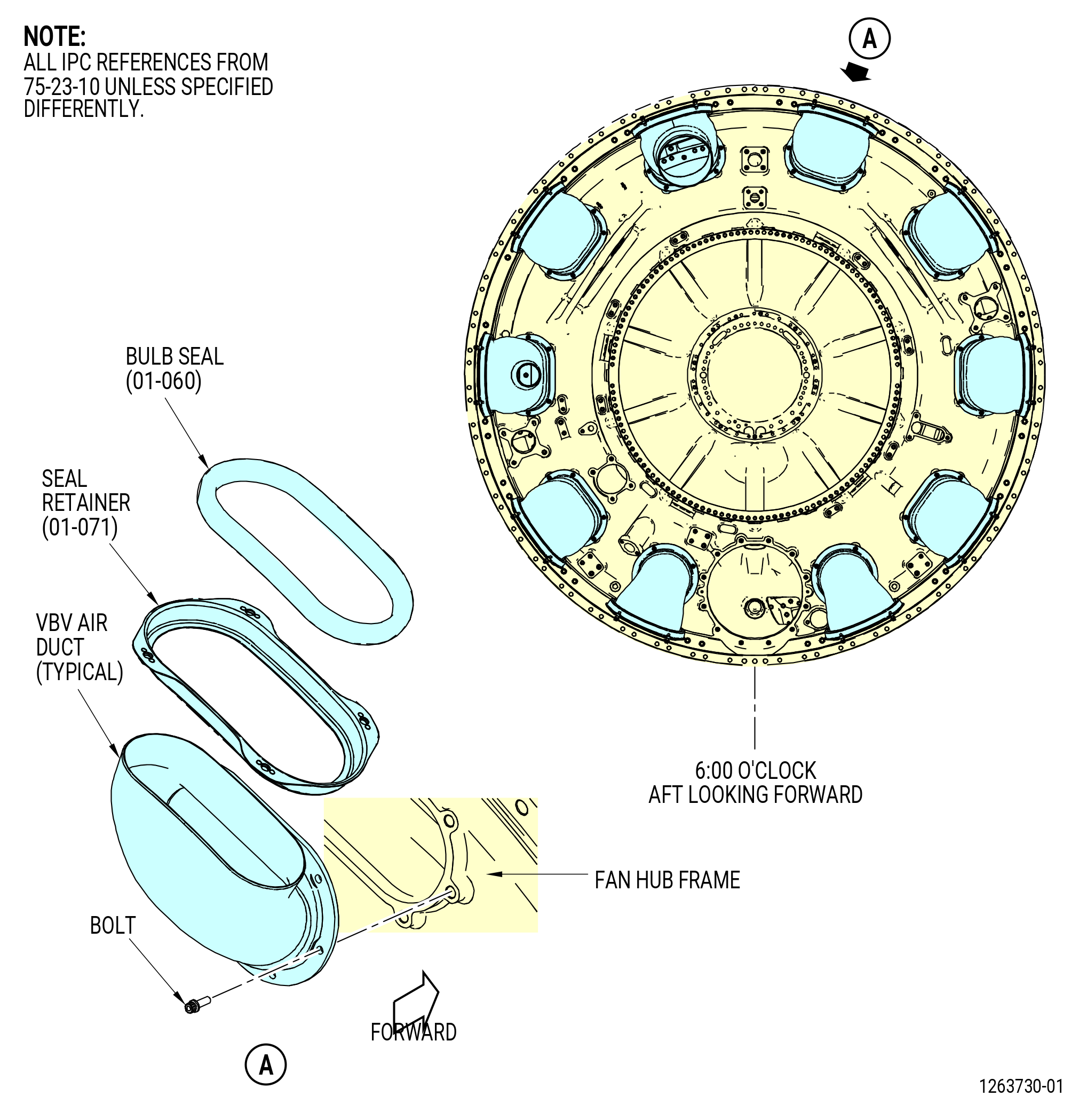

Figure 537   Removal of the VBV Air Duct
Subtask 72-00-02-030-599
AB.Remove the manifolds of the core water wash system around the fan hub frame (10-401 , 72-25-00) (SIN 84000) or (10-402 , 72-25-00) (SIN 84000). Refer to Figure 538 and do as follows:
(1)Loosen the B-nuts that attach the core wash manifold (manifold) (10-040 , 71-00-01) (SIN 78004) from the core wash nozzles (nozzle) (10-050 , 71-00-01) (SIN 78005) and core wash manifold (manifold) (10-020 , 71-00-01) (SIN 78002).
(2)Loosen the B-nuts that attach the manifold (10-020 , 71-00-01) (SIN 78002) from the nozzle (10-050 , 71-00-01) (SIN 78005) and core wash tube (manifold) (10-030 , 71-00-01) (SIN 78003).
(3)Loosen the B-nuts that attach the manifold (10-030 , 71-00-01) (SIN 78003) from the nozzle (10-050 , 71-00-01) (SIN 78005).
(4)Remove the machine bolts (bolts) (10-070 , 71-00-01) (SIN 78021) from the cushioned loop clamps (clamps) (10-090 , 71-00-01) (SIN 78081) attached to the support brackets (brackets) (10-120 , 71-00-01) (SIN 78011), (10-110 , 71-00-01) (SIN 78010), and (10-060 , 71-00-01) (SIN 78012).
(5)Remove the machine bolts (bolts) (25-190) (SIN 78023) from the clamps (10-090 , 71-00-01) (SIN 78081) attached to the support brackets (brackets) (25-450) (SIN 44411) and (25-430) (SIN 44413).
(6)Remove the manifolds (10-020 , 71-00-01) (SIN 78002), (10-030 , 71-00-01) (SIN 78003), and (10-040 , 71-00-01) (SIN 78004) and the clamps (10-090 , 71-00-01) (SIN 78081) from the fan hub frame (10-401 , 72-25-00) (SIN 84000) or (10-402 , 72-25-00) (SIN 84000).
(7)Remove the clamps (10-090 , 71-00-01) (SIN 78081) from the manifolds (10-020 , 71-00-01) (SIN 78002), (10-030 , 71-00-01) (SIN 78003), and (10-040 , 71-00-01) (SIN 78004).
* * * FOR ALL PIP 2

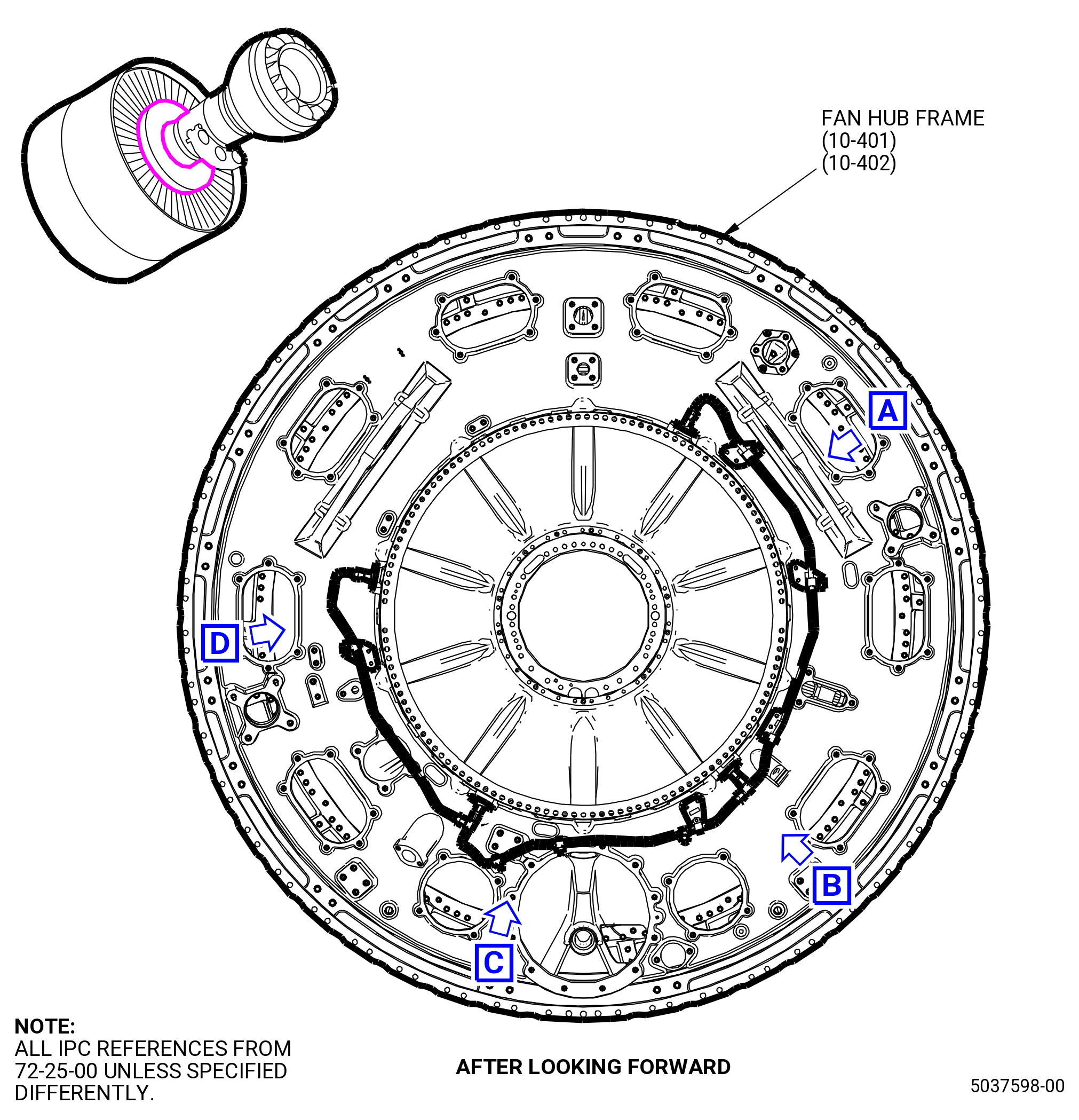

Figure 538   (Sheet 1 ) Manifold Removal from Fan Hub Frame
* * * FOR ALL PIP 2
Figure 538   (Sheet 2 ) Manifold Removal from Fan Hub Frame
* * * FOR ALL PIP 2
Figure 538   (Sheet 3 ) Manifold Removal from Fan Hub Frame
Subtask 72-00-02-030-600
AC.Remove the drain tubes on the right side of the engine as follows:
(1)Remove the No. 3 bearing seal drain tube (drain tube) (05-020 , 79-22-40) (SIN 48300). Refer to Figure 539 and do as follows:
(a)Disconnect the drain tube B-nut from the tube nipple on the fan hub frame.
(b)Disconnect the B-nut from the upper drain manifold on the AGB.
(c)Remove the cushioned clamps and bolts that attach the drain tube to the brackets.
(d)Remove the drain tube.
(2)Remove the drain tube and hose (15-020 , 73-11-43) (SIN 37400) as follows:
(a)Disconnect the B-nut from the variable stator vane (VSV) actuator.
(b)Disconnect the B-nut from the right VBV drain tube (15-010 , 73-11-43) (SIN 37301).
(c)Remove the cushioned clamp and bolt that attach the drain tube and hose to the bracket.
(3)Remove the right VBV drain tube (15-010 , 73-11-43) (SIN 37301) as follows:
(a)Disconnect the B-nut of the right VBV drain tube from the VBV actuator.
(b)Disconnect the B-nut of the right VBV drain tube from the drain manifold (15-030 , 73-11-43) (SIN 37302).
(c)Disconnect the B-nut of tube (37A00) from the right VBV drain tube (15-010 , 73-11-43) (SIN 37301).
(d)Remove the cushioned clamp and bolt that attach the right VBV drain tube to the bracket.
(4)Remove the drain manifold (15-030 , 73-11-43) (SIN 37302) as follows:
(a)Disconnect the two B-nuts from the upper drain manifold.
(b)Disconnect the B-nut from the nipple on the hydraulic pump bearing support.
(c)Disconnect the B-nut of the drain tube (15-040 , 73-11-43) (SIN 59100) from the drain manifold (15-030 , 73-11-43) (SIN 37302).
(d)Disconnect the B-nut of the drain tube (15-040 , 73-11-43) (SIN 59100) from the hydraulic pump (35-010 , 72-00-00) (SIN C00A6).
(e)Remove the cushioned clamps and bolts that attach the drain manifold to the brackets.
Subtask 72-00-02-030-602
(5)Remove the drain manifold (05-010 , 73-11-43) (SIN 37600). Refer to Figure 540 and do as follows:
(a)Disconnect the B-nut from the drain tube (05-020 , 73-11-43) (SIN 37601).
(b)Disconnect the B-nut from the transient bleed valve.
(c)Remove the cushioned clamps and bolts that attach the drain manifold to the brackets.
Subtask 72-00-02-030-604
(6)Remove the drain tube (05-020 , 73-11-43) (SIN 37601) as follows:
(a)Disconnect the B-nut from the main fuel pump and transient bleed valve drain manifold (05-030 , 73-11-43) (SIN 37000).
(b)Remove the cushioned clamps and bolts that attach the drain tube to the brackets.
* * * FOR ALL PIP 2
Figure 539   (Sheet 1 ) Removal of the Right Side Drain System
* * * FOR ALL PIP 2
Figure 539   (Sheet 2 ) Removal of the Right Side Drain System
* * * FOR ALL PIP 2
Figure 539   (Sheet 3 ) Removal of the Right Side Drain System
* * * FOR ALL PIP 2
Figure 539   (Sheet 4 ) Removal of the Right Side Drain System
* * * FOR ALL PIP 2
Figure 539   (Sheet 5 ) Removal of the Right Side Drain System
* * * FOR ALL PIP 2
Figure 540   (Sheet 1 ) Removal of the Fuel Drain Manifold
* * * FOR ALL PIP 2
Figure 540   (Sheet 2 ) Removal of the Fuel Drain Manifold
* * * FOR ALL PIP 2
Figure 540   (Sheet 3 ) Removal of the Fuel Drain Manifold
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0290( Engines with Temperature Sensor )
Figure 540   (Sheet 4 ) Removal of the Fuel Drain Manifold
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0290( Engines without Temperature Sensor )
Figure 540   (Sheet 5 ) Removal of the Fuel Drain Manifold
Subtask 72-00-02-030-605
AD.Remove the drain tubes on the left side of the engine as follows:
(1)Remove the fuel drain tube (37200). Refer to Figure 541 and do as follows:
(a)Disconnect the B-nut from the fuel drain tube (37100).
(b)Disconnect the B-nut from the VFSG heat exchanger.
(2)Remove the fuel drain tube (37100) as follows:
(a)Disconnect the B-nut from the upper drain manifold.
(b)Disconnect the B-nut from the VFSG heat exchanger.
(c)Remove the cushioned clamps and bolts that attach the fuel drain tube to the brackets.
(3)Remove the fuel drain tube (37900). Refer to Figure 542 and do as follows:
(a)Disconnect the B-nut from the fuel drain tube (37700).
(b)Disconnect the B-nut from the core compartment cooling (CCC) valve.
Subtask 72-00-02-030-607
(4)Remove the fuel drain tube (37700) as follows:
(a)Disconnect the fuel drain tube B-nut from the fuel drain tube (37701).
(b)Remove the cushioned clamps and bolts that attach the fuel drain tube to the brackets.
(5)Remove the fuel drain tube (37701) as follows:
(a)Disconnect the B-nut from the upper drain manifold.
(b)Remove the cushioned clamps and bolts that attach the fuel drain tube to the brackets.
(6)Remove the No. 1 bearing seal drain tube (drain tube) (48400) as follows:
(a)Disconnect the drain tube B-nut from the tube nipple on the fan hub frame.
(b)Disconnect the B-nut from the upper drain manifold on the AGB module.
(c)Remove the cushioned clamp and bolt that attaches the fuel drain tube to the bracket.
(7)Remove the left VBV drain tube (37300). Refer to Figure 543 and do as follows:
(a)Disconnect the B-nut from the VBV actuator.
(b)Disconnect the B-nut from the drain tube and hose (37500).
(c)Remove the cushioned clamp and bolt that attaches the fuel drain tube to the bracket.
(8)Remove the drain tube and hose (37500) as follows:
(a)Disconnect the B-nuts from the VSV actuator and the upper drain manifold.
(b)Remove the cushioned clamp and bolt that attaches the drain tube and hose to the bracket.
* * * FOR ALL PIP 2
Figure 541   Removal of the VFSG Heat Exchanger Drains
* * * FOR ALL PIP 2
Figure 542   (Sheet 1 ) Removal of the ACC and CCC Valve Drains
* * * FOR ALL PIP 2
Figure 542   (Sheet 2 ) Removal of the ACC and CCC Valve Drains
* * * FOR ALL PIP 2
Figure 542   (Sheet 3 ) Removal of the ACC and CCC Valve Drains
* * * FOR ALL PIP 2
Figure 543   (Sheet 1 ) Removal of the Left Side Drain Tubes
* * * FOR ALL PIP 2
Figure 543   (Sheet 2 ) Removal of the Left Side Drain Tubes
* * * FOR ALL PIP 2
Figure 543   (Sheet 3 ) Removal of the Left Side Drain Tubes
* * * FOR ALL PIP 2
Figure 543   (Sheet 4 ) Removal of the Left Side Drain Tubes
Subtask 72-00-02-030-608
AE.Remove the AGB module. Refer to TASK 72-00-05-020-801 (72-00-05, REMOVAL 001).
Subtask 72-00-02-030-763
* * * PRE SB   72-0444( with PS25 Sense Line )
AF.Remove the BIFI air manifold (01-140 , 75-42-10) (SIN 99008) and the bracket (01-160 , 75-42-10) (SIN 99010). Refer to Figure 544 and as follows:
(1)Disconnect the B-nuts of the BIFI air manifold from the PS3 air tube (01-060 , 75-42-10) (SIN 61501) and the PS25 air tube (01-010 , 75-42-15) (SIN 61400).
(2)Remove the bolts that attach the BIFI air manifold to the bracket (01-160 , 75-42-10) (SIN 99010).
(3)Remove the BIFI air manifold.
(4)Remove the bolts (01-181 , 75-42-10) (SIN 99029) that attach the bracket (01-160 , 75-42-10) (SIN 99010) to the TGB.
(5)Remove the bracket (01-160 , 75-42-10) (SIN 99010).
* * * END PRE SB   72-0444
Subtask 72-00-02-030-764
* * * SB   72-0444( without PS25 Sense Line )
AF.A.Remove the BIFI air manifold (01-140 , 75-42-10) (SIN 99008) and the bracket (01-160 , 75-42-10) (SIN 99010). Refer to Figure 544 and as follows:
(1)Disconnect the B-nut of the BIFI air manifold from the PS3 air tube (01-060 , 75-42-10) (SIN 61501).
(2)Remove the bolt that attach the clamp (01-070 , 75-42-10) (SIN 61581) to the bracket (01-160 , 75-42-10) (SIN 99010).
(3)Remove the BIFI air manifold.
(4)Remove the bolts (01-181 , 75-42-10) (SIN 99029) that attach the bracket (01-160 , 75-42-10) (SIN 99010) to the TGB.
(5)Remove the bracket (01-160 , 75-42-10) (SIN 99010).
* * * END SB   72-0444
Subtask 72-00-02-030-609
* * * PRE SB   72-0444( with PS25 Sense Line )
AG.Remove the PS25 air system. Refer to Figure 544 and do as follows:
(1)Disconnect the coupling nut from the FHF.
(2)Remove the bolt from the clamp and remove the clamp from the tube.
(3)Remove the tube from the FHF.
(4)Put protective covers on the tube.
* * * END PRE SB   72-0444
Subtask 72-00-02-030-765
* * * SB   72-0444( without PS25 Sense Line )
AG.A.Remove the cap (01-015 , 75-42-15) (SIN 840SB) from the fan hub frame. Refer to Figure 544.
* * * END SB   72-0444
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * PRE SB   72-0444( with PS25 Sense Line )
Figure 544   (Sheet 1 ) Removal of the Air System - PS25 Air Tube
* * * FOR ALL PIP 2
* * * FOR ALL PIP 2
* * * SB   72-0444( without PS25 Sense Line )

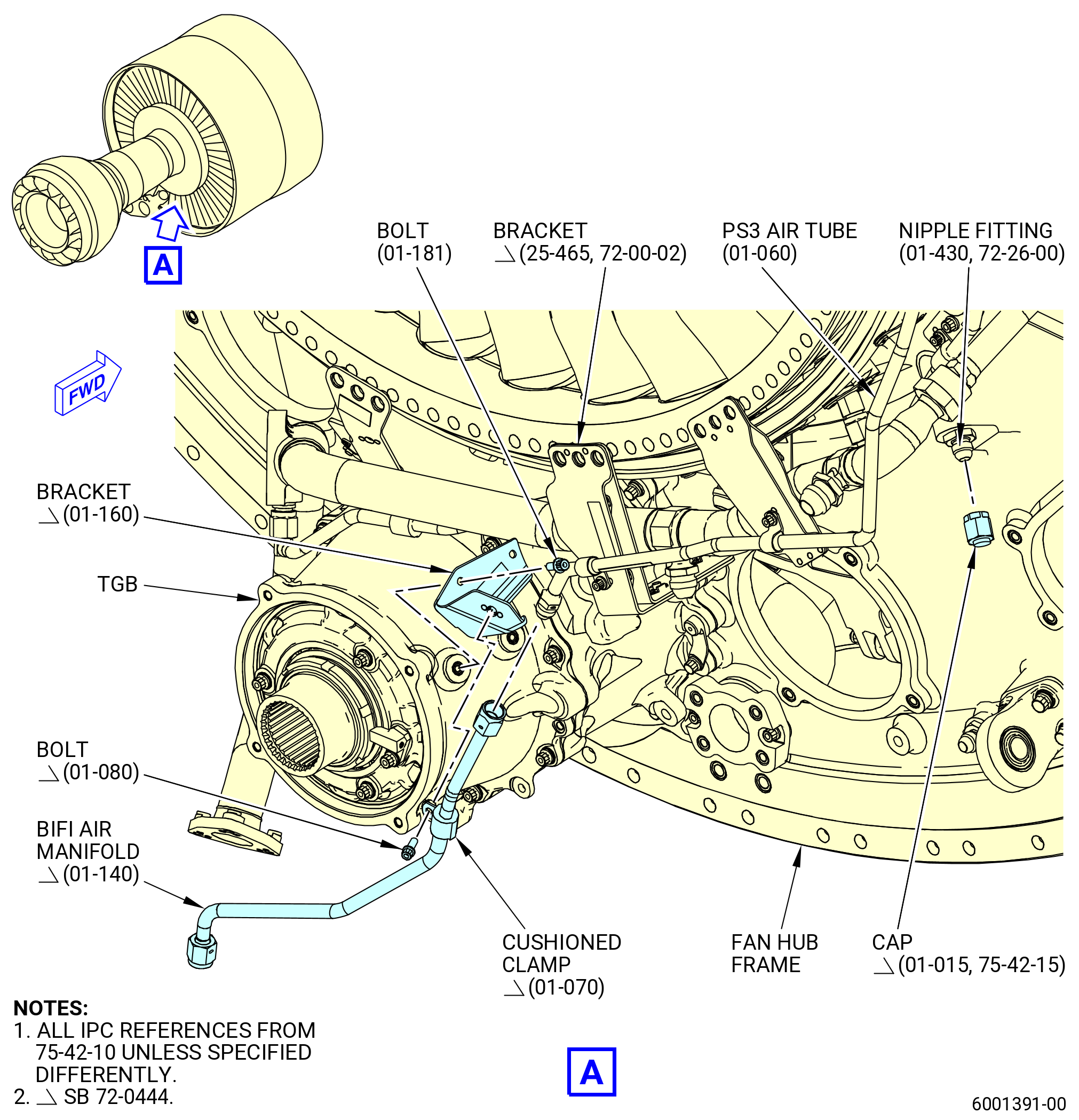

Figure 544   (Sheet 2 ) Removal of the Air System - BIFI Air Manifold
Subtask 72-00-02-030-610
AH.Remove the tube/hoses and hose assemblies from the VFSG fuel to the oil heat exchanger (VFSG heat exchanger) as follows:
(1)Remove the bolts (05-040 , 79-34-10) (SIN 65T23) that attach the temperature sensors (05-030 , 79-34-10) (SIN 65T04) to the oil tube hose (30-300 , 79-22-10) (SIN 5210W) and (30-280 , 79-22-10) (SIN 5210H).
(2)Disconnect the oil tube hose (30-110A , 79-22-10) (SIN 5210U) from the VFSG (65-010) (SIN C00A0).
(3)Disconnect the oil tube hose (30-110A , 79-22-10) (SIN 5210U) from the oil tube hose (30-310 , 79-22-10) (SIN 5210Y).
(4)Remove the oil tube hose (30-110A , 79-22-10) (SIN 5210U).
(5)Remove the bolts (30-130A , 79-22-10) (SIN 52122) and cushion clamps (30-140A , 79-22-10) (SIN 52180) that attach the oil tube hose (30-310 , 79-22-10) (SIN 5210Y) to the heat shield (40-010A) (SIN 29900).
(6)Remove the oil tube hose (30-310 , 79-22-10) (SIN 5210Y).
(7)Remove the bolts (30-170 , 79-22-10) (SIN 52121) that attach the bracket (30-180 , 79-22-10) (SIN 37112) to the oil tube hose (30-300 , 79-22-10) (SIN 5210W) and the oil tube hose (30-280 , 79-22-10) (SIN 5210H) and to the bracket (30-230 , 79-22-10) (SIN 5211M) and bracket (30-240 , 79-22-10) (SIN 5211N). Remove the bracket.
(8)Disconnect the oil tube hose (30-210A , 79-22-10) (SIN 5210L) from the oil tube hose (30-300 , 79-22-10) (SIN 5210W).
(9)Remove the oil tube hose (30-210A , 79-22-10) (SIN 5210L).
(10)Disconnect the oil tube hose (30-300 , 79-22-10) (SIN 5210W) from the VFSG heat exchanger (01-010 , 73-11-20) (SIN 42400).
(11)Remove the bolts (30-130A , 79-22-10) (SIN 52122) and the cushion clamps (30-140A , 79-22-10) (SIN 52180) that attach the oil tube hose (30-300 , 79-22-10) (SIN 5210W) to the heat shield (40-010A) (SIN 29900).
(12)Remove oil tube hose (30-300 , 79-22-10) (SIN 5210W).
(13)Remove the VFSG cooling oil tube hose (oil hose) (30-200A , 79-22-10) (SIN 5210A) and the oil hose (30-280 , 79-22-10) (SIN 5210H). Refer to Figure 546 and do as follows:
(a)Remove the bolt (30-330 , 79-22-10) (SIN 5212A) and cushion clamp (30-260A , 79-22-10) (SIN 52181) that attach the oil tube hose (30-200A , 79-22-10) (SIN 5210A) to the bracket (30-320 , 79-22-10) (SIN 52110).
(b)Disconnect the oil tube hose (30-200A , 79-22-10) (SIN 5210A) from the VFSG (65-010) (SIN C00A0).
Subtask 72-00-02-030-731
* * * PRE SB   79-0034( Oil Tube Hose with Preformed Packing )
(c)Disconnect the oil tube hose (30-200A , 79-22-10) (SIN 5210A) from the oil tube hose (30-280 , 79-22-10) (SIN 5210H). Remove and discard the preformed packing (30-270 , 79-22-10) (SIN 52151).
* * * END PRE SB   79-0034
Subtask 72-00-02-030-732
* * * SB   79-0034( Oil Tube Hose without Preformed Packing )
(c).A.Disconnect the oil tube hose (30-200A , 79-22-10) (SIN 5210A) from the oil tube hose (30-280 , 79-22-10) (SIN 5210H).
* * * END SB   79-0034
Subtask 72-00-02-030-733
(d)Remove the oil tube hose (30-200A , 79-22-10) (SIN 5210A).
(e)Disconnect the oil tube hose (30-280 , 79-22-10) (SIN 5210H) from the VFSG heat exchanger (01-010 , 73-11-20) (SIN 42400).
(f)Remove the oil tube hose (30-280 , 79-22-10) (SIN 5210H).
(14)Remove the VFSG cooling oil tube (oil tube) (30-160 , 79-22-10) (SIN 5210R) and VFSG cooling oil tube (oil tube) (30-150 , 79-22-10) (SIN 5210S). Refer to Figure 547 and do as follows:
(a)Disconnect the oil tube (30-150 , 79-22-10) (SIN 5210S) from the oil tube hose (30-120A , 79-22-10) (SIN 5210K).
(b)Disconnect the oil tube (30-150 , 79-22-10) (SIN 5210S) from the VFSG heat exchanger (01-010 , 73-11-20) (SIN 42400).
(c)Disconnect the oil tube (30-160 , 79-22-10) (SIN 5210R) from the oil tube (30-100 , 79-22-10) (SIN 5210B).
(d)Disconnect the oil tube (30-160 , 79-22-10) (SIN 5210R) from the VFSG heat exchanger (01-010 , 73-11-20) (SIN 42400).
(15)Remove the bolts (30-130A , 79-22-10) (SIN 52122) and cushion clamps (30-140A , 79-22-10) (SIN 52180) that attach the oil tube (30-100 , 79-22-10) (SIN 5210B) to the heat shield (40-010A) (SIN 29900). Remove the oil tube (30-100 , 79-22-10) (SIN 5210B).
(16)Remove the bolts (30-130A , 79-22-10) (SIN 52122) and cushion clamps (30-140A , 79-22-10) (SIN 52180) that attach the oil tube hose (30-120A , 79-22-10) (SIN 5210K) to the heat shield (40-010A) (SIN 29900). Remove the oil tube hose (30-120A , 79-22-10) (SIN 5210K).
(17)Remove the VFSG cooling oil tube hose (oil hose) (30-090A , 79-22-10) (SIN 5210J) and the VFSG cooling oil tube (oil tube) (30-290 , 79-22-10) (SIN 5210T) as follows:
(a)Disconnect the oil tube hose (30-090A , 79-22-10) (SIN 5210J) from the VFSG (65-010) (SIN C00A0).
Subtask 72-00-02-030-734
* * * PRE SB   79-0034( Oil Tube Hose with Preformed Packing )
(b)Disconnect the oil tube hose (30-090A , 79-22-10) (SIN 5210J) from the oil tube (30-290 , 79-22-10) (SIN 5210T). Remove the oil tube hose (30-090A , 79-22-10) (SIN 5210J). Remove and discard the preformed packing (30-270 , 79-22-10) (SIN 52151).
* * * END PRE SB   79-0034
Subtask 72-00-02-030-735
* * * SB   79-0034( Oil Tube Hose without Preformed Packing )
(b).A.Disconnect the oil tube hose (30-090A , 79-22-10) (SIN 5210J) from the oil tube (30-290 , 79-22-10) (SIN 5210T). Remove the oil tube hose (30-090A , 79-22-10) (SIN 5210J).
* * * END SB   79-0034
Subtask 72-00-02-030-736
(c)Remove the bolts (30-130A , 79-22-10) (SIN 52122) and cushion clamps (30-140A , 79-22-10) (SIN 52180) that attach the oil tube (30-290 , 79-22-10) (SIN 5210T) to the heat shield (40-010A) (SIN 29900). Remove the oil tube hose (30-290 , 79-22-10) (SIN 5210T).
(18)Remove the bolts that attach the bracket (5211N) to bracket (42412).
Subtask 72-00-02-030-611
AI.Continue the disassembly of the propulsor. Refer to TASK 72-00-02-030-803 (72-00-02, DISASSEMBLY 003).
* * * FOR ALL PIP 2
Figure 545   Removal of the VFSG Cooling Oil Tube Hose
* * * FOR ALL PIP 2
Figure 546   (Sheet 1 ) Removal of the VFSG Lube Line
* * * FOR ALL PIP 2
Figure 546   (Sheet 2 ) Removal of the VFSG Lube Line
* * * FOR ALL PIP 2

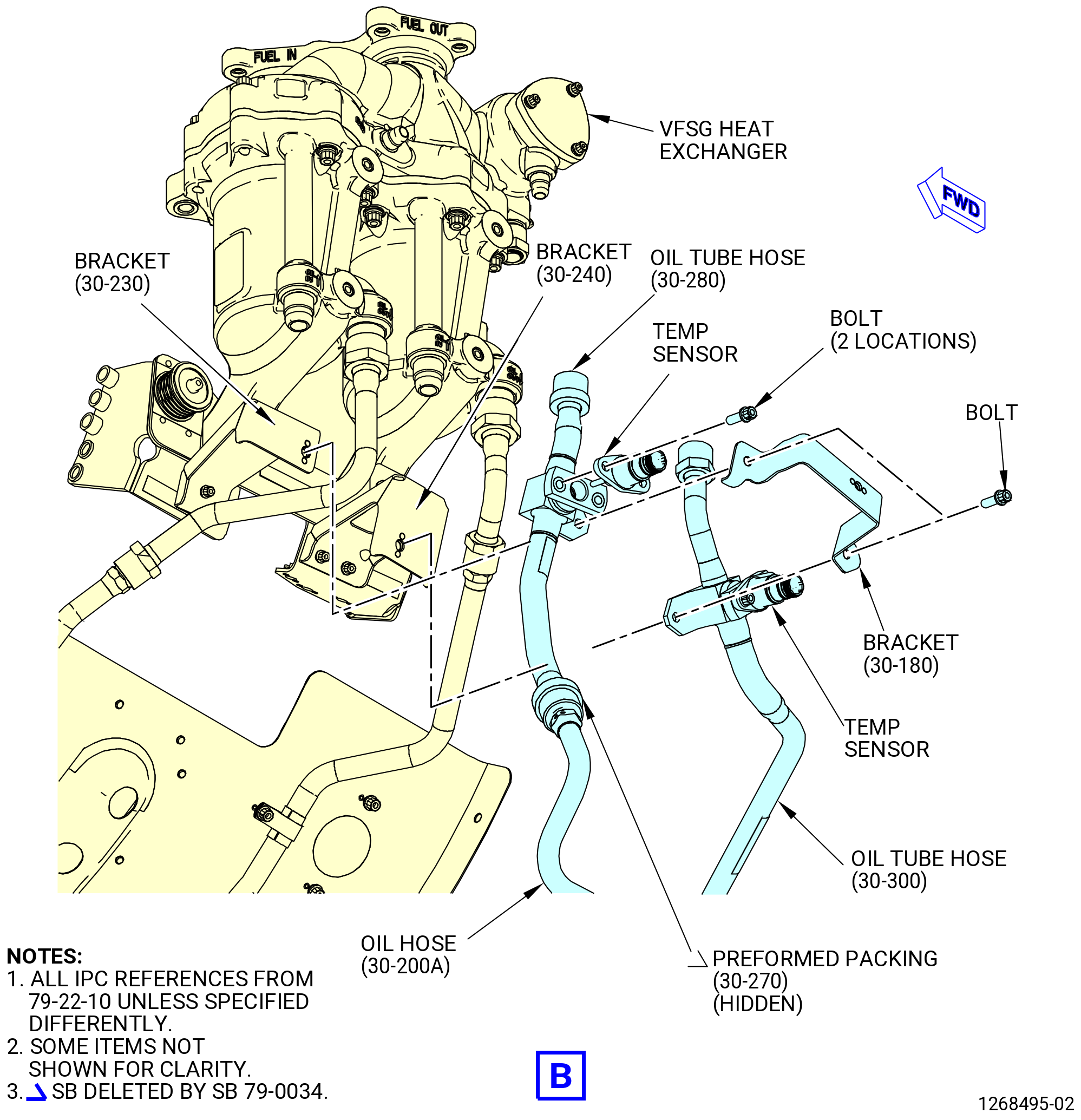

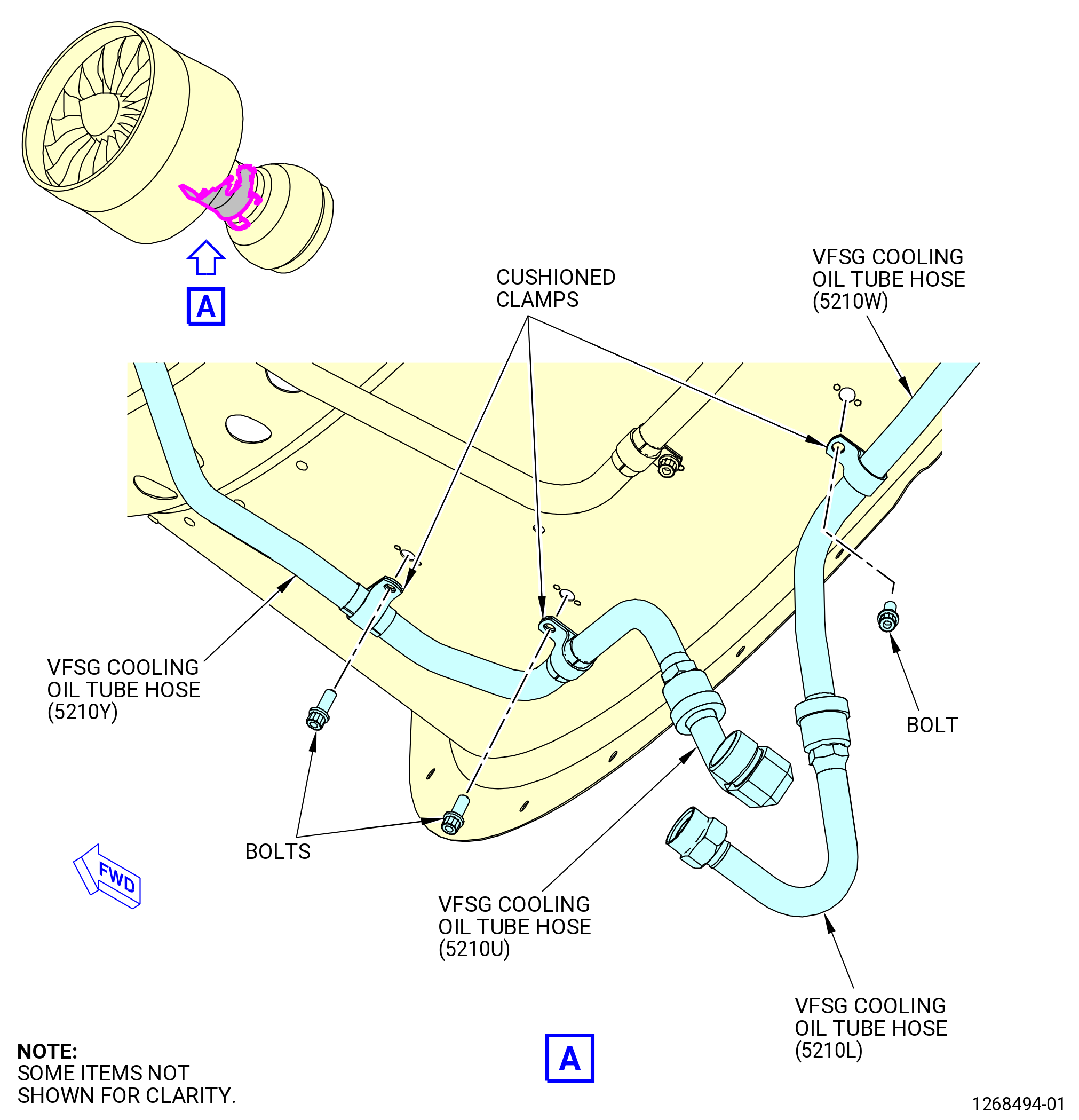

Figure 547   (Sheet 1 ) Removal of the VFSG Heat Exchanger Tube/Hoses and Hose Assemblies
* * * FOR ALL PIP 2

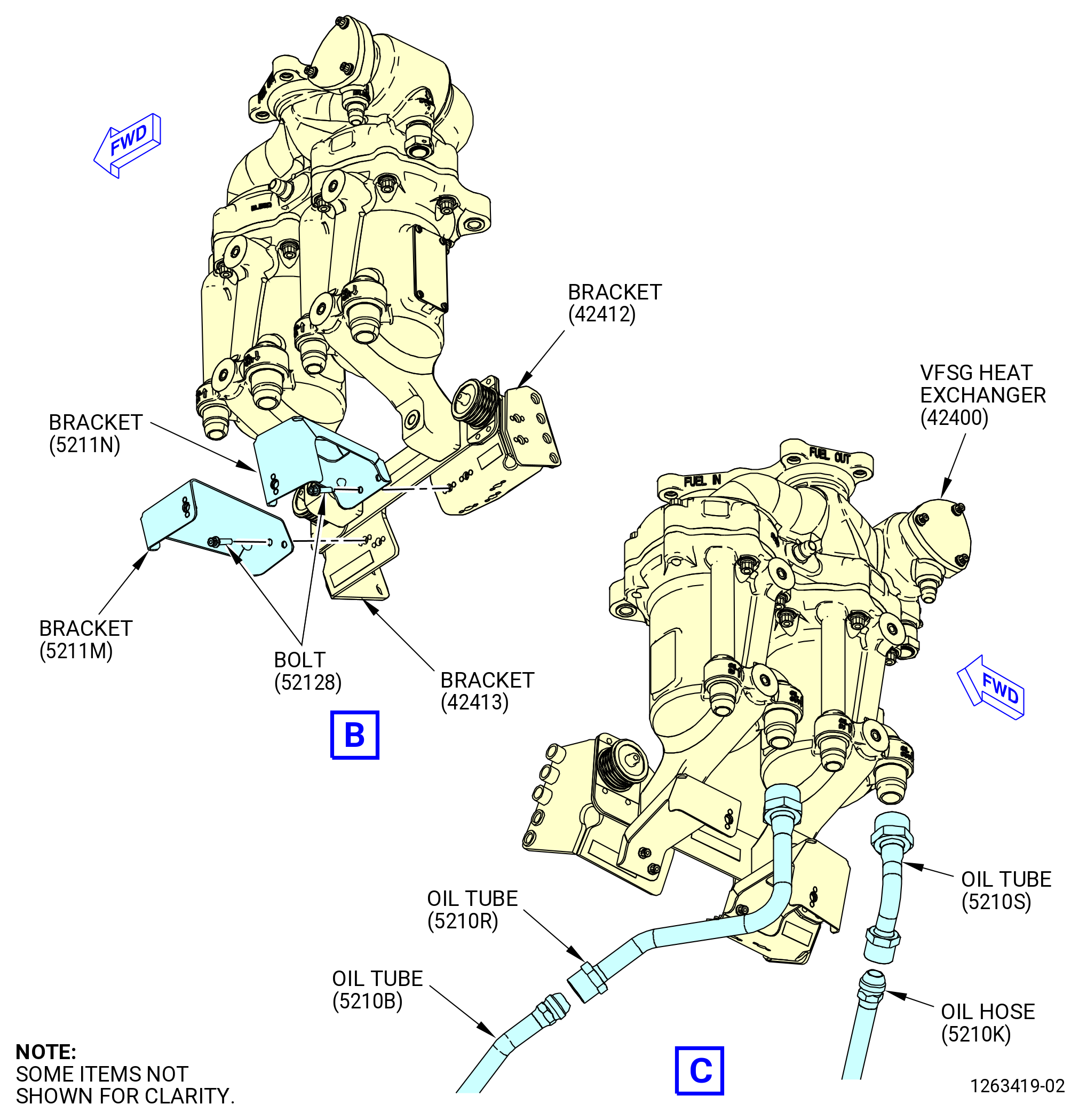

Figure 547   (Sheet 2 ) Removal of the VFSG Heat Exchanger Tube/Hoses and Hose Assemblies
* * * FOR ALL PIP 2
Figure 547   (Sheet 3 ) Removal of the VFSG Heat Exchanger Tube/Hoses and Hose Assemblies
* * * FOR ALL PIP 2
Figure 547   (Sheet 4 ) Removal of the VFSG Heat Exchanger Tube/Hoses and Hose Assemblies
